Establishment of Virus-Mediated Gene Silencing System in Cabbage

doi:10.7668/hbnxb.20195636

Abstract

Abstract:

Virus-induced gene silencing(VIGS)is a post-transcriptional gene silencing technique widely used in plant gene function research.However,there are few reports on the establishment of a VIGS system for cabbage in China.The aim of this study was to establish a PCVA/PCVB-mediated gene silencing system using phytoene desaturase(PDS) as an effective visual indicator gene in cabbage.Cabbage,Chinese cabbage,and radish were used as plant materials.The PDS gene was silenced by constructing the PCVA-PDS vector.The PCVA/PCVB-PDS-GFP vector was then generated and transformed into Agrobacterium tumefaciens,which was used to infect cabbage and tobacco epidermal cells via injection and to perform vacuum infiltration in cabbage seedlings.Real-time Quantitative PCR was used to study the applicability of the VIGS system in cabbage,and the system was also applied to another representative Brassicaceae crops-Chinese cabbage and radish.The results showed that green fluorescence could be observed on the cell membranes of cabbage and tobacco leaf cells after infection with Agrobacterium tumefaciens transformed with PCVA/PCVB-PDS-GFP.After 14 d of vacuum infiltration in cabbage seedlings,photobleaching appeared on the new leaves,with the affected area gradually expanding.Real-time Quantitative PCR analysis indicated that the relative expression of PDS homologous genes in the experimental groups decreased 3.2-fold and 1.7-fold compared to the control group,respectively.After infecting Chinese cabbage and radish seedlings,whitening of the leaf veins and some leaves was observed,along with some leaf curling.In conclusion,the photobleaching observed in cabbage leaves after PDS gene silencing demonstrates that the VIGS system effectively replicates and spreads within cabbage plants.The whitening of leaves in Chinese cabbage and radish also indicates that the VIGS system can be applied to other Brassicaceae crops,thus expanding the application scope of this silencing system.The establishment of the cabbage VIGS system provides a theoretical foundation for functional gene studies in Brassicaceae crops.

Key words: Cabbage, Photobleaching, Gene silencing, Virus-mediation, PDS

CLC Number:

S635.1

WANG Jiang, LIU Yonggui, HAN Rui, ZHONG Xionghui, XIE Jianming, KANG Jungen. Establishment of Virus-Mediated Gene Silencing System in Cabbage[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(3): 157-165. doi: 10.7668/hbnxb.20195636.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20195636

http://www.hbnxb.net/EN/Y2025/V40/I3/157

Figures/Tables 8

Tab.1 Primers used in this study

引物名称 Primer name	碱基序列(5'—3') Sequence(5'—3')
PDS-F	AACAACGAGATGCTGACATGG
PDS-R	GCGATTTCGTCAGGGAAGAG
PDS352KpnIFORPCVA-F	GCCTAAGCGGCTAGCGGTACCGCCACTCCAGTCGATATCCTG
PDS352XbaIFORPCVA-R	TAGGCTAGCGAGCTCAGATCTTTTGGTCAGCAGCGATTTCG
PCVA-detection-F	TGGGACCACGCATTAAATGA
PCVA-detection-R	TTTCGCAACGGACAGATCCT
PDS-silenced-qRT-7210-F	GTCCTTTGCAGGTAGTGTGTG
PDS-silenced-qRT-7210-R	CATCCTTCCATGCAGCTATC
PDS-silenced-qRT-9210-F	GGCAACTCAGTGGAAGGAAC
PDS-silenced-qRT-9210-R	CCTCATCAGTCACTCGATCAG
PCVA-PDS-GFP-F	TCGCTGCTGACCAAAAGATCTATGGTGAGCAAGGGCGAGGA
PCVA-PDS-GFP-R	TAGGCTAGCGAGCTCAGATCTCTTGTACAGCTCGTCCATGC

Fig.1 Results of multiple sequence alignment of PDS homologs Bo3g149210 and Bo4g127210

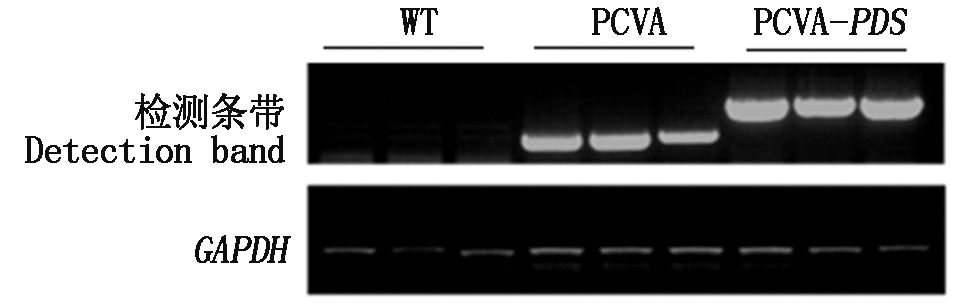

Fig.2 PCR amplification results showing bands for WT,PCVA empty vector,PCVA-PDS and the internal reference gene GAPDH in cabbage

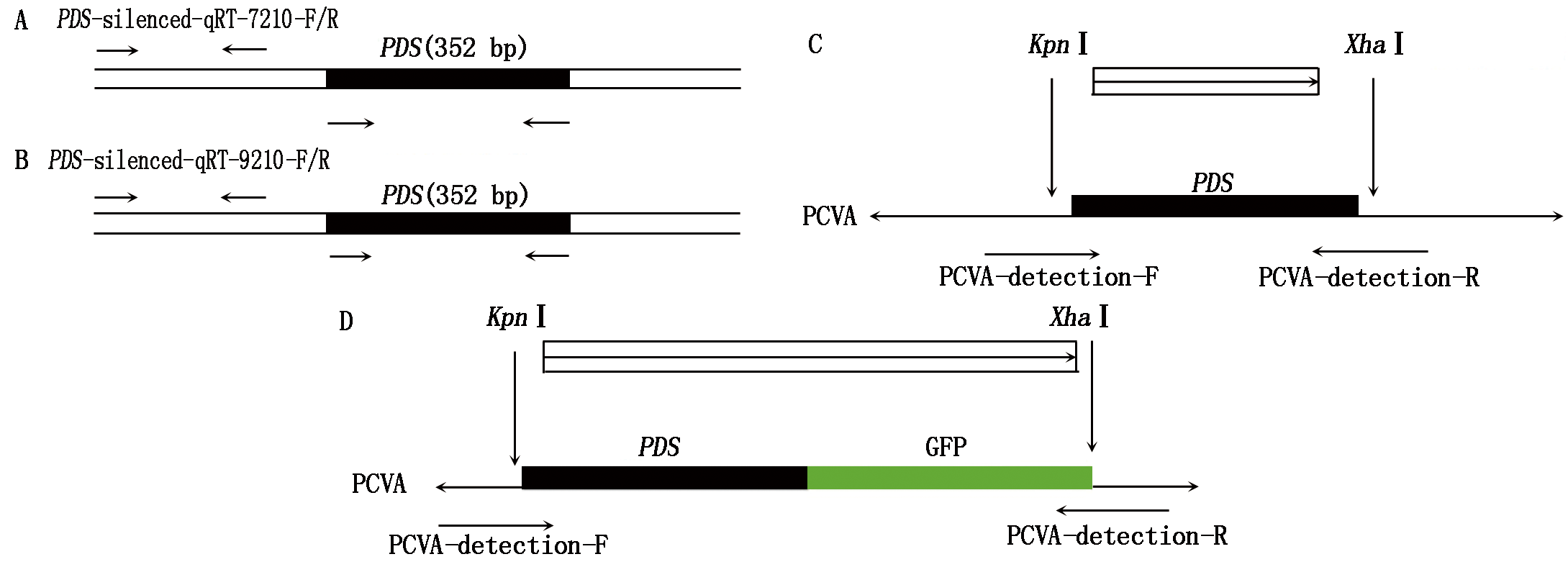

Fig.3 PDS gene insertion into the restriction site and construction of the vectors PCVA-PDS and PCVA-PDS-GFP A,B.Two PDS homolog gene with a size of 352 bp was inserted into PCVA vector,and PDS gene was detected using primers PDS-silenced-7210-F/R and PDS-silenced-9210-F/R;C. PDS gene fragment was inserted into PCVA vector to construct PCVA-PDS vector,the restriction sites were Kpn Ⅰ and Xha Ⅰ,and the primers PCVA-detection-F/R were used to detect the vector with target gene fragment;D.PCVA-PDS-GFP vector containing fluorescent protein GFP insert vector PCVA was constructed using primers PCVA-detection-F/R.

Fig.4 Expression of vector PCVA-PDS-GFP in cell membranes of cabbage and tobacco A—C show the fluorescence of the carrier in the cell membrane of cabbage leaves;D—F show the fluorescence of the carrier in tobacco cell membrane.

Fig.5 Leaf photobleaching caused by virus-mediated PDS gene silencing in cabbage A—I.The white phenotype of cabbage leaves veins and some leaves caused by gene silencing;J—L.The albino phenomenon that occurred during the growth of cabbage plants.The photobleaching of cabbage leaves gradually expanded from a small area to the whole leaf with time.

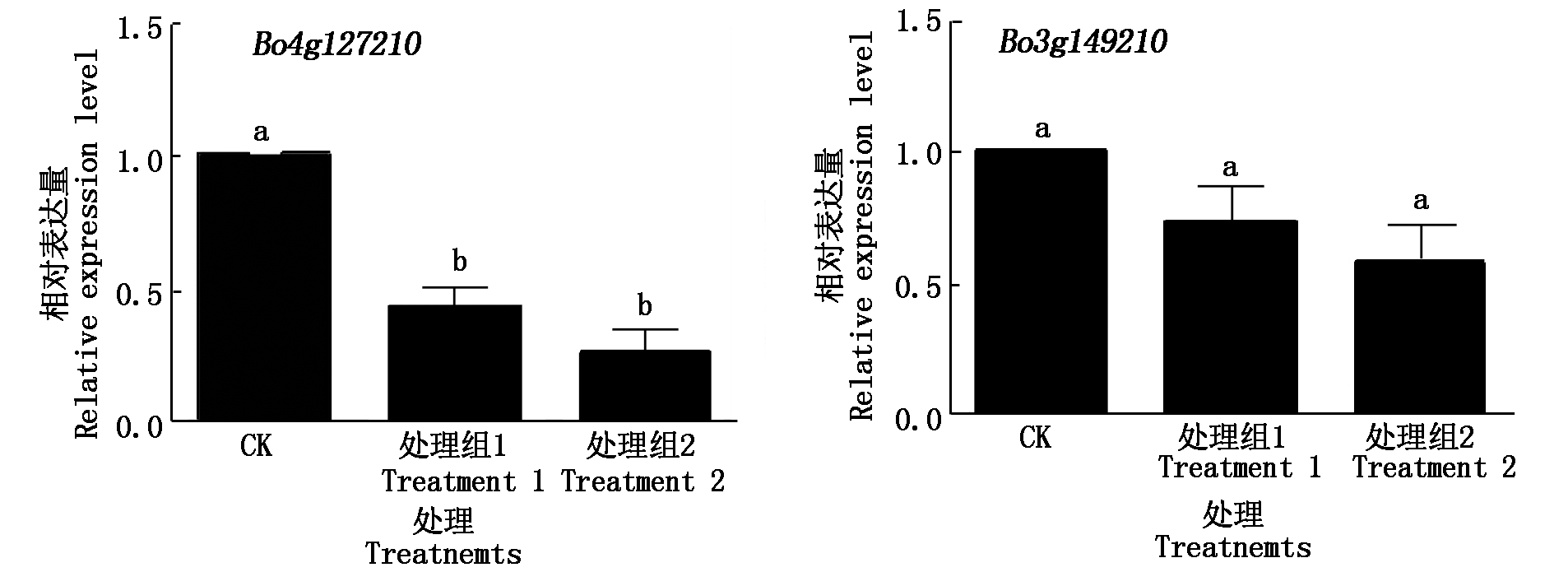

Fig 6 Relative expression levels of virus-mediated silencing system Bo4g127210 and Bo3g149210 in cabbage plants Different lowercase letters represent significant difference(P <0.05).

Fig.7 Application of the cabbage PDS gene silencing system in Chinese cabbage and radish A—H.The leaf albino phenotype of radish plants;I—P.The leaf albino phenotype of Chinese cabbage.In the figure,the whitening range of radish leaves expands with the veins;the leaves of Chinese cabbage have large albino area and curly leaves.

References 28

[1]	Voinnet O. RNA silencing as a plant immune system against viruses[J]. Trends in Genetics, 2001, 17(8):449-459.doi:10.1016/S0168-9525(01)02367-8. pmid: 11485817
[2]	Senthil-Kumar M, Mysore K S. New dimensions for VIGS in plant functional genomics[J]. Trends in Plant Science, 2011, 16(12):656-665.doi:10.1016/j.tplants.2011.08.006. pmid: 21937256
[3]	Lu R, Martin-Hernandez A M, Peart J R, Malcuit I, Baulcombe D C. Virus-induced gene silencing in plants[J]. Methods, 2003, 30(4):296-303.doi:10.1016/S1046-2023(03)00037-9. pmid: 12828943
[4]	Dinesh-Kumar S P, Anandalakshmi R, Marathe R, Schiff M, Liu Y L. Virus-induced gene silencing[J]. Methods in Molecular Biology, 2003, 236:287-294.doi:10.1385/1-59259-413-1:287. pmid: 14501071
[5]	Pumplin N, Voinnet O. RNA silencing suppression by plant pathogens: defence, counter-defence and counter-counter-defence[J]. Nature Review Microbiology, 2013, 11:745-760.doi:10.1038/nrmicro3120.
[6]	Kumagai M H, Donson J, della-Cioppa G, Harvey D, Hanley K, Grill L K. Cytoplasmic inhibition of carotenoid biosynthesis with virus-derived RNA[J]. Proceedings of the National Academy of Sciences of the United States of America, 1995, 92(5):1679-1683.doi:10.1073/pnas.92.5.1679. pmid: 7878039
[7]	张晓萝, 张之为, 娜仁, 杨叔清, 高婧, 赵君. 马铃薯中VIGS沉默体系的研究[J]. 华北农学报, 2014, 29(1):36-40.doi:10.7668/hbnxb.2014.01.008.
	Zhang X L, Zhang Z W, Na R, Yang S Q, Gao J, Zhao J. The effects of different potato genotypes and different inoculation methods on VIGS silence efficiency[J]. Acta Agriculturae Boreali-Sinica, 2014, 29(1):36-40.
[8]	张立荣, 杨文香, 刘大群. 在小麦上实施基因沉默的VIGS系统优化[J]. 华北农学报, 2011, 26(2):111-113.doi:10.7668/hbnxb.2011.02.024.
	Zhang L R, Yang W X, Liu D Q. Optimisation of barley stripe mosaic virus-induced gene silencing in wheat[J]. Acta Agriculturae Boreali-Sinica, 2011, 26(2):111-113. doi: 10.7668/hbnxb.2011.02.024
[9]	张怡, 徐克东, 杨松, 李豪, 曹鹏, 魏森, 韦丹丹, 李成伟. 蔊菜病毒诱导基因沉默体系构建[J]. 华北农学报, 2013, 28(6):65-70.doi:10.7668/hbnxb.2013.06.011.doi:10.7668/hbnxb.2013.06.011.
	Zhang Y, Xu K D, Yang S, Li H, Cao P, Wei S, Wei D D, Li C W. Virus-induced gene silencing in rorippa indica hiern[J]. Acta Agriculturae Boreali-Sinica, 2013, 28(6):65-70. doi: 10.7668/hbnxb.2013.06.011
[10]	Holzberg S, Brosio P, Gross C, Pogue G P. Barley stripe mosaic virus-induced gene silencing in a monocot plant[J]. The Plant Journal, 2002, 30(3):315-327.doi:10.1046/j.1365-313x.2002.01291.x.
[11]	Scofield S R, Huang L, Brandt A S, Gill B S. Development of a virus-induced gene-silencing system for hexaploid wheat and its use in functional analysis of the Lr21-mediated leaf rust resistance pathway[J]. Plant Physiology, 2005, 138(4):2165-2173.doi:10.1104/pp.105.061861. pmid: 16024691
[12]	Constantin G D, Krath B N, MacFarlane S A, Nicolaisen M, Elisabeth Johansen I, Lund O S. Virus-induced gene silencing as a tool for functional genomics in a legume species[J]. The Plant Journal, 2004, 40(4):622-631.doi:10.1111/j.1365-313x.2004.02233.x.
[13]	Zhang C Q, Ghabrial S A. Development of bean pod mottle virus-based vectors for stable protein expression and sequence-specific virus-induced gene silencing in soybean[J]. Virology, 2006, 344(2):401-411.doi:10.1016/j.virol.2005.08.046. pmid: 16226780
[14]	Fu D Q, Zhu B Z, Zhu H L, Jiang W B, Luo Y B. Virus-induced gene silencing in tomato fruit[J]. The Plant Journal, 2005, 43(2):299-308.doi:10.1111/j.1365-313x.2005.02441.x.
[15]	Valentine T, Shaw J, Blok V C, Phillips M S, Oparka K J, Lacomme C. Efficient virus-induced gene silencing in roots using a modified tobacco rattle virus vector[J]. Plant Physiology, 2004, 136(4):3999-4009.doi:10.1104/pp.104.051466. pmid: 15591447
[16]	Cai X Z, Xu Q F, Wang C C, Zheng Z. Development of a virus-induced gene-silencing system for functional analysis of the RPS2-dependent resistance signalling pathways in Arabidopsis[J]. Plant Molecular Biology, 2006, 62(1):223-232.doi:10.1007/s11103-006-9016-z.
[17]	Pflieger S, Blanchet S, Camborde L, Drugeon G, Rousseau A, Noizet M, Planchais S, Jupin I. Efficient virus-induced gene silencing in Arabidopsis using a one-step TYMV-derived vector[J]. The Plant Journal, 2008, 56(4):678-690.doi:10.1111/j.1365-313x.2008.03620.x.
[18]	Camborde L, Tournier V, Noizet M, Jupin I. A Turnip yellow mosaic virus infection system in Arabidopsis suspension cell culture[J]. FEBS Letters, 2007, 581(2):337-341.doi:10.1016/j.febslet.2006.12.045. pmid: 17222410
[19]	Rössner C, Lotz D, Becker A. VIGS goes viral:how VIGS transforms our understanding of plant science[J]. Annual Review of Plant Biology, 2022, 73:703-728.doi:10.1146/annurev-arplant-102820-020542.
[20]	Vance V, Vaucheret H. RNA silencing in plants-defense and counterdefense[J]. Science, 2001, 292(5525):2277-2280.doi:10.1126/science.1061334. pmid: 11423650
[21]	Robertson D. Vigs vectors for gene silencing:many targets,many tools[J]. Annual Review of Plant Biology, 2004, 55:495-519.doi:10.1146/annurev.arplant.55.031903.141803.
[22]	Baulcombe D. RNA silencing[J]. Trends in Biochemical Sciences, 2005, 30(6):290-293.doi:10.1016/j.tibs.2005.04.012. pmid: 15950871
[23]	Godge M R, Purkayastha A, Dasgupta I, Kumar P P. RETRACTED ARTICLE:virus-induced gene silencing for functional analysis of selected genes[J]. Plant Cell Reports, 2008, 27(2):209-219.doi:10.1007/s00299-007-0460-2. pmid: 17938933
[24]	Zulfiqar S, Farooq M A, Zhao T T, Wang P P, Tabusam J, Wang Y H, Xuan S X, Zhao J J, Chen X P, Shen S X, Gu A X. Virus-induced gene silencing(VIGS):a powerful tool for crop improvement and its advancement towards epigenetics[J]. International Journal of Molecular Sciences, 2023, 24(6):5608.doi:10.3390/ijms24065608.
[25]	Zhong X H, Yuan X, Wu Z, Khan M A, Chen J, Li X X, Gong B H, Zhao Y, Wu J, Wu C Y, Yi M F. Virus-induced gene silencing for comparative functional studies in Gladiolus hybridus[J]. Plant Cell Reports, 2014, 33(2):301-312.doi:10.1007/s00299-013-1530-2.
[26]	Manmathan H, Shaner D L, Snelling J, Tisserat N, Lapitan N. Virus-induced gene silencing of Arabidopsis thaliana gene homologues in wheat identifies genes conferring improved drought tolerance[J]. Journal of Experimental Botany, 2013, 64(5):1381-1392.doi:10.1093/jxb/ert003. pmid: 23364940
[27]	Hsieh M H, Pan Z J, Lai P H, Lu H C, Yeh H H, Hsu C C, Wu W L, Chung M C, Wang S S, Chen W H, Chen H H. Virus-induced gene silencing unravels multiple transcription factors involved in floral growth and development in Phalaenopsis orchids[J]. Journal of Experimental Botany, 2013, 64(12):3869-3884.doi:10.1093/jxb/ert218.
[28]	Gao X Q, Wheeler T, Li Z H, Kenerley C M, He P, Shan L B. Silencing GhNDR1 and GhMKK2 compromises cotton resistance to Verticillium wilt[J]. The Plant Journal, 2011, 66(2):293-305.doi:10.1111/j.1365-313x.2011.04491.x.
