Development and Application of a High-Efficiency Dual-Base Editing Tool for Solanaceous Crops

doi:10.7668/hbnxb.20195725

Abstract

Abstract:

This study seeks to develop a highly efficient dual-base editing tool for solanaceous crops to address the challenges of poor compatibility and low editing efficiency associated with existing base editing systems in these plants. The research involved fusing the nickase Cas9 enzyme (nCas9),which has partially lost its nuclease function,with components such as the highly efficient adenine deaminase ABE8e,the optimized cytosine deaminase sdd7-mini,and the uracil glycosylation inhibitor UGI. Systematic optimization was conducted based on the promoter preferences and codon usage frequencies specific to solanaceous crops. Ultimately,the dual-base editor TPDBE-S was constructed. In transient transformation experiments using tomato and eggplant protoplasts,this editor exhibited exceptionally high editing efficiency. In the stable transformation system of tobacco,targeting the PDS gene verification revealed that four out of five positive transgenic families exhibited pronounced albinism phenotypes,thereby confirming the stable editing capability. The editing window of this editor aligns closely with the characteristics of ABE8e and sdd7-mini. Furthermore,optimizing codon preference and promoter activity in Solanaceae crops significantly enhances editing efficiency and adaptability. The construction of TPDBE-S employs a modular design. The multi-target expression cassette,based on the tRNA self-cleaving mechanism,can be rapidly assembled through one-step gene synthesis,which is both cost-effective and straightforward. This tool addresses the gap in double-base editing specifically for Solanaceous crops.

Key words: Eggplant, Gene editing, Dual-base editing, Tomato, Editing efficiency

CLC Number:

TIAN Peng, LI Yadong, ZHANG Jingjing, TIAN Zhejuan, KANG Chen, GAO Xiurui, LI Bing, LIU Wei, WU Yanrong, WU Zhiming. Development and Application of a High-Efficiency Dual-Base Editing Tool for Solanaceous Crops[J]. Acta Agriculturae Boreali-Sinica, 2026, 41(1): 39-48. doi: 10.7668/hbnxb.20195725.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20195725

http://www.hbnxb.net/EN/Y2026/V41/I1/39

Figures/Tables 7

Tab.1 List of PCR primers

引物名称 Name	引物序列(5'—3') Primer sequence(5'—3')	用途 Purpose
T-A-180F	CCTCCAAACCCTCCACCCCA	检测编辑位点T-A
T-A+400R	CTCAGGCATAGCTGTTTCCTGCC	检测编辑位点T-A
T-B-60F	CGGAGGGGAGAGCTGAAATGGCT	检测编辑位点T-B
T-B+500R	AACCAGTCAGTCCACTGCTCCA	检测编辑位点T-B
T-C-150F	TGGGACGGGCGGAGATGGTT	检测编辑位点T-C
T-C+200R	CACCGCTCGAACCTGTCACAT	检测编辑位点T-C
E-2350F	TGCGTGTCGGATTCGCCAAAA	检测编辑位点E-A/B/C/D
E-4350R	CCTGCGAAAGGGCTTCCTCTGC	检测编辑位点E-A/B/C/D
Cas9-440F	TCCTCTAGCAAGTGGACCAACGTA	检测烟草转基因阳性植株
Cas9-440R	ACAAAGGCTCCTCTTTCAGCTTCTA	检测烟草转基因阳性植株

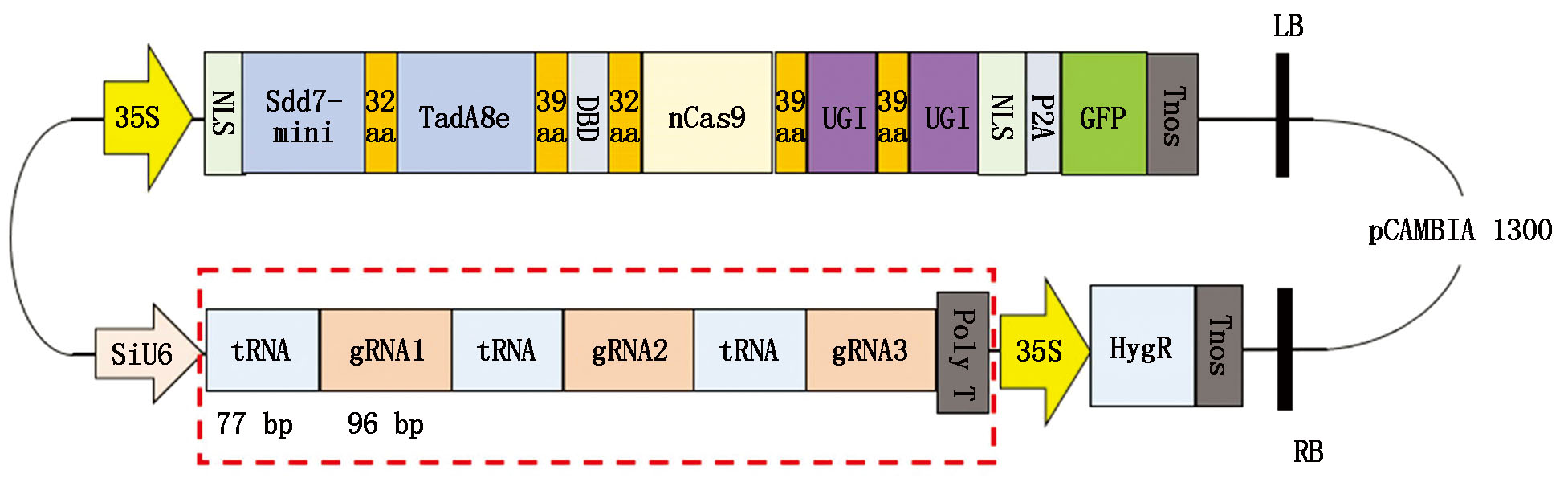

Fig.1 Schematic diagram of the double-base editor TPDBE-S structure 35S.Cauliflower mosaic virus 35S RNA promoter;NLS.Nuclear localization signal;Sdd7-mini.Cytosine deaminase;TadA8e.Adenine deaminase;32aa/39aa.Linker peptides of lengths 32aa/39aa;DBD.DNA-binding domain;nCas9.Cas9 nickase with partially lost nuclease function;UGI.Uracil glycosylase inhibitor;P2A.Self-cleaving sequence derived from porcine teschovirus;GFP.Green fluorescent protein;Tnos.Transcription terminator;SiU6.Tomato SiU6 RNase Ⅲ promoter;tRNA.Transfer RNA sequence(77 bp);gRNA.Guide RNA sequence(96 bp);Poly T.Transcription termination signal;HygR.Hygromycin phosphotransferase;LB/RB.Left and right borders for binary vector insertion into the plant genome.The red dashed box.Fragment that needs to be synthesized when editing the target genes.

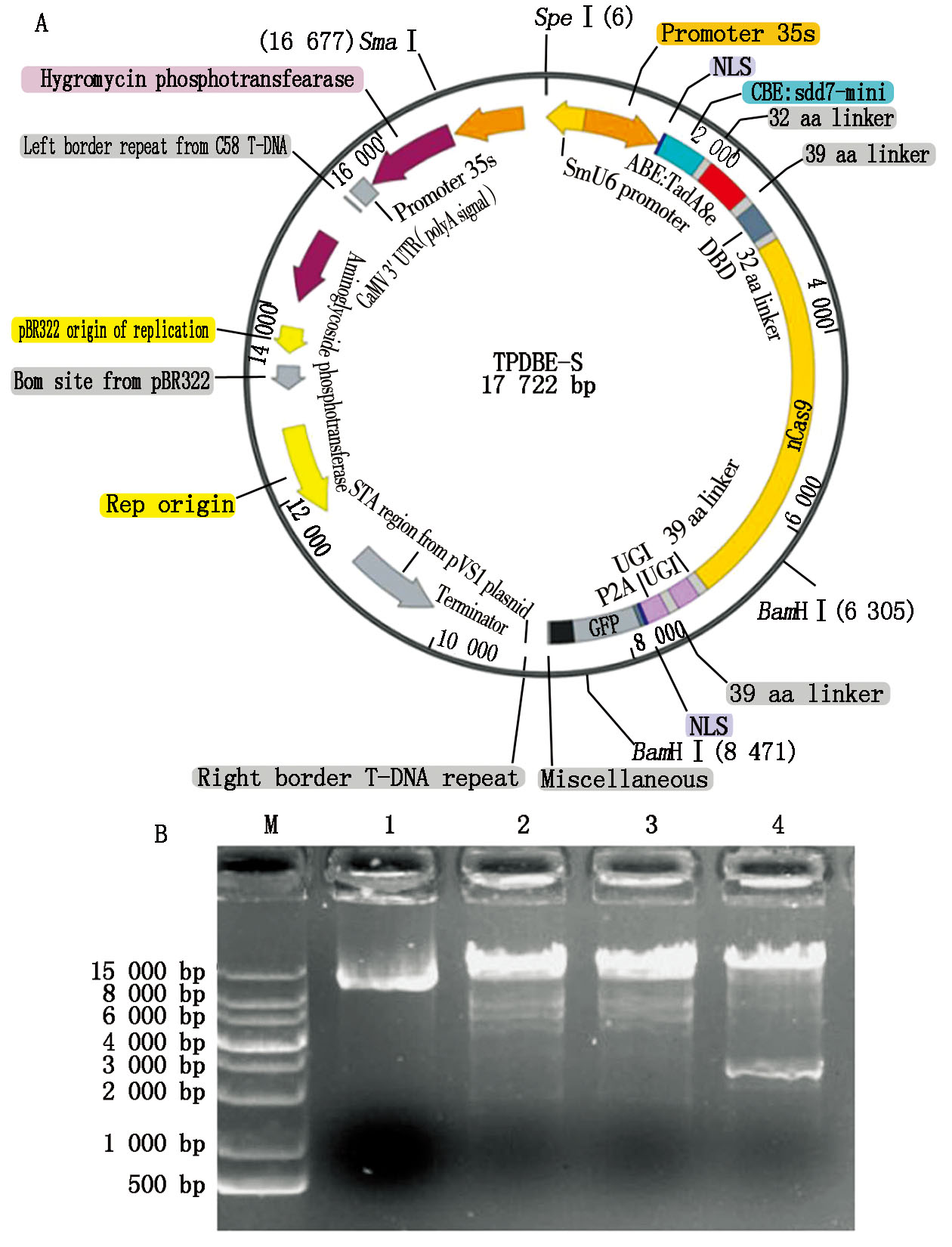

Fig.2 Schematic diagram of the double-base editor TPDBE-S structure and enzyme digestion verification A.Schematic diagram of the double-base editor TPDBE-S structure.This diagram was drawn using SnapGene V6.0.2 software,with key restriction sites highlighted.B.Enzyme digestion verification of the double-base editor TPDBE-S: M.Marker,1.TPDBE-S plasmid,2.TPDBE-S Plasmid Spe Ⅰ digestion,3.TPDBE-S plasmid Sma Ⅰ digestion,4.TPDBE-S plasmid BamH Ⅰ digestion.

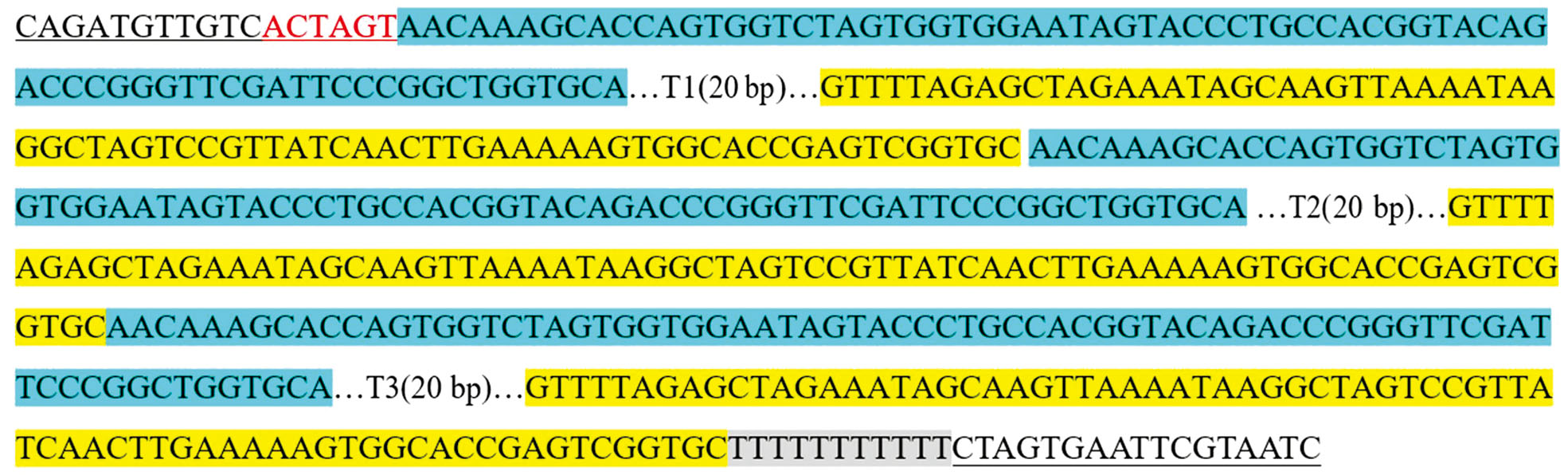

Fig.3 Schematic diagram of the double-base editor TPDBE-S gRNA expression cassette sequence and structure The underlined portions at the start and end of the sequences.The homologous arm sequences flanking the Spe Ⅰ restriction site on the TPDBE-S vector,Red font.The Spe Ⅰ restriction site;Blue shaded portions.The tRNA sequences;Yellow shaded portion.The tracrRNA sequences;T1—T3.CRISPR-Cas9-targeted sequences;The gray shaded portion.The Poly T termination signal.

Tab.2 Statistics on editing efficiency at different sites

位点 Site	物种 Species	基因号 Gene number	靶标序列 Target sequence	总编辑效率 Overall editing efficiency	A-G的编辑效率 Editing efficiency of A-G	C-T的编辑效率 Editing efficiency of C-T	A-G&C-T的编辑效率 Editing efficiency of A-G&C-T
T-A	番茄	Solyc01g105270	TCAAAGATGGGGCGAACTCG TGG	86.7%(26/30)	66.7%(20/30)	60.0%(18/30)	40.0%(12/30)
T-B	番茄	Solyc02g080370	ACGTCAACGAATCCGTTCAG TGG	80.0%(24/30)	53.3%(16/30)	60.0%(18/30)	33.3%(10/30)
T-C	番茄	Solyc01g007900	CAACGCCGTAGAGAACAGCA AGG	53.3%(16/30)	0(0/30)	53.3%(16/30)	0(0/30)
E-A	茄子	Smechr0602754	ACTTCAAAGGGCTAGCTCTC AGG	66.7%(20/30)	36.7%(11/30)	46.7%(14/30)	16.7%(5/30)
E-B	茄子	Smechr0602754	TGTTTGACATGGAATATTCA AGG	55.3%(16/30)	53.3%(16/30)	3.3%(1/30)	3.3%(1/30)
E-C	茄子	Smechr0602754	TTGTAATGCAGTTCGAAGCT CGG	90.0%(27/30)	70.0%(21/30)	56.7%(17/30)	36.7%(11/30)
E-D	茄子	Smechr0602754	GAACGCTGCTTCCTTTGGAT GGG	63.3%(19/30)	0(0/30)	63.3%(19/30)	0(0/30)

Fig.4 Editing efficiency of the dual-base editor TPDBE-S in the stable transformation system of Nicotiana tabacum A.Phenotypes of positive transgenic plants(lines #1—#5)obtained via Agrobacterium-mediated transformation with TPDBE-S.The albinotic sectors,indicative of targeted mutagenesis,are indicated by red arrows.Scale bar.1 cm.B.PCR-based genotyping of transgenic N.tabacum T-DNA insertion events: M.DNA molecular-weight Marker,CK+.Positive control(TPDBE-S plasmid),CK-.Negative control(H₂O),#1—#5.PCR products corresponding to the five independent transgenic lines.

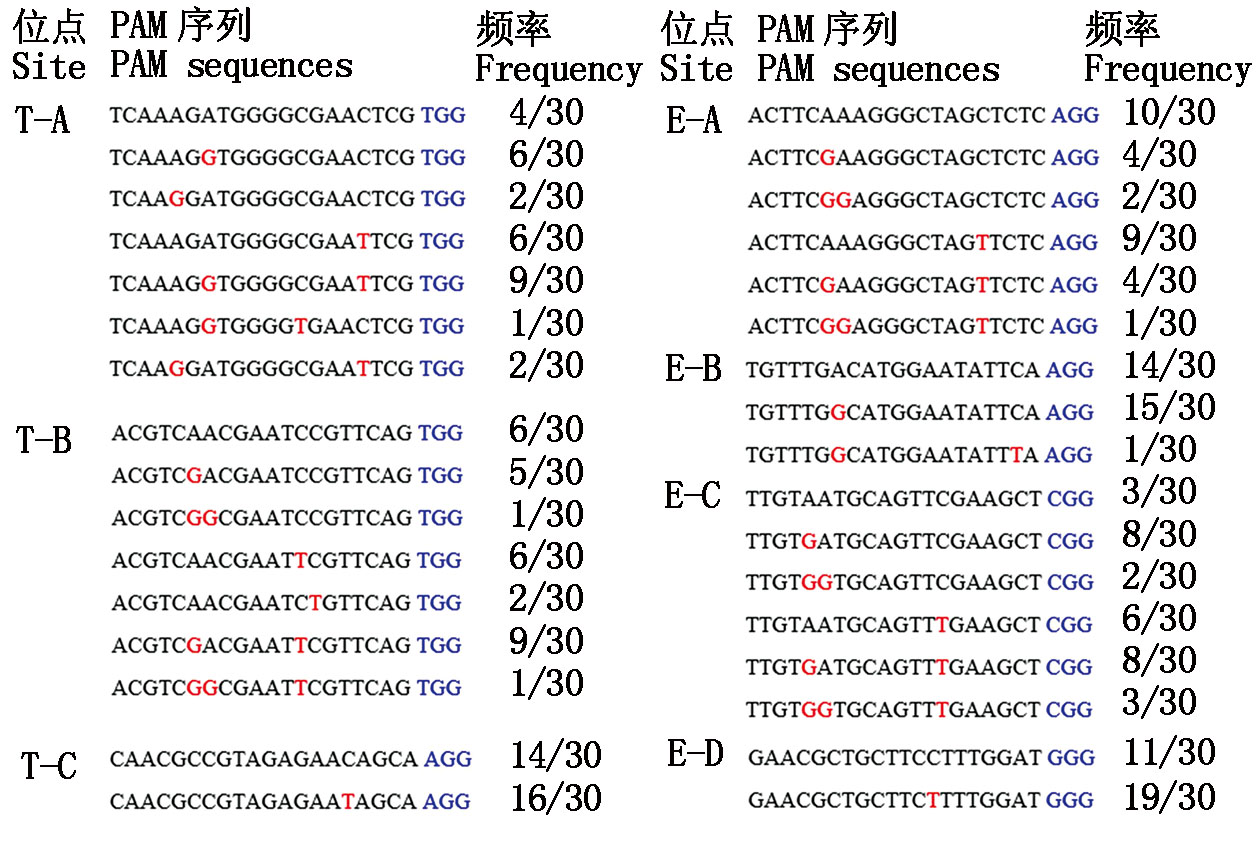

Fig.5 Overview of editing window and frequency of TPDBE-S at various target sites Blue characters.PAM sites;Red characters.The edited sites.

References 53

[1]	姜政, 杜丽慧, 张宇, 申磊, 杨旭. 茄果类蔬菜单性结实研究进展[J]. 中国瓜菜, 2022, 35(3):1-8.doi:10.16861/j.cnki.zggc.2022.0055.
	Jiang Z, Du L H, Zhang Y, Shen L, Yang X. Progress on research of parthenogenesis of solanaceous vegetables[J]. China Cucurbits and Vegetables, 2022, 35(3):1-8.
[2]	仲苏. 2019年茄果类、瓜类蔬菜重要研究进展[J]. 中国蔬菜, 2020(1):16-21.doi:10.19928/j.cnki.1000-6346.2020.01.004.
	Zhong S. Important research progress of eggplant and cucumber vegetables in 2019[J]. China Vegetables, 2020(1):16-21.
[3]	Gao C X. Genome engineering for crop improvement and future agriculture[J]. Cell, 2021, 184(6):1621-1635.doi:10.1016/j.cell.2021.01.005. pmid: 33581057
[4]	Zhang Y X, Qi Y P. CRISPR enables directed evolution in plants[J]. Genome Biology, 2019, 20(1):83.doi:10.1186/s13059-019-1693-4. pmid: 31036063
[5]	Halperin S O, Tou C J, Wong E B, Modavi C, Schaffer D V, Dueber J E. CRISPR-guided DNA polymerases enable diversification of all nucleotides in a tunable window[J]. Nature, 2018, 560(7717):248-252.doi:10.1038/s41586-018-0384-8.
[6]	Ledford H. CRISPR,the disruptor[J]. Nature, 2015, 522(7554):20-24.doi:10.1038/522020a. URL
[7]	Rees H A, Liu D R. Base editing:precision chemistry on the genome and transcriptome of living cells[J]. Nature Reviews Genetics, 2018, 19(12):770-788.doi:10.1038/s41576-018-0059-1.
[8]	Gaudelli N M, Komor A C, Rees H A, Packer M S, Badran A H, Bryson D I, Liu D R. Programmable base editing of A·T to G·C in genomic DNA without DNA cleavage[J]. Nature, 2017, 551(7681):464-471.doi:10.1038/nature24644. URL
[9]	张雅玲, 王锌和, 李构思, 曾栋昌, 祝钦泷, 陈乐天, 刘耀光. 新型DNA碱基编辑器的研究进展[J]. 华南农业大学学报, 2022, 43(6):1-16.doi:10.7671/j.issn.1001-411X.202208053.
	Zhang Y L, Wang X H, Li G S, Zeng D C, Zhu Q L, Chen L T, Liu Y G. Research advances in novel DNA base editors[J]. Journal of South China Agricultural University, 2022, 43(6):1-16.
[10]	Zong Y, Wang Y P, Li C, Zhang R, Chen K L, Ran Y D, Qiu J L, Wang D W, Gao C X. Precise base editing in rice,wheat and maize with a Cas9-cytidine deaminase fusion[J]. Nature Biotechnology, 2017, 35(5):438-440.doi:10.1038/nbt.3811. URL
[11]	Cheng H T, Hao M Y, Ding B L, Mei D S, Wang W X, Wang H, Zhou R J, Liu J, Li C, Hu Q. Base editing with high efficiency in allotetraploid oilseed rape by A3A-PBE system[J]. Plant Biotechnology Journal, 2021, 19(1):87-97.doi:10.1111/pbi.13444. URL
[12]	Jin S, Fei H Y, Zhu Z X, Luo Y F, Liu J X, Gao S H, Zhang F, Chen Y H, Wang Y P, Gao C X. Rationally designed APOBEC3B cytosine base editors with improved specificity[J]. Molecular Cell, 2020, 79(5):728-740.e6.doi:10.1016/j.molcel.2020.07.005. pmid: 32721385
[13]	Li C, Zong Y, Wang Y P, Jin S, Zhang D B, Song Q N, Zhang R, Gao C X. Expanded base editing in rice and wheat using a Cas9-adenosine deaminase fusion[J]. Genome Biology, 2018, 19(1):59.doi:10.1186/s13059-018-1443-z. pmid: 29807545
[14]	Lapinaite A, Knott G J, Palumbo C M, Lin-Shiao E, Richter M F, Zhao K T, Beal P A, Liu D R, Doudna J A. DNA capture by a CRISPR-Cas9-guided adenine base editor[J]. Science, 2020, 369(6503):566-571.doi:10.1126/science.abb1390. pmid: 32732424
[15]	Richter M F, Zhao K T, Eton E, Lapinaite A, Newby G A, Thuronyi B W, Wilson C, Koblan L W, Zeng J, Bauer D E, Doudna J A, Liu D R. Phage-assisted evolution of an adenine base editor with improved Cas domain compatibility and activity[J]. Nature Biotechnology, 2020, 38(7):883-891.doi:10.1038/s41587-020-0453-z. pmid: 32433547
[16]	Grünewald J, Zhou R H, Lareau C A, Garcia S P, Iyer S, Miller B R, Langner L M, Hsu J Y, Aryee M J, Joung J K. A dual-deaminase CRISPR base editor enables concurrent adenine and cytosine editing[J]. Nature Biotechnology, 2020, 38(7):861-864.doi:10.1038/s41587-020-0535-y. pmid: 32483364
[17]	Li C, Zhang R, Meng X B, Chen S, Zong Y, Lu C J, Qiu J L, Chen Y H, Li J Y, Gao C X. Targeted,random mutagenesis of plant genes with dual cytosine and adenine base editors[J]. Nature Biotechnology, 2020, 38(7):875-882.doi:10.1038/s41587-019-0393-7.
[18]	张瑞, 高彩霞. 基于双碱基编辑系统的植物基因靶向随机突变技术[J]. 植物学报, 2021, 56(1):50-55.doi:10.11983/CBB21009.
	Zhang R, Gao C X. Saturation mutagenesis using dual cytosine and adenine base editors[J]. Bulletin of Botany, 2021, 56(1):50-55. doi: 10.11983/CBB21009
[19]	Zhang X H, Zhu B Y, Chen L, Xie L, Yu W S, Wang Y, Li L X, Yin S M, Yang L, Hu H D, Han H H, Li Y M, Wang L R, Chen G, Ma X Y, Geng H Q, Huang W F, Pang X F, Yang Z Z, Wu Y X, Siwko S, Kurita R, Nakamura Y, Yang L, Liu M Y, Li D L. Dual base editor catalyzes both cytosine and adenine base conversions in human cells[J]. Nature Biotechnology, 2020, 38(7):856-860.doi:10.1038/s41587-020-0527-y. pmid: 32483363
[20]	Xu R F, Kong F N, Qin R Y, Li J, Liu X S, Wei P C. Development of an efficient plant dual cytosine and adenine editor[J]. Journal of Integrative Plant Biology, 2021, 63(9):1600-1605.doi:10.1111/jipb.13146.
[21]	Tan J T, Zeng D C, Zhao Y C, Wang Y X, Liu T L, Li S C, Xue Y, Luo Y Y, Xie X R, Chen L T, Liu Y G, Zhu Q L. PhieABEs:a PAM-less/free high-efficiency adenine base editor toolbox with wide target scope in plants[J]. Plant Biotechnology Journal, 2022, 20(5):934-943.doi:10.1111/pbi.13774. URL
[22]	Gao J P, Wang G H, Ma S Y, Xie X D, Wu X W, Zhang X T, Wu Y Q, Zhao P, Xia Q Y. CRISPR/Cas9-mediated targeted mutagenesis in Nicotiana tabacum[J]. Plant Molecular Biology, 2015, 87(1):99-110.doi:10.1007/s11103-014-0263-0. URL
[23]	Moreno-Mateos M A, Vejnar C E, Beaudoin J D, Fernandez J P, Mis E K, Khokha M K, Giraldez A J. CRISPRscan:designing highly efficient sgRNAs for CRISPR-Cas9 targeting in vivo[J]. Nature Methods, 2015, 12(10):982-988.doi:10.1038/nmeth.3543. pmid: 26322839
[24]	Sun X J, Hu Z, Chen R, Jiang Q Y, Song G H, Zhang H, Xi Y J. Targeted mutagenesis in soybean using the CRISPR-Cas9 system[J]. Scientific Reports, 2015, 5:10342.doi:10.1038/srep10342. pmid: 26022141
[25]	Cong L, Ran F A, Cox D, Lin S L, Barretto R, Habib N, Hsu P D, Wu X B, Jiang W Y, Marraffini L A, Zhang F. Multiplex genome engineering using CRISPR/Cas systems[J]. Science, 2013, 339(6121):819-823.doi:10.1126/science.1231143. pmid: 23287718
[26]	Li J F, Norville J E, Aach J, McCormack M, Zhang D D, Bush J, Church G M, Sheen J. Multiplex and homologous recombination mediated genome editing in Arabidopsis and Nicotiana benthamiana using guide RNA and Cas9[J]. Nature Biotechnology, 2013, 31(8):688-691.doi:10.1038/nbt.2654.
[27]	Du H Y, Zeng X R, Zhao M, Cui X P, Wang Q, Yang H, Cheng H, Yu D Y. Efficient targeted mutagenesis in soybean by TALENs and CRISPR/Cas9[J]. Journal of Biotechnology, 2016, 217:90-97.doi:10.1016/j.jbiotec.2015.11.005. pmid: 26603121
[28]	刘春霞, 桂花萍, 文琴, 刘宇博, 高阳, 张秀娟, 崔瑞洁, 许建平. 番茄CRISPR/Cas9基因编辑效率的优化[J]. 分子植物育种, 2020, 18(20): 6716-6724. doi:10.13271/j.mpb.018.006716.
	Liu C X, Gui H P, Wen Q, Liu Y B, Gao Y, Zhang X J, Cui R J, Xu J P. CRISPR/Cas9 genome editing system optimization in tomato[J]. Molecular Plant Breeding, 2020, 18(20): 6716-6724.
[29]	王丹, 王谧, 刘军, 周晓慧, 刘松瑜, 杨艳, 庄勇. 茄子U6启动子克隆及CRISPR/Cas9介导的基因编辑体系建立[J]. 园艺学报, 2022, 49(4):791-800.doi:10.16420/j.issn.0513-353x.2021-0265.
	Wang D, Wang M, Liu J, Zhou X H, Liu S Y, Yang Y, Zhuang Y. Cloning of U6 promoters and establishment of CRISPR/Cas9 mediated gene editing system in eggplant[J]. Acta Horticulturae Sinica, 2022, 49(4):791-800.
[30]	McCarty N S, Graham A E, Studená L, Ledesma-Amaro R. Multiplexed CRISPR technologies for gene editing and transcriptional regulation[J]. Nature Communications, 2020, 11:1281.doi:10.1038/s41467-020-15053-x. pmid: 32152313
[31]	Minkenberg B, Wheatley M, Yang Y N. CRISPR/Cas9-enabled multiplex genome editing and its application[J]. Progress in Molecular Biology and Translational Science, 2017, 149:111-132.doi:10.1016/bs.pmbts.2017.05.003. pmid: 28712493
[32]	Giegé R. Toward a more complete view of tRNA biology[J]. Nature Structural & Molecular Biology, 2008, 15(10):1007-1014.doi:10.1038/nsmb.1498.
[33]	Xie K B, Minkenberg B, Yang Y N. Boosting CRISPR/Cas9 multiplex editing capability with the endogenous tRNA-processing system[J]. Proceedings of the National Academy of Sciences of the United States of America, 2015, 112(11):3570-3575.doi:10.1073/pnas.1420294112. pmid: 25733849
[34]	Qi W W, Zhu T, Tian Z R, Li C B, Zhang W, Song R T. High-efficiency CRISPR/Cas9 multiplex gene editing using the glycine tRNA-processing system-based strategy in maize[J]. BMC Biotechnology, 2016, 16(1):58.doi:10.1186/s12896-016-0289-2. pmid: 27515683
[35]	Hashimoto R, Ueta R, Abe C, Osakabe Y, Osakabe K. Efficient multiplex genome editing induces precise,and self-ligated type mutations in tomato plants[J]. Frontiers in Plant Science, 2018, 9:916.doi:10.3389/fpls.2018.00916. pmid: 30018630
[36]	Huang J Y, Lin Q P, Fei H Y, He Z X, Xu H, Li Y J, Qu K L, Han P, Gao Q, Li B S, Liu G W, Zhang L X, Hu J C, Zhang R, Zuo E W, Luo Y L, Ran Y D, Qiu J L, Zhao K T, Gao C X. Discovery of deaminase functions by structure-based protein clustering[J]. Cell, 2023, 186(15):3182-3195.e14.doi:10.1016/j.cell.2023.05.041. pmid: 37379837
[37]	Zheng Z Y, Liu T L, Chai N, Zeng D C, Zhang R X, Wu Y, Hang J X, Liu Y X, Deng Q D, Tan J T, Liu J L, Xie X R, Liu Y G, Zhu Q L. PhieDBEs:a DBD-containing,PAM-flexible,high-efficiency dual base editor toolbox with wide targeting scope for use in plants[J]. Plant Biotechnology Journal, 2024, 22(11):3164-3174.doi:10.1111/pbi.14438. URL
[38]	Liu Z Q, Chen O, Wall J B J, Zheng M, Zhou Y, Wang L, Ruth Vaseghi H, Qian L, Liu J D. Systematic comparison of 2A peptides for cloning multi-genes in a polycistronic vector[J]. Scientific Reports, 2017, 7:2193.doi:10.1038/s41598-017-02460-2. pmid: 28526819
[39]	Shan Q W, Wang Y P, Li J, Zhang Y, Chen K L, Liang Z, Zhang K, Liu J X, Xi J J, Qiu J L, Gao C X. Targeted genome modification of crop plants using a CRISPR-Cas system[J]. Nature Biotechnology, 2013, 31(8):686-688.doi:10.1038/nbt.2650. pmid: 23929338
[40]	曾栋昌, 马兴亮, 谢先荣, 祝钦泷, 刘耀光. 植物CRISPR/Cas9多基因编辑载体构建和突变分析的操作方法[J]. 中国科学(生命科学), 2018, 48(7):783-794.doi:10.1360/N052018-00069.
	Zeng D C, Ma X L, Xie X R, Zhu Q L, Liu Y G. A protocol for CRISPR/Cas9-based multi-gene editing and sequence decoding of mutant sites in plants[J]. Science in China(Series C), 2018, 48(7):783-794.
[41]	Lin C S, Hsu C T, Yang L H, Lee L Y, Fu J Y, Cheng Q W, Wu F H, Hsiao H C W, Zhang Y S, Zhang R, Chang W J, Yu C T, Wang W, Liao L J, Gelvin S B, Shih M C. Application of protoplast technology to CRISPR/Cas9 mutagenesis:from single-cell mutation detection to mutant plant regeneration[J]. Plant Biotechnology Journal, 2018, 16(7):1295-1310.doi:10.1111/pbi.12870. URL
[42]	Shimatani Z, Kashojiya S, Takayama M, Terada R, Arazoe T, Ishii H, Teramura H, Yamamoto T, Komatsu H, Miura K, Ezura H, Nishida K, Ariizumi T, Kondo A. Targeted base editing in rice and tomato using a CRISPR-Cas9 cytidine deaminase fusion[J]. Nature Biotechnology, 2017, 35(5):441-443.doi:10.1038/nbt.3833. pmid: 28346401
[43]	Kim H, Kim S T, Ryu J, Kang B C, Kim J S, Kim S G. CRISPR/Cpf1-mediated DNA-free plant genome editing[J]. Nature Communications, 2017, 8:14406.doi:10.1038/ncomms14406. pmid: 28205546
[44]	Li B J, Shang Y, Wang L, Lyu J, Wu Q, Wang F J, Chao J T, Mao J J, Ding A M, Wu X R, Xue K L, Chen C, Cui M M, Sun Y H, Zhang H W, Dai C B. Efficient genome editing in dicot plants using calreticulin promoter-driven CRISPR/Cas system[J]. Molecular Horticulture, 2025, 5(1):9.doi:10.1186/s43897-024-00128-w.
[45]	Chen L, Zhang S, Xue N N, Hong M J, Zhang X H, Zhang D, Yang J, Bai S J, Huang Y F, Meng H W, Wu H, Luan C M, Zhu B Y, Ru G M, Gao H Y, Zhong L P, Liu M Z, Liu M Y, Cheng Y Y, Yi C Q, Wang L R, Zhao Y X, Song G J, Li D L. Engineering a precise adenine base editor with minimal bystander editing[J]. Nature Chemical Biology, 2023, 19(1):101-110.doi:10.1038/s41589-022-01163-8.
[46]	Xiao Y L, Wu Y, Tang W X. An adenine base editor variant expands context compatibility[J]. Nature Biotechnology, 2024, 42(9):1442-1453.doi:10.1038/s41587-023-01994-3.
[47]	Xu W, Yang Y X, Liu Y, Kang G T, Wang F P, Li L, Lyu X X, Zhao S, Yuan S, Song J L, Wu Y, Feng F, He X Q, Zhang C W, Song W, Zhao J R, Yang J X. Discriminated sgRNAs-based SurroGate system greatly enhances the screening efficiency of plant base-edited cells[J]. Molecular Plant, 2020, 13(1):169-180.doi:10.1016/j.molp.2019.10.007. pmid: 31634585
[48]	Zeng D C, Liu T L, Tan J T, Zhang Y L, Zheng Z Y, Wang B, Zhou D G, Xie X R, Guo M H, Liu Y G, Zhu Q L. PhieCBEs:plant high-efficiency cytidine base editors with expanded target range[J]. Molecular Plant, 2020, 13(12):1666-1669.doi:10.1016/j.molp.2020.11.001. URL
[49]	Komor A C, Kim Y B, Packer M S, Zuris J A, Liu D R. Programmable editing of a target base in genomic DNA without double-stranded DNA cleavage[J]. Nature, 2016, 533(7603):420-424.doi:10.1038/nature17946.
[50]	Komor A C, Zhao K T, Packer M S, Gaudelli N M, Waterbury A L, Koblan L W, Kim Y B, Badran A H, Liu D R. Improved base excision repair inhibition and bacteriophage Mu Gam protein yields C:G-to-T:a base editors with higher efficiency and product purity[J]. Science Advances, 2017, 3(8):eaao4774.doi:10.1126/sciadv.aao4774.
[51]	Zafra M P, Schatoff E M, Katti A, Foronda M, Breinig M, Schweitzer A Y, Simon A, Han T, Goswami S, Montgomery E, Thibado J, Kastenhuber E R, Sánchez-Rivera F J, Shi J W, Vakoc C R, Lowe S W, Tschaharganeh D F, Dow L E. Optimized base editors enable efficient editing in cells,organoids and mice[J]. Nature Biotechnology, 2018, 36(9):888-893.doi:10.1038/nbt.4194.
[52]	Song M, Lim J M, Min S, Oh J S, Kim D Y, Woo J S, Nishimasu H, Cho S R, Yoon S, Kim H H. Generation of a more efficient prime editor 2 by addition of the Rad51 DNA-binding domain[J]. Nature Communications, 2021, 12:5617.doi:10.1038/s41467-021-25928-2. pmid: 34556671
[53]	Zhang C, Zhong X, Li S Y, Yan L, Li J Y, He Y B, Lin Y, Zhang Y J, Xia L Q. Artificial evolution of OsEPSPS through an improved dual cytosine and adenine base editor generated a novel allele conferring rice glyphosate tolerance[J]. Journal of Integrative Plant Biology, 2023, 65(9):2194-2203.doi:10.1111/jipb.13543. URL
