Study on Stress-related Function of Wheat E3 Ubiquitin Ligase TaSINA101

doi:10.7668/hbnxb.20195704

Abstract

Abstract:

The ubiquitination pathway is one of the key signaling pathways in response to drought stress.In order to clarify the biological function of E3 ubiquitin ligase TaSINA101 gene in response to drought stress,the TaSINA61,TaSINA101 and TaSINA105 genes were cloned from JM47,an excellent drought-resistant wheat cultivar,and their sequence characteristics were analyzed by bioinformatics methods,and the expression levels of the three genes in wheat roots and leaves were detected by qRT-PCR under PEG-6000,NaCl,low temperature and ABA treatments.The heterologous expression of TaSINA101 in transgenic rice was used to analyze the biological function of TaSINA101 in response to drought stress.The results showed that the TaSINA61,TaSINA101 and TaSINA105 genes contained one intron and two exons,and the encoded proteins were composed of 282 amino acids.The qRT-PCR expression analysis showed that the expression of these three genes was induced by various abiotic stresses such as drought stress in roots and leaves.Phenotypic analysis of TaSINA101 transgenic rice under drought stress showed that the leaf fresh weight and dry weight, maximum root length, average root diameter and leaf relative water content of transgenic rice lines OE-1, OE-2 and OE-3 were significantly lower than those of wild type,while the relative conductivity of leaves of transgenic rice lines OE-1 and OE-2 was significantly higher than that of wild type.Therefore,TaSINA101 negatively regulates drought stress tolerance in rice.This study provides a basis for in-depth analysis of the biological function of TaSINA101 gene in wheat.

Key words: Wheat, Drought stress, E3 ubiquitin ligase, Expression analysis, Functional studies, TaSINA101

CLC Number:

LIU Yaxin, CHEN Tao, GAO Weidong, GUO Lijian, CHE Zhuo, YANG Delong. Study on Stress-related Function of Wheat E3 Ubiquitin Ligase TaSINA101[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(4): 19-28. doi: 10.7668/hbnxb.20195704.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20195704

http://www.hbnxb.net/EN/Y2025/V40/I4/19

Figures/Tables 8

Tab.1 Gene cloning and fluorescent quantitative PCR primer sequence

引物名称 Primer name	引物序列(5'-3') Primer sequence (5'-3')
TaSINA61-F	ATGGACGGGGGCACTACTAG
TaSINA61-R	TACACTGCGTACTGGTTTCAGAC
TaSINA101-F	ATGGATGGTGCTACCTCTAGCAAG
TaSINA101-R	TACACCGCGTATTGGTTTCAG
TaSINA105-F	ATGGATTGTGGTACCTCTAGCAAG
TaSINA105-R	TACACCGCGTACTGGTTTCAG
qRT-TaSINA61-F	GGCAAGAGGCAGAATGCAAC
qRT-TaSINA61-R	CGCTCGGGCATTCCTTCT
qRT-TaSINA101-F	CGAAGCTCATCGTTGTCTGA
qRT-TaSINA101-R	TACACCGCGTATTGGTTTCA
qRT-TaSINA105-F	TTAAGTTCACCCTAGAACCAGG
qRT-TaSINA105-R	GGGCTCATGCACCTTTACTTTAG
TaACTIN-F	GCCGTGCTTTCCCTCTATG
TaACTIN-R	GCTTCTCCTTGATGTCCCTTA

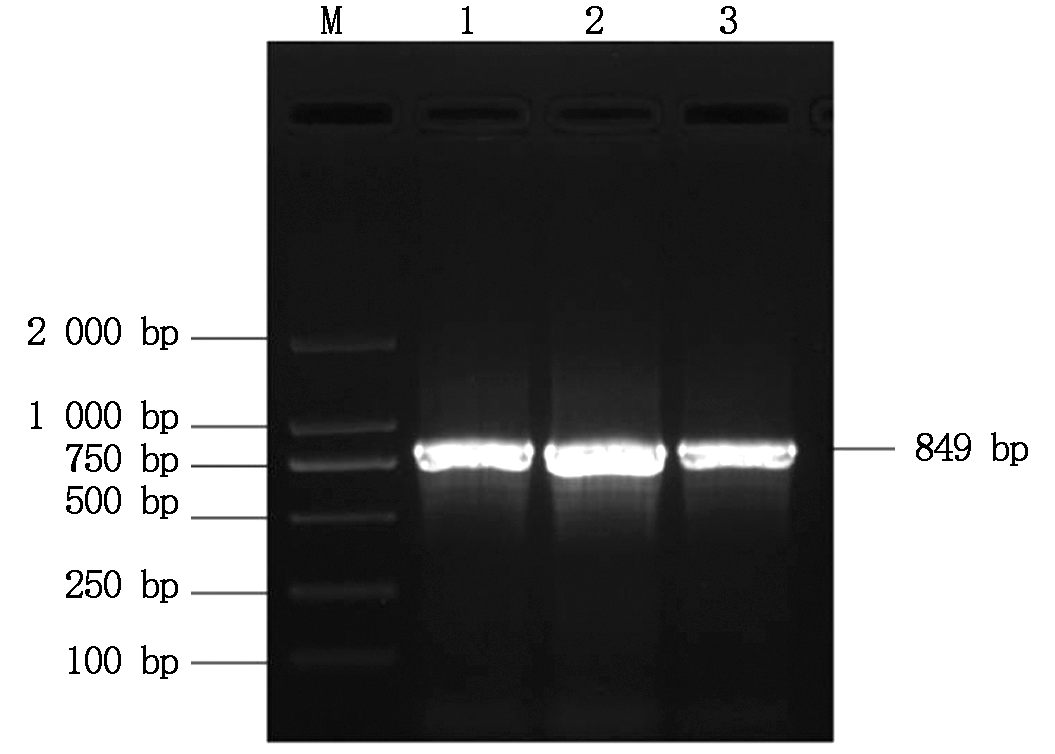

Fig.1 Cloning of TaSINA61, TaSINA101, and TaSINA105 genes M.DL 2000 DNA Marker; 1. TaSINA61 target fragment;2.TaSINA101 target fragment;3.TaSINA105 target fragment.

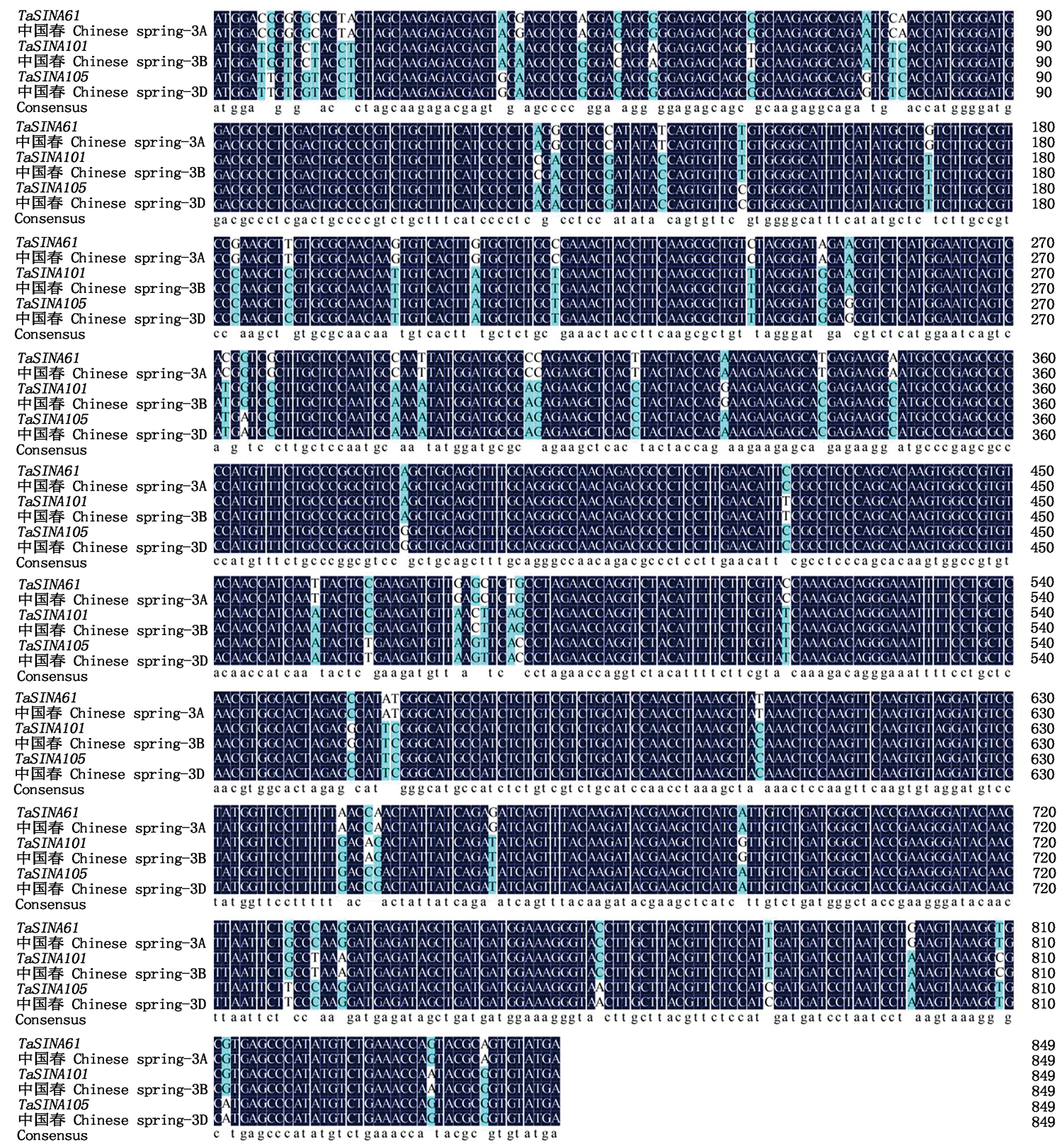

Fig.2 Sequence alignment of TaSINA61, TaSINA101 and TaSINA105 genes

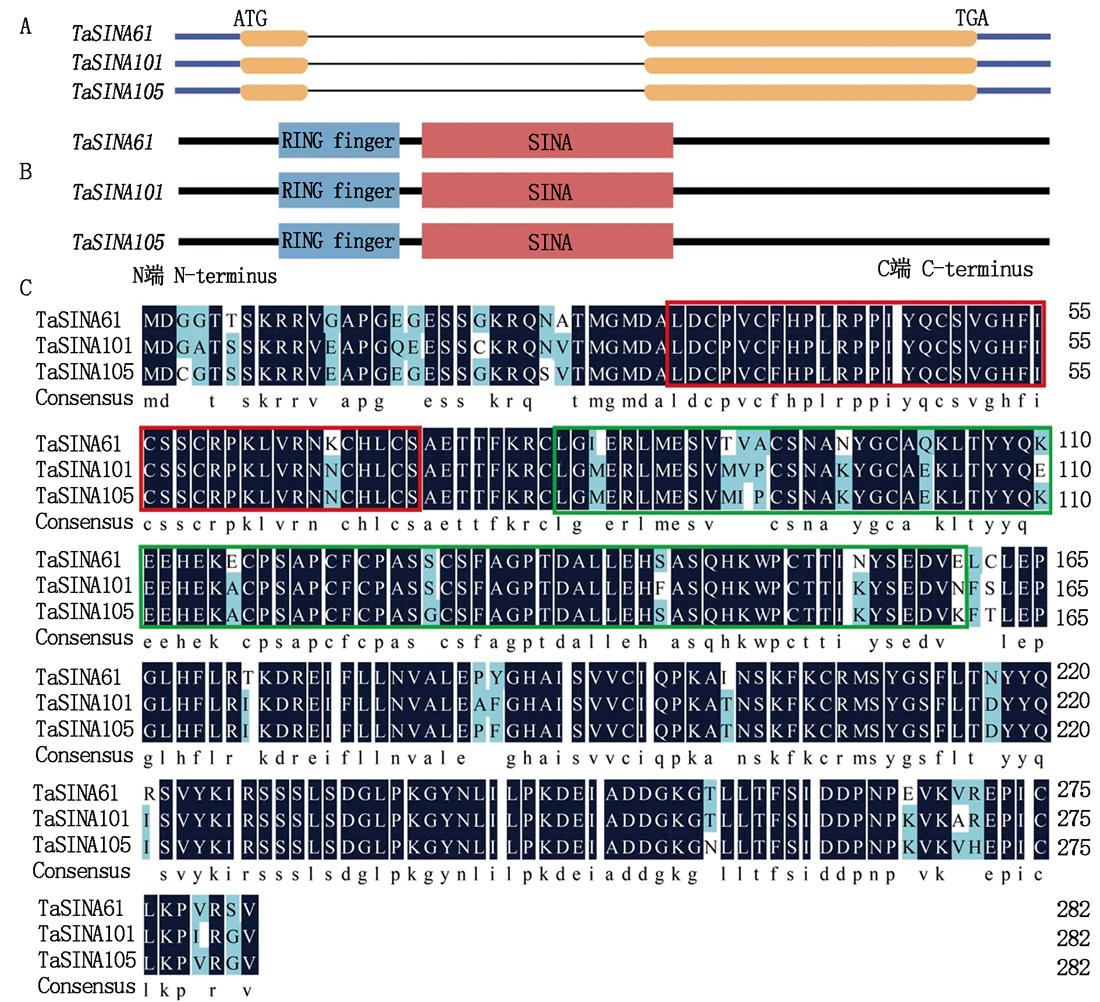

Fig.3 Analysis of TaSINA61,TaSINA101 and TaSINA105 gene sequence and protein structure A:Schematic diagram of TaSINA61, TaSINA101 and TaSINA105 gene structures; B:Schematic diagram of TaSINA61,TaSINA101 and TaSINA105 domain prediction; C:The red rectangular box.RING-Ubox superfamily domain, The green rectangular box.SINA domain.

Tab.2 Gene information and protein physicochemical properties analysis

基因 Gene	基因号 Gene ID number	物理位置/bp Physical position	分子质量/ku Molecular weight	等电点 pI	蛋白长度/aa Protein length
TaSINA61	TraesCS3A02G030600	16 620 265-16 622 563	31.251 87	8.21	282
TaSINA101	TraesCS3B02G052800	26 746 166-26 748 742	31.435 24	8.03	282
TaSINA105	TraesCS3D02G029000	10 458 906-10 461 617	31.308 19	8.34	282

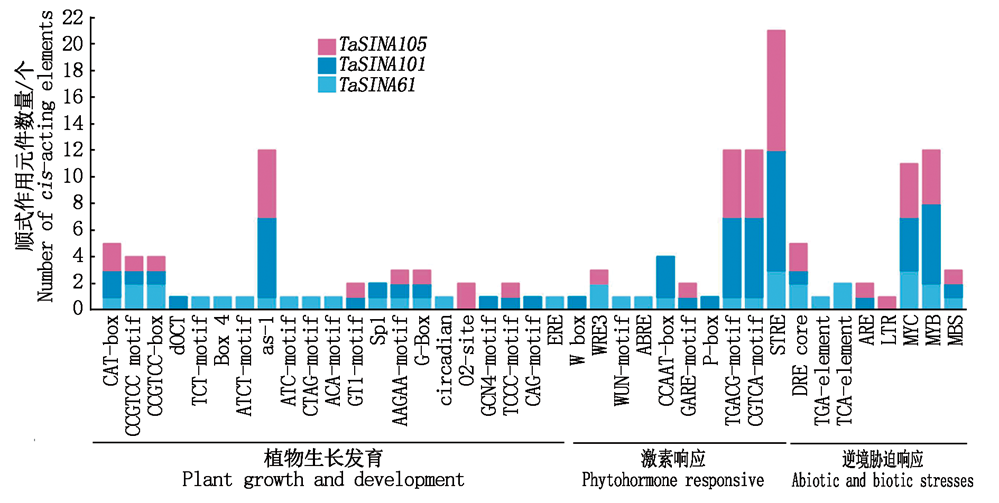

Fig.4 The cis-acting element of the TaSINA61,TaSINA101 and TaSINA105 promoter

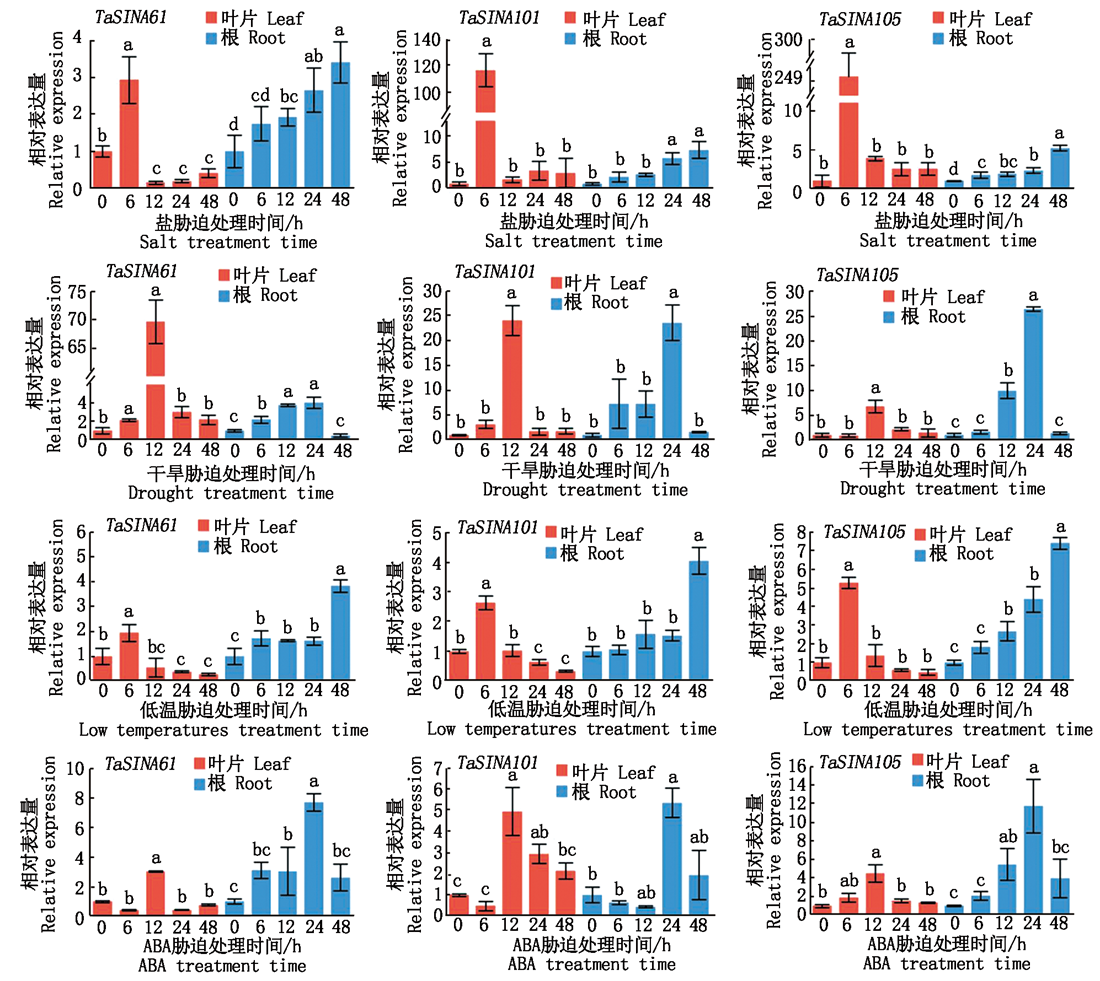

Fig.5 Expression patterns of TaSINA61,TaSINA101 and TaSINA105 genes under salt, drought, low temperature and ABA treatment Different letters represent significant difference at the 0.05 level(P<0.05).The same as Fig.5.

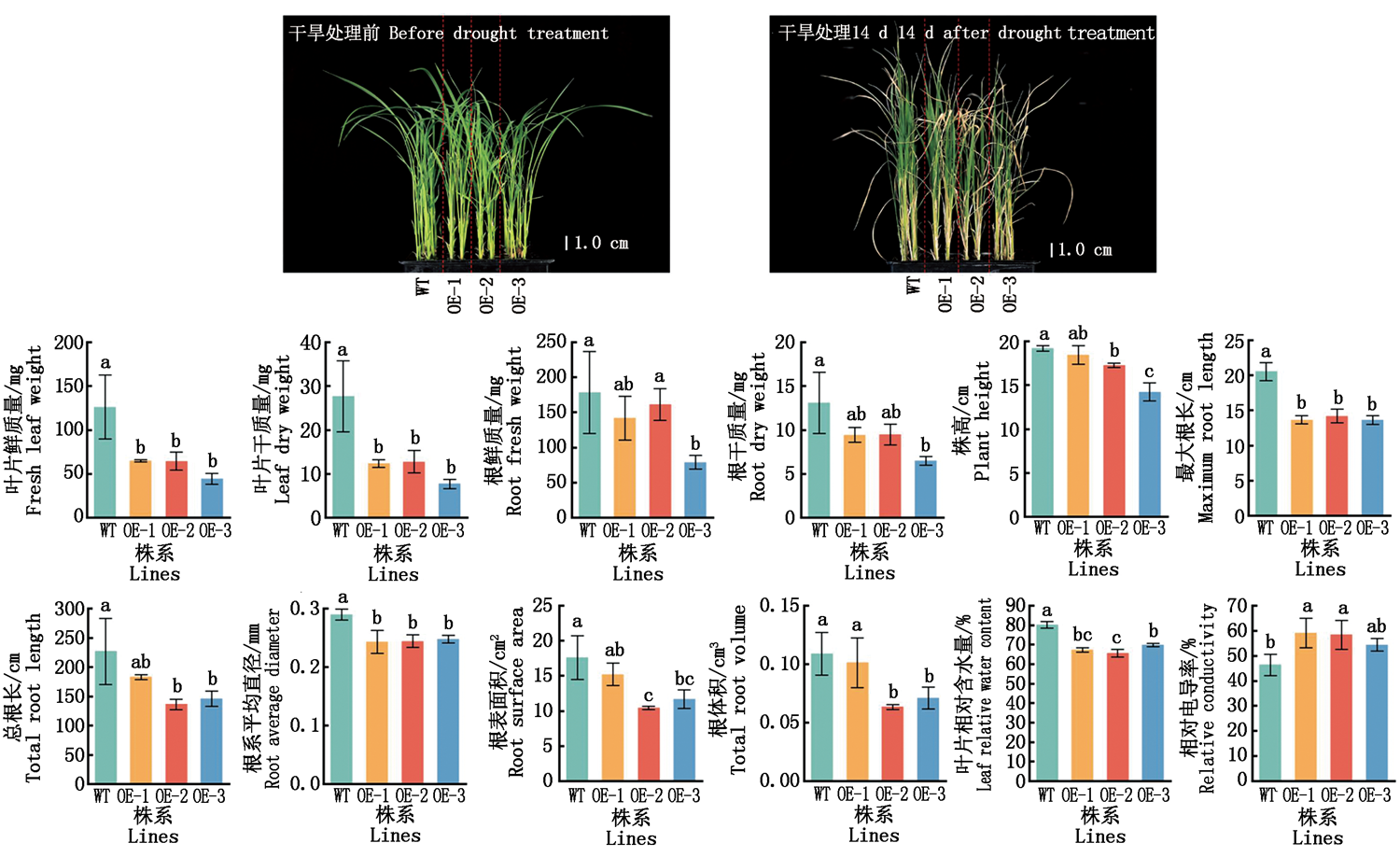

Fig.6 Phenotype of TaSINA101 overexpressed rice lines under drought stress

References 55

[1]	Li Q R, Li B, Wang J Y, Chang X P, Mao X G, Jing R L. TaPUB15,a U-Box E3 ubiquitin ligase gene from wheat,enhances salt tolerance in rice[J]. Food and Energy Security, 2021, 10(1):e250.doi:10.1002/fes3.250.
[2]	Khalid A, Hameed A, Tahir M F. Wheat quality:a review on chemical composition,nutritional attributes,grain anatomy,types,classification,and function of seed storage proteins in bread making quality[J]. Frontiers in Nutrition, 2023,10:1053196.doi:10.3389/fnut.2023.1053196.
[3]	Kumar R, Mukherjee S, Ayele B T. Molecular aspects of sucrose transport and its metabolism to starch during seed development in wheat:a comprehensive review[J]. Biotechnology Advances, 2018, 36(4):954-967.doi:10.1016/j.biotechadv.2018.02.015.
[4]	Pradhan G P, Vara Prasad P V, Fritz A K, Kirkham M B, Gill B S. Response of Aegilops species to drought stress during reproductive stages of development[J]. Functional Plant Biology, 2012, 39(1):51-59.doi:10.1071/fp11171.
[5]	Han J C, Zhang Z, Cao J, Luo Y C, Zhang L L, Li Z Y, Zhang J. Prediction of winter wheat yield based on multi-source data and machine learning in China[J]. Remote Sensing, 2020, 12(2):236.doi:10.3390/rs12020236.
[6]	Pandey A, Khobra R, Mamrutha H M, Wadhwa Z, Krishnappa G, Singh G, Singh G P. Elucidating the drought responsiveness in wheat genotypes[J]. Sustainability, 2022, 14(7):3957.doi:10.3390/su14073957.
[7]	李君艳, 姚得秀, 郭晓磊, 王志敏, 张英华. 花后干旱对冬小麦光合、抗氧化特性和C4光合酶活性的影响[J]. 生态学杂志, 2023, 42(1):49-57.doi:10.13292/j.1000-4890.202301.010.
	Li J Y, Yao D X, Guo X L, Wang Z M, Zhang Y H. Effects of post-anthesis drought on photosynthesis,antioxidant properties,and C4 photosynthetic enzyme activity in winter wheat[J]. Chinese Journal of Ecology, 2023, 42(1):49-57.
[8]	Vierstra R D. The ubiquitin/26S proteasome pathway,the complex last chapter in the life of many plant proteins[J]. Trends in Plant Science, 2003, 8(3): 135-142.doi:10.1016/S1360-1385(03)00014-1.
[9]	Ye Y H, Rape M. Building ubiquitin chains:E2 enzymes at work[J]. Nature Reviews Molecular Cell Biology, 2009, 10(11):755-764.doi:10.1038/nrm2780.
[10]	Collins G A, Goldberg A L. The logic of the 26S proteasome[J]. Cell, 2017, 169(5):792-806.doi:10.1016/j.cell.2017.04.023.
[11]	Xu F Q, Xue H W. The ubiquitin-proteasome system in plant responses to environments[J]. Plant,Cell & Environment, 2019, 42(10):2931-2944.doi:10.1111/pce.13633.
[12]	Deng M T, Zhu F, Yang Y Z, Yang F X, Hao J P, Chen S R, Hou Z C. Genome-wide association study reveals novel loci associated with body size and carcass yields in Pekin ducks[J]. BMC Genomics, 2019, 20(1):1.doi:10.1186/s12864-018-5379-1.
[13]	Yang L, Miao M J, Lyu H J, Cao X, Li J, Li Y J, Li Z, Chang W. Genome-wide identification,evolution,and expression analysis of RING finger gene family in Solanum lycopersicum[J]. International Journal of Molecular Sciences, 2019, 20(19):4864.doi:10.3390/ijms20194864.
[14]	Wang M, Jin Y, Fu J J, Zhu Y, Zheng J, Hu J, Wang G Y, et al. Genome-wide analysis of SINA family in plants and their phylogenetic relationships[J]. DNA Sequence, 2008, 19(3):206-216.doi:10.1080/10425170701517317.
[15]	Den Herder G, De Keyser A, De Rycke R, Rombauts S, Van de Velde W, Clemente M R, Verplancke C, Mergaert P, Kondorosi E, Holsters M, Goormachtig S. Seven in absentia proteins affect plant growth and nodulation in Medicago truncatula[J]. Plant Physiology, 2008, 148(1):369-382.doi:10.1104/pp.108.119453.
[16]	Wang W J, Fan Y H, Niu X L, Miao M, Kud J, Zhou B J, Zeng L R, Liu Y S, Xiao F M. Functional analysis of the seven in absentia ubiquitin ligase family in tomato[J]. Plant,Cell & Environment, 2018, 41(3):689-703.doi:10.1111/pce.13140.
[17]	Zhang C Y, Hao Z Y, Ning Y S, Wang G L. SINA E3 ubiquitin ligases:versatile moderators of plant growth and stress response[J]. Molecular Plant, 2019, 12(5):610-612.doi:10.1016/j.molp.2019.03.013.
[18]	Yang M R, Li C X, Cai Z Y, Hu Y M, Nolan T, Yu F F, Yin Y H, Xie Q, Tang G L, Wang X L. SINAT E3 ligases control the light-mediated stability of the brassinosteroid-activated transcription factor BES1 in Arabidopsis[J]. Developmental Cell, 2017, 41(1):47-58.e4.doi:10.1016/j.devcel.2017.03.014.
[19]	Xia F N, Zeng B Q, Liu H S, Qi H, Xie L J, Yu L J, Chen Q F, Li J F, Chen Y Q, Jiang L W, Xiao S. SINAT E3 ubiquitin ligases mediate FREE1 and VPS23A degradation to modulate abscisic acid signaling[J]. The Plant Cell, 2020, 32(10):3290-3310.doi:10.1105/tpc.20.00267.
[20]	Papdi C, Pérez-Salamó I, Joseph M P, Giuntoli B, Bögre L, Koncz C, Szabados L. The low oxygen,oxidative and osmotic stress responses synergistically act through the ethylene response factor Ⅶ genes RAP2.12,RAP2.2 and RAP2.3[J]. The Plant Journal, 2015, 82(5):772-784.doi:10.1111/tpj.12848.
[21]	Ning Y S, Jantasuriyarat C, Zhao Q Z, Zhang H W, Chen S B, Liu J L, Liu L J, Tang S Y, Park C H, Wang X J, Liu X L, Dai L Y, Xie Q, Wang G L. The SINA E3 ligase OsDIS1 negatively regulates drought response in rice[J]. Plant Physiology, 2011, 157(1):242-255.doi:10.1104/pp.111.180893.
[22]	Liu Y, Li L Q, Zhang L, Lyu Q, Zhao Y, Li X J. Isolation and identification of wheat gene TaDIS1 encoding a RING finger domain protein,which negatively regulates drought stress tolerance in transgenic Arabidopsis[J]. Plant Science, 2018,275:49-59.doi:10.1016/j.plantsci.2018.07.017.
[23]	Chen T, Miao Y P, Jing F L, Gao W D, Zhang Y Y, Zhang L, Zhang P P, Guo L J, Yang D L. Genomic-wide analysis reveals seven in absentia genes regulating grain development in wheat(Triticum aestivum L.)[J]. The Plant Genome, 2024, 17(3):e20480.doi:10.1002/tpg2.20480.
[24]	Fang Y, Liang L Y, Liu S, Xu B C, Siddique K H, Palta J A, Chen Y L. Wheat cultivars with small root length density in the topsoil increased post-anthesis water use and grain yield in the semi-arid region on the Loess Plateau[J]. European Journal of Agronomy, 2021,124:126243.doi:10.1016/j.eja.2021.126243.
[25]	高维东, 胡城祯, 张龙, 张艳艳, 张沛沛, 杨德龙, 陈涛. 小麦泛素结合酶TaUBC16基因的克隆与功能分析[J]. 作物学报, 2024, 50(8):1971-1988.doi:10.3724/SP.J.1006.2024.31080.
	Gao W D, Hu C Z, Zhang L, Zhang Y Y, Zhang P P, Yang D L, Chen T. Cloning and functional analysis of ubiquitin-conjugating enzymes TaUBC16 gene in wheat[J]. Acta Agronomica Sinica, 2024, 50(8):1971-1988.
[26]	李静静, 任永哲, 白露, 吕伟增, 王志强, 辛泽毓, 林同保. PEG-6000模拟干旱胁迫下不同基因型小麦品种萌发期抗旱性的综合鉴定[J]. 河南农业大学学报, 2020, 54(3):368-377.doi:10.16445/j.cnki.1000-2340.20200622.001.
	Li J J, Ren Y Z, Bai L, Lyu W Z, Wang Z Q, Xin Z Y, Lin T B. Comprehensive identification and evaluation of drought tolerance of different genotypic wheat varieties at germination stage by PEG-6000 simulated drought stress[J]. Journal of Henan Agricultural University, 2020, 54(3):368-377.
[27]	孙来虎, 李秀绒, 柴永峰, 王秋叶, 张建诚. 晋麦47号产量结构特点与高产栽培技术[J]. 耕作与栽培, 2003, 23(5):48-49.doi:10.3969/j.issn.1008-2239.2003.05.027.
	Sun L H, Li X R, Chai Y F, Wang Q Y, Zhang J C. Characteristics of yield structure and high-yield cultivation techniques of Jinmai 47[J]. Tillage and Cultivation, 2003, 23(5):48-49.
[28]	Fan X D, Dong Y F, Zhang Z P, Ren F, Hu G J. First report of Vitis cryptic virus from grapevines in China[J]. Plant Disease, 2022, 106(11):3006.doi:10.1094/pdis-02-22-0255-pdn.
[29]	Ma S W, Wang M, Wu J H, Guo W L, Chen Y M, Li G W, Wang Y P, Shi W M, Xia G M, Fu D L, Kang Z S, Ni F. WheatOmics:a platform combining multiple omics data to accelerate functional genomics studies in wheat[J]. Molecular Plant, 2021, 14(12):1965-1968.doi:10.1016/j.molp.2021.10.006.
[30]	Kobayashi F, Takumi S, Handa H. Identification of quantitative trait loci for ABA responsiveness at the seedling stage associated with ABA-regulated gene expression in common wheat[J]. Theoretical and Applied Genetics, 2010, 121(4):629-641.doi:10.1007/s00122-010-1335-4.
[31]	Schmittgen T D, Livak K J. Analyzing real-time PCR data by the comparative C_T method[J]. Nature Protocols, 2008, 3(6):1101-1108.doi:10.1038/nprot.2008.73.
[32]	Livak K J, Schmittgen T D. Analysis of relative gene expression data using real-time quantitative PCR and the 2^-ΔΔCt method[J]. Methods, 2001, 25(4):402-408.doi:10.1006/meth.2001.1262.
[33]	Hu B, Jin J P, Guo A Y, Zhang H, Luo J C, Gao G. GSDS 2.0:an upgraded gene feature visualization server[J]. Bioinformatics, 2015, 31(8):1296-1297.doi:10.1093/bioinformatics/btu817.
[34]	Dong X M, Pan L B, Tang Z H. Genome-wide identification and expression analysis of BES1 family in Catharanthus roseus[J]. Journal of Plant Growth Regulation, 2023, 42(6):3851-3867.doi:10.1007/s00344-022-10849-1.
[35]	Zhang P P, Zhang L H, Chen T, Jing F L, Liu Y, Ma J F, Tian T, Yang D L. Genome-wide identification and expression analysis of the GSK gene family in wheat(Triticum aestivum L.)[J]. Molecular Biology Reports, 2022, 49(4):2899-2913.doi:10.1007/s11033-021-07105-2.
[36]	Lescot M, Déhais P, Thijs G, Marchal K, Moreau Y, Van de Peer Y, Rouzé P, Rombauts S. PlantCARE,a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences[J]. Nucleic Acids Research, 2002, 30(1):325-327.doi:10.1093/nar/30.1.325.
[37]	Sharma H, Batra R, Kumar S, Kumar M, Kumar S, Balyan H S, Gupta P K. Identification and characterization of 20S proteasome genes and their relevance to heat/drought tolerance in bread wheat[J]. Gene Reports, 2022,27:101552.doi:10.1016/j.genrep.2022.101552.
[38]	张露, 梁青铎, 吴龙龙, 黄晶, 田仓, 张均华, 曹小闯, 朱春权, 孔亚丽, 金千瑜, 朱练峰. 减氮和增氧灌溉对水稻产量和氮素利用的影响[J]. 中国水稻科学, 2023, 37(1):78-88.doi:10.16819/j.1001-7216.2023.220307.
	Zhang L, Liang Q D, Wu L L, Huang J, Tian C, Zhang J H, Cao X C, Zhu C Q, Kong Y L, Jin Q Y, Zhu L F. Effects of nitrogen-reducing and oxygen-increasing irrigation on rice yield and nitrogen use efficiency[J]. Chinese Journal of Rice Science, 2023, 37(1):78-88.
[39]	Wang W, Man Z, Li X L, Chen R Q, You Z K, Pan T T, Dai X R, Xiao H, Liu F. Response mechanism and rapid detection of phenotypic information in rice root under heavy metal stress[J]. Journal of Hazardous Materials, 2023,449:131010.doi:10.1016/j.jhazmat.2023.131010.
[40]	Sun Y, Xie Z Z, Jin L, Qin T, Zhan C H, Huang J L. Histone deacetylase OsHDA716 represses rice chilling tolerance by deacetylating OsbZIP46 to reduce its transactivation function and protein stability[J]. The Plant Cell, 2024, 36(5):1913-1936.doi:10.1093/plcell/koae010.
[41]	Ma J H, Wang Y D, Tang X X, Zhao D Y, Zhang D J, Li C X, Li W, Li T, Jiang L N. TaSINA2B,interacting with TaSINA1D,positively regulates drought tolerance and root growth in wheat(Triticum aestivum L.)[J]. Plant,Cell & Environment, 2023, 46(12):3760-3774.doi:10.1111/pce.14708.
[42]	Joo H, Lim C W, Lee S C. Roles of pepper bZIP transcription factor CaATBZ1 and its interacting partner RING-type E3 ligase CaASRF1 in modulation of ABA signalling and drought tolerance[J]. The Plant Journal, 2019, 100(2):399-410.doi:10.1111/tpj.14451.
[43]	Shu K, Yang W Y. E3 ubiquitin ligases:ubiquitous actors in plant development and abiotic stress responses[J]. Plant and Cell Physiology, 2017, 58(9):1461-1476.doi:10.1093/pcp/pcx071.
[44]	Ghimire S, Hasan M M, Fang X W. Small ubiquitin-like modifiers E3 ligases in plant stress[J]. Functional Plant Biology, 2024, 51(5):FP24032.doi:10.1071/fp24032.
[45]	李姗姗, 黄梦婷, 青雨虹, 许静, 黄君梅, 凌辉, 阙友雄, 黄宁. 甘蔗E3泛素连接酶基因PRT1的生物信息学及表达模式分析[J]. 华北农学报, 2023, 38(1): 168-177. doi: 10.7668/hbnxb.20193378.
	Li S S, Huang M T, Qing Y H, Xu J, Huang J M, Ling H, Que Y X, Huang N. Bioinformatics and expression pattern analysis of E3 ubiquitin ligase gene PRT1 in sugarcane[J]. Acta Agriculturae Boreali-Sinica, 2023, 38(1): 168-177.
[46]	Bao Y, Wang C T, Jiang C M, Pan J, Zhang G B, Liu H, Zhang H X. The tumor necrosis factor receptor-associated factor(TRAF)-like family protein SEVEN IN ABSENTIA 2(SINA2)promotes drought tolerance in an ABA-dependent manner in Arabidopsis[J]. New Phytologist, 2014, 202(1):174-187.doi:10.1111/nph.12644.
[47]	Ren Z Y, Liu W, Wang X X, Chen M J, Zhao J J, Zhang F, Feng H J, Liu J, Yang D G, Ma X F, Li W. Seven in absentia ubiquitin ligases positively regulate defense against Verticillium dahliae in Gossypium hirsutum[J]. Frontiers in Plant Science, 2021,12:760520.doi:10.3389/fpls.2021.760520.
[48]	Bae H, Kim S K, Cho S K, Kang B G, Kim W T. Overexpression of OsRDCP1,a rice RING domain-containing E3 ubiquitin ligase,increased tolerance to drought stress in rice(Oryza sativa L.)[J]. Plant Science, 2011, 180(6):775-782.doi:10.1016/j.plantsci.2011.02.008.
[49]	Gao T, Wu Y R, Zhang Y Y, Liu L J, Ning Y S, Wang D J, Tong H N, Chen S Y, Chu C C, Xie Q. OsSDIR1 overexpression greatly improves drought tolerance in transgenic rice[J]. Plant Molecular Biology, 2011, 76(1):145-156.doi:10.1007/s11103-011-9775-z.
[50]	Zhang Y Y, Li Y, Gao T, Zhu H, Wang D J, Zhang H W, Ning Y S, Liu L J, Wu Y R, Chu C C, Guo H S, Xie Q. Arabidopsis SDIR1 enhances drought tolerance in crop plants[J]. Bioscience,Biotechnology,and Biochemistry, 2008, 72(8):2251-2254.doi:10.1271/bbb.80286.
[51]	Sun H M, Li J T, Li X, Lyu Q, Chen L P, Wang B X, Li L Q. RING E3 ubiquitin ligase TaSADR1 negatively regulates drought resistance in transgenic Arabidopsis[J]. Plant Physiology and Biochemistry, 2022,170:255-265.doi:10.1016/j.plaphy.2021.12.004.
[52]	Agbicodo E M, Fatokun C A, Muranaka S, Visser R G F, Linden van der C G. Breeding drought tolerant cowpea:constraints,accomplishments,and future prospects[J]. Euphytica, 2009, 167(3):353-370.doi:10.1007/s10681-009-9893-8.
[53]	Mao H D, Li S M, Wang Z X, Cheng X X, Li F F, Mei F M, Chen N, Kang Z S. Regulatory changes in TaSNAC8-6A are associated with drought tolerance in wheat seedlings[J]. Plant Biotechnology Journal, 2020, 18(4):1078-1092.doi:10.1111/pbi.13277.
[54]	Yang J J, Zhang G Q, An J, Li Q X, Chen Y H, Zhao X Y, Wu J J, Wang Y, Hao Q Q, Wang W Q, Wang W. Expansin gene TaEXPA2 positively regulates drought tolerance in transgenic wheat(Triticum aestivum L.)[J]. Plant Science, 2020,298:110596.doi:10.1016/j.plantsci.2020.110596.
[55]	Zhang X M, Mi Y, Mao H D, Liu S X, Chen L M, Qin F. Genetic variation in ZmTIP1 contributes to root hair elongation and drought tolerance in maize[J]. Plant Biotechnology Journal, 2020, 18(5):1271-1283.doi:10.1111/pbi.13290.
