Cloning of the Nitrate Reductase Gene GhNIA1 Based on Omics Analysis of Cotton Induced by Phytophthora boehmeriae

doi:10.7668/hbnxb.20196564

Abstract

Abstract:

To investigate the key genes in cotton in response to Phytophthora boehmeriae infection and preliminarily elucidate the molecular mechanisms underlying their interaction,it performed transcriptome sequencing and TMT-based quantitative proteomic analysis on the boll rot-susceptible cotton germplasm line 885 using the Illumina Hiseq^TM platform.By screening for differentially expressed genes(proteins)and conducting GO/KEGG enrichment analyses,key genes involved in the stress response were identified.Bioinformatic analysis was further carried out on these candidate genes,and their expression patterns under pathogen stress were validated via Real-time Quantitative PCR(qPCR).The results showed that combined transcriptomic and proteomic screening identified 50 candidate sequences with significant differential abundance at both the transcriptional and translational levels.GO and KEGG enrichment analyses revealed that the differentially expressed genes were primarily enriched in pathways such as plant hormone signal transduction,plant-pathogen interaction,glutathione metabolism,and the biosynthesis of secondary metabolites.Further sequence alignment screened seven candidate genes related to disease resistance.qPCR verification demonstrated that the expression of Gh_D02G091500,Gh_D06G194600,Gh_A01G241100, Gh_A06G192400,and Gh_D09G161000 was significantly induced by P.boehmeriae.Among these,the cotton nitrate reductase gene exhibited the highest fold change and the most significant differential expression.The full-length sequence of this nitrate reductase gene was cloned and designated GhNIA1.In conclusion,it identified GhNIA1 as a key gene involved in the cotton-P.boehmeriae interaction and provided preliminary characterization of GhNIA1.These findings lay a theoretical foundation for further analysis of the molecular mechanism by which GhNIA1 participates in cotton resistance to boll rot and for breeding resistant varieties.

Key words: Gossypium spp., Phytophthora boehmeriae, RNA-seq, Gene cloning, Expression analysis

CLC Number:

S435.62

ZHAO Cunpeng, QIN Zhen, LI Dan, LIU Suen, GUO Baosheng, WANG Kaihui, ZHANG Haina, GAO Xinlong, WANG Haiyan, GENG Junyi. Cloning of the Nitrate Reductase Gene GhNIA1 Based on Omics Analysis of Cotton Induced by Phytophthora boehmeriae[J]. Acta Agriculturae Boreali-Sinica, 2026, 41(4): 34-43. doi: 10.7668/hbnxb.20196564.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20196564

http://www.hbnxb.net/EN/Y2026/V41/I4/34

Figures/Tables 8

Tab.1 Primers used in this study

引物名称 Primer name	引物序列(5'—3') Primer sequence(5'—3')	用途 Use
q-Gh_D11G285900-F	CCACCAACCCTCTTATCC	实时荧光定量
q-Gh_D11G285900-R	GAAGTTGGGATACCTACGAT	PCR引物
q-Gh_D06G194600-F	GGAGCCAACAAGTTCACA
q-Gh_D06G194600-R	GCAAAGATCATACCACCAA
q-Gh_D09G161000-F	CCAAGCCAAGGACTACCA
q-Gh_D09G161000-R	AAGATCATCCCACCAAAA
q-Gh_A06G192400-F	AAGCAACGAAGAAGGGAA
q-Gh_ A06G192400-R	AAGGAAAGTCGCCACAAA
q-Gh_A01G241100-F	GACTACCATGATCCTCCAC
q-Gh_ A01G241100-R	TACCAAGAATGCCAACAC
q-Gh_D02G091500-F	GTTGTTGACGTCGGGTTATATT
q-Gh_D02G091500-R	CCAACTTCACCGATGCTACT
q-Gh_A13G043200-F	TTTAGTTGTTAGCCAGATTT
q-Gh_A13G043200-R	GATGAAATCAGCAGTCGC
Histone H3-F	TCAAGACTGATTTGCGTTTCCA
Histone H3-R	GCGCAAAGGTTGGTGTCTTC
GhNIA1-F	ATGATGAACAACTGCTGG	PCR 扩增引物
GhNIA1-R	AAATACCAACAAAGAATCCT

Fig.1 Phenotypic identification results of cotton bolls after inoculation The cotton bolls on the left side served as the control group, while the cotton bolls on the right side were the experimental group.

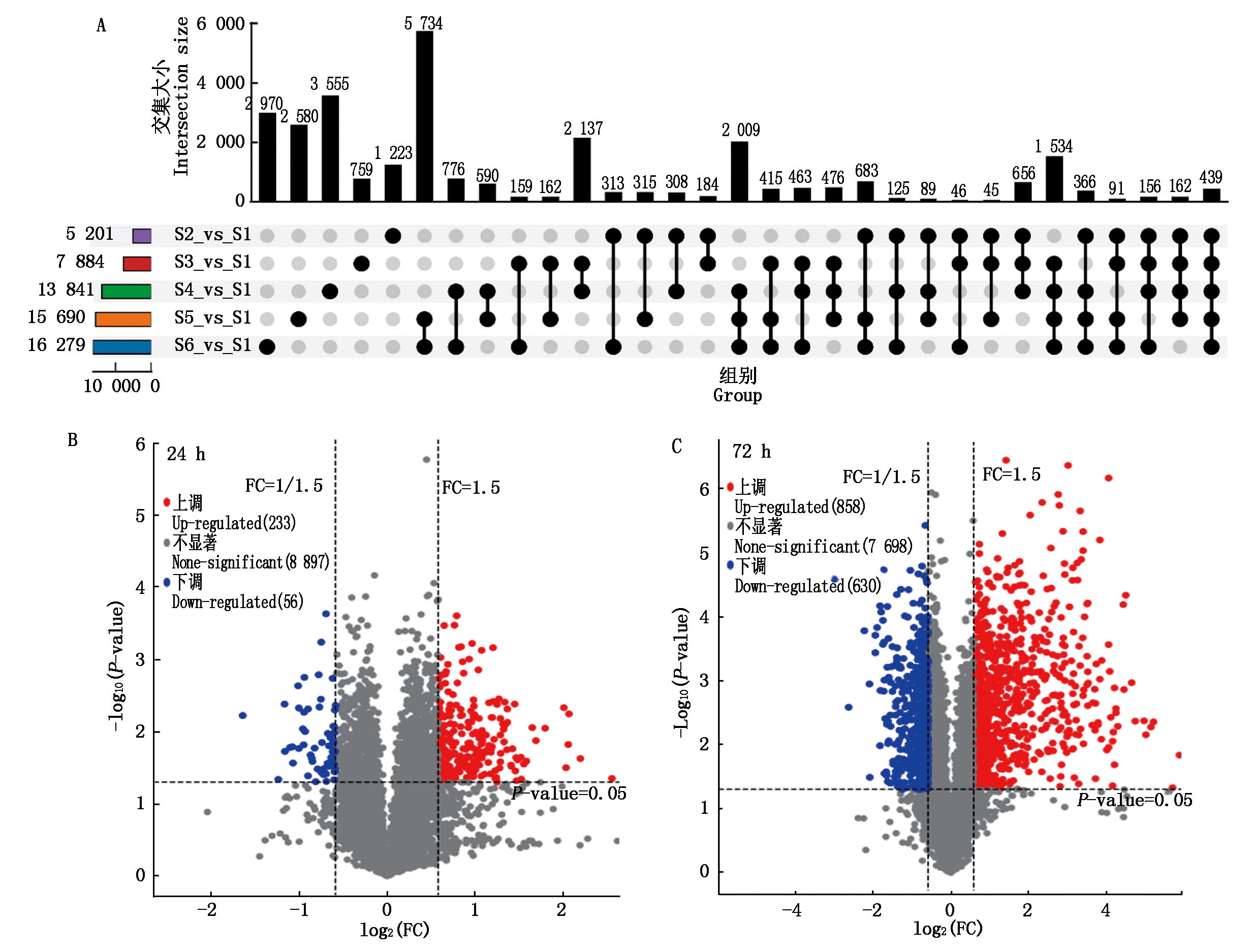

Fig.2 Statistical analysis of differentially expressed genes at different time points

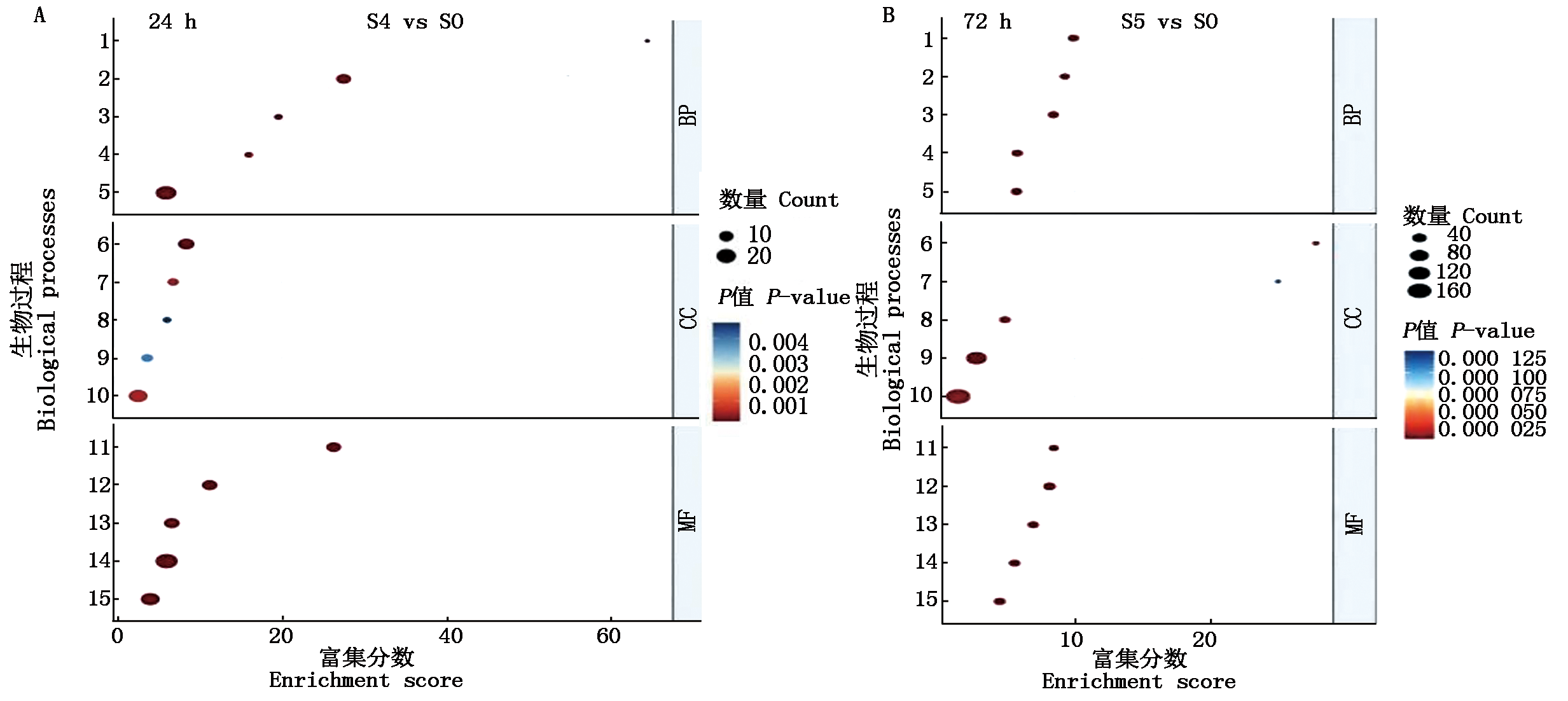

Fig.3 Enrichment analysis of DEGs and the biological processes corresponding to differentially expressed proteins A:1. Transsulfuration,2. Diterpenoid biosynthetic process,3. Cell wall macromolecule catabolic process,4. Chitin catabolic process,5. Translation,6. Cytosolic large ribosomal subunit,7. Cytosolic small ribosomal subunit,8. Vacuole,9. Ribosome,10. Cytosol,11. (+)-delta-cadinene synthase activity,12. UDP-glycosyltransferase activity,13. Magnesium ion binding,14. Structural constituent of ribosome,15. Heme binding; B:1. Toxin catabolic process, 2. Chitin catabolic process, 3. Glatayhione metabolic process, 4. Regulation of protein serine/threonine phosphatase activity, 5. Abscisic acid-activated signaling pathway, 6. RISC complex, 7. Carbamoyl-phosphate synthase complex, 8. Peroxisome, 9. Cytosol, 10. Cytoplasm, 11. Chitinase activity, 12. Glutathione transferase activity, 13. Abscisic acid binding, 14. Protein phosphatase inhibitor activity, 15. FAD binding.

Tab.2 Analysis characteristics of the candidate genes

基因名 Gene ID	通路编号 Pathway_ID	序列比对 Blast	信号肽 Signal peptide	核酸/bp Nucleotide	亚细胞定位 Subcellular localization
Gh_D11G285900	ko00030	磷酸糖异构酶	无	846	细胞核
Gh_D06G194600	ko04962	主要内在蛋白	无	1 613	细胞膜
Gh_D09G161000	ko04924	主要内在蛋白	无	1 606	细胞膜
Gh_A06G192400	ko04962	主要内在蛋白	无	1 791	细胞膜
Gh_A01G241100	ko04924	主要内在蛋白	无	1 455	细胞膜
Gh_A13G043200	ko00680	磷酸甘油酸脱氢酶	无	2 623	细胞核
Gh_D02G091500	ko00520	硝酸还原酶	无	1 314	细胞核

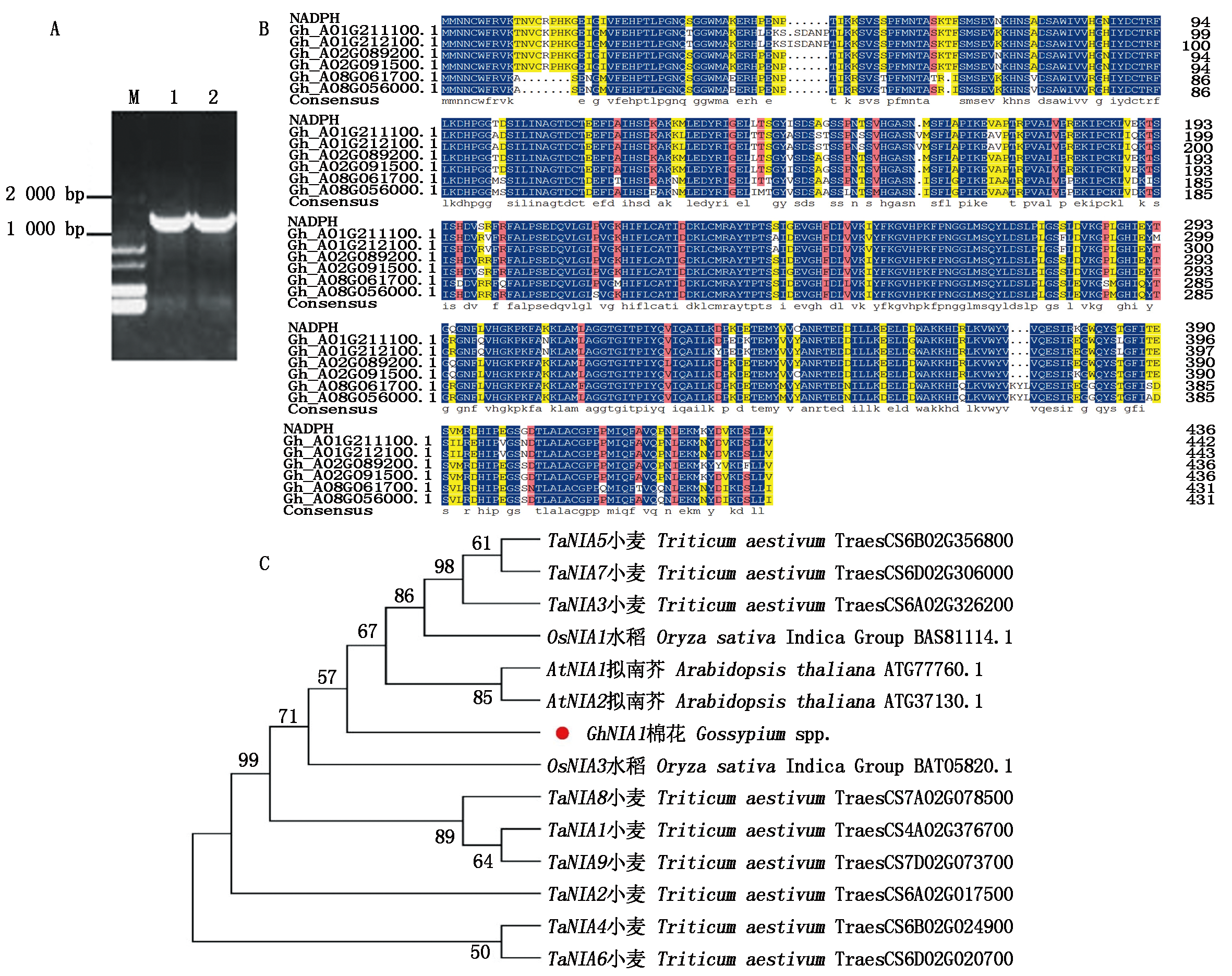

Fig.4 PCR results and multiple alignments of GhNIA1 gene M.DL2000 Marker; A.Amplification results of GhNIA1; B.Sequence analysis of GhNIA1;C.Cluster analysis of GhNIA1.

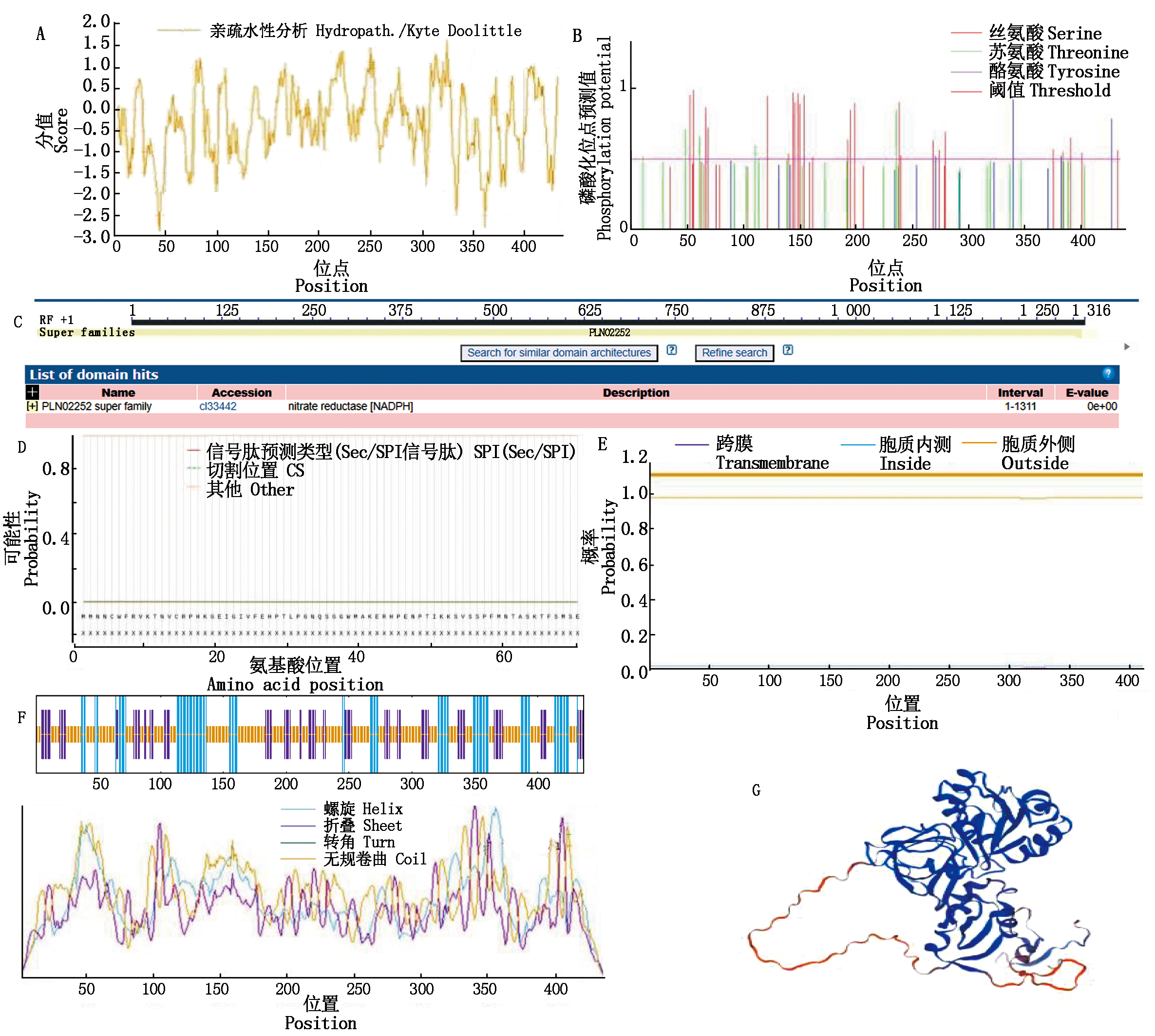

Fig.5 Analysis of gene characteristics of GhNIA1 gene A.Hydrophobic analysis; B.Phosphorylation site prediction; C.Conserved domain analysis; D.Signal peptide prediction; E.Transmembrane region prediction; F.Secondary structure prediction; G.Tertiary structure prediction.

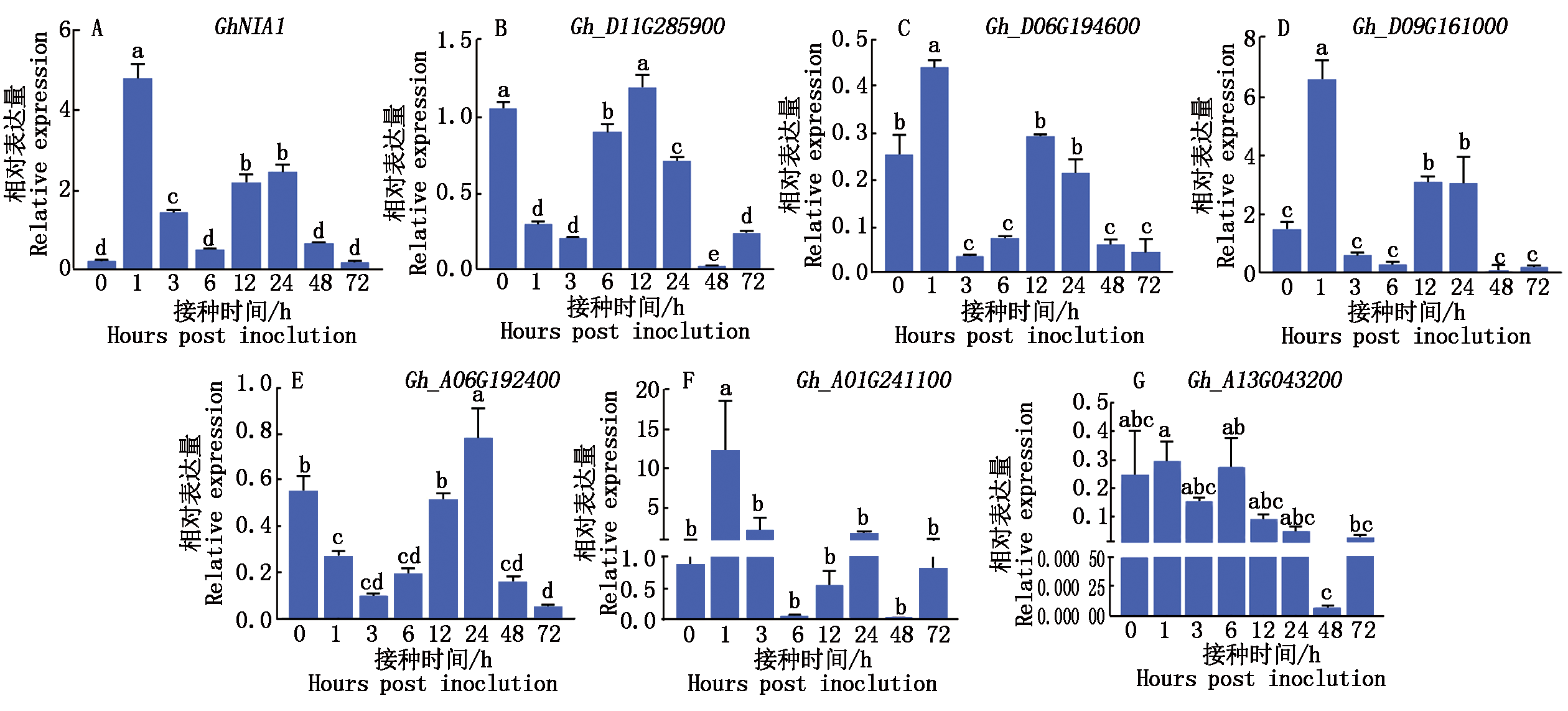

Fig.6 Expression pattern analyses of DEGs during the different points in infection times Different letters indicate significant differences between groups(P<0.05); Reference gene.Histone H.

References 25

[1]	唐文颖, 卓富彦, 李向阳, 牛雯雯, 于玲雅, 商明清, 肖云丽, 杨勤民, 朱军生, 张丽, 王文莉, 谢传峰. 1998-2023年黄河流域棉区主要病虫害发生演变分析[J]. 棉花学报, 2025, 37(2):119-130.doi:10.11963/cs20240071.
	Tang W Y, Zhuo F Y, Li X Y, Niu W W, Yu L Y, Shang M Q, Xiao Y L, Yang Q M, Zhu J S, Zhang L, Wang W L, Xie C F. Analysis of the occurrence and evolution of major diseases and insect pests in cotton planting area of Yellow River Basin from 1998 to 2023[J]. Cotton Science, 2025, 37(2):119-130.
[2]	李社增, 鹿秀云, 郝俊杰, 赵鸣, 年冠臻, 郭庆港, 张晓云, 马平. 棉花烂铃病的发生、品种抗病性及主要病原菌致病力分析[J]. 植物病理学报, 2017, 47(6):824-831.doi:10.13926/j.cnki.apps.000118.
	Li S Z, Lu X Y, Hao J J, Zhao M, Nian G Z, Guo Q G, Zhang X Y, Ma P. Cotton boll rot occurrence,analysis of varietal resistance and pathogenicity differentiation of the major pathogen[J]. Acta Phytopathologica Sinica, 2017, 47(6):824-831.
[3]	朱荷琴, 冯自力, 师勇强, 魏锋, 冯鸿杰, 赵丽红. 新疆阿克苏棉田棉花烂铃病害发生情况及防治[J]. 中国棉花, 2018, 45(1):12-14.doi:10.11963/1000-632X.zhqzhq.20180117.
	Zhu H Q, Feng Z L, Shi Y Q, Wei F, Feng H J, Zhao L H. Occurrence and control of cotton boll rots in cotton field in Akesu,Xinjiang[J]. China Cotton, 2018, 45(1):12-14.
[4]	鹿秀云, 李社增, 李宝庆, 郭庆港, 马平. 利用行间覆膜技术防治棉花烂铃病[J]. 中国棉花, 2013, 40(7):29-31.doi:10.3969/j.issn.1000-632X.2013.07.010.
	Lu X Y, Li S Z, Li B Q, Guo Q G, Ma P. Control of cotton boll rot by applying plastic membrane on the soil surface between cotton rows[J]. China Cotton, 2013, 40(7):29-31.
[5]	李晖, 李国英, 丁胜利. 新疆主要农作物疫霉菌种类鉴定[J]. 植物病理学报, 1999, 29(4):364-371.doi:10.13926/j.cnki.apps.1999.04.017.
	Li H, Li G Y, Ding S L. Identification of Phytophthora species infecting staple crops in Xinjiang[J]. Acta Phytopathologica Sinica, 1999, 29(4):364-371.
[6]	王源超, 张正光, 郑小波. 核糖体基因ITS作为苎麻疫霉、恶疫霉分类辅助性状的研究[J]. 菌物系统, 2000, 19(4):485-491.doi:10.3969/j.issn.1672-6472.2000.04.011.
	Wang Y C, Zhang Z G, Zheng X B. Use its regions of rRNA gene as an additional characteristic in identification of Phytophthora boehmeriae and P.cactorum[J]. Mycosystema, 2000, 19(4):485-491.
[7]	Gupta P, Saxena G, Gupta R. Nitrate reductase-mediated nitric oxide synthesis in shaping stress resilience in plants[J]. Journal of Experimental Botany, 2025, 76(22):6634-6656.doi:10.1093/jxb/eraf353. URL
[8]	Oliveira H C, Saviani E E, Oliveira J F P, Salgado I. Nitrate reductase-dependent nitric oxide synthesis in the defense response of Arabidopsis thaliana against Pseudomonas syringae[J]. Tropical Plant Pathology, 2010, 35(2):104-107.doi:10.1590/s1982-56762010000200005. URL
[9]	Hurali D T, Bhurta R, Tyagi S, Sathee L, Sandeep A B, Singh D, Mallick N, Vinod, Jha S K. Analysis of NIA and GSNOR family genes and nitric oxide homeostasis in response to wheat-leaf rust interaction[J]. Scientific Reports, 2022, 12:803.doi:10.1038/s41598-021-04696-5.
[10]	Bolton M D, Kolmer J A, Garvin D F. Wheat leaf rust caused by Puccinia triticina[J]. Molecular Plant Pathology, 2008, 9(5):563-575.doi:10.1111/j.1364-3704.2008.00487.X.
[11]	Zhang X Y, Liu G Y, Zheng R J, Yan Y, Shi H T. Interactions between nitrate reductase 2 and catalase 1 fine-tune disease resistance in cassava[J]. Journal of Experimental Botany, 2025, 76(10):2821-2831.doi:10.1093/jxb/erae167. URL
[12]	Mur L A J, Mandon J, Persijn S, Cristescu S M, Moshkov I E, Novikova G V, Hall M A, Harren F J M, Hebelstrup K H, Gupta K J. Nitric oxide in plants:an assessment of the current state of knowledge[J]. AoB Plants, 2013,5:pls052.doi:10.1093/aobpla/pls052.
[13]	鹿秀云, 李宝庆, 张晓云, 郭庆港, 马平, 李社增. 棉铃疫病生防细菌筛选、鉴定及制剂防治效果[J]. 植物保护学报, 2019, 46(4):805-815.doi:10.13802/j.cnki.zwbhxb.2019.2018110.
	Lu X Y, Li B Q, Zhang X Y, Guo Q G, Ma P, Li S Z. Screening,identification and evaluation of biocontrol bacteria against cotton boll blight[J]. Journal of Plant Protection, 2019, 46(4):805-815.
[14]	Olas J J, Wahl V. Tissue-specific NIA1 and NIA2 expression in Arabidopsis thaliana[J]. Plant Signaling & Behavior, 2019, 14(11):1656035.doi:10.1080/15592324.2019.1656035.
[15]	张辅志. 无毒高脂膜防治棉花烂桃及棉铃疫病研究[J]. 植物病理学报, 1988, 18(1):40.doi:10.13926/j.cnki.apps.1988.01.014.
	Zhang F Z. Study on the control of cotton peach rot and cotton boll blight with non-toxic and high-fat film[J]. Acta Phytopathologica Sinica, 1988, 18(1):40.
[16]	马平, 李社增, 陈新华, 刘增志, 杜嘉贞. 利用拮抗菌防治棉铃疫病[J]. 中国生物防治, 1998, 14(2):65-67.doi:10.3969/j.issn.2095-039X.1998.02.005.
	Ma P, Li S Z, Chen X H, Liu Z Z, Du J Z. Biological control of cotton boll Phytophthora blight by using antagonists[J]. Chinese Journal of Biological Control, 1998, 14(2):65-67.
[17]	张向月, 师勇强, 赵丽红, 魏锋, 冯鸿杰, 冯自力, 朱荷琴. 棉花铃病防治药剂筛选及应用[J]. 中国棉花, 2020, 47(3):17-20.doi:10.11963/1000-632X.zxyzhq.20200305.
	Zhang X Y, Shi Y Q, Zhao L H, Wei F, Feng H J, Feng Z L, Zhu H Q. Effective fungicides screening and application for controlling cotton boll disease[J]. China Cotton, 2020, 47(3):17-20. doi: 10.11963/1000-632X.zxyzhq.20200305
[18]	隋洁, 王红艳, 薛超, 杨媛雪, 赵鸣. 15种杀菌剂对棉铃疫病的室内毒力测定及防治效果[J]. 山东农业科学, 2018, 50(11):119-123.doi:10.14083/j.issn.1001-4942.2018.11.023.
	Sui J, Wang H Y, Xue C, Yang Y X, Zhao M. Indoor toxicity and control effects of fifteen fungicides to cotton boll blight disease[J]. Shandong Agricultural Sciences, 2018, 50(11):119-123.
[19]	Nunna H, Palmer N A, Sarath G, Wegulo S N, Tatineni S. Synergistic interaction between Wheat streak mosaic virus and Triticum mosaic virus modulates wheat transcriptome to favor disease severity[J]. Frontiers in Plant Science, 2025, 8(15):1504482.doi:10.3389/fpls.2024.1504482.
[20]	李丹, 赵存鹏, 刘素恩, 王凯辉, 张晓慧, 赵丽英, 郭宝生, 耿军义. 陆地棉2-酮戊二酸依赖型氧化酶GhAOP2-like基因的克隆和功能分析[J]. 华北农学报, 2023, 38(3):49-54.doi:10.7668/hbnxb.20193620.
	Li D, Zhao C P, Liu S E, Wang K H, Zhang X H, Zhao L Y, Guo B S, Geng J Y. Cloning and functional analysis of 2-oxoglutarate-dependent dioxygenase GhAOP2-like gene from upland cotton[J]. Acta Agriculturae Boreali-Sinica, 2023, 38(3):49-54.
[21]	李丹, 赵存鹏, 赵丽英, 刘旭, 刘素恩, 王凯辉, 王兆晓, 耿军义, 郭宝生. 棉花类表皮特异性分泌糖蛋白基因GhA01EP1的克隆和功能分析[J]. 棉花学报, 2021, 33(6):448-458.doi:10.11963/cs20200097.
	Li D, Zhao C P, Zhao L Y, Liu X, Liu S E, Wang K H, Wang Z X, Geng J Y, Guo B S. Cloning and functional analysis of epidermis-specific secreted glycoprotein EP1-like gene GhA01EP1 in cotton[J]. Cotton Science, 2021, 33(6):448-458.
[22]	崔润丽, 王永芳, 智慧, 李伟, 李海权, 黄占景, 刁现民. 谷子3-磷酸甘油醛脱氢酶基因的克隆与结构分析[J]. 华北农学报, 2009, 24(3):10-14.doi:10.7668/hbnxb.2009.03.003.
	Cui R L, Wang Y F, Zhi H, Li W, Li H Q, Huang Z J, Diao X M. Cloning and structure analysis of foxtail millet APDH gene[J]. Acta Agriculturae Boreali-Sinica, 2009, 24(3):10-14. doi: 10.7668/hbnxb.2009.03.003
[23]	Yamasaki H, Sakihama Y. Simultaneous production of nitric oxide and peroxynitrite by plant nitrate reductase in vitro[J]. FEBS Letters, 2000, 468(1):89-92.doi:10.1016/S0014-5793(00)01203-5. pmid: 10683447
[24]	León J, Costa-Broseta A. Present knowledge and controversies, deficiencies, and misconceptions on nitric oxide synthesis,sensing,and signaling in plants[J]. Plant,Cell & Environment, 2020, 43(1):1-15.doi:10.1111/pce.13617. URL
[25]	Kuz'niak E, Ciereszko I. Nitric oxide and photosynthesis interplay in plant interactions with pathogens[J]. International Journal of Molecular Sciences, 2025, 26(14):6964.doi:10.3390/ijms26146964. URL
