Study on the Manganese Oxidation Activity of CotA Protein of Multicopper Oxidase from Bacillus safensis

doi:10.7668/hbnxb.20195936

Abstract

Abstract:

The Bacillus safensis ST7 strain has strong manganese oxidation activity,in which the expression of the multicopper oxidase protein family gene BSL056-RS03010(cotA)is significantly upregulated under manganese stress,which may be involved in Mn(Ⅱ)oxidation and make the strain have strong manganese tolerance.In order to verify the manganese oxidation ability of the cotA in B.safensis,the cotA gene was cloned and an expression vector was constructed,and then transformed to Escherichia coli for heterologous expression to study the effect of cotA gene overexpression on the manganese oxidation activity and removal rate of E.coli,so as to validate the function of the cotA gene,and to provide a technological means for constructing highly efficient manganese oxidizing strains to treat manganese pollution.Using PCR,RT-qPCR and SDS-PAGE,the cotA gene of B.safensis ST7 was cloned,ligated into the pET28a(+)expression vector,and efficiently expressed in E.coli BL21(DE3)induced by isopropyl thiogalactoside.The growth curve,manganese tolerance concentration,manganese oxidation activity and manganese removal rate of the cotA gene transformed strain were determined.The cloning and sequence analysis showed that the coding region of the cotA gene of B.safensis ST7 was 1 533 bp,encoding 510 aa with a molecular mass of about 58.8 ku.The expression of the recombinant plasmid pET28a-cotA was significantly up-regulated in E.coli BL21(DE3)cells without inhibition of the growth of the bacterium.The cotA gene was highly efficiently expressed under 0,250,1 000 mg/L manganese stress with time and concentration dependence.The manganese oxidizing activity of the recombinant strain was 0.9-fold higher than that of the control,the manganese tolerance concentration was 1.0-fold higher.The CotA protein of B.safensis has manganese oxidizing activity,and overexpression of the cotA gene can improve the oxidizing activity,tolerance and removal efficiency of Mn(Ⅱ)in E.coli cells,which is of great significance for the construction of manganese oxidizing strains with high efficient cotA gene for manganese pollution management.

Key words: Bacillus safensis, cotA gene, Gene cloning, Manganese oxidizing, Manganese pollution remediation

CLC Number:

S939.97

SU Chengli, NIU Xi, HUANG Shihui, LI Sheng, RAN Xueqin, WANG Jiafu. Study on the Manganese Oxidation Activity of CotA Protein of Multicopper Oxidase from Bacillus safensis[J]. Acta Agriculturae Boreali-Sinica, 2026, 41(1): 230-238. doi: 10.7668/hbnxb.20195936.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20195936

http://www.hbnxb.net/EN/Y2026/V41/I1/230

Figures/Tables 9

Tab.1 Primer information

引物名称 Primer name	引物序列(5'— 3') Primer sequence (5'— 3')	产物长度/bp Product size
cotA-F	CGC GGATCCATGAACCTAGAAAAATTTGTTG	1 551
cotA-R	CCC AAGCTTTTACTGAATGATATCCATAGGC
cotA-qF	TCACACGTCCGCTAAAAGGG	134
cotA-qR	GGCGGCCGTATTTATCCTGT

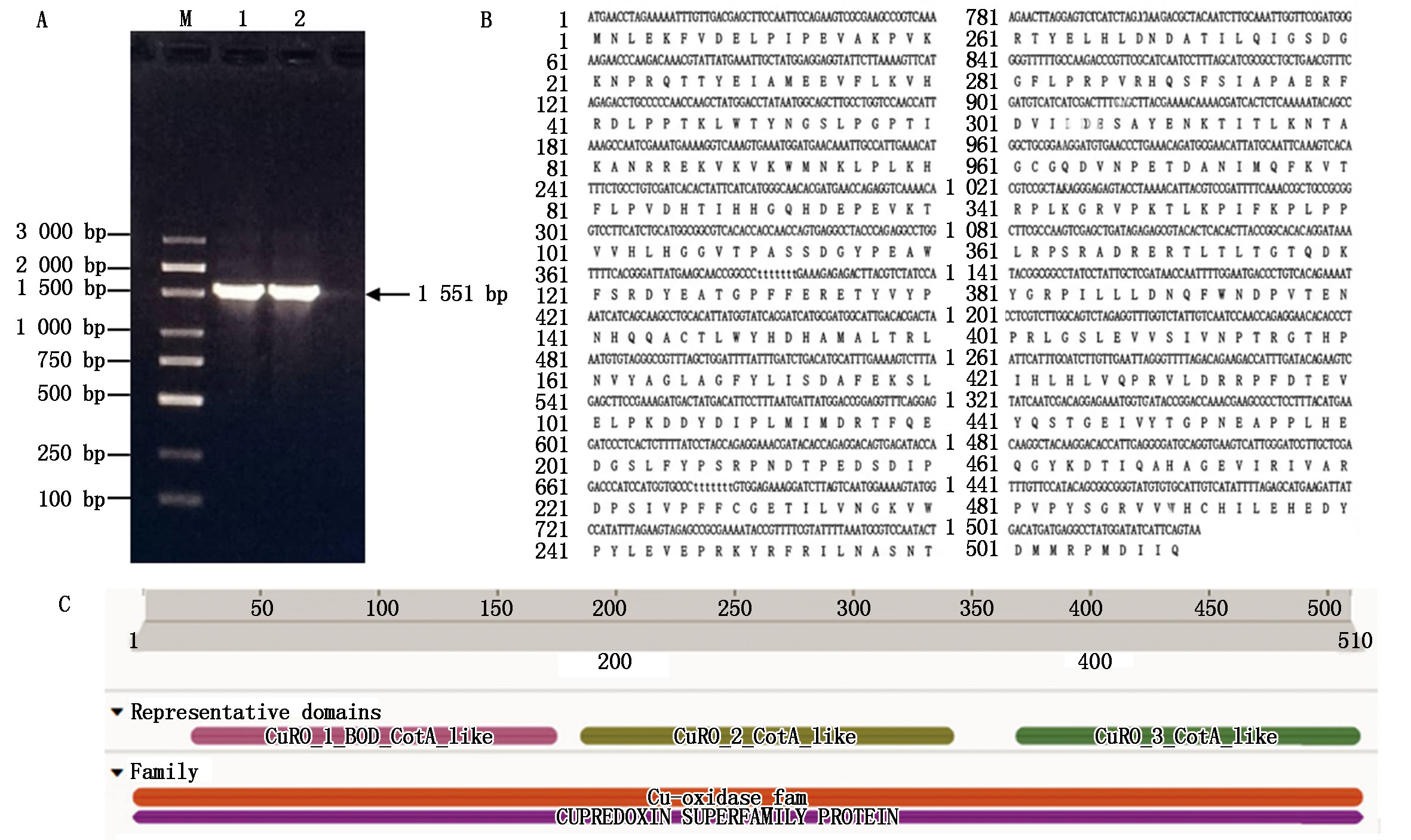

Fig.1 Amplification and bioinformatics analysis of the cotA gene A.Amplified DNA fragment;B.DNA and amino acid sequence;C.CotA structural domain.

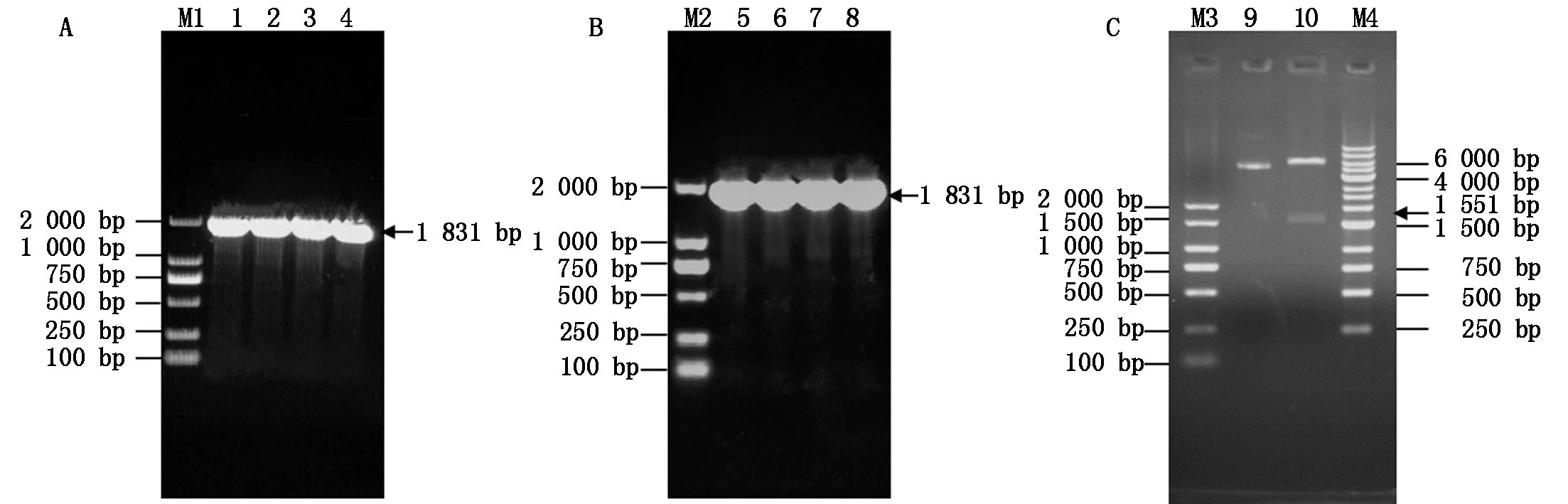

Fig.2 Identification of recombinant plasmid pET28a-cotA A.Colony PCR validation of recombinant plasmid;B.Plasmid PCR validation of recombinant plasmid;C.Enzymatic validation of recombinant plasmid.M1—M3.DL2000 DNA Marker;M4.1 kb DNA Ladder;1—8.cotA gene fragment;9.Expression vector empty plasmid;10.Recombinant plasmid pET28a-cotA double enzyme digestion.

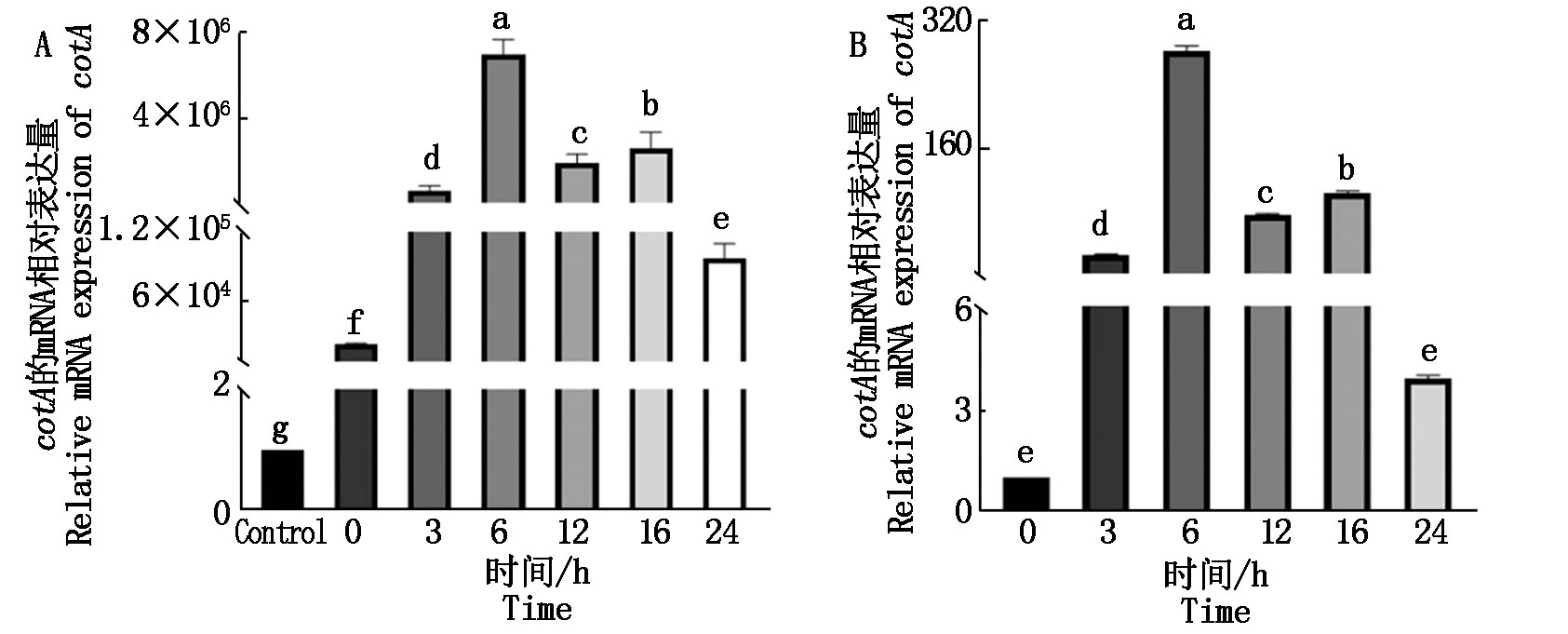

Fig.3 Relative expression levels and expression-fold ratios at different times of IPTG induction A.Induction of expression at different times;B.Expression multiplicity ratio by induction of different time. Different lowercase letters indicate significant difference at 0.05 level.The same as Fig.5,6.

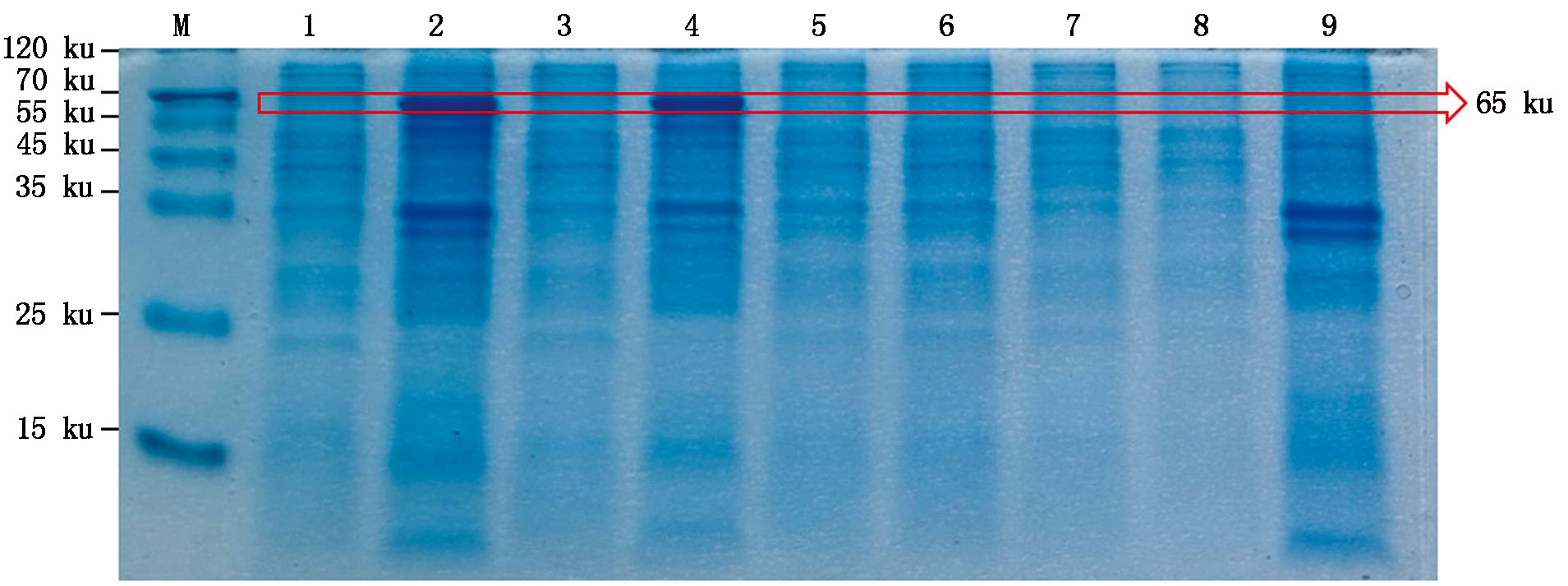

Fig.4 Detection of CotA protein expression by SDS-PAGE M.Protein Marker;1—2.E.coli BL21/pET28a-cotA induced supernatant and precipitation;3—4.E.coli BL21/pET28a-cotA uninduced supernatant and precipitate;5—6.E.coli BL21-pET28a uninduced holobacteria,induced holobacteria;7—9.E.coli BL21(DE3)uninduced supernatant,induced supernatant and precipitate.

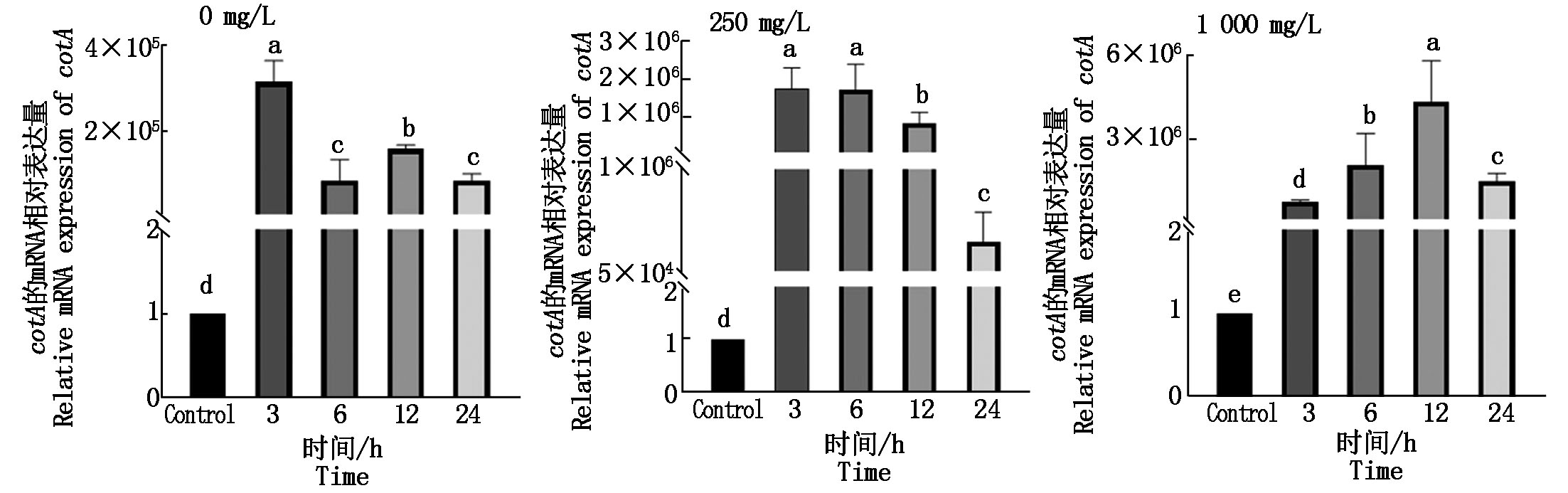

Fig.5 Expression of cotA gene under different concentration manganese stresses

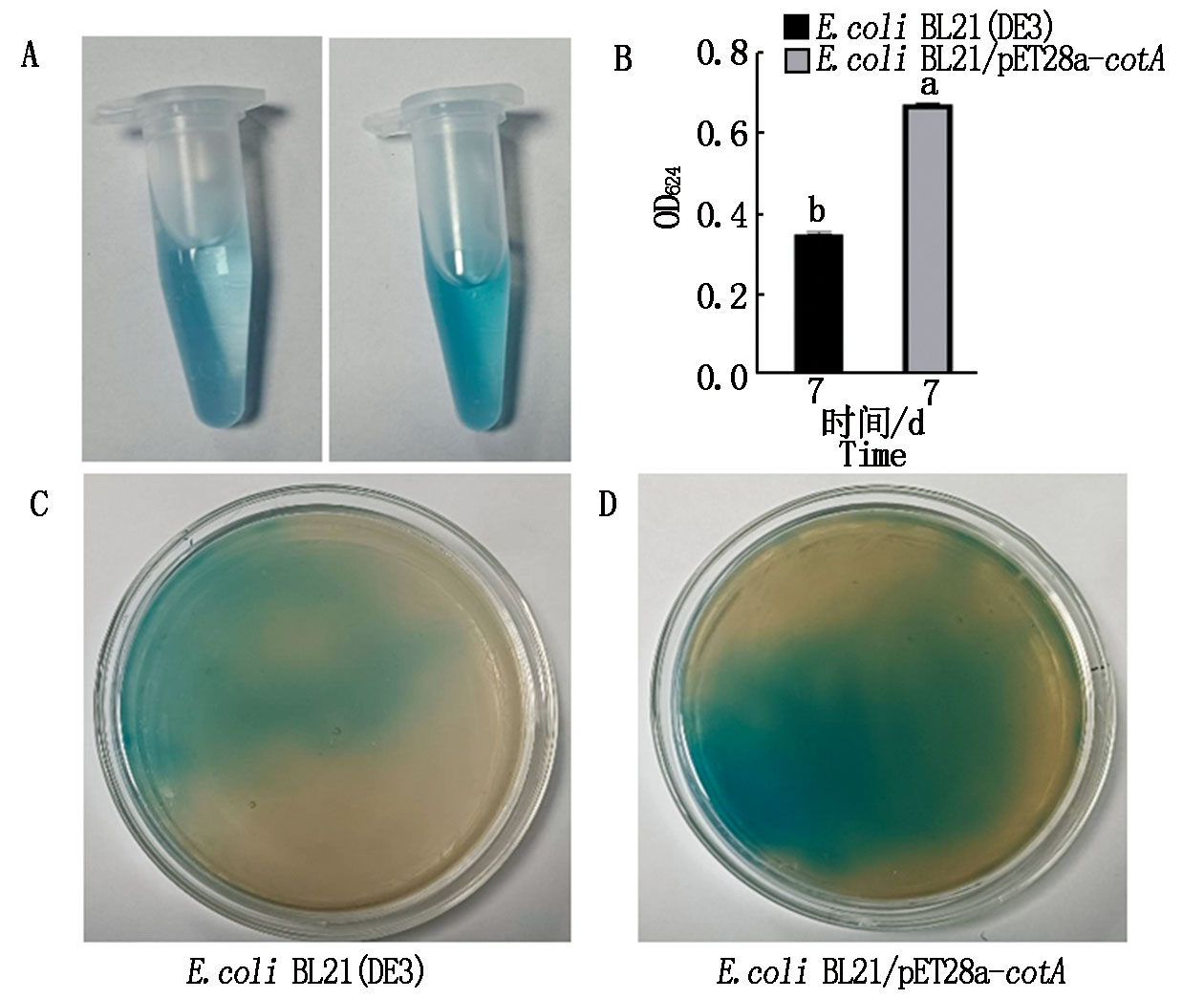

Fig.6 Manganese oxidizing activity test A.Liquid manganese oxidation;B.Comparison of manganese oxidizing activity between E.coli BL21(DE3)and E.coli BL21/pET28a-cotA;C,D.Solid manganese oxidation.

Fig.7 Manganese metal tolerance concentration test of different strains

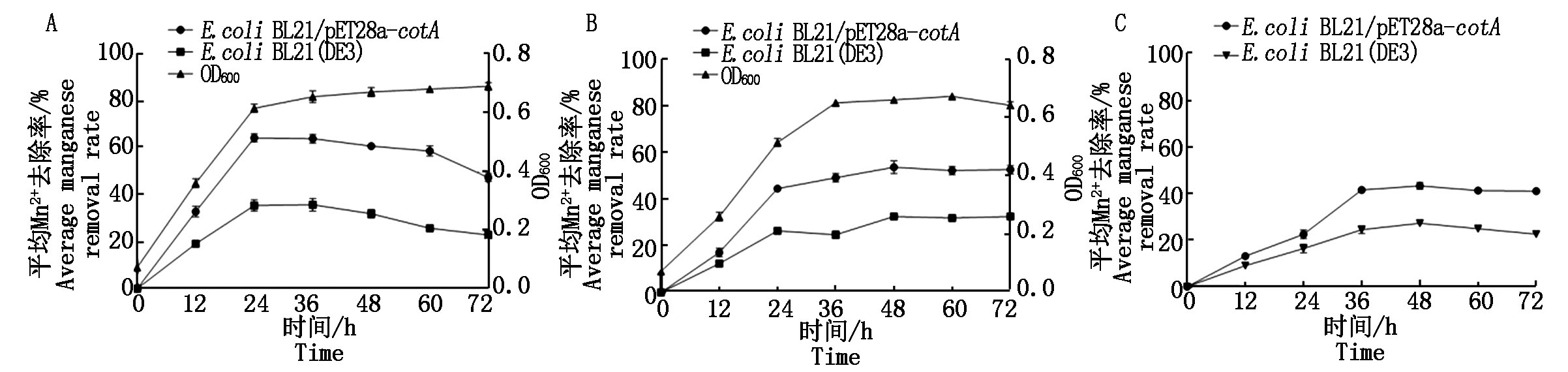

Fig.8 Changes in the removal rate of Mn²⁺ by bacterial strains over cultivation time A.In medium;B.In aqueous solution;C. In manganese contaminated soil.

References 35

[1]	Elliott R, Coley K, Mostaghel S, Barati M. Review of manganese processing for production of TRIP/TWIP steels,part 1:current practice and processing fundamentals[J]. JOM, 2018, 70(5):680-690.doi:10.1007/s11837-018-2769-4.
[2]	滕小华, 刘宇昊, 李克非, 刘晓洁, 黄斌, 李丹, 唐友. 环境锰污染对生物健康的威胁[J]. 东北农业大学学报, 2021, 52(1):90-96.doi:10.19720/j.cnki.issn.1005-9369.2021.01.0011.
	Teng X H, Liu Y H, Li K F, Liu X J, Huang B, Li D, Tang Y. Threat of environmental manganese pollution to biological health[J]. Journal of Northeast Agricultural University, 2021, 52(1):90-96.
[3]	Crossgrove J, Zheng W. Manganese toxicity upon overexposure[J]. NMR in Biomedicine, 2004, 17(8):544-553.doi:10.1002/nbm.931. pmid: 15617053
[4]	Chen P, Culbreth M, Aschner M.Exposure, epidemiology,and mechanism of the environmental toxicant manganese[J]. Environmental Science and Pollution Research, 2016, 23(14):13802-13810.doi:10.1007/s11356-016-6687-0. URL
[5]	Bjørklund G, Chartrand M S, Aaseth J. Manganese exposure and neurotoxic effects in children[J]. Environmental Research, 2017, 155:380-384.doi:10.1016/j.envres.2017.03.003. pmid: 28282629
[6]	Torres-Agustín R, Rodríguez-Agudelo Y, Schilmann A, Solís-Vivanco R, Montes S, Riojas-Rodríguez H, Cortez-Lugo M, Ríos C. Effect of environmental manganese exposure on verbal learning and memory in Mexican children[J]. Environmental Research, 2013, 121:39-44.doi:10.1016/j.envres.2012.10.007. pmid: 23141434
[7]	Hafeman D, Factor-Litvak P, Cheng Z Q, Van Geen A, Ahsan H. Association between manganese exposure through drinking water and infant mortality in Bangladesh[J]. Environmental Health Perspectives, 2007, 115(7):1107-1112.doi:10.1289/ehp.10051. pmid: 17637930
[8]	张汉沛, 房平, 马千里, 梁荣昌, 赵学敏. 河流沉积物重金属污染修复技术研究进展[J]. 广东化工, 2022, 49(4):137-138.doi:10.3969/j.issn.1007-1865.2022.04.040.
	Zhang H P, Fang P, Ma Q L, Liang R C, Zhao X M. Research progress on remediation technology of heavy metals contamination in river sediments[J]. Guangdong Chemical Industry, 2022, 49(4):137-138.
[9]	Zhou H, Fu C. Manganese-oxidizing microbes and biogenic manganese oxides:characterization,Mn(Ⅱ)oxidation mechanism and environmental relevance[J]. Reviews in Environmental Science and Bio/Technology, 2020, 19(3):489-507.doi:10.1007/s11157-020-09541-1.
[10]	Li Y C, Xu Z, Ma H Q, Hursthouse A S. Removal of manganese(Ⅱ)from acid mine wastewater:a review of the challenges and opportunities with special emphasis on Mn-oxidizing bacteria and microalgae[J]. Water, 2019, 11(12):2493.doi:10.3390/w11122493. URL
[11]	尹思雨, 罗玉山, 黄磊, 党俊杰, 陈洪满, 姚李波, 邓冬梅. 4株耐酸锰氧化菌的分离鉴定及性能测定[J]. 环境科学与技术, 2022, 45(10):27-35.doi:10.19672/j.cnki.1003-6504.1066.22.338.
	Yin S Y, Luo Y S, Huang L, Dang J J, Chen H M, Yao L B, Deng D M. Four acid resistant manganese oxidizing bacteria:isolation,identification and performance determination[J]. Environmental Science & Technology, 2022, 45(10):27-35. doi: 10.1021/es101695d URL
[12]	Chaput D L, Fowler A J, Seo O, Duhn K, Hansel C M, Santelli C M. Mn oxide formation by phototrophs:spatial and temporal patterns,with evidence of an enzymatic superoxide-mediated pathway[J]. Scientific Reports, 2019, 9:18244.doi:10.1038/s41598-019-54403-8.
[13]	Cai Y N, Yang K, Qiu C C, Bi Y Z, Tian B W, Bi X J. A review of manganese-oxidizing bacteria(MnOB):applications,future concerns,and challenges[J]. International Journal of Environmental Research and Public Health, 2023, 20(2):1272.doi:10.3390/ijerph20021272. URL
[14]	Tebo B M, Bargar J R, Clement B G, Dick G J, Murray K J, Parker D, Verity R, Webb S M. BIOGENIC MANGANESE OXIDES:properties and mechanisms of formation[J]. Annual Review of Earth and Planetary Sciences, 2004, 32:287-328.doi:10.1146/annurev.earth.32.101802.120213. URL
[15]	范丽莉, 王炎, 赵敏, 王珏玉, 赵美, 邢丹. CotA漆酶催化靛蓝胭脂红脱色条件优化[J]. 东北林业大学学报, 2016, 44(9):106-111.doi:10.13759/j.cnki.dlxb.2016.09.023.
	Fan L L, Wang Y, Zhao M, Wang J Y, Zhao M, Xing D. Decolorization optimization of indigo carmine by CotA laccase[J]. Journal of Northeast Forestry University, 2016, 44(9):106-111.
[16]	刘畅. 短小芽孢杆菌芽孢衣蛋白CotA的异源表面展示与锰氧化活性研究[D]. 武汉: 华中农业大学, 2012.
	Liu C. Heterologous surface-display of Bacillus pumilus CotA and characterization of the reactivity to manganese ions[D]. Wuhan: Huazhong Agricultural University, 2012.
[17]	林子彦, 王锟, 黄点秋, 宁美凤, 姜明国, 高亚慧, 丰景. 互花米草根系促生菌的筛选及其挥发性有机物质鉴定[J]. 南方农业学报, 2024, 55(7):2169-2180.doi:10.3969/j.issn.2095-1191.2024.07.028.
	Lin Z Y, Wang K, Huang D Q, Ning M F, Jiang M G, Gao Y H, Feng J. Screening of rhizosphere-promoting bacteria and identification of volatile organic compounds in the root system of euphorbiaceae[J]. Journal of Southern Agriculture, 2024, 55(7):2169-2180.
[18]	Lateef A, Adelere I A, Gueguim-Kana E B. The biology and potential biotechnological applications of Bacillus safensis[J]. Biologia, 2015, 70(4):411-419.doi:10.1515/biolog-2015-0062. URL
[19]	田群. 耐锰细菌的分离鉴定及耐受性机制研究[D]. 贵阳: 贵州大学, 2017.
	Tian Q. Isolation,identification and tolerance mechanism of manganese-tolerant bacteria[D]. Guiyang: Guizhou University, 2017.
[20]	Ran X Q, Zhu Z M, Long H, Tian Q, You L J, Wu X D, Liu Q, Huang S H, Li S, Niu X, Wang J F. Manganese stress adaptation mechanisms of Bacillus safensis strain ST7 from mine soil[J]. Frontiers in Microbiology, 2021, 12:758889.doi:10.3389/fmicb.2021.758889. URL
[21]	温海洋, 朱紫童, 湛佳伟, 李长, 武博寒, 杨永霞, 张松涛, 贾宏昉. 烟草转录因子NtWRKY11基因克隆、亚细胞定位及表达模式分析[J]. 华北农学报, 2024, 39(3):60-66.doi:10.7668/hbnxb.20194660.
	Wen H Y, Zhu Z T, Zhan J W, Li C, Wu B H, Yang Y X, Zhang S T, Jia H F. Cloning,subcellular localization and expression pattern analysis of tobacco transcription factor NtWRKY11 gene[J]. Acta Agriculturae Boreali-Sinica, 2024, 39(3):60-66.
[22]	靳芹, 张慧莉, 赵长乐, 曹小洁, 万银平, 王娜. upp基因在解淀粉芽孢杆菌C10遗传改造中的应用[J]. 华北农学报, 2021, 36(S1):16-22.doi:10.7668/hbnxb.20192002.
	Jin Q, Zhang H L, Zhao C L, Cao X J, Wan Y P, Wang N. Application of upp gene in genetic modification of Bacillus amyloliquefaciens C10[J]. Acta Agriculturae Boreali-Sinica, 2021, 36(S1):16-22.
[23]	Jones M R, Luther G W, Mucci A, Tebo B M. Concentrations of reactive Mn(Ⅲ)-L and MnO₂ in estuarine and marine waters determined using spectrophotometry and the leuco base,leucoberbelin blue[J]. Talanta, 2019, 200:91-99.doi:10.1016/j.talanta.2019.03.026. URL
[24]	郭岳帅, 曹董恒, 陈莎, 薛岚, 李丁. 土壤细菌新Mn(Ⅱ)氧化蛋白PomA的异源表达及其酶学特性[J]. 微生物学通报, 2025, 52(7):1-15.doi:10.13344/j.microbiol.china.241005.
	Guo Y S, Cao D H, Chen S, Xue L, Li D. Heterologous expression and enzymatic characterization of PomA,a novel Mn(Ⅱ)-oxidizing protein derived from a soil bacterium[J]. Microbiology China, 2025, 52(7):1-15.
[25]	Ihssen J, Reiss R, Luchsinger R, Thöny-Meyer L, Richter M. Biochemical properties and yields of diverse bacterial laccase-like multicopper oxidases expressed in Escherichia coli[J]. Scientific Reports, 2015, 5:10465.doi:10.1038/srep10465.
[26]	柴燕涛, 姜棋予, 谢国明, 胡燕, 邬顺全, 杨锐创, 貌盼勇, 侯俊. 包涵体蛋白3种纯化方法的比较[J]. 中国医药导报, 2016, 13(10):4-6.
	Chai Y T, Jiang Q Y, Xie G M, Hu Y, Wu S Q, Yang R C, Mao P Y, Hou J. Comparison of three methods for purification of inclusion body protein[J]. China Medical Herald, 2016, 13(10):4-6.
[27]	Banh A, Chavez V, Doi J, Nguyen A, Hernandez S, Ha V, Jimenez P, Espinoza F, Johnson H A. Manganese(Mn)oxidation increases intracellular Mn in Pseudomonas putida GB-1[J]. PLoS One, 2013, 8(10):e77835.doi:10.1371/journal.pone.0077835.
[28]	An Q, Jin L, Deng S M, Li Z, Zhang C Y. Removal of Mn(Ⅱ) by a nitrifying bacterium Acinetobacter sp.AL-6:efficiency and mechanisms[J]. Environmental Science and Pollution Research, 2021, 28(24):31218-31229.doi:10.1007/s11356-021-12764-6.
[29]	许开忠, 王雅静, 马慧, 蔡宇杰, 廖祥儒, 管政兵. 重组短小芽孢杆菌CotA漆酶的酶学性质及发酵优化研究[J]. 食品与生物技术学报, 2020, 39(12):28-34.doi:10.3969/j.issn.1673-1689.2020.12.005.
	Xu K Z, Wang Y J, Ma H, Cai Y J, Liao X R, Guan Z B. Fermentation optimization and enzymatic properties of recombinant CotA laccase from Bacillus pumilus[J]. Journal of Food Science and Biotechnology, 2020, 39(12):28-34.
[30]	Su J M, Bao P, Bai T L, Deng L, Wu H, Liu F, He J. CotA,a multicopper oxidase from Bacillus pumilus WH4,exhibits manganese-oxidase activity[J]. PLoS One, 2013, 8(4):e60573.doi:10.1371/journal.pone.0060573. URL
[31]	Li F, Wang W, Li C C, Zhu R L, Ge F, Zheng Y, Tang Y X. Self-mediated pH changes in culture medium affecting biosorption and biomineralization of Cd²⁺ by Bacillus cereus Cd01[J]. Journal of Hazardous Materials, 2018, 358:178-186.doi:10.1016/j.jhazmat.2018.06.066. URL
[32]	Wang Y N, Tsang Y F, Wang H W, Sun Y J, Song Y, Pan X L, Luo S Y. Effective stabilization of arsenic in contaminated soils with biogenic manganese oxide(BMO)materials[J]. Environmental Pollution, 2020, 258:113481.doi:10.1016/j.envpol.2019.113481. URL
[33]	Zhang Y, Tang Y K, Qin Z Y, Luo P H, Ma Z, Tan M Y, Kang H Y, Huang Z N. A novel manganese oxidizing bacterium-Aeromonas hydrophila strain DS02:Mn(Ⅱ)oxidization and biogenic Mn oxides generation[J]. Journal of Hazardous Materials, 2019, 367:539-545.doi:10.1016/j.jhazmat.2019.01.012. pmid: 30654278
[34]	Liu Y X, Li J Q, Zeng J, Yu X, Sun X W, Zhou Z C, Xu J J, Xu L Z, Li L. Complete oxidative degradation of diclofenac via coupling free radicals and oxygenases of a micro/nanostructured biogenic Mn oxide composite from engineered Pseudomonas sp.MB04R-2[J]. Journal of Hazardous Materials, 2023, 456:131657.doi:10.1016/j.jhazmat.2023.131657. URL
[35]	Barbosa L P, Costa P F, Bertolino S M, Silva J C C, Guerra-Sá R, Leão V A, Teixeira M C. Nickel,manganese and copper removal by a mixed consortium of sulfate reducing bacteria at a high COD/sulfate ratio[J]. World Journal of Microbiology and Biotechnology, 2014, 30(8):2171-2180.doi:10.1007/s11274-013-1592-x. URL
