Cloning,Subcellular Localization and Expression Analysis of TaWRKY70 in Wheat

doi:10.7668/hbnxb.20195906

Abstract

Abstract:

To elucidate the role of WRKY transcription factor family members in the dynamic regulation of wheat growth and development,as well as in responses to abiotic stresses,this study investigated the expression patterns of TaWRKY gene under drought,high salinity,and low-temperature stress conditions.Using the common wheat cultivar Chinese Spring as the experimental material,we obtained the TaWRKY70 gene through molecular cloning.The coding sequence of TaWRKY70 was 885 bp in length,encoding a 294-amino-acid hydrophilic and unstable protein.Bioinformatics analysis revealed that the protein possessed a typical WRKYGQK conserved domain and a C₂HC-type zinc finger structure,classifying it as a Group Ⅲ WRKY transcription factor.Cis-regulatory element analysis of the TaWRKY70 promoter region identified regulatory elements involved in responses to methyl jasmonate,abscisic acid,and ethylene.Co-expression gene analysis suggested that TaWRKY70 was associated with multiple stress response processes in wheat,including hormone signaling,defense against microbial pathogens,and responses to cold stress.Phylogenetic analysis indicated that TaWRKY70 shared a close evolutionary relationship with WRKY70 proteins from other Poaceae species,such as barley,maize,sorghum,and foxtail millet.Subcellular localization experiment further confirmed that TaWRKY70 was localized in the nucleus,consistent with the characteristics of a transcription factor.Expression pattern analysis showed that TaWRKY70 was expressed in wheat roots,stems,leaves,young spikes,and grains,with higher expression levels observed in roots and leaves.Under abiotic stress conditions,TaWRKY70 expression was downregulated in response to abscisic acid and low-temperature treatments but upregulated under salicylic acid,NaCl,PEG6000,and high-temperature treatments.In conclusion,the cloning of TaWRKY70 gene and analysis of its expression pattern provide a basis for the next step to analyze the molecular mechanism of TaWRKY70 involved in wheat stress resistance.

Key words: Wheat, TaWRKY70, Gene cloning, Subcellular localization, Expression analysis

CLC Number:

LU Zhenhua, LIANG Chen, ZHANG Li, TONG Kexin, CHEN Xiaoqiang, LI Ming, DING Bo, QIU Lina, XIE Xiaodong, WANG Junbin. Cloning,Subcellular Localization and Expression Analysis of TaWRKY70 in Wheat[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(5): 12-19. doi: 10.7668/hbnxb.20195906.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20195906

http://www.hbnxb.net/EN/Y2025/V40/I5/12

Figures/Tables 9

Fig.1 PCR amplification of TaWRKY70 in wheat M.2K PlusⅡ DNA Marker;1,2,3.Fragments of TaWRKY70; 4.Negative control(H₂O).

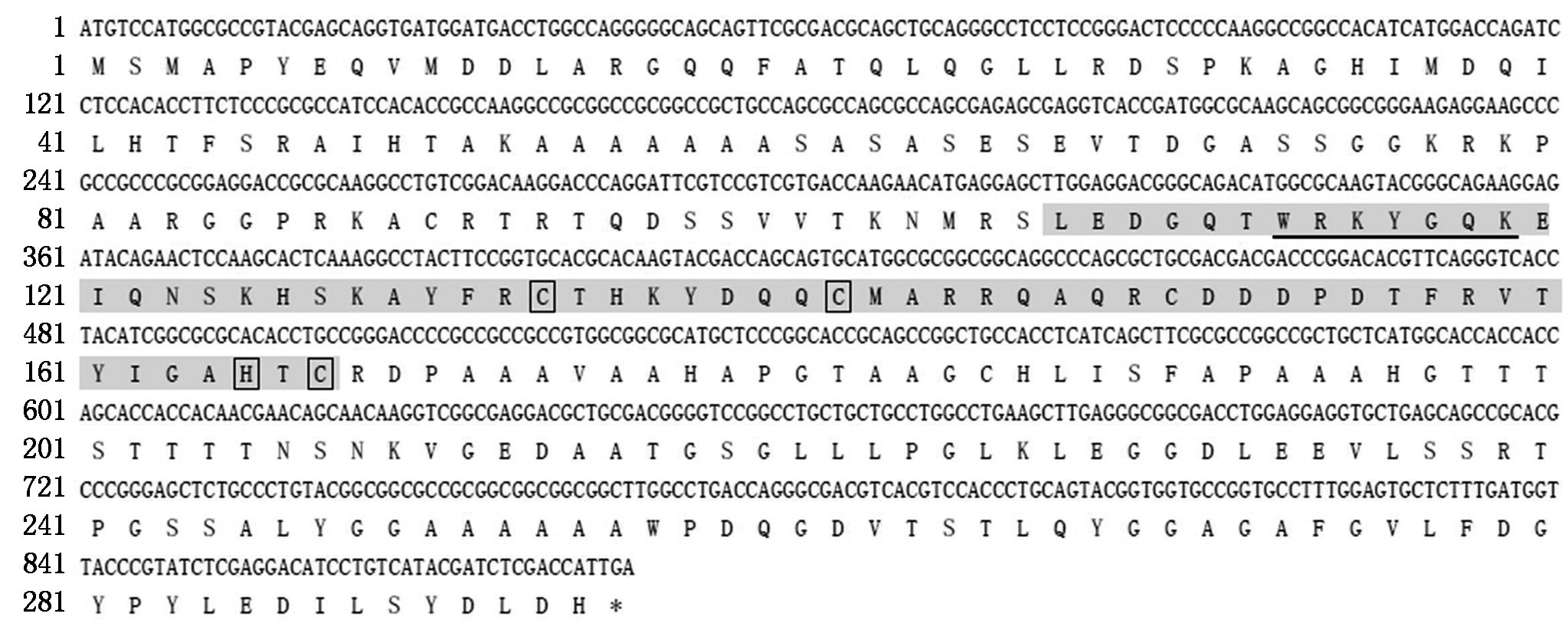

Fig.2 Analysis of amino acid sequences and conserved domains encoded by TaWRKY70 The shaded area represents the conserved WRKY domain.The sequence with underline means WRKYGQK core sequence and the C₂HC zinc-finger structure are boxed.

Tab.1 Cis-acting elements and functional annotations of TaWRKY70 promoter

顺式作用元件 Cis-acting elements	数量 Number	功能 Function
TGA-element	1	生长素响应元件
TGACG-motif	8	茉莉酸甲酯响应元件
CGTCA-motif	8	茉莉酸甲酯响应元件
TCA-element	1	水杨酸响应元件
CCGTCC-box	8	乙烯响应元件
TATC-box	1	赤霉素响应元件
ABRE	1	ABA响应元件
TCCC-motif	3	光响应元件
Sp1	2	光响应元件
Box 4	2	光响应元件
MBS	1	与干旱诱导相关的MYB结合位点
GCN4_motif	1	参与胚乳表达的顺式调控元件
GC-motif	3	参与缺氧特异性诱导的增强子样元件

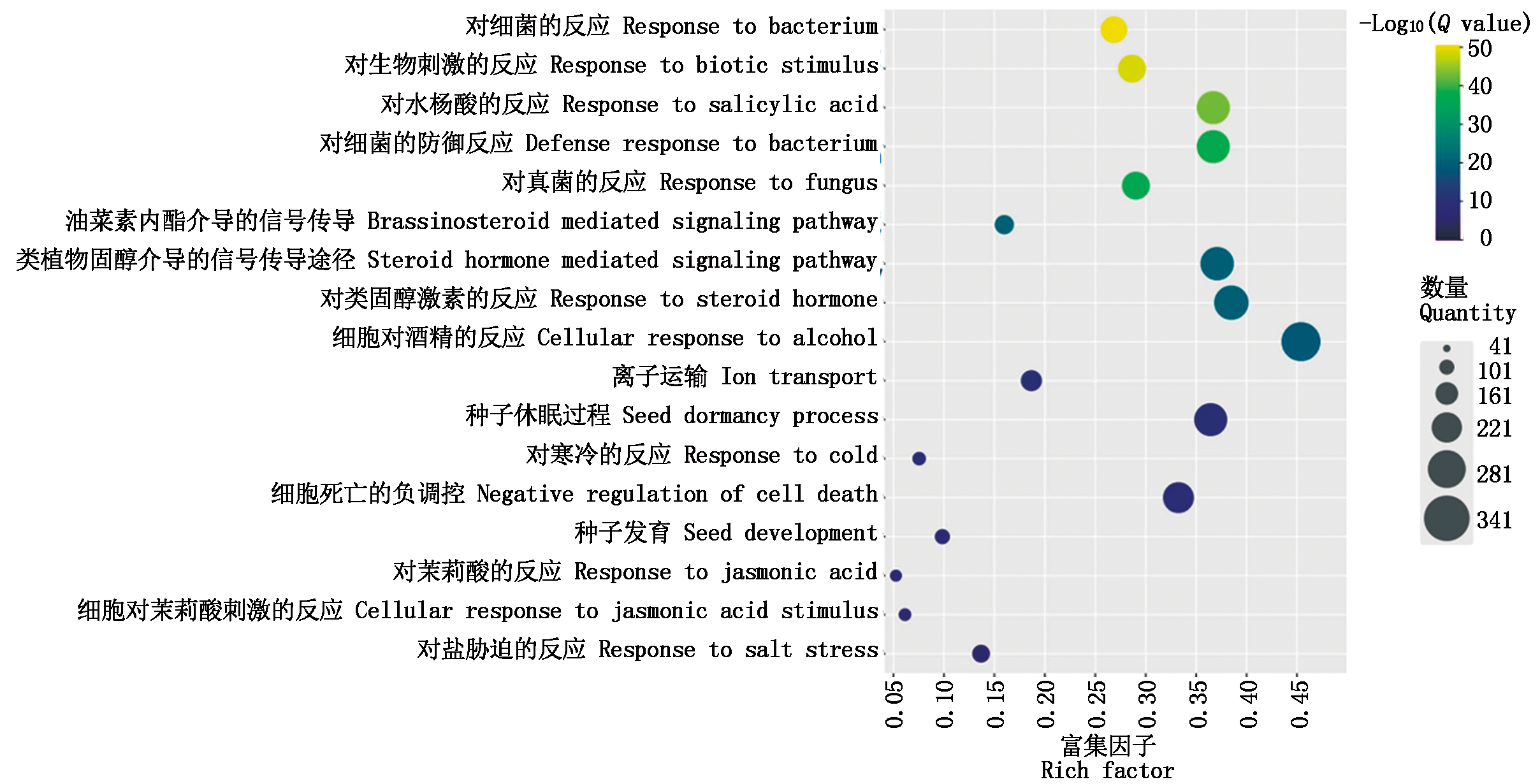

Fig.3 GO enrichment analysis of TaWRKY70 co-expression genes Color represents the enrichment level;size represents the number of enriched genes.

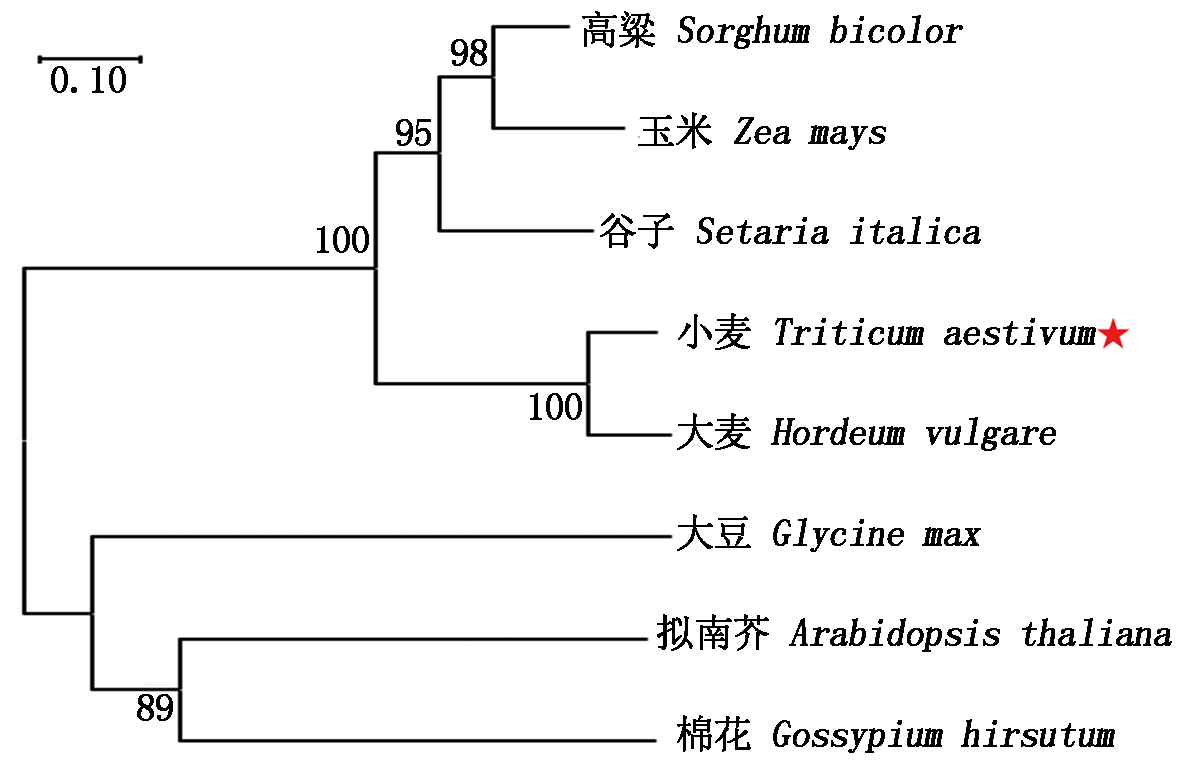

Fig.4 Phylogenetic tree of TaWRKY70 and its homologous WRKY70 proteins

Fig.5 Subcellular localization of TaWRKY70

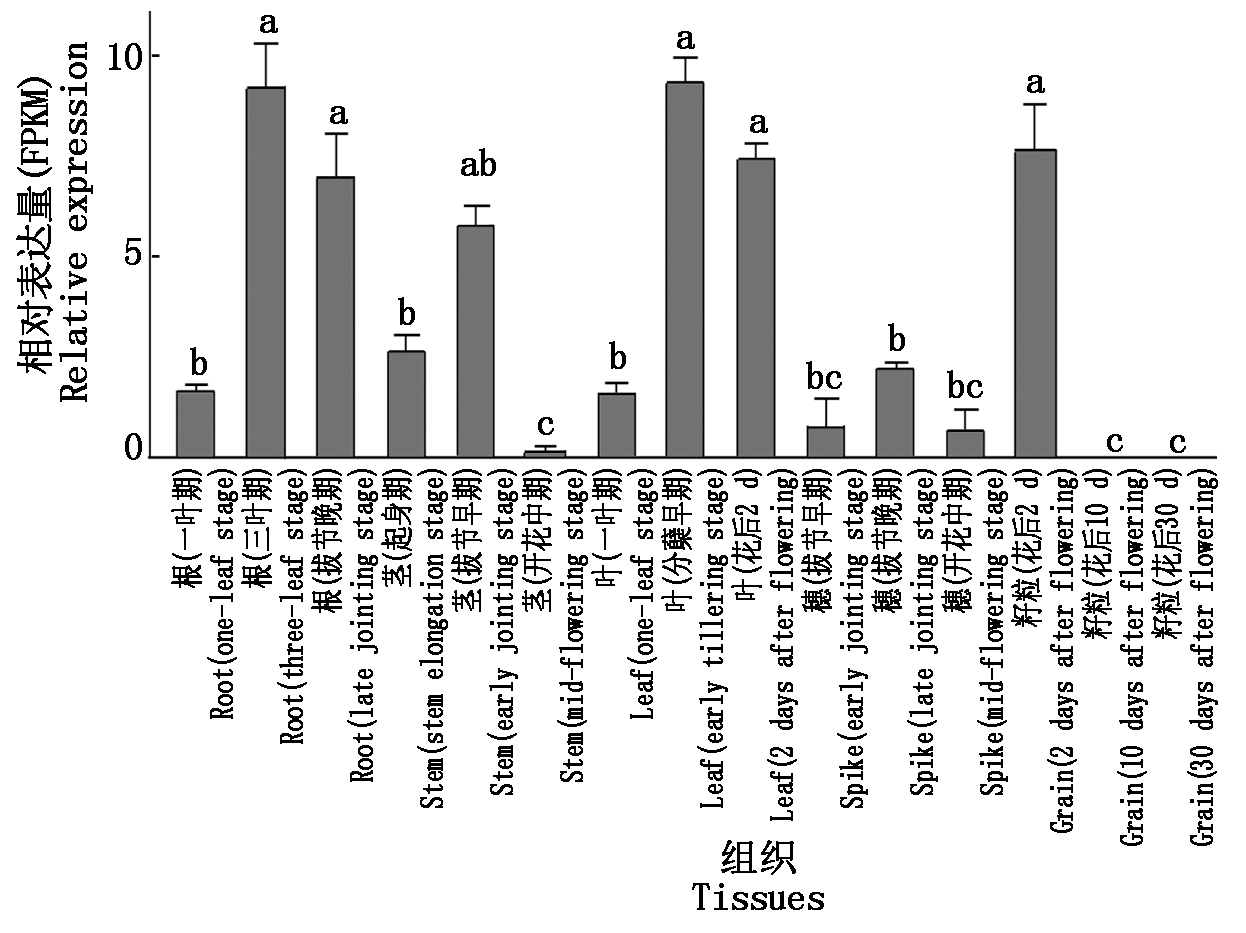

Fig.6 Tissue-specific expression analysis of the TaWRKY70 gene Different lowercase letters indicate significant differences(P<0.05).The same as Fig.8.

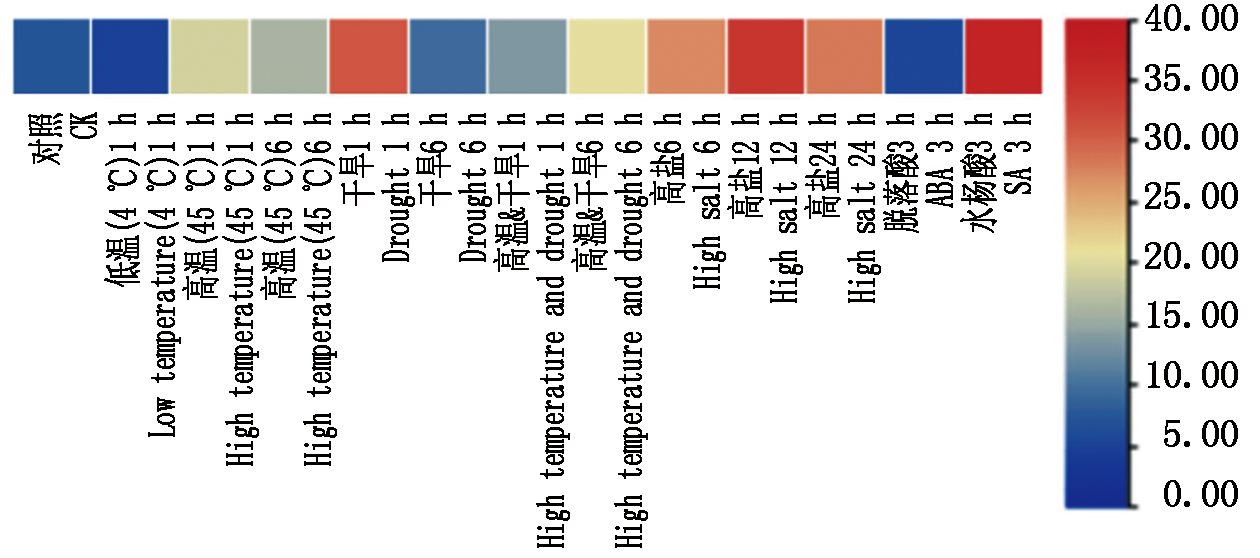

Fig.7 Relative expression heatmap of TaWRKY70 gene under different abiotic stresses

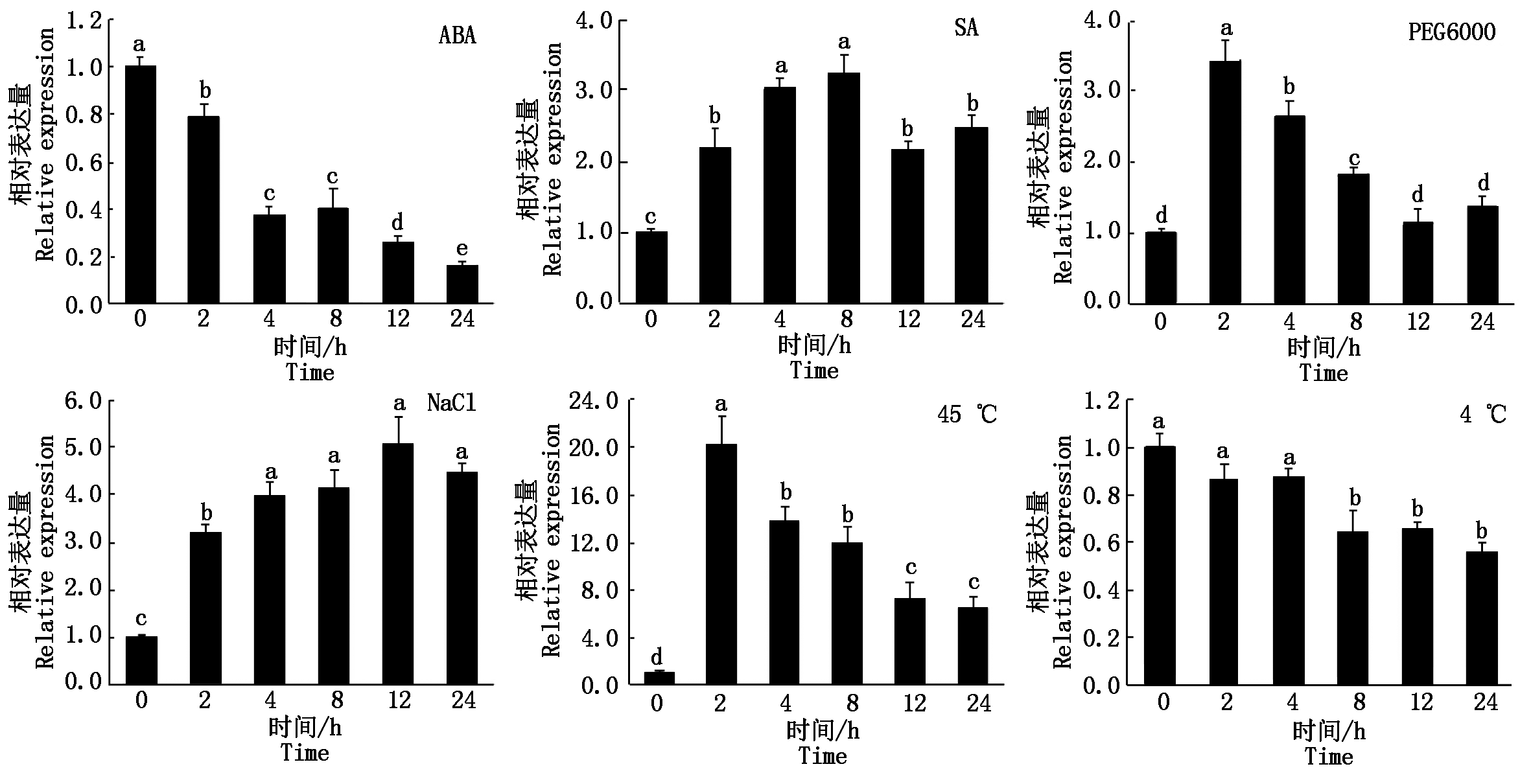

Fig.8 Analysis of expression patterns of TaWRKY70 under different stress treatment conditions

References 27

[1]	Bohra A, Choudhary M, Bennett D, Joshi R, Mir R R, Varshney R K. Drought-tolerant wheat for enhancing global food security[J]. Functional & Integrative Genomics, 2024, 24(6):212.doi:10.1007/s10142-024-01488-8.
[2]	Rushton P J, Somssich I E, Ringler P, Shen Q J. WRKY transcription factors[J]. Trends in Plant Science, 2010, 15(5):247-258.doi:10.1016/j.tplants.2010.02.006.
[3]	王淑叶, 伍国强, 魏明. WRKY转录因子调控植物逆境胁迫响应的作用机制[J]. 生物工程学报, 2024, 40(1):35-52.doi:10.13345/j.cjb.230298.
	Wang S Y, Wu G Q, Wei M. Functional mechanisms of WRKY transcription factors in regulating plant response to abiotic stresses[J]. Chinese Journal of Biotechnology, 2024, 40(1):35-52.
[4]	Wani S H, Anand S, Singh B, Bohra A, Joshi R. WRKY transcription factors and plant defense responses:latest discoveries and future prospects[J]. Plant Cell Reports, 2021, 40(7):1071-1085.doi:10.1007/s00299-021-02691-8.
[5]	Qiao Z, Li C L, Zhang W. WRKY1 regulates stomatal movement in drought-stressed Arabidopsis thaliana[J]. Plant Molecular Biology, 2016, 91(1):53-65.doi:10.1007/s11103-016-0441-3.
[6]	Chen J N, Nolan T M, Ye H X, Zhang M C, Tong H N, Xin P Y, Chu J F, Chu C C, Li Z H, Yin Y H. Arabidopsis WRKY46,WRKY54,and WRKY70 transcription factors are involved in brassinosteroid-regulated plant growth and drought responses[J]. The Plant Cell, 2017, 29(6):1425-1439.doi:10.1105/tpc.17.00364.
[7]	Lim C, Kang K, Shim Y, Yoo S C, Paek N C. Inactivating transcription factor OsWRKY5 enhances drought tolerance through abscisic acid signaling pathways[J]. Plant Physiology, 2022, 188(4):1900-1916.doi:10.1093/plphys/kiab492.
[8]	Liu Y, Wang B X, Li J F, Sun Z G, Chi M, Xing Y G, Xu B, Yang B, Li J, Liu J B, Chen T M, Fang Z W, Lu B G, Xu D Y, Bello B K. A novel SAPK10-WRKY87-ABF1 biological pathway synergistically enhance abiotic stress tolerance in transgenic rice(Oryza sativa)[J]. Plant Physiology and Biochemistry, 2021, 168:252-262.doi:10.1016/j.plaphy.2021.10.006.
[9]	Nguyen Q M, Iswanto A B B, Kang H, Moon J, Phan K A T, Son G H, Suh M C, Chung E H, Gassmann W, Kim S H. The processed C-terminus of AvrRps4 effector suppresses plant immunity via targeting multiple WRKYs[J]. Journal of Integrative Plant Biology, 2024, 66(8):1769-1787.doi:10.1111/jipb.13710.
[10]	Zhang M X, Zhao R R, Wang H T, Ren S L, Shi L Y, Huang S Z, Wei Z Q, Guo B Y, Jin J Y, Zhong Y, Chen M J, Jiang W Z, Wu T, Du X L. OsWRKY28 positively regulates salinity tolerance by directly activating OsDREB1B expression in rice[J]. Plant Cell Reports, 2023, 42(2):223-234.doi:10.1007/s00299-022-02950-2.
[11]	Wang C T, Ru J N, Liu Y W, Li M, Zhao D, Yang J F, Fu J D, Xu Z S. Maize WRKY transcription factor ZmWRKY106 confers drought and heat tolerance in transgenic plants[J]. International Journal of Molecular Sciences, 2018, 19(10):3046.doi:10.3390/ijms19103046.
[12]	王俊斌, 杨文丽, 丁博, 吴天文, 王海凤, 谢晓东. 小麦TaWRKY71a基因克隆、生物信息学及表达分析[J]. 华北农学报, 2018, 33(3):7-13.doi:10.7668/hbnxb.2018.03.002.
	Wang J B, Yang W L, Ding B, Wu T W, Wang H F, Xie X D. Cloning,bioinformatics and expression analysis of TaWRKY71a gene in wheat[J]. Acta Agriculturae Boreali-Sinica, 2018, 33(3):7-13.
[13]	Sahu R, Sharaff M, Pradhan M, Sethi A, Bandyopadhyay T, Mishra V K, Chand R, Chowdhury A K, Joshi A K, Pandey S P. Elucidation of defense-related signaling responses to spot blotch infection in bread wheat(Triticum aestivum L.)[J]. The Plant Journal, 2016, 86(1):35-49.doi:10.1111/tpj.13149.
[14]	Hou X Y, Ma C Y, Wang Z Y, Shi X X, Duan W R, Fu X X, Liu J Z, Guo C J, Xiao K. Transcription factor gene TaWRKY76 confers plants improved drought and salt tolerance through modulating stress defensive-associated processes in Triticum aestivum L.[J]. Plant Physiology and Biochemistry, 2024, 216:109147.doi:10.1016/j.plaphy.2024.109147.
[15]	Lakhneko O, Stepanenko A, Kuzminskiy Y, Borisjuk N, Morgun B. Survey of drought-associated TAWRKY2-D1 gene diversity in bread wheat and wheat relatives[J]. Molecular Biotechnology, 2021, 63(10):953-962.doi:10.1007/s12033-021-00350-7.
[16]	Jia Z Z, Zeng T, Gu L, Wang H C, Zhu B, Ren M J, Du X Y. TaWRKY17 interacts with TaWRKY44 to promote expression of TaDHN7 for salt tolerance in wheat[J]. Plant,Cell & Environment, 2025, 48(3):1963-1976.doi:10.1111/pce.15277.
[17]	Wang J B, Li Y, Wu T W, Miao C, Xie M J, Ding B, Li M, Bao S G, Chen X Q, Hu Z R, Xie X D. Single-cell-type transcriptomic analysis reveals distinct gene expression profiles in wheat guard cells in response to abscisic acid[J]. Functional Plant Biology, 2021, 48(11):1087-1099.doi:10.1071/fp20368.
[18]	甘露, 谢美娟, 卢振华, 李明, 丁博, 邱丽娜, 谢晓东, 王俊斌. 小麦钙依赖蛋白激酶基因TaCDPK17的克隆及其抗逆功能初步分析[J]. 华北农学报, 2024, 39(5):1-8.doi:10.7668/hbnxb.20195063.
	Gan L, Xie M J, Lu Z H, Li M, Ding B, Qiu L N, Xie X D, Wang J B. Cloning and stress-resistance functional analysis of calcium-dependent protein kinase gene TaCDPK17 in wheat[J]. Acta Agriculturae Boreali-Sinica, 2024, 39(5):1-8.
[19]	张丽, 甘露, 卢振华, 曹高燚, 邱丽娜, 丁博, 谢晓东, 秦志列, 王俊斌. 小麦WRKY转录因子TaWRKY72B的克隆、亚细胞定位及表达分析[J]. 麦类作物学报, 2024, 44(1):7-15.doi:10.7606/j.issn.1009-1041.2024.01.02.
	Zhang L, Gan L, Lu Z H, Cao G Y, Qiu L N, Ding B, Xie X D, Qin Z L, Wang J B. Cloning,subcellular localization and expression analysis of WRKY transcription factor TaWRKY72B in wheat[J]. Journal of Triticeae Crops, 2024, 44(1):7-15.
[20]	次尔甲玛, 王宏鹏, 苟筱颖, 佟可心, 郭瑞超, 王俊斌, 曹高燚, 包曙光, 谢晓东, 陈小强. 大麦气孔发育相关基因HvSPCH的克隆及初步功能分析[J]. 麦类作物学报, 2022, 42(10):1175-1181.doi:10.7606/j.issn.1009-1041.2022.10.01.
	Ci E, Wang H P, Gou X Y, Tong K X, Guo R C, Wang J B, Cao G Y, Bao S G, Xie X D, Chen X Q. Cloning and functional analysis of stomatal development related gene HvSPCH in barley[J]. Journal of Triticeae Crops, 2022, 42(10):1175-1181.
[21]	Li M R, Duan Z Q, Zhang S Z, Zhang J C, Chen J, Song H. The physiological and molecular mechanisms of WRKY transcription factors regulating drought tolerance:a review[J]. Gene, 2025, 938:149176.doi:10.1016/j.gene.2024.149176.
[22]	Huang J J, Liu F H, Chao D, Xin B N, Liu K, Cao S L, Chen X X, Peng L Y, Zhang B L, Fu S, Xia J X. The WRKY transcription factor OsWRKY54 is involved in salt tolerance in rice[J]. International Journal of Molecular Sciences, 2022, 23(19):11999.doi:10.3390/ijms231911999.
[23]	Doll J, Muth M, Riester L, Nebel S, Bresson J, Lee H C, Zentgraf U. Arabidopsis thaliana WRKY25 transcription factor mediates oxidative stress tolerance and regulates senescence in a redox-dependent manner[J]. Frontiers in Plant Science, 2020, 10:1734.doi:10.3389/fpls.2019.01734.
[25]	Kumar K, Srivastava V, Purayannur S, Kaladhar V C, Cheruvu P J, Verma P K. WRKY domain-encoding genes of a crop legume chickpea(Cicer arietinum):comparative analysis with Medicago truncatula WRKY family and characterization of group-Ⅲ gene(s)[J]. DNA Research, 2016, 23(3):225-239.doi:10.1093/dnares/dsw010.
[26]	李丹妮, 刘佳丽, 张继涛, 顾宝祥, 朱凤金, 管清杰. 羊草WRKY40的克隆及其转基因烟草抗病性分析[J]. 植物研究, 2023, 43(3):412-420.doi:10.7525/j.issn.1673-5102.2023.03.011.
	Li D N, Liu J L, Zhang J T, Gu B X, Zhu F J, Guan Q J. Cloning of WRKY40 gene from Leymus chinensis and analysis of disease resistance in transgenic tobacco[J]. Bulletin of Botanical Research, 2023, 43(3):412-420.
[27]	鲁丹丹, 苏小雨, 谭政委, 余永亮, 李磊, 许兰杰, 杨青, 梁慧珍. 红花CtWRKY7和CtWRKY72基因的克隆及功能分析[J]. 植物资源与环境学报, 2024, 33(4):12-20.doi:10.3969/j.issn.1674-7895.2024.04.02.
	Lu D D, Su X Y, Tan Z W, Yu Y L, Li L, Xu L J, Yang Q, Liang H Z. Cloning and function analysis of CtWRKY7 and CtWRKY72 genes from Carthamus tinctorius[J].Journal of Plant Resources and Environment, 2024, 33(4):12-20.
[24]	Wang Z R, Gao M, Li Y F, Zhang J L, Su H, Cao M, Liu Z J, Zhang X C, Zhao B, Guo Y D, Zhang N. The transcription factor SlWRKY37 positively regulates jasmonic acid-and dark-induced leaf senescence in tomato[J]. Journal of Experimental Botany, 2022, 73(18):6207-6225.doi:10.1093/jxb/erac258.
