Effect of Polygonum cuspidatum Aqueous Extract on Porcine epidemic diarrhoea virus Replication in IPEC-J2 Cells

doi:10.7668/hbnxb.20195708

Abstract

Abstract:

The aim of this study was to explore the reproductive adaptability of PEDV in porcine intestinal epithelial cells(IPEC-J2)and to evaluate the inhibitory effect of Polygonum cuspidatum water extract on it in vitro.The effects of different trypsin concentrations and different time on the activity of IPEC-J2 cells and the expression of PEDV N protein in cells were evaluated by cytotoxicity assay and Western Blot assay.The virus titer,PEDV N gene transcription level and N protein expression were detected by TCID₅₀,Real-time Fluorescence Quantitative PCR and Western Blot.The effect of water extract of P.cuspidatum on the proliferation activity of IPEC-J2 cells was detected by CCK-8 method.Further,the inhibitory effect of P.cuspidatum water extract on the expression of PEDV N gene and N protein was detected by Real-time Fluorescence Quantitative PCR and Western Blot experiments,and the effect of P.cuspidatum water extract on each stage of PEDV life cycle was explored.The results showed that when the concentration of trypsin was 2 μg/mL,trypsin had no effect on the cells.At this time,PEDV showed the best reproductive adaptability and reached the highest virulence value after 36 h.When the concentration of P.cuspidatum water extract was lower than 100 μg/mL,there was no cytotoxicity at 12,24 h.The water extract of P.cuspidatum significantly inhibited the expression of N gene under Co-treatment and Post-treatment,and significantly inhibited the expression of PEDV N gene mRNA and N protein in a dose-dependent manner.The water extract of P.cuspidatum had a significant inhibitory effect on PEDV N gene mainly in the replication and proliferation stage of the virus life cycle,and had no significant inhibitory effect in other stages.In summary,2 μg/mL trypsin had the best adaptability to PEDV reproduction,and the water extract of P.cuspidatum had a significant inhibitory effect on PEDV in vitro,which mainly acted on the replication and value-added stage of PEDV life cycle.

Key words: Polygonum cuspidatum water extract, PEDV, IPEC-J2, Adaptability, Inhibition in vitro

CLC Number:

S858.28

WANG Yuxuan, YANG Zhi, LIU Haoyang, WANG Xinghai, YANG Fulin, LU Hongde, HE Zhiyuan, DONG Hong. Effect of Polygonum cuspidatum Aqueous Extract on Porcine epidemic diarrhoea virus Replication in IPEC-J2 Cells[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(3): 215-224. doi: 10.7668/hbnxb.20195708.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20195708

http://www.hbnxb.net/EN/Y2025/V40/I3/215

Figures/Tables 9

Tab.1 RT-qPCR primer information

引物名称 Primer names	序列(5'—3') Sequences(5'—3')
PEDV N	Forward:ACCAGTCCAAGAACAGAAACCAGTC
	Reverse:CATCCTTGACAGCAGCCACCAG
GAPDH	Forward:AAGGAGTAAGAGCCCCTGGA
	Reverse:TCTGGGATGGAAACTGGAA

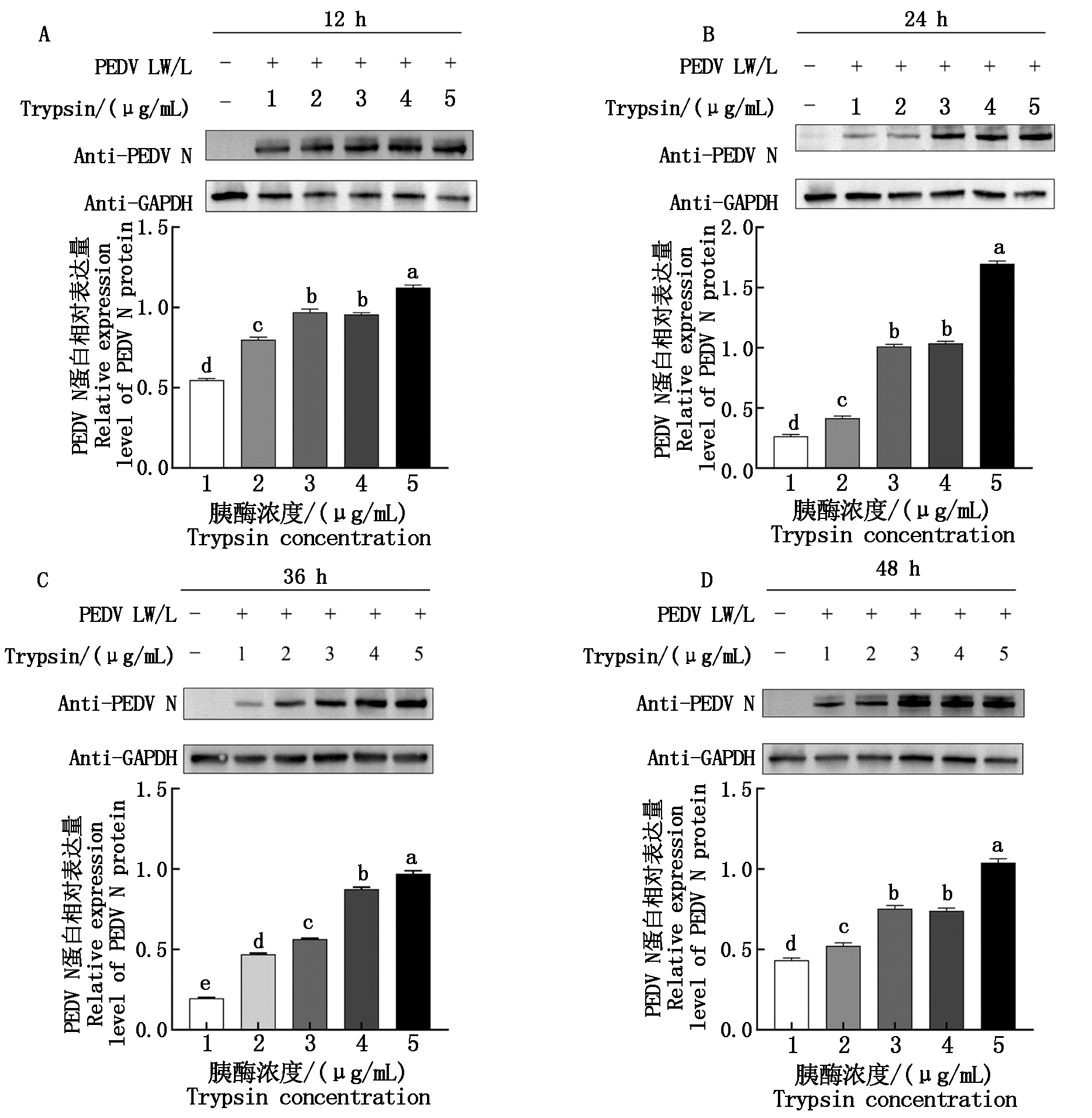

Fig.1 The effects of different concentrations of trypsin on the expression level of PEDV N protein at different time Different letters indicated significant difference(P<0.05).The same as Fig.2,4.

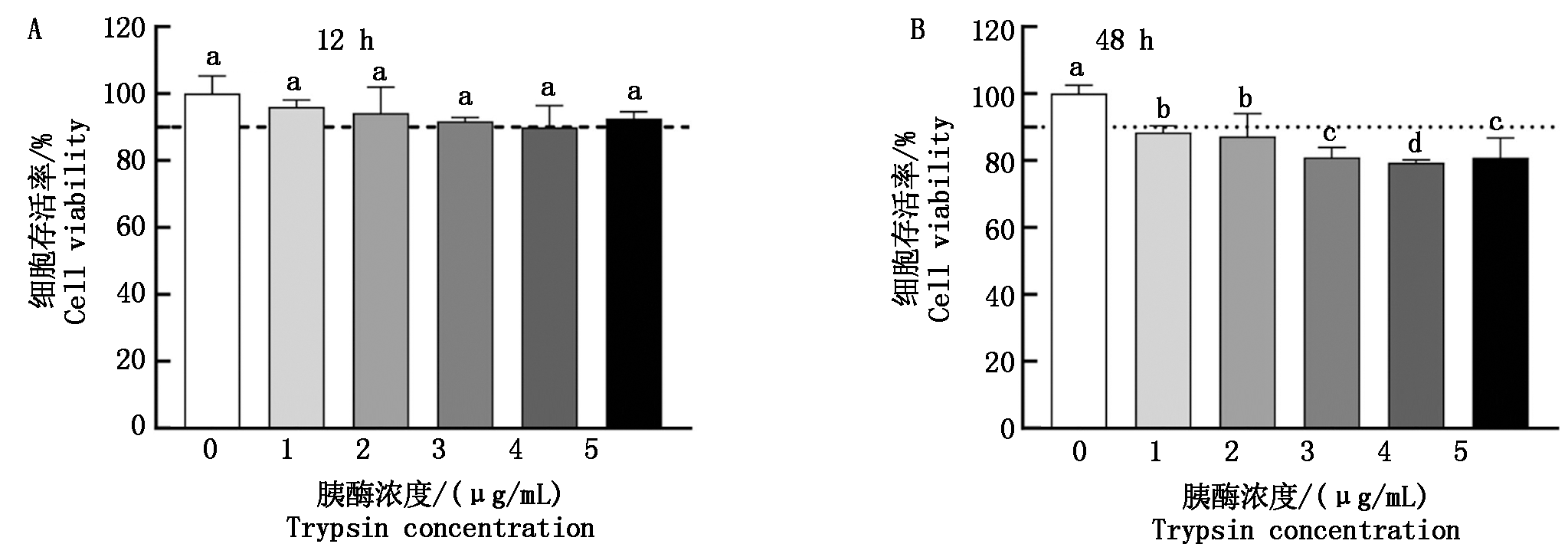

Fig.2 The effects of different concentrations of trypsin on the cell activity at different time

Fig.3 Cytopathic observation chart A,C,E,G.Control group;B,D,F,H.PEDV infected cells.

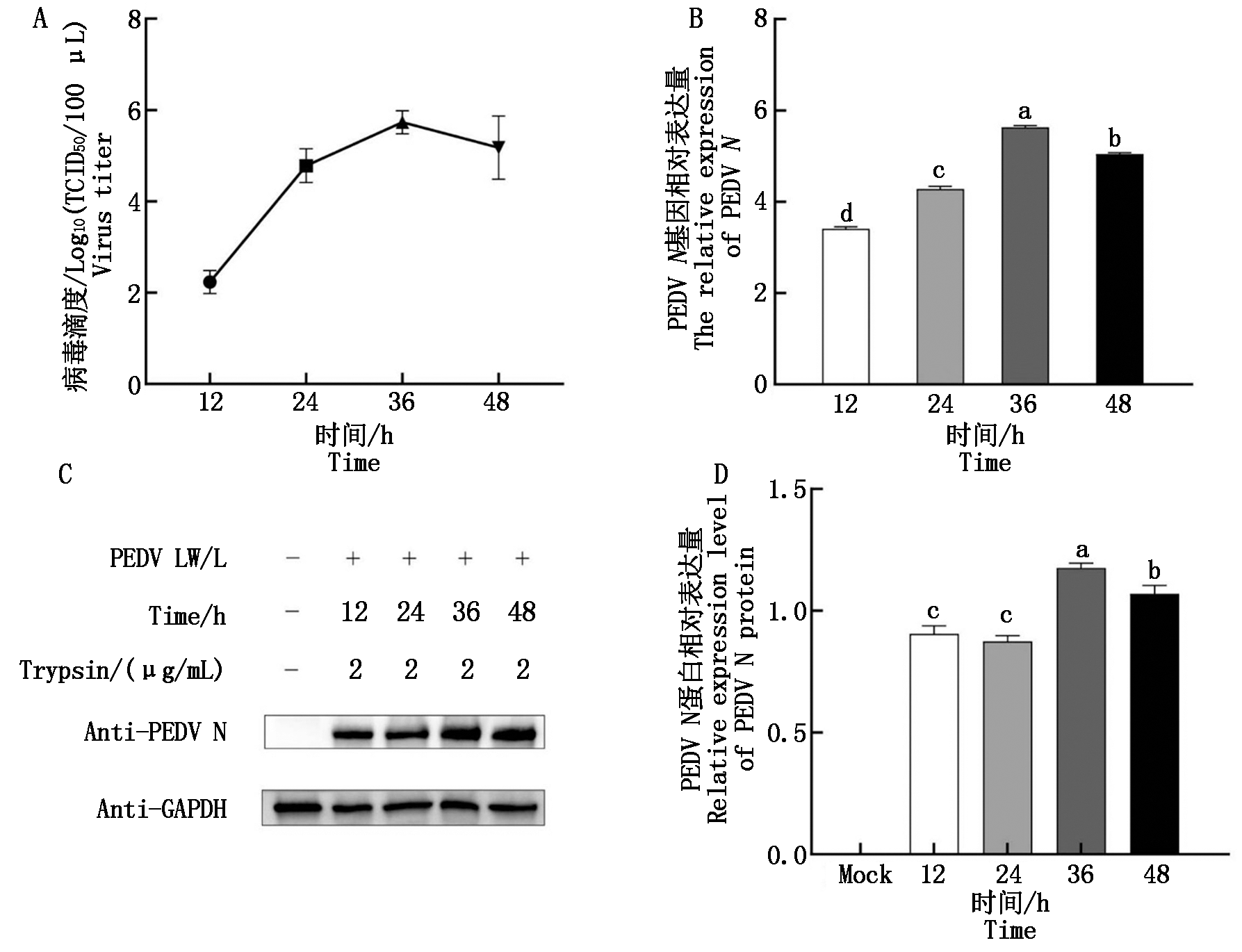

Fig.4 Growth characteristics of PEDV in IPEC-J2 cells A.The growth curve of PEDV LW/L strain in IPEC-J2 cells;B.Changes in mRNA expression of PEDV N gene; C.The PEDV N protein expression was detected by Western Blot;D.Gray value analysis.

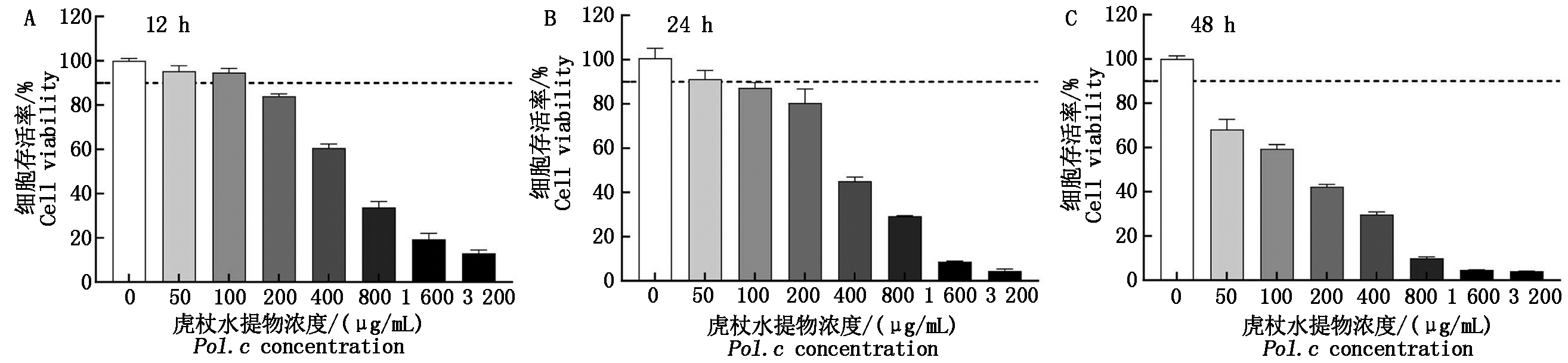

Fig.5 The effect after aclding P.cuspidatum water extract on cytotoxicity of IPEC-J2 cells

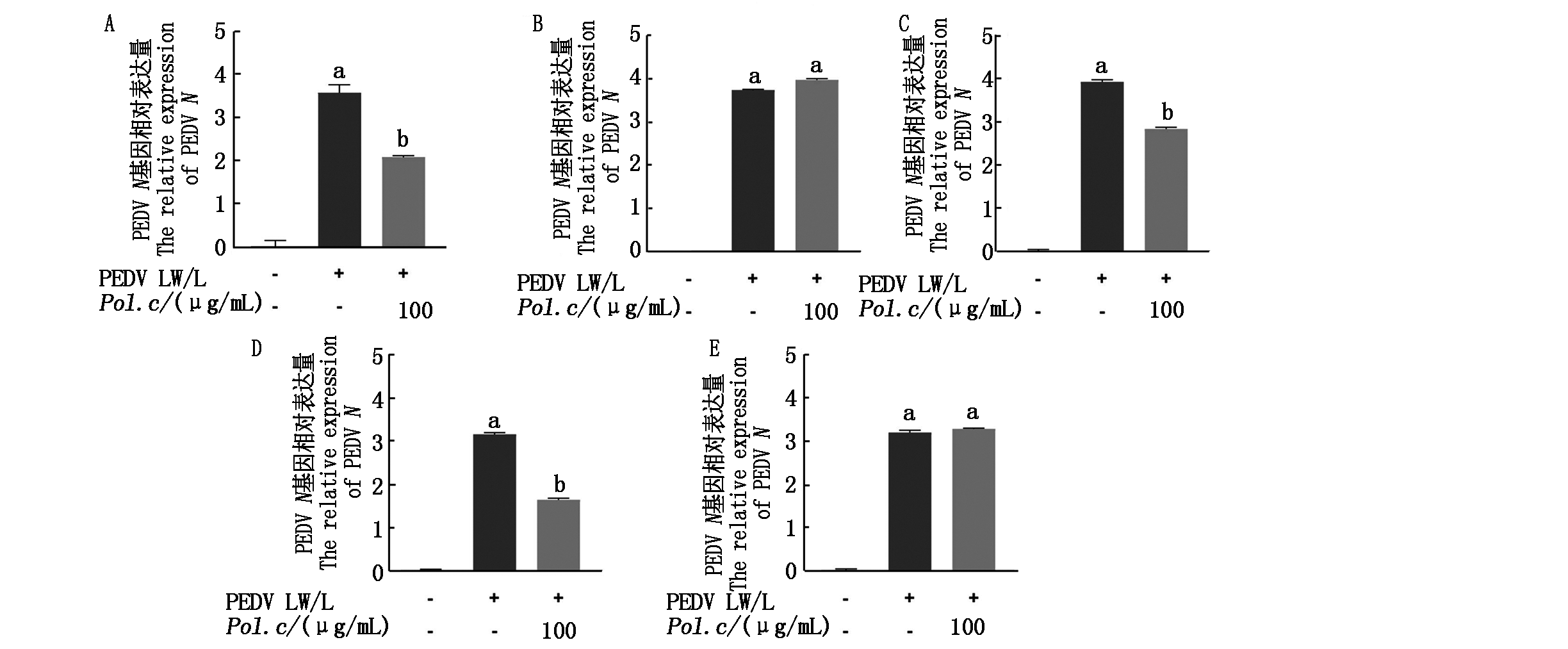

Fig.6 The effect of adding P.cuspidatum water extract in IPEC-J2 cells in different ways on the expression of PEDV N gene A.All-treatment group;B.Pre-treatment group;C.Co-treatment group;D.Post-treatment group;E.Direct-treatment group.

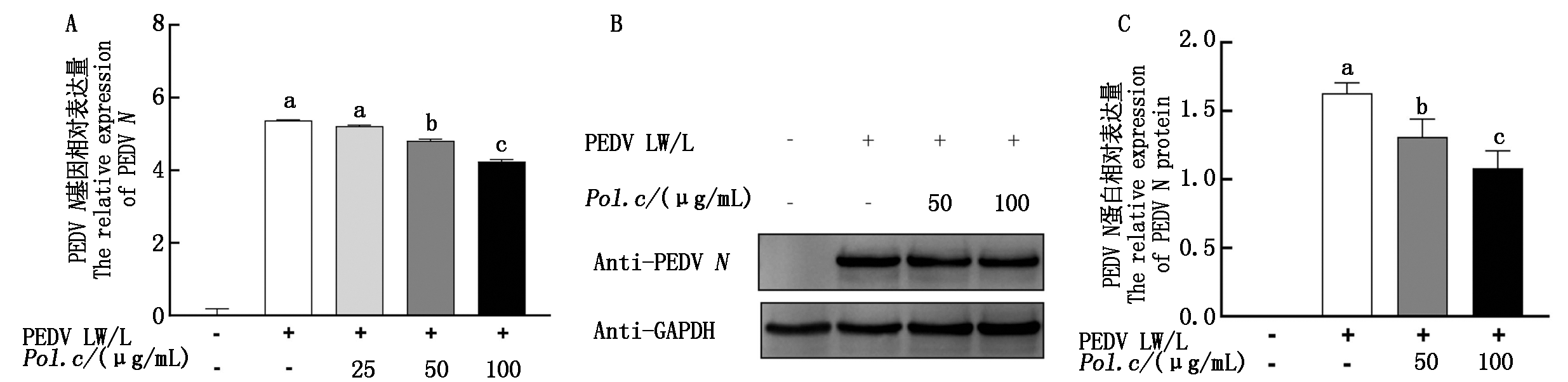

Fig.7 Effects of different concentrations of P.cuspidatum water extract on the expression of PEDV N gene and N protein levels A.PEDV N gene expression level;B.The PEDV N protein expression was detected by Western Blot;C.Gray value analysis.

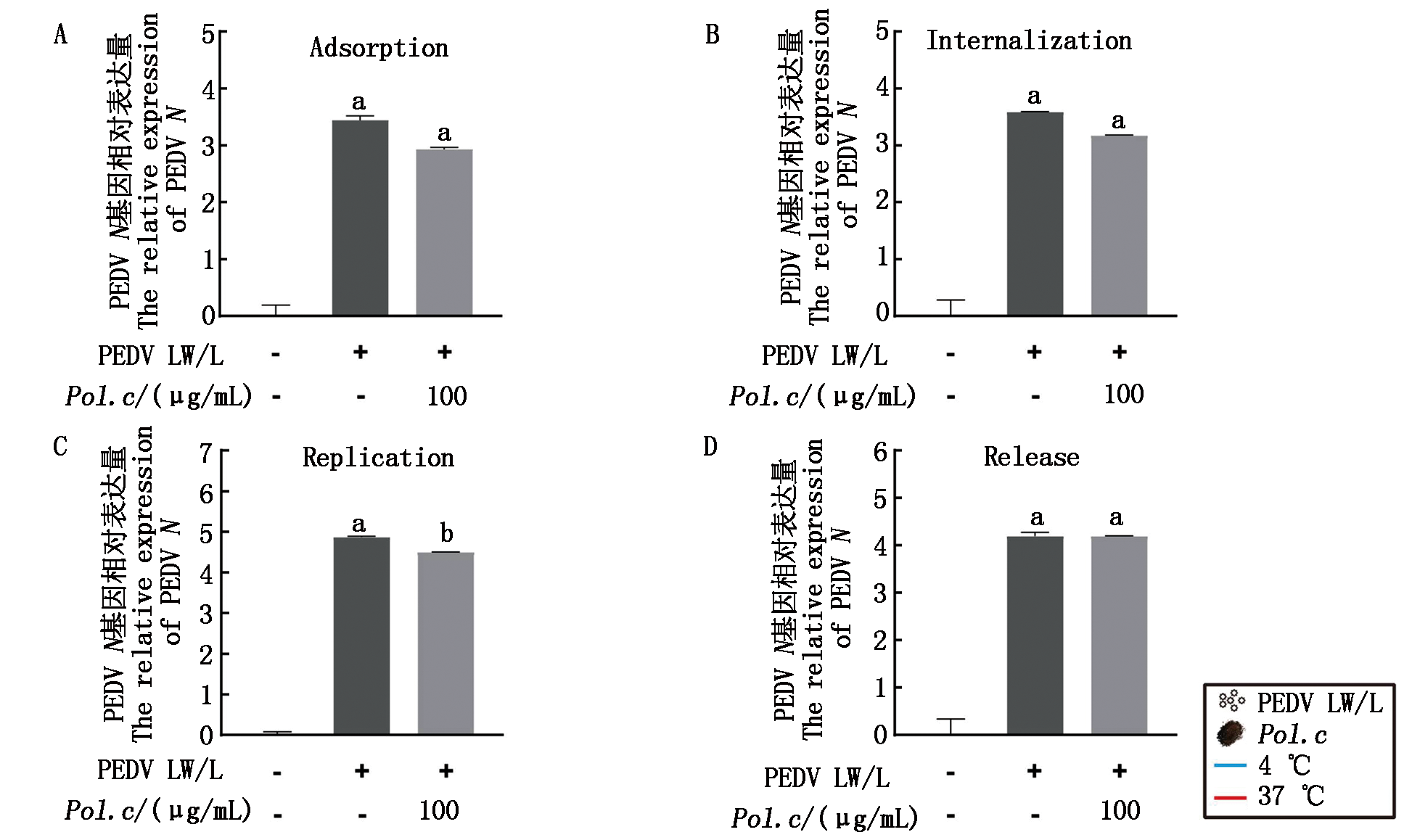

Fig.8 The expression of N gene in PEDV life cycle in IPEC-J2 cells affected by P.cuspidatum water extract A.Adsorption stage(PEDV and Pol.c 4 ℃ 2 h);B.Penetration stage(PEDV 4 ℃ 2 h,Pol.c 37 ℃ 3 h);C.Replicative stage(PEDV 37 ℃ 1 h,Pol.c 37 ℃ 12 h);D.Release stage(PEDV 37 ℃ 1 h,Pol.c 37 ℃ 2 h).

References 38

[1]	Li Y C, Wu Q X, Huang L L, Yuan C, Wang J L, Yang Q. An alternative pathway of enteric PEDV dissemination from nasal cavity to intestinal mucosa in swine[J]. Nature Communications, 2018, 9:3811.doi:10.1038/s41467-018-06056-w. pmid: 30232333
[2]	Jung K, Saif L J. Porcine epidemic diarrhea virus infection:etiology,epidemiology,pathogenesis and immunoprophylaxis[J]. The Veterinary Journal, 2015, 204(2):134-143.doi:10.1016/j.tvjl.2015.02.017.
[3]	Song D, Zhou X, Peng Q, Chen Y, Zhang F, Huang T, Zhang T, Li A, Huang D, Wu Q, He H, Tang Y. Newly emerged porcine Deltacoronavirus associated with diarrhoea in swine in China:identification,prevalence and full-length genome sequence analysis[J]. Transboundary and Emerging Diseases, 2015, 62(6):575-580.doi:10.1111/tbed.12399. pmid: 26250097
[4]	Zhang S, Cao Y N, Yang Q. Transferrin receptor 1 levels at the cell surface influence the susceptibility of newborn piglets to PEDV infection[J]. PLoS Pathogens, 2020, 16(7):e1008682.doi:10.1371/journal.ppat.1008682.
[5]	Gao X, Li D L, Zhao J Y, Xu F R, Ge X N, Guo X, Han J, Yang H C, Zhou L. Complete genome sequence of Porcine epidemic diarrhea virus from an outbreak in a vaccinated farm in Shandong,China[J]. Genome Announcements, 2016, 4(4):e00619-16.doi:10.1128/genomea.00619-16.
[6]	Wang D, Fang L R, Xiao S B. Porcine epidemic diarrhea in China[J]. Virus Research, 2016, 226:7-13.doi:10.1016/j.virusres.2016.05.026. pmid: 27261169
[7]	Guo J H, Fang L R, Ye X, Chen J Y, Xu S G, Zhu X Y, Miao Y M, Wang D, Xiao S B. Evolutionary and genotypic analyses of Global porcine epidemic diarrhea virus strains[J]. Transboundary and Emerging Diseases, 2019, 66(1):111-118.doi:10.1111/tbed.12991.
[8]	Xu Z C, Liu Y, Peng P, Liu Y F, Huang M Y, Ma Y H, Xue C Y, Cao Y C. Aloe extract inhibits Porcine epidemic diarrhea virus in vitro and in vivo[J]. Veterinary Microbiology, 2020, 249:108849.doi:10.1016/j.vetmic.2020.108849.
[9]	赵鲁, 刘月月, 林树乾, 殷斌, 杨世发, 黄中利, 赵增成, 李桂明, 郭慧君, 吴家强. 马齿苋多糖对猪流行性腹泻病毒抑制作用的研究[J]. 中国兽医科学, 2020, 50(8):1066-1072.doi:10.16656/j.issn.1673-4696.2020.0130.
	Zhao L, Liu Y Y, Lin S Q, Yin B, Yang S F, Huang Z L, Zhao Z C, Li G M, Guo H J, Wu J Q. Study on the inhibitory effect of purslane polysaccharides on Porcine epidemic diarrhea virus[J]. Chinese Veterinary Science, 2020, 50(8):1066-1072.
[10]	Trinh T B N, Le D H, Nguyen T T K, Nguyen V T, Nguyen M H, Muller M, Pham H T, Le V P, Nguyen T K N. In vitro antiviral activities of ethanol and aqueous extracts of Vietnamese traditional medicinal plants against Porcine epidemic diarrhea virus:a coronavirus family member[J]. Virusdisease, 2021, 32(4):797-803.doi:10.1007/s13337-021-00709-z.
[11]	Zhang Y, Chen H J, Zou M M, Oerlemans R, Shao C H, Ren Y D, Zhang R L, Huang X D, Li G X, Cong Y Y. Hypericin inhibit alpha-coronavirus replication by targeting 3CL protease[J]. Viruses, 2021, 13(9):1825.doi:10.3390/v13091825.
[12]	Li R, Maimai T, Yao H M, Liu X, He Z Q, Xiao C, Wang Y N, Xie G H. Protective effects of polydatin on LPS-induced endometritis in mice[J]. Microbial Pathogenesis, 2019, 137:103720.doi:10.1016/j.micpath.2019.103720.
[13]	Zhao J, Pan B Y, Zhou X L, Wu C N, Hao F C, Zhang J, Liu L R. Polygonum cuspidatum inhibits the growth of osteosarcoma cells via impeding Akt/ERK/EGFR signaling pathways[J]. Bioengineered, 2022, 13(2):2992-3006.doi:10.1080/21655979.2021.2017679. pmid: 35129428
[14]	Lin S Y, Wang X Y, Tang R W, Lee H C, Chan H H, Choi S S A, Dong T T, Leung K W, Webb S E, Miller A L, Tsim K W. The extracts of Polygonum cuspidatum root and rhizome block the entry of SARS-CoV-2 wild-type and Omicron pseudotyped viruses via inhibition of the S-protein and 3CL protease[J]. Molecules, 2022, 27(12):3806.doi:10.3390/molecules27123806.
[15]	Yang F Q, Ding S Q, Liu W, Liu J W, Zhang W, Zhao Q P, Ma X Q. Antifungal activity of 40 TCMs used individually and in combination for treatment of superficial fungal infections[J]. Journal of Ethnopharmacology, 2015, 163:88-93.doi:10.1016/j.jep.2015.01.025. pmid: 25625353
[16]	Li H, Min J, Chen Y T, Li H Y, Zhang Y L. Polydatin attenuates orbital oxidative stress in Graves' orbitopathy through the NRF2 pathway[J]. Chemico-Biological Interactions, 2020, 315:108894.doi:10.1016/j.cbi.2019.108894.
[17]	Xu H, Li J, Song S D, Xiao Z, Chen X Q, Huang B X, Sun M S, Su G Q, Zhou D M, Wang G Y, Hao R, Wang N. Effective inhibition of coronavirus replication by Polygonum cuspidatum[J]. Frontiers in Bioscience-Landmark, 2021, 26(10):789.doi:10.52586/4988.
[18]	Lin S C, Ho C T, Chuo W H, Li S M, Wang T T, Lin C C. Effective inhibition of MERS-CoV infection by resveratrol[J]. BMC Infectious Diseases, 2017, 17(1):144.doi:10.1186/s12879-017-2253-8.
[19]	Kim Y, Yang M, Goyal S M, Cheeran M C, Torremorell M. Evaluation of biosecurity measures to prevent indirect transmission of Porcine epidemic diarrhea virus[J]. BMC Veterinary Research, 2017, 13(1):89.doi:10.1186/s12917-017-1017-4.
[20]	Schumacher L L, Cochrane R A, Huss A R, Gebhardt J T, Woodworth J C, Stark C R, Jones C K, Bai J F, Main R G, Chen Q, Zhang J Q, Gauger P C, DeRouchey J M, Goodband R D, Tokach M D, Dritz S S. Feed batch sequencing to decrease the risk of Porcine epidemic diarrhea virus(PEDV)cross-contamination during feed manufacturing[J]. Journal of Animal Science, 2018, 96(11):4562-4570.doi:10.1093/jas/sky320. pmid: 30099515
[21]	Jung K, Saif L J, Wang Q H. Porcine epidemic diarrhea virus(PEDV):an update on etiology,transmission,pathogenesis,and prevention and control[J]. Virus Research, 2020, 286:198045.doi:10.1016/j.virusres.2020.198045.
[22]	Niu X Y, Wang Q H. Prevention and control of porcine epidemic diarrhea:the development of recombination-resistant live attenuated vaccines[J]. Viruses, 2022, 14(6):1317.doi:10.3390/v14061317.
[23]	Li Z W, Ma Z Q, Li Y, Gao S, Xiao S Q. Porcine epidemic diarrhea virus:molecular mechanisms of attenuation and vaccines[J]. Microbial Pathogenesis, 2020, 149:104553.doi:10.1016/j.micpath.2020.104553.
[24]	Zhao Y X, Fan B C, Song X, Gao J, Guo R L, Yi C, He Z M, Hu H P, Jiang J H, Zhao L X, Zhong T Y, Li B. PEDV-spike-protein-expressing mRNA vaccine protects piglets against PEDV challenge[J]. mBio, 2024, 15(2):e02958-23.doi:10.1128/mbio.02958-23.
[25]	Kong F Z, Jia H L, Xiao Q, Fang L R, Wang Q H. Prevention and control of swine enteric coronaviruses in China:a review of vaccine development and application[J]. Vaccines, 2024, 12(1):11.doi:10.3390/vaccines12010011.
[26]	Wei M Z, Chen L, Zhang R, Chen Z, Shen Y J, Zhou B J, Wang K G, Shan C L, Zhu E P, Cheng Z T. Overview of the recent advances in porcine epidemic diarrhea vaccines[J]. The Veterinary Journal, 2024, 304:106097.doi:10.1016/j.tvjl.2024.106097.
[27]	董世娟, 谢春芳, 司伏生, 陈冰清, 于瑞嵩, 李震. 猪流行性腹泻病毒免疫及疫苗研制[J]. 生物工程学报, 2021, 37(8):2603-2613.doi:10.13345/j.cjb.200524.
	Dong S J, Xie C F, Si F S, Chen B Q, Yu R S, Li Z. Immunization against Porcine epidemic diarrhea virus and vaccine development[J]. China Journal of Biotechnology, 2021, 37(8):2603-2613.
[28]	Liang J X, Xu W H, Pan X M, Han S Y, Zhang L W, Wen H, Ding M Y, Zhang W P, Peng D P. Advances research in porcine enteric coronavirus therapies and antiviral drugs[J]. Veterinary Quarterly, 2024, 44(1):1-49.doi:10.1080/01652176.2024.2421299.
[29]	梁雨萱, 庞胜美, 刘梅, 王龙龙, 段强德. 猪流行性腹泻疫苗研究进展[J]. 河南农业科学, 2023, 52(8):1-10.doi:10.15933/j.cnki.1004-3268.2023.08.001.
	Liang Y X, Pang S M, Liu M, Wang L L, Duan Q D. Research progress of porcine epidemic diarrhea vaccine for pigs[J]. Journal of Henan Agricultural Sciences, 2023, 52(8):1-10. doi: 10.15933/j.cnki.1004?3268.2023.08.001
[30]	Luo H J, Liang Z P, Lin J J, Wang Y Q, Liu Y Y, Mei K, Zhao M M, Huang S J. Research progress of Porcine epidemic diarrhea virus S protein[J]. Frontiers in Microbiology, 2024, 15:1396894.doi:10.3389/fmicb.2024.1396894.
[31]	Tan Y B, Sun L M, Wang G, Shi Y J, Dong W Y, Fu Y N, Fu Z, Chen H C, Peng G Q. Trypsin-enhanced infection with Porcine epidemic diarrhea virus is determined by the S2 subunit of the spike glycoprotein[J]. Journal of Virology, 2021, 95(11):e02453-20.doi:10.1128/jvi.02453-20.
[32]	Yang Y L, Meng F D, Qin P, Herrler G, Huang Y W, Tang Y D. Trypsin promotes porcine deltacoronavirus mediating cell-to-cell fusion in a cell type-dependent manner[J]. Emerging Microbes & Infections, 2020, 9(1):457-468.doi:10.1080/22221751.2020.1730245.
[33]	Wang X, Liu Y, Li K Y, Yang M, Wang Q T, Hao Z H. Triacetyl resveratrol inhibits PEDV by inducing the early apoptosis in vitro[J]. International Journal of Molecular Sciences, 2022, 23(23):14499.doi:10.3390/ijms232314499.
[34]	Karami A, Fakhri S, Kooshki L, Khan H. Polydatin:pharmacological mechanisms,therapeutic targets,biological activities,and health benefits[J]. Molecules, 2022, 27(19):6474.doi:10.3390/molecules27196474.
[35]	Li Z H, Cao H, Cheng Y F, Zhang X Q, Zeng W, Sun Y M, Chen S H, He Q G, Han H Y. Inhibition of porcine epidemic diarrhea virus replication and viral 3C-like protease by quercetin[J]. International Journal of Molecular Sciences, 2020, 21(21):8095.doi:10.3390/ijms21218095.
[36]	钟睦琪, 李凯远, 王雪, 刘甜甜, 杨明, 郝智慧. 泽漆水提取物对猪流行性腹泻病毒的体外抑制作用研究[J]. 中国农业大学学报, 2023, 28(10):132-140.doi:10.11841/j.issn.1007-4333.2023.10.12.
	Zhong M Q, Li K Y, Wang X, Liu T T, Yang M, Hao Z H. Inhibitory effect of aqueous extract from Euphorbia helioscopia L.on PEDV in vitro[J]. Journal of China Agricultural University, 2023, 28(10):132-140.
[37]	Cao Y N, Zhang S S, Huang Y J, Zhang S, Wang H F, Bao W B. The aqueous leaf extract of M.oleifera inhibits PEDV replication through suppressing oxidative stress-mediated apoptosis[J]. Animals, 2022, 12(4):458.doi:10.3390/ani12040458.
[38]	Huan C C, Xu W Y, Ni B, Guo T T, Pan H C, Jiang L Y, Li L, Yao J T, Gao S. Epigallocatechin-3-gallate,the main polyphenol in green tea,inhibits Porcine epidemic diarrhea virus in vitro[J]. Frontiers in Pharmacology, 2021, 12:628526.doi:10.3389/fphar.2021.628526.
