Expression and Bioinformatics Analysis of Nipah Virus N Protein in Insect Cells

doi:10.7668/hbnxb.20194252

Abstract

Abstract:

In order to obtain Nipah virus nucleocapsid protein(N protein)with similar function and activity to natural proteins,the NiV N protein open reading frame gene was amplified by PCR,cloned into pFastBac^TMHTB vector,transformed into DH10Bac receptive cells,and transfected into sf9 insect cells.The protein was identified by Western Blotting and bioinformatics analysis was used to study the characteristics of N protein.The results showed that the recombinant plasmid pFastBac^TMHTB-NiV-N was obtained through PCR and double enzyme digestion identification.Recombinant protein Bacmid-NiV-N with immune activity was identified by SDS-PAGE and Western Blotting.According to molecular bioinformatics software analysis and prediction,the recombinant protein contained 532 amino acids with a molecular size of 58.34 ku.It was an unstable and hydrophilic protein without a transmembrane region.The secondary structure of the protein was mainly irregular curls,with 5 T cell epitopes and 18 B cell epitopes.The above research provides a material basis for further understanding the function of NiV N protein and establishing corresponding antigen detection methods.

Key words: Nipah virus, N protein, Insect cell, Bioinformatics analysis

WANG Tengfen, YE Lingling, LI Shuning, ZHANG Wei, HU Shixiang, ZHUO Na, AI Jun, CHEN Peifu. Expression and Bioinformatics Analysis of Nipah Virus N Protein in Insect Cells[J]. Acta Agriculturae Boreali-Sinica, 2024, 39(S1): 259-266. doi: 10.7668/hbnxb.20194252.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20194252

http://www.hbnxb.net/EN/Y2024/V39/IS1/259

Figures/Tables 18

Tab.1 Primers used in the experiment

引物名称 Primer name	引物序列(5'— 3') Primer sequence(5'— 3')	片段大小/bp Fragment size	退火温度/℃ Annealing temperature
Niv-N-F	GGGCGCCATGGGATCATGAGTGATATTTTTGAAGAGGCGG	1 596	56
Niv-N-R	TTCTCGACAAGCTTGTCACACATCAGCTCTGACAAAGTC
M13-F	GTTTTCCCAGTCACGAC		55
M13-R	CAGGAAACAGCTATGAC

Fig.1 PCR amplification products of N gene M.DL2000 DNA Marker;1.PCR products of N gene;2.Negtive control.

Fig.2 PCR amplification products of recombinant plasmid pFastBac^TMHTB-Niv-N in bacterial solution M.DL5000 DNA Marker;1—20.Recombinant plasmid pFastBac^TMHTB-Niv-N bacterial solution PCR amplification product;21—22.Negative control.

Fig.3 Recombinant plasmid pFastBac^TMHTB-Niv-N double restriction enzyme digestion identification M.DL5000 DNA Marker;1—2.Recombinant plasmid pFastBac^TMHTB-Niv-N double enzyme cleavage product.

Fig.4 M13 primer PCR amplification of recombinant rod-shaped products M.DL5000 DNA Marker;1—20.Amplification of recombinant bacmid by M13 primer PCR product;21.Negative control.

Fig.5 Expression of Bacmid GFP third-generation on sf9 insect cells A.Transfection of sf9 cells from Bacmid-GFP 48 h in the third generation;B.Transfection of sf9 cells from Bacmid-GFP 72 h in the third generation;C.Transfection of sf9 cells from Bacmid-GFP 96 h in the third generation;D.Transfection of sf9 cells from Bacmid-GFP 120 h in the third generationv.

Fig.6 sf9 cell lesion in the third generation transfected with Bacmid-NiV-N A.Normal sf9 cells;B.sf9 cells transfected with Bacmid-NiV-N for 48 h in the third generation;C.sf9 cells transfected with Bacmid-NiV-N third-generation for 72 h;D.sf9 cells transfected with Bacmid-NiV-N for 120 h in the third generation.

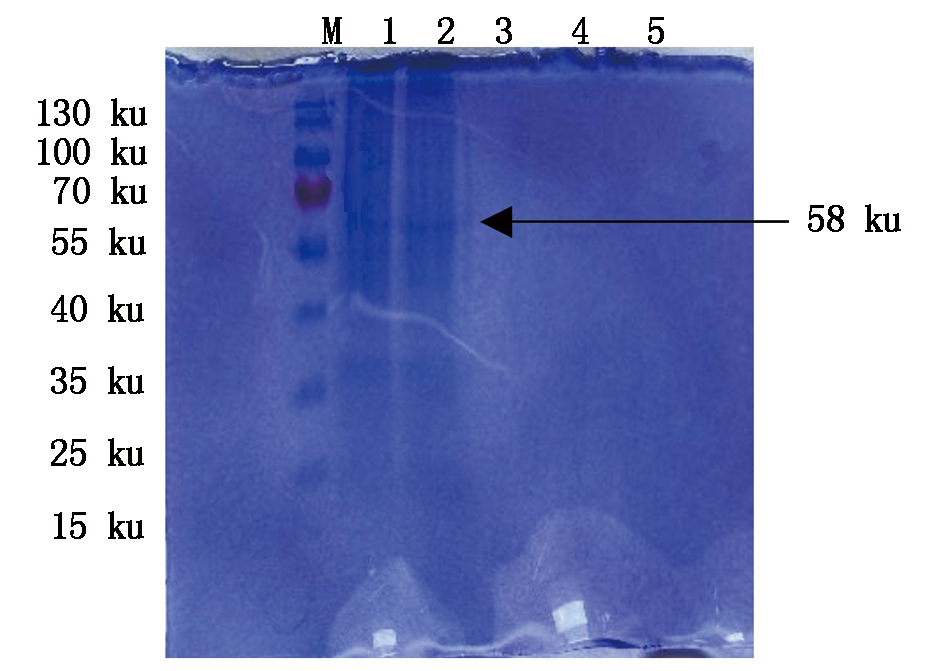

Fig.7 SDS-PAGE electrophoresis Coomassie Brilliant Blue staining M.Protein molecular mass standard;1.The third-generation recombinant protein product of N;2.The second-generation recombinant protein product of N;3.sf9 cell negative control.The same as Fig.8.

Fig.8 DAB staining after membrane transfer

Tab.2 The amino acid composition of N protein

氨基酸 Amino acid	数量 Quantity	占比/% Percentage	氨基酸 Amino acid	数量 Quantity	占比/% Percentage
Ala (A)	58	10.9	Lys(K)	25	4.7
Ser (S)	52	9.8	Gln (Q)	22	4.1
Leu (L)	47	8.8	Asn (N)	21	3.9
Glu (E)	40	7.5	Phe (F)	19	3.6
Arg (R)	38	7.1	Pro (P)	19	3.6
Gly (G)	35	6.6	Met (M)	18	3.4
Ile (I)	33	6.2	Tyr (Y)	11	2.1
Thr (T)	31	5.8	Trp (W)	5	0.9
Val (V)	30	5.6	His (H)	2	0.4
Asp (D)	26	4.9

Fig.9 N protein affinity/hydrophobicity prediction result

Fig.10 Prediction results of the transmembrane region of N protein

Fig.11 The prediction results of N protein signal peptides

Tab.3 Predicted peptides of N protein T cell epitope

序号 No.	肽段 Peptide	长度 Length	分值 Score
1	MVEILIEVKKGGSAKGRAVEIISDIGNYVEETGMAGFFATIRFGLETRYPALALNEFQSDLNTIKSLMLLYREIGPRAPY	80	1.219 68
2	YGLRITDMSTLVSAVITIEAQIWILIAKAVTAPDTAEESETRRWAKYVQQKRVNPFFALTQQWLTEMRNLLSQSLSVRKF	80	0.469 42
3	MVLLEESIQTKFAPGGYPLLWSFAMGVATTIDRSMGALNINRGYLEPMYFRLGQKSARHHAGGIDQNMANRLGLSSNQVA	80	-0.203 39
4	ELAAAVQETSAGRQESNVQAREAKFAAGGVLIGGSDQDVDEEEEPIEQSGRQSVTFKREMSISSLADSVPSSSVSTSGGT	80	-0.825 06
5	RLTNSLLNLRSRLAAKAAKEAASSNATDDPAISNKDQRESEKKNNQDLKPTQNDLDFVRADV	62	-1.350 91

Tab.4 Partial Predicted peptides of N protein B cell epitope

序号 No.	位置 Position	肽段 Peptide	长度 Length
1	6—30	EEAASFRSYQSKLGRDGRASAATAT	25
2	109—127	NGIPVMERRGDKAQEEMEG	19
3	136—158	RDSSKGKTPFVDSRAYGLRITDM	23
4	185—216	TAEESETRRWAKYVQQKRVNPFFALTQQWLTE	32
5	344—354	SMGALNINRGY	11

Fig.12 The prediction results of the linear epitope of N protein Bepipred

Fig.13 Prediction of the secondary structure of N protein H.Alpha helix;e.Extened chain;c.Random coil;t.Beta turn.

Fig.14 3D model prediction of N protein

References 20

[1]	黄家丽, 程蓓蓓. 亨尼帕病毒研究概述[J]. 中国动物检疫, 2023, 40(7):69—74.doi:10.3969/j.issn.1005-944X.2023.07.013.
	Huang J L, Cheng B B. Research progress on henipahviruses[J]. China Animal Health Inspection, 2023, 40(7):69—74.
[2]	程国华, 陈云蕾, 张帅. 尼帕病毒感染和传播机制[J]. 动物医学进展, 2022, 43(12):109—114.doi:10.16437/j.cnki.1007-5038.2022.12.008.
	Cheng G H, Chen Y L, Zhang S. Progress on infection and transmission mechanism of Nipah virus[J]. Progress in Veterinary Medicine, 2022, 43(12):109—114.
[3]	Wacharapluesadee S, Lumlertdacha B, Boongird K, Wanghongsa S, Chanhome L, Rollin P, Stockton P, Rupprecht C E, Ksiazek T G, Hemachudha T. Bat Nipah virus,Thailand[J]. Emerging Infectious Diseases, 2005, 11(12):1949—1951.doi:10.3201/eid1112.050613. pmid: 16485487
[4]	谢金文, 沈志强, 任艳玲, 魏凤. 尼帕病毒结构蛋白研究进展[J]. 中国人兽共患病学报, 2008, 24(11):1077—1079.doi:10.3969/j.issn.1002-2694.2008.11.023.
	Xie J W, Shen Z Q, Ren Y L, Wei F. Research progress of Nipah virus structural proteins[J]. Chinese Journal of Zoonoses, 2008, 24(11):1077—1079.
[5]	Kulkarni D D, Venkatesh G, Tosh C, Patel P, Mashoria A, Gupta V, Gupta S, Senthilkumar D. Development and evaluation of recombinant nucleocapsid protein based diagnostic ELISA for detection of Nipah virus infection in pigs[J]. Journal of Immunoassay & Immunochemistry, 2016, 37(2):154—166.doi:10.1080/15321819.2015.1074922.
[6]	Masoomi Dezfooli S, Tan W S, Tey B T, Ooi C W, Hussain S A. Expression and purification of the matrix protein of Nipah virus in baculovirus insect cell system[J]. Biotechnology Progress, 2016, 32(1):171—177.doi:10.1002/btpr.2192. pmid: 26519022
[7]	肖昌, 徐兴然, 查云峰, 张玉静, 宣华, 涂长春. 尼帕病毒和亨得拉病毒核蛋白基因在杆状病毒表达系统的表达及反应原性鉴定[J]. 病毒学报, 2006, 22(6): 466—470.doi:10.3321/j.issn:1000-8721.2006.06.011.
	Xiao C, Xu X R, Zha Y F, Zhang Y J, Xuan H, Tu C C. The expression of nucleocapsid protein of Nipah and hendra viruses in baculovirus and characterization of their reactivity[J]. Chinese Journal of Virology, 2006, 22(6):466—470.
[8]	袁军龙, 袁东波, 尹念春. 尼帕病毒病病原及防治概述[J]. 中国动物保健, 2021, 23(4):114—115.doi:10.3969/j.issn.1008-4754.2021.04.078.
	Yuan J L, Yuan D B, Yin N C. The pathogen and prevention of Nipah virus disease[J]. China Animal Health, 2021, 23(4):114—115.
[9]	林志龙, 严延生, 张智芳, 王晓欢, 梁小洁. 尼帕病毒病[J]. 中国人兽共患病学报, 2021, 37(3):246—251,258.doi:10.3969/j.issn.1002-2694.2021.00.029.
	Lin Z L, Yan Y S, Zhang Z F, Wang X H, Liang X J. Nipah virus disease[J]. Chinese Journal of Zoonoses, 2021, 37(3):246—251,258.
[10]	Halpin K, Young P L, Field H E, MacKenzie J S. Isolation of Hendra virus from pteropid bats:a natural reservoir of Hendra virus[J]. The Journal of General Virology, 2000, 81(Pt 8):1927—1932.doi:10.1099/0022-1317-81-8-1927.
[11]	Chua K B, Koh C L, Hooi P S, Wee K F, Khong J H, Chua B H, Chan Y P, Lim M E, Lam S K. Isolation of Nipah virus from Malaysian Island flying-foxes[J]. Microbes and Infection, 2002, 4(2):145—151.doi:10.1016/s1286-4579(01)01522-2. pmid: 11880045
[12]	李小成. 尼帕病毒的研究进展[J]. 养猪, 2022(1):125—126.doi:10.13257/j.cnki.21-1104/s.2022.01.036.
	Li X C. Research progress of Nipah virus[J]. Swine Production, 2022(1):125—126.
[13]	Yong M Y, Lee S C, Ngui R, Lim Y A, Phipps M E, Chang L Y. Seroprevalence of Nipah virus infection in Peninsular Malaysia[J]. The Journal of Infections Diseases, 2020, 221(S4):S370—S374.doi:10.1093/infdis/jiaa085.
[14]	蒋皓静, 吴延功, 吴晓东, 王志亮, 赵永刚, 单虎. 抗尼帕病毒N蛋白单克隆抗体的制备与鉴定[J]. 中国预防兽医学报, 2011, 33(3):239—241.doi:10.3969/j.issn.1008-0589.2011.03.18.
	Jiang H J, Wu Y G, Wu X D, Wang Z L, Zhao Y G, Shan H. Preparation and identification of monoclonal antibody to protein N of NiV[J]. Chinese Journal of Preventive Veterinary Medicine, 2011, 33(3):239—241.
[15]	Eshaghi M, Tan W S, Ong S T, Yusoff K. Purification and characterization of Nipah virus nucleocapsid protein produced in insect cells[J]. Journal of Clinical Microbiology, 2005, 43(7):3172—3177.doi:10.1128/JCM.43.7.3172-3177.2005. pmid: 16000431
[16]	梁栋, 涂长春, 石清明, 张超雄, 陈锚锚, 邓成玉, 范泉水. 尼帕病毒N基因的原核表达[J]. 西南国防医药, 2015, 25(3):255—258.doi:10.3969/j.issn.1004-0188.2015.03.009.
	Liang D, Tu C C, Shi Q M, Zhang C X, Chen M M, Deng C Y, Fan Q S. Prokaryotic expression of Nipah virus N gene[J]. Medical Journal of National Defending Forces in Southwest China, 2015, 25(3):255—258.
[17]	肖昌. 亨得拉和尼帕病毒结构蛋白的表达及抗原表位研究[D]. 长春: 吉林大学, 2006.
	Xiao C. Expression and epitopes mapping of structural proteins of hendra and Nipah virus[D]. Changchun: Jilin University, 2006.
[18]	Omi-Furutani M, Yoneda M, Fujita K, Ikeda F, Kai C. Novel phosphoprotein-interacting region in Nipah virus nucleocapsid protein and its involvement in viral replication[J]. Journal of Virology, 2010, 84(19):9793—9799.doi:10.1128/JVI.00339-10. pmid: 20668089
[19]	Maeda S, Kawai T, Obinata M, Fujiwara H, Horiuchi T, Saeki Y, Sato Y, Furusawa M. Production of human alpha-interferon in silkworm using a baculovirus vector[J]. Nature, 1985, 315(6020):592—594.doi:10.1038/315592a0.
[20]	郑文云, 马兴元, 潘树德. 蚕杆状病毒载体表达系统及其在动物疫苗生产中的应用[J]. 生物技术, 2001, 11(2):36—37.doi:10.16519/j.cnki.1004-311x.2001.02.014.
	Zheng W Y, Ma X Y, Pan S D. Expression system of silkworm baculovirus vector and its application in animal vaccine production[J]. Biotechnology, 2001, 11(2):36—37.
