Transcriptome Analysis Reveal Candidate Genes Affecting Seed Oil Accumulation in Brassica napus

doi:10.7668/hbnxb.20195591

Abstract

Abstract:

In order to clarify the regulatory network of oil accumulation in Brassica napus and breed oilseed rapeseed varieties with high oil content.The seed transcriptome data of four rapeseed inbred lines at 25,35,and 45 days after flowering were used to identify candidate genes affecting oil content by transcriptome analysis and correlation analysis.Consequently,a total of 1 530 genes were identified exhibiting differential expression across all three period,comprising 986 up-regulated genes and 544 down-regulated genes.GO enrichment analysis of these differentially expressed genes detected 83 lipid biosynthesis genes,79 lipid degradation genes,21 lipid transporter genes and 80 transcription factors.To further analysis of these differentially expressed transcription factors,genes including BnTT8,BnGL2,and BnNAC082 were identified.Combined with the oil content data of 50 semi-winter rapeseed in three different regions over two years,four SNPs were identified in the exons region of the BnNAC082-A03 significantly associated with oil content using genome-wide association studies.Two haplotypes were detected in the region of this gene and BnNAC082-A03_Hap1 corresponding accessions showed significantly higher oil content than that of Hap2.Additionally,it utilized these transcriptomic data to construct co-expression analysis network,and in the sub-network revealed that BnNAC082-A03 was directly connected with BnTT8-A09 and BnGL2-C06,forming a potential molecular regulatory network affecting seed lipid accumulation.

Key words: Brassica napus, Oil content, Transcriptome analysis, Co-expression networks, GWAS

CLC Number:

S565.4

LI Wen, YAO Min, HE Dan, QIU Ping, HE Xin, XIONG Xinghua, LIU Zhongsong, QIAN Lunwen. Transcriptome Analysis Reveal Candidate Genes Affecting Seed Oil Accumulation in Brassica napus[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(5): 47-54. doi: 10.7668/hbnxb.20195591.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20195591

http://www.hbnxb.net/EN/Y2025/V40/I5/47

Figures/Tables 8

Tab.1 The oil content in seeds of four rapeseed varieties in Changsha %

品种 Varieties	含油量Oil content
品种 Varieties	15 d	20 d	25 d	30 d	35 d	40 d	45 d
XY777	2.83±0.69a	2.92±1.02a	3.36±0.48a	6.74±2.01a	31.70±1.81b	35.79±2.32b	37.36±1.67b
XY015	2.04±0.77a	2.38±0.88a	2.93±0.91a	7.74±1.33a	34.71±1.67b	39.63±1.88b	40.39±1.28b
CS136	1.48±1.32a	1.66±1.21a	2.78±1.25a	9.12±0.54a	42.54±2.12a	46.54±1.45a	49.50±1.30a
CS115	1.14±1.03a	1.32±1.03a	2.79±1.11a	8.97±0.75a	38.26±2.01a	45.01±1.01a	48.84±1.21a

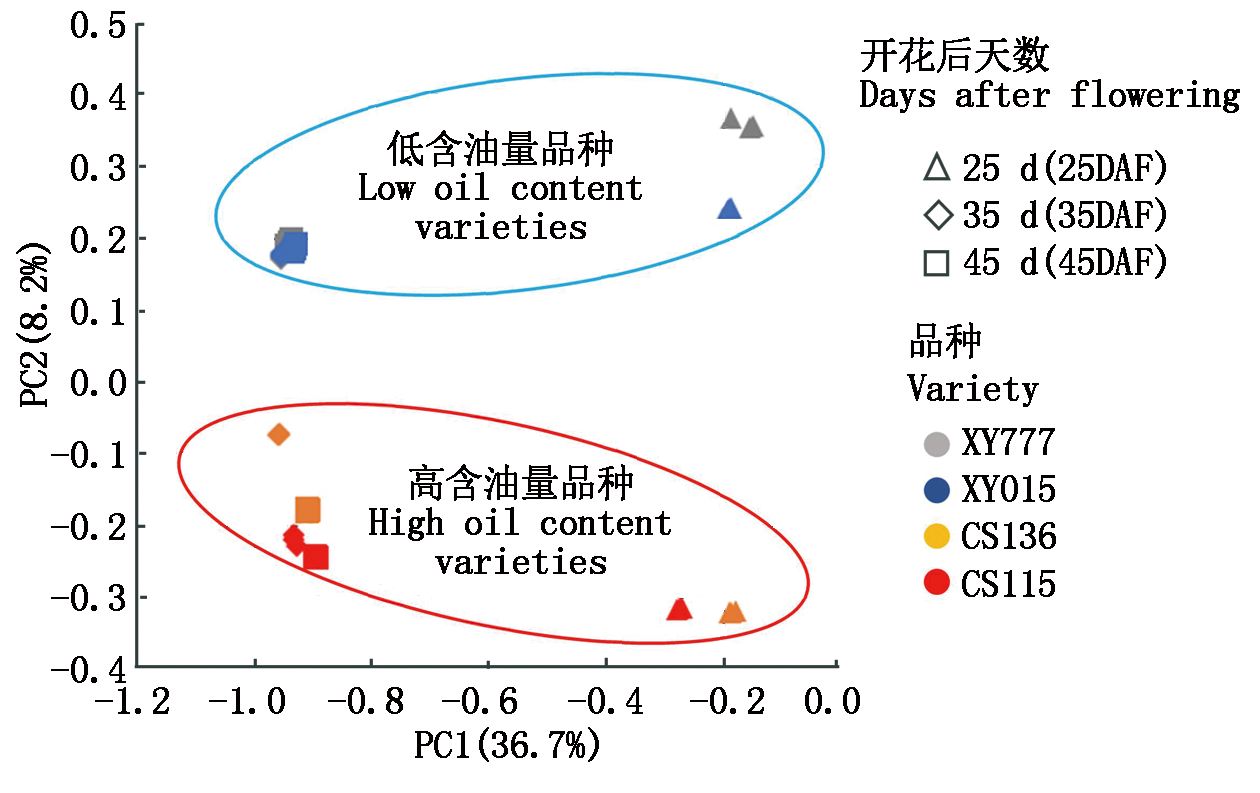

Fig.1 PCA of oil content between four rapeseed varieties

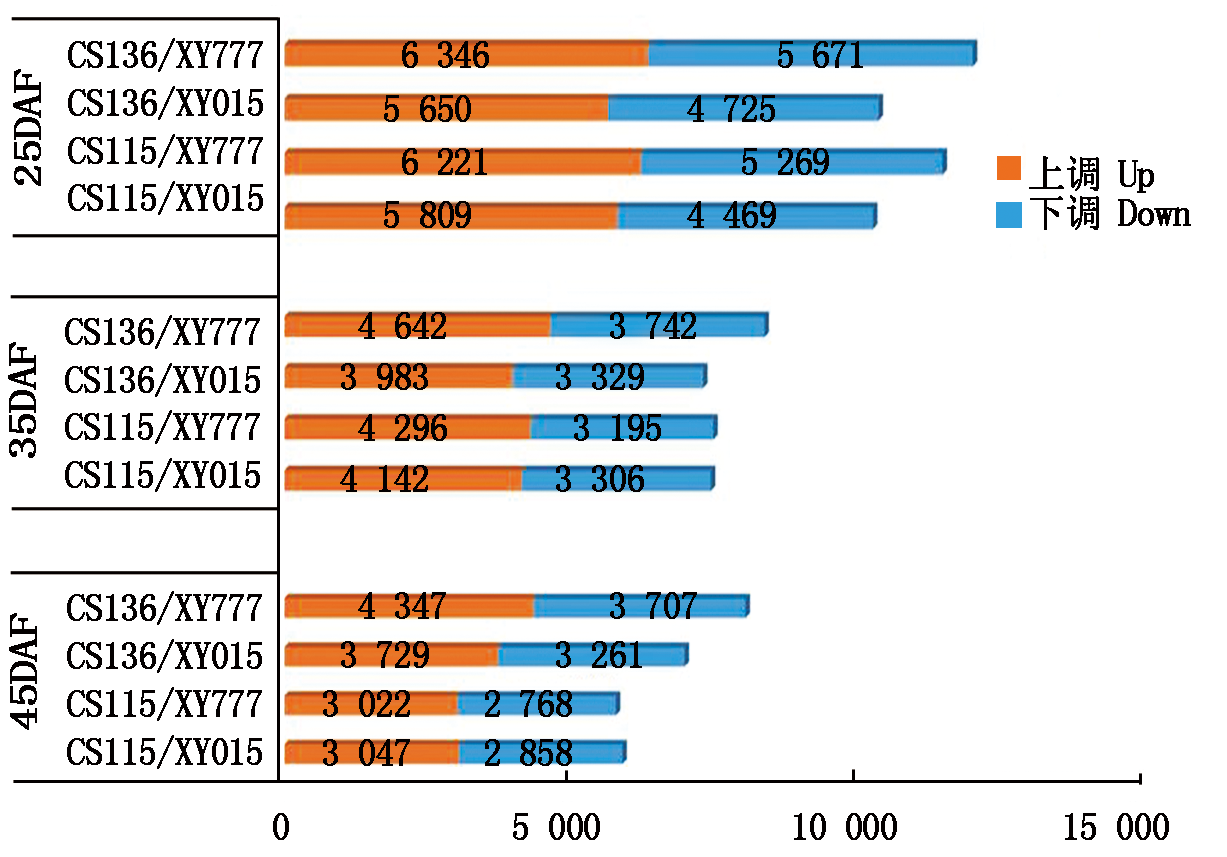

Fig.2 The number of differentially expressed genes

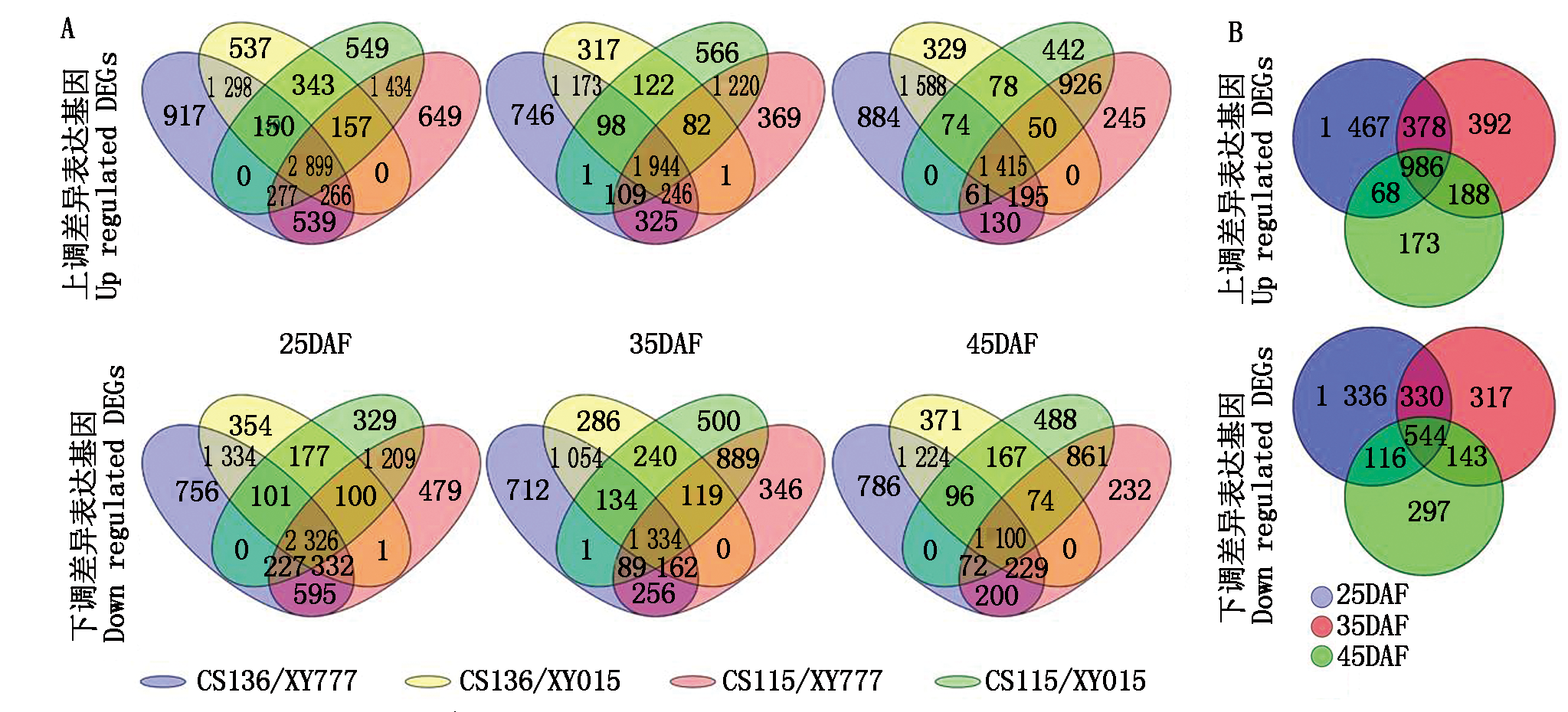

Fig.3 Statistics of differentially expressed genes and GO enrichment analysis A. Graph of differentially expressed genes Venn in different oil content varieties; B. Venn diagram of differentially expressed in three time.

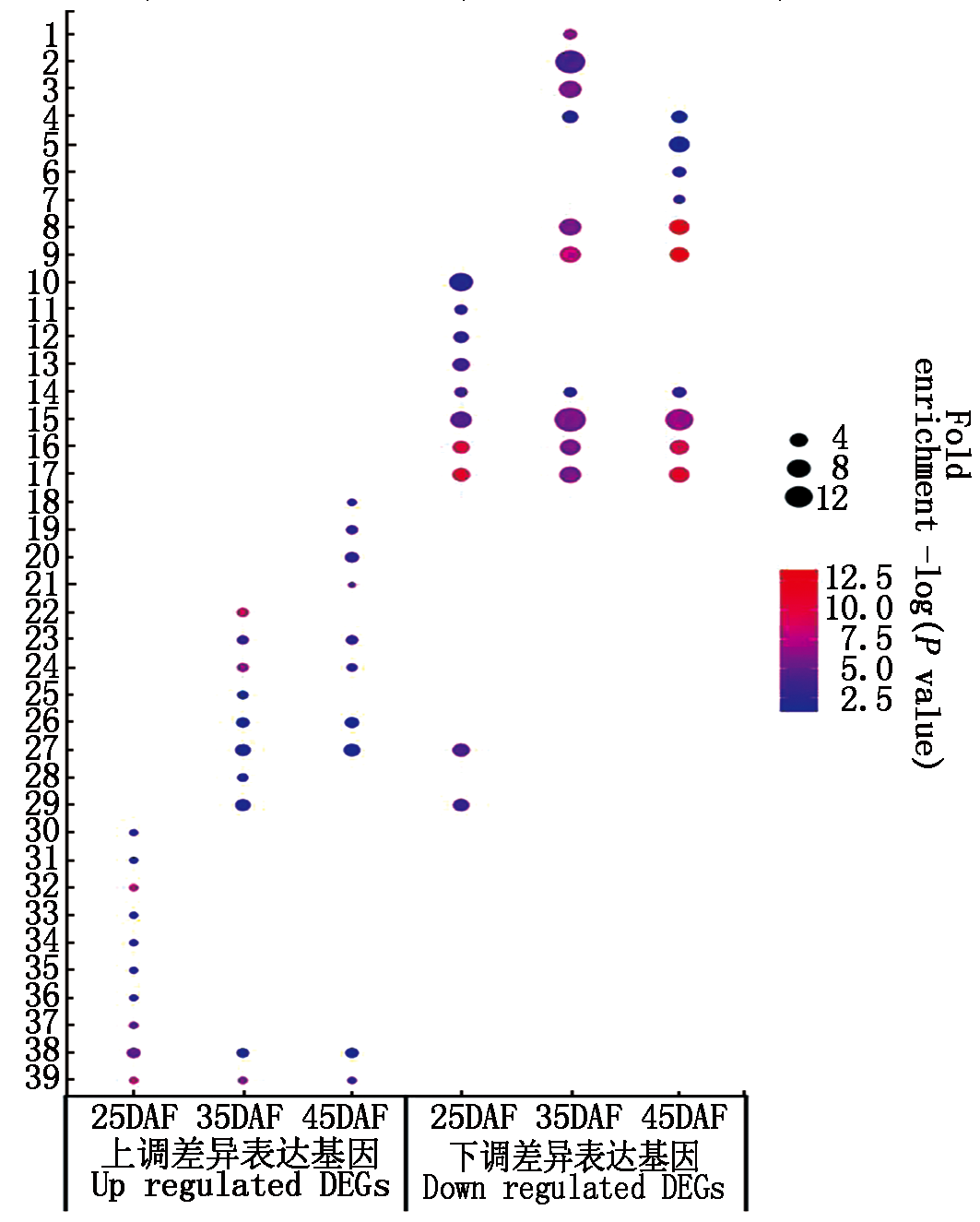

Fig.4 GO enrichment analysis of differentially expressed gene 1.Organic acid biosynthetic process;2.Phenylpropanoid catabolic process;3.Regulation of flavonoid biosynthetic process;4.Seed coat development;5.Fatty acid transport;6.Seedling development;7.Response to lipid;8.Phenylpropanoid biosynthetic process;9.Phenylpropanoid metabolic process;10.Fatty acid homeostasis;11.Lipid catabolic process;12.Lipid oxidation;13.Fatty acid beta-oxidation;14.Fatty acid metabolic process;15.Proanthocyanidin biosynthetic process;16.Flavonoid metabolic process;17.Flavonoid biosynthetic process;18.Protein metabolic process;19.Protein transport;20.Protein folding;21.Metabolic process;22.Organonitrogen compound biosynthetic process;23.Organophosphate metabolic process;24.Cellular component biogenesis;25.Embryo development ending in seed dormancy;26.Lipid modification;27.Fatty acid catabolic process;28.Embryo development;29.Fatty acid oxidation;30.Regulation of primary metabolic process;31.Regulation of nucleic acid-templated transcription;32.Biosynthetic process;33.Regulation of transcription,DNA-templated;34.Regulation of RNA biosynthetic process;35.Transcription,DNA-templated;36.RNA biosynthetic process;37.Gene expression;38.Photosynthesis;39.Organic substance biosynthetic process.

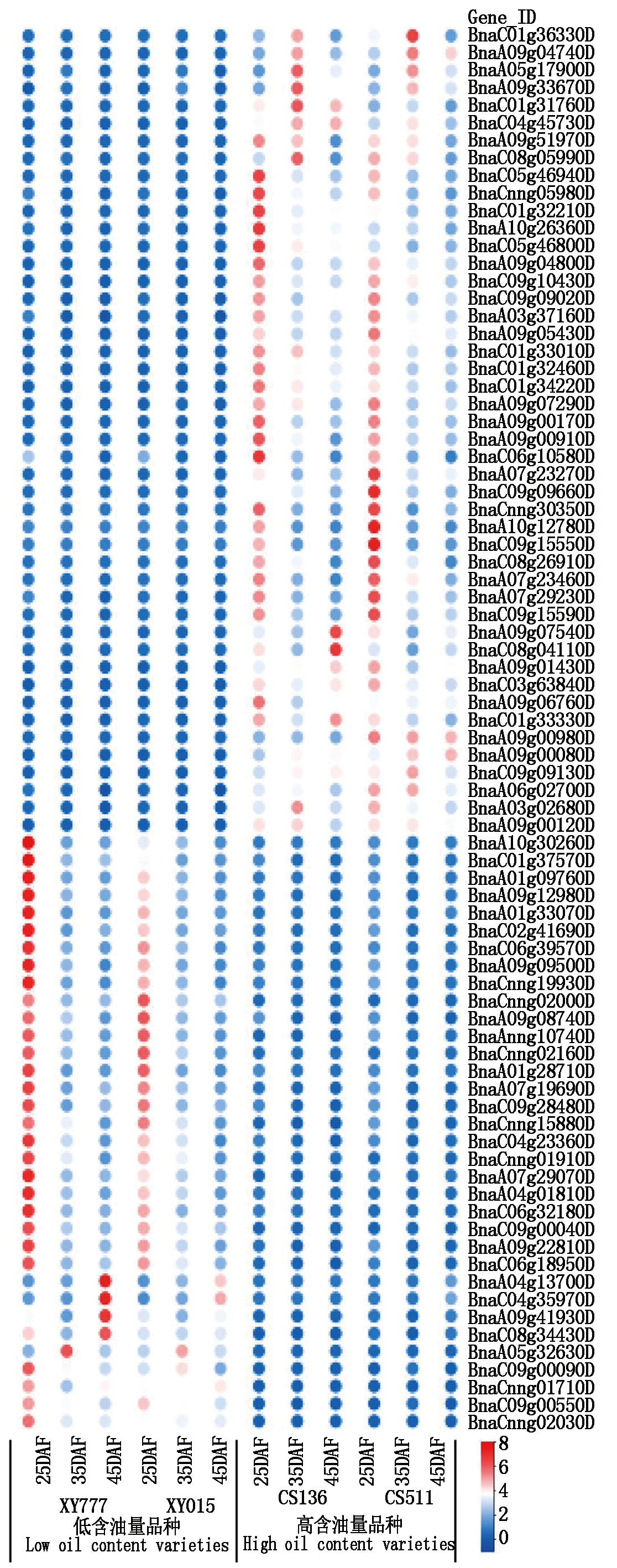

Fig.5 The heatmap displaying the expression levels of transcription factors Gene expression values are transformed into log₂(FPKM+1) replaced with blue to white to red instead from small to large.

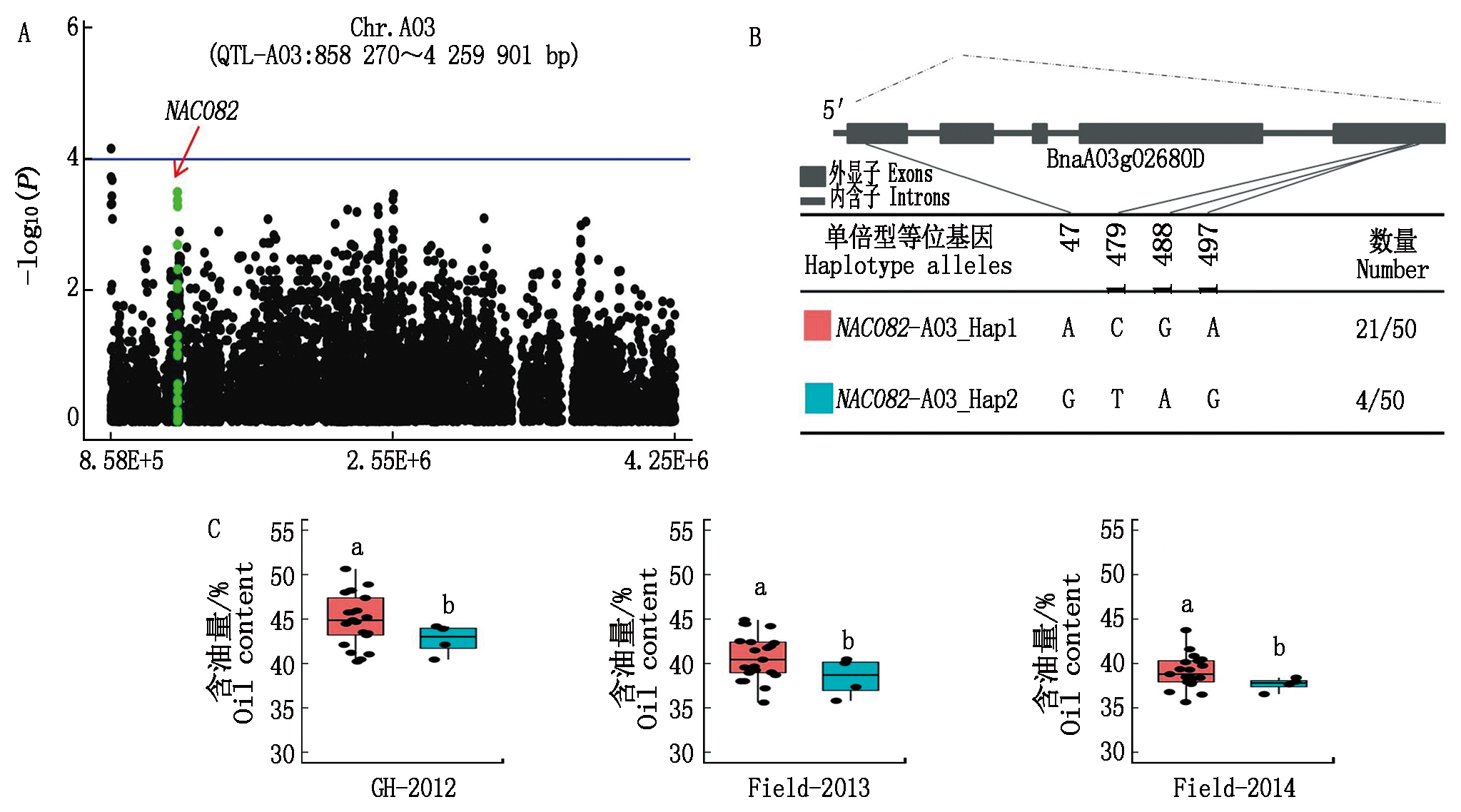

Fig.6 Candidate genes were identified by association analysis A.Regional Manhattan plot surrounding the peak signals on QTL-A03,green dots indicate SNPs located in the BnNAC082-A03 gene regions which significantly associated with oil content; B.Genetic structure variations of BnNAC082-A03; C.Comparative analysis of the oil content of the materials corresponding to the two haplotype alleles.Different small letters indicate significant (P<0.05) between different haplotypes under the same trait.

Fig.7 Gene co-expression networks A.Network module partitioning,using different colors to delineate different modules; B.Gene network diagram.According to functional labeling,networks are divided into:transcription factor (blue nodes),fatty acid biosynthesis (red nodes),lipid biosynthesis (orange nodes),photosynthesis (purple nodes),carbohydrate metabolism (green nodes) and flavonoid biosynthetic (yellow nodes); C.Correlation between the expression (FPKM) of BnNAC082-A03 with oil content; D.Correlation between the expression (FPKM) of BnTT8-A09 with oil content; E.Correlation between the expression (FPKM) of BnGL2-C06 with oil content.

References 34

[1]	李利霞, 陈碧云, 闫贵欣, 高桂珍, 许鲲, 谢婷, 张付贵, 伍晓明. 中国油菜种质资源研究利用策略与进展[J]. 植物遗传资源学报, 2020, 21(1):1-19.doi:10.13430/j.cnki.jpgr.20200109005.
	Li L X, Chen B Y, Yan G X, Gao G Z, Xu K, Xie T, Zhang F G, Wu X M. Proposed strategies and current progress of research and utilization of oilseed rape germplasm in China[J]. Journal of Plant Genetic Resources, 2020, 21(1):1-19.
[2]	冯海棠, 王汉中. 新形势下的我国食用植物油供给安全对策[J]. 中国油料作物学报, 2024, 46(2):221-227.doi:10.19802/j.issn.1007-9084.2024021.
	Feng H T, Wang H Z. Security strategy for the nation's edible vegetable oil supplies under the new circumstances[J]. Chinese Journal of Oil Crop Sciences, 2024, 46(2):221-227.
[3]	Wang X F, Liu G H, Yang Q, Hua W, Liu J, Wang H Z. Genetic analysis on oil content in rapeseed (Brassica napus L.)[J]. Euphytica, 2010, 173(1):17-24.doi:10.1007/s10681-009-0062-x.
[4]	Hua W, Li R J, Zhan G M, Liu J, Li J, Wang X F, Liu G H, Wang H Z. Maternal control of seed oil content in Brassica napus:the role of silique wall photosynthesis[J]. The Plant Journal, 2012, 69(3):432-444.doi:10.1111/j.1365-313x.2011.04802.x.
[5]	Guo Y L, Si P, Wang N, Wen J, Yi B, Ma C Z, Tu J X, Zou J T, Fu T D, Shen J X. Genetic effects and genotype environment interactions govern seed oil content in Brassica napus L.[J]. BMC Genetics, 2017, 18(1):1.doi:10.1186/s12863-016-0468-0.
[6]	Xiao Z C, Zhang C, Tang F, Yang B, Zhang L Y, Liu J S, Huo Q, Wang S F, Li S T, Wei L J, Du H, Qu C M, Lu K, Li J N, Li N N. Identification of candidate genes controlling oil content by combination of genome-wide association and transcriptome analysis in the oilseed crop Brassica napus[J].Biotechnology for Biofuels, 2019, 12(1):216.doi:10.1186/s13068-019-1557-x.
[7]	Wang H Y, Wang Q, Pak H, Yan T, Chen M X, Chen X Y, Wu D Z, Jiang L X. Genome-wide association study reveals a patatin-like lipase relating to the reduction of seed oil content in Brassica napus[J].BMC Plant Biology, 2021, 21(1):6.doi:10.1186/s12870-020-02774-w.
[8]	Li L, Tian Z T, Chen J, Tan Z D, Zhang Y T, Zhao H, Wu X W, Yao X, Wen W W, Chen W, Guo L. Characterization of novel loci controlling seed oil content in Brassica napus by marker metabolite-based multi-omics analysis[J]. Genome Biology, 2023, 24(1):141.doi:10.1186/s13059-023-02984-z.
[9]	吴心成, 贺日升, 肖硕定, 张振乾, 杨柳, 刘忠松, 陈浩. 甘蓝型油菜抗茎秆倒伏鉴定与候选基因挖掘[J]. 华北农学报, 2024, 39(4):54-63.doi:10.7668/hbnxb.20194874.
	Wu X C, He R S, Xiao S D, Zhang Z Q, Yang L, Liu Z S, Chen H. Identification and candidate gene mining of stem lodging resistance in Brassica napus[J].Acta Agriculturae Boreali-Sinica, 2024, 39(4):54-63.
[10]	周弘峰, 朱思颖, 贺丹, 刘丽莉, 陈道宗, 谭晨, 张大为, 严明理. 紫叶甘蓝型油菜花青素合成的转录组-代谢组联合分析[J]. 华北农学报, 2024, 39(3):25-34.doi:10.7668/hbnxb.20194754.
	Zhou H F, Zhu S Y, He D, Liu L L, Chen D Z, Tan C, Zhang D W, Yan M L. Transcriptomic and metabolomic analysis of anthocyanin synthesis in purple leaf Brassica napus[J].Acta Agriculturae Boreali-Sinica, 2024, 39(3):25-34.
[11]	Shahid M, Cai G Q, Zu F, Zhao Q, Qasim M U, Hong Y Y, Fan C C, Zhou Y M. Comparative transcriptome analysis of developing seeds and silique wall reveals dynamic transcription networks for effective oil production in Brassica napus L.[J]. International Journal of Molecular Sciences, 2019, 20(8):1982.doi:10.3390/ijms20081982.
[12]	Niu Y, Wu L M, Li Y H, Huang H L, Qian M C, Sun W, Zhu H, Xu Y F, Fan Y H, Mahmood U, Xu B B, Zhang K, Qu C M, Li J N, Lu K. Deciphering the transcriptional regulatory networks that control size,color,and oil content in Brassica rapa seeds[J]. Biotechnology for Biofuels, 2020, 13(1):90.doi:10.1186/s13068-020-01728-6.
[13]	Su L Y, Wan S Q, Zhou J M, Shao Q S, Xing B C. Transcriptional regulation of plant seed development[J]. Physiologia Plantarum, 2021, 173(4):2013-2025.doi:10.1111/ppl.13548.
[14]	Elahi N, Duncan R W, Stasolla C. Decreased seed oil production in FUSCA3 Brassica napus mutant plants[J]. Plant Physiology and Biochemistry, 2015, 96:222-230.doi:10.1016/j.plaphy.2015.08.002.
[15]	Wu X L, Liu Z H, Hu Z H, Huang R Z. BnWRI1 coordinates fatty acid biosynthesis and photosynthesis pathways during oil accumulation in rapeseed[J]. Journal of Integrative Plant Biology, 2014, 56(6):582-593.doi:10.1111/jipb.12158.
[16]	Tan H L, Yang X H, Zhang F X, Zheng X, Qu C M, Mu J Y, Fu F Y, Li J N, Guan R Z, Zhang H S, Wang G D, Zuo J R. Enhanced seed oil production in canola by conditional expression of Brassica napus LEAFY COTYLEDON1 and LEC1-LIKE in developing seeds[J]. Plant Physiology, 2011, 156(3):1577-1588.doi:10.1104/pp.111.175000.
[17]	曹松, 姚敏, 任睿, 贾元, 向星汝, 李文, 何昕, 刘忠松, 官春云, 钱论文, 熊兴华. 转录组结合区域关联分析挖掘油菜含油量积累的候选基因[J]. 作物学报, 2024, 50(5):1136-1146.doi:10.3724/SP.J.1006.2024.34152.
	Cao S, Yao M, Ren R, Jia Y, Xiang X R, Li W, He X, Liu Z S, Guan C Y, Qian L W, Xiong X H. A combination of genome-wide association and transcriptome analysis reveal candidate genes affecting seed oil accumulation in Brassica napus[J].Acta Agronomica Sinica, 2024, 50(5):1136-1146.
[18]	Yao M, He D, Li W, Xiong X H, He X, Liu Z S, Guan C Y, Qian L W. Identification of environment-insensitive genes for oil content by combination of transcriptome and genome-wide association analysis in rapeseed[J]. Biotechnology for Biofuels and Bioproducts, 2024, 17(1):29.doi:10.1186/s13068-024-02480-x.
[19]	Chen C J, Wu Y, Li J W, Wang X, Zeng Z H, Xu J, Liu Y L, Feng J T, Chen H, He Y H, Xia R. TBtools-II:a "one for all,all for one" bioinformatics platform for biological big-data mining[J]. Molecular Plant, 2023, 16(11):1733-1742.doi:10.1016/j.molp.2023.09.010.
[20]	Walker A M, Cliff A, Romero J, Shah M B, Jones P, Felipe Machado Gazolla J G, Jacobson D A, Kainer D. Evaluating the performance of random forest and iterative random forest based methods when applied to gene expression data[J]. Computational and Structural Biotechnology Journal, 2022, 20:3372-3386.doi:10.1016/j.csbj.2022.06.037.
[21]	Fu Y, Zhang D Q, Gleeson M, Zhang Y F, Lin B G, Hua S J, Ding H D, Frauen M, Li J N, Qian W, Yu H S. Analysis of QTL for seed oil content in Brassica napus by association mapping and QTL mapping[J]. Euphytica, 2016, 213(1):17.doi:10.1007/s10681-016-1817-9.
[22]	范世航, 刘念, 华玮. 油料作物油脂合成调控研究进展[J]. 中国油料作物学报, 2021, 43(3):361-375.doi:10.19802/j.issn.1007-9084.2021097.
	Fan S H, Liu N, Hua W. Research advances in the biosynthesis and regulation of lipid in oil crops[J]. Chinese Journal of Oil Crop Sciences, 2021, 43(3):361-375.
[23]	Li-Beisson Y, Shorrosh B, Beisson F, Andersson M X, Arondel V, Bates P D, Baud S, Bird D, DeBono A, Durrett T P, Franke R B, Graham I A, Katayama K, Kelly A A, Larson T, Markham J E, Miquel M, Molina I, Nishida I, Rowland O, Samuels L, Schmid K M, Wada H, Welti R, Xu C C, Zallot R, Ohlrogge J. Acyl-lipid metabolism[J]. The Arabidopsis Book, 2013, 11:e0161.doi:10.1199/tab.0161.
[24]	Shi L, Katavic V, Yu Y Y, Kunst L, Haughn G. Arabidopsis glabra2 mutant seeds deficient in mucilage biosynthesis produce more oil[J]. The Plant Journal, 2012, 69(1):37-46.doi:10.1111/j.1365-313x.2011.04768.x.
[25]	Takami T, Shibata M, Kobayashi Y, Shikanai T. De novo biosynthesis of fatty acids plays critical roles in the response of the photosynthetic machinery to low temperature in Arabidopsis[J].Plant and Cell Physiology, 2010, 51(8):1265-1275.doi:10.1093/pcp/pcq085.
[26]	Hsiao A S, Yeung E C, Ye Z W, Chye M L. The Arabidopsis cytosolic acyl-CoA-binding proteins play combinatory roles in pollen development[J]. Plant and Cell Physiology, 2015, 56(2):322-333.doi:10.1093/pcp/pcu163.
[27]	Wang T Y, Xing J W, Liu X Y, Liu Z S, Yao Y Y, Hu Z R, Peng H R, Xin M M, Zhou D X, Zhang Y R, Ni Z F. Histone acetyltransferase general control non-repressed protein 5 (GCN5) affects the fatty acid composition of Arabidopsis thaliana seeds by acetylating fatty acid desaturase3 (FAD3)[J]. The Plant Journal, 2016, 88(5):794-808.doi:10.1111/tpj.13300.
[28]	Lusk H J, Neumann N, Colter M, Roth M R, Tamura P, Yao L B, Shiva S, Shah J, Schrick K, Durrett T P, Welti R. Lipidomic analysis of Arabidopsis T-DNA insertion lines leads to identification and characterization of C-Terminal alterations in fatty acid desaturase 6[J]. Plant and Cell Physiology, 2022, 63(9):1193-1204.doi:10.1093/pcp/pcac088.
[29]	Wang H Y, Guo J H, Lambert K N, Lin Y. Developmental control of Arabidopsis seed oil biosynthesis[J]. Planta, 2007, 226(3):773-783.doi:10.1007/s00425-007-0524-0.
[30]	Zumajo-Cardona C, Aguirre M, Castillo-Bravo R, Mizzotti C, Di Marzo M, Banfi C, Mendes M A, Spillane C, Colombo L, Ezquer I. Maternal control of triploid seed development by the TRANSPARENT TESTA 8 (TT8) transcription factor in Arabidopsis thaliana[J].Scientific Reports, 2023, 13:1316.doi:10.1038/s41598-023-28252-5.
[31]	Yamaguchi M, Ohtani M, Mitsuda N, Kubo M, Ohme-Takagi M, Fukuda H, Demura T. VND-INTERACTING2,a NAC domain transcription factor,negatively regulates xylem vessel formation in Arabidopsis[J]. The Plant Cell, 2010, 22(4):1249-1263.doi:10.1105/tpc.108.064048.
[32]	Ohbayashi I, Lin C Y, Shinohara N, Matsumura Y, Machida Y, Horiguchi G, Tsukaya H, Sugiyama M. Evidence for a role of ANAC082 as a ribosomal stress response mediator leading to growth defects and developmental alterations in Arabidopsis[J].The Plant Cell, 2017, 29(10):2644-2660.doi:10.1105/tpc.17.00255.
[33]	Wang W J, Ryu K H, Bruex A, Barron C, Schiefelbein J. Molecular basis for a cell fate switch in response to impaired ribosome biogenesis in the Arabidopsis root epidermis[J]. The Plant Cell, 2020, 32(7):2402-2423.doi:10.1105/tpc.19.00773.
[34]	Canales J, Verdejo J, Carrasco-Puga G, Castillo F M, Arenas-M A, Calderini D F. Transcriptome analysis of seed weight plasticity in Brassica napus[J].International Journal of Molecular Sciences, 2021, 22(9):4449.doi:10.3390/ijms22094449.
