Prokaryotic Expression and Antibody Preparation of Potato Sucrose Phosphate Synthase StSPS1

doi:10.7668/hbnxb.20194198

Abstract

Abstract:

To express the protein StSPS1 encoding potato sucrose phosphate synthase(SPS)in E.coli and prepare polyclonal antibodies.The StSPS1 gene was cloned from the tubers of tetraploid potato variety Chuanyu 10,with a total coding region of 3 165 bp and a protein length of 1 055 aa.Subsequently,based on the constructed His tag fusion expression vector PET30a-StSPS1,the protein induction,denaturation,purification,renaturation,and rabbit immune tests of StSPS1 protein were carried out.The results showed that the molecular weight of StSPS1 protein was approximately 119.62 ku,and its expression was minimal in soluble supernatant,mainly in insoluble precipitates.The optimal induction conditions were induced with 0.5 or 1.0 mmol/L IPTG at 37 ℃ for 4 h.Due to StSPS1 being an inclusion body protein,it was subjected to inclusion body denaturation and purified using His tags to match the size of the target band.At the same time,a protein immunoblotting(WB)test was performed using His antibodies,and the target band was detected at 119.62 ku,indicating the successful purification of StSPS1 inclusion body protein.Finally,by injecting the dialyzed and refolded StSPS1 protein into the subcutaneous tissue of rabbits,two antibodies against StSPS1 were successfully immunized.After WB identification,it was found that both antibodies could hybridize target bands in the antigen and the total protein of leaves in Chuanyu 10.In summary,potato StSPS1 protein was induced and purified,and rabbit polyclonal antibodies against StSPS1 protein were successfully prepared.

Key words: Potato, Sucrose phosphate synthase, StSPS1, Prokaryotic expression, Polyclonal antibody preparation

CAI Chengcheng, LI Luopin, WEN He, LIU Shifeng, WANG Qiang, LI Liqin, WANG Xiyao. Prokaryotic Expression and Antibody Preparation of Potato Sucrose Phosphate Synthase StSPS1[J]. Acta Agriculturae Boreali-Sinica, 2023, 38(6): 11-17. doi: 10.7668/hbnxb.20194198.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20194198

http://www.hbnxb.net/EN/Y2023/V38/I6/11

Figures/Tables 9

Tab.1 Primers used in this study

名称 Name	引物(5'—3') Primer(5'—3')
StSPS1	StSPS1-F:ATGGCGGGAAACGATTGGAT
	StSPS1-R:GGGTATTATCCTTTGAGTACCG
M13	M13-F:TGTAAAACGACGGCCAGC
	M13-R:AGGAAACAGCTATGACC
T7	T7-F:TAATACGACTCACTATAGGG
	T7-R:CCAAGGGGTTATGCTAG
StSPS1-30a	StSPS1-30a-F:CGCCATATGATGGCGGGAAACGATTG
	StSPS1-30a-R:CCGCTCGAGTCCTTTGAGTACCGCTAG

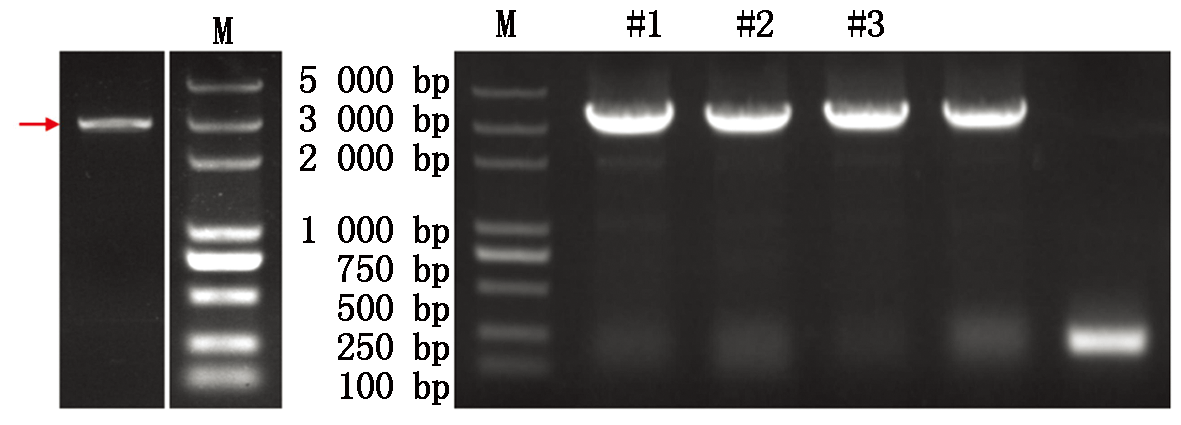

Fig.1 Cloning of StSPS1 in Chuanyu 10 and the colony PCR identification of pBM23 construction The arrow.The target band of StSPS1;M.DNA Marker (The same as Fig.3);#1,#2 and #3.3 recombinant single colony.

Fig.2 Sequence alignment analysis of StSPS1 gene and protein in Chuanyu 10 A.Differential gene sequence alignment of StSPS1;B.Differential protein sequence alignment of StSPS1.

Fig.3 Construction and identification of pET30a-StSPS1 recombinant plasmid A.Brief structure of pET30a-StSPS1 vector;B.Enzyme digestion of pET30a-StSPS1 plasmid.

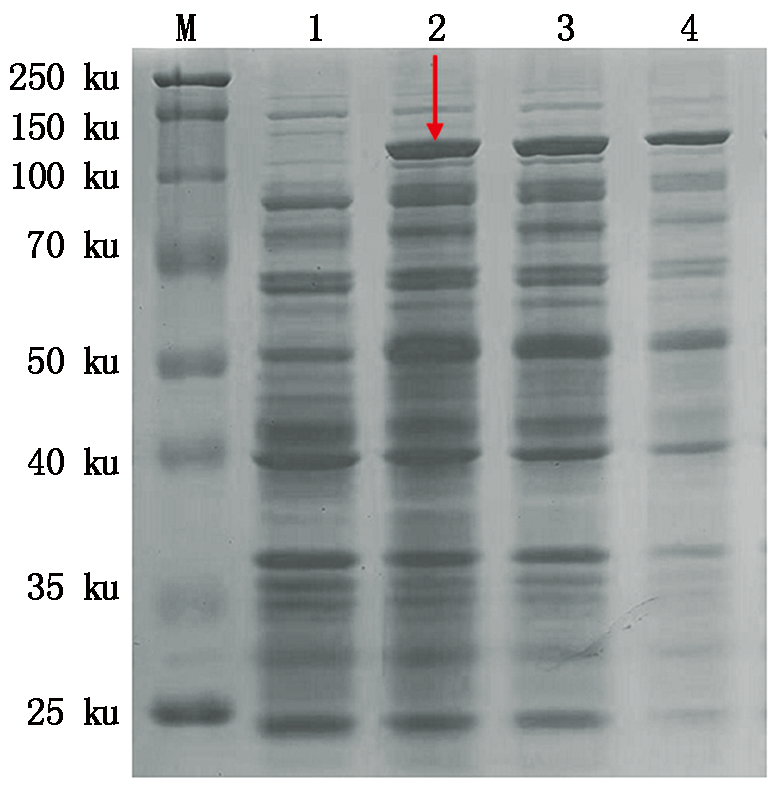

Fig.4 StSPS1 protein induction results at different IPTG concentrations 1.The band before induction;2—4.The sediment band induced by 1.0,0.5,and 0.1 mmol/L concentrations of IPTG,respectively.The arrow points to the objective band.M.Protein Marker.The same as Fig.5—8。

Fig.5 StSPS1 protein induction under different temperatures and denaturation treatments 1—2.The soluble supernatant was induced at 16,37 ℃;3—4.The denatured supernatant of the inclusion body at 16,37 ℃.

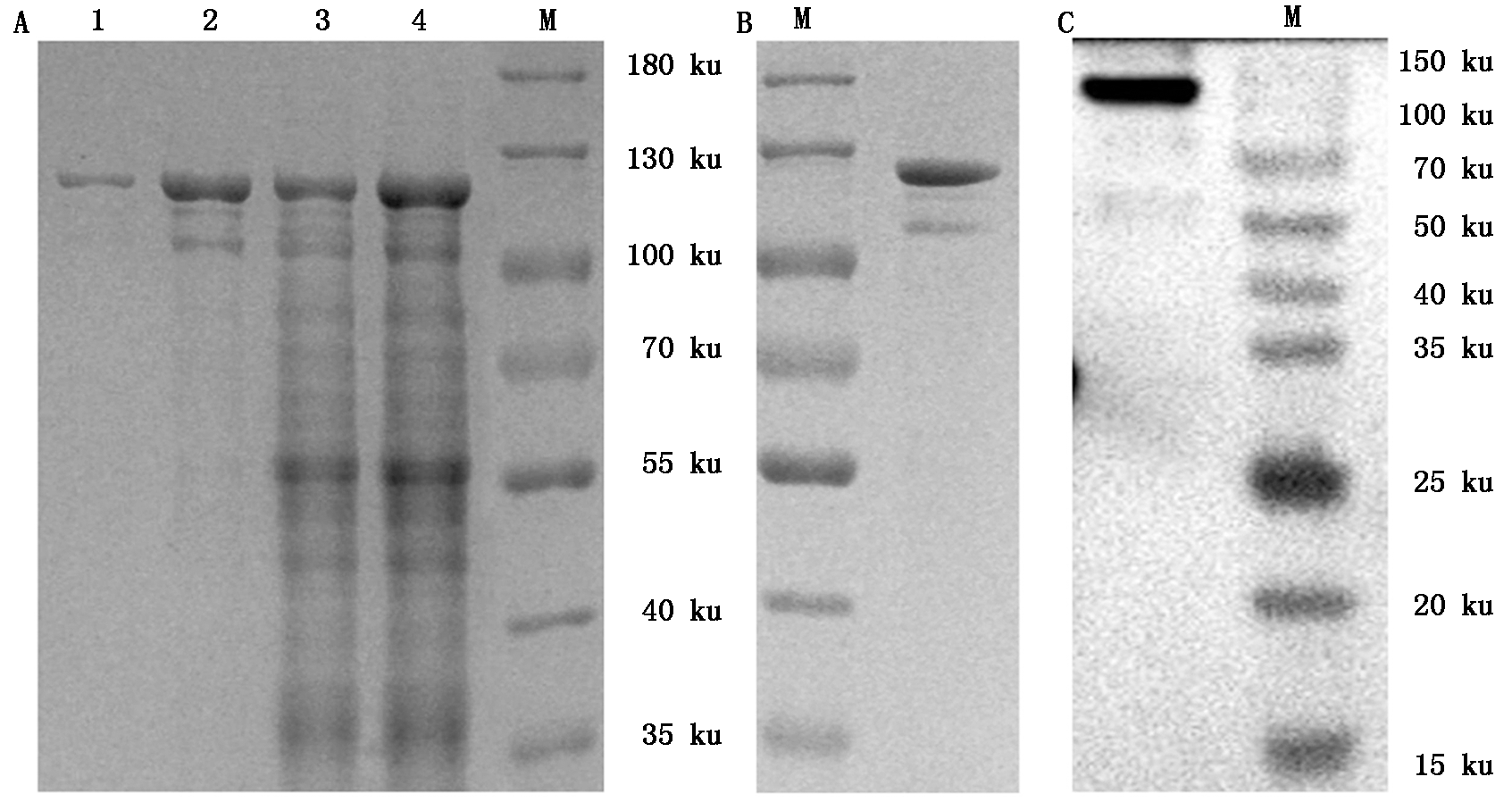

Fig.6 Purification,renaturation,and identification of StSPS1 protein A.Results of Ni-NTA affinity purification:1.The protein after ultrasonication,2.The effluent,3—4.The eluted protein;B.Dialysis result of StSPS1 protein;C.WB result to StSPS1 protein by using His antibody.

Fig.7 WB identification in antigen with two StSPS1 antibodys

Fig.8 WB in leaves of Chuanyu 10 with two StSPS1 antibodys

References 24

[1]	Li L Q, Deng M S, Lyu C C, Zhang J, Peng J, Cai C C, Yang S M, Lu L M, Ni S, Liu F, Zheng S L, Yu L P, Wang X Y. Quantitative phosphoproteomics analysis reveals that protein modification and sugar metabolism contribute to sprouting in potato after BR treatment[J]. Food Chemistr, 2020, 325:126875.doi:10.1016/j.foodchem.2020.126875.
[2]	徐宁, 张洪亮, 张荣华, 许亚坤. 中国马铃薯种植业现状与展望[J]. 中国马铃薯, 2021, 35(1):81-96.doi:10.19918/j.cnki.1672-3635.2021.01.012.
	Xu N, Zhang H L, Zhang R H, Xu Y K. Current situation and prospect of potato planting in China[J]. Chinese Potato Journal, 2021, 35(1):81-96.
[3]	Ruan Y L. Sucrose metabolism:gateway to diverse carbon use and sugar signaling[J]. Annual Review of Plant Biolog, 2014, 65:33-67.doi:10.1146/annurev-arplant-050213-040251.
[4]	Liao G L, Li Y Q, Wang H L, Liu Q, Zhong M, Jia D F, Huang C H, Xu X B. Genome-wide identification and expression profiling analysis of sucrose synthase(SUS)and sucrose phosphate synthase(SPS)genes family in Actinidia chinensis and A.eriantha[J]. BMC Plant Biolog, 2022, 22(1):215.doi:10.1186/s12870-022-03603-y.
[5]	Zhang L H, Zhu L C, Xu Y, Lü L, Li X G, Li W H, Liu W D, Ma F W, Li M J, Han D G. Genome-wide identification and function analysis of the sucrose phosphate synthase MdSPS gene family in apple[J]. Journal of Integrative Agriculture, 2023, 22(7):2080-2093.doi:10.1016/j.jia.2023.05.024. URL
[6]	曾德雯, 朱龙英, 冯岩, 朱为民, 张迎迎. 高等植物蔗糖磷酸合成酶(SPS)的研究进展[J]. 植物生理学报, 2020, 56(5):931-938.doi:10.13592/j.cnki.ppj.2019.0572.
	Zeng D W, Zhu L Y, Feng Y, Zhu W M, Zhang Y Y. Research advance of sucrose phosphate synthase(SPS)in higher plant[J]. Plant Physiology Journal, 2020, 56(5):931-938.
[7]	吴建阳, 陈妹, 姚艳丽, 张秀梅. 植物蔗糖磷酸合成酶(SPS)基因研究进展[J]. 分子植物育种, 2022, 20(8):2597-2606.doi:10.13271/j.mpb.020.002597.
	Wu J Y, Chen M, Yao Y L, Zhang X M. Research progress of sucrose phosphate synthetase(SPS)gene in plants[J]. Molecular Plant Breeding, 2022, 20(8):2597-2606.
[8]	Langenkämper G, Fung R W M, Newcomb R D, Atkinson R G, Gardner R C, MacRae E A. Sucrose phosphate synthase genes in plants belong to three different families[J]. Journal of Molecular Evolution, 2002, 54(3):322-332.doi:10.1007/s00239-001-0047-4. pmid: 11847558
[9]	Duan Y K, Yang L, Zhu H J, Zhou J, Sun H, Gong H J. Structure and expression analysis of sucrose phosphate synthase,sucrose synthase and invertase gene families in Solanum lycopersicum[J]. International Journal of Molecular Sciences, 2021, 22(9):4698.doi:10.3390/ijms22094698. URL
[10]	Castleden C K, Aoki N, Gillespie V J, MacRae E A, Quick W P, Buchner P, Foyer C H, Furbank R T, Lunn J E. Evolution and function of the sucrose-phosphate synthase gene families in wheat and other grasses[J]. Plant Physiolog, 2004, 135(3):1753-1764.doi:10.1104/pp.104.042457. URL
[11]	Ma P P, Zhang X T, Chen L P, Zhao Q, Zhang Q, Hua X T, Wang Z C, Tang H B, Yu Q Y, Zhang M Q, Ming R, Zhang J S. Comparative analysis of sucrose phosphate synthase(SPS)gene family between Saccharum officinarum and Saccharum spontaneum[J]. BMC Plant Biolog, 2020, 20(1):422.doi:10.1186/s12870-020-02599-7.
[12]	Reimholz R, Geiger M, Haake V, Deiting U, Krause K P, Sonnewald U, Stitt M. Potato plants contain multiple forms of sucrose phosphate synthase,which differ in their tissue distributions,their levels during development,and their responses to low temperature[J]. Plant,Cell and Environment, 1997, 20(3):291-305.doi:10.1046/j.1365-3040.1997.d01-83.x. URL
[13]	Cai C C, Liu S F, Liu J, Wen H, Li L P, Wang Q, Li L Q, Wang X Y. Screening and identification of potato StSPS1,a potential crucial gene regulating seed potato vigor[J]. Horticulturae, 2023, 9(4):511.doi:10.3390/horticulturae9040511. URL
[14]	Bahaji A, Baroja-Fernández E, Ricarte-Bermejo A, Sánchez-López ÁM, Muñoz F J, Romero J M, Teresa Ruiz M, Baslam M, Almagro G, Teresa Sesma M, Pozueta-Romero J. Characterization of multiple SPS knockout mutants reveals redundant functions of the four Arabidopsis sucrose phosphate synthase isoforms in plant viability,and strongly indicates that enhanced respiration and accelerated starch turnover can alleviate the blockage of sucrose biosynthesis[J]. Plant Science, 2015, 238:135-147.doi:10.1016/j.plantsci.2015.06.009. URL
[15]	马明扬. 水稻蔗糖磷酸合成酶SPS的功能分析[D]. 泰安: 山东农业大学, 2020.doi:10.27277/d.cnki.gsdnu.2020.001125.
	Ma M Y. Functional analysis of rice sucrose phosphate synthase SPS[D]. Taian: Shandong Agricultural University, 2020.
[16]	Hirose T, Hashida Y, Aoki N, Okamura M, Yonekura M, Ohto C, Terao T, Ohsugi R. Analysis of gene-disruption mutants of a sucrose phosphate synthase gene in rice, OsSPS1,shows the importance of sucrose synthesis in pollen germination[J]. Plant Science, 2014, 225:102-106.doi:10.1016/j.plantsci.2014.05.018. URL
[17]	Geigenberger P, Reimholz R, Deiting U, Sonnewald U, Stitt M. Decreased expression of sucrose phosphate synthase strongly inhibits the water stress-induced synthesis of sucrose in growing potato tubers[J]. The Plant Journal, 1999, 19(2):119-129.doi:10.1046/j.1365-313x.1999.00506.x. pmid: 10476059
[18]	邹雪. 几种挥发性物质对马铃薯块茎的抑芽效应比较及其作用机理研究[D]. 雅安: 四川农业大学, 2015.doi:10.27345/d.cnki.gsnyu.2015.000005.
	Zou X. Comparison of bud inhibition effects of several volatile substances on potato tubers and their mechanism[D]. Yaan: Sichuan Agricultural University, 2015.
[19]	Taneja D, Das N. Molecular cloning,sequence analyses,and expression studies of sucrose-phosphate synthase in the potato(Solanum tuberosum L.) cultivars[J]. Acta Physiologiae Plantarum, 2014, 36(8):2253-2269.doi:10.1007/s11738-014-1604-y. URL
[20]	Bruneau J M, Worrell A C, Cambou B, Lando D, Voelker T A. Sucrose phosphate synthase,a key enzyme for sucrose biosynthesis in plants:protein purification from corn leaves and immunological detection[J]. Plant Physiolog, 1991, 96(2):473-478.doi:10.1104/pp.96.2.473. URL
[21]	Sonnewald U, Quick W P, MacRae E, Krause K P, Stitt M. Purification,cloning and expression of spinach leaf sucrose-phosphate synthase in Escherichia coli[J]. Planta, 1993, 189(2):174-181.doi:10.1007/BF00195074. pmid: 7763376
[22]	孟衡玲, 杨生超, 查应洪, 文国松. 铁皮石斛蔗糖磷酸合成酶基因的克隆与原核表达[J]. 西北植物学报, 2013, 33(4):692-696.doi:10.7606/j.issn.1000-4025.2013.04.0692.
	Meng H L, Yang S C, Zha Y H, Wen G S. Molecular cloning and prokaryotic expression of sucrose phosphate synthase gene from Dendrobium of ficinale[J]. Acta Botanica Boreali-Occidentalia Sinica, 2013, 33(4):692-696.
[23]	黄东亮, 秦翠鲜, 陈忠良, 桂意云, 李双喜, 汪淼, 廖青, 李杨瑞. 甘蔗B家族蔗糖磷酸合成酶基因SofSPSB的克隆及原核表达[J]. 南方农业学报, 2013, 44(4):545-551.doi:10.3969/j:issn.2095-1191.2013.4.545.
	Huang D L, Qin C X, Chen Z L, Gui Y Y, Li S X, Wang M, Liao Q, Li Y R. Cloning and prokaryotic expression of sucrose phosphate synthase gene(SofSPSB)in sugarcane[J]. Journal of Southern Agriculture, 2013, 44(4):545-551.
[24]	Wang D, Zhao J T, Hu B, Li J Q, Qin Y Q, Chen L H, Qin Y H, Hu G B. Identification and expression profile analysis of the sucrose phosphate synthase gene family in Litchi chinensis Sonn[J]. Peer J, 2018, 6:e4379.doi:10.7717/peerj.4379. URL
