Cytoplasmic Fusion Detection at the Grafting Junction Based on Split sfGFP System

doi:10.7668/hbnxb.20192980

Abstract

Abstract:

In order to explore how cells from different plant individuals reestablish the connection between scion and stock to form a functional graft,self-assembling split super-folder greenfluorescent protein(sfGFP)system was used to detect the cytoplasm fusion at the graft junction.Transgenic Arabidopsis thaliana and Nicotiana benthamiana plants expressing sfGFP1-10 and mCherry-11 in cytoplasm were obtained by floral dip transformation and leaf disc transformation respectively,and 8-day old T1 transgenic plant were used for grafting.Interfamilial grafts(At-1-10/Nb-11),autografts(At-1-10/At-11,Nb-1-10/Nb-11)and control grafts(At-11/Nb-11,At-11/At-11,Nb-11/Nb-11)were constructed.On the fourth day after grafting,the sfGFP signal at the junction was observed under confocal microscope,and the fluorescence intensity of the grafts was calculated.The results showed that the interfamilial grafts and antografts displayed GFP signal in junction.GFP fluorescence intensity of interfamilial At/Nb grafts was significantly higher than that of autografts.GFP signal was not observed in cells of transgenic Arabidopsis thaliana and Nicotiana benthamiana expressing sfGFP1-10 or mCherry-11 alone and control grafts.These results indicated that at the fourth day,the fusion of cytoplasm at junction readily occurred.The sfGFP fragments were reassembled at the junction through the contact between the stock and the scion targeting in cytoplasm.Moreover,the reassembled fluorescence intensity in the interfamilial At/Nb heterografts was stronger than autografts,suggesting an extensive cellular fusion for At/Nb distant graft.This study provides a new perspective for the cellular events occurring at the graft junction.

Key words: Arabidopsis thaliana, Nicotiana benthamiana, Interfamilial grafting, Healing mechanism, sfGFP system

LI Dongyi, DENG Zhuying, LIANG Dacheng. Cytoplasmic Fusion Detection at the Grafting Junction Based on Split sfGFP System[J]. Acta Agriculturae Boreali-Sinica, 2022, 37(4): 151-157. doi: 10.7668/hbnxb.20192980.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20192980

http://www.hbnxb.net/EN/Y2022/V37/I4/151

Figures/Tables 5

Fig.1 Transgenic Arabidopsis thaliana and Nicotiana benthamiana plants and constructed grafts

Fig.2 GFP signal observation of transgenic Arabidopsis thaliana plants and At/At grafts

Fig.3 GFP signal observation of transgenic Nicotiana benthamiana plants and Nb/Nb grafts

Fig.4 GFP signal observation of At/Nb grafts

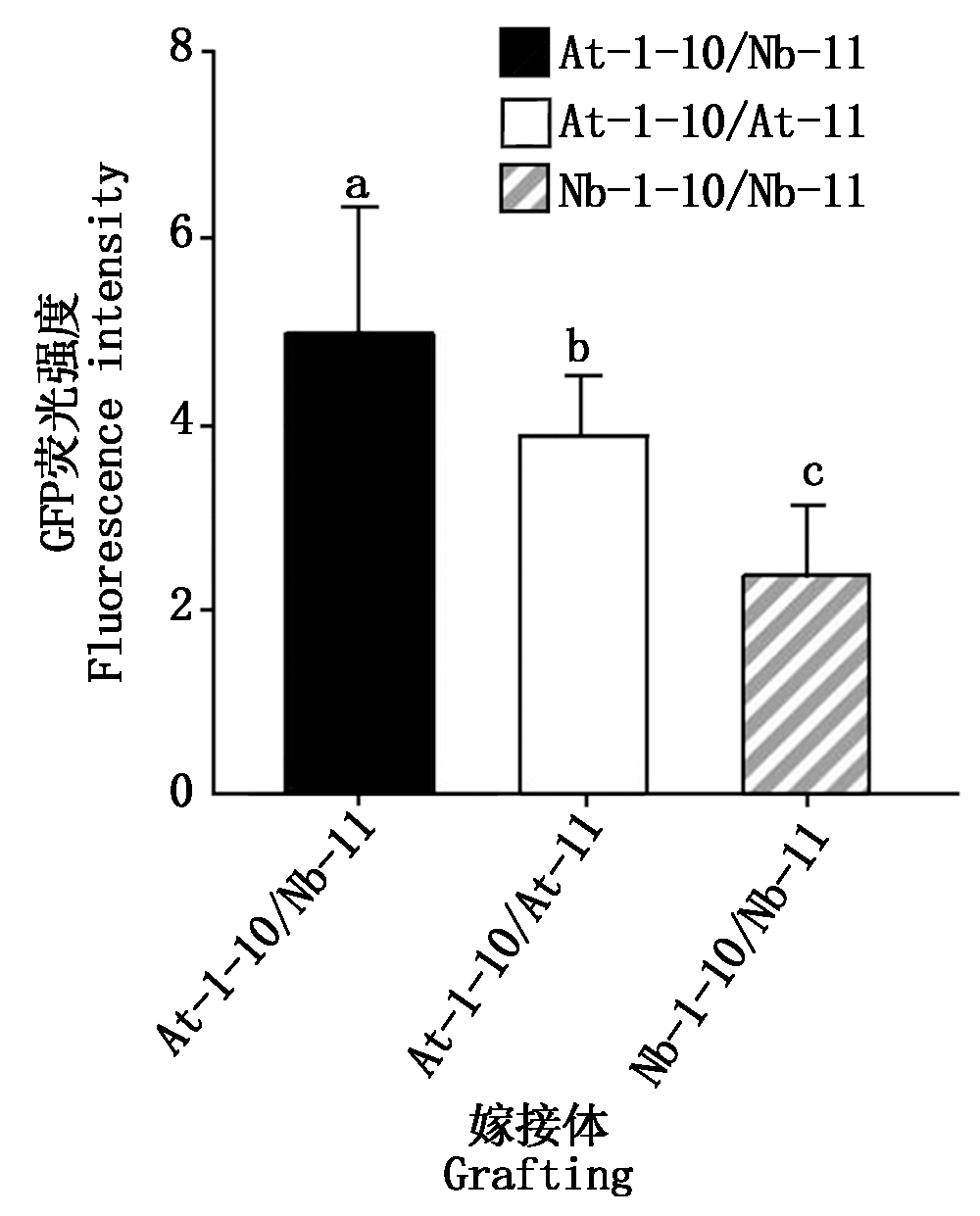

Fig.5 GFP fluorescence intensity of heterograft and autografts Different lowercase letters indicated significant differences between the data(P<0.05).

References 25

[1]	杨慧萍, 汪端华, 欧阳娴, 吴双花, 李雪峰, 刘峰. 植物嫁接互作的调控机理研究进展[J]. 湖南农业科学, 2020(9):104-108. doi: 10.16498/j.cnki.hnnykx.2020.009.027. doi: 10.16498/j.cnki.hnnykx.2020.009.027
	Yang H P, Wang D H, Ouyang X, Wu S H, Li X F, Liu F. Research progress on regulation mechanism of plant grafting interaction[J]. Hunan Agricultural Sciences, 2020(9):104-108.
[2]	Wang J, Jiang L B, Wu R L. Plant grafting:How genetic exchange promotes vascular reconnection[J]. The New Phytologist, 2017, 214(1):56-65. doi: 10.1111/nph.14383. doi: 10.1111/nph.14383 URL
[3]	Nisini P T, Colla G, Granati E, Temperini O, Crinò P, Saccardo F. Rootstock resistance to Fusarium wilt and effect on fruit yield and quality of two muskmelon cultivars[J]. Scientia Horticulturae, 2002, 93(3/4):281-288. doi: 10.1016/S0304-4238(01)00335-1. doi: 10.1016/S0304-4238(01)00335-1 URL
[4]	Zhou Y H, Huang L F, Zhang Y L, Shi K, Yu J Q, Nogués S. Chill-induced decrease in capacity of RuBP carboxylation and associated H₂O₂ accumulation in cucumber leaves are alleviated by grafting onto figleaf gourd[J]. Annals of Botany, 2007, 100(4):839-848. doi: 10.1093/aob/mcm181. doi: 10.1093/aob/mcm181 URL
[5]	Martin A, Adam H, Díaz-Mendoza M, Zurczak M, González-Schain N D, Suárez-López P. Graft-transmissible induction of potato tuberization by the microRNA miR172[J]. Development, 2009, 136(17):2873-2881. doi: 10.1242/dev.031658. doi: 10.1242/dev.031658 URL
[6]	Navarro C, Abelenda J A, Cruz-Oró E, Cuéllar C A, Tamaki S, Silva J, Shimamoto K, Prat S. Control of flowering and storage organ formation in potato by FLOWERING LOCUS T[J]. Nature, 2011, 478(7367):119-122. doi: 10.1038/nature10431. doi: 10.1038/nature10431 URL
[7]	Tylewicz S, Petterle A, Marttila S, Miskolczi P, Azeez A, Singh R K, Immanen J, Mähler N, Hvidsten T R, Eklund D M, Bowman J L, Helariutta Y, Bhalerao R P. Photoperiodic control of seasonal growth is mediated by ABA acting on cell-cell communication[J]. Science, 2018, 360(6385):212-215. doi: 10.1126/science.aan8576. doi: 10.1126/science.aan8576 pmid: 29519919
[8]	Takahashi F, Suzuki T, Osakabe Y, Betsuyaku S, Kondo Y, Dohmae N, Fukuda H, Yamaguchi-Shinozaki K, Shinozaki K. A small peptide modulates stomatal control via abscisic acid in long-distance signalling[J]. Nature, 2018, 556(7700):235-238. doi: 10.1038/s41586-018-0009-2. doi: 10.1038/s41586-018-0009-2 URL
[9]	Notaguchi M, Okamoto S. Dynamics of long-distance signaling via plant vascular tissues[J]. Frontiers in Plant Science, 2015, 6:161. doi: 10.3389/fpls.2015.00161. doi: 10.3389/fpls.2015.00161
[10]	Wang Y Q. Plant grafting and its application in biological research[J]. Chinese Science Bulletin, 2011, 56(33):3511-3517. doi: 10.1007/s11434-011-4816-1. doi: 10.1007/s11434-011-4816-1 URL
[11]	Fan J W, Yang R, Li X M, Zhao W C, Zhao F K, Wang S H. The processes of graft union formation in tomato[J]. Horticulture,Environment,and Biotechnology, 2015, 56(5):569-574. doi: 10.1007/s13580-015-0009-1. doi: 10.1007/s13580-015-0009-1
[12]	Stegemann S, Bock R. Exchange of genetic material between cells in plant tissue grafts[J]. Science, 2009, 324(5927):649-651. doi: 10.1126/science.1170397. doi: 10.1126/science.1170397 pmid: 19407205
[13]	Fuentes I, Stegemann S, Golczyk H, Karcher D, Bock R. Horizontal genome transfer as an asexual path to the formation of new species[J]. Nature, 2014, 511(7508):232-235. doi: 10.1038/nature13291. doi: 10.1038/nature13291 URL
[14]	Gurdon C, Svab Z, Feng Y P, Kumar D, Maliga P. Cell-to-cell movement of mitochondria in plants[J]. Proceedings of the National Academy of Sciences of the United States of America, 2016, 113(12):3395-3400. doi: 10.1073/pnas.1518644113. doi: 10.1073/pnas.1518644113
[15]	Bock R. Witnessing genome evolution:Experimental reconstruction of endosymbiotic and horizontal gene transfer[J]. Annual Review of Genetics, 2017, 51:1-22. doi: 10.1146/annurev-genet-120215-035329. doi: 10.1146/annurev-genet-120215-035329 URL
[16]	Stegemann S, Keuthe M, Greiner S, Bock R. Horizontal transfer of chloroplast genomes between plant species[J]. Proceedings of the National Academy of Sciences of the United States of America, 2012, 109(7):2434-2438. doi: 10.1073/pnas.1114076109. doi: 10.1073/pnas.1114076109 pmid: 22308367
[17]	Lu Y H, Stegemann S, Agrawal S, Karcher D, Ruf S, Bock R. Horizontal transfer of a synthetic metabolic pathway between plant species[J]. Current Biology, 2017, 27(19):3034-3041. doi: 10.1016/j.cub.2017.08.044. doi: 10.1016/j.cub.2017.08.044
[18]	Hertle A P, Haberl B, Bock R. Horizontal genome transfer by cell-to-cell travel of whole organelles[J]. Science Advances, 2021, 7(1):eabd8215. doi: 10.1126/sciadv.abd8215. doi: 10.1126/sciadv.abd8215 URL
[19]	Kamiyama D, Sekine S, Barsi-Rhyne B, Hu J, Chen B H, Gilbert L A, Ishikawa H, Leonetti M D, Marshall W F, Weissman J S, Huang B. Versatile protein tagging in cells with split fluorescent protein[J]. Nature Communications, 2016, 7:11046. doi: 10.1038/ncomms11046. doi: 10.1038/ncomms11046 pmid: 26988139
[20]	Van Engelenburg S B, Palmer A E. Imaging type-Ⅲ secretion reveals dynamics and spatial segregation of Salmonella effectors[J]. Nature Methods, 2010, 7(4):325-330. doi: 10.1038/nmeth.1437. doi: 10.1038/nmeth.1437 pmid: 20228815
[21]	Park E, Lee H Y, Woo J, Choi D, Dinesh-Kumar S P. Spatiotemporal monitoring of Pseudomonas syringae effectors via type Ⅲ secretion using split fluorescent protein fragments[J]. The Plant Cell, 2017, 29(7):1571-1584. doi: 10.1105/tpc.17.00047. doi: 10.1105/tpc.17.00047 URL
[22]	Leonetti M D, Sekine S, Kamiyama D, Weissman J S, Huang B. A scalable strategy for high-throughput GFP tagging of endogenous human proteins[J]. Proceedings of the National Academy of Sciences of the United States of America, 2016, 113(25):E3501-E3508. doi: 10.1073/pnas.1606731113. doi: 10.1073/pnas.1606731113
[23]	Li X Y, Yang Q H, Tu H T, Lim Z, Pan S Q. Direct visualization of Agrobacterium-delivered VirE2 in recipient cells[J]. The Plant Journal, 2014, 77(3):487-495. doi: 10.1111/tpj.12397. doi: 10.1111/tpj.12397 URL
[24]	Melnyk C W, Schuster C, Leyser O, Meyerowitz E M. A developmental framework for graft formation and vascular reconnection in Arabidopsis thaliana[J]. Current Biology, 2015, 25(10):1306-1318. doi: 10.1016/j.cub.2015.03.032. doi: 10.1016/j.cub.2015.03.032 URL
[25]	Deng Z Y, Wu H Y, Jin T L, Cai T T, Jiang M T, Wang M, Liang D C. A sequential three-phase pathway constitutes tracheary element connection in the Arabidopsis/Nicotiana interfamilial grafts[J]. Frontiers in Plant Science, 2021, 12:664342. doi: 10.3389/fpls.2021.664342. doi: 10.3389/fpls.2021.664342 URL
