Cloning of Transcription Factor Gene StbZIP9 of Setosphaeria turcica, Expression Analysis and Screening of Its Downstream Target Genes

doi:10.7668/hbnxb.20193956

Abstract

Abstract:

Basic leucine zipper(bZIP)transcription factor protein is a kind of transcription factor with conservative structure and function in animals,plants and microorganisms.In order to clarify the function and mechanism of bZIP transcription factor in plant pathogenic fungi,and further determine its relationship with the growth,development and pathogenicity of the pathogen,the StbZIP9 gene was cloned from Setosphaeria turcica 01-23(GenBank No.XM _ 008032179.1).StbZIP9 is a member of the bZIP transcription factor family.The analysis of the gene structure and protein characteristics showed that the DNA sequence was 788 bp in length,with an open reading frame of 726 bp,encoding 241 amino acids.The encoded protein contained a highly conserved homologous domain BRLZ in fungi.The RNA-seq data of the gene during the growth and development of the pathogen and the process of infecting the host were analyzed.It was found that the expression level of StbZIP9 was 2 to 4 times higher than that in the appressorium and germ tube period compared with the mycelium period.After 24,72 h of infection of maize leaves,the gene expression increased from scratch and continued to increase,indicating that StbZIP9 was associated with appressorium development and germ tube formation and played an important role in the process of pathogen infecting host cells.Further,bioinformatics techniques were used to predict its binding conserved motifs and regulatory target genes.The binding motif was NNTWACGTNN,including the bZIP transcription factor recognition core sequence ACGT,and the downstream target genes of StbZIP9 were predicted according to the sequence.Combined with the expression pattern analysis using the RNA-seq data,four downstream target genes(protein IDs in the JGI database were :132893,163024,162798,40466)were obtained,and the functional annotation table was obtained.The functional annotation revealed its involvement in many biological processes, such as polymerization and transport of cell wall components, host infection, and spore dormancy. It will provide the basis for further elucidation of the molecular mechanism involved in the regulation of pathogen infection.

Key words: Setosphaeria turcica, Transcription factors, Gene cloning, Expression pattern analysis, Target gene screening

WANG Maocun, CAO Jiawei, ZHOU He, JIA Mingxuan, WEI Shuzhen, GONG Xiaodong, LIU Yuwei, GU Shouqin, DONG Jingao. Cloning of Transcription Factor Gene StbZIP9 of Setosphaeria turcica, Expression Analysis and Screening of Its Downstream Target Genes[J]. Acta Agriculturae Boreali-Sinica, 2023, 38(5): 158-165. doi: 10.7668/hbnxb.20193956.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20193956

http://www.hbnxb.net/EN/Y2023/V38/I5/158

Figures/Tables 7

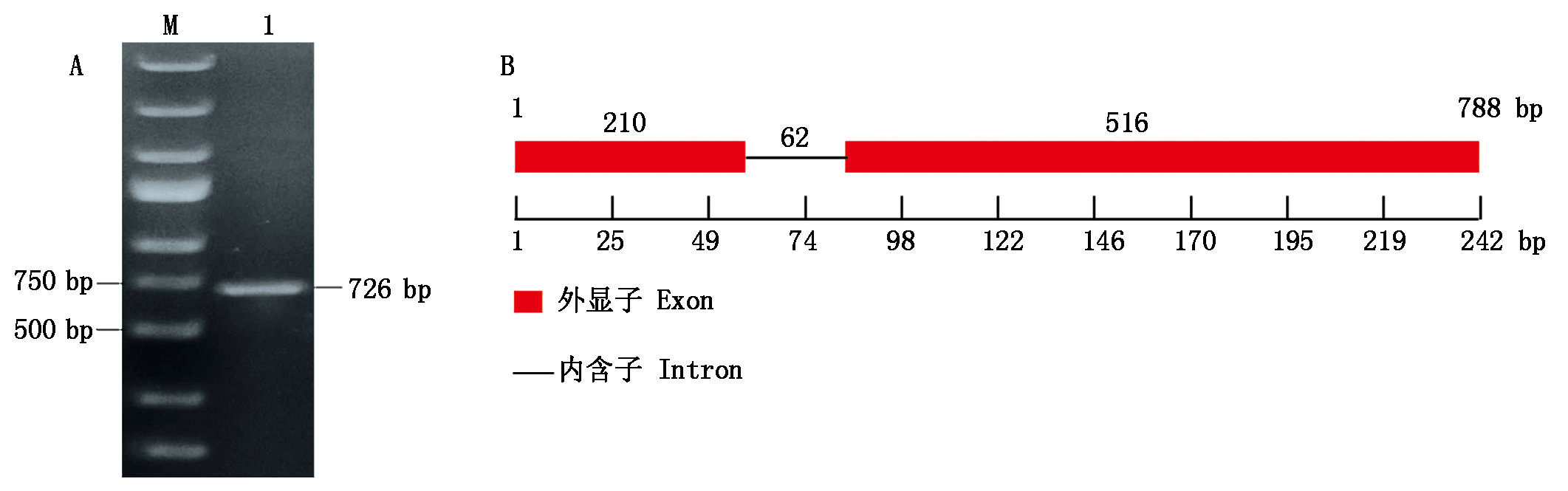

Fig.1 Amplification (A) and the structure mode of StbZIP9 (B)in S.turcica M.DL5000 DNA Marker;1.PCR result.

Fig.2 The advanced structure of StbZip9 protein of S.turcica A.Secondary structure, α-helix,extended strand, β-turn,and random coil are represented by the longest,second longest,second shortest,and shortest vertical lines,respectively;B.Three-level structure prediction,Rings Ⅰ,Ⅱ,Ⅲ.Three ring-like regions formed by curling;C.The protein conserved domain contains a BRLZ conserved domain.

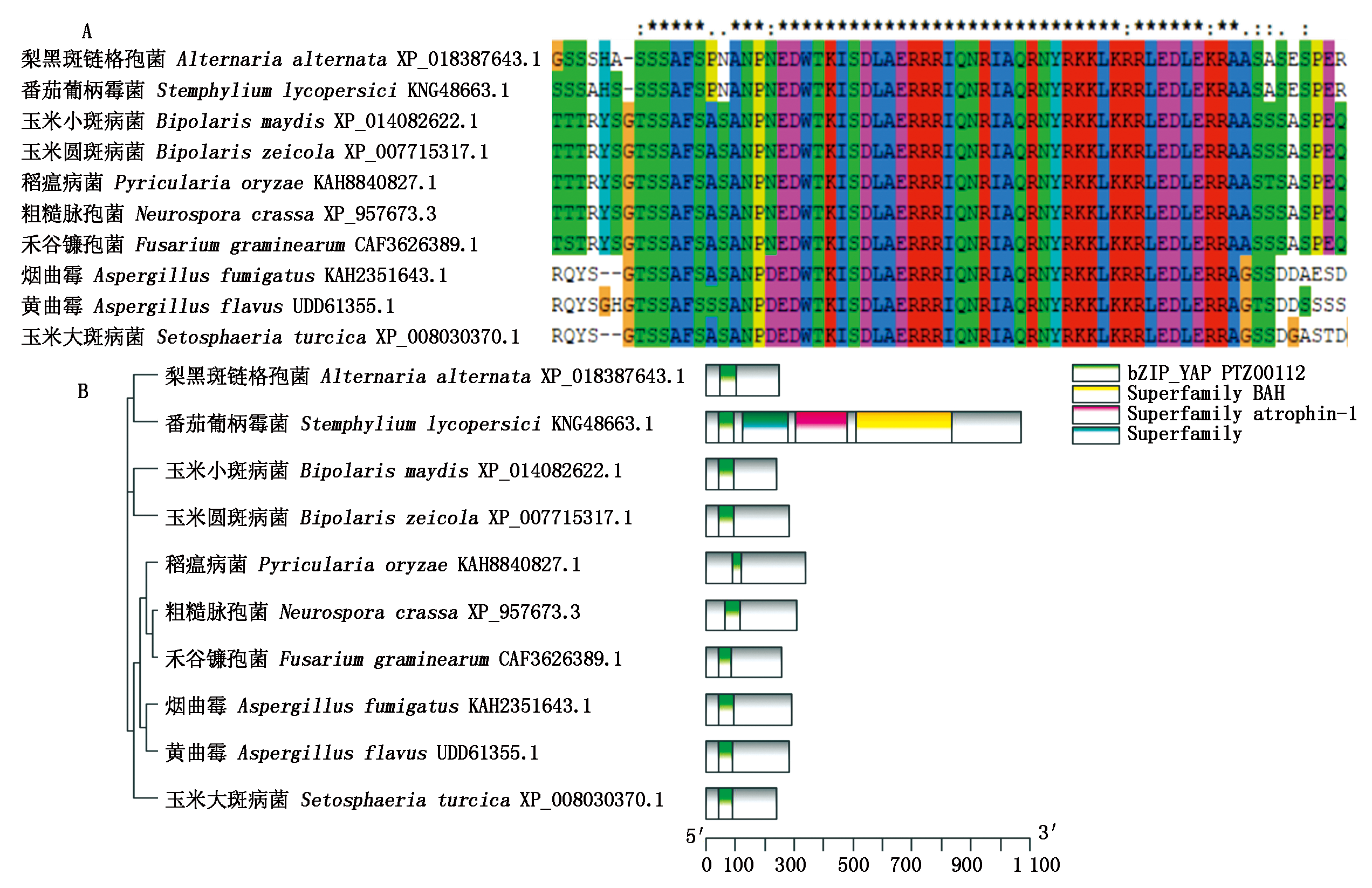

Fig.3 StbZip9 protein BRLZ domain sequence alignment and protein phylogenetic analysis in S.turcica A.Comparison of the amino acid sequence of the BRLZ of StbZip9 with other fungi;.,:,★.The matching degree is from low to high;B.StbZip9 protein phylogenetic analysis and domain location species distribution.

Fig.4 StbZIP9 gene expression level during development and infection stages in S.turcica A.StbZIP9 gene expression level (FPKM) at different developmental periods;B. StbZIP9 gene expression level at different infection stages.

Fig.5 StbZip9 protein conservative motif prediction predicted by CISBP

Tab.1 Identification of the downstream target gene of the StbZip9 protein

蛋白ID Protein ID	正负链 Strand	分数 Score	阈值 P-value	基因注释 Gene ontology
1072501	-	14.032 3	8.30E-08	-
37808	+	13.887 1	2.20E-07	Ca²⁺结合肌动蛋白复合体
162798	-	13.741 9	4.14E-07	核糖体蛋白 L14p/L23e
1616769	+	13.741 9	4.14E-07	-
132893	+	13.741 9	4.14E-07	核酸结合酶,S1/P1核酸酶
28341	-	13.741 9	4.14E-07	-
40466	+	13.741 9	4.14E-07	己糖基转移酶活性
1042152	-	13.645 2	5.15E-07	-
163024	+	13.596 8	7.40E-07	囊外复合体亚基
80567	-	13.596 8	7.40E-07	DNA结合转录因子活性

Fig.6 Expression level of StbZIP9 downstream target gene in development and infection database

References 24

[1]	左建英, 李育才. 山西省玉米大斑病的发生特点和综合防治技术[J]. 内蒙古农业科技, 2011, 39(3):123-123,128.doi:10.3969/j.issn.1007-0907.2011.03.064.
	Zuo J Y, Li Y C. Occurrence characteristics and comprehensive control techniques of maize northern leaf blight in Shanxi Province[J]. Inner Mongolia Agricultural Science and Technology, 2011, 39(3):123-123,128.
[2]	孙淑琴, 温雷蕾, 董金皋. 玉米大斑病菌的生理小种及交配型测定[J]. 玉米科学, 2005, 13(4):112-113,123.doi:10.3969/j.issn.1005-0906.2005.04.032.
	Sun S Q, Wen L L, Dong J G. Identification of physiological races and mating type of Exserohilum turcicum[J]. Journal of Maize Sciences, 2005, 13(4):112-113,123.
[3]	刘国胜, 董金皋, 邓福友, 郭爱国, 张凤国, 臧漫辉. 中国玉米大斑病菌生理分化及新命名法的初步研究[J]. 植物病理学报, 1996(4): 18-23.doi:10.7666/d.d144643.
	Liu G S, Dong J G, Deng F Y, Guo A G, Zhang F G, Zang M H. Preliminary study on physiologic specialization and new nomenclature for Exserohilum turcicum of corn in China[J]. Acta Phytopathologica Sinica, 1996(4):18-23.
[4]	薛江芝, 王小敏, 刘玉卫, 巩校东, 谷守芹, 韩建民. 玉米大斑病菌转录因子StHTF2基因的克隆及其在侵染过程中的表达分析[J]. 农业生物技术学报, 2020, 28(11):1913-1922.doi:10.3969/j.issn.1674-7968.2020.11.002.
	Xue J Z, Wang X M, Liu Y W, Gong X D, Gu S Q, Han J M. Cloning of transcription factor StHTF2 gene in Setosphaeria turcica and its expression analysis during infection[J]. Journal of Agricultural Biotechnology, 2020, 28(11):1913-1922.
[5]	谢迎秋, 孟蒙, 朱祯. 植物反式作用因子研究进展[J]. 高技术通讯, 2000, 10(2):97-102.doi:10.3321/j.issn:1002-0470.2000.02.024.
	Xie Y Q, Meng M, Zhu Z. Progress in plant trans-acting factors[J]. High Technology Letters, 2000, 10(2):97-102.
[6]	Wen D S, Yu L, Xiong D G, Tian C M. Genome-wide identification of bZIP transcription factor genes and functional analyses of two members in Cytospora chrysosperma[J]. Journal of Fungi, 2021, 8(1):34.doi:10.3390/jof8010034. URL
[7]	崔荣秀, 张议文, 陈晓倩, 谷彩红, 张荃. 植物bZIP参与胁迫应答调控的最新研究进展[J]. 生物技术通报, 2019, 35(2):143-155.doi:10.13560/j.cnki.biotech.bull.1985.2018-0562.
	Cui R X, Zhang Y W, Chen X Q, Gu C H, Zhang Q. The latest research progress on the stress responses of bZIP involved in plants[J]. Biotechnology Bulletin, 2019, 35(2):143-155.
[8]	Lin C H, Yang S L, Chung K R. The YAP1 homolog-mediated oxidative stress tolerance is crucial for pathogenicity of the necrotrophic fungus Alternaria alternata in citrus[J]. Molecular Plant Microbe Interactions, 2009, 22(8):942-952.doi:10.1094/MPMI-22-8-0942. URL
[9]	Zhao K H, Liu L M, Huang S W. Genome-wide identification and functional analysis of the bZIP transcription factor family in rice bakanae disease pathogen,Fusarium fujikuroi[J]. International Journal of Molecular Sciences, 2022, 23(12):6658.doi:10.3390/ijms23126658. URL
[10]	Montenegro-Montero A, Goity A, Larrondo L F. The bZIP transcription factor HAC-1 is involved in the unfolded protein response and is necessary for growth on cellulose in Neurospora crassa[J]. PLoS One, 2015, 10(7):e0131415.doi:10.1371/journal.pone.0131415. URL
[11]	吕润玲. 玉米大斑病菌StHog1对转录因子StMsn2的调控作用及StMsn2下游靶基因的筛选与验证[D]. 保定: 河北农业大学, 2019.doi:10.27109/d.cnki.ghbnu.2019.000006.
	Lü R L. Regulation of StHog1 on transcription factor StMsn2 and screening and verification of the downstream target gene of StMsn2[D]. Baoding: Hebei Agricultural University, 2019.
[12]	Jing Y N, Yu Y, Wang H Z, Wu Y, Li C H. Genome-wide identification and expression analysis of the bZIP gene family in silver birch (Betula pendula Roth.)[J]. Journal of Forestry Research, 2022, 33(5):1615-1636.doi:10.1007/s11676-022-01453-W.
[13]	Jindrich K, Degnan B M. The diversification of the basic leucine zipper family in eukaryotes correlates with the evolution of multicellularity[J]. BMC Evolutionary Biology, 2016, 16:28.doi:10.1186/s12862-016-0598-z. pmid: 26831906
[14]	Fassler J, Landsman D, Acharya A, Moll J R, Bonovich M, Vinson C. B-ZIP proteins encoded by the Drosophila genome:evaluation of potential dimerization partners[J]. Genome Research, 2002, 12(8):1190-1200.doi:10.1101/gr.67902. pmid: 12176927
[15]	Landschulz W H, Johnson P F, McKnight S L. The leucine zipper:A hypothetical structure common to a new class of DNA binding proteins[J]. Science, 1988, 240(4860):1759-1764.doi:10.1126/science.3289117. pmid: 3289117
[16]	Chen L L, Ma Y M, Zhao J Y, Geng X J, Chen W B, Ding S L, Li H Y, Li H L. The bZIP transcription factor FpAda1 is essential for fungal growth and conidiation in Fusarium pseudograminearum[J]. Current Genetics, 2020, 66(3):507-515.doi:10.1007/s00294-019-01042-1.
[17]	Li Q, Xiong L, Gao J, Zhang H Y. Molecular mechanisms of the protein-protein interaction-regulated binding specificity of basic-region leucine zipper transcription factors[J]. Journal of Molecular Modeling, 2019, 25(8):246.doi:10.1007/s00894-019-4138-9. pmid: 31342181
[18]	Huang W, Shang Y F, Chen P L, Cen K, Wang C S. Basic leucine zipper (bZIP) domain transcription factor MBZ1 regulates cell wall integrity,spore adherence,and virulence in Metarhizium robertsii[J]. The Journal of Biological Chemistry, 2015, 290(13):8218-8231.doi:10.1074/jbc.m114.630939.
[19]	Dagdas Y F, Yoshino K, Dagdas G, Ryder L S, Bielska E, Steinberg G, Talbot N J. Septin-mediated plant cell invasion by the rice blast fungus,Magnaporthe oryzae[J]. Science, 2012, 336(6088):1590-1595.doi:10.1126/science.1222934. pmid: 22723425
[20]	Lesniewicz K, Karlowski W M, Pienkowska J R, Krzywkowski P, Poreba E. The plant S1-like nuclease family has evolved a highly diverse range of catalytic capabilities[J]. Plant and Cell Physiology, 2013, 54(7):1064-1078.doi:10.1093/pcp/pct061. pmid: 23620482
[21]	Riquelme M, Bredeweg E L, Callejas-Negrete O, Roberson R W, Ludwig S, Beltrán-Aguilar A, Seiler S, Novick P, Freitag M. The Neurospora crassa exocyst complex tethers Spitzenkörper vesicles to the apical plasma membrane during polarized growth[J]. Molecular Biology of the Cell, 2014, 25(8):1312-1326.doi:10.1091/mbc.e13-06-0299. URL
[22]	Hagiwara D, Takahashi H, Kusuya Y, Kawamoto S, Kamei K, Gonoi T. Comparative transcriptome analysis revealing dormant conidia and germination associated genes in Aspergillus species:An essential role for AtfA in conidial dormancy[J]. BMC Genomics, 2016, 17(1):358.doi:10.1186/s12864-016-2689-z. URL
[23]	吴晓俊, 刘涤, 胡之璧. 尿苷二磷酸葡萄糖焦磷酸化酶[J]. 植物生理学通讯, 2000, 36(3):193-200.
	Wu X J, Liu D, Hu Z B. UDP-glucose pyrophosphorylase[J]. Plant Physiology Communications, 2000, 36(3):193-200.
[24]	Orlean P, Funai D. Priming and elongation of chitin chains:Implications for chitin synthase mechanism[J]. The Cell Surface, 2019, 5:100017.doi:10.1016/j.tcsw.2018.100017. URL
