改性生物炭作用滨海盐碱地的土壤微生物机理

doi:10.7668/hbnxb.20194681

摘要/Abstract

摘要：

为提高生物炭在盐碱地的适用性,研究改性生物炭对盐碱地的作用效果及微生态机理。通过2 a的大田试验,设置普通生物炭、富氮改性生物炭、富磷改性生物炭3种处理,3种生物炭用量分别为4.5,7.5,15.0 t/hm²,研究作物产量性状、土壤理化性质、土壤微生物多样性的响应情况。结果发现,添加生物炭可以改良土壤盐碱地,其中富氮改性生物炭和富磷改性生物炭效果更突出。生物炭可以提高盐碱地作物产量,降低土壤含盐量,改善土壤结构,降低土壤容重。3种生物炭影响并不一致,其中15.0 t/hm²磷改性生物炭对作物增产效果最好,其产量为(8.92±0.12)t/hm²,比对照组提高了110%。生物炭影响土壤微生物多样性,普通生物炭增加了土壤微生物多样性,但磷改性生物炭降低土壤微生物多样性。随着生物炭施用量的增加,土壤理化性质对土壤微生物和植物结构关系受到影响,三者之间的联系被削弱。综上,推荐施用15 t/hm²磷改性生物炭用于改善盐碱农田生态系统。

关键词: 土壤微生物多样性, 生物炭, 盐碱地, 作物产量

Abstract:

To improve the applicability of biochar in saline-alkali agroecosystem,the effect and microbial mechanism of modified biochar were studied.In a 2-year field experiment,common biochar(4.5 t/ha),nitrogen-rich modified biochar(7.5 t/ha)and phosphorus-rich modified biochar(15.0 t/ha)were added to investigate their impact on crop grain yield,soil physicochemical properties and soil microbial diversity.It had been observed that the addition of biochar enhanced the quality of saline-alkali soil,with nitrogen-rich modified biochar and phosphorus-rich modified biochar demonstrating more notable effects.Biochar could boost crop yield,improve soil structure and reduce soil bulk density in saline-alkali land.The effects of the three biochar types were not consistent.Among them,the application of 15.0 t/ha phosphorus-rich modified biochar showed favorable responses,with grain yield of(8.92±0.12)t/ha,representing a 110% increase compared to the control group.Biochar affected soil microbial diversity.Common biochar increased soil microbial diversity,whereas phosphorus-rich modified biochar decreased it.With the continuous addition of biochar,soil physical and chemical properties could affect the relationship between soil microorganisms and plant structure,weakening their relationships.In this study,the application of 15.0 t/ha phosphorus-rich modified biochar was recommended to improve saline-alkali agroecosystem.

Key words: Soil microbial diversity, Biochar, Saline land, Crops yield

张慧, 赵杰, 李梦琦, 程文娟, 陈坤, 李丽, 肖辉. 改性生物炭作用滨海盐碱地的土壤微生物机理[J]. 华北农学报, 2024, 39(3): 159-165. doi: 10.7668/hbnxb.20194681.

ZHANG Hui, ZHAO Jie, LI Mengqi, CHENG Wenjuan, CHEN Kun, LI Li, XIAO Hui. Soil Microbial Mechanism of Modified Biochar in Coastal Saline-alkali Agroecosystem[J]. Acta Agriculturae Boreali-Sinica, 2024, 39(3): 159-165. doi: 10.7668/hbnxb.20194681.

http://www.hbnxb.net/CN/Y2024/V39/I3/159

图/表 7

表1 玉米秸秆的理化性质

Tab.1 Physiochemical properties of corn stalks

有机质/% SOM	比表面积/(m²/g) Specific surface area	灰分含量/% Ash content	元素组成/% Element composition
有机质/% SOM	比表面积/(m²/g) Specific surface area	灰分含量/% Ash content	C	H	N	O
86.41	3.75	12.14	43.64	7.12	0.74	36.72

表2 生物炭灰分含量、pH、元素组成和比表面积

Tab.2 Ash content,pH,elemental composition and specific surface area of biochar

生物炭类型 Biochar type	元素组成/% Element composition				灰分含量/% Ash content	比表面积/(m²/g) Specific surface area	pH
生物炭类型 Biochar type	C	H	N	O	灰分含量/% Ash content	比表面积/(m²/g) Specific surface area	pH
普通生物炭 Common biochar	61.87	4.25	1.56	18.95	14.56±0.11	6.33	7.88±0.05
氮改性生物炭 Nitrogen-rich modified biochar	45.50	3.65	3.28	22.09	26.11±1.04	7.90	7.70±0.01
磷改性生物炭 Phosphorus-rich modified biochar	48.39	3.84	1.34	21.18	15.37±0.11	9.06	7.51±0.01

图1 生物炭对作物产量的影响不同字母表示差异达0.05的显著水平(平均值±标准差)。图2—4同。

Fig.1 Effects of biochar on crop yield Different letters indicate a significant difference at 0.05 significance level(mean±standard deviation).The same as Fig.2—4.

图2 生物炭对土壤理化性质的影响

Fig.2 Effects of biochar on soil physiochemical properties

图3 生物炭对土壤容重、pH、含盐量的影响

Fig.3 Effects of biochar on soil bulk density,pH and salt content

图4 生物炭对细菌、真菌的Chao、Shannon、Simpson指数影响

Fig.4 Effects of biochar on Chao,Shannon,Simpson index of bacteria and fungi

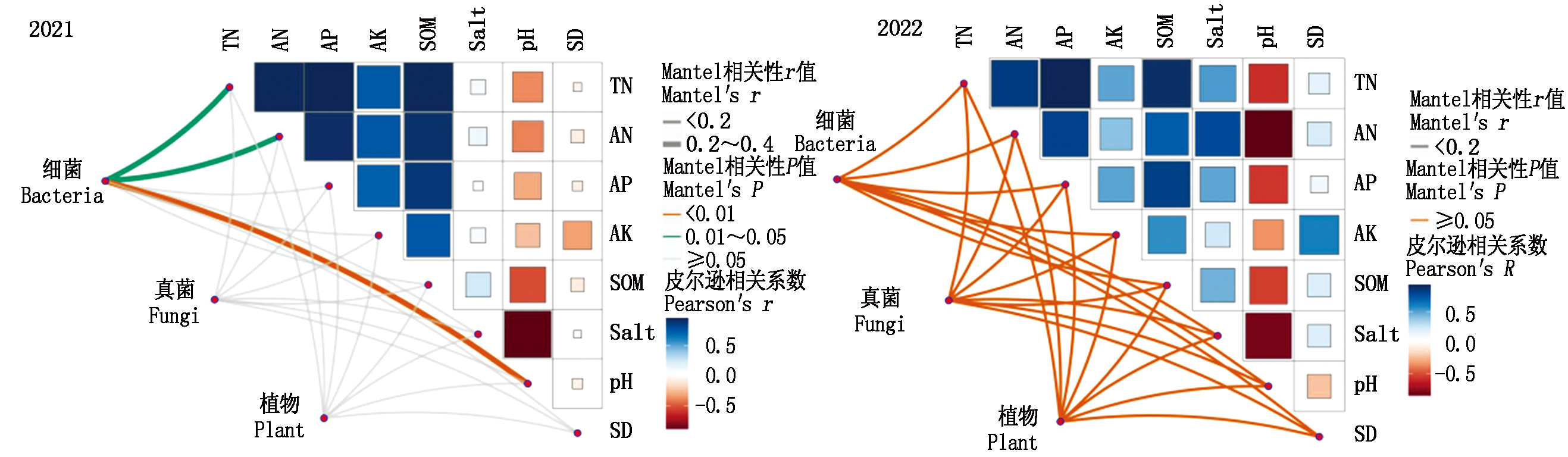

图5 2021年和2022年的土壤微生物、植物和环境因子Mantel相关性检验组合图

Fig.5 Mantel correlation tests for soil microorganisms,plants,and environmental factors in 2021 and 2022

参考文献 27

[1]	Lehmann J, Rillig M C, Thies J, Masiello C A, Hockaday W C, Crowley D. Biochar effects on soil biota-A review[J]. Soil Biology and Biochemistry, 2011, 43(9):1812-1836.doi:10.1016/j.soilbio.2011.04.022.
[2]	Lehmann J. A handful of carbon[J]. Nature, 2007, 447(7141):143-144.doi:10.1038/447143a.
[3]	Harter J, Krause H M, Schuettler S, Ruser R, Fromme M, Scholten T, Kappler A, Behrens S. Linking N₂O emissions from biochar-amended soil to the structure and function of the N-cycling microbial community[J]. The ISME Journal, 2014, 8(3):660-674.doi:10.1038/ismej.2013.160.
[4]	余志刚, 王笑田, 崔钊达, 孙子烨. 秸秆还田技术应用是否减少了化肥面源污染?[J]. 农业现代化研究, 2023, 44(5):834-844.doi:10.13872/j.1000-0275.2023.0089.
	Yu Z G, Wang X T, Cui Z D, Sun Z Y. Does the application of straw returning to field technology reduce fertilizer non-point source pollution?[J]. Research of Agricultural Modernization, 2023, 44(5):834-844.
[5]	Kätterer T, Roobroeck D, Andrén O, Kimutai G, Karltun E, Kirchmann H, Nyberg G, Vanlauwe B, de Nowina K R. Biochar addition persistently increased soil fertility and yields in maize-soybean rotations over 10 years in sub-humid regions of Kenya[J]. Field Crops Research, 2019, 235:18-26.doi:10.1016/j.fcr.2019.02.015.
[6]	Pandit N R, Schmidt H P, Mulder J, Hale S E, Husson O, Cornelissen G. Nutrient effect of various composting methods with and without biochar on soil fertility and maize growth[J]. Archives of Agronomy and Soil Science, 2020, 66(2):250-265.doi:10.1080/03650340.2019.1610168.
[7]	Liu Y X, Gao C X, Wang Y Y, He L L, Lu H H, Yang S M. Vermiculite modification increases carbon retention and stability of rice straw biochar at different carbonization temperatures[J]. Journal of Cleaner Production, 2020, 254:120111.1-120111.8.doi:10.1016/j.jclepro.2020.120111.
[8]	陈友媛, 王翔宇, 吴海霞, 孙萍, 吴丹. 浒苔生物炭对滨海盐碱土Na⁺的吸附迁移机制研究[J]. 中国海洋大学学报(自然科学版), 2019, 49(S1):85-92.doi:10.16441/j.cnki.hdxb.20190142.
	Chen Y Y, Wang X Y, Wu H X, Sun P, Wu D. Study on adsorption and migration mechanism of Enteromorpha prolifera biochar to Na⁺ in coastal saline-alkali soil[J]. Periodical of Ocean University of China, 2019, 49(S1):85-92.
[9]	鲁新蕊, 陈国双, 李秀军. 酸化生物炭改良苏打盐碱土的效应[J]. 沈阳农业大学学报, 2017, 48(4):462-466.doi:10.3969/j.issn.1000-1700.2017.04.012.
	Lu X R, Chen G S, Li X J. Experimental effects of acidified biochar on saline-sodic[J]. Journal of Shenyang Agricultural University, 2017, 48(4):462-466.
[10]	周立炀. 酸化生物炭配施皂化渣对苏打碱土的改良效果研究[D]. 沈阳: 沈阳农业大学, 2020.doi:10.27327/d.cnki.gshnu.2020.000919.
	Zhou L Y. Study on the improvement effect of acidified biochar combined with saponified slag on soda alkaline soil[D]. Shenyang: Shenyang Agricultural University, 2020.
[11]	刘娜. 生物炭与有机酸配施对磷素在盐渍土中转化及生物有效性的影响[D]. 杨凌: 西北农林科技大学, 2021.
	Liu N. Effect of biochar combined with organic acid on transformation and bioavailability of phosphate fertilizer in saline soil[D]. Yangling: Northwest A&F University, 2021.
[12]	Wang M Y, Yu X Y, Weng X H, Zeng X N, Li M S, Sui X. Meta-analysis of the effects of biochar application on the diversity of soil bacteria and fungi[J]. Microorganisms, 2023, 11(3):641.doi:10.3390/microorganisms11030641.
[13]	张雪莲, 廖洪, 李昌伟, 文方芳, 刘自飞, 张梦佳, 杜晓玉, 高飞, 刘继远, 金丽华, 李权辉, 王学霞. 田间条件下生物炭与化肥配施对土壤氮磷纵向迁移、结球生菜产量品质及土壤微生物数量的影响[J]. 环境科学学报, 2021, 41(1):21-28.doi:10.13671/j.hjkxxb.2020.0564.
	Zhang X L, Liao H, Li C W, Wen F F, Liu Z F, Zhang M J, Du X Y, Gao F, Liu J Y, Jin L H, Li Q H, Wang X X. Effects of simultaneous application of biochar and chemical fertilizer on the vertical migration of nitrogen and phosphorus,lettuce yield and quality and soil microbial quantity under field conditions[J]. Acta Scientiae Circumstantiae, 2021, 41(1):21-28.
[14]	Han Z Q, Xu P S, Li Z T, Lin H Y, Zhu C, Wang J Y, Zou J W. Microbial diversity and the abundance of keystone species drive the response of soil multifunctionality to organic substitution and biochar amendment in a tea plantation[J]. GCB Bioenergy, 2022, 14(4):481-495.doi:10.1111/gcbb.12926.
[15]	Kolton M, Graber E R, Tsehansky L, Elad Y, Cytryn E. Biochar-stimulated plant performance is strongly linked to microbial diversity and metabolic potential in the rhizosphere[J]. The New Phytologist, 2017, 213(3):1393-1404.doi:10.1111/nph.14253.
[16]	高贤彪, 肖辉. 天津滨海盐渍土壤发展设施农业可行性分析[J]. 天津农业科学, 2020, 26(1):1-4.doi:10.3969/j.issn.1006-6500.2020.01.001.
	Gao X B, Xiao H. Feasibility analysis on the development of facility agriculture in coastal saline soil in Tianjin[J]. Tianjin Agricultural Sciences, 2020, 26(1):1-4.
[17]	姚奇, 俞若涵, 张洪宇, 秦凯, 张培, 彭正萍, 王洋, 王殿武. 生物炭施用对冬小麦农田土壤养分及作物产量的影响[J]. 中国土壤与肥料, 2022(3):68-74.doi:10.11838/sfsc.1673-6257.20684.
	Yao Q, Yu R H, Zhang H Y, Qin K, Zhang P, Peng Z P, Wang Y, Wang D W. Effects of biochar application on soil nutrients and crop yield in winter wheat farmland[J]. Soil and Fertilizer Sciences in China, 2022(3):68-74.
[18]	彭权懿, 王耀锋, 郑重, 杨乐乐, 何嘉坤. 磷改性生物炭对土壤中磷溶出的影响[J]. 天津农业科学, 2023, 29(2):57-63.doi:10.3969/j.issn.1006-6500.2023.02.011.
	Peng Q Y, Wang Y F, Zheng Z, Yang L L, He J K. Effect of phosphorus modified biochar on phosphorus dissolution in soil[J]. Tianjin Agricultural Sciences, 2023, 29(2):57-63.
[19]	王宣茗, 王丽学, 苏旭, 祝晓妍, 姜展博, 高欢. 生物炭陈化对玉米产量及土壤水肥的影响[J]. 生态学杂志, 2022, 41(8):1570-1579.doi:10.13292/j.1000-4890.202208.019.
	Wang X M, Wang L X, Su X, Zhu X Y, Jiang Z B, Gao H. Effects of biochar aging on yield of maize and soil moisture and fertility[J]. Chinese Journal of Ecology, 2022, 41(8):1570-1579. doi: DOI: 10.13292/j.1000-4890.202208.019
[20]	陈红霞, 杜章留, 郭伟, 张庆忠. 施用生物炭对华北平原农田土壤容重、阳离子交换量和颗粒有机质含量的影响[J]. 应用生态学报, 2011, 22(11):2930-2934.doi:10.13287/j.1001-9332.2011.0410.
	Chen H X, Du Z L, Guo W, Zhang Q Z. Effects of biochar amendment on cropland soil bulk density,cation exchange capacity,and particulate organic matter content in the North China Plain[J]. Chinese Journal of Applied Ecology, 2011, 22(11):2930-2934.
[21]	庞津雯, 王钰皓, 陶宏扬, 卫婷, 高飞, 刘恩科, 贾志宽, 张鹏. 生物炭不同添加量对旱作覆膜农田土壤团聚体特性及有机碳含量的影响[J]. 中国农业科学, 2023, 56(9):1729-1743.doi:10.3864/j.issn.0578-1752.2023.09.010.
	Pang J W, Wang Y H, Tao H Y, Wei T, Gao F, Liu E K, Jia Z K, Zhang P. Effects of different biochar application rates on soil aggregate characteristics and organic carbon contents for film-mulching field in semiarid areas[J]. Scientia Agricultura Sinica, 2023, 56(9):1729-1743. doi: 10.3864/j.issn.0578-1752.2023.09.010
[22]	邓朋飞, 唐光木, 贾宏涛, 孙霞, 鲍城帆, 胡洋. 施用生物质炭10年后对灌耕风沙土物理性质的影响[J]. 天津农业科学, 2022, 28(7):44-49.doi:10.3969/j.issn.1006-6500.2022.07.008.
	Deng P F, Tang G M, Jia H T, Sun X, Bao C F, Hu Y. Effects of biochar on physical properties of irrigated aeolian sandy soil ten years after application[J]. Tianjin Agricultural Sciences, 2022, 28(7):44-49.
[23]	王大凤, 卢树昌, 王威. 生物炭施用对夏填闲作物氮素吸收及土壤碳氮变化的影响[J]. 华北农学报, 2021, 36(6):163-170.doi:10.7668/hbnxb.20192410.
	Wang D F, Lu S C, Wang W. Effects of biochar application on nitrogen absorption of summer catch crops and changes of soil carbon and nitrogen[J]. Acta Agriculturae Boreali-Sinica, 2021, 36(6):163-170. doi: 10.7668/hbnxb.20192410
[24]	郭书亚, 尚赏, 王坤, 张艳, 汤其宁, 卢广远. 施用生物炭5年后对夏玉米田土壤理化性质及产量的影响[J]. 江苏农业科学, 2022, 50(15):74-78.doi:10.15889/j.issn.1002-1302.2022.15.011.
	Guo S Y, Shang S, Wang K, Zhang Y, Tang Q N, Lu G Y. Influences of application of biochar on soil physical and chemical properties and yield in summer maize field after five years[J]. Jiangsu Agricultural Sciences, 2022, 50(15):74-78.
[25]	白嘉骏, 刘松健, 窦森, 关松, 黄丽雅, 马睿, 黄家威. 田间自然陈化生物炭组成特征及对黑土有机碳的影响[J]. 吉林农业大学学报, 2022, 44(6):723-732.doi:10.13327/j.jjlau.2021.1288.
	Bai J J, Liu S J, Dou S, Guan S, Huang L Y, Ma R, Huang J W. Composition characteristics of natural aging biochar in the field and its effects on soil organic carbon in black soil[J]. Journal of Jilin Agricultural University, 2022, 44(6):723-732.
[26]	Xu W H, Xu H M, Delgado-Baquerizo M, Gundale M J, Zou X M, Ruan H H. Global meta-analysis reveals positive effects of biochar on soil microbial diversity[J]. Geoderma, 2023, 436:116528.doi:10.1016/j.geoderma.2023.116528.
[27]	Nguyen T T N, Wallace H M, Xu C Y, Van Zwieten L, Weng Z H, Xu Z H, Che R X, Tahmasbian I, Hu H W, Bai S H. The effects of short term,long term and reapplication of biochar on soil bacteria[J]. The Science of the Total Environment, 2018, 636:142-151.doi:10.1016/j.scitotenv.2018.04.278. pmid: 29704711
