普通白菜CYP同源基因克隆与表达分析

doi:10.7668/hbnxb.20193182

摘要/Abstract

摘要：

CYP79B2是拟南芥中调控生长素合成的有关基因,通过克隆普通白菜CYP79B2的同源基因BrcCYP79B2-1,分析其在不同组织及时期的表达情况,研究其对普通白菜春化开花的调控作用机理,旨在为后续普通白菜生长素编码基因的功能验证奠定理论基础。通过qRT-PCR方法从普通白菜中克隆到CYP79B2的同源基因,命名为BrcCYP79B2-1,利用生物信息学方法对其蛋白的结构、理化性质和亲缘关系进行分析,并利用qRT-PCR方法分析其在普通白菜中不同组织和生育期的表达量。结果表明,BrcCYP79B2-1基因编码序列全长为1 623 bp,编码540个氨基酸;对其蛋白质的理化分析结果表明,蛋白质分子质量为60.849 73 ku,理论等电点为8.71。与其他物种的氨基酸序列进行比对发现,BrcCYP79B2-1在十字花科植物中高度保守,且与芜菁同源性最高,达99.52%;采用qRT-PCR分析普通白菜不同器官的表达量发现,BrcCYP79B2-1在根中的表达量最高,在叶中次之,而在花蕾中的表达量最低;分析幼苗在低温处理0,10,15,16 d的表达发现,BrcCYP79B2-1在低温处理第10天,即营养生长期的表达量达到峰值,而在花芽分化期的表达量有所降低,说明该基因的表达与低温春化有关,可以影响花芽分化。

关键词: 普通白菜, BrcCYP79B2-1, 生物信息学, 基因克隆, 表达分析, 开花

Abstract:

CYP79B2 is a related gene that regulates auxin synthesis in Arabidopsis.By cloning the homologous gene BrcCYP79B2-1 of CYP79B2 in B.rapa ssp. cninensis,analyzing its expression in different tissues and periods,and studying its regulatory mechanism on vernal flowering in B.rapa ssp. cninensis,to lay a theoretical foundation for the subsequent functional verification of the auxin-encoding gene in B.rapa ssp. cninensis.The homologous gene of CYP79B2 was cloned from B.rapa ssp. cninensis by qRT-PCR and named as BrcCYP79B2-1.The structure,physicochemical properties and relationship of its protein were analyzed by bioinformatics method,and its protein was analyzed by qRT-PCR method.Expression levels in different tissues and growth stages in B.rapa ssp. cninensis.And its expression in different tissues and growth stages of B.rapa ssp. cninensis was analyzed by qRT-PCR method.The results showed that the full-length coding sequence of BrcCYP79B2-1 gene was 1 623 bp,encoding 540 amino acids.The physicochemical analysis of the protein showed that the molecular mass of the protein was 60.849 73 ku,and the theoretical isoelectric point was 8.71.Compared with the amino acid sequences of other species,it was found that BrcCYP79B2-1 was highly conserved in cruciferous plants,and had the highest homology with turnip,up to 99.52%;the expression levels of different organs of B.rapa ssp. cninensis were analyzed by qRT-PCR, and it was found that the expression level of BrcCYP79B2-1 was the highest in roots, followed by leaves, and the lowest in flower buds.The expression of BrcCYP79B2-1 in seedlings after 0,10,15 and 16 days of low temperature treatment showed that the expresion of BrcCYP79B2-1 reached its peak on the 10th day of low temperature treatment, that is, the vegetative growth period, while the expression of BrcCYP79B2-1 decreased during flower bud differentiation, which indicated that the expression of BrcCYP79B2-1 was related to low temperature vernalization and could affect flower bud differentiation.

Key words: B.rapa ssp. chinensis Makino, BrcCYP79B2-1, Bioinformatics, Gene cloning, Expression analysis, Flowering

侯瑞泽, 侯玉翔, 许小勇, 李璿, 李梅兰. 普通白菜CYP同源基因克隆与表达分析[J]. 华北农学报, 2022, 37(5): 45-51. doi: 10.7668/hbnxb.20193182.

HOU Ruize, HOU Yuxiang, XU Xiaoyong, LI Xuan, LI Meilan. Cloning and Expression Analysis of CYP Homologous Genes in Brassica rapa ssp. chinensis[J]. Acta Agriculturae Boreali-Sinica, 2022, 37(5): 45-51. doi: 10.7668/hbnxb.20193182.

http://www.hbnxb.net/CN/Y2022/V37/I5/45

图/表 8

图1 BrcCYP79B2-1琼脂糖凝胶电泳

Fig.1 Agarose gel electrophoresis of the PCR products of BrcCYP79B2-1 M.DNA Marker;1—3.BrcCYP79B2-1。

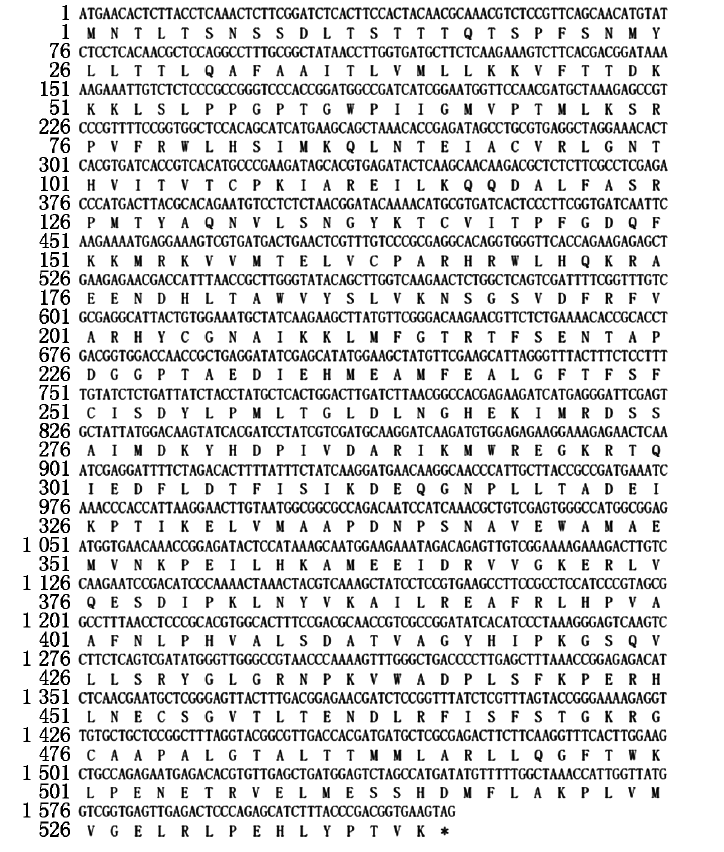

图2 BrcCYP79B2-1基因及氨基酸序列

Fig.2 Gene and amino acid sequence of BrcCYP79B2-1

图3 BrcCYP79B2-1的氨基酸序列多重比对结果

Fig.3 Multiple alignment results of the amino acid sequence of BrcCYP79B2-1

图4 BrcCYP79B2-1同源蛋白的系统进化树

Fig.4 Phylogenetic tree of BrcCYP79B2-1 homologous protein

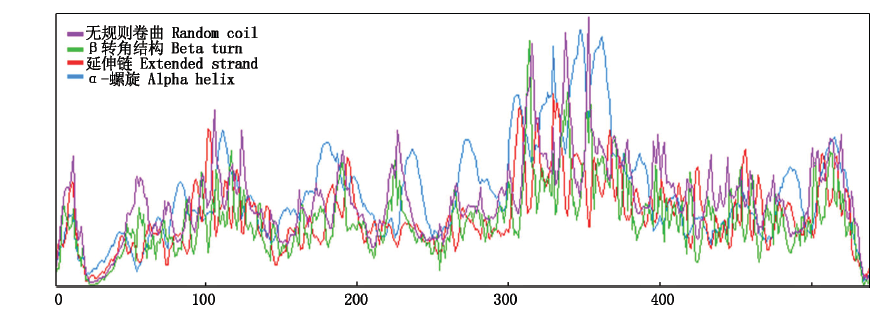

图5 BrcCYP79B2-1蛋白质二级结构预测

Fig.5 Protein secondary structure of BrcCYP79B2-1

图6 BrcCYP79B2-1蛋白质三级结构预测

Fig.6 Protein tertiary structure prediction of BrcCYP79B2-1

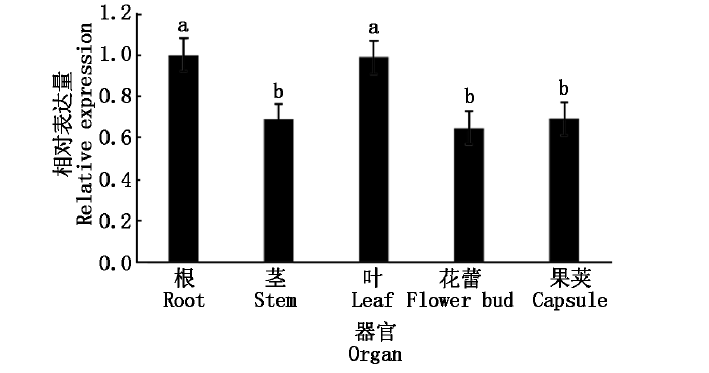

图7 BrcCYP79B2-1在不同器官的表达分析不同小写字母代表相对表达量在0.05水平上差异显著。

Fig.7 Expression analysis BrcCYP79B2-1 in different organs Different lowercase letters represent significant differences in relative expression at the 0.05 level.

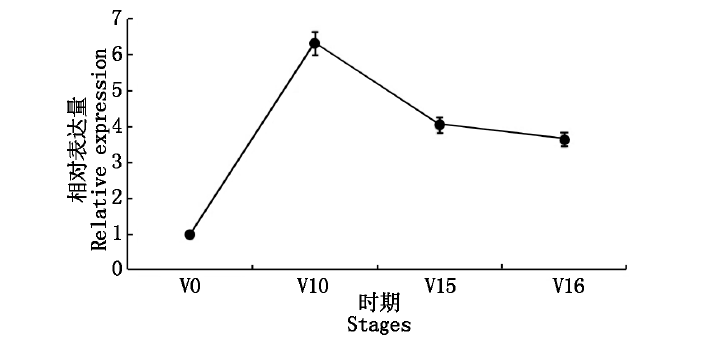

图8 BrcCYP79B2-1在不同发育时期茎尖部位的表达

Fig.8 Expression of BrcCYP79B2-1 in shoot apex at different developmental

参考文献 34

[1]	刘娟, 黎黎, 陆柄辰, 邓朴, 艾辛. 普通白菜种质资源耐抽薹性评价及耐抽薹种质的筛选[J]. 中国蔬菜, 2019(9):37-43.
	Liu J, Li L, Lu B C, Deng P, Ai X. Evaluation on bolting tolerance of pakchoi germplasm resources and screening of bolting tolerance germplasm[J]. China Vegetables, 2019(9):37-43.
[2]	赵建锋, 秦进华, 孙玉东, 罗德旭, 朱明超, 丁鹏. 大白菜耐抽薹育种研究进展[J]. 中国园艺文摘, 2009, 25(8):26,46-47.doi: 10.3969/j.issn.1672-0873.2009.08.020. doi: 10.3969/j.issn.1672-0873.2009.08.020
	Zhao J F, Qin J H, Sun Y D, Luo D X, Zhu M C, Ding P. Research progress in the breeding of Chinese cabbage for bolting tolerance[J]. Chinese Horticulture Abstracts, 2009, 25(8):26,46-47.
[3]	Huang F Y, Wu X T, Hou X L, Shao S X, Liu T K. Vernalization can regulate flowering time through microRNA mechanism in Brassica rapa[J]. Physiologia Plantarum, 2018, 164(2):204-215.doi: 10.1111/ppl.12692. doi: 10.1111/ppl.12692 URL
[4]	李红艳, 翟赛亚. 植物花期调控影响因子研究[J]. 河南农业, 2019(31):38-39.doi: 10.15904/j.cnki.hnny.2019.31.034. doi: 10.15904/j.cnki.hnny.2019.31.034
	Li H Y, Zhai S Y. Study on the influencing factors of plant flowering period regulation[J]. Agriculture of Henan, 2019(31):38-39.
[5]	奥岩松, 李式军, 陈广福, 程斐. 种子春化与光周期处理对大白菜花芽分化和抽薹的影响[J]. 东北农业大学学报, 1996, 27(3):250-254.doi: 10.19720/j.cnki.issn.1005-9369.1996.03.008. doi: 10.19720/j.cnki.issn.1005-9369.1996.03.008
	Ao Y S, Li S J, Chen G F, Cheng F. Effects of seed vernalization and photoperiod treatments on Chinese cabbage flower initiation and bolting[J]. Journal of Northeast Agricultural University, 1996, 27(3):250-254.
[6]	黎黎, 刘娟, 阳梦瑶, 王顺妮, 艾辛. 低温春化与光周期调控对普通白菜抽薹性状的影响[J]. 中国瓜菜, 2021, 34(5):45-51.doi: 10.16861/j.cnki.zggc.2021.0115. doi: 10.16861/j.cnki.zggc.2021.0115
	Li L, Liu J, Yang M Y, Wang S N, Ai X. Effects of low temperature vernalization and photoperiod regulation on bolting characters of pakchoi[J]. China Cucurbits and Vegetables, 2021, 34(5):45-51.
[7]	刘娟, 黎黎, 陆柄辰, 邓朴, 艾辛. 温度调控植物开花研究进展[J]. 应用与环境生物学报, 2020, 26(3):713-721.doi: 10.19675/j.cnki.1006-687x.2019.06011. doi: 10.19675/j.cnki.1006-687x.2019.06011
	Liu J, Li L, Lu B C, Deng P, Ai X. Research progress on the temperature-regulated flowering of plants[J]. Chinese Journal of Applied and Environmental Biology, 2020, 26(3):713-721.
[8]	李巧峡, 张丽, 王玉, 黄小霞. 赤霉素调控植物开花及花器官发育的研究进展[J]. 中国细胞生物学学报, 2019, 41(4):746-758.doi: 10.11844/cjcb.2019.04.0026. doi: 10.11844/cjcb.2019.04.0026
	Li Q X, Zhang L, Wang Y, Huang X X. The research progress of gibberellin on the regulation of flowering and floral organ development in plant[J]. Chinese Journal of Cell Biology, 2019, 41(4):746-758.
[9]	程静之. 拟南芥IQM2参与自主途径成花调控的功能解析[D]. 广州: 广州大学, 2016.
	Cheng J Z. Functional analysis of IQM2 on the autonomous pathway flowering time regulation in Arabidopsis[D]. Guangzhou: Guangzhou University, 2016.
[10]	杨秀莲, 贾瑞瑞, 施婷婷, 祝艳艳, 严欣. 观赏植物花期调控分子生物学研究进展[J]. 安徽农业大学学报, 2021, 48(3):344-351.doi: 10.13610/j.cnki.1672-352x.20210706.019. doi: 10.13610/j.cnki.1672-352x.20210706.019
	Yang X L, Jia R R, Shi T T, Zhu Y Y, Yan X. Advances on molecular biology research of flowering regulation in ornamental plants[J]. Journal of Anhui Agricultural University, 2021, 48(3):344-351.
[11]	Manuela D, Xu M L. Juvenile leaves or adult leaves:Determinants for vegetative phase change in flowering plants[J]. International Journal of Molecular Sciences, 2020, 21(24):9753.doi: 10.3390/ijms21249753. doi: 10.3390/ijms21249753 URL
[12]	罗羽洧, 解卫华, 马凯. 植物激素与果树花芽分化[J]. 金陵科技学院学报, 2007, 23(3):70-74.doi: 10.16515/j.cnki.32-1722/n.2007.03.006. doi: 10.16515/j.cnki.32-1722/n.2007.03.006
	Luo Y W, Xie W H, Ma K. Hormones and flower-bud differentiation of fruit trees[J]. Journal of Jinling Institute of Technology, 2007, 23(3):70-74.
[13]	Zaccai M, Ackerman R, Genis O, Riov J, Zik M. The bent peduncle phenomenon in roses is a developmental process involving auxin[J]. Plant Science, 2009, 176(6):736-743.doi: 10.1016/j.plantsci.2009.02.014. doi: 10.1016/j.plantsci.2009.02.014 URL
[14]	Mano Y, Nemoto K. The pathway of auxin biosynthesis in plants[J]. Journal of Experimental Botany, 2012, 63(8):2853-2872.doi: 10.1093/jxb/ers091. doi: 10.1093/jxb/ers091 pmid: 22447967
[15]	Strader L C, Bartel B. A new path to auxin[J]. Nature Chemical Biology, 2008, 4(6):337-339.doi: 10.1038/nchembio0608-337. doi: 10.1038/nchembio0608-337 pmid: 18488010
[16]	Chen S X, Glawischnig E, Jørgensen K, Naur P, Jørgensen B, Olsen C E, Hansen C H, Rasmussen H, Pickett J A, Halkier B A. CYP79F1 and CYP79F2 have distinct functions in the biosynthesis of aliphatic glucosinolates in Arabidopsis[J]. The Plant Journal, 2003, 33(5):923-937.doi: 10.1046/j.1365-313x.2003.01679.x. doi: 10.1046/j.1365-313x.2003.01679.x URL
[17]	屈新运, 秦苗苗, 赵桂红, 张天翼, 胡向阳, 李焘. 菘蓝IiCYP79F1基因的克隆与表达分析[J]. 西北植物学报, 2018, 38(10):1809-1816.doi: 10.7606/j.issn.1000-4025.2018.10.1809. doi: 10.7606/j.issn.1000-4025.2018.10.1809
	Qu X Y, Qin M M, Zhao G H, Zhang T Y, Hu X Y, Li T. Cloning and expression analysis of IiCYP79F1 gene from Isatis indigotica fort[J]. Acta Botanica Boreali-Occidentalia Sinica, 2018, 38(10):1809-1816.
[18]	宋傲男, 程文财, 刘彩霞, 赵云, 王茂林. 甘蓝型油菜BnCYP79B1基因的克隆与表达[J]. 西北植物学报, 2013, 33(6):1085-1090.doi: 10.3969/j.issn.1000-4025.2013.06.003. doi: 10.3969/j.issn.1000-4025.2013.06.003
	Song A N, Cheng W C, Liu C X, Zhao Y, Wang M L. Molecular cloning and expression analysis of BnCYP79B1 gene from Brassica napus L.[J]. Acta Botanica Boreali-Occidentalia Sinica, 2013, 33(6):1085-1090.
[19]	任彦鸿, 王雅丽, 赵瑞, 田国强, 燕晶晶, 李锐. 星豹蛛细胞色素CYP3001U15基因克隆与生物信息学分析[J]. 山西农业科学, 2020, 48(6):842-846.doi: 10.3969/j.issn.1002-2481.2020.06.03. doi: 10.3969/j.issn.1002-2481.2020.06.03
	Ren Y H, Wang Y L, Zhao R, Tian G Q, Yan J J, Li R. Cloning and bioinformatics analysis of CYP3001U15 gene in Pardosa astrigera(Araneae:Lycosidae)[J]. Journal of Shanxi Agricultural Sciences, 2020, 48(6):842-846.
[20]	韩慧, 王彪龙, 李恩, 胡军, 马瑞燕, 高玲玲, 郭艳琼. 梨小食心虫细胞色素P450 CYP6AE123基因的克隆及表达分析[J]. 山西农业科学, 2021, 49(5):539-544.doi: 10.3969/j.issn.1002-2481.2021.05.03. doi: 10.3969/j.issn.1002-2481.2021.05.03
	Han H, Wang B L, Li E, Hu J, Ma R Y, Gao L L, Guo Y Q. Cloning and expression analysis of cytochrome P450 CYP6AE123 gene in Grapholita molesta(busck)[J]. Journal of Shanxi Agricultural Sciences, 2021, 49(5):539-544.
[21]	王家利, 刘冬成, 郭小丽, 张爱民. 生长素合成途径的研究进展[J]. 植物学报, 2012, 47(3):292-301.doi: 10.3724/SP.J.1259.2012.00292. doi: 10.3724/SP.J.1259.2012.00292
	Wang J L, Liu D C, Guo X L, Zhang A M. Research advances in auxin biosynthesis[J]. Chinese Bulletin of Botany, 2012, 47(3):292-301.
[22]	孙夏莉, 臧运祥, 徐义康, 许双双. CYP79B2/B3基因在吲哚族硫苷与IAA代谢中的功能研究进展[J]. 江苏农业科学, 2020, 48(14):50-54.doi: 10.15889/j.issn.1002-1302.2020.14.008. doi: 10.15889/j.issn.1002-1302.2020.14.008
	Sun X L, Zang Y X, Xu Y K, Xu S S. Research progress on function of CYP79B2/B3 gene in metabolism of indoles sulfides and IAA[J]. Jiangsu Agricultural Sciences, 2020, 48(14):50-54.
[23]	Sugawara S, Hishiyama S, Jikumaru Y, Hanada A, Nishimura T, Koshiba T, Zhao Y D, Kamiya Y, Kasahara H. Biochemical analyses of indole-3-acetaldoxime-dependent auxin biosynthesis in Arabidopsis[J]. Proceedings of the National Academy of Sciences of the United States of America, 2009, 106(13):5430-5435.doi: 10.1073/pnas.0811226106. doi: 10.1073/pnas.0811226106 pmid: 19279202
[24]	Rapparini F, Tam Y Y, Cohen J D, Slovin J P. Indole-3-acetic acid metabolism in Lemna gibba undergoes dynamic changes in response to growth temperature[J]. Plant Physiology, 2002, 128(4):1410-1416.doi: 10.1104/pp.011005. doi: 10.1104/pp.011005 URL
[25]	孙夏莉. 大白菜BrCYP79B2/B3过量表达及其转录组分析[D]. 杭州: 浙江农林大学, 2019.doi: 10.27756/d.cnki.gzjlx.2019.000297. doi: 10.27756/d.cnki.gzjlx.2019.000297
	Sun X L. Study on the overexpression of BrCYP79B2/B3 and transcriptomic analysis in transgenic Arabidopsis[D]. Hangzhou: Zhejiang Agriculture and Forestry University, 2019.
[26]	Hull A K, Vij R, Celenza J L. Arabidopsis cytochrome P450s that catalyze the first step of tryptophan-dependent indole-3-acetic acid biosynthesis[J]. Proceedings of the National Academy of Sciences of the United States of America, 2000, 97(5):2379-2384.doi: 10.1073/pnas.040569997. doi: 10.1073/pnas.040569997 pmid: 10681464
[27]	胡向阳, 屈新运, 吴格格, 秦苗苗, 刘蕊, 高天娥, 李焘. 菘蓝IiCYP79B2基因的克隆与表达分析[J]. 华北农学报, 2019, 34(5):23-29.doi: 10.7668/hbnxb.201751719. doi: 10.7668/hbnxb.201751719
	Hu X Y, Qu X Y, Wu G G, Qin M M, Liu R, Gao T E, Li T. Cloning and expression analysis of IiCYP79B2 from Isatis indigotica fort[J]. Acta Agriculturae Boreali-Sinica, 2019, 34(5):23-29.
[28]	徐义康. 大白菜CYP79B2/B3在拟南芥中的表达特性分析[D]. 杭州: 浙江农林大学, 2018.
	Xu Y K. Expression pattern analysis of CYP79B2/B3 genes from Chinese cabbage in transgenic Arabidopsis[D]. Hangzhou: Zhejiang A&F University, 2018.
[29]	张冰冰, 刘霞, 秦梦凡, 梁峰豪, 张燕, 左凯峰, 郭娜, 马宁, 黄镇, 徐爱遐. 甘蓝型油菜开花时间的遗传分析及相关分子标记[J]. 华北农学报, 2019, 34(6):39-46.doi: 10.7668/hbnxb.201751611. doi: 10.7668/hbnxb.201751611
	Zhang B B, Liu X, Qin M F, Liang F H, Zhang Y, Zuo K F, Guo N, Ma N, Huang Z, Xu A X. Genetic analysis and related molecular markers of flowering time in Brassica napus L.[J]. Acta Agriculturae Boreali-Sinica, 2019, 34(6):39-46.
[30]	刘晓柱, 李银凤. 荠菜生长素极性运输基因1(CbPIN1)的克隆与表达分析[J]. 华北农学报, 2019, 34(1):26-32.doi: 10.7668/hbnxb.201750858. doi: 10.7668/hbnxb.201750858
	Liu X Z, Li Y F. Cloning and expression analysis of auxin polar transport PIN gene 1(CbPIN1)in Capsella bursa-pastoris[J]. Acta Agriculturae Boreali-Sinica, 2019, 34(1):26-32.
[31]	刘瑞宇, 侯雷平, 王丽, 李梅兰. 低温促进白菜开花的效应分析[J]. 华北农学报, 2009, 24(6):193-197.doi: 10.7668/hbnxb.2009.06.039. doi: 10.7668/hbnxb.2009.06.039
	Liu R Y, Hou L P, Wang L, Li M L. Effect analysis of low temperature promoting flowering in Chinese cabbage[J]. Acta Agriculturae Boreali-Sinica, 2009, 24(6):193-197.
[32]	王小权, 李晟男, 张俊利, 王志敏, 魏大勇, 汤青林. 拟南芥和十字花科蔬菜花序发育调控机制研究进展[J]. 园艺学报, 2018, 45(9):1727-1738.doi: 10.16420/j.issn.0513-353x.2018-0496. doi: 10.16420/j.issn.0513-353x.2018-0496
	Wang X Q, Li S N, Zhang J L, Wang Z M, Wei D Y, Tang Q L. Progress in regulation mechanism of inflorescence development in Arabidopsis and cruciferous vegetables[J]. Acta Horticulturae Sinica, 2018, 45(9):1727-1738.
[33]	徐振朋, 宛涛, 蔡萍, 孟超, 李倩倩. 不同生境冷蒿花期激素动态及对成花的影响[J]. 草原与草业, 2015, 27(1):28-34.doi: 10.3969/j.issn.2095-5952.2015.01.008. doi: 10.3969/j.issn.2095-5952.2015.01.008
	Xu Z P, Wan T, Cai P, Meng C, Li Q Q. The influence of flower hormone dynamic and into flowers in Artemisia frigida in different habitats[J]. Grassland and Prataculture, 2015, 27(1):28-34.
[34]	邓全恩. 油茶花器官发育逆境响应机制及植物生长调节剂调控技术研究[D]. 长沙: 中南林业科技大学 2020.doi: 10.27662/d.cnki.gznlc.2020.000525. doi: 10.27662/d.cnki.gznlc.2020.000525
	Deng Q E. Response mechanism of Camellia oleifera floral organ development to adverse circumstances and regulation technique of plant growth regulator[D]. Changsha: Central South University of Forestry & Technology, 2020.
