豆伞滑刃线虫类FMRF酰胺多肽基因的克隆与分析

doi:10.7668/hbnxb.20195409

摘要/Abstract

摘要：

为探究豆伞滑刃线虫与寄主植物互作的分子机制,通过构建豆伞滑刃线虫体前端特异cDNA文库与RACE技术相结合的方法克隆获得1个豆伞滑刃线虫类FMRF酰胺多肽基因Bd-FLP-12,并应用生物信息学方法进行序列分析,应用Southern杂交和半定量RT-PCR方法分别检测基因拷贝数和在不同发育阶段的表达水平。序列分析表明,Bd-FLP-12编码蛋白由90个氨基酸残基组成,其中含有1个信号肽序列和1个FLP-12成熟肽序列,无跨膜结构域,属于分泌型蛋白。根据Southern杂交结果推测,Bd-FLP-12基因在豆伞滑刃线虫基因组中为单拷贝。半定量RT-PCR结果显示,Bd-FLP-12在豆伞滑刃线虫各龄期均有表达,但在卵期相对比较微弱。综上,首次在豆伞滑刃线虫中克隆获得Bd-FLP-12基因全长序列,解析了该基因的结构、性质和表达特征,为进一步研究该基因的功能奠定了基础。

关键词: 豆伞滑刃线虫, 类FMRF酰胺多肽, 生物信息学, Southern杂交, 表达分析

Abstract:

In order to explore the molecular mechanism of the interaction between Bursaphelenchus doui and host plants,an FMRFamide-like neuropeptide gene,named Bd-FLP-12,was cloned from B.doui by using RACE-PCR technique in a specific cDNA library of the anterior end of B.doui.Further,the nucleotide sequence and amino acid sequence of Bd-FLP-12 were analyzed using bioinformatics methods,the gene copy number was identified by Southern Blot,and the developmental expression pattern was investigated by semi-quantitative RT-PCR.The Bd-FLP-12 gene encoded a protein of 90 amino acids with a mature peptide sequence of FLP-12 and a signal peptide sequence but no transmembrane structure,indicating that its encoded protein was a secretory protein.Southern Blot indicated that the Bd-FLP-12 gene was a single copy gene in the B.doui genome,and the RT-PCR result showed that the transcription level of Bd-FLP-12 was lower in the egg stage than in the other stages.In summary,the full-length sequence of the Bd-FLP-12 gene was cloned for the first time in B.doui,and the structure,nature and expression of the gene were characterized,which could serve as a foundation for further study of the gene function.

Key words: Bursaphelenchus doui, FMRFamide-like neuropeptide, Bioinformatics, Southern Blot, Expression analysis

中图分类号:

S432.45
S763

林世锋, 王仁刚, 王自力, 李莉, 陈越男, 吴沙沙, 刘国琴. 豆伞滑刃线虫类FMRF酰胺多肽基因的克隆与分析[J]. 华北农学报, 2025, 40(3): 166-172. doi: 10.7668/hbnxb.20195409.

LIN Shifeng, WANG Rengang, WANG Zili, LI Li, CHEN Yuenan, WU Shasha, LIU Guoqin. Cloning and Analysis of a FMRFamide-like Neuropeptide Gene from Bursaphelenchus doui[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(3): 166-172. doi: 10.7668/hbnxb.20195409.

http://www.hbnxb.net/CN/Y2025/V40/I3/166

图/表 8

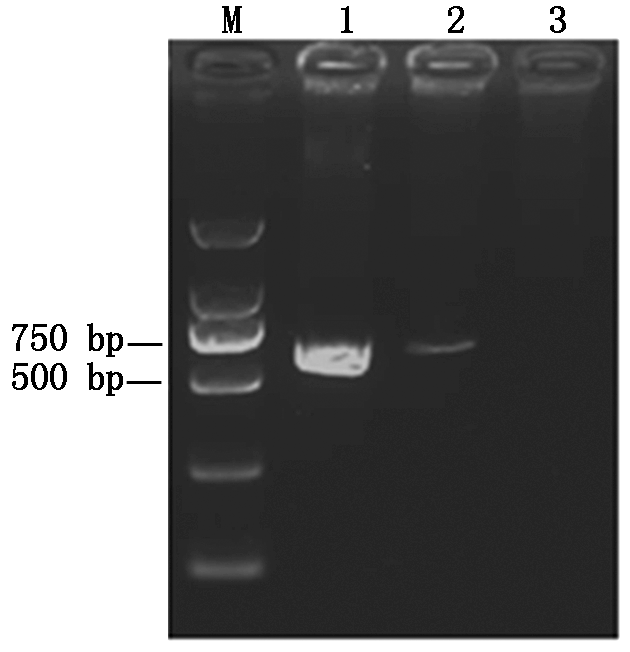

图1 以消减杂交产物为模板扩增hsp90基因的凝胶电泳结果 M.DL2000 Marker;1.未经消减杂交cDNA为模板;2.第一轮消减杂交cDNA为模板;3.第二轮消减杂交cDNA为模板。

Fig.1 PCR analysis of hsp90 gene using the various round of subtractive hybridization as template M.DL2000 Marker;1.The PCR products of unhybridized cDNA;2.The PCR products of cDNA from the first subtractive hybridization;3.The PCR products of cDNA from the second subtractive hybridization.

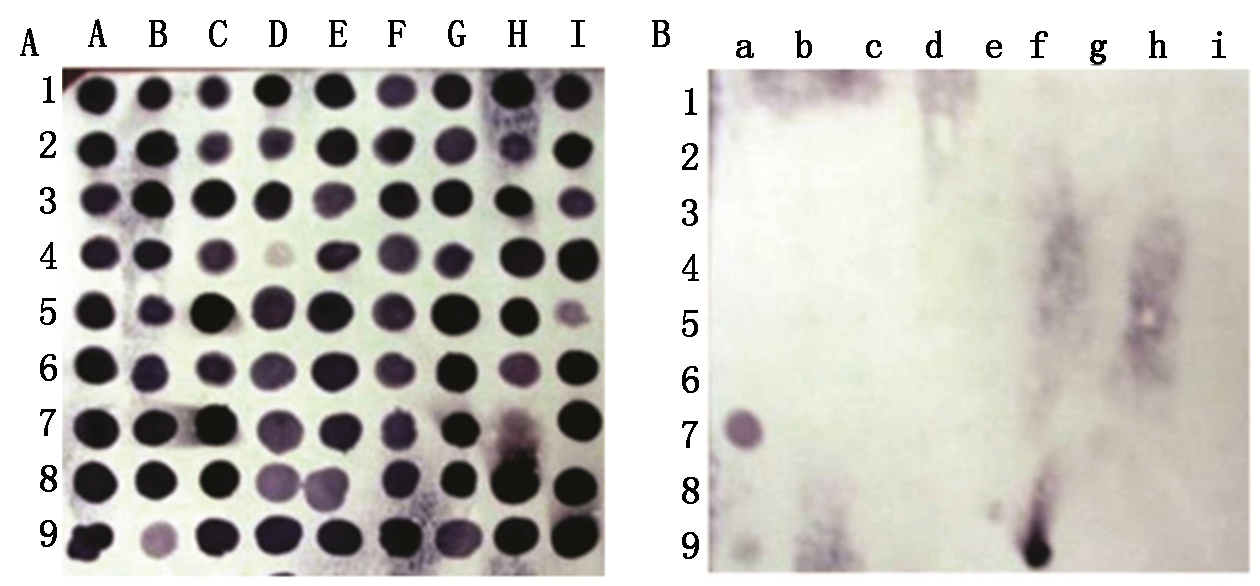

图2 豆伞滑刃线虫前后端cDNA反向Northern杂交 A.与体前端cDNA杂交;B.与体后端cDNA杂交。单克隆菌落的编号以字母和数字的组合表示,字母代表列,数字代表行。

Fig.2 Reverse Northern blot analysis using the anterior end and posterior end cDNAs as probes A.The anterior end cDNA probe;B.The posterior end cDNA probe.The single colony numbers are represented by combinations of letters and numbers,where letters represent columns and numbers represent rows.

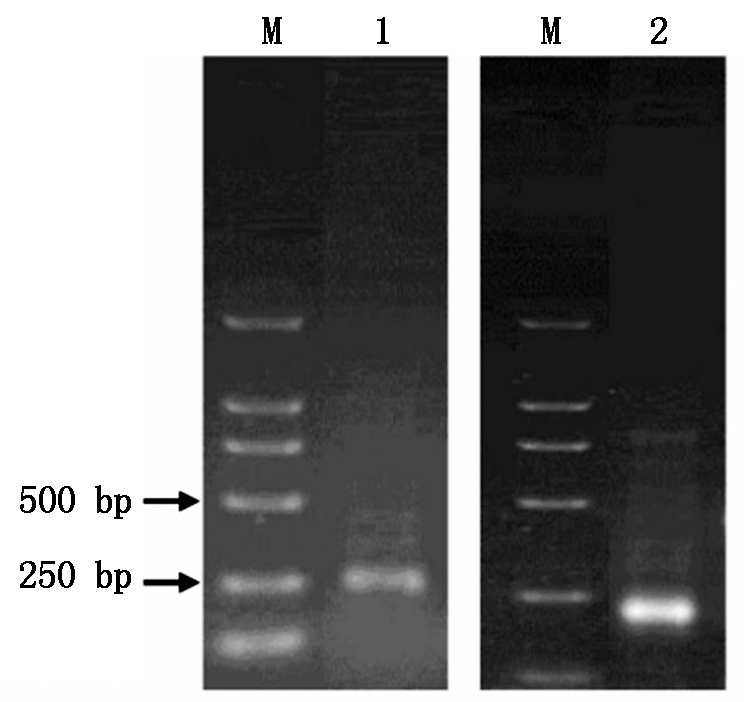

图3 编号Bd-m36基因5'RACE扩增结果 M.DL2000 Marker;1.第一轮PCR产物;2.第二轮PCR产物。

Fig.3 5' RACE products of the fragment of Bd-m36 M.DL2000 Marker;1.The first PCR product;2.The second PCR product.

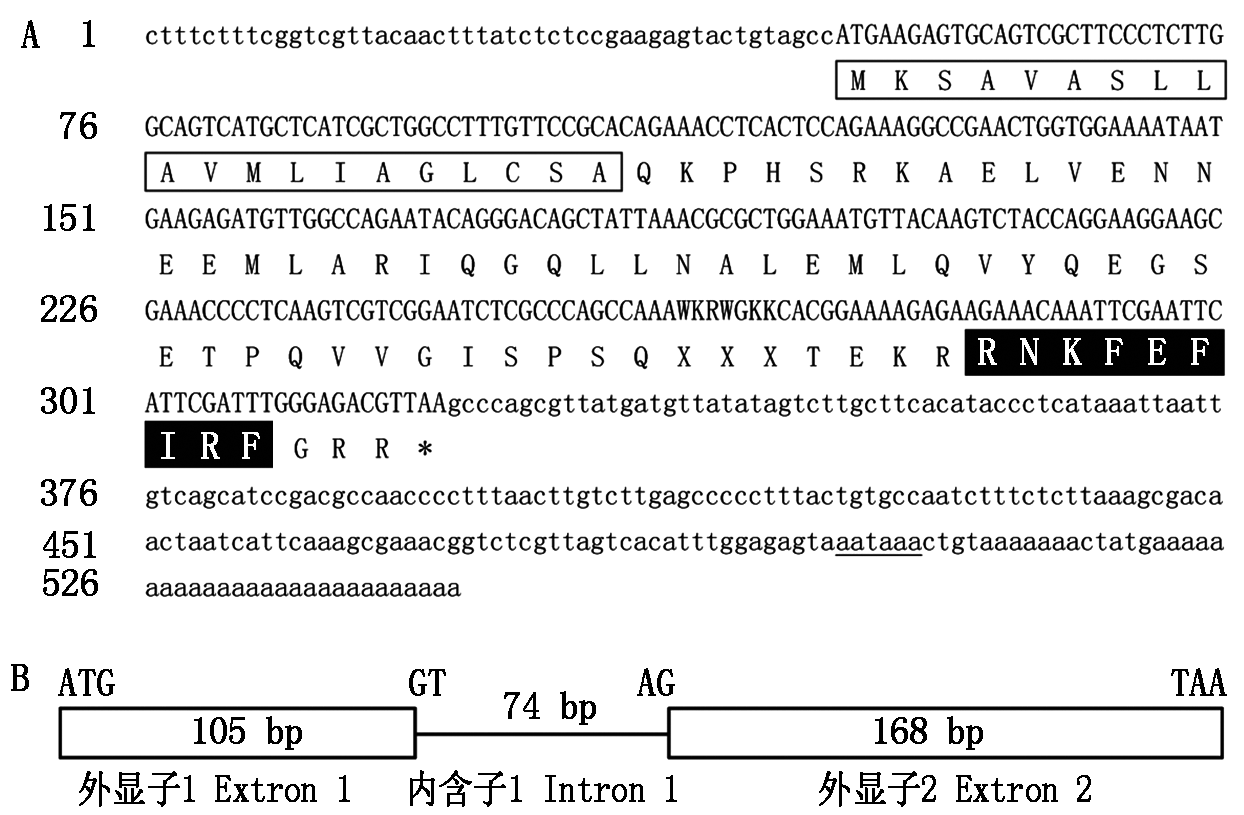

图4 克隆获得Bd-FLP-12基因的全长cDNA序列(A)及其基因组DNA序列(B) A.小写部分为非编码区;大写部分为编码区及编码的氨基酸序列;*为终止密码子;方框内为信号肽;黑色阴影部分为预测的RNKFEFIRF酰胺成熟肽序列;下划线部分为poly(A)加尾信号(AATAAA)。B.方框部分为外显子,横线部分为内含子;GT是内含子的初始碱基,AG是内含子的结束碱基;数字是对应部分的序列长度。

Fig.4 Complete cDNA(A)and genomic DNA(B) sequences of the Bd-FLP-12 gene obtained by cloning A.The noncoding regions are indicated with lowercase characters;the coding region and predicted amino acid sequence are indicated with uppercase characters; the stop codon(TAA)is marked with an asterisk;the signal peptide is boxed;the predicted mature peptide RNKFEFIRFamide is marked with a black shadow;the polyadenylation signal sequence(AATAAA)is underlined.B.The boxes represent extrons and the line represents the intron;the first two bases of the intron are GT and the last two bases of the intron are AG;the numbers represent the length of the corresponding sequence.

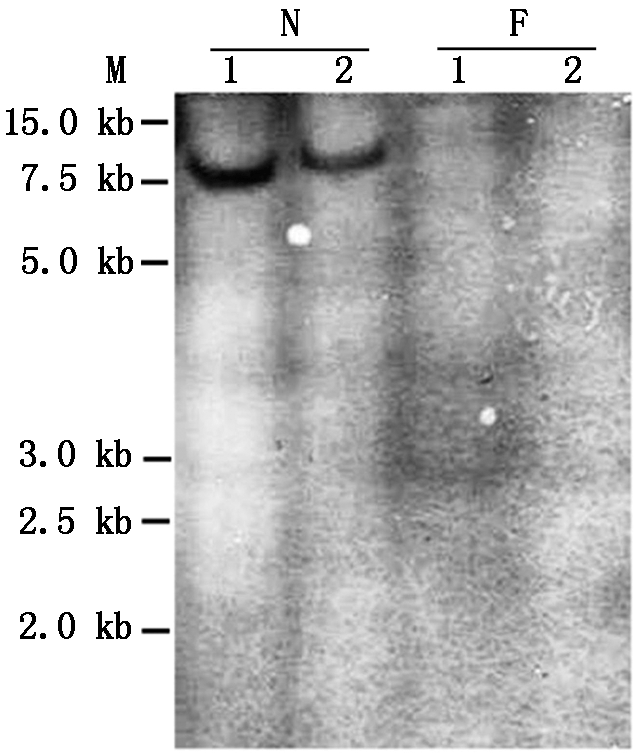

图5 Bd-FLP-12基因组杂交分析 M.DNA在琼脂糖凝胶中迁移的标准大小(kb);N.豆伞滑刃线虫总DNA;F.灰葡萄孢菌总DNA;1.BamHⅠ酶切基因组DNA;2.Hind Ⅲ酶切基因组DNA。

Fig.5 Southern Blot analysis of Bd-FLP-12 M.The migration positions of the DNA size standards(kb)in agarose gel;N.Genomic DNA of the nematode B.doui;F.Genomic DNA of the fungus B.cinerea;1.Genomic DNA was digested with BamHⅠ;2.Genomic DNA was digested with Hind Ⅲ.

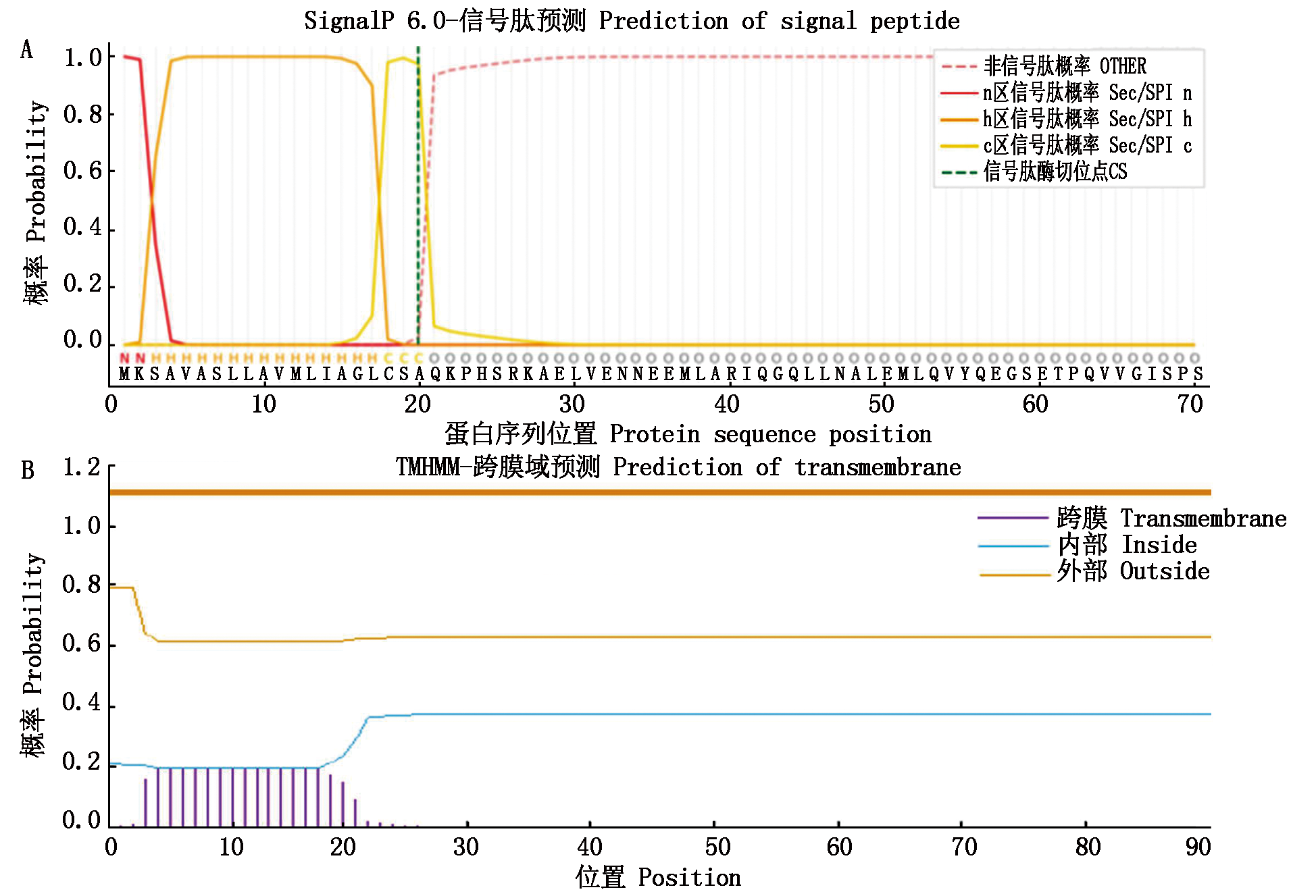

图6 豆伞滑刃线虫Bd-FLP-12蛋白信号肽(A)和跨膜结构域(B)预测

Fig.6 Predicted signal peptide(A)and transmembrane domain(B)of the B.doui Bd-FLP-12

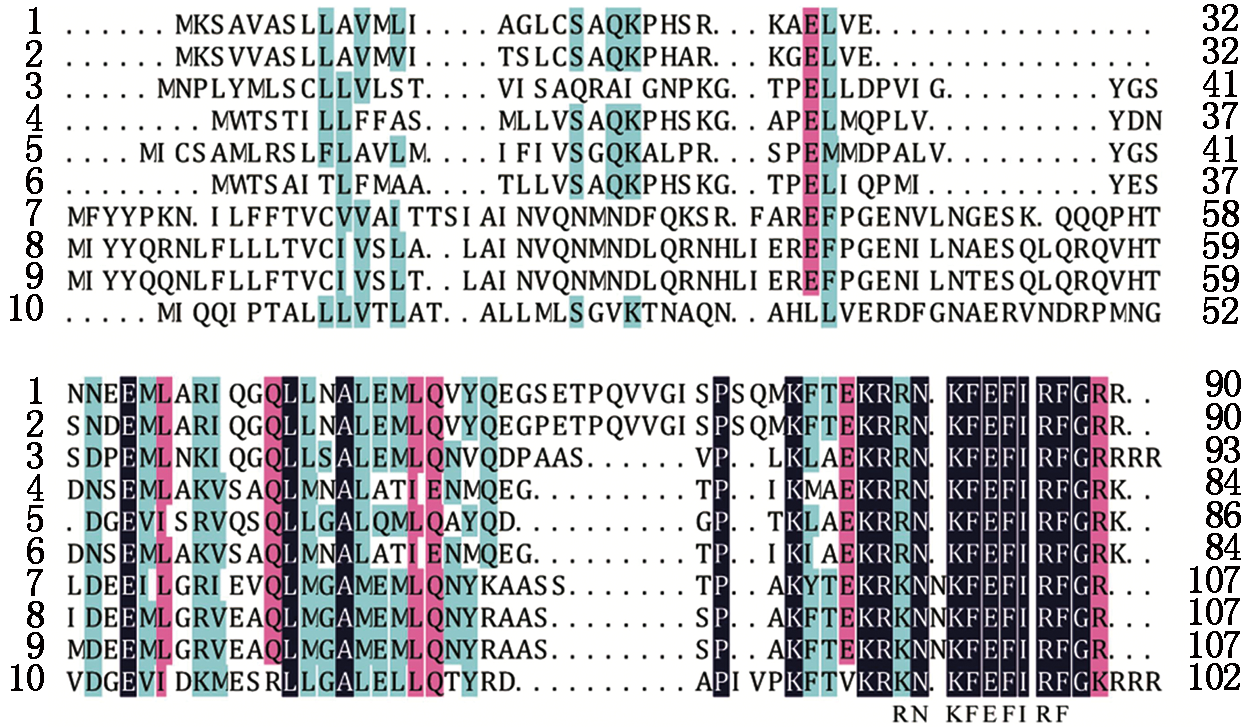

图7 豆伞滑刃线虫Bd-FLP-12蛋白与其他植物寄生线虫同源蛋白的氨基酸序列比对 1.豆伞滑刃线虫(Bd-FLP-12);2.松材线虫(ABR09285);3.水稻干尖线虫(KAI6187848);4.鼻状杯环线虫(CAJ0609964);5.斯氏线虫(KAK0396706);6.有齿食道口线虫(KHJ99768);7.小根结线虫(ABB49052);8.禾谷孢囊线虫(AEN71840);9.南方根结线虫(AAX19364);10.马铃薯白线虫(CAC32452);RNKFEFIRF.FLP-12典型氨基酸序列。

Fig.7 Amino acid sequence alignment of the B.doui Bd-FLP-12 protein with homologues from other plant parasitic nematodes 1.B.doui(Bd-FLP-12); 2.B.xylophilus(ABR09285); 3.A.besseyi(KAI6187848); 4.C.nassatus(CAJ0609964); 5.S.hermaphroditum(KAK0396706); 6.O.dentatum(KHJ99768); 7.M.minor(ABB49052); 8.H.avenae(AEN71840); 9.M.incognita(AAX19364); 10.G.pallida(CAC32452);RNKFEFIRF.Amino-acid sequences of typical petides of FLP-12.

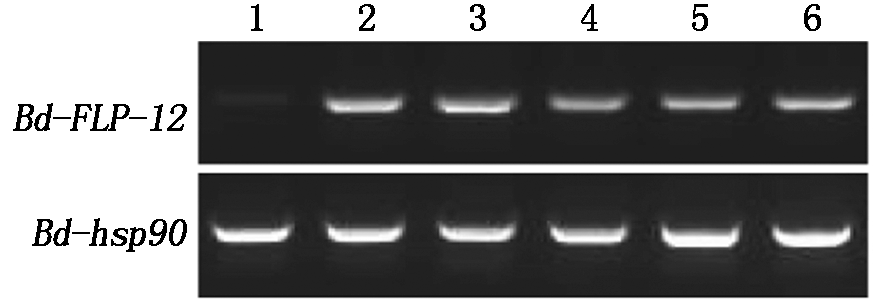

图8 用半定量RT-PCR分析Bd-FLP-12基因的发育表达模式 1.卵;2.二龄幼虫;3.三龄幼虫;4.四龄幼虫;5.雌性成虫;6.雄性成虫。

Fig.8 Analysis of the developmental expression pattern of Bd-FLP-12 by semi-quantitative RT-PCR 1.Egg;2.Second-stage juvenile;3.Third-stage juvenile;4.Fourth-stage juvenile;5.Adult female;6.Adult male.

参考文献 28

[1]	Zhuo K, Luo M, Cui R Q, Liao J L. A multiplex one-step PCR method for the simultaneous identification of Bursaphelenchus xylophilus,B.mucronatus and B.doui-three species within the xylophilus group[J]. Forest Pathology, 2011, 41(1):66-69.doi:10.1111/j.1439-0329.2009.00638.x.
[2]	严正梅, 谈家金. 我国松树体内线虫种类及其分布[J]. 中国森林病虫, 2019, 38(5):38-42.doi:10.19688/j.cnki.issn1671-0886.20190015.
	Yan Z M, Tan J Z. Species and geographical distribution of parasitic nematode in pine in China[J]. Forest Pest and Disease, 2019, 38(5):38-42.
[3]	陈耀明. 我国松树体内线虫种类及其分布规律研究[J]. 种子科技, 2019, 37(7):129.doi:10.3969/j.issn.1005-2690.2019.07.110.
	Chen Y M. Species and distribution laws of parasitic nematode in pine in China[J]. Seed Scicence & Technology, 2019, 37(7):129.
[4]	Braasch H, Gu J F, Burgermeister W. Bursaphelenchus doui sp.n.(Nematoda:Parasitaphelenchidae)in packaging wood from Taiwan and South Korea-a new species of the xylophilus group[J]. Russian Journal of Nematology, 2004, 12(2):19-27.
[5]	顾建锋, 张慧丽, 郑炜. 进境木质包装中豆伞滑刃线虫的鉴定[J]. 植物检疫, 2007, 21(3):145-148.doi:10.3969/j.issn.1005-2755.2007.03.005.
	Gu J F, Zhang H L, Zheng W. Identification of Bursaphelenchus doui Braasch,Gu,Brugermeister and Zhang,2004 from imported wooden package in Ningbo Port[J]. Plant Quarantine, 2007, 21(3):145-148.
[6]	Zhou Q Z, Liu Y, Wang Z, Wang H M, Zhang X Y, Lu Q. Rapid on-site detection of the Bursaphelenchus xylophilus using recombinase polymerase amplification combined with lateral flow dipstick that eliminates interference from primer-dependent artifacts[J]. Frontiers in Plant Science, 2022, 13:856109.doi:10.3389/fpls.2022.856109.
[7]	Maehara N, Kanzaki N, Aikawa T, Nakamura K. Potential vector switching in the evolution of Bursaphelenchus xylophilus group nematodes(Nematoda:Aphelenchoididae)[J]. Ecology and Evolution, 2020, 10(24):14320-14329.doi:10.1002/ece3.7033.
[8]	Maehara N, Aikawa T, Kanzaki N, Nakamura K. Transfer of four isolates of Bursaphelenchus doui into Monochamus alternatus and potential vector switching of the nematode[J]. Nematology, 2022, 24(8):855-861.doi:10.1163/15685411-bja10173.
[9]	Aikawa T, Ozawa S, Maehara N, Masuya H, Nakamura K, Kanzaki N. Discovery of a phoretic association between Bursaphelenchus doui(Nematoda:Aphelenchoididae)and Monochamus saltuarius and Acalolepta sejuncta(Coleoptera:Cerambycidae)[J]. Nematology, 2019, 22(6):713-722.doi:10.1163/15685411-00003334.
[10]	周沁莹, 朱曼, 黄辉, 黄晓玮. 植物寄生线虫的化学感受系统研究进展[J]. 中国科学:生命科学, 2019, 49(7):828-838.doi:10.1360/SSV-2019-0092.
	Zhou Q Y, Zhu M, Huang H, Huang X W. Chemosensory system of plant parasitic nematodes[J]. Scientia Sinica(Vitae), 2019, 49(7):828-838.
[11]	You J, Pan F J, Wang S, Wang Y, Hu Y F. FMRFamide-like peptide 22 influences the head movement,host finding,and infection of Heterodera glycines[J]. Frontiers in Plant Science, 2021, 12:673354.doi:10.3389/fpls.2021.673354.
[12]	尤佳. 大豆孢囊线虫早期预寄生相关基因鉴定及FMRF酰胺多肽(FLPs)基因克隆和功能初探[D]. 长春: 中国科学院东北地理与农业生态研究所, 2019.
	You J. Identification of the parasitism-related genes,cloning and preliminary functional analysis of the FMRFamide neuropeptide gene from the soybean cyst nematode Heterodera glycines in the early stage[D]. Changchun: Northeast Institute of Geography and Agroecology,Chinese Academy of Sciences, 2019.
[13]	Kamaraju D, Chatterjee M, Papolu P K, Shivakumara T N, Sreevathsa R, Hada A, Rao U. Host-induced RNA interference targeting the neuromotor gene FMRFamide-like peptide-14(Mi-flp14)perturbs Meloidogyne incognita parasitic success in eggplant[J]. Plant Cell Reports, 2024, 43(7):178.doi:10.1007/s00299-024-03259-y.
[14]	Banakar P, Hada A, Papolu P K, Rao U. Simultaneous RNAi knockdown of three FMRFamide-like peptide genes,Mi-flp1,Mi-flp12,and Mi-flp18 provides resistance to root-knot nematode,Meloidogyne incognita[J]. Frontiers in Microbiology, 2020, 11:573916.doi:10.3389/fmicb.2020.573916.
[15]	Kumari C, Dutta T K, Chaudhary S, Banakar P, Papolu P K, Rao U. Molecular characterization of FMRFamide-like peptides in Meloidogyne graminicola and analysis of their knockdown effect on nematode infectivity[J]. Gene, 2017, 619:50-60.doi:10.1016/j.gene.2017.03.042
[16]	Hada A, Kumari C, Phani V, Singh D, Chinnusamy V, Rao U. Host-induced silencing of FMRFamide-like peptide genes,flp-1 and flp-12,in rice impairs reproductive fitness of the root-knot nematode Meloidogyne graminicola[J]. Frontiers in Plant Science, 2020, 11:1.doi:10.3389/fpls.2020.00894.
[17]	Atkinson H J, Isaac R E, Harris P D, Sharpe C M. FMRFamide like immunoreactivity within the nervous system of the nematodes Panagrellus redivius,Caenorhabditis elegans and Heterodera glycines[J]. Journal of Zoology, 1988, 216(4):663-671.doi:10.1111/j.1469-7998.1988.tb02464.x.
[18]	肖罗. 松材线虫(Bursaphelenchus xylophilus)flp基因与香蕉穿孔线虫(Radopholus similes)Rs-eng-1基因的克隆和功能分析[D]. 长沙: 湖南农业大学, 2008.
	Xiao L. Cloning and functional analysis of the flp genes in Bursaphelenchus xylophilus and the Rs-eng-1 gene in Radopholus similes[D]. Changsha: Hunan Agricultural University, 2008.
[19]	Huang Q X, Cheng X Y, Mao Z C. Wang Y S, Zhao L L, et al. MicroRNA discovery and analysis of pinewood nematode Bursaphelenchus xylophilus by deep sequencing[J]. PLoS One, 2010, 5(10):e13271.doi:10.1371/journal.pone.0013271.
[20]	林世锋, 郭立, 简恒, 张国珍. 松材线虫体前端特异cDNA文库的构建及细胞壁松弛蛋白基因的克隆与初步分析[J]. 植物病理学报, 2008, 38(3):283-291.doi:10.13926/j.cnki.apps.2008.03.018.
	Lin S F, Guo L, Jian H, Zhang G Z. Construction of specific cDNA library and cloning of expansin gene from the anterior end of Bursaphelenchus xylophilus[J]. Acta Phytopathologica Sinica, 2008, 38(3):283-291.
[21]	Li C, Kim K. Family of FLP peptides in Caenorhabditis elegans and related nematodes[J]. Frontiers in Endocrinology, 2014, 5:150.doi:10.3389/fendo.2014.00150.
[22]	Dayi M. Evolution of parasitism genes in the plant parasitic nematodes[J]. Scientific Reports, 2024, 14(1):3733.doi:10.1038/s41598-024-54330-3.
[23]	McVeigh P, Leech S, Mair G R, Marks N J, Geary T G, Maule A G. Analysis of FMRFamide-like peptide(FLP)diversity in Phylum nematoda[J]. International Journal for Parasitology, 2005, 35(10):1043-1060.doi:10.1016/j.ijpara.2005.05.010. pmid: 16076468
[24]	Rao U, Thakur P K, Prasad G N, Banakar P, Kumar M. Identification of neuropeptides,flp-1 and flp-12 targeting neuromuscular system of rice root knot nematode(RRKN)Meloidogyne graminicola[J]. Bioinformation, 2013, 9(4):182-186.doi:10.6026/97320630009182.
[25]	柳建发, 王中全. 医学寄生虫学[M]. 北京: 中国医药科技出版社, 2017.
	Liu J F, Wang Z Q. Medical parasitology[M]. Beijing: China Medical Science Press, 2017.
[26]	王天阳. 南方根结线虫flp-16、flp-27、flp-31基因的克隆及其表达原位杂交分析[D]. 北京: 中国农业科学院, 2008.doi:10.7666/d.Y1422213.
	Wang T Y. Cloning and expressed localization using in situ hybridization of FMRFamide-like peptides encoding genes Mi-flp-16/27/31 of Meloidogyne incognita[D]. Beijing: Chinese Academy of Agricultural Sciences, 2008.
[27]	芮凯. 海南水稻根结线虫动态、品种抗性及入侵机理研究[D]. 兰州: 甘肃农业大学, 2019.doi:10.27025/d.cnki.ggsnu.2019.000262.
	Rui K. The research on the dynamics and variety resistance and invasion mechanism of Meloidogyne graminicola in Hainan[D]. Lanzhou: Gansu Agricultural University, 2019.
[28]	彭焕, 胡先奇, 黄文坤, 贺文婷, 彭德良. 马铃薯腐烂茎线虫类FMRF酰胺多肽基因(Dd-flp-1)的克隆与表达定位分析[J]. 农业生物技术学报, 2011, 19(5):924-931.doi:10.3969/j.issn.1674-7968.2011.05.020.
	Peng H, Hu X Q, Huang W K, He W T, Peng D L. Cloning and localization analysis of a novel FMRFamide-like neuropeptide gene(Dd-flp-1)from migration plant-parasitic nematode(Ditylenchus destructor)on sweet-potato in China[J]. Journal of Agricultural Biotechnology, 2011, 19(05):924-931.
