Cloning and Functional Analysis of the Cotton GhMYB113 Gene in Verticillium Wilt Resistance

doi:10.7668/hbnxb.20196180

Abstract

Abstract:

This study investigated the function of the cotton gene GhMYB113 in resistance to Verticillium wilt.GhMYB113 encoded a 249 amino acid protein with a molecular weight of 29.07 ku and an isoelectric point of 6.46.Phylogenetic and subcellular localization analyses revealed that GhMYB113 shared the highest homology with soybean GmMYB113 and was localized to the nucleus.Expression profiling by qPCR showed that GhMYB113 was predominantly expressed in roots and was upregulated upon infection by Verticillium dahliae as well as by treatment with jasmonic acid(JA)and salicylic acid(SA),suggesting a role in disease resistance signaling.Silencing of GhMYB113 via virus-induced gene silencing(VIGS)led to a significant decrease in leaf anthocyanin accumulation and downregulated the expression of key anthocyanin biosynthesis genes,indicating that GhMYB113 positively regulates anthocyanin synthesis in cotton.This was further confirmed using a GUS reporter system,which demonstrated that GhMYB113 activates the promoter of GhDFR.Inoculation assays performed on GhMYB113-silenced plants resulted in more severe disease symptoms,higher disease index(DI)values,increased disease incidence,enhanced stem browning,and significantly greater fungal biomass in stems compared with control plants,demonstrating that GhMYB113 positively regulates cotton resistance to Verticillium wilt.In summary,GhMYB113 plays a critical role in both anthocyanin biosynthesis and Verticillium wilt resistance in cotton,providing a theoretical foundation for breeding disease-resistant cotton varieties.

Key words: Cotton, MYB113, Verticillium dahliae, Verticillium wilt, Defense, Anthocyanin

CLC Number:

ZHONG Guimai, LIAO Chanjuan, LI Dan, WU Qi, HU Guang. Cloning and Functional Analysis of the Cotton GhMYB113 Gene in Verticillium Wilt Resistance[J]. Acta Agriculturae Boreali-Sinica, 2026, 41(4): 215-221. doi: 10.7668/hbnxb.20196180.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20196180

http://www.hbnxb.net/EN/Y2026/V41/I4/215

Figures/Tables 6

Tab.1 The primer sequences used in this study

引物 Primer	序列(5'—3') Sequence (5'—3')	用途 Employ
MYB113-GFP-F	CGAGATCTGATGGAGGGCTCATCTTTAAGAG	PCR
MYB113-GFP-R	CGCACTAGTTGGGTTAAACACATTCCACAG	PCR
qMYB113-F	TTGAGAAATATGGTGAAGGGAA	qPCR
qMYB113-R	GGAGGTTATGGAGGCGAATA	qPCR
GhUBI3-F	GAAGGCATTCCACCTGACCAAC	qPCR
GhUBI3-R	CTTGACCTTCTTCTTCTTGTGCTTG	qPCR
GhCHI-F	TGATGCAGAAGCAAAAGCCAT	qPCR
GhCHI-R	AGCTCAGTACCAGAAGGTGGGA	qPCR
GhF3H-F	GGGCCTAGCTTGCAAGCTTCTT	qPCR
GhF3H-R	AAGCAAGAGTGTGATGGTGCCTG	qPCR
GhDFR-F	GACCCTGGCAACTCGAAGAA	qPCR
GhDFR-R	GGACTCGAAGTCCATAGGCG	qPCR
GhANS-F	CCGCAGCTGTGTCTATCAACAC	qPCR
GhANS-R	AGCAAATTTCCAAGCTGCCTT	qPCR
GhANR-F	GAGGCCTAGCGAGCAAAATAC	qPCR
GhANR-R	GTGAGCTTCGACACCGAGAG	qPCR
GhUFGT-F	TCTTCTCCGCATCCCAACTA	qPCR
GhUFGT-R	TCCATTGCCTTCCTCAGATT	qPCR
vMYB113-F	CGGAATTCTGGAGGGCTCATCTTTAAG	VIGS
vMYB113-R	CGGGATCCTGAACTGCCACTTGCACTGATAC	VIGS
VdTUB1-F	AACAACAGTCCGATGGATAATTC	qPCR
VdTUB1-R	GTACCGGGCTCGAGATCG	qPCR
GhACT7-F	TTGCAGACCGTATGAGCAAG	qPCR
GhACT7-R	ATCCTCCGATCCAGACACTG	qPCR
DFRpro-F	CGAAGCTTGATTGTTCATACAGGGACATGACCGAC	PCR
DFRpro-R	CCGGGATCCTGGGAAATAACTTGAACACTCTGCTC	PCR

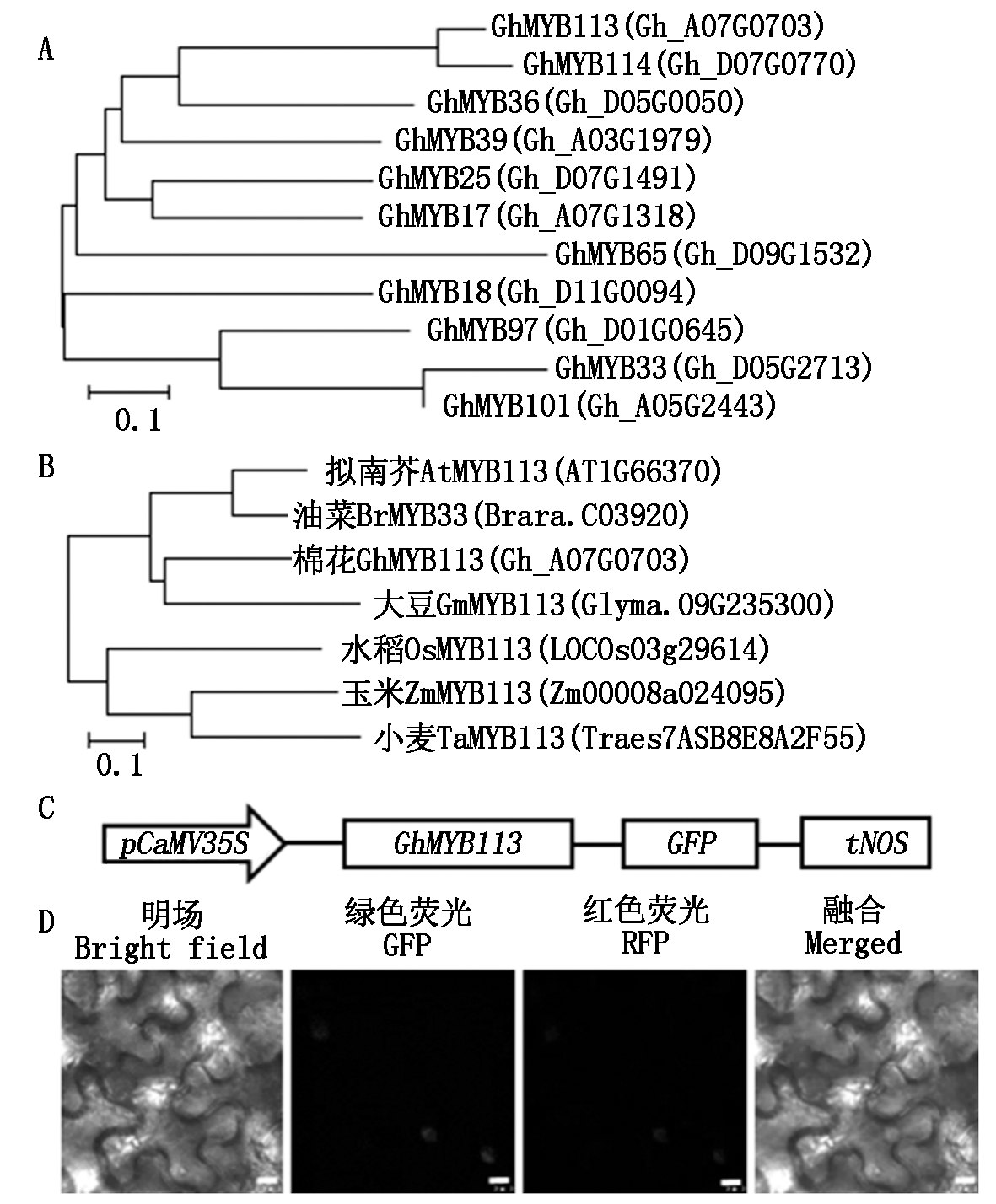

Fig.1 Phylogenetic analysis and subcellular localization of GhMYB113 A.Phylogenetic analysis of cotton MYB transcription factors;B.Phylogenetic analysis of GhMYB113 alongside MYB113 from various other plant species;C.Construction of the vector for subcellular localization;D.Fluorescence observation of GhMYB113-GFP fusion.H2B-RFP transgenic N.benthamiana plants were used as a nucleus marker.Scale bars.30 μm.

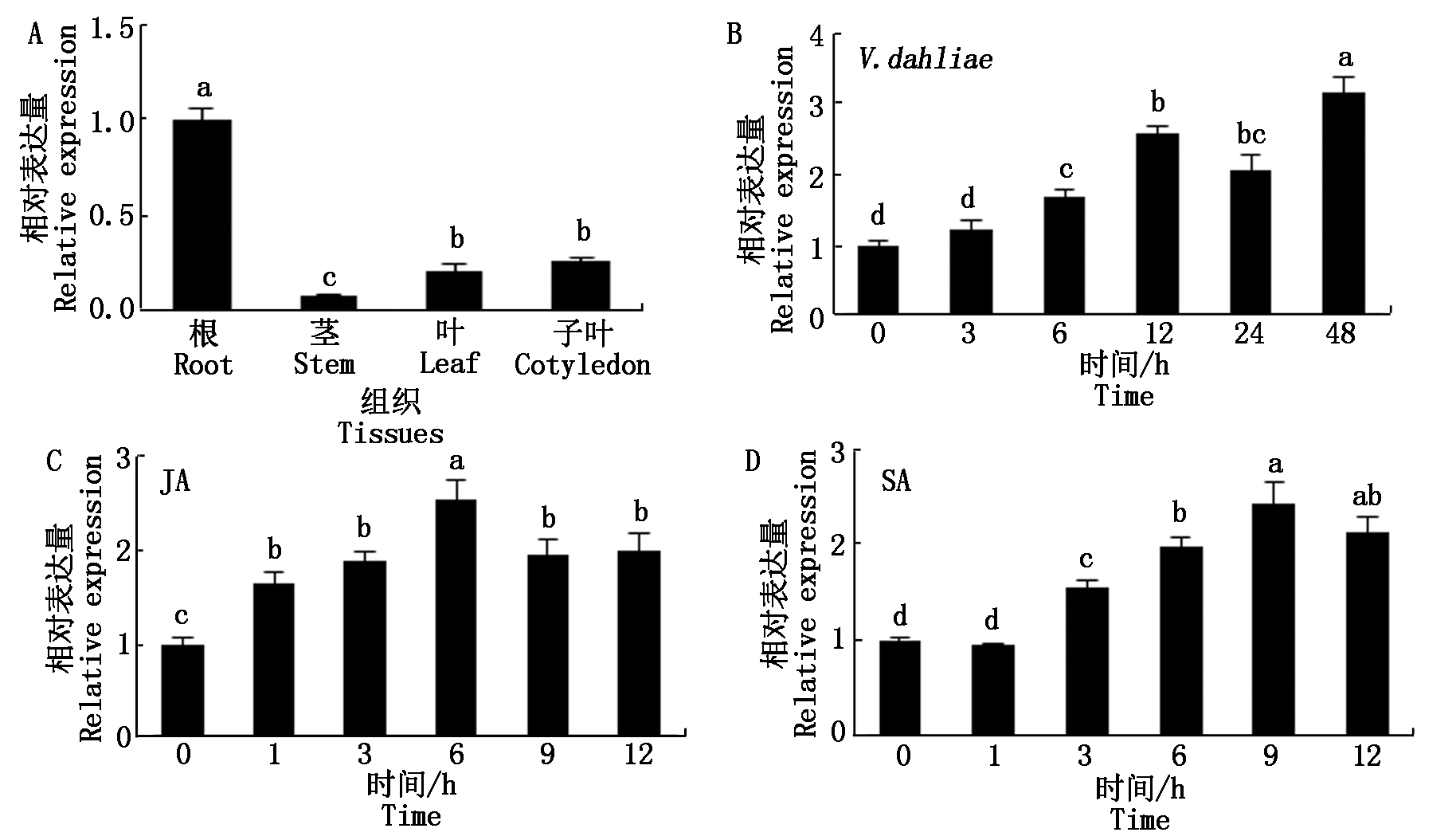

Fig.2 GhMYB113 expression profiles Different lowercase letters denoted significant differences(P<0.05),based on the Tukey HSD test.The same as Fig.3—5.

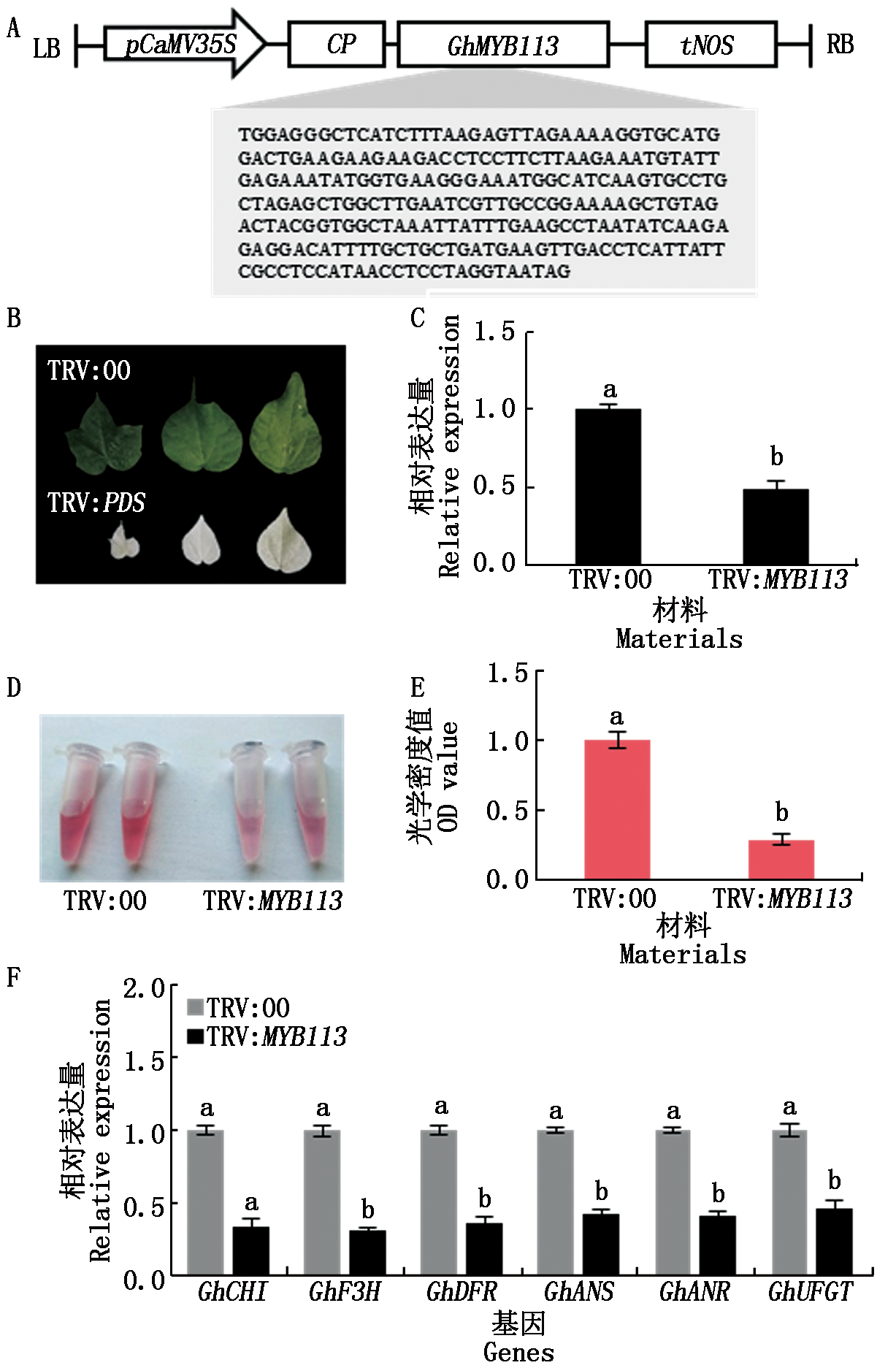

Fig.3 GhMYB113 regulates anthocyanin synthesis A.Construction of the GhMYB113-TRV silencing vector;B.Representative diagram of TRV:PDS plants;C.Relative expression of GhMYB113 in silenced plants;D,E.Anthocyanin accumulation in GhMYB113-silenced and control plants;F.The expression levels of anthocyanin synthesis pathway genes.

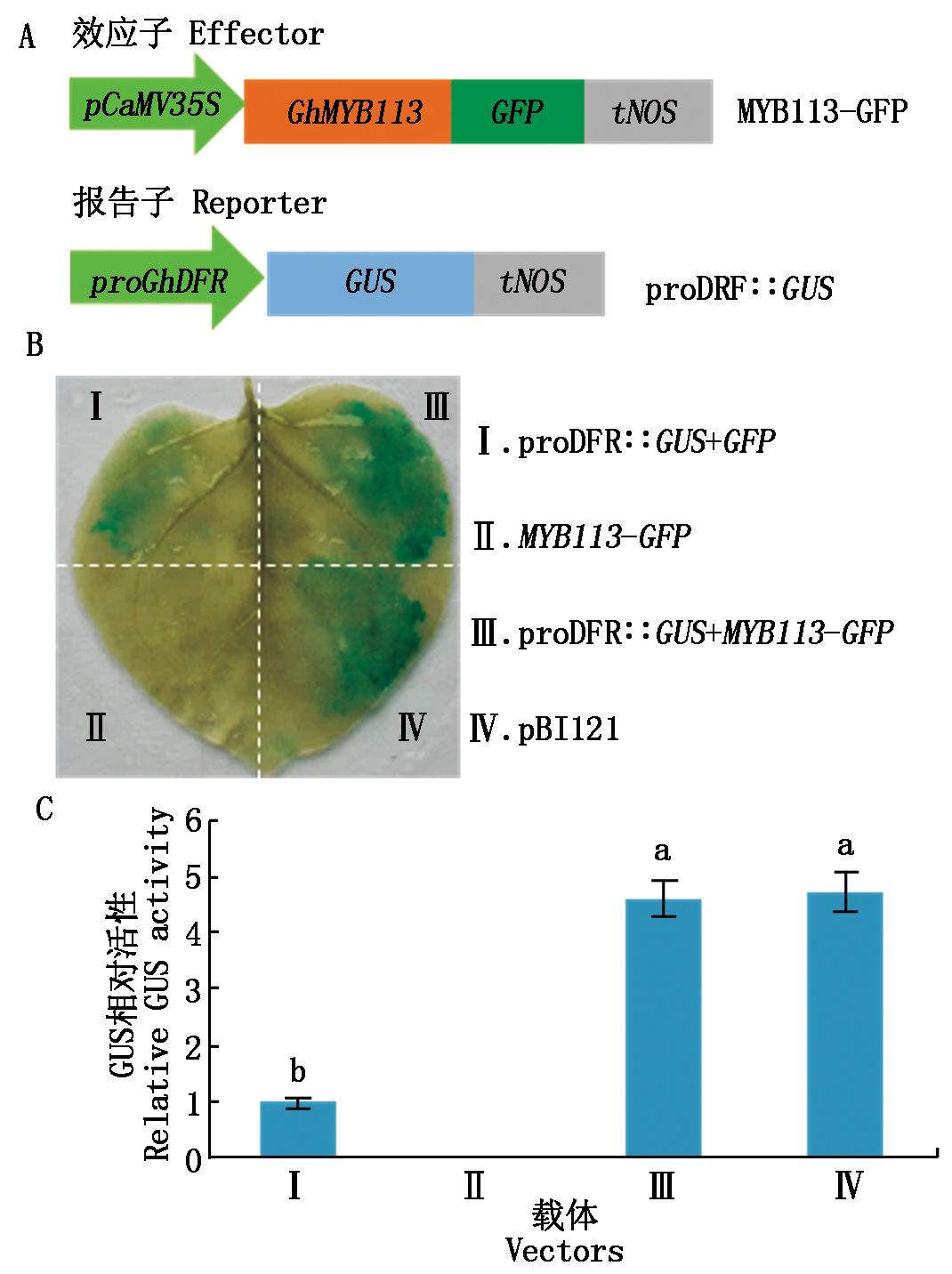

Fig.4 GhMYB113 promotes GhDFR transcriptional expression A.Diagram illustrating the construction of effector and reporter vectors;B.GUS staining in tobacco leaves;C.Enzyme activity assays in tobacco leaves.

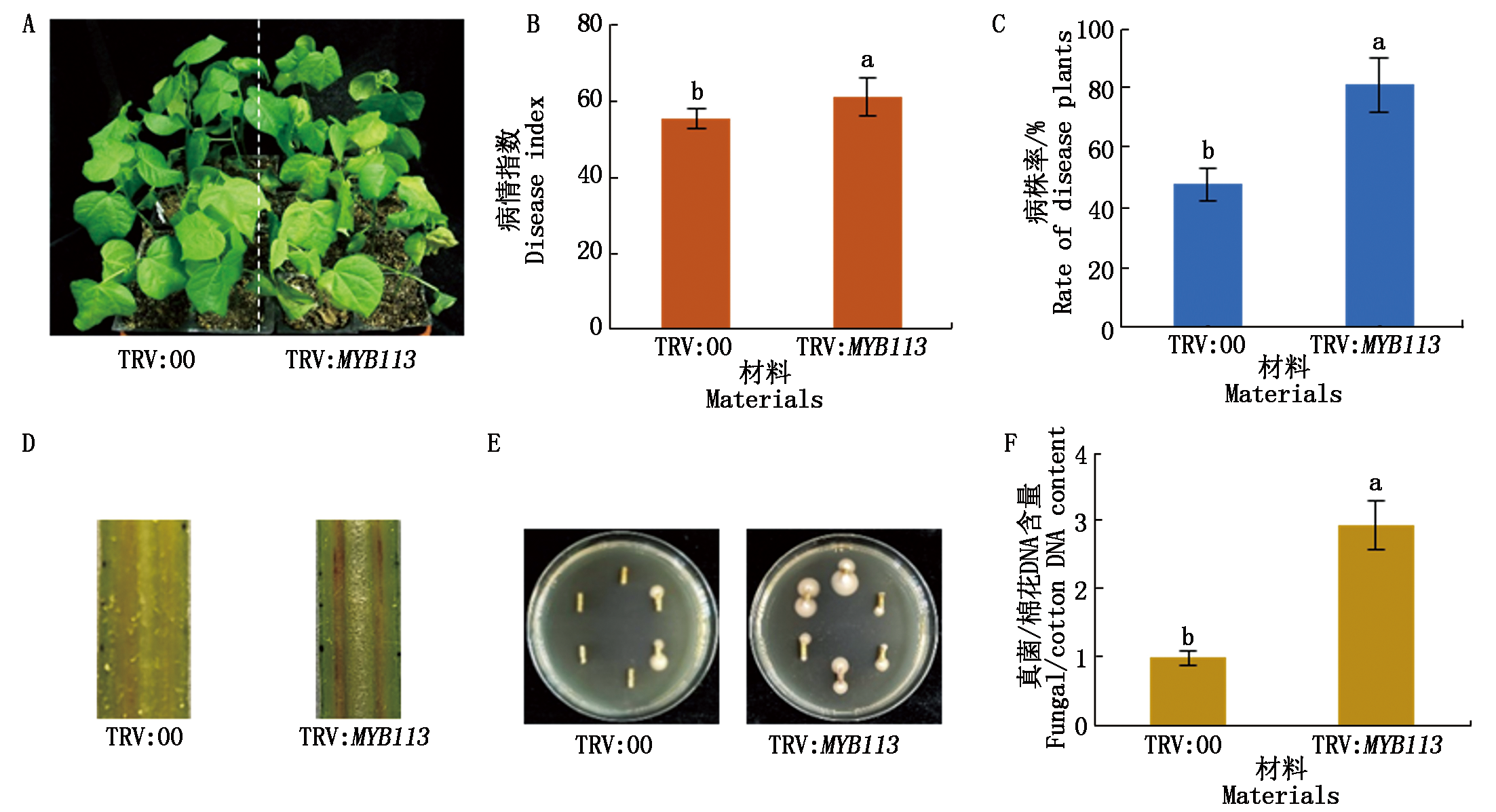

Fig.5 Resistance analysis of GhMYB113-silenced plants to Verticillium wilt A.Representative images of disease symptoms on GhMYB113-silenced and control plants inoculated with V.dahliae;B,C.Disease index(DI)and the rate of diseased plants of GhMYB113-silencing and control plants;D.Representative images of the longitudinal sections of cotton stems infested with V.dahliae;E.Fungal recovery assay;F.Fungal biomass was quantified as the ratio of V.dahlia TUB1 gene to cotton ACT7 gene DNA levels.

References 25

[1]	刘海洋, 王伟, 张仁福, 姚举. 北疆棉花黄萎病发病率调查及土壤中黄萎病菌微菌核数量与种群类型分析[J]. 植物保护, 2023, 49(4):276-283,292.doi:10.16688/j.zwbh.2022318.
	Liu H Y, Wang W, Zhang R F, Yao J. Investigation on the incidence rate of Verticillium wilt of microsclerotia and the population type of Verticillium dahliae in soil of Northern Xinjiang[J]. Plant Protection, 2023, 49(4):276-283,292.
[2]	Umer M J, Zheng J, Yang M Y, Batool R, Ali Abro A, Hou Y Q, Xu Y C, Gebremeskel H, Wang Y H, Zhou Z L, Cai X Y, Liu F, Zhang B H. Insights to Gossypium defense response against Verticillium dahliae:the cotton cancer[J]. Functional & Integrative Genomics, 2023, 23(2):142.doi:10.1007/s10142-023-01065-5.
[3]	Billah M, Li F G, Yang Z E. Regulatory network of cotton genes in response to salt,drought and wilt diseases(Verticillium and Fusarium):progress and perspective[J]. Frontiers in Plant Science, 2021, 12:759245.doi:10.3389/fpls.2021.759245. URL
[4]	Wu Y, Wen J, Xia Y P, Zhang L S, Du H. Evolution and functional diversification of R2R3-MYB transcription factors in plants[J]. Horticulture Research, 2022,9:uhac058.doi:10.1093/hr/uhac058.
[5]	Stracke R, Werber M, Weisshaar B. The R2R3-MYB gene family in Arabidopsis thaliana[J]. Current Opinion in Plant Biology, 2001, 4(5):447-456.doi:10.1016/S1369-5266(00)00199-0. pmid: 11597504
[6]	Zhang S J, Chen J, Jiang T, Wang H T, Cai X, Liu C J, Tang L Y, Li X H, Sun Y Q, Zhang J H. MYB regulation of GST/GT mediates red petal spot development in cotton[J]. The Crop Journal, 2025, 13(3):850-859.doi:10.1016/j.cj.2025.03.015. URL
[7]	Dubos C, Stracke R, Grotewold E, Weisshaar B, Martin C, Lepiniec L. MYB transcription factors in Arabidopsis[J]. Trends in Plant Science, 2010, 15(10):573-581.doi:10.1016/j.tplants.2010.06.005. URL
[8]	Yuan Y, Li X, Yao X, Fu X H, Cheng J, Shan H Y, Yin X F, Kong H Z. Mechanisms underlying the formation of complex color patterns on Nigella orientalis(Ranunculaceae)petals[J]. New Phytologist, 2023, 237(6):2450-2466.doi:10.1111/nph.18681. URL
[9]	Liu Y H, Kui L W, Espley R V, Wang L, Yang H Y, Yu B, Dare A, Varkonyi-Gasic E, Wang J, Zhang J L, Wang D, Allan A C. Functional diversification of the potato R2R3 MYB anthocyanin activators AN1,MYBA1,and MYB113 and their interaction with basic helix-loop-helix cofactors[J]. Journal of Experimental Botany, 2016, 67(8):2159-2176.doi:10.1093/jxb/erw014. URL
[10]	Zhu L H, Liao Y W, Lin K, Wu W F, Duan L J, Wang P, Xiao X, Zhang T T, Chen X, Wang J Z, Ye K Q, Hu H, Xu Z F, Ni J. Cytokinin promotes anthocyanin biosynthesis via regulating sugar accumulation and MYB113 expression in Eucalyptus[J]. Tree Physiology, 2024,44:tpad154.doi:10.1093/treephys/tpad154.
[11]	Zhang D W, Zhou H F, Zhou D G, Wu J F, Liu L L, Guo Y M, Wang T H, Tan C, Chen D Z, Ge X H, Yan M L. The introgression of BjMYB113 from Brassica juncea leads to purple leaf trait in Brassica napus[J]. BMC Plant Biology, 2024, 24(1):735.doi:10.1186/s12870-024-05418-5.
[12]	Wang N, Zhang B B, Yao T, Shen C, Wen T W, Zhang R T, Li Y X, Le Y, Li Z H, Zhang X L, Lin Z X. Re enhances anthocyanin and proanthocyanidin accumulation to produce red foliated cotton and brown fiber[J]. Plant Physiology, 2022, 189(3):1466-1481.doi:10.1093/plphys/kiac118. pmid: 35289870
[13]	王雅琴, 石淼, 张新宇, 刘永昌, 薛飞, 孙杰, 李艳军. 棉花GhMYB113基因的克隆与表达分析[J]. 西北植物学报, 2013, 33(5):878-884.doi:10.3969/j.issn.1000-4025.2013.05.004.
	Wang Y Q, Shi M, Zhang X Y, Liu Y C, Xue F, Sun J, Li Y J. Cloning and expression analysis of GhMYB113 gene in Gossypium hirsutum[J]. Acta Botanica Boreali-Occidentalia Sinica, 2013, 33(5):878-884.
[14]	曾焱明, 胡广, 贾培, 唐叶, 王炳婷, 武盼, 陆承哲, 陈爱民, 彭清忠, 吴家和. 棉花WRKY7基因克隆及其对黄萎病抗性分析[J]. 华北农学报, 2022, 37(6):191-200.doi:10.7668/hbnxb.20193069.
	Zeng Y M, Hu G, Jia P, Tang Y, Wang B T, Wu P, Lu C Z, Chen A M, Peng Q Z, Wu J H. Cotton WRKY7 cloning and analysis of plant resistance to Verticillium wilt[J]. Acta Agriculturae Boreali-Sinica, 2022, 37(6):191-200.
[15]	Hu G, Hao M Y, Wang L, Liu J F, Zhang Z N, Tang Y, Peng Q Z, Yang Z R, Wu J H. The cotton miR477-CBP60A module participates in plant defense against Verticillium dahlia[J]. Molecular Plant-Microbe Interactions, 2020, 33(4):624-636.doi:10.1094/MPMI-10-19-0302-R. URL
[16]	Hu G, Wang B T, Jia P, Wu P, Lu C Z, Xu Y J, Shi L F, Zhang F Y, Zhong N Q, Chen A M, Wu J H. The cotton miR530-SAP6 module activated by systemic acquired resistance mediates plant defense against Verticillium dahliae[J]. Plant Science, 2023, 330:111647.doi:10.1016/j.plantsci.2023.111647. URL
[17]	Bai Q X, Duan B B, Ma J C, Fen Y N, Sun S J, Long Q M, Lyu J J, Wan D S. Coexpression of PalbHLH1 and PalMYB90 genes from Populus alba enhances pathogen resistance in poplar by increasing the flavonoid content[J]. Frontiers in Plant Science, 2020, 10:1772.doi:10.3389/fpls.2019.01772. URL
[18]	Yu D, Wei W, Fan Z Q, Chen J Y, You Y L, Huang W D, Zhan J C. VabHLH137 promotes proanthocyanidin and anthocyanin biosynthesis and enhances resistance to Colletotrichum gloeosporioides in grapevine[J]. Horticulture Research, 2023, 10(2):uhac261.doi:10.1093/hr/uhac261.
[19]	Hu G, Ge X Y, Wang Z A, Wang Y, Wang P, Shi L F, Wang B T, Zhang A H, Li F G, Wu J H. The cotton MYB33 gene is a hub gene regulating the trade-off between plant growth and defense in Verticillium dahliae infection[J]. Journal of Advanced Research, 2024, 61:1-17.doi:10.1016/j.jare.2023.08.017. URL
[20]	Chezem W R, Memon A, Li F S, Weng J K, Clay N K. SG2-type R2R3-MYB transcription factor MYB15 controls defense-induced lignification and basal immunity in Arabidopsis[J]. The Plant Cell, 2017, 29(8):1907-1926.doi:10.1105/tpc.16.00954. URL
[21]	Gao L J, Liu X P, Gao K K, Cui M Q, Zhu H H, Li G X, Yan J Y, Wu Y R, Ding Z J, Chen X W, Ma J F, Harberd N P, Zheng S J. ART1 and putrescine contribute to rice aluminum resistance via OsMYB30 in cell wall modification[J]. Journal of Integrative Plant Biology, 2023, 65(4):934-949.doi:10.1111/jipb.13429. URL
[22]	Yin Z Y, Liu J Z, Zhao H P, Chu X M, Liu H Q, Ding X Y, Lu C C, Wang X Y, Zhao X Y, Li Y, Ding X H. SlMYB1 regulates the accumulation of lycopene,fruit shape,and resistance to Botrytis cinerea in tomato[J]. Horticulture Research, 2023, 10(2):uhac282.doi:10.1093/hr/uhac282.
[23]	Liu T L, Chen T Z, Kan J L, Yao Y, Guo D S, Yang Y W, Ling X T, Wang J Y, Zhang B L. The GhMYB36 transcription factor confers resistance to biotic and abiotic stress by enhancing PR1 gene expression in plants[J]. Plant Biotechnology Journal, 2022, 20(4):722-735.doi:10.1111/pbi.13751. URL
[24]	Hu Z W, Zhong X, Zhang H R, Luo X C, Wang Y X, Wang Y, Liu T, Zhang Y, Wang X P, An H L, Xu D, Wan P, Yang Y Z, Zhang J M. GhMYB18 confers Aphis gossypii Glover resistance through regulating the synthesis of salicylic acid and flavonoids in cotton plants[J]. Plant Cell Reports, 2023, 42(2):355-369.doi:10.1007/s00299-022-02961-z.
[25]	Zhu Y T, Hu X Q, Wang P, Wang H W, Ge X Y, Li F G, Hou Y X. GhODO1,an R2R3-type MYB transcription factor,positively regulates cotton resistance to Verticillium dahliae via the lignin biosynthesis and jasmonic acid signaling pathway[J]. International Journal of Biological Macromolecules, 2022, 201:580-591.doi:10.1016/j.ijbiomac.2022.01.120. URL
