Cloning and Expression Characteristic Analysis of PlSPL1 Gene in Paeonia lactiflora Pall.

doi:10.7668/hbnxb.20194773

Abstract

Abstract:

To investigate the nature and function of PlSPL1 (SPL)gene of Paeonia lactiflora,further elucidate the commonalities and characteristic differences of the PlSPL1 gene in different species,and explore the role of PlSPL1 in the degree of stem straightening in Paeonia lactiflora. The full-length sequence of the PlSPL1 gene was obtained by RACE technology using the stalk of herbaceous peony Hongfeng as the research material,and the structural,physicochemical properties,and phylogenetic relationships of PlSPL1 were analyzed and predicted using bioinformatics software,then,the expression level of PlSPL1 in different developmental stages of herbaceous peony stems was analyzed using qRT-PCR technology,and subcellular localization analysis of the protein was conducted using laser confocal microscopy technology.The results showed that the open reading frame of the PlSPL1 gene was 3 000 bp,encoding 999 amino acids.The protein had a molecular formula of C₄₈₆₉H₇₆₈₂N₁₄₀₆O₁₄₉₇S₄₃,a molecular weight of 111.25 ku,a theoretical isoelectric point of 6.26,encoding a hydrophilic unstable acidic protein,phosphorylation modification predominantly on serine,no signal peptide,with transmembrane structure,and had a secondary structure consisting mainly of random coil.Phylogenetic tree analysis revealed that the PlSPL1 protein was most closely related to peony,followed by a closer relationship with grape;protein sequence comparison analysis revealed that the PlSPL1 protein had a conserved SBP domain which was unique to SPL transcription factor family.The relative expression analysis found that PlSPL1 gradually showed a decreasing trend with stem development,indicating that PlSPL1 was negatively regulating the stem development of herbaceous peony and it was hypothesised that PlSPL1 played important roles in degree of stem straightness;and the subcellular localisation showed that the PlSPL1 protein was localised in the nucleus.The above results indicate that PlSPL1 is participated in the stalk development of herbaceous peony.

Key words: Paeonia lactiflora Pall., SPL, Gene cloning, Expression pattern, Subcellular location

XU Huajie, LU Lili, TANG Yuhan, ZHAO Daqiu, MENG Jiasong, TAO Jun. Cloning and Expression Characteristic Analysis of PlSPL1 Gene in Paeonia lactiflora Pall.[J]. Acta Agriculturae Boreali-Sinica, 2024, 39(2): 55-61. doi: 10.7668/hbnxb.20194773.

/ / Recommend / Download Citations

URL: http://www.hbnxb.net/EN/10.7668/hbnxb.20194773

http://www.hbnxb.net/EN/Y2024/V39/I2/55

Figures/Tables 10

Fig.1 Detection of PCR amplification product of PlSPL1 gene in herbaceous peony DNA Marker 5000;1.PCR product.

Fig.2 Phylogenetic tree constructed based on amino acid sequences of PlSPL1 and Arabidopsis thaliana AtSPL1 encoded protein

Fig.3 Analysis of PlSPL1 protein phosphorylation sites

Fig.4 Signal peptide prediction of PlSPL1 protein in herbaceous peony

Fig.5 Transmembrane structure prediction of PlSPL1 protein in herbaceous peony

Fig.6 Prediction of secondary structure of PlSPL1 protein

Fig.7 Phylogenetic tree analysis of SPL proteins in 12 plants including herbaceous peony

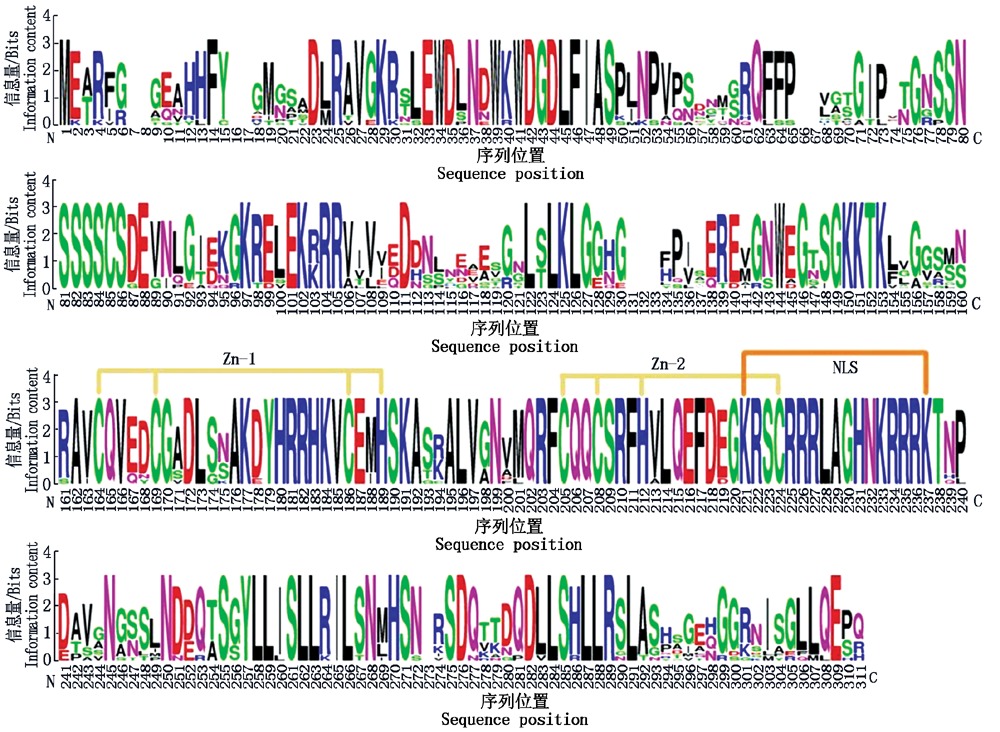

Fig.8 Analysis of conserved sequence of SPL protein in 12 plants including herbaceous peony

Fig.9 Expression pattern of PlSPL1 at different developmental stages of the stem Different lowercase letters indicate significant differences(P<0.05).

Fig.10 Subcellular localization of PlSPL1 protein in tobacco epidermis

References 29

[1]	Zheng W, Shi J, Zhu Z Y, Jin P, Chen J H, Zhang L, Zhang E, Lin T, Zhu Z J, Zang Y X, Wu J G. Transcriptomic analysis of succulent stem development of Chinese kale(Brassica oleracea var.alboglabra Bailey)and its synthetic allotetraploid via RNA sequencing[J]. Frontiers in Plant Science, 2022,13:1004590.doi:10.3389/fpls.2022.1004590.
[2]	夏星. 芍药花茎木质素特征观察与转录组分析[D]. 扬州: 扬州大学, 2019.doi:10.27441/d.cnki.gyzdu.2019.000965.
	Xia X. Lignin characteristic observation and transcriptome analysis of P. lactiflora inflorsecence stem[D]. Yangzhou: Yangzhou University,2019.
[3]	Liu X J, Wu C Y, Su D D, Yang Y, Xian Z Q, Yu C Y, Li Z G, Hao Y W, Chen R Y. The SlHB8 acts as a negative regulator in stem development and lignin biosynthesis[J]. International Journal of Molecular Sciences, 2021, 22(24):13343.doi:10.3390/ijms222413343. URL
[4]	Tang Y H, Lu L L, Sheng Z P, Zhao D Q, Tao J. An R2R3-MYB network modulates stem strength by regulating lignin biosynthesis and secondary cell wall thickening in herbaceous peony[J]. The Plant Journal, 2023, 113(6):1237-1258.doi:10.1111/tpj.16107. URL
[5]	Zhong R Q, Lee C H, Ye Z H. Global analysis of direct targets of secondary wall NAC master switches in Arabidopsis[J]. Molecular Plant, 2010, 3(6):1087-1103.doi:10.1093/mp/ssq062. URL
[6]	冉书瑶. 甘蓝型油菜BnaA9.NST3调控木质部发育及开花的功能研究[D]. 重庆: 西南大学, 2022.doi:10.27684/d.cnki.gxndx.2022.004433.
	Ran S Y. Functional study on the regulation of xylem development and flowering by BnaA9.NST3 in Brassica napus[D]. Chongqing: Southwest University, 2022.
[7]	Huijser P, Klein J, Lönnig W E, Meijer H, Saedler H, Sommer H. Bracteomania,an inflorescence anomaly,is caused by the loss of function of the MADS-box gene SQUAMOSA in Antirrhinum majus[J]. The EMBO Journal, 1992, 11(4):1239-1249.doi:10.1002/j.1460-2075.1992.tb05168.x.
[8]	Cardon G, Höhmann S, Klein J, Nettesheim K, Saedler H, Huijser P. Molecular characterisation of the Arabidopsis SBP-box genes[J]. Gene, 1999, 237(1):91-104.doi:10.1016/s0378-1119(99)00308-x. pmid: 10524240
[9]	Xie K B, Wu C Q, Xiong L Z. Genomic organization,differential expression,and interaction of SQUAMOSA promoter-binding-like transcription factors and microRNA156 in rice[J]. Plant Physiology, 2006, 142(1):280-293.doi:10.1104/pp.106.084475. URL
[10]	Yang Z F, Wang X F, Gu S L, Hu Z Q, Xu H, Xu C W. Comparative study of SBP-box gene family in Arabidopsis and rice[J]. Gene, 2008, 407(1/2):1-11.doi:10.1016/j.gene.2007.02.034. URL
[11]	Cheng H T, Hao M Y, Wang W X, Mei D S, Tong C B, Wang H, Liu J, Fu L, Hu Q. Genomic identification,characterization and differential expression analysis of SBP-box gene family in Brassica napus[J]. BMC Plant Biology, 2016, 16(1):196.doi:10.1186/s12870-016-0852-y. URL
[12]	Hou H M, Li J, Gao M, Singer S D, Wang H, Mao L Y, Fei Z J, Wang X P. Genomic organization,phylogenetic comparison and differential expression of the SBP-box family genes in grape[J]. PLoS One, 2013, 8(3):e59358.doi:10.1371/journal.pone.0059358. URL
[13]	Jiao Y Q, Wang Y H, Xue D W, Wang J, Yan M X, Liu G F, Dong G J, Zeng D L, Lu Z F, Zhu X D, Qian Q, Li J Y. Regulation of OsSPL14 by OsmiR156 defines ideal plant architecture in rice[J]. Nature Genetics, 2010, 42(6):541-544.doi:10.1038/ng.591. pmid: 20495565
[14]	Miura K, Ikeda M, Matsubara A, Song X J, Ito M, Asano K, Matsuoka M, Kitano H, Ashikari M. OsSPL14 promotes panicle branching and higher grain productivity in rice[J]. Nature Genetics, 2010, 42(6):545-549.doi:10.1038/ng.592. pmid: 20495564
[15]	张铁怀. 小麦株型调控基因 TaIPA1 的克隆与其功能的初步研究[D]. 咸阳: 西北农林科技大学, 2015.
	Zhang T H. Cloning and preliminary functional analysis of TaIPA1 gene regulating plant architecture in wheat(Triticum aestivum)[D]. Xianyang: Northwest A&F University, 2015.
[16]	Wilkins M R, Gasteiger E, Bairoch A, Sanchez J C, Williams K L, Appel R D, Hochstrasser D F. Protein identification and analysis tools in the ExPASy server[J]. Methods in Molecular Biology, 1999,112:531-552.doi:10.1385/1-59259-584-7:531.
[17]	Blom N, Gammeltoft S, Brunak S. Sequence and structure-based prediction of eukaryotic protein phosphorylation sites[J]. Journal of Molecular Biology, 1999, 294(5):1351-1362.doi:10.1006/jmbi.1999.3310. pmid: 10600390
[18]	Nakai K, Kanehisa M. Expert system for predicting protein localization sites in gram-negative bacteria[J]. Proteins, 1991, 11(2):95-110.doi:10.1002/prot.340110203. pmid: 1946347
[19]	Chou K C, Shen H B. Cell-PLoc:a package of Web servers for predicting subcellular localization of proteins in various organisms[J]. Nature Protocols, 2008, 3(2):153-162.doi:10.1038/nprot.2007.494.
[20]	Geourjon C, Deléage G. SOPMA:significant improvements in protein secondary structure prediction by consensus prediction from multiple alignments[J]. Computer Applications in the Biosciences, 1995, 11(6):681-684.doi:10.1093/bioinformatics/11.6.681. pmid: 8808585
[21]	Kumar S, Stecher G, Tamura K. MEGA7:molecular evolutionary genetics analysis version 7.0 for bigger datasets[J]. Molecular Biology and Evolution, 2016, 33(7):1870-1874.doi:10.1093/molbev/msw054. URL
[22]	Crooks G E, Hon G, Chandonia J M, Brenner S E. WebLogo:a sequence logo generator[J]. Genome Research, 2004, 14(6):1188-1190.doi:10.1101/gr.849004. pmid: 15173120
[23]	Apweiler R, Attwood T K, Bairoch A, Bateman A, Birney E, Biswas M, Bucher P, Cerutti L, Corpet F, Croning M D R, Durbin R, Falquet L, Fleischmann W, Gouzy J, Hermjakob H, Hulo N, Jonassen I, Kahn D, Kanapin A, Karavidopoulou Y, Lopez R, Marx B, Mulder N J, Oinn T M, Pagni M, Servant F, Sigrist C J A, Zdobnov E M. InterPro—an integrated documentation resource for protein families,domains and functional sites[J]. Bioinformatics, 2000, 16(12):1145-1150.doi:10.1093/bioinformatics/16.12.1145. pmid: 11159333
[24]	Lu L L, Tang Y H, Xu H J, Qian Y, Tao J, Zhao D Q. Selection and verification of reliable internal reference genes in stem development of herbaceous peony(Paeonia lactiflora Pall.)[J]. Physiology and Molecular Biology of Plants, 2023, 29(6):773-782.doi:10.1007/s12298-023-01325-5.
[25]	王俊文, 石晶. 枸杞Lb_SPL12基因的克隆及表达分析[J]. 基因组学与应用生物学, 2021, 40(2):766-774.doi:10.13417/j.gab.040.000766.
	Wang J W, Shi J. Cloning and expression analysis of Lb_SPL12 Gene in Lycium barbarum L.[J]. Genomics and Applied Biology, 2021, 40(2):766-774.
[26]	Zhang L L, Huang Y Y, Zheng Y P, Liu X X, Zhou S X, Yang X M, Liu S L, Li Y, Li J L, Zhao S L, Wang H, Ji Y P, Zhang J W, Pu M, Zhao Z X, Fan J, Wang W M. Osa-miR535 targets SQUAMOSA promoter binding protein-like 4 to regulate blast disease resistance in rice[J]. The Plant Journal, 2022, 110(1):166-178.doi:10.1111/tpj.15663. URL
[27]	Cardon G H, Höhmann S, Nettesheim K, Saedler H, Huijser P. Functional analysis of the Arabidopsis thaliana SBP-box gene SPL3:a novel gene involved in the floral transition[J]. The Plant Journal, 1997, 12(2):367-377.doi:10.1046/j.1365-313x.1997.12020367.x.
[28]	Sun Z X, Su C, Yun J X, Jiang Q, Wang L X, Wang Y N, Cao D, Zhao F, Zhao Q S, Zhang M C, Zhou B, Zhang L, Kong F J, Liu B H, Tong Y P, Li X. Genetic improvement of the shoot architecture and yield in soya bean plants via the manipulation of GmmiR156b[J]. Plant Biotechnology Journal, 2019, 17(1):50-62.doi:10.1111/pbi.12946. pmid: 29729214
[29]	Li B B, Zhao Y J, Wang S, Zhang X H, Wang Y W, Shen Y, Yuan Z H. Genome-wide identification,gene cloning,subcellular location and expression analysis of SPL gene family in P.granatum L.[J]. BMC Plant Biology, 2021, 21(1):400.doi:10.1186/s12870-021-03171-7.
