TaMAPK5蛋白的抗体制备及其在小麦与叶锈菌互作过程中的表达特征

doi:10.7668/hbnxb.20194872

摘要/Abstract

摘要：

为了深入探究TaMAPK5在小麦与叶锈菌互作过程中发挥的功能,克隆了TaMAPK5基因的CDS区,构建了原核表达载体pET28a-TaMAPK5,转化到大肠杆菌表达菌株BL21(DE3)中,对目的蛋白诱导表达的异丙基硫代半乳糖苷(IPTG)最佳浓度、诱导时间和诱导温度进行了探索,并通过Ni-NTA亲和层析对目的蛋白进行了纯化,将纯化后的重组蛋白免疫新西兰兔制备TaMAPK5多克隆抗体。结果表明,TaMAPK5的CDS区全长为1 110 bp,TaMAPK5重组蛋白在16 ℃经终浓度为0.050 mmol/L的IPTG诱导48 h效果最好。将该重组蛋白作为抗原免疫新西兰兔,成功制备了可以特异性识别TaMAPK5的多克隆抗体,抗体效价为1∶51 200。Western Blot结果表明,在小麦与叶锈菌不亲和组合中TaMAPK5受叶锈菌侵染诱导表达。成功表达、纯化了TaMAPK5重组蛋白并制备了其多克隆抗体,揭示了TaMAPK5蛋白可能正调控小麦抵抗叶锈菌侵染反应。

关键词: 小麦, TaMAPK5, 原核表达, 蛋白纯化, 多克隆抗体

Abstract:

In order to further explore the function of TaMAPK5 in the interaction between wheat and Puccinia triticina,the CDS region of TaMAPK5 gene was cloned,and the prokaryotic expression vector pET28a-TaMAPK5 was constructed and transformed into E.coli BL21(DE3).The optimal concentration,induction time and induction temperature of isopropyl β-D-thiogalactoside (IPTG) induced expression of the target protein were explored,and the target protein was purified by Ni-NTA affinity chromatography.The purified recombinant protein was used to immunize New Zealand rabbits to prepare TaMAPK5 polyclonal antibody.The results showed that the full length of the CDS region of TaMAPK5 was 1 110 bp,and the TaMAPK5 recombinant protein was induced with IPTG at a final concentration of 0.050 mmol/L and incubated at 16 ℃ for 48 h.The recombinant protein was used as an antigen to immunize New Zealand rabbits,and a polyclonal antibody capable of specifically recognizing TaMAPK5 was successfully prepared.The antibody titer was 1∶51 200.The results of Western Blot showed that TaMAPK5 was induced by P.triticina infection in wheat and P.triticina incompatible combinations.The recombinant protein TaMAPK5 was successfully expressed and purified,and its polyclonal antibody was prepared.It was revealed that TaMAPK5 protein may positively regulate wheat resistance to leaf rust infection.

Key words: Wheat, TaMAPK5, Prokaryotic expression, Protein purification, Polyclonal antibody

邵文先, 王冬梅. TaMAPK5蛋白的抗体制备及其在小麦与叶锈菌互作过程中的表达特征[J]. 华北农学报, 2024, 39(5): 186-192. doi: 10.7668/hbnxb.20194872.

SHAO Wenxian, WANG Dongmei. Antibody Preparation of TaMAPK5 Protein and Its Expression Characteristics in the Interaction Between Wheat and Puccinia triticina[J]. Acta Agriculturae Boreali-Sinica, 2024, 39(5): 186-192. doi: 10.7668/hbnxb.20194872.

http://www.hbnxb.net/CN/Y2024/V39/I5/186

图/表 7

图1 TaMAPK5原核表达载体构建 A.TaMAPK5基因CDS区的扩增:M.DL2000 DNA Marker,1.TaMAPK5原核表达片段;B.双酶切阳性质粒检测:M.DL15000 DNA Marker,1.pET28a-TaMAPK5载体质粒,2.pET28a-TaMAPK5质粒酶切。红色箭头.目的片段。

Fig.1 TaMAPK5 prokaryotic expression vector construction A.Amplification of CDS region of TaMAPK5 gene:M.DL2000 DNA Marker,1.TaMAPK5 prokaryotic expression fragment;B.The detection of digesting positive plasmid:M.DL15000 DNA Marker,1.pET28a-TaMAPK5 vector plasmid,2.pET28a-TaMAPK5 plasmid digest.The red arrow.The target fragment.

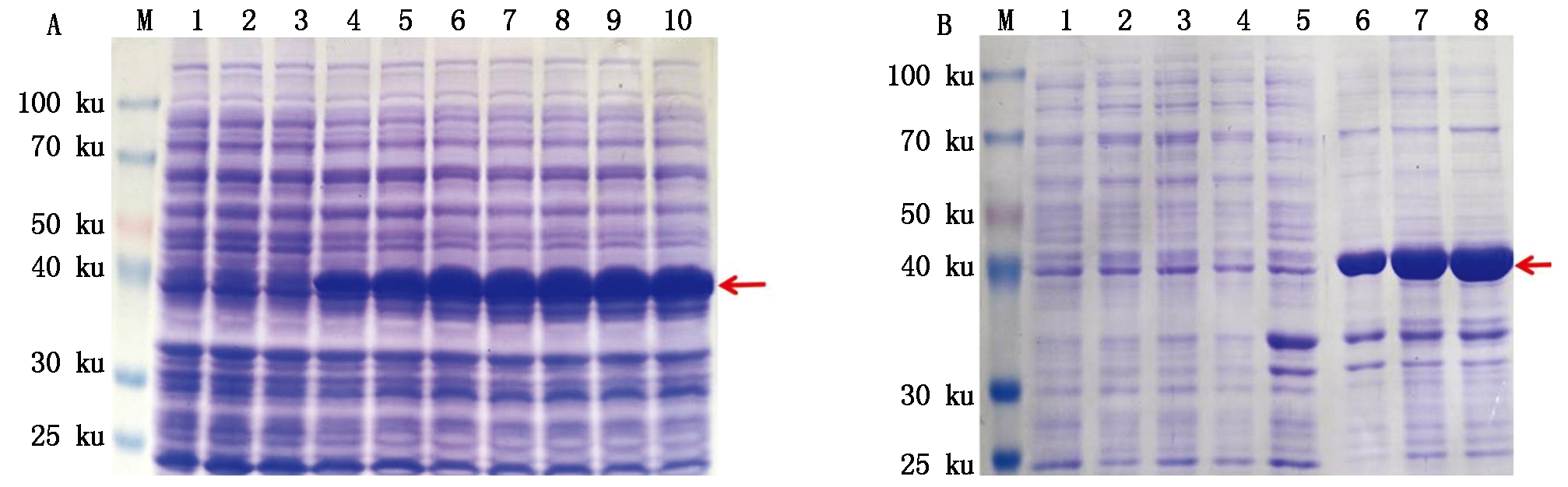

图2 TaMAPK5重组蛋白可溶性表达条件筛选 A.IPTG诱导浓度的筛选:M.蛋白质Marker,1.TaMAPK5未经IPTG诱导的总蛋白,2-10.TaMAPK5经0.001,0.005,0.010,0.025,0.050,0.075,0.100,0.125,0.150 mmol/L的IPTG诱导的总蛋白;B.IPTG诱导温度的筛选,M.蛋白质Marker;1-4.未诱导、16,28,37 ℃诱导的上清,5-8.未诱导、16,28,37 ℃诱导的沉淀。红色箭头.目的蛋白。

Fig.2 Screening of conditions for soluble expression of TaMAPK5 recombinant protein A.Screening of IPTG induction concentration:M.Protein Marker,1.Total protein of TaMAPK5 without IPTG induction,2-10.Total protein of TaMAPK5 induced by 0.001,0.005,0.010,0.025,0.050,0.075,0.100,0.125,0.150 mmol/L IPTG;B.Screening of IPTG induction temperature:M.Protein Marker,1-4.Supernatant of uninduced,16,28,37 ℃-induced,5-8.Precipitate of uninduced,16,28,37 ℃-induced.The red arrow.The target protein.

图3 TaMAPK5纯化后的电泳分析及Western Blot检验 A.咪唑洗脱浓度的筛选:M.蛋白质Marker,1.上清液,2.流出液,3-8.0,20,50,100,250,500 mmol/L的咪唑洗脱;B.Western Blot检验:M.蛋白质Marker,1.BSA,2.TaMAPK5;红色箭头.TaMAPK5重组蛋白。

Fig.3 Protein electrophoresis analysis and Western Blot test of purified TaMAPK5 A.Screening of imidazole elution concentration:M.Protein Marker,1.Clear supernatant,2.Effluent,3-8.0,20,50,100,250,500 mmol/L imidazole elution;B.Western Blot test:M.Protein Marker,1.BSA,2.TaMAPK5;The red arrow.TaMAPK5 recombinant protein.

图4 SDS-PAGE检测TaMAPK5抗体纯度 M. 蛋白质Marker;1. Anti-TaMAPK5。

Fig.4 SDS-PAGE for TaMAPK5 antibody purity M. Protein Marker;1. Anti-TaMAPK5.

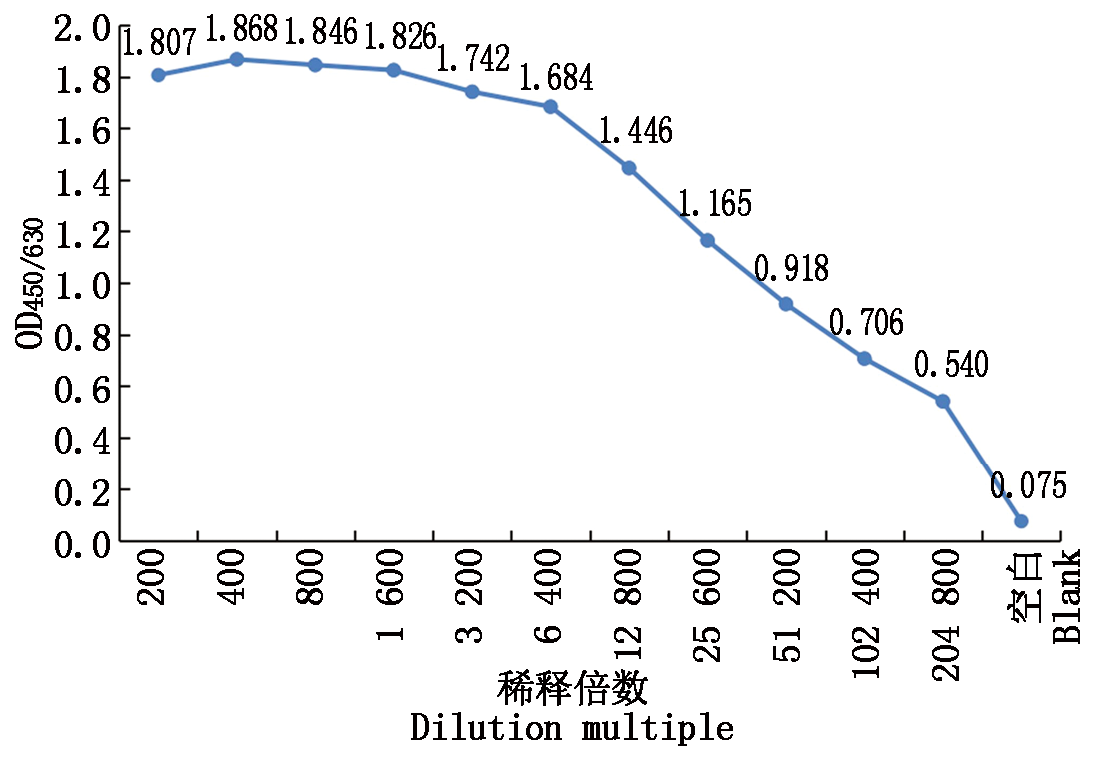

图5 ELISA检测TaMAPK5多克隆抗体效价

Fig.5 ELISA for TaMAPK5 polyclonal antibody potency

图6 TaMAPK5多克隆抗体特异性检测 A.TaMAPK5重组蛋白中Western Blot检测:M.蛋白质Marker,1.TaMAPK5,2.BSA;B.接菌后48 h的TcLr26总蛋白中Western Blot检测:M.蛋白质Marker,1.TcLr26,2.BSA。

Fig.6 Specificity detection of TaMAPK5 polyclonal antibody A.Western Blot detection of TaMAPK5 recombinant protein:M.Protein Marker,1.TaMAPK5,2.BSA;B.Western Blot detection in total protein of TcLr26 at 48 h after inoculation:M.Protein Marker;1.TcLr26,2.BSA.

图7 Western Blot检测接种后不同时间点TaMAPK5蛋白水平的表达

Fig.7 Western Blot was used to detect the expression of TaMAPK5 protein at different time points after inoculation

参考文献 33

[1]	Zhao S Q, Shang X F, Bi W S, Yu X M, Liu D Q, Kang Z S, Wang X J, Wang X D. Genome-wide identification of effector candidates with conserved motifs from the wheat leaf rust fungus Puccinia triticina[J]. Frontiers in Microbiology, 2020, 11:1188.doi:10.3389/fmicb.2020.01188.
[2]	王佳荣, 董瑞, 张梦宇, 高璞, 张培培, 李在峰, 刘大群. 40份CIMMYT小麦品系苗期及成株抗叶锈病基因鉴定[J]. 华北农学报, 2022, 37(2):201-210.doi:10.7668/hbnxb.20192637.
	Wang J R, Dong R, Zhang M Y, Gao P, Zhang P P, Li Z F, Liu D Q. Identification of leaf rust resistance genes in 40 CIMMYT wheat lines at seedling stage and adult plant[J]. Acta Agriculturae Boreali-Sinica, 2022, 37(2):201-210. doi: 10.7668/hbnxb.20192637
[3]	Pitzschke A, Schikora A, Hirt H. MAPK cascade signalling networks in plant defence[J]. Current Opinion in Plant Biology, 2009, 12(4):421-426.doi:10.1016/j.pbi.2009.06.008. pmid: 19608449
[4]	Kumar K, Wankhede D P, Sinha A K. Signal convergence through the lenses of MAP kinases:paradigms of stress and hormone signaling in plants[J]. Frontiers in Biology, 2013, 8(1):109-118.doi:10.1007/s11515-012-1207-1.
[5]	Thulasi Devendrakumar K, Li X, Zhang Y L. MAP kinase signalling:interplays between plant PAMP-and effector-triggered immunity[J]. Cellular and Molecular Life Sciences, 2018, 75(16):2981-2989.doi:10.1007/s00018-018-2839-3. pmid: 29789867
[6]	Šamajová O, Komis G, Šamaj J. Emerging topics in the cell biology of mitogen-activated protein kinases[J]. Trends in Plant Science, 2013, 18(3):140-148.doi:10.1016/j.tplants.2012.11.004. pmid: 23291243
[7]	Zhou J G, Wang X Y, He Y X, Sang T, Wang P C, Dai S J, Zhang S Q, Meng X Z. Differential phosphorylation of the transcription factor WRKY33 by the protein kinases CPK5/CPK6 and MPK3/MPK6 cooperatively regulates camalexin biosynthesis in Arabidopsis[J]. The Plant Cell, 2020, 32(8):2621-2638.doi:10.1105/tpc.19.00971.
[8]	He X W, Wang C Z, Wang H B, Li L G, Wang C. The function of MAPK cascades in response to various stresses in horticultural plants[J]. Frontiers in Plant Science, 2020, 11:952.doi:10.3389/fpls.2020.00952. pmid: 32849671
[9]	Zhang M M, Su J B, Zhang Y, Xu J, Zhang S Q. Conveying endogenous and exogenous signals:MAPK cascades in plant growth and defense[J]. Current Opinion in Plant Biology, 2018, 45(PtA):1-10.doi:10.1016/j.pbi.2018.04.012.
[10]	Zhang W, Cochet F, Ponnaiah M, Lebreton S, Matheron L, Pionneau C, Boudsocq M, Resentini F, Huguet S, Blázquez M Á, Bailly C, Puyaubert J, Baudouin E. The MPK8-TCP14 pathway promotes seed germination in Arabidopsis[J]. The Plant Journal, 2019, 100(4):677-692.doi:10.1111/tpj.14461. pmid: 31325184
[11]	Chen L F, Yang D D, Zhang Y W, Wu L M, Zhang Y Y, Ye L, Pan C T, He Y J, Huang L, Ruan Y L, Lu G. Evidence for a specific and critical role of mitogen-activated protein kinase 20 in uni-to-binucleate transition of microgametogenesis in tomato[J]. New Phytologist, 2018, 219(1):176-194.doi:10.1111/nph.15150. pmid: 29668051
[12]	Lü B S, Wei K J, Hu K Q, Tian T, Zhang F, Yu Z P, Zhang D J, Su Y H, Sang Y L, Zhang X S, Ding Z J. MPK14-mediated auxin signaling controls lateral root development via ERF13-regulated very-long-chain fatty acid biosynthesis[J]. Molecular Plant, 2021, 14(2):285-297.doi:10.1016/j.molp.2020.11.011. pmid: 33221411
[13]	Yu M M, Wang R, Xia J Q, Li C, Xu Q H, Cang J, Wang Y Y, Zhang D. JA-induced TaMPK6 enhanced the freeze tolerance of Arabidopsis thaliana through regulation of ICE-CBF-COR module and antioxidant enzyme system[J]. Plant Science, 2023, 329:111621.doi:10.1016/j.plantsci.2023.111621.
[14]	Liu Y, Yu T F, Li Y T, Zheng L, Lu Z W, Zhou Y B, Chen J, Chen M, Zhang J P, Sun G Z, Cao X Y, Liu Y W, Ma Y Z, Xu Z S. Mitogen-activated protein kinase TaMPK3 suppresses ABA response by destabilising TaPYL4 receptor in wheat[J]. New Phytologist, 2022, 236(1):114-131.doi:10.1111/nph.18326.
[15]	Zhang Z Y, Li J H, Li F, Liu H H, Yang W S, Chong K, Xu Y Y. OsMAPK3 phosphorylates OsbHLH002/OsICE1 and inhibits its ubiquitination to activate OsTPP1 and enhances rice chilling tolerance[J]. Developmental Cell, 2017, 43(6):731-743.e5.doi:10.1016/j.devcel.2017.11.016. pmid: 29257952
[16]	Ding H D, He J, Wu Y, Wu X X, Ge C L, Wang Y J, Zhong S L, Peiter E, Liang J S, Xu W F. The tomato mitogen-activated protein kinase SlMPK1 is as a negative regulator of the high-temperature stress response[J]. Plant Physiology, 2018, 177(2):633-651.doi:10.1104/pp.18.00067. pmid: 29678861
[17]	Basheer J, Vadovič P, Šamajová O, Melicher P, Komis G, Kǐenek P, Králová M, Pechan T, Ovečka M, Takáč T, Šamaj J. Knockout of mitogen-activated protein kinase 3 causes barley root resistance against Fusarium graminearum[J]. Plant Physiology, 2022, 190(4):2847-2867.doi:10.1093/plphys/kiac389. pmid: 35993881
[18]	Wang B, Song N, Zhang Q, Wang N, Kang Z S. TaMAPK4 acts as a positive regulator in defense of wheat stripe-rust infection[J]. Frontiers in Plant Science, 2018, 9:152.doi:10.3389/fpls.2018.00152. pmid: 29527215
[19]	Zhang Y T, Long Y, Liu Y T, Yang M, Wang L X, Liu X Y, Zhang Y, Chen Q, Li M Y, Lin Y X, Tang H R, Luo Y. MAPK5 and MAPK10 overexpression influences strawberry fruit ripening,antioxidant capacity and resistance to Botrytis cinerea[J]. Planta, 2021, 255(1):19.doi:10.1007/s00425-021-03804-z.
[20]	An J, Nguyen X C, Kim S H, Bahk S, Kang H, Le Anh Pham M, Park J, Ramadany Z, Kim S H, Park H C, Chung W S. Kaempferol promotes bacterial pathogen resistance through the activation of NPR1 by both SA and MPK signaling pathways in Arabidopsis[J]. Plant Biotechnology Reports, 2022, 16(6):655-663.doi:10.1007/s11816-022-00806-5.
[21]	Shi H, Li Q Y, Luo M Y, Yan H J, Xie B, Li X, Zhong G T, Chen D S, Tang D Z. BRASSINOSTEROID-SIGNALING KINASE1 modulates MAP KINASE15 phosphorylation to confer powdery mildew resistance in Arabidopsis[J]. The Plant Cell, 2022, 34(5):1768-1783.doi:10.1093/plcell/koac027.
[22]	刘超, 孙天杰, 刘娜, 陈琰, 王冬梅. 小麦TaTLP8的抗体制备及其蛋白水平表达分析[J]. 华北农学报, 2023, 38(3):35-41.doi:10.7668/hbnxb.20193736.
	Liu C, Sun T J, Liu N, Chen Y, Wang D M. Antibody preparation and protein expression analysis of TaTLP8 in wheat[J]. Acta Agriculturae Boreali-Sinica, 2023, 38(3):35-41. doi: 10.7668/hbnxb.20193736
[23]	麻楠, 孙天杰, 刘超, 焦园园, 王冬梅. 小麦TaTCTP蛋白的原核表达及抗体制备[J]. 河北农业大学学报, 2020, 43(4):10-15,29.doi:10.13320/j.cnki.jauh.2020.0066.
	Ma N, Sun T J, Liu C, Jiao Y Y, Wang D M. Prokaryotic expression and antibody preparation of wheat TaTCTP protein[J]. Journal of Hebei Agricultural University, 2020, 43(4):10-15,29.
[24]	李浩, 汪敏, 张敬敬, 顾佳, 王冬梅. TaCDPK6在小麦与叶锈菌互作过程中的表达模式分析[J]. 河北农业大学学报, 2021, 44(4):1-6.doi:10.13320/j.cnki.jauh.2021.0058.
	Li H, Wang M, Zhang J J, Gu J, Wang D M. Expression analysis of TaCDPK6 in the interaction between wheat and Puccinia triticina[J]. Journal of Hebei Agricultural University, 2021, 44(4):1-6.
[25]	刘娜, 周洲. 衣原体致病机制的研究策略及挑战[J]. 中国人兽共患病学报, 2019, 35(6):552-557,562.doi:10.3969/j.issn.1002-2694.2019.00.057.
	Liu N, Zhou Z. Challenges and research strategies for the pathogenesis of Chlamydia[J]. Chinese Journal of Zoonoses, 2019, 35(6):552-557,562.
[26]	Esposito D, Chatterjee D K. Enhancement of soluble protein expression through the use of fusion tags[J]. Current Opinion in Biotechnology, 2006, 17(4):353-358.doi:10.1016/j.copbio.2006.06.003. pmid: 16781139
[27]	Waugh D S. Making the most of affinity tags[J]. Trends in Biotechnology, 2005, 23(6):316-320.doi:10.1016/j.tibtech.2005.03.012. pmid: 15922084
[28]	苏鹏, 龚国利. 优化大肠杆菌表达外源蛋白的研究进展[J]. 生物技术通报, 2017, 33(2):16-23.doi:10.13560/j.cnki.biotech.bull.1985.2017.02.003.
	Su P, Gong G L. Research progress on optimizing the expression of exogenous proteins in Escherichia coli[J]. Biotechnology Bulletin, 2017, 33(2):16-23.
[29]	孙健, 孙婷婷, 王旭彤, 邹莉. 黑木耳内切葡聚糖酶基因克隆与原核表达[J]. 吉林农业大学学报, 2019, 41(3):308-315.doi:10.13327/j.jjlau.2019.4587.
	Sun J, Sun T T, Wang X T, Zou L. Cloning and prokaryotic expression of endoglucanase gene in Auricularia auricular-judae[J]. Journal of Jilin Agricultural University, 2019, 41(3):308-315.
[30]	Liu S, Huang C Q, Li D W, Ren W H, Zhang H X, Qi M Y, Li X, Yu L. Molecular cloning and expression analysis of a new gene for short-chain dehydrogenase/reductase 9[J]. Acta Biochimica Polonica, 2007, 54(1):213-218. pmid: 17311113
[31]	陈德鑫, 李雯雯, 李思斌, 李宁, 郭豪, 龙月, 杨永霞, 贾红昉, 张洪映, 崔红, 张松涛. 烟草NteIF2α的原核表达、纯化及多克隆抗体制备和应用[J]. 农业生物技术学报, 2017, 25(1):50-57.doi:10.3969/j.issn.1674-7968.2017.01.006.
	Chen D X, Li W W, Li S B, Li N, Guo H, Long Y, Yang Y X, Jia H F, Zhang H Y, Cui H, Zhang S T. Prokaryotic expression,purification of NteIF2α and preparation and application of polyclonal antibody in Nicotiana tabacum[J]. Journal of Agricultural Biotechnology, 2017, 25(1):50-57.
[32]	徐艳红, 田美慧, 吕菲菲, 孙佩文, 魏建和. 白木香AsMAPK3基因的原核表达及其在洋葱表皮瞬时表达体系中的定位研究[J]. 中草药, 2018, 49(9):2133-2139.doi:10.7501/j.issn.0253-2670.2018.09.024.
	Xu Y H, Tian M H, Lü F F, Sun P W, Wei J H. Prokaryotic expression of Aquilaria sinensis AsMAPK3 gene and its localization in transient expression system in onion epidermis[J]. Chinese Traditional and Herbal Drugs, 2018, 49(9):2133-2139.
[33]	潘传燕, 林勇, 冯鹏霏, 张永德, 罗洪林. 尼罗罗非鱼Hsc70的原核表达和多克隆抗体制备[J]. 浙江农业学报, 2019, 31(8):1272-1279.doi:10.3969/j.issn.1004-1524.2019.08.07.
	Pan C Y, Lin Y, Feng P F, Zhang Y D, Luo H L. Prokaryotic expression and polyclonal antibody preparation of Hsc70 in Nile tilapia[J]. Acta Agriculturae Zhejiangensis, 2019, 31(8):1272-1279.
