西方蜜蜂Smo蛋白多克隆抗体的制备及免疫定位

doi:10.7668/hbnxb.20195605

摘要/Abstract

摘要：

Hedgehog(Hh)信号通路在多种生物的生长和发育过程中发挥重要作用,Smoothened(Smo)蛋白作为Hh信号通路的关键受体,是Hh信号转导的核心调控因子。为探究Smo蛋白在蜜蜂体内的功能及其调控机制,并深入解析蜜蜂嗅觉信号转导的分子机制,利用大肠杆菌BL21表达系统表达并纯化了Smo蛋白,并以纯化的Smo蛋白为抗原免疫新西兰白兔,制备了高活性和高特异性的Smo蛋白多克隆抗体。进一步采用免疫荧光技术检测了Smo蛋白在西方蜜蜂触角中的表达定位。结果显示,经大肠杆菌诱导表达后,重组Smo蛋白在83.72 ku处富集出明显目标条带,与预测的分子质量大小一致,表明诱导表达成功;SDS-PAGE分析结果显示,经富集纯化后,获得了高浓度的重组Smo蛋白洗脱液,表明Smo蛋白的纯化效果良好。ELISA检测结果显示,制备的Smo蛋白抗体效价达到1∶364 500,表现出较高的免疫活性。免疫荧光结果显示,Smo蛋白在西方蜜蜂触角中广泛表达,尤其在毛形感器中高表达。研究成功制备了高纯度、高效价且特异性强的Smo蛋白多克隆抗体,并明确了Smo蛋白在西方蜜蜂触角中的表达定位。

关键词: 西方蜜蜂, Smoothened(Smo)蛋白, 多克隆抗体, 免疫荧光, 毛形感器

Abstract:

Hedgehog(Hh)signaling pathway plays an important role in the growth and development of various organisms,and Smoothened(Smo)protein,as a key receptor of Hh signaling pathway,is a core regulator of Hh signal transduction.In order to investigate the function of Smo protein and its regulatory mechanism in honey bees,and to deeply analyze the molecular mechanism of olfactory signal transduction in honey bees,the Smo protein was expressed and purified by using the Escherichia coli BL21 expression system,and the purified Smo protein was used as the antigen to immunize New Zealand white rabbits,and a polyclonal antibody against Smo protein with high activity and specificity was prepared.The expression localization of Smo protein in the antennae of Apis mellifera was further detected by immunofluorescence technique.The results showed that the recombinant Smo protein was enriched at 83.72 ku after induced expression in E.coli,which was consistent with the predicted molecular weight size,indicating that the induced expression was successful;the results of SDS-PAGE analysis showed that,after enrichment and purification,a high concentration of recombinant Smo protein eluate was obtained,indicating that the Smo protein was purified well.The results of ELISA assay showed that the antibody potency of the prepared Smo protein reached 1∶364 500,showing high immunoreactivity.Immunofluorescence showed that Smo protein was widely expressed in the antennae of western honey bees,especially in the hairy sensilla.The polyclonal antibody to Smo protein was successfully prepared with high purity,high potency and specificity,and the localization of Smo protein in the antennae of western honey bees was clarified.

Key words: Apis mellifera, Smoothened(Smo), Polyclonal antibody, Immunofluorescence, Sensillum trichodeum

中图分类号:

Q511抗体蛋白与干扰素蛋白

宋畅, 张宇, 郭丽娜, 郭媛. 西方蜜蜂Smo蛋白多克隆抗体的制备及免疫定位[J]. 华北农学报, 2025, 40(3): 234-238. doi: 10.7668/hbnxb.20195605.

SONG Chang, ZHANG Yu, GUO Lina, GUO Yuan. Preparation of Smo Protein Polyclonal Antibody and Its Immunolocalization in Apis mellifera[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(3): 234-238. doi: 10.7668/hbnxb.20195605.

http://www.hbnxb.net/CN/Y2025/V40/I3/234

图/表 7

表1 酶切及连接反应体系

Tab.1 The digestion and ligation reaction system

反应 Reaction	反应成分 Reactive component	使用量 Dosage
双酶切	PCR产物 / pET-30a(+)	1.0 μg
Double digestion	10×K Buffer	2.0 μL
	Nde Ⅰ	1.0 μL
	Xho Ⅰ	1.0 μL
	0.1% BSA	2.0 μL
	DNase/RNase-free water	补至20.0 μL
连接	目的片段酶切产物	0.1 μg
Ligation	pET-30a(+)酶切产物	0.1 μg
	T₄ DNA连接酶	2.0 μL
	2×Rapid Ligation Buffer	10.0 μL
	DNase/RNase-free water	补至20.0 μL

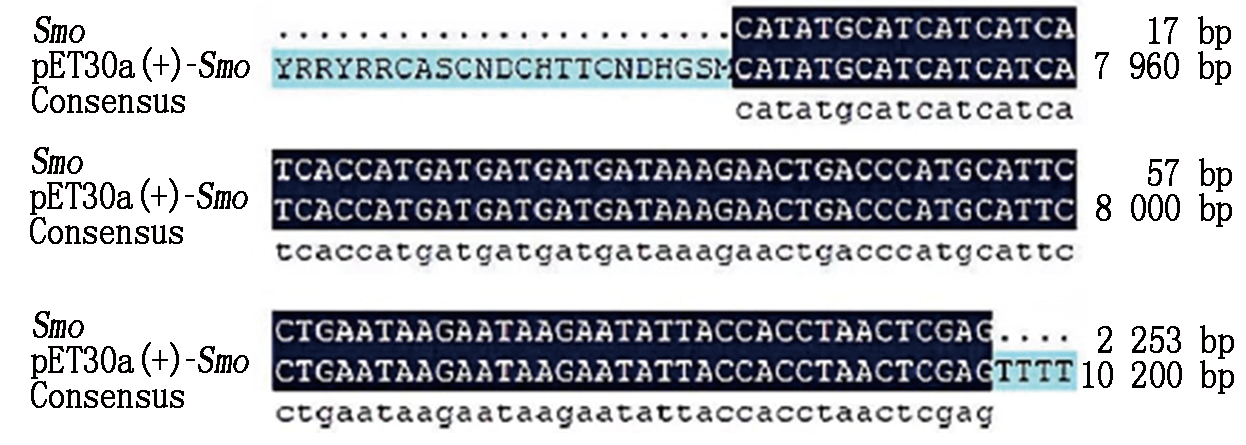

图1 重组表达质粒序列与目的蛋白序列比对结果

Fig.1 Alignment of the recombinant expression plasmid sequence and the target protein sequence

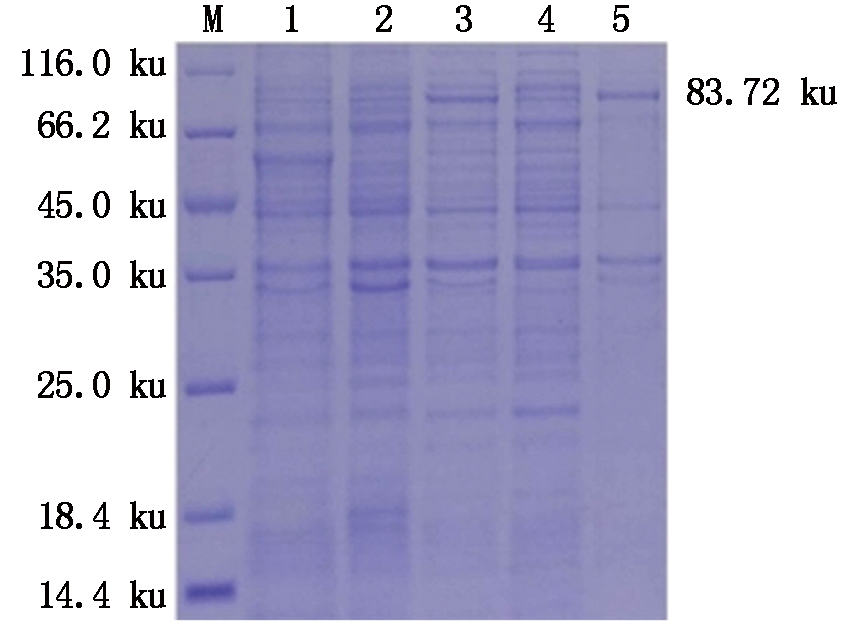

图2 Smo重组蛋白的诱导表达鉴定 M.蛋白Marker;1.pET-30a(+)诱导(载体);2.未诱导;3.诱导后;4.诱导后破碎上清;5.诱导后破碎沉淀。

Fig.2 Identification and induced expression of Smo recombinant protein M.Protein Marker;1.pET-30a(+)induced(vector);2.Uninduced;3.After induction;4.Supernatant after induction and fragmentation;5.Precitation after induction and fragmentation.

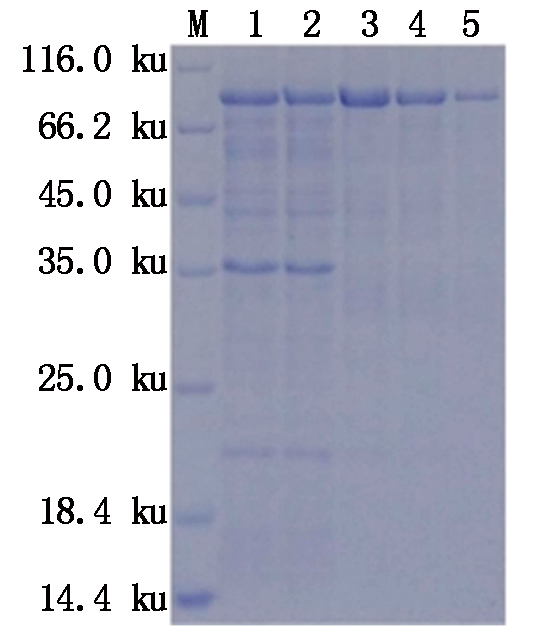

图3 Smo蛋白纯化后的SDS-PAGE电泳分析 M.蛋白质Marker;1.破碎后处理样品;2.流出样品;3—5.洗脱后样品。

Fig.3 SDS-PAGE electrophoretic analysis of Smo protein purification M.Protein Marker;1.Post-crushing treatment sample;2.Effluent;3—5.Eluent.

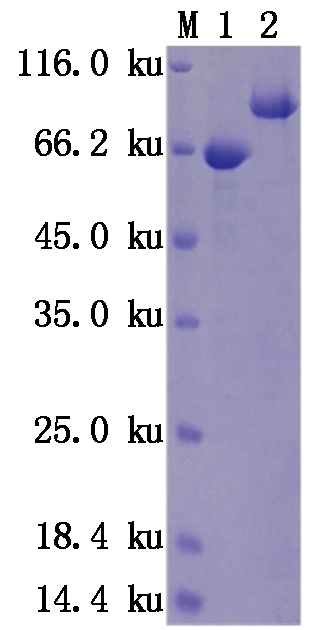

图4 Smo 蛋白质检SDS电泳分析 M.蛋白Marker;1.0.5 mg/mL BSA;2.纯化后的Smo重组蛋白。

Fig.4 Smo protein detection and analysis by SDS electrophoresis M.Protein Marker;1.0.5 mg/mL BSA; 2.Purified smoothened recombinant protein.

表2 抗体的效价检测结果

Tab.2 The result of antibody potency testing

编号 Number	稀释比例 Dilution ratio	Smo纯化抗体 450 nm处OD值 OD value at 450 nm of the purified antibody
1	500	4.000
2	1 500	4.000
3	4 500	3.648
4	13 500	3.648
5	40500	2.369
6	121 500	1.444
7	364 500	0.583
8	1 093 500	0.346
9	3 280 500	0.293
10	9 841 500	0.283
11	29 524 500	0.271
12	空白	0.258

图5 Smo在西方蜜蜂触角组织定位表达分析

Fig.5 Results of Smo expression and localization in the tentacle tissue of A.mellifera

参考文献 22

[1]	冯波, 王霞, 李岩, 杜永均. 视觉和嗅觉信号对果蝇食物搜寻行为的协同作用[J]. 昆虫学报, 2013, 56(7):792-798.doi:10.16380/j.kcxb.2013.07.015.
	Feng B, Wang X, Li Y, Du Y J. Synergistic effect of visual and olfactory cues in the food searching behavior of Drosophila melanogaster[J]. Acta Entomologica Sinica, 2013, 56(7):792-798.
[2]	苗雪霞, 黄勇平. 果蝇求偶行为的影响因素及其分子基础[J]. 昆虫知识, 2008, 45(1):5-14.doi:10.3969/j.issn.0452-8255.2008.01.002.
	Miao X X, Huang Y P. Factors affecting Drosophila courtship behavior and its molecular basis[J]. Chinese Bulletin of Entomology, 2008, 45(1):5-14.
[3]	Baik L S, Talross G J S, Gray S, Pattisam H S, Peterson T N, Nidetz J E, Hol F J H, Carlson J R. Mosquito taste responses to human and floral cues guide biting and feeding[J]. Nature, 2024, 635(8039):639-646.doi:10.1038/s41586-024-08047-y.
[4]	谢翠琴, 聂红毅, 苏松坤. 蜜蜂嗅觉研究进展[J]. 中国蜂业, 2016, 67(7):17-22.doi:10.3969/j.issn.0412-4367.2016.07.003.
	Xie C Q, Nie H Y, Su S K. Advances in research on honey bee olfactory[J]. Apiculture of China, 2016, 67(7):17-22.
[5]	陈沛彤, 鄢茹, 朱国念, 陈梦丽, 郭逸蓉. 蜜蜂气味结合蛋白与外源性化合物互作机制研究进展[J]. 农药学学报, 2024, 26(2):257-265.
	Chen P T, Yan R, Zhu G N, Chen M L, Guo Y R. Research progress on the interaction mechanism between bee odorant-binding proteins and exogenous compounds[J]. Chinese Journal of Pesticide Science, 2024, 26(2):257-265.
[6]	赵淑果, 彭竹, 黄丽, 刘苗苗, 赵慧婷. RNAi介导的中华蜜蜂AcerOBP14触角电位反应[J]. 山西农业科学, 2022, 50(2):259-265.doi:10.3969/j.issn.1002-2481.2022.02.19.
	Zhao S G, Peng Z, Huang L, Liu M M, Zhao H T. RNAi-mediated EAG responses of AcerOBP14 in Apis cerana cerana[J]. Journal of Shanxi Agricultural Sciences, 2022, 50(2):259-265.
[7]	姚丹, 徐祖荫, 常钬, 赵恬, 袁扬, 王胤晨. 中华蜜蜂工蜂和雄蜂的触角感受器差异[J]. 贵州农业科学, 2021, 49(4):73-77.doi:10.3969/j.issn.1001-3601.2021.04.012.
	Yao D, Xu Z Y, Chang H, Zhao T, Yuan Y, Wang Y C. Comparative study on the antennae sensilla of worker bee and drone bee of Apis cerana cerana[J]. Guizhou Agricultural Sciences, 2021, 49(4):73-77.
[8]	李红亮, 高其康, 程家安. 中华蜜蜂信息素结合蛋白ASP1 cDNA的克隆及时空表达[J]. 昆虫学报, 2008, 51(7):689-693.doi:10.16380/j.kcxb.2008.07.001.
	Li H L, Gao Q K, Cheng J A. Cloning and spatio-temporal expression of cDNA encoding pheromone binding protein ASP1 in Apis cerana cerana(Hymenoptera:Apidae)[J]. Acta Entomologica Sinica, 2008, 51(7):689-693.
[9]	赵慧婷, 彭竹, 黄丽, 郭丽娜, 杜亚丽, 吕建华. 气味结合蛋白OBPs在意大利蜜蜂头部表达模式的研究[J]. 环境昆虫学报, 2021, 43(5):1229-1236.doi:10.3969/j.issn.1674-0858.2021.05.17.
	Zhao H T, Peng Z, Huang L, Guo L N, Du Y L, Lyu J H. Expression profiles of odorant binding proteins in head of the Western honeybee,Apis mellifera ligustica[J]. Journal of Environmental Entomology, 2021, 43(5):1229-1236.
[10]	皇甫鸿雁, 付淑慧, 贾栋, 王苑馨, 胡军, 马瑞燕. 莲草直胸跳甲3个气味结合蛋白基因的克隆与表达分析[J]. 山西农业科学, 2024, 52(2):89-96.doi:10.3969/j.issn.1002-2481.2024.02.12.
	Huangfu H Y, Fu S H, Jia D, Wang Y X, Hu J, Ma R Y. Cloning and expression analysis of three odorant binding protein genes in Agasicles hygrophila[J]. Journal of Shanxi Agricultural Sciences, 2024, 52(2):89-96.
[11]	Jia J H, Han Y H, Cho Y S, Jiang J. Characterization of smoothened phosphorylation and activation[J]. Methods in Molecular Biology, 2022, 2374:121-137.doi:10.1007/978-1-0716-1701-4_11. pmid: 34562248
[12]	Hu A, Zhang J Z, Wang J, Li C C, Yuan M, Deng G, Lin Z C, Qiu Z P, Liu H Y, Wang X W, Wei P C, He X, Zhao X L, Qiu W W, Song B L. Cholesterylation of Smoothened is a calcium-accelerated autoreaction involving an intramolecular ester intermediate[J]. Cell Research, 2022, 32(3):288-301.doi:10.1038/s41422-022-00622-0. pmid: 35121857
[13]	Nachtergaele S, Whalen D M, Mydock L K, Zhao Z H, Malinauskas T, Krishnan K, Ingham P W, Covey D F, Siebold C, Rohatgi R. Structure and function of the smoothened extracellular domain in vertebrate Hedgehog signaling[J]. eLife, 2013, 2:e01340.doi:10.7554/elife.01340.
[14]	Maurya D K, Bohm S, Alenius M. Hedgehog signaling regulates ciliary localization of mouse odorant receptors[J]. Proceedings of the National Academy of Sciences of the United States of America, 2017, 114(44):E9386-E9394.doi:10.1073/pnas.1708321114.
[15]	王思尧. 脲和盐酸胍在蛋白质折叠中作用的分析[D]. 西安: 西北大学, 2019.
	Wang S Y. Analysis of the role of urea and guanidine hydrochloride in protein folding[D]. Xi'an: Northwest University, 2019.
[16]	王苹, 井健. 包涵体溶解与复性的策略与方法[J]. 生物过程, 2012(2):144-148.doi:10.12677/BP.2012.24023.
	Wang P, Jing J. Solubilization and refolding of inclusion body proteins expressed in bacterial host[J]. Bioprocess, 2012(2):144-148.
[17]	Maeda Y, Ueda T, Imoto T. Effective renaturation of denatured and reduced immunoglobulin G in vitro without assistance of chaperone[J]. Protein Engineering, Design and Selection, 1996, 9(1):95-100.doi:10.1093/protein/9.1.95.
[18]	冯宇佳. 中华蜜蜂气味受体基因AcerOR57的表达及定位研究[D]. 太谷: 山西农业大学, 2020.doi:10.27285/d.cnki.gsxnu.2020.000570.
	Feng Y J. Expression and localization analysis of olfactory receptor AcerOR57 in the Chinese honeybee, Apis cerana[D]. Taigu: Shanxi Agriculture University, 2020.
[19]	李红亮. 中华蜜蜂头部ESTs文库构建和主要触角特异蛋白基因克隆、定位及其表达鉴定[D]. 杭州: 浙江大学, 2007.
	Li H L. Construction of ESTs library of Apis cerana cerana head and cloning,localization and expression identification of main antennal-specific protein genes[D]. Hangzhou: Zhejiang University, 2007.
[20]	王文文, 何朋阳, 刘同先, 靖湘峰, 张世泽. 草地贪夜蛾寄生蜂螟蛉盘绒茧蜂成蜂触角感器的扫描电镜观察[J]. 昆虫学报, 2023, 66(8):1105-1116.doi:10.16380/j.kcxb.2023.08.011.
	Wang W W, He P Y, Liu T X, Jing X F, Zhang S Z. Observation of the sensilla on the adult antennae of Cotesia ruficrus(Hymenoptera:Braconidae),a parasitoid of Spodoptera frugiperda(Lepidoptera:Noctuidae),under scanning electron microscope[J]. Acta Entomologica Sinica, 2023, 66(8):1105-1116.
[21]	王山宁. 中红侧沟茧蜂触角化学识别相关基因鉴定及表达特征分析[D]. 北京: 中国农业科学院, 2017.
	Wang S N. Identification and expression characteristics analysis of genes related to antenna chemical recognition of Pholiota rubra[D]. Beijing: Chinese Academy of Agricultural Sciences, 2017.
[22]	张林雅. 中华蜜蜂两种嗅觉相关蛋白的基因克隆与功能研究[D]. 杭州: 中国计量学院, 2013.
	Zhang L Y. Gene cloning and functional study of two olfactory-related proteins from Apis cerana cerana[D]. Hangzhou: China University of Metrology, 2013.
