鸭<i>TLR2</i>在免疫组织和血液中的表达分析及多克隆抗体制备

doi:10.7668/hbnxb.20194892

摘要/Abstract

摘要：

为研究Toll样受体2(TLR2)在水禽如鸭先天免疫中的作用,利用荧光定量PCR分析dTLR2 mRNA在1~10周龄鸭免疫器官中表达水平以及大肠杆菌、沙门氏菌感染后血液中dTLR2 mRNA表达变化,初步解析dTLR2在鸭抗感染中的可能作用;通过体外表达鸭dTLR2胞外段,并免疫家兔获得特异性抗体以期为鸭dTLR2免疫应答研究提供生物素材。结果表明,dTLR2 mRNA在不同周龄鸭免疫器官中都有表达,脾脏和胸腺组织中,表达量在不同周龄有显著或极显著变化,但在法氏囊组织中,各周龄间表达变化差异不显著;鸭感染大肠杆菌或者沙门氏菌后,第1天及第2天感染组表达量显著高于对照组,但在第3天时,感染组和对照组表达量差异不显著。研究分析dTLR2编码基因,预测胞外区段并设计引物,构建pET28a-TLR2重组表达质粒,重组表达dTLR2-His融合蛋白。经SDS-PAGE检测表明,重组蛋白成功高效表达,分子质量约29 ku。重组蛋白经镍柱纯化并透析后免疫家兔制备抗血清;所获家兔免疫抗血清能特异性的识别重组TLR2蛋白和组织中内源性TLR2蛋白。鸭dTLR2 mRNA组织中表达分析及多克隆抗体的成功制备将为进一步研究dTLR2的生物学功能提供生物素材。

关键词: 鸭, dTLR2 mRNA, 免疫组织, 重组表达, 多克隆抗体

Abstract:

In order to analyze the possible role of dTLR2 in duck innate immunity,we study the expression of dTLR2 mRNA in immune organs during 1 to 10 weeks,as well as the expression in blood after challenging with Escherichia coli and Salmonella enteritis by Fluorescence Quantitative PCR.We also prepared polyclonal antibodies of the extracellular domain of dTLR2 by recombinant protein expression for further studying the biological function of dTLR2.The results showed that dTLR2 mRNA was expressed in spleen,thymus and bursa at different weeks.The expression of dTLR2 mRNA was significantly different among different weeks in the spleen and thymus tissues,and there was no significant difference in bursa.After infection with E.coli and S.enteritis,the expression of dTLR2 mRNA was significantly higher than that of the control group in the first and second days,but there was no significant difference among groups in the third day.Analyzing the sequence of dTLR2 gene,we predicted the extracellular domain,designed primers for PCR assay,and built pET28a-TLR2 recombinant plasmid.The recombinant plasmid was translated into E.coli BL21 (DE3) for expression of dTLR2-His protein.The SDS-PAGE results showed that the fusion recombinant protein efficiently expressed in the supernatant,molecular mass was around 29 ku.The results of Western Blot showed that the antibody which harvested from immunizing rabbits could detect recombinant dTLR2 and endogenous dTLR2.The analysis of the expression of dTLR2 and successful preparation of polyclonal antibody provide favorable support for further studying of dTLR2 biology function.

Key words: Duck, dTLR2 mRNA, Immune organs, Recombinant expression, Polyclonal antibody

朱春红, 王志成, 刘宏祥, 陶志云, 宋卫涛, 王逸飞, 徐文娟, 章双杰, 李慧芳. 鸭TLR2在免疫组织和血液中的表达分析及多克隆抗体制备[J]. 华北农学报, 2024, 39(5): 212-218. doi: 10.7668/hbnxb.20194892.

ZHU Chunhong, WANG Zhicheng, LIU Hongxiang, TAO Zhiyun, SONG Weitao, WANG Yifei, XU Wenjuan, ZHANG Shuangjie, LI Huifang. Expression of Duck dTLR2 in Immune Organs and Blood and Preparation of Polyclonal Antibodies[J]. Acta Agriculturae Boreali-Sinica, 2024, 39(5): 212-218. doi: 10.7668/hbnxb.20194892.

http://www.hbnxb.net/CN/Y2024/V39/I5/212

图/表 7

图1 不同周龄鸭免疫器官中dTLR2 mRNA表达不同大写字母表示在0.01水平上差异显著,不同小写字母表示在0.05水平上差异显著。图2同。

Fig.1 Expression of dTLR2 mRNA in duck immune organs in different weeks Different capital letters mean significantly different at 0.01 level,and different lowercase letters mean significantly different at 0.05 level. The same as Fig.2.

图2 鸭感染大肠杆菌、沙门氏菌后血液中dTLR2 mRNA表达

Fig.2 Expression of dTLR2 mRNA in the blood of ducks infected with E.coli and Salmonella

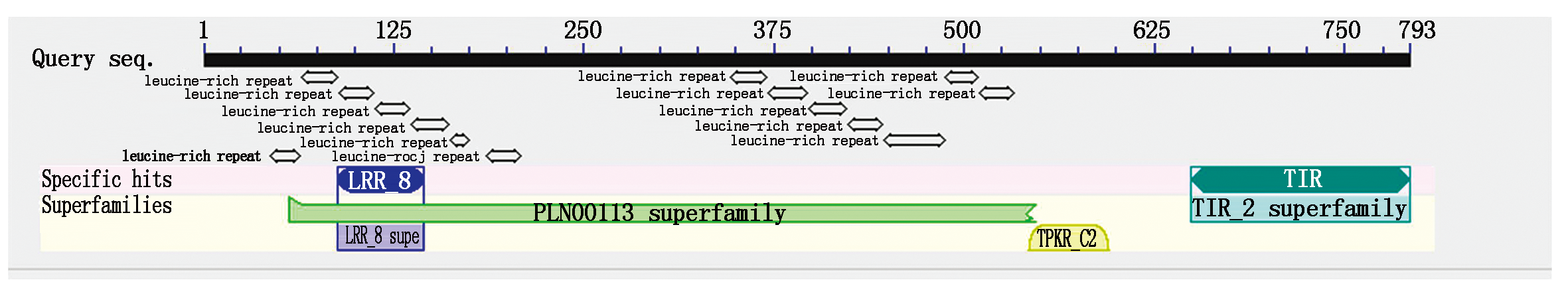

图3 dTLR2氨基酸结构域预测

Fig.3 Prediction of dTLR2 amino acid domain

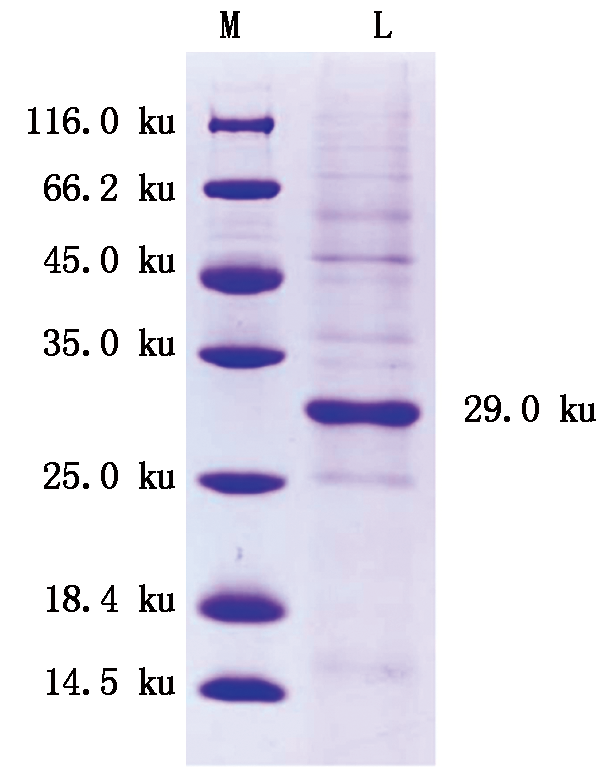

图4 SDS-PAGE电泳分析dTLR2胞外区重组蛋白 M.标准蛋白;L.纯化抗原。

Fig.4 SDS-PAGE analysis of the purified recombinant protein of dTLR2 extracellular region M.Standard protein;L.Purified protein.

图5 dTLR2胞外区重组蛋白免疫血清Western Blot检测分析 1.重组蛋白,免前血孵育(兔1);2.重组蛋白,免前血孵育(兔2);3.重组蛋白10 ng,(兔1)抗血清孵育;4.重组蛋白25 ng,(兔1)抗血清孵育;5.重组蛋白10 ng,(兔2)抗血清孵育;6.重组蛋白25 ng,(兔2)抗血清孵育;二抗.羊抗兔 IgG(H+L)-HRP(1∶10 000);M.标准蛋白。

Fig.5 Western Blot analysis of the immune serum of dTLR2 recombinant extracellular region 1.Recombinant protein,pre-immuned blood (Rabbit 1);2.Recombinant protein,pre-immuned blood (Rabbit 2);3.Recombinant protein 10 ng,incubated with rabbit 1 antiserum;4.Recombinant protein 25 ng,incubated with rabbit 1 antiserum;5.Recombinant protein 10 ng,incubated with rabbit 2 antiserum;6.Recombinant protein 25 ng,incubated with rabbit 2 antiserum;Secondary antibody.Sheep anti-rabbit IgG (H+L)-HRP (1∶10 000);M.Standard protein.

图6 兔多抗血清效价结果

Fig.6 Results of serum titer of rabbit polyantiserum

图7 重组蛋白免疫血清检测鸭肝脏和脾脏组织内源性dTLR2蛋白 1.肝裂解液,免疫前兔血清孵育;2.脾裂解液,免疫前兔血清孵育;3.肝裂解液,(兔1)抗血清孵育;4.脾裂解液,(兔1)抗血清孵育;5.肝裂解液,(兔2)抗血清孵育;6.脾裂解液,(兔2)抗血清孵育;二抗.羊抗兔 IgG(H+L)-HRP(1∶10 000);M.标准蛋白。

Fig.7 Detection endogenous dTLR2 in duck liver and spleen by recombinant protein immune serum 1.Liver lysate,incubated with pre-immuned rabbit serum;2.Spleen lysate,incubated with pre-immuned rabbit serum;3.Liver lysate,incubated with rabbit 1 antiserum;4.Spleen lysate,incubated with rabbit 1 antiserum;5.Liver lysate,incubated with rabbit 2 antiserum;6.Spleen lysate,incubated with rabbit 2 antiserum;Secondary antibody.Sheep anti-rabbit IgG (H+L)-HRP (1∶10 000);M.Standard protein.

参考文献 20

[1]	Di Gioia M, Zanoni I. Toll-like receptor co-receptors as master regulators of the immune response[J]. Molecular Immunology, 2015, 63(2):143-152.doi:10.1016/j.molimm.2014.05.008. pmid: 24951397
[2]	李国勤, 马永升, 贾红敏, 田勇, 李进军, 卢立志. 鸭TLR2基因的克隆、序列分析及其结构预测[J]. 中国畜牧杂志, 2011, 47(19):17-21.
	Li G Q, Ma Y S, Jia H M, Tian Y, Li J J, Lu L Z. Cloning,sequence analysis and structural prediction of duck TLR2 gene[J]. Chinese Journal of Animal Science, 2011, 47(19):17-21.
[3]	刘艳君. 广谱模式识别分子Toll-like receptor 2的研究进展[J]. 免疫学杂志, 2002, 18(3):234-236.doi:10.3969/j.issn.1000-8861.2002.03.022.
	Liu Y J. Broad spectrum pattern recognition receptor-Toll-like receptor 2[J]. Immunological Journal, 2002, 18(3):234-236.
[4]	Gu T, Li G, Wu X, Zeng T, Xu Q, Li L, Vladyslav S, Chen G, Lu L. Pattern-recognition receptors in duck (Anas platyrhynchos):identification,expression and function analysis of toll-like receptor 3[J]. British Poultry Science, 2021, 62(3):346-352.doi:10.1080/00071668.2020.1853045. pmid: 33215508
[5]	Li R, Li N, Zhang J Z, Wang Y, Liu J Y, Cai Y M, Chai T J, Wei L M. Expression of immune-related genes of ducks infected with avian pathogenic Escherichia coli(APEC)[J]. Frontiers in Microbiology, 2016, 7:637.doi:10.3389/fmicb.2016.00637.
[6]	战仁慧. TLR2、TLR4和TLR9在小鼠抵抗鼠伤寒沙门氏菌感染中的作用[D]. 济南: 山东大学, 2013.doi:10.7666/d.Y2331151.
	Zhan R H. Differential roles of TLR2,TLR4 and TLR9 in resistance to Salmonella typhimurium infection in mice[D]. Jinan: Shandong University, 2013.
[7]	周作勇, 聂奎, 宋振辉, 胡世君, 周荣琼, 郭智莉, 刘丽琼, 秦波. 雏鸡不同组织TLR1、TLR2、TLR4、TLR5和TLR15 mRNA转录水平相对定量研究[J]. 畜牧兽医学报, 2010, 41(11):1453-1459.doi:10.1097/MOP.0b013e3283423f35.
	Zhou Z Y, Nie K, Song Z H, Hu S J, Zhou R Q, Guo Z L, Liu L Q, Qin B. Relative quantification of mRNA transcription of toll-like receptors in different tissues of chicken by Real-time quantitative PCR[J]. Acta Veterinaria et Zootechnica Sinica, 2010, 41(11):1453-1459.
[8]	徐文娟, 陶志云, 朱春红, 宋卫涛, 刘宏祥, 章双杰, 李慧芳. 金定鸭不同组织和血液中TLR1、TLR2、TLR4、TLR5的表达差异分析[J]. 中国畜牧兽医, 2017, 44(12):3459-3465.doi:10.16431/j.cnki.1671-7236.2017.12.010.
	Xu W J, Tao Z Y, Zhu C H, Song W T, Liu H X, Zhang S J, Li H F. Analysis of TLR1,TLR2,TLR4 and TLR5 expression in different tissues of Jinding duck[J]. China Animal Husbandry & Veterinary Medicine, 2017, 44(12):3459-3465.
[9]	邵玉桃, 李新, 张旭, 李建华, 张西臣, 宫鹏涛, 王晓岑. NcPrx1通过TLR2激活小鼠巨噬细胞MAPK和AKT通路诱导促炎细胞因子的分泌[J]. 中国兽医学报, 2023, 43(6):1242-1249,1332.doi:10.16303/j.cnki.1005-4545.2023.06.19.
	Shao Y T, Li X, Zhang X, Li J H, Zhang X C, Gong P T, Wang X C. Neospora caninum peroxiredoxin 1 induces pro-inflammatory cytokines via MAPK and AKT signaling pathways by activating TLR2[J]. Chinese Journal of Veterinary Science, 2023, 43(6):1242-1249,1332.
[10]	姜艳, 沙春娜, 徐春红, 郑德杰, 宋金玲. 肠道感染模型幼鼠肠道上皮细胞TLR2、TLR4和NOD2表达与肠黏膜功能的关系[J]. 临床和实验医学杂志, 2020, 19(11):1162-1165.doi:10.3969/j.issn.1671-4695.2020.11.013.
	Jiang Y, Sha C N, Xu C H, Zheng D J, Song J L. Relationship between expression of NOD2,TLR2 and TLR4 and intestinal mucosal function in intestinal epithelial cells of young rats[J]. Journal of Clinical and Experimental Medicine, 2020, 19(11):1162-1165.
[11]	张志丽, 吴砂, 卢晓, 弓莉, 富宁. TLR2激动剂Pam3CK逆转IL-10转染小鼠髓样树突状细胞免疫功能的研究[J]. 中国免疫学杂志, 2011, 27(4):300-302,307.doi:10.3969/j.issn.1000-484X.2011.04.003.
	Zhang Z L, Wu S, Lu X, Gong L, Fu N. TLR2 agonist Pam3CK reverses the immune function of the IL-10 transfected mouse bone marrow-derived dendritic cells[J]. Chinese Journal of Immunology, 2011, 27(4):300-302,307.
[12]	白杰, 林嘉鹏, 袁芳, 侯敏, 李文蓉, 刘明军. TLR2基因多态性与奶牛体细胞评分的相关性研究[J]. 畜牧兽医学报, 2011, 42(3):356-362.
	Bai J, Lin J P, Yuan F, Hou M, Li W R, Liu M J. Association of toll-like receptor 2 polymorphisms with somatic cell score in bovine[J]. Acta Veterinaria et Zootechnica Sinica, 2011, 42(3):356-362.
[13]	朱春红, 刘宏祥, 陶志云, 徐文娟, 宋卫涛, 章双杰, 李慧芳. 高邮鸭主要免疫器官的表型发育及其与TLRs表达的相关性分析[J]. 华北农学报, 2018, 33(1):115-120.doi:10.7668/hbnxb.2018.01.018.
	Zhu C H, Liu H X, Tao Z Y, Xu W J, Song W T, Zhang S J, Li H F. Development of immune tissue and correlation analysis of TLRs expression in Gaoyou duck[J]. Acta Agriculturae Boreali-Sinica, 2018, 33(1):115-120.
[14]	Abasht B, Kaiser M G, Lamont S J. Toll-like receptor gene expression in cecum and spleen of advanced intercross line chicks infected with Salmonella enterica serovar Enteritidis[J]. Veterinary Immunology and Immunopathology, 2008, 123(3/4):314-323.doi:10.1016/j.vetimm.2008.02.010.
[15]	李庆亚, 周密, 张洁, 郑津辉, 耿绪云, 潘宝平, 孙金生, 高虹. 迟缓型爱德华氏菌(Edwardsiella tarda)诱导牙鲆(Paralichthys olivaceus)TLR1及TLR2基因的表达分析[J]. 海洋与湖沼, 2017, 48(4):848-856.doi:10.11693/hyhz20170200040.
	Li Q Y, Zhou M, Zhang J, Zheng J H, Geng X Y, Pan B P, Sun J S, Gao H. Expression of TLR1 and TLR2 genes of Japanese flounder paralichthys olivaceus induced by Edwardsiella tarda[J]. Oceanologia et Limnologia Sinica, 2017, 48(4):848-856.
[16]	Sloane J A, Batt C, Ma Y, Harris Z M, Trapp B, Vartanian T. Hyaluronan blocks oligodendrocyte progenitor maturation and remyelination through TLR2[J]. Proceedings of the National Academy of Sciences of the United States of America, 2010, 107(25):11555-11560.doi:10.1073/pnas.1006496107. pmid: 20534434
[17]	Farhat K, Riekenberg S, Jung G, Wiesm ller K H, Jungi T W, Ulmer A J. Identification of full length bovine TLR1 and functional characterization of lipopeptide recognition by bovine TLR2/1 heterodimer[J]. Veterinary Research, 2010, 41(3):34.doi:10.1051/vetres/2010006. pmid: 20167196
[18]	Simmons D P, Canaday D H, Liu Y, Li Q, Huang A, Boom W H, Harding C V. Mycobacterium tuberculosis and TLR2 agonists inhibit induction of type I IFN and class I MHC antigen cross processing by TLR9[J]. Journal of Immunology, 2010, 185(4):2405-2415.doi:10.4049/jimmunol.0904005. pmid: 20660347
[19]	Bergman I M, Rosengren J K, Edman K, Edfors I. European wild boars and domestic pigs display different polymorphic patterns in the Toll-like receptor TLR1,TLR2,and TLR6 genes[J]. Immunogenetics, 2010, 62(1):49-58.doi:10.1007/s00251-009-0409-4.
[20]	Huang Y H, Temperley N D, Ren L M, Smith J, Li N, Burt D W. Molecular evolution of the vertebrate TLR1 gene family-a complex history of gene duplication,gene conversion,positive selection and co-evolution[J]. BMC Evolutionary Biology, 2011, 11:149.doi:10.1186/1471-2148-11-149.
