微咸水灌溉对冬小麦田温室气体排放和土壤微生物群落的影响

doi:10.7668/hbnxb.20194825

摘要/Abstract

摘要：

为探究不同矿化度微咸水灌溉对冬小麦田土壤CO₂、N₂O、CH₄等温室气体排放和土壤微生物群落的影响,于2023年3-6月在中国科学院南皮生态农业试验站进行了3种(1,3,5 g/L,W1、W3和W5)矿化度微咸水灌溉冬小麦的大田试验。结果表明,从冬小麦返青期至收获期间,CO₂排放呈现出前期高,中期低,后期又上升的趋势;N₂O排放表现为前期高后期低的变化趋势;CH₄则在正与负排放之间波动。与W1处理相比,W3处理土壤CO₂和N₂O平均排放速率显著较低,CO₂和N₂O平均排放速率分别降低39.4%,68.9%。W5土壤CO₂和N₂O平均排放速率降低21.9%,40.0%,但统计学意义上无显著差异。不同浓度微咸水灌溉,对于土壤微生物α多样性影响较小,但显著改变了其群落结构。聚类分析表明,W1和W5处理的微生物组成存在显著差异,而W3的聚类结果介于W1和W5之间。相关分析表明,CO₂排放速率与土壤TN含量呈显著正相关,N₂O排放速率与土壤TN、TOC、DOC以及MBC呈显著正相关,土壤NO₂和CH₄排放速率分别与S0134 terrestrial和Sphingomonas以及Subgroup 25的丰度呈显著正相关。RDA分析表明,影响Sphingomonas和Subgroup 25丰度的关键理化因子分别为pH值、NH₄⁺、EC和DOC。综上所述,使用3 g/L的微咸水灌溉,能够在不显著增加土壤含盐量的基础上,降低土壤呼吸速率,减少农田碳排放量,是北方缺水区微咸水灌溉冬小麦的适宜灌溉水阈值。

关键词: 冬小麦田, 温室气体, 咸水灌溉, 微生物群落, 微咸水矿化度

Abstract:

To investigate the impact of saline water irrigation on greenhouse gas emissions,including CO₂,N₂O,CH₄,and the soil microbial community in winter wheat fields,three types of saline water with different salinity levels(1,3,and 5 g/L,denoted as W1,W3,and W5)were employed.Field experiments were conducted at the Nanpi Eco-Agriculture Experimental Station of the Chinese Academy of Sciences from March to June 2023.The results indicated that CO₂ emissions had similar trends in the different saline water irrigation treatments during the wheat growing stages,which were high in the early stage,low in the middle stage,and high in the late stage.N₂O emissions exhibited a trend of high values in the early period and lower values in the later stages.While,CH₄ showed fluctuations between positive and negative emissions.Comparative analysis revealed that the average CO₂ and N₂O emission rates in W3 treatment were significantly lower than in W1,with reductions of 39.4% and 68.9%,respectively.The average CO₂ and N₂O emission rates in W5 treatment decreased by 21.9% and 40.0%,although the difference was not statistically significant.Saline water irrigation with different concentrations minimally affected soil microbial α-diversity but significantly altered community structure.Cluster analysis demonstrated a significant difference in microbial composition between W1 and W5,with W3 positioned between the two treatments.Correlation analysis showed that there was a significant positive correlation between CO₂ and N₂O emission rates and soil TN,while there was a significant positive correlation between N₂O emission rate and soil TN,TOC,DOC,MBC,respectively.Soil N₂O and CH₄ emission rates correlated positively with the abundance of S0134 terrestrial and Sphingomonas and Subgroup 25,respectively.Redundancy analysis(RDA)identified pH,NH₄⁺,EC,and DOC as key physicochemical factors influencing the abundance of Sphingomonas and Subgroup 25.In conclusion,irrigation with 3 g/L mildly saline water can reduce soil respiration rates and decrease agricultural carbon emissions without significantly increasing soil salinity,providing theoretical support for the development and utilization of mildly saline water resources in the North China Plain.

Key words: Winter wheat field, Greenhouse gases, Saline water irrigation, Microbial community, Saline water salinity

张文文, 董心亮, 董文旭, 王金涛, 张雪佳, 孙宏勇. 微咸水灌溉对冬小麦田温室气体排放和土壤微生物群落的影响[J]. 华北农学报, 2024, 39(S1): 219-227. doi: 10.7668/hbnxb.20194825.

ZHANG Wenwen, DONG Xinliang, DONG Wenxu, WANG Jintao, ZHANG Xuejia, SUN Hongyong. Effects of Saline Water Irrigation on Greenhouse Gas Emissions and Microbial Communities in Winter Wheat Fields[J]. Acta Agriculturae Boreali-Sinica, 2024, 39(S1): 219-227. doi: 10.7668/hbnxb.20194825.

http://www.hbnxb.net/CN/Y2024/V39/IS1/219

图/表 15

图1 试验期间日降雨和气温

Fig.1 Daily rainfall and temperature during the experiment

表1 不同矿化度灌溉水性质

Tab.1 The characters of different saline irrigation water

灌溉水矿化度 /(g/L) Salinity of irrigation water	pH	EC / (dS/m)	总盐含量/% Total salt content
1	8.33	1.95	1.44
3	8.21	6.00	3.29
5	8.21	8.80	5.06

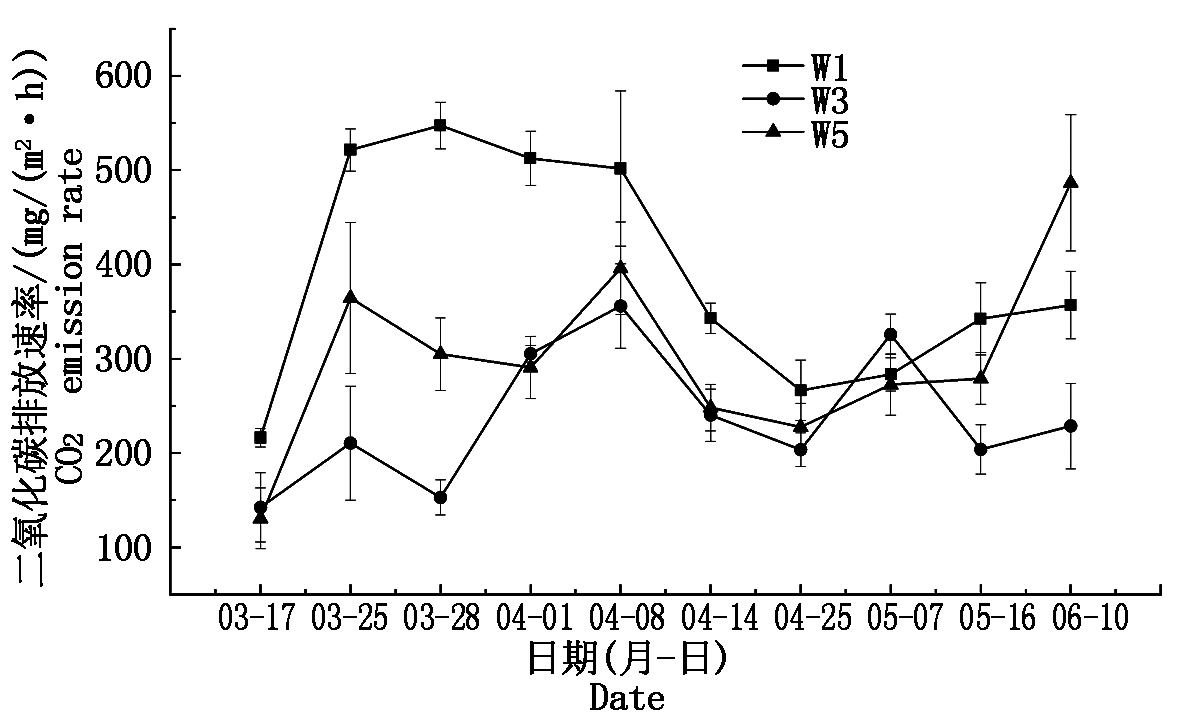

图2 不同矿化度微咸水灌溉下土壤CO₂排放速率的动态变化

Fig.2 Dynamic changes of soil CO₂ emission rate under different saline irrigation water

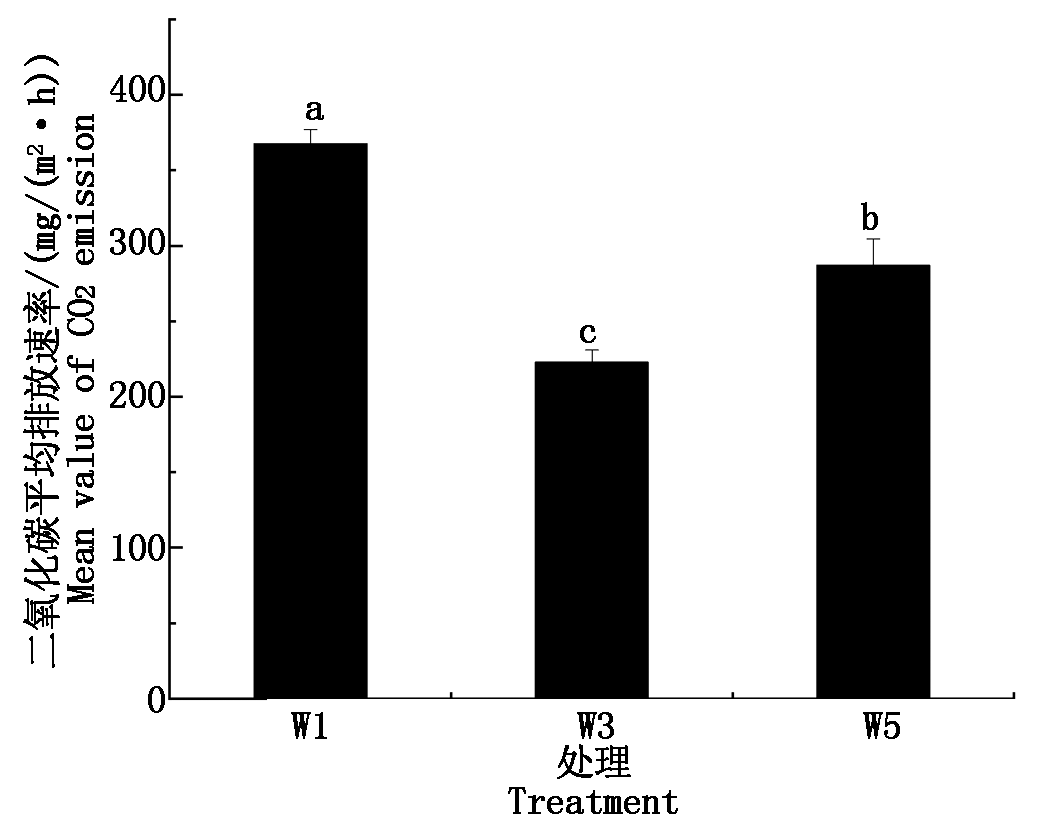

图3 不同矿化度微咸水灌溉下土壤CO₂平均排放速率不同小写字母表示处理间差异显著(P<0.05)。图5,7,8,9,10同。

Fig.3 The average emission rate of soil CO₂ emissions under different saline irrigation water Different letters indicate significant difference between treatments(P<0.05).The same as Fig.5,7,8,9,10.

图4 不同矿化度微咸水灌溉下土壤N₂O排放速率的动态变化

Fig.4 Dynamic changes of soil N₂O emission rate under different saline irrigation water

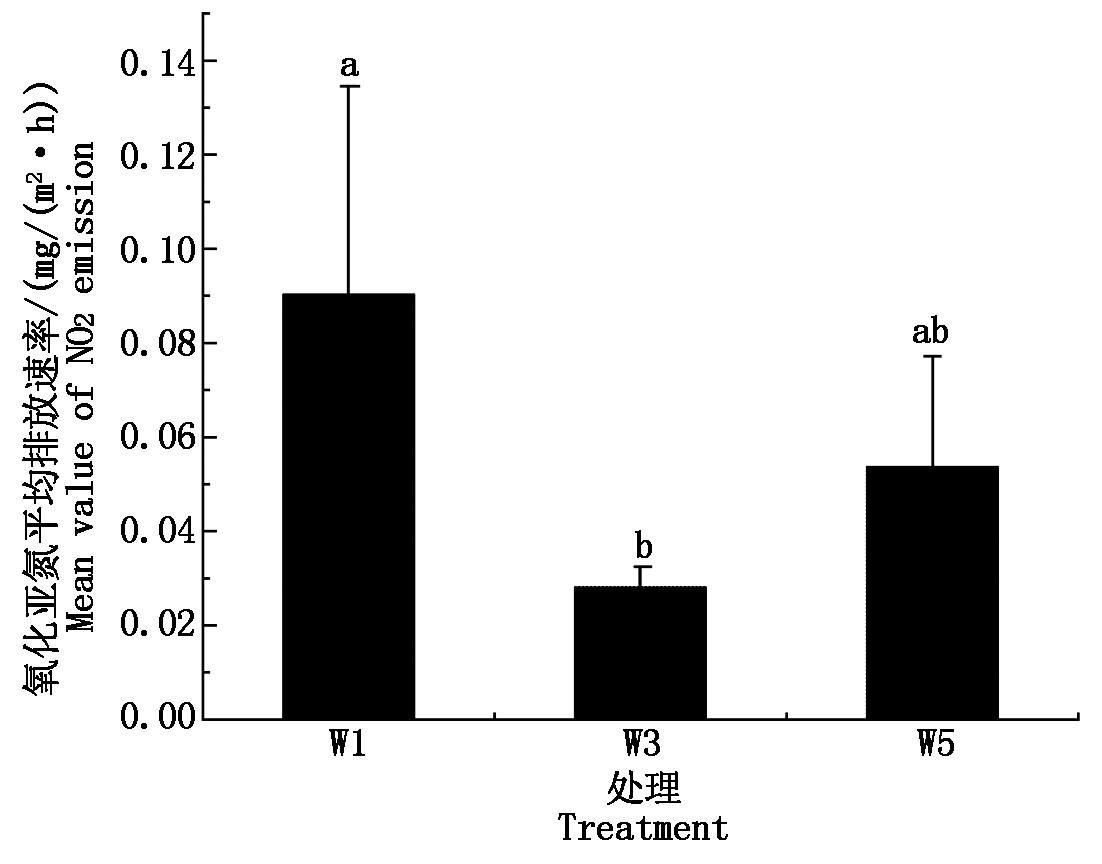

图5 不同矿化度微咸水灌溉下土壤N₂O平均排放速率

Fig.5 The average emission rate of soil N₂O emissions under different saline irrigation water

图6 不同矿化度微咸水灌溉下土壤CH₄排放速率的动态变化

Fig.6 Dynamic changes of soil CH₄emission rate under different saline irrigation water

图7 不同矿化度微咸水灌溉下土壤CH₄平均排放速率

Fig.7 The average emission rate of soil CH₄emissions under different saline irrigation water

图8 不同矿化度微咸水灌溉下土壤pH和EC的动态变化

Fig.8 Dynamic changes of soil pH and EC under different saline irrigation water

图9 不同矿化度微咸水灌溉下土壤TN、NH₄⁺、NO₃^-、TOC、DOC和MBC的动态变化

Fig.9 Dynamic changes of soil TN,NH₄⁺,NO₃^-,TOC,DOC and MBC under different saline irrigation water

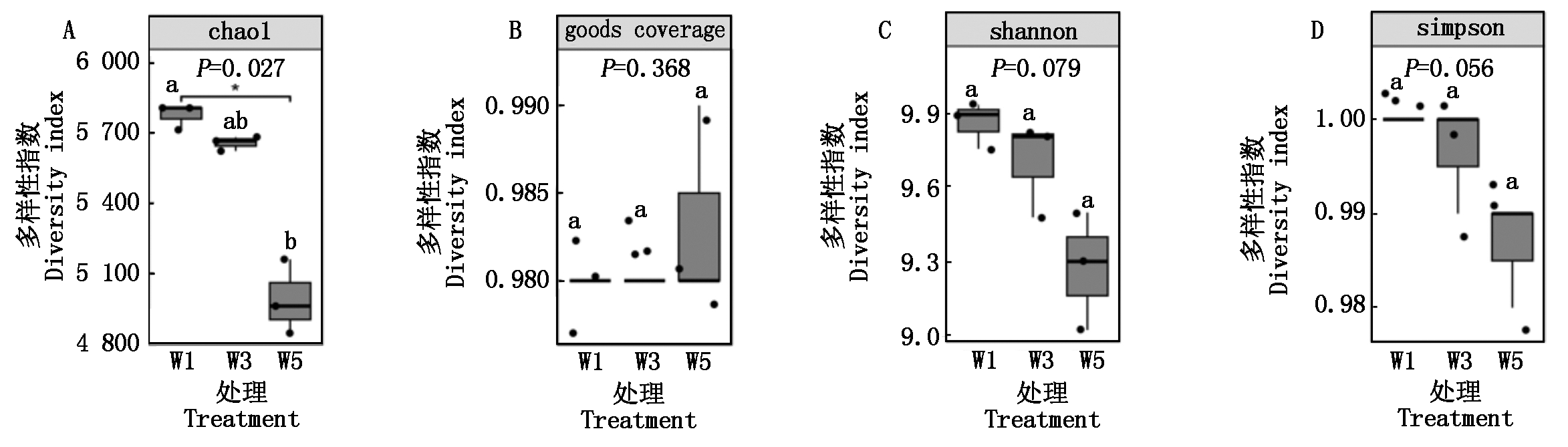

图10 不同矿化度微咸水灌溉下土壤微生物α多样性、土壤微生物属水平聚类和组成分析

Fig.10 Soil microorganism α diversity of soil microbial genera under different saline irrigation water

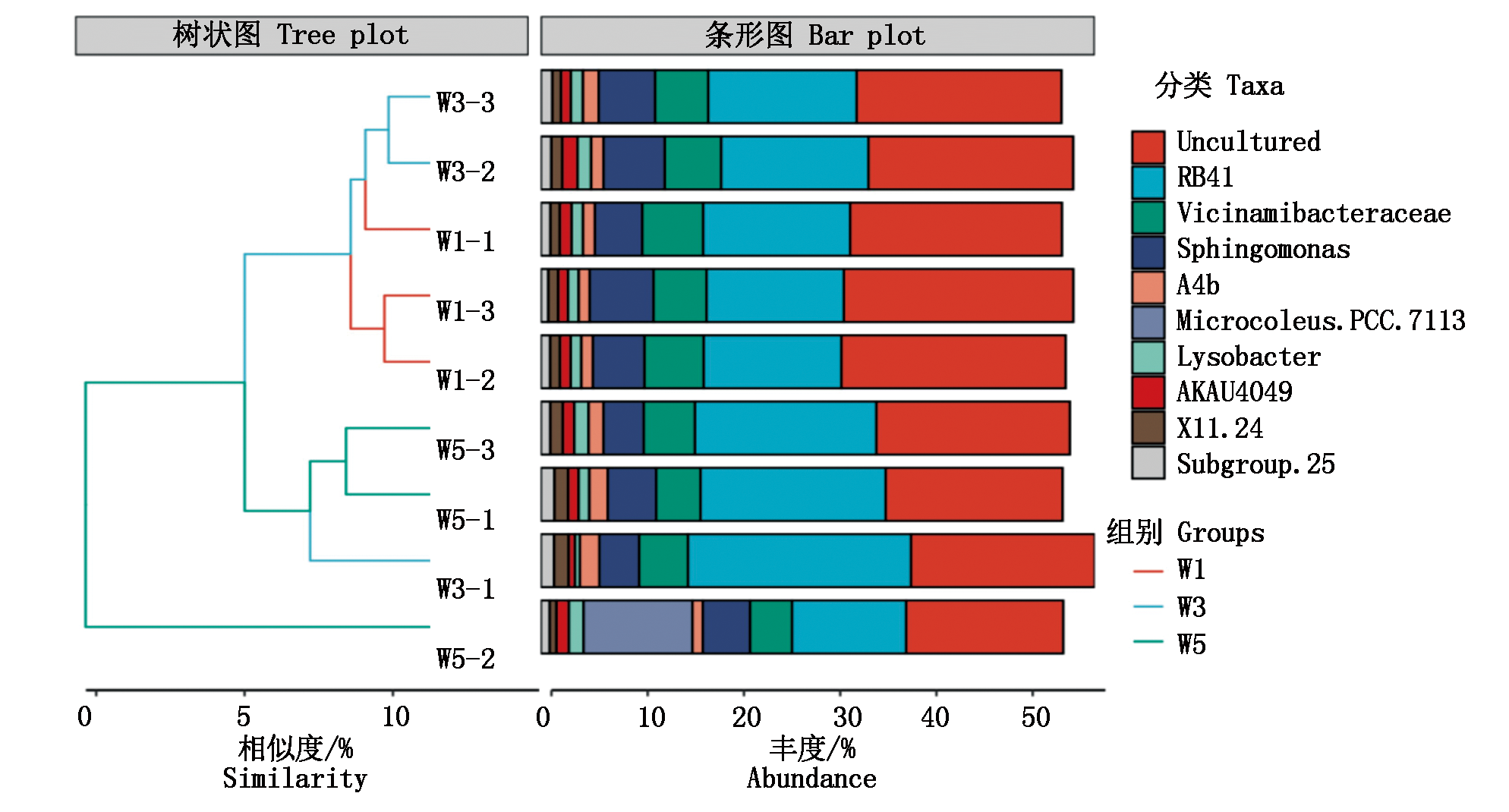

图11 不同矿化度微咸水灌溉下土壤微生物属水平聚类和组成分析

Fig.11 Horizontal clustering and composition analysis of soil microbial genera under different saline irrigation water

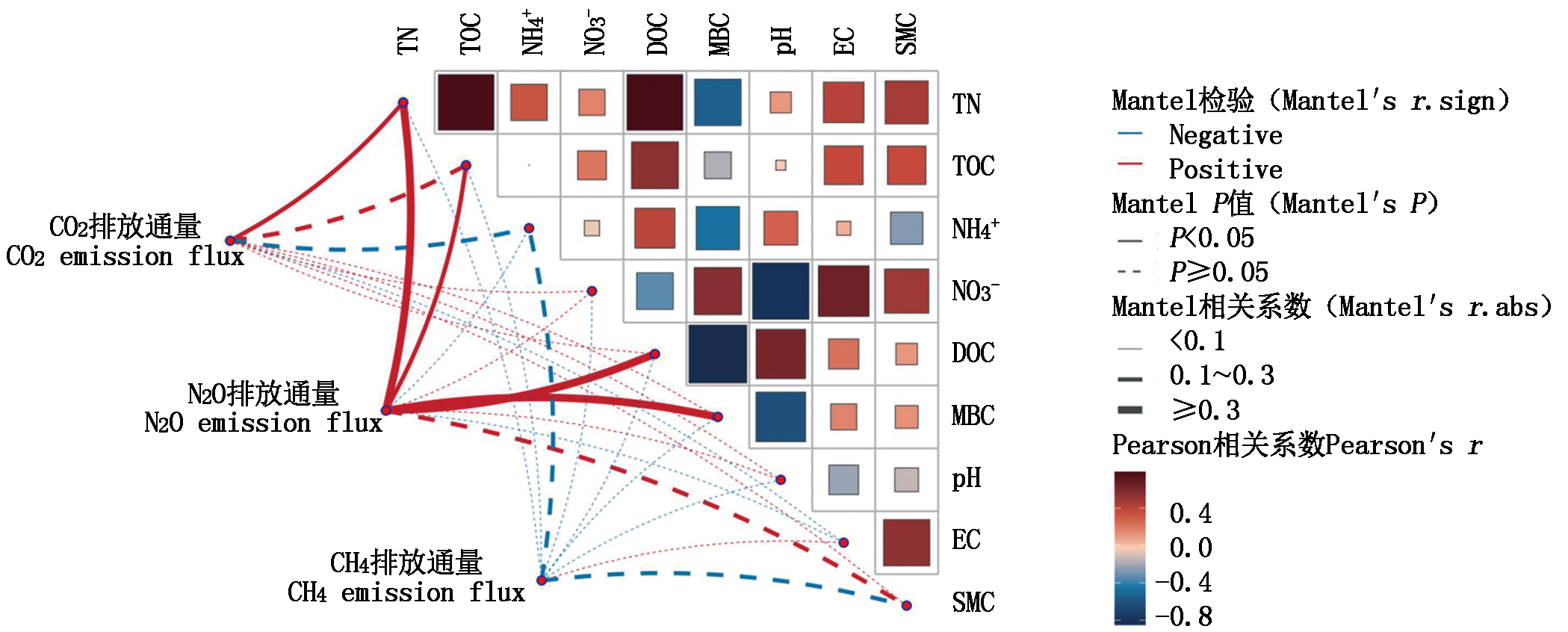

图12 土壤温室气体排放速率与土壤理化性质之间的相关性

Fig.12 Correlation analysis between soil greenhouse gas emission rate and physicochemical properties

图13 土壤温室气体排放速率与土壤丰度前15的属水平微生物丰度的相关性

Fig.13 The correlation between soil greenhouse gas emission rate and the abundance of top 15 genus level microorganisms in soil abundance

图14 土壤微生物群落与理化因子的RDA分析

Fig.14 RDA analysis of soil microbial community and physicochemical factors

参考文献 30

[1]	Li M, Xu Y W, Fu Q, Singh V P, Liu D, Li T X. Efficient irrigation water allocation and its impact on agricultural sustainability and water scarcity under uncertainty[J]. Journal of Hydrology, 2020, 586:124888.doi:10.1016/j.jhydrol.2020.124888.
[2]	Mu X Y, Yang J L, Zhao D L, Feng Y M, Xing H B, Pang G B. Effect of brackish water irrigation on soil water-salt distribution[J]. IOP Conference Series:Earth and Environmental Science, 2018, 208:012062.doi:10.1088/1755-1315/208/1/012062.
[3]	刘友兆, 付光辉. 中国微咸水资源化若干问题研究[J]. 地理与地理信息科学, 2004, 20(2):57-60.doi:10.3969/j.issn.1672-0504.2004.02.014.
	Liu Y Z, Fu G H. Utilization of gentle salty water resource in China[J]. Geography and Geo-Information Science, 2004, 20(2):57-60.
[4]	王小彬, 武雪萍, 赵全胜, 邓祥征, 蔡典雄. 中国农业土地利用管理对土壤固碳减排潜力的影响[J]. 中国农业科学, 2011, 44(11):2284-2293.doi:10.3864/j.issn.0578-1752.2011.11.010.
	Wang X B, Wu X P, Zhao Q S, Deng X Z, Cai D X. Effects of cropland-use management on potentials of soil carbon sequestration and carbon emission mitigation in China[J]. Scientia Agricultura Sinica, 2011, 44(11):2284-2293.
[5]	Guo J P, Zhou C D. Greenhouse gas emissions and mitigation measures in Chinese agroecosystems[J]. Agricultural and Forest Meteorology, 2007, 142(2/3/4):270-277.doi:10.1016/j.agrformet.2006.03.029.
[6]	赵光昕, 张晴雯, 刘杏认, 田秀平. 农田土壤硝化反硝化作用及其对生物炭添加响应的研究进展[J]. 中国农业气象, 2018, 39(7):442-452.doi:10.3969/j.issn.1000-6362.2018.07.002.
	Zhao G X, Zhang Q W, Liu X R, Tian X P. Nitrification and denitrification and its response to biochar addition in agricultural soil:a review[J]. Chinese Journal of Agrometeorology, 2018, 39(7):442-452.
[7]	孙宏勇, 张雪佳, 田柳, 娄泊远, 刘彤, 王金涛, 董心亮, 郭凯, 刘小京. 咸水灌溉影响耕地质量和作物生产的研究进展[J]. 中国生态农业学报(中英文), 2023, 31(3):354-363.doi:10.12357/cjea.20220899.
	Sun H Y, Zhang X J, Tian L, Lou B Y, Liu T, Wang J T, Dong X L, Guo K, Liu X J. Effects of saline water irrigation on soil quality and crop production:a review[J]. Chinese Journal of Eco-Agriculture, 2023, 31(3):354-363.
[8]	王全九, 缑丽娜, 孙燕, 刘阳, 解江博, 朱梦杰. 增氧淡水与微咸水对小麦萌发特性的影响[J]. 农业机械学报, 2020, 51(7):274-282.doi:10.6041/j.issn.1000-1298.2020.07.031.
	Wang Q J, Gou L N, Sun Y, Liu Y, Xie J B, Zhu M J. Effects of oxygenated fresh water and brachish water on germination characteristics of wheat[J]. Transactions of the Chinese Society for Agricultural Machinery, 2020, 51(7):274-282.
[9]	Kang Y H, Chen M, Wan S Q. Effects of drip irrigation with saline water on waxy maize(Zea mays L.var.ceratina Kulesh)in North China Plain[J]. Agricultural Water Management, 2010, 97(9):1303-1309.doi:10.1016/j.agwat.2010.03.006.
[10]	魏琛琛, 任树梅, 徐子昂, 张美桃, 魏榕, 杨培岭. 灌溉水盐分和灌水量对温室气体排放与玉米生长的影响[J]. 农业机械学报, 2021, 52(7):251—260,236.doi:10.6041/j.issn.1000-1298.2021.07.027.
	Wei C C, Ren S M, Xu Z A, Zhang M T, Wei R, Yang P L. Effects of irrigation water salinity and irrigation water amount on greenhouse gas emissions and spring maize growth[J]. Transactions of the Chinese Society for Agricultural Machinery, 2021, 52(7):251-260,236.
[11]	王帅杰, 杨培岭, 苏艳平, 商放泽, 魏琛琛, 任树梅. 微咸水与淡水轮灌对春玉米土壤CO₂和N₂O排放的影响[J]. 中国农业大学学报, 2018, 23(10):41-48.doi:10.11841/j.issn.1007-4333.2018.10.05.
	Wang S J, Yang P L, Su Y P, Shang F Z, Wei C C, Ren S M. Effects of alternative irrigation between brackish water and fresh water on CO₂ and N₂O emission from spring maize soil[J]. Journal of China Agricultural University, 2018, 23(10):41-48.
[12]	李会文, 管瑶, 贺兴宏, 范德宝, 王育强. 咸淡水组合灌溉模式对棉田土壤CO₂日排放特征影响[J]. 灌溉排水学报, 2023, 42(7):60-67.doi:10.13522/j.cnki.ggps.2022700.
	Li H W, Guan Y, He X H, Fan D B, Wang Y Q. Effects of irrigation with mixed saline and fresh waters on CO₂ emission from cotton fields[J]. Journal of Irrigation and Drainage, 2023, 42(7):60-67.
[13]	贺英豪, 谭军利, 王西娜, 董昊. 不同微咸水灌溉方式对压砂地土壤水盐及pH空间变异的影响[J]. 节水灌溉, 2023(8):1-9.doi:10.12396/jsgg.2023118.
	He Y H, Tan J L, Wang X N, Dong H. Effects of different brackish water irrigation methods on spatial variability of soil moisture,salinity and pH in gravel-sand mulched soil[J]. Water Saving Irrigation, 2023(8):1-9.
[14]	乔若楠, 程煜, 闫思慧, 罗敏, 王春, 张通港, 张体彬. 不同离子微咸水对土壤水力特性和生菜生长的影响[J]. 排灌机械工程学报, 2023, 41(3):288-295.doi:10.3969/j.issn.1674-8530.21.0311.
	Qiao R N, Cheng Y, Yan S H, Luo M, Wang C, Zhang T G, Zhang T B. Effects of saline water with different cations on soil hydraulic properties and lettuce growth[J]. Journal of Drainage and Irrigation Machinery Engineering, 2023, 41(3):288-295.
[15]	张喜英, 李科江, 陈素英. 《微咸水补灌与土壤保育技术研究与示范》课题进展[J]. 现代农村科技, 2015(15):34-79.doi:10.3969/j.issn.1674-5329.2015.15.070.
	Zhang X Y, Li K J, Chen S Y. Progress of the project "Research and Demonstration of Micro-Saline Water Supplemental Irrigation and Soil Conservation Technology"[J]. Modern Rural Science and Technology, 2015(15):34-79.
[16]	鲍士旦. 土壤农化分析[M].3版. 北京: 中国农业出版社, 2000.
	Bao S D. Soil agrochemical analysis[M].3 edition. Beijing: China Agriculture Press, 2000.
[17]	Tam N F Y. Effects of wastewater discharge on microbial populations and enzyme activities in mangrove soils[J]. Environmental Pollution, 1998, 102(2/3):233-242.doi:10.1016/s0269-7491(98)00084-0.
[18]	Neubauer S C. Ecosystem responses of a tidal freshwater marsh experiencing saltwater intrusion and altered hydrology[J]. Estuaries and Coasts, 2013, 36(3):491-507.doi:10.1007/s12237-011-9455-x.
[19]	Wong V N L, Greene R S B, Dalal R C, Murphy B W. Soil carbon dynamics in saline and sodic soils:a review[J]. Soil Use and Management, 2010, 26(1):2—11.doi:10.1111/j.1475-2743.2009.00251.x.
[20]	邹其会, 任树梅, 杨培岭, 牛永涛, 邹添. 再生水与微咸水灌溉对土壤温室气体排放的影响研究[J]. 灌溉排水学报, 2014, 33(2):80-82.doi:10.7631/j.issn.1672-3317.2014.02.019.
	Zou Q H, Ren S M, Yang P L, Niu Y T, Zou T. Effects of reclaimed water irrigation and brackish water irrigation on soil greenhouse gas emissions[J]. Journal of Irrigation and Drainage, 2014, 33(2):80-82.
[21]	冯浩, 刘晶晶, 张阿凤, 邹小阳, 陈海心. 覆膜方式对小麦-玉米轮作农田生态系统净碳汇的影响[J]. 农业机械学报, 2017, 48(4):180-189.doi:10.6041/j.issn.1000-1298.2017.04.024.
	Feng H, Liu J J, Zhang A F, Zou X Y, Chen H X. Effect of film mulching patterns on carbon sequestration in wheat-maize rotation system[J]. Transactions of the Chinese Society for Agricultural Machinery, 2017, 48(4):180-189.
[22]	Hicks L C, Rousk K, Rinnan R, Rousk J. Soil microbial responses to 28 years of nutrient fertilization in a subarctic heath[J]. Ecosystems, 2020, 23(5):1107-1119.doi:10.1007/s10021-019-00458-7.
[23]	李晓莎, 武宁, 刘玲, 冯宇鹏, 徐旭, 韩惠芳, 宁堂原, 李增嘉. 不同秸秆还田和耕作方式对夏玉米农田土壤呼吸及微生物活性的影响[J]. 应用生态学报, 2015, 26(6):1765-1771.doi:10.13287/j.1001-9332.20150413.004.
	Li X S, Wu N, Liu L, Feng Y P, Xu X, Han H F, Ning T Y, Li Z J. Effects of different straw recycling and tillage methods on soil respiration and microbial activity[J]. Chinese Journal of Applied Ecology, 2015, 26(6):1765-1771.
[24]	Yao Z S, Yan G X, Ma L, Wang Y, Zhang H, Zheng X H, Wang R, Liu C Y, Wang Y Q, Zhu B, Zhou M H, Rahimi J, Butterbach-Bahl K. Soil C/N ratio is the dominant control of annual N₂O fluxes from organic soils of natural and semi-natural ecosystems[J]. Agricultural and Forest Meteorology, 2022, 327:109198.doi:10.1016/j.agrformet.2022.109198.
[25]	付腾飞, 于洪军, 徐兴永, 赵娜, 徐秀丽. 微咸水灌溉对莱州湾南岸土壤水盐运移的影响研究[J]. 土壤通报, 2014, 45(6):1358-1363.doi:10.19336/j.cnki.trtb.2014.06.011.
	Fu T F, Yu H J, Xu X Y, Zhao N, Xu X L. Effects of brackish water irrigation on soil water and salt transference in southern coast of Laizhou Bay[J]. Chinese Journal of Soil Science, 2014, 45(6):1358-1363.
[26]	王哲, 王丽娟, 李猛兴. 华北地区咸水灌溉土壤水盐运移规律及对小麦产量的影响研究[J]. 华北地质, 2023, 46(3):76—81.doi:10.19948/j.12-1471/P.2023.03.10.
	Wang Z, Wang L J, Li M X. Study on soil water and salt movement and its effect on wheat production under saline water irrigation in North China Plain[J]. North China Geology, 2023, 46(3):76-81.
[27]	李双男, 侯振安. 咸水滴灌对棉田土壤氧化亚氮排放的影响[J]. 石河子大学学报(自然科学版), 2016, 34(3):301-308.doi:10.13880/j.cnki.65-1174/n.2016.03.007.
	Li S N, Hou Z A. Effect of drip irrigation with saline water on soil nitrous oxide emissions in cotton field[J]. Journal of Shihezi University(Natural Science), 2016, 34(3):301-308.
[28]	郭晓雯, 杜思垚, 王芳霞, 叶扬, 杨茂琪, 闵伟. 长期咸水滴灌对棉田土壤细菌和真菌群落结构的影响[J]. 新疆农业科学, 2022, 59(12):2909-2923.doi:10.6048/j.issn.1001-4330.2022.12.006.
	Guo X W, Du S Y, Wang F X, Ye Y, Yang M Q, Min W. Effects of long-term saline water irrigation on soil bacteria and fungi community structure in cotton field[J]. Xinjiang Agricultural Sciences, 2022, 59(12):2909-2923. doi: 10.6048/j.issn.1001-4330.2022.12.006
[29]	吴蕊, 曹红雨, 高广磊, 于明含, 丁国栋, 张英, 赵珮杉. 科尔沁沙地水盐处理对油莎豆农田土壤细菌群落及植株生理特性的影响[J]. 干旱区研究, 2023, 40(12):1938-1948.doi:10.13866/j.azr.2023.12.07.
	Wu R, Cao H Y, Gao G L, Yu M H, Ding G D, Zhang Y, Zhao P S. Effects of irrigation and salinity treatments on the soil bacterial community and plant physiological characteristics of Cyperus esculentus farmland in Horqin Sandy Land[J]. Arid Zone Research, 2023, 40(12):1938-1948.
[30]	张盈, 吴小虎, 李晓刚, 段婷婷, 徐军, 董丰收, 刘新刚, 郑永权. 土壤微生物对异噁草酮连续施用的响应[J]. 生物技术通报, 2020, 36(12):64—74.doi:10.13560/j.cnki.biotech.bull.1985.2020-1252.
	Zhang Y, Wu X H, Li X G, Duan T T, Xu J, Dong F S, Liu X G, Zheng Y Q. The response of soil microbial community to repeated application clomazone[J]. Biotechnology Bulletin, 2020, 36(12):64-74. doi: 10.13560/j.cnki.biotech.bull.1985.2020-1252
