寒地玉米秸秆不同腐熟时期的理化性状及微生物多样性分析

doi:10.7668/hbnxb.20193039

摘要/Abstract

摘要：

为了进一步揭示寒地玉米秸秆在施用低温降解秸秆菌剂下腐熟的过程及机理,为寒地秸秆的腐熟和综合利用工作提供新的策略和参考理论依据,采用低温降解秸秆菌剂在寒地条件对玉米秸秆进行腐熟并对其理化性状及微生物多样性进行分析。根据发酵过程中温度的变化,将玉米秸秆腐熟过程分为5个时期:初始期(A1)、升温期(A2)、腐熟期(A3)、平稳期(A4)及降温期(A5)。不同腐熟时期玉米秸秆的理化性质监测结果如下:随着腐熟时间的延长,玉米秸秆表皮上的纤维束逐渐被破坏;在腐熟结束后,玉米秸秆中纤维素的相对含量降至33.48%,半纤维素的相对含量降至16.57%;秸秆中全氮、铵态氮的含量呈先降低后升高的趋势,有机质的含量降至149.7 g/kg。发酵垛中微生物多样性的监测结果如下:耐冷酵母属在腐熟过程中的丰富度最高,占重要的主导地位;假单孢菌属和鞘氨醇杆菌属在腐熟初始期和腐熟期为主要菌属;在腐熟过程的平稳期和降温期中,嗜热微生物发挥着主要作用。该研究明确了寒地条件下玉米秸秆在施用低温降解秸秆菌剂后腐熟过程中理化性状及发酵垛中微生物多样性的改变。

关键词: 玉米秸秆, 寒地腐熟, 理化性状, 微生物多样性

Abstract:

In order to further reveal the decomposition process and mechanism of corn straw in the cold area under the application of low temperature straw degrading agent,and provide a new strategy and theoretical basis for the decomposition and comprehensive utilization of straw in the cold area.Corn straw was decomposed by low temperature straw degrading agent and its physical and chemical characters and microbial diversity were analyzed.According to the change of temperature in the fermentation process,the ripening process of corn straw was divided into five stages:initial stage(A1),heating stage(A2),ripening stage(A3),stable stage(A4)and cooling stage(A5).The monitoring results of the physical and chemical properties of corn straw in different maturity stages were as follows:with the extension of maturity time,the fiber bundles on the surface of corn straw were destroyed gradually.After maturity during the cooling stage,the relative content of cellulose and hemicellulose in corn straw decreased to 33.48% and 16.57%,respectively,while the content of total nitrogen and ammonium nitrogen in corn straw decreased at first and then increased,and the contents of organic matter decreased to 149.7 g/kg.The monitoring results of microbial diversity in the fermentation stacks were as follows:Guehomces were the most abundant and dominant species in the ripening process;Pseudomonas and Sphingobacterium were the main genera in the initial and ripening stages,and thermophilic microorganisms played a major role in the heating,stationary and cooling stages of ripening.The changes of physical and chemical properties and microbial diversity in fermentation stack of corn straw after the application of low temperature straw degradation agent in cold area were clarified.

Key words: Corn straw, Cold decomposition, Physicochemical properties, Microbial diversity

王丽娟, 刘丹, 徐永清, 冯旭, 贺付蒙, 李爱雨, 王雪, 杨燕, 李翠婷, 袁强, 李凤兰. 寒地玉米秸秆不同腐熟时期的理化性状及微生物多样性分析[J]. 华北农学报, 2022, 37(5): 132-139. doi: 10.7668/hbnxb.20193039.

WANG Lijuan, LIU Dan, XU Yongqing, FENG Xu, HE Fumeng, LI Aiyu, WANG Xue, YANG Yan, LI Cuiting, YUAN Qiang, LI Fenglan. Analysis of Physical and Chemical Characteristics and Microbial Diversity of Corn Straw in Different Maturity Period in Cold Area[J]. Acta Agriculturae Boreali-Sinica, 2022, 37(5): 132-139. doi: 10.7668/hbnxb.20193039.

http://www.hbnxb.net/CN/Y2022/V37/I5/132

图/表 7

图1 玉米秸秆腐熟过程中温度的变化

Fig.1 Change of temperature during corn straw decomposition

图2 玉米秸秆腐熟过程中的形态变化 CK.对照;A1.初始期;A2.升温期;A3.腐熟期;A4.平稳期;A5.降温期。

Fig.2 Morphological changes of corn straw during decomposition CK.Control;A1.Initial stage;A2.Warming stage;A3.Ripening stage;A4.Stable stage;A5.Cooling stage.

图3 玉米秸秆腐熟过程中木质纤维素成分相对含量的变化不同小写字母表示处理间差异达显著水平(P<0.05)。图4,5同。

Fig.3 Changes of relative content of lignocellulose in corn straw during decomposition Different lowercase letters in the same concentration was significant difference(P < 0.05).The same as Fig.4,5.

图4 玉米秸秆腐熟过程中全氮、全磷、全钾和有机质的含量变化

Fig.4 Content changes of total nitrogen,total phosphorus,total potassium and organic matter in corn straw during decomposition

图5 玉米秸秆腐熟过程铵态氮、速效磷、有效钾的含量变化

Fig.5 Content changes of ammonium nitrogen, available phosphorus and available potassium in corn straw during decomposition

图6 腐熟过程中细菌多样性分析 A.样品稀释度曲线;B.微生物OTU数量的韦恩图;C.腐熟过程中在属水平上的物种组成。图7同。

Fig.6 Analysis of bacterial diversity during decomposition A.Sample dilution curve;B.Venn diagram of microbial OTU numbers; C.Species composition at the genus level during decomposition.The same as Fig.7.

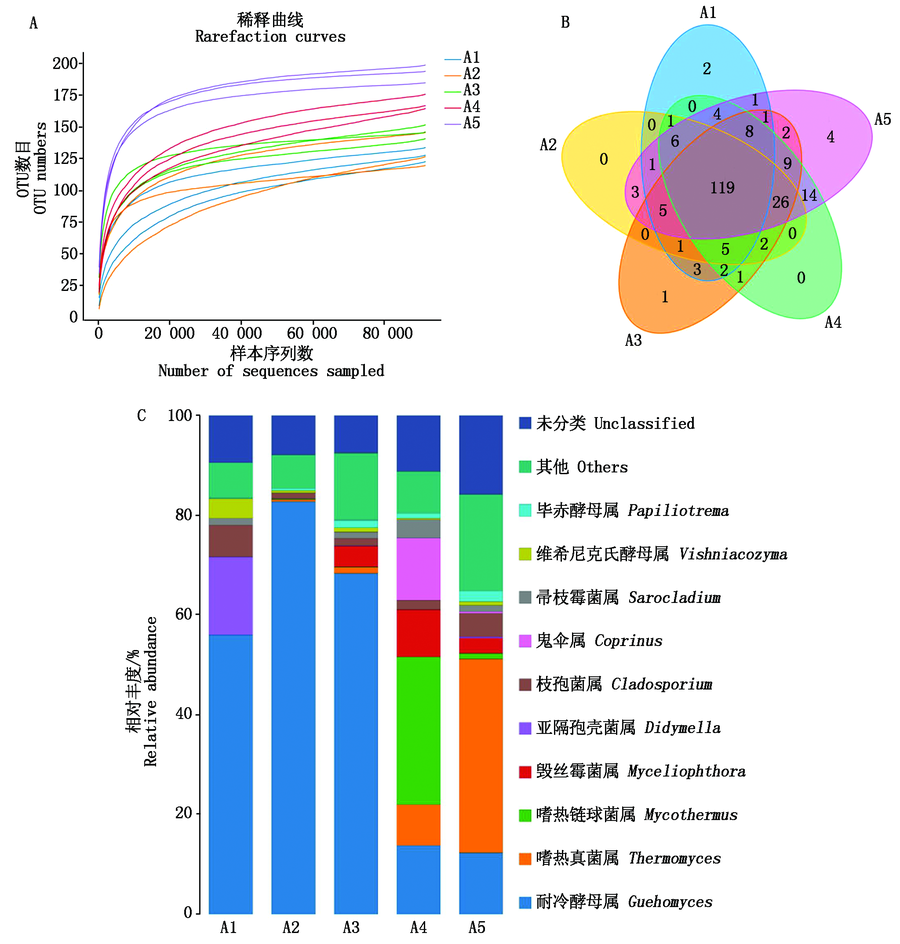

图7 腐熟过程中真菌多样性分析

Fig.7 Analysis of fungal diversity during decomposition

参考文献 22

[1]	Li J, Li M, Gao X X, Fang F. Corn straw mulching affects Parthenium hysterophorus and rhizosphere organisms[J]. Crop Protection, 2018, 113:90-96.doi: 10.1016/j.cropro.2018.08.002. doi: 10.1016/j.cropro.2018.08.002 URL
[2]	Zhao J, Dong Z H, Li J F, Chen L, Bai Y F, Jia Y S, Shao T. Ensiling as pretreatment of rice straw:The effect of hemicellulase and Lactobacillus plantarum on hemicellulose degradation and cellulose conversion[J]. Bioresource Technology, 2018, 266:158-165.doi: 10.1016/j.biortech.2018.06.058. doi: S0960-8524(18)30837-X pmid: 29966925
[3]	曾杰. 秸秆综合利用与农业生态环境保护研究[J]. 新农业, 2020(19): 75.doi: 10.19754/j.nyyjs.20210130025. doi: 10.19754/j.nyyjs.20210130025
	Zeng J. Study on comprehensive utilization of straw and protection of agricultural ecological environment[J]. Modern Agriculture, 2020(19):75.
[4]	陈子爱, 邓小晨. 微生物处理利用秸杆的研究进展[J]. 中国沼气, 2006, 24(3):31-35.doi: 10.3969/j.issn.1000-1166.2006.03.008. doi: 10.3969/j.issn.1000-1166.2006.03.008
	Chen Z A, Deng X C. Progress in microbiologic utilization technology of crop straw[J]. China Biogas, 2006, 24(3):31-35.
[5]	常洪艳, 王天野, 黄梓源, 白义晨, 王呈玉, 刘淑霞. 秸秆降解菌对秸秆降解率、土壤理化性质及酶活性的影响[J]. 华北农学报, 2019, 34(S1):161-167.doi: 10.7668/hbnxb.20190347. doi: 10.7668/hbnxb.20190347
	Chang H Y, Wang T Y, Huang Z Y, Bai Y C, Wang C Y, Liu S X. Effects of straw degrading bacteria on straw degradation rate,soil physicochemical properties and enzyme activities[J]. Acta Agriculturae Boreali-Sinica, 2019, 34(S1):161-167.
[6]	勉有明, 李荣, 侯贤清, 李培富, 王西娜. 秸秆还田配施腐熟剂对砂性土壤性质及滴灌玉米生长的影响[J]. 核农学报, 2020, 34(10):2343-2351.doi: 10.11869/j.issn.100-8551.2020.10.2343. doi: 10.11869/j.issn.100-8551.2020.10.2343
	Mian Y M, Li R, Hou X Q, Li P F, Wang X N. Effects of straw returning combined with decomposition agents on sandy soil properties and growth of maize under drip irrigation[J]. Journal of Nuclear Agricultural Sciences, 2020, 34(10):2343-2351.
[7]	段杰. 东北地区秸秆纤维素降解菌的筛选及高效降解菌系的构建[D]. 长春: 吉林农业大学, 2015.
	Duan J. The screening of degradation bacteria and building of highly efficient degradation bacteria for the straw cellulose in the Northeast[D]. Changchun: Jilin Agricultural University, 2015.
[8]	李凤兰, 徐媛媛, 徐永清, 冯艳忠, 杨秀梅, 袁强, 王丽娟. 低温酵解玉米秸秆的细菌菌株及其发酵培养方法和应用[P].黑龙江:CN108865927B, 2021-09-03.
	Li F L, Xu Y Y, Xu Y Q, Feng Y Z, Yang X M, Yuan Q, Wang L J. Bacterial strain of low temperature fermentation of corn straw and its fermentation culture method and application[P].Heilongjiang:CN108865927B, 2021-09-03.
[9]	张丽英. 饲料分析及饲料质量检测技术[M]. 3版. 北京: 中国农业大学出版社, 2007.
	Zhang L Y. Feed analysis and feed quality detection technology[M]. 3rd edition. Beijing: China Agricultural University Press, 2007.
[10]	Edgar R C. UPARSE:highly accurate OTU sequences from microbial amplicon reads[J]. Nature Methods, 2013, 10(10):996-998.doi: 10.1038/nmeth.2604. doi: 10.1038/nmeth.2604 URL
[11]	Bokulich N A, Subramanian S, Faith J J, Gevers D, Gordon J I, Knight R, Mills D A, Caporaso J G. Quality-filtering vastly improves diversity estimates from Illumina amplicon sequencing[J]. Nature Methods, 2013, 10(1):57-59.doi: 10.1038/nmeth.2276. doi: 10.1038/nmeth.2276 pmid: 23202435
[12]	Quast C, Pruesse E, Yilmaz P, Gerken J, Schweer T, Yarza P, Peplies J, Glöckner F O. The SILVA ribosomal RNA gene database project:Improved data processing and web-based tools[J]. Nucleic Acids Research, 2012, 41(D1):D590-D596.doi: 10.1093/nar/gks1219. doi: 10.1093/nar/gks1219 URL
[13]	Kõljalg U, Nilsson R H, Abarenkov K, Tedersoo L, Taylor A F, Bahram M, Bates S T, Bruns T D, Bengtsson-Palme J, Callaghan T M. Towards a unified paradigm for sequence-based identification of fungi[J]. Molecular Ecology, 2013, 22(21):5271-5277.doi: 10.1111/mec.12481. doi: 10.1111/mec.12481 pmid: 24112409
[14]	Wang Q, Garrity G M, Tiedje J M, Cole J R. Naive Bayesian classifier for rapid assignment of rRNA sequences into the new bacterial taxonomy[J]. Applied and Environmental Microbiology, 2007, 73(16):5261-5267.doi: 10.1128/AEM.00062-07. doi: 10.1128/AEM.00062-07 pmid: 17586664
[15]	龚昆, 张莉, 熊海容. 秸秆堆肥降解过程中的微生物变化[J]. 湖北农业科学, 2019, 58(21):81-86.doi: 10.14088/j.cnki.issn0439-8114.2019.21.017. doi: 10.14088/j.cnki.issn0439-8114.2019.21.017
	Gong K, Zhang L, Xiong H R. Changes of microorganisms in the process of straw compost degradation[J]. Hubei Agricultural Sciences, 2019, 58(21):81-86.
[16]	陆晓林, 戴传超, 贾永. 堆肥过程中优势功能微生物菌群多样性及其影响因素[J]. 生态学杂志, 2019, 38(9):2866-2874.doi: 10.13292/j.1000-4890.201909.025. doi: 10.13292/j.1000-4890.201909.025
	Lu X L, Dai C C, Jia Y. Biodiversity of dominant functioning microbial communities and influencing factors during composting[J]. Chinese Journal of Ecology, 2019, 38(9):2866-2874.
[17]	Qiao C C, Penton C R, Liu C, Shen Z Z, Ou Y N, Liu Z Y, Xu X, Li R, Shen Q R. Key extracellular enzymes triggered high-efficiency composting associated with bacterial community succession[J]. Bioresource Technology, 2019, 288:121576.doi: 10.1016/j.biortech.2019.121576. doi: 10.1016/j.biortech.2019.121576 URL
[18]	王秀红, 李欣欣, 史向远, 周静, 王保平, 杜慧平, 籍增顺. 玉米秸秆不同发酵时期理化性状和细菌群落多样性[J]. 华北农学报, 2018, 33(3): 144-152. doi: 10.7668/hbnxb.2018.03.022. doi: 10.7668/hbnxb.2018.03.022
	Wang X H, Li X X, Shi X Y, Zhou J, Wang B P, Du H P, Ji Z S. Physicochemical properties and bacterial community diversity during different fermentation periods of corn straw[J]. Acta Agriculturae Boreali-Sinica, 2018, 33(3): 144-152. doi: 10.7668/hbnxb.2018.03.022
[19]	匡恩俊, 迟凤琴, 宿庆瑞, 张久明, 高中超, 朱宝国. 3种腐熟剂促进玉米秸秆快速腐解特征[J]. 农业资源与环境学报, 2014, 31(5):432-436.doi: 10.13254/j.jare.2014.0176. doi: 10.13254/j.jare.2014.0176
	Kuang E J, Chi F Q, Su Q R, Zhang J M, Gao Z C, Zhu B G. Characteristics of three decomposer accelerators on maize straw decomposition[J]. Journal of Agricultural Resources and Environment, 2014, 31(5):432-436.
[20]	杨梦雅, 闫非凡, 闫美超, 王贺, 朴仁哲, 崔宗均, 赵洪颜. 低温木质纤维素分解复合菌系PLC-8对玉米秸秆的分解特性[J]. 中国农业科技导报, 2021, 23(1):73-81.doi: 10.13304/j.nykjdb.2019.0841. doi: 10.13304/j.nykjdb.2019.0841
	Yang M Y, Yan F F, Yan M C, Wang H, Piao R Z, Cui Z J, Zhao H Y. Decomposition characteristics of corn stover by microbial consortium PLC-8 with lignocellulose-degradation at low temperature[J]. Journal of Agricultural Science and Technology, 2021, 23(1):73-81.
[21]	陆水凤, 王呈玉, 王天野, 常洪艳, 高云航, 刘淑霞. 玉米秸秆配施菌剂还田对土壤养分及腐殖质组成的影响[J]. 江苏农业学报, 2019, 35(4):834-840.doi: 10.3969/j.issn.1000-4440.2019.04.012. doi: 10.3969/j.issn.1000-4440.2019.04.012
	Lu S F, Wang C Y, Wang T Y, Chang H Y, Gao Y H, Liu S X. Effects of corn straw combined with microbial inoculum on soil nutrient and humus composition[J]. Jiangsu Journal of Agricultural Sciences, 2019, 35(4):834-840.
[22]	青格尔, 于晓芳, 高聚林, 王志刚, 闹干朝鲁, 王振, 胡树平, 高琳, 胡海红. 腐解菌剂对玉米秸秆降解效果的研究[J]. 西北农林科技大学学报(自然科学版), 2016, 44(12):107-116.doi: 10.13207/j.cnki.jnwafu.2016.12.015. doi: 10.13207/j.cnki.jnwafu.2016.12.015
	Qinggeer, Yu X F, Gao J L, Wang Z G, Naoganchaolu, Wang Z, Hu S P, Hu S P, Gao L, Hu H H. Study on degradation of corn stalk by decomposing microbial inoculants[J]. Journal of Northwest A&F University (Natural Science Edition), 2016, 44(12):107-116.
