转录因子<i>SlMYB-related 2</i>对番茄耐冷性的影响

doi:10.7668/hbnxb.20192215

摘要/Abstract

摘要：

番茄属于冷敏感模式植物,在生长过程中极易受冷害进而影响其产量。为进一步揭示番茄植株抗寒的分子机制以及对选育番茄抗寒品种提供理论依据,以蔬菜遗传育种与生物技术实验室种质资源编号25的番茄品种为材料、番茄转录因子SlMYB-related 2为研究对象,基于CRISPR/Cas9基因敲除载体,通过农杆菌转化法转化获得番茄阳性植株;构建VIGS瞬时沉默表达载体,以野生型和未插入目的基因片段的病毒转化植株为对照,将3组植株进行4 ℃(16 h光照/8 h黑暗处理,60%湿度)低温处理后,测定抗冷相关生理指标的含量,比较其耐寒性。结果表明,构建了CRISPR/Cas9基因敲除载体,共获得了CRISPR沉默阳性植株2株;构建了VIGS沉默表达载体,经低温处理后发现,随着低温处理时间的延长,SlMYB-related 2基因转化组番茄植株的脯氨酸和可溶性糖的增长趋势比对照番茄组(野生型携带TRV空载,CK)和野生组(WT)慢,且含量低于CK组和野生组,但丙二醛含量高于CK组和野生组,证明VIGS瞬时表达番茄植株抗寒性显著低于CK组和野生组。通过对基因瞬时沉默表达后番茄植株的抗寒性分析,发现SlMYB-related 2基因在低温胁迫中起到了正调控作用。

关键词: 番茄, MYB转录因子, VIGS, CRISPR/Cas9, 沉默载体, 遗传转化

Abstract:

Tomato belongs to the cold sensitive model plant,which is vulnerable to chilling injury during its growth,thus affecting its yield.In order to provide a theoretical basis for further revealing the molecular mechanism of cold resistance of tomato plants and breeding tomato cold resistant varieties,tomato germplasm resource No.25 of vegetable genetics,Breeding and Biotechnology Laboratory was used as material,and tomato transcription factor SlMYB-related 2 was used as research object.Based on CRISPR/Cas9 gene knockout vector,tomato positive plants were obtained by Agrobacterium transformation.The VIGS transient silencing expression vector was constructed,and the wild-type and and virus transformed plants without inserted target gene fragment were used as control.The three groups of plants were treated with low temperature at 4 ℃(16 h day / 8 h night,60% humidity).The contents of physiological indexes related to cold resistance were measured and its cold tolerance was compared.The results showed that CRISPR/Cas9 gene knockout vector was constructed and two CRISPR silenced positive plants were obtained.Constructed the expression vector of VIGS silence,after low temperature treatment,it was found that with the extension of low temperature treatment time,the growth trend of proline and soluble sugar in SlMYB-related 2 gene transformation group was slower than that in control tomato group(wild type carrying TRV,CK)and wild group(WT),and the content was lower than that in CK group and wild group.However,the content of malondialdehyde was higher than that of CK group and wild group,which proved that the cold resistance of tomato plants with transient expression of VIGS was significantly lower than that of CK group and wild group.Through the analysis of cold resistance of tomato plants after gene transient silencing expression,it was found that SlMYB-related 2 gene played a positive regulatory role in low temperature stress.

Key words: Tomato, MYB transcription factor, VIGS, CRISPR/Cas9, Silence carrier, Genetic transformation

吴红红, 段学粉, 郭仰东, 张喜春. 转录因子SlMYB-related 2对番茄耐冷性的影响[J]. 华北农学报, 2022, 37(1): 35-41. doi: 10.7668/hbnxb.20192215.

WU Honghong, DUAN Xuefen, GUO Yangdong, ZHANG Xichun. Effects of Transcription Factor SlMYB-related 2 on Cold Tolerance of Tomato[J]. Acta Agriculturae Boreali-Sinica, 2022, 37(1): 35-41. doi: 10.7668/hbnxb.20192215.

http://www.hbnxb.net/CN/Y2022/V37/I1/35

图/表 11

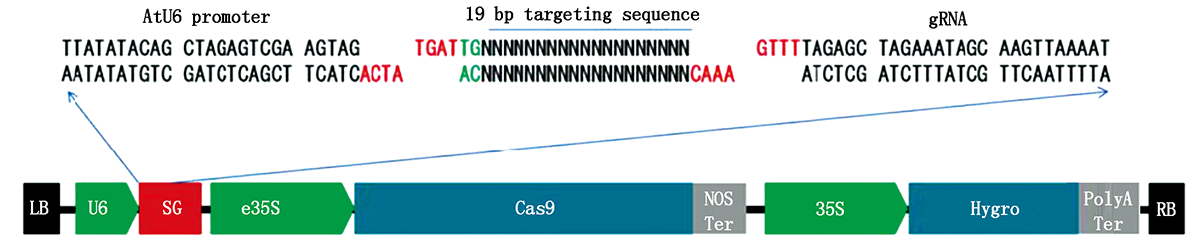

图1 CRISPR/Cas9载体示意及sgRNA靶位点信息
LB.T-DNA左边界;Cas9.优化Cas9;RB.T-DNA右边界;NOS Ter.NOS终止子;U6.拟南芥U6启动子;35S.CaMV 35S启动子;SG.向导RNA;Hygro.潮霉素选择标记;e35S.增强子35S启动子;Poly Ter.PolyA终止子。

Fig.1 Diagram of CRISPR/Cas9 vector and information of the sgRNA target site
LB.Left border of T-DNA;Cas9.Optimized Cas9;RB.Right border of T-DNA;NOS Ter.NOS terminator;U6.Arabidopsis U6 promoter;35S.CaMV 35S promoter;SG.sgRNA;Hygro.Hygromycin selection marker;e35S.Enhanced 35S promoter;PolyA Ter.PolyA terminator.

表1 引物序列

Tab.1 Primer sequence

引物名称 Primer name	引物序列(5'—3') Primer sequence
上游靶点Up target	TGATTGCATTGGCATTCCCACCTTGT
下游靶点Low target	AAACACAAGGTGGGAATGCCAATGCA

表2 引物二聚体反应体系

Tab.2 Primer dimer reaction system

成分 Component	体积/μL Volume
退火缓冲液 Buffer anneal	18
上游靶点Up target	1
下游靶点Low target	1

表3 CRISPR双元载体构建

Tab.3 Binary vector construction of CRISPR

成分 Component	体积/μL Volume
CRISPR/Cas载体 CRISPR/Cas vector	2
靶点二聚体Target dimer	1
酶 Enzyme Mix	1
水 ddH₂O	6
总体积 Total volume	10

图2 CRISPR/Cas9基因敲除载体序列比对

Fig.2 CRISPR/Cas9 gene knockout vector sequence alignment

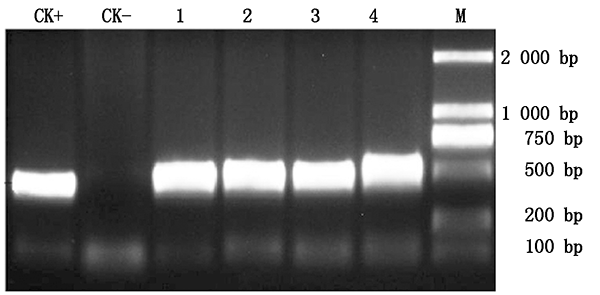

图3 转基因植株的阳性验证
M.Marker;1—2.1号转基因植株;3—4.2号转基因植株。

Fig.3 Validation of positive transgenic plants
M.Marker;1—2.Transgenic plant 1;3—4.Transgenic plant 2.

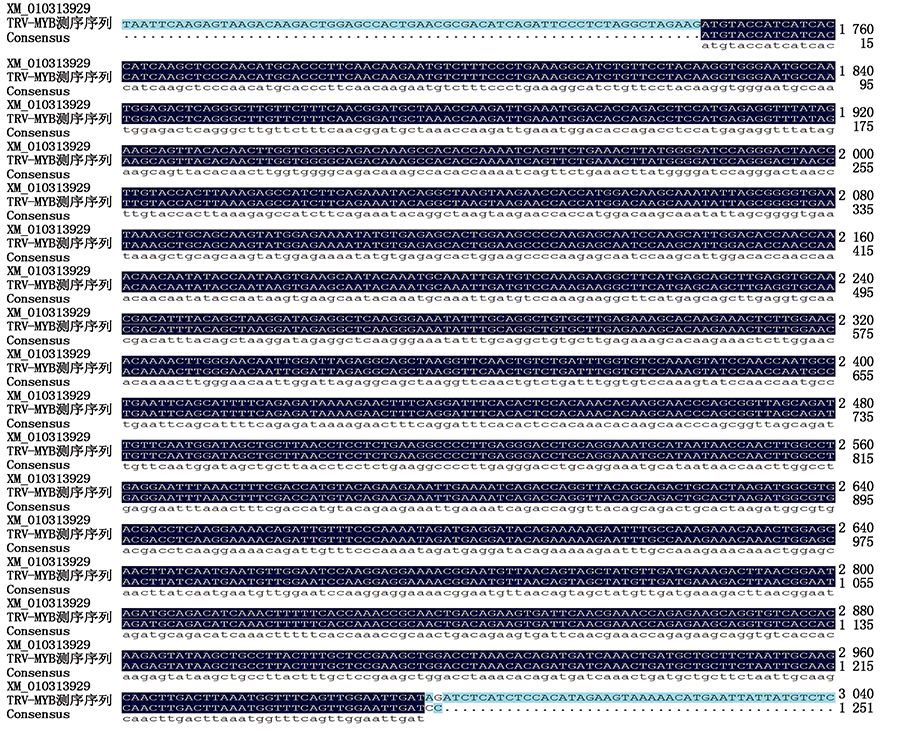

图4 VIGS瞬时沉默表达载体序列比对

Fig.4 VIGS transient silence expression vector sequence alignment

图5 TRV病毒检测
M.Marker;1.WT;2、3、4、6、7.TRV阳性;5.TRV阴性。

Fig.5 Detection of TRV virus
M.Marker;1.WT;2,3,4,6,7.TRV positive;5.TRV negative.

图6 不同植株材料游离脯氨酸含量比较
不同小写字母表示0.05水平差异显著性。图7—8同。

Fig.6 Comparison of free proline content in different plant materials
Different lowercase letters indicate significant differences in 0.05 levels. The same as Fig.7—8.

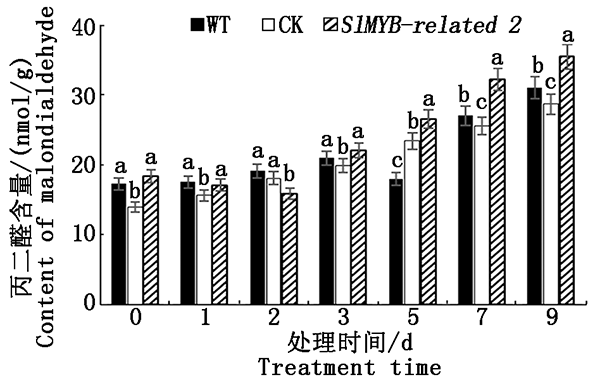

图7 不同植株材料丙二醛含量比较

Fig.7 Comparison of malondialdehyde content in different plant materials

图8 不同植株材料可溶性糖含量比较

Fig.8 Comparison of soluble sugar content of different plant materials

参考文献 24

[1]	杜永臣,严准,王孝宣,李树德,朱德蔚.番茄育种研究主要进展[J].园艺学报,1999,26(3):161-169.doi:10.3321/j.issn.0513-353X.1999.03.005.
	Du Y C,Yan Z,Wang X X,Li S D,Zhu D W.Recent advances in tomato breeding[J].Acta Horticulturae Sinica,1999,26(3):161-169.
[2]	程群科,罗庆熙,李利兰,孙晶晶.番茄抗冷性的研究进展[J].长江蔬菜,2012(8):14-16.doi:10.3865/j.issn.1001-3547.2012.08.004.
	Cheng Q K,Luo Q X,Li L L,Sun J J.Research progress of cold resistance in tomato[J].Changjiang Vegetables,2012(8):14-16.
[3]	陈丽平,李敏.丛枝菌根真菌和外源水杨酸对番茄耐冷性的影响[J].青岛农业大学学报(自然科学版),2015,32(2):79-82,91.doi:10.3969/J.issn.1674-148X.2015.02.001.
	Chen L P,Li M.Effects of arbuscular mycorrhizal fungus and exogenous salicylic acid on cold tolerance of tomato plants[J].Journal of Qingdao Agricultural University (Natural Science Edition),2015,32(2):79-82,91.
[4]	郭全娟,韩秋菊,张建.CRISPR/Cas9技术的脱靶效应及优化策略[J].生物化学与生物物理进展,2018,45(8):798-807.doi:10.16476/j.pibb.2018.0013.
	Guo Q J,Han Q J,Zhang J.Off-target effect of CRISPR/Cas9 and optimization[J].Progress in Biochemistry and Biophysics,2018,45(8):798-807.
[5]	Yuan M,Zhu J,Gong L M,He L Q,Lee C,Han S Y,Chen C,He G H.Mutagenesis of FAD2 genes in peanut with CRISPR/Cas9 based gene editing[J].BMC Biotechnology,2019,19(1):24.doi:10.1186/s12896-019-0516-8.
[6]	Dong O X,Yu S,Jain R,Zhang N,Duong P Q,Butler C,Li Y,Lipzen A,Martin J A,Barry K W,Schmutz J,Tian L,Ronald P C.Marker-free carotenoid-enriched rice generated through targeted gene insertion using CRISPR-Cas9[J].Nature Communications,2020,11(1):1178.doi:10.1038/s41467-020-14981-y.
[7]	Zhou J P,Xin X H,He Y,Chen H Q,Li Q,Tang X,Zhong Z H,Deng K J,Zheng X L,Akher S A,Cai G Z,Qi Y P,Zhang Y.Multiplex QTL editing of grain-related genes improves yield in elite rice varieties[J].Plant Cell Reports,2019,38(4):475-485.doi:10.1007/s00299-018-2340-3.
[8]	Zaman Q U,Chu W,Hao M Y,Shi Y Q,Sun M D,Sang S F,Mei D S,Cheng H T,Liu J,Li C,Hu C Q.CRISPR/Cas9-mediated multiplex genome editing of JAGGED gene in Brassica napus L.[J].Biomolecules,2019,9(11):725-729.doi:10.3390/biom9110725.
[9]	宋恬,田嘉,李鹏,刘梦婕,张琦,郭长奎,李疆.扁桃AcCBF1基因VIGS载体构建与功能分析[J].果树学报,2019,36(4):421-429.doi:10.13925/j.cnki.gsxb.20180454.
	Song T,Tian J,Li P,Liu M J,Zhang Q,Guo C K,Li J.Vector construction and functional analysis of AcCBF1 using VIGS method in almond flower organs[J]. Journal of Fruit Science,2019,36(4):421-429.
[10]	邱润霜,赵立华,张晓明,崔玥,张洁,郑雪,李靖,张仲凯.番茄斑萎病毒N基因的VIGS载体构建[J].植物病理学报,2020,50(6):766-773.doi:10.13926/j.cnki.apps.000504.
	Qiu R S,Zhao L H,Zhang X M,Cui Y,Zhang J,Zheng X,Li J,Zhang Z K.Construction of a VIGS vector containing N gene derived from tomato spotted wilt orthotospovirus[J].Acta Phytopathologica Sinica,2020,50(6):766-773.
[11]	武林琳,竹梦婕,王咪,李晓萍,刘跃鹏,裴蕾,杨淑巧,许琦,王华,郭文治.CRISPR/Cas9技术在农作物中应用的局限及改进[J]. 现代农业科技,2020(22):26-29.
	Wu L L,Zhu M J,Wang M,Li X P,Liu Y P,Pei L,Yang S Q,Xu Q,Wang H,Guo W Z.The limitation and improvement of CRISPR/Cas9 technology in crops application[J].Modern Agricultural Science and Technology,2020(22):26-29.
[12]	Ramegowda V,Senthil-Kumar M,Udayakumar M,Mysore K S.A high-throughput virus-induced gene silencing protocol identifies genes involved in multi-stress tolerance[J].BMC Plant Biology,2013,13(1):193.doi:10.1186/1471-2229-13-193.
[13]	Zhao J P,Wang G Y,Jiang H L,Liu T L,Dong J G,Wang Z H,Zhang B L,Song J Q.Virus-based microRNA silencing in plants[J].Virus-Induced Gene Silencing in Plants,2020:2172:243-257.doi:10.1007/978-1-0716-0751-0_18.
[14]	苍晶,赵会杰.植物生理学实验教程[M].北京:高等教育出版社,2013:141-147.
	Cang J,Zhao H J.Experimental course of plant physiology[M].Beijing:Higher Education Press,2013:141-147.
[15]	Kong F Y,Deng Y S,Zhou B,Wang G D,Wang Y,Meng Q W.A chloroplast-targeted DnaJ protein contributes to maintenance of photosystem Ⅱ under chilling stress[J].Journal of Experimental Botany,2014,65(1):143-158.doi:10.1093/jxb/ert357.
[16]	Ahmad A,Hadi F,Ali N.Effective phytoextraction of cadmium(Cd)with increasing concentration of total phenolics and free proline in Cannabis sativa(L)plant under various treatments of fertilizers,plant growth regulators and sodium salt[J].International Journal of Phytoremediation,2015,17(1):56-65.doi:10.1080/15226514.2013.828018.
[17]	Zhang A N,Liu Y,Wang F M,Li T F,Chen Z H,Kong D Y,Bi J G,Zhang F Y,Luo X X,Wang J H,Tang J J,Yu X Q,Liu G L,Luo L J.Enhanced rice salinity tolerance via CRISPR/Cas9-targeted mutagenesis of the OsRR22 gene[J].Molecular Breeding,2019,39(3):47.doi:10.1007/s11032-019-0954-y.
[18]	Liu L,Zhang J L,Xu J Y,Li Y F,Guo L Q,Wang Z R,Zhang X C,Zhao B,Guo Y D,Zhang N.CRISPR/Cas9 targeted mutagenesis of SlLBD40,a lateral organ boundaries domain transcription factor,enhances drought tolerance in tomato[J].Plant Science,2020,301:110683.doi:10.1016/j.plantsci.2020.110683.
[19]	钱芝龙,丁犁平,曹寿椿.低温胁迫对辣(甜)椒幼苗膜脂过氧化水平及保护酶活性的影响[J].园艺学报,1994,21(2):203-204.
	Qian Z L,Ding L P,Cao S C.Effect of low temperature stress on pepper seedling lipid peroxidation level and protective enzyme activity[J].Acta Horticulturae Sinica,1994,21(2):203-204.
[20]	Alonso A,Queiroz C S,Magalhães A C.Chilling stress leads to increased cell membrane rigidity in roots of coffee(Coffea arabica L.)seedlings[J].Biochimica et Biophysica Acta,1997,1323(1):75-84.doi:10.1016/s0005-2736(96)00177-0.
[21]	王孝宣,李树德,东惠茹,高振华,戴善书.番茄品种耐寒性与ABA和可溶性糖含量的关系[J].园艺学报,1998,25(1):56-60.
	Wang X X,Li S D,Dong H R,Gao Z H,Dai S S.The correlationship of cold-tolerance and ABA and soluble sugar and respiratory intensity in tomato[J]. Acta Horticulturae Sinica,1998,25(1):56-60.
[22]	Gupta N K,Agarwal S,Agarwal V P,Nathawat N S,Gupta S,Singh G.Effect of short-term heat stress on growth,physiology and antioxidative defence system in wheat seedlings[J].Acta Physiologiae Plantarum,2013,35(6):1837-1842.doi:10.1007/s11738-013-1221-1.
[23]	Hasanuzzaman M,Nahar K,Alam M M,Roychowdhury R,Fujita M.Physiological,biochemical,and molecular mechanisms of heat stress tolerance in plants[J].International Journal of Molecular Sciences,2013,14(5):9643-9684.doi:10.3390/ijms14059643.
[24]	Hayat S,Hayat Q,Alyemeni M N,Wani A S,Pichtel J,Ahmad A.Role of proline under changing environments:a review[J].Plant Signaling & Behavior,2012,7(11):1456-1466.doi:10.4161/psb.21949.
