尖孢镰刀菌黏团专化型转录因子SNT2基因敲除及其功能分析

doi:10.7668/hbnxb.20195567

摘要/Abstract

摘要：

甘蓝枯萎病是由尖孢镰刀菌黏团专化型(FOC)引起的土传真菌病害,严重影响甘蓝产量和品质。为了明确该病原菌中转录因子SNT2的生物学功能,利用同源重组和原生质体转化技术,成功获得了尖孢镰刀菌中SNT2基因敲除突变体ΔSNT2,并对其表型和致病力进行了分析。结果表明:尖孢镰刀菌中SNT2编码1 529个氨基酸,具有与DNA结合的SANT结构域,蛋白归属亲水性蛋白质。与野生型菌株相比,ΔSNT2突变体菌丝生长速率降低且分隔明显增加,分生孢子产孢量显著下降。基于外源胁迫结果显示,ΔSNT2在1 mol/L 山梨醇的渗透压胁迫中表现不敏感,但对0.1% H₂O₂、2 mol/L NaCl和0.05% 刚果红(CR)的氧胁迫、盐胁迫和细胞壁胁迫的耐受性降低,同时致病力测定结果表明,接种ΔSNT2突变体的病情指数显著低于接种野生型,SNT2的缺失导致尖孢镰刀菌致病力显著下降。综上,转录因子SNT2在病原菌与寄主互作过程中对于维持细胞壁的完整性具有重要作用,同时参与调控尖孢镰刀菌的生长发育和致病力。

关键词: 尖孢镰刀菌, SNT2, 表型, 致病力, 功能分析, 基因敲除

Abstract:

Cabbage fusarium wilt is a serious soil-borne fungal disease caused by Fusarium oxysporum f.sp.conglutinans (FOC),which affects the yield and quality of cabbage.In order to clarify the biological function of the transcription factor SNT2 in this pathogen,the SNT2 gene knockout mutant ΔSNT2 in F.oxysporum was successfully obtained by homologous recombination and protoplast transformation,and its phenotype and pathogenicity were analyzed.The results showed that SNT2 in F.oxysporum encoded 1 529 amino acids,had a SANT domain that binds to DNA,and the protein belonged to a hydrophilic protein.Compared with the wild type strain,the mycelial growth rate of the ΔSNT2 mutant decreased and the septation increased significantly,and the conidial production decreased significantly.Based on the results of exogenous stress,ΔSNT2 was insensitive to osmotic stress of 1 mol/L sorbitol,but its tolerance to oxygen stress,salt stress and cell wall stress of 0.1% H₂O₂,2 mol/L NaCl and 0.05% Congo red was reduced.At the same time,the pathogenicity test showed that the disease index of ΔSNT2 mutant was significantly lower than that of wild type,and the deletion of SNT2 resulted in a significant decrease in the pathogenicity of F.oxysporum.In conclusion,the transcription factor SNT2 plays an important role in maintaining the integrity of the cell wall during the interaction between the pathogen and the host,and participates in the regulation of the growth and development of F.oxysporum and the expression of pathogenicity.

Key words: Fusarium oxysporum, SNT2, Phenotype, Pathogenicity, Functional analysis, Gene knockout

徐新瑞, 宋泽龙, 李二峰. 尖孢镰刀菌黏团专化型转录因子SNT2基因敲除及其功能分析[J]. 华北农学报, 2025, 40(2): 173-180. doi: 10.7668/hbnxb.20195567.

XU Xinrui, SONG Zelong, LI Erfeng. Knockout and Functional Analysis of Transcription Factor SNT2 Coding Gene in Fusarium oxysporum f.sp.conglutinans[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(2): 173-180. doi: 10.7668/hbnxb.20195567.

http://www.hbnxb.net/CN/Y2025/V40/I2/173

图/表 8

表1 引物名称及序列

Tab.1 Primer names and sequences

引物名称 Primer name	引物序列(5'—3') Primer sequences(5'—3')
up-F	AAATGCGGATGACTTGGCG
up-R	ACCTCCACTAGCTCCAGCCAAGAGTT GCGAAGGATGAAGACGG
down-F	GAATAGAGTAGATGCCGACCGGGTG AAAGTCTAAGAGGGCGAGC
down-R	AGTGCGAGAGAGCGGTATTT
hygR-F1	CTTGGCTGGAGCTAGTGGAGGT
hygR-R1	GGATGCCTCCGCTCGAAGTA
hygR-F2	CGTTGCAAGACCTGCCTGAA
hygR-R2	CCCGGTCGGCATCTACTCTATTC
upcheck-F	ATTGCTGTGTTGGTGCGTC
upcheck-R	ATTGCTGTGTTGGTGCGTC
downcheck-F	TCTGGACCGATGGCTGTGTAG
downcheck-R	CGTGTGTTGTTTCTCTCACCAT

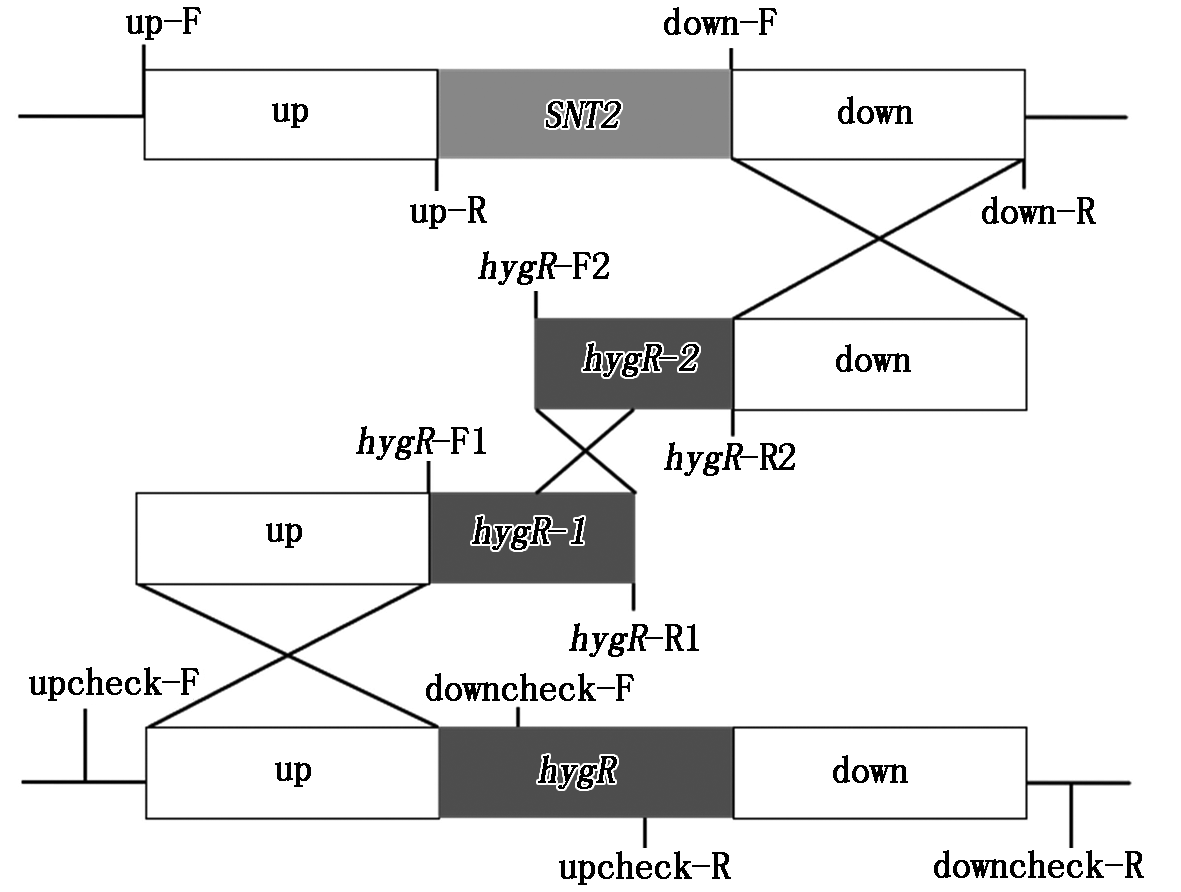

图1 同源重组敲除策略

Fig.1 Homologous recombination knockout strategy

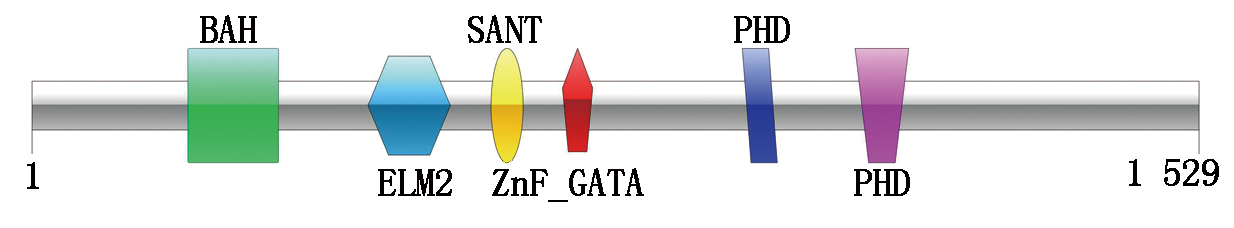

图2 SNT2蛋白结构域预测

Fig.2 SNT2 protein domain prediction

图3 同源置换臂的扩增 M.DNA Marker;A.up片段;B.down片段;C.hygR1片段; D.hygR2片段;E.up-hygR1片段;F.hygR2-down片段。

Fig.3 Amplification of homologous replacement arms M.DNA Marker;A.up fragment;B.down fragment;C.hygR1 fragment; D.hygR2 fragment;E.up-hygR1 fragment;F.hygR2-down fragment.

图4 缺失突变体的PCR和Southern杂交鉴定 A.PCR鉴定:M1.DNA Marker。B.敲除突变体鉴定:M2.DNA Marker。

Fig.4 PCR and Southern Blot analysis of the deletion mutant A.PCR identification:M1.DNA Marker.B.Knockout mutant identification:M2.DNA Marker.

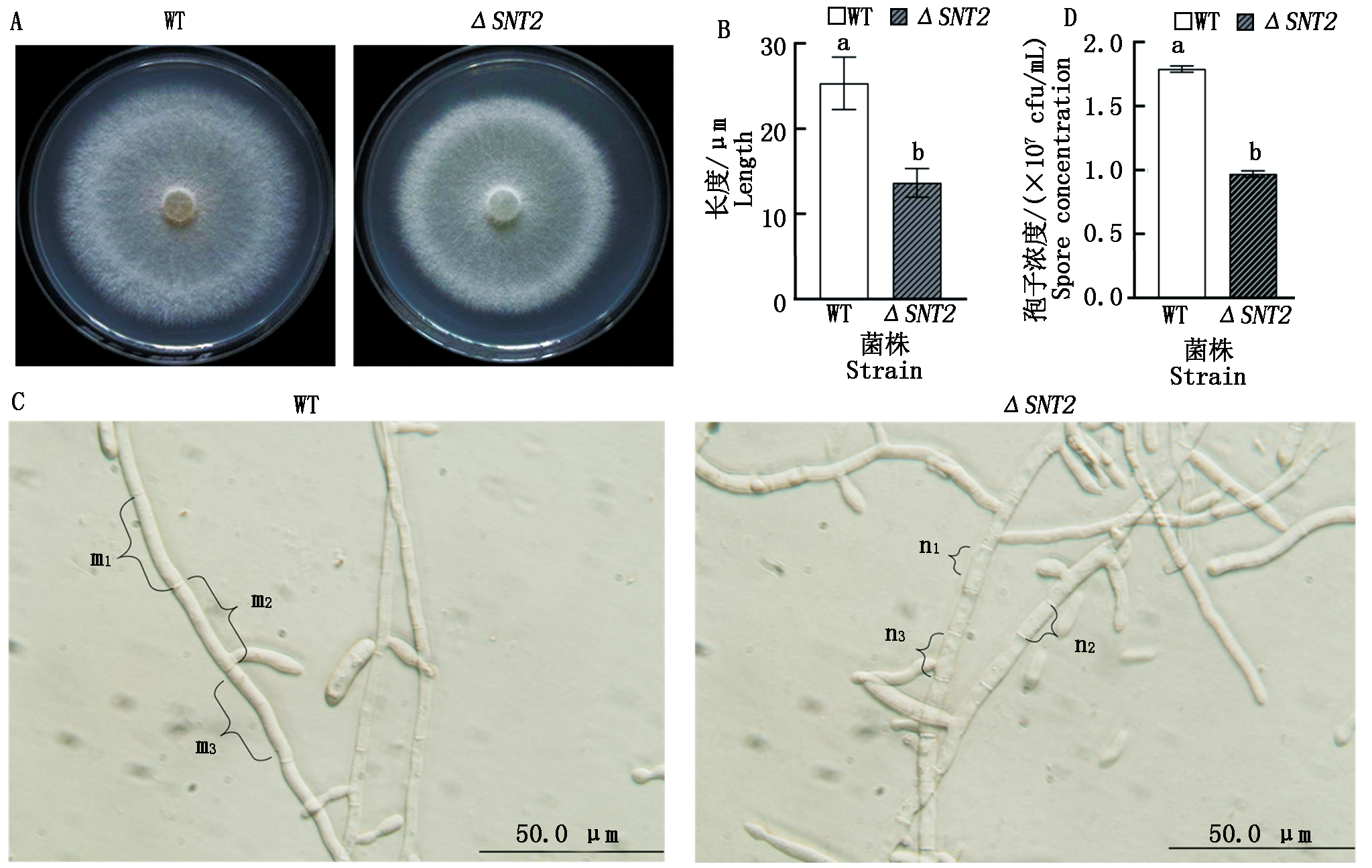

图5 野生型和突变体的菌丝生长和产孢量比较 A.野生型和突变体的菌落生长状况;B.野生型和突变体的菌丝隔膜长度;C.野生型和突变体的菌丝形态(m₁、m₂、m₃和n₁、n₂、n₃表示菌丝隔膜长度);D.野生型和突变体的产孢量。不同小写字母代表差异显著(P<0.05)。图6,7同。

Fig.5 Comparison of mycelial growth and asexual reproduction between wild type and mutants A.Colony growth analysis between wild-type and mutants;B.The hyphal septum length of wild type and mutant;C.Mycelial morphology analysis between wild-type and mutants(m₁,m₂,m₃ and n₁,n₂,n₃ represent the length of hyphal septum);D.Sporulation between wild-type and mutants.Different lowercase letters represent significant differences(P<0.05).The same as Fig.6,7.

图6 野生型和突变体的生长胁迫比较 A.不同胁迫条件下野生型和突变体的菌落生长情况;B.相对抑制率。

Fig.6 Comparison of growth stress between wild type and mutants A.Colonies growth analysis under different stresses;B.Relative inhibitory rate.

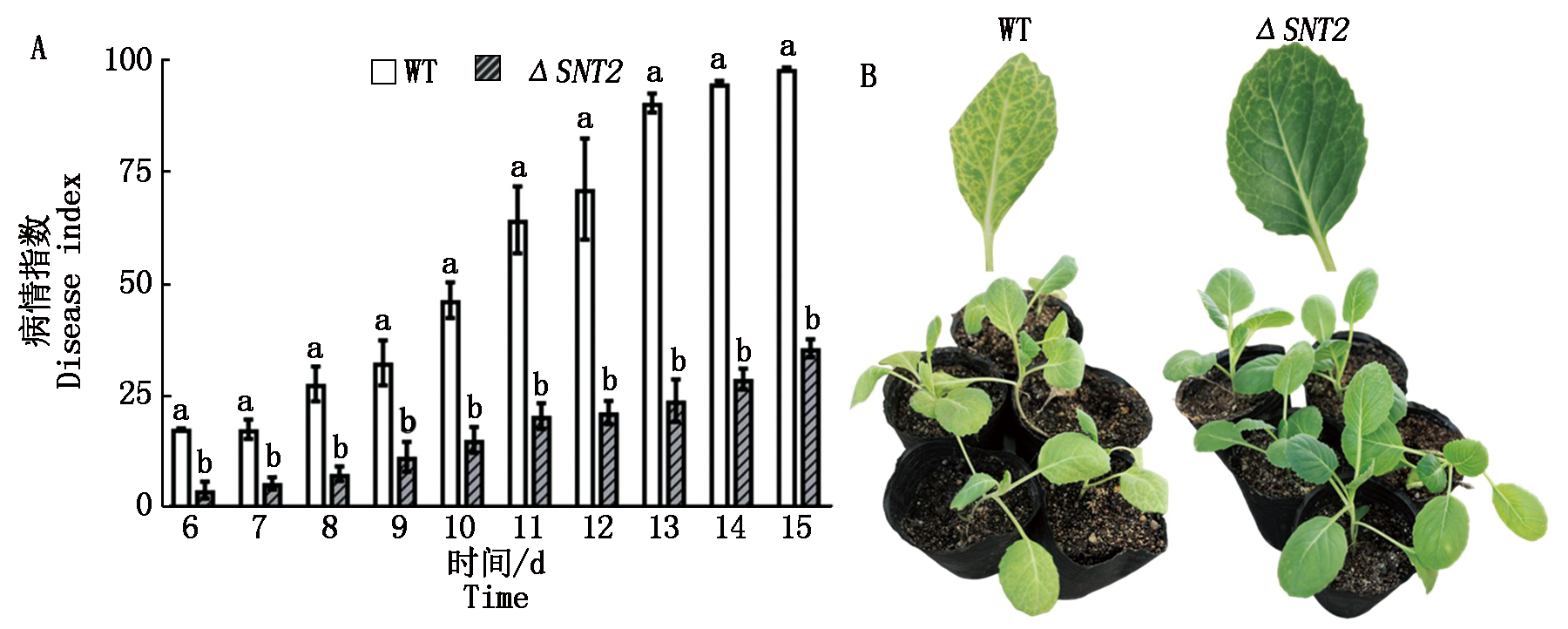

图7 野生型和突变体的致病力比较 A.接种野生型和突变体后6~15 d内甘蓝的病情指数;B.接种野生型和突变体11 d后甘蓝的生长状况:上排为叶片病害症状特写图,下排为植株病害症状图。

Fig.7 Comparison of pathogenicity between wild type and mutant A.The disease index of wild-type and mutant on cabbage from 6 to 15 days after inoculation;B.The growth status of cabbage inoculated with wild type and mutant on Day 11:the upper row is the leaf disease symptom feature map,and the lower row is the plant disease symptom map.

参考文献 27

[1]	曾爱松, 夏彭飞, 严继勇, 许园园, 邢苗苗, 卢昱宇. 我国甘蓝品种市场需求变化分析[J]. 长江蔬菜, 2022(8):1-3.doi:10.3865/j.issn.1001-3547.2022.08.001.
	Zeng A S, Xia P F, Yan J Y, Xu Y Y, Xing M M, Lu Y Y. Analysis on market demand changes of cabbage cultivars in China[J]. Journal of Changjiang Vegetables, 2022(8):1-3.
[2]	蒲子婧, 张艳菊, 刘东, 代丽婷, 王文博. 黄瓜枯萎病生物防治策略研究进展[J]. 中国蔬菜, 2011(6):9-14.doi:10.19928/j.cnki.1000-6346.2011.06.002.
	Pu Z J, Zhang Y J, Liu D, Dai L T, Wang W B. Research progress in biological control strategies for Fusarium wilt of cucumber[J]. China Vegetables, 2011(6):9-14.
[3]	王一凡, 鲁韵, 李二峰. 探究姜和大蒜粗提取液对甘蓝枯萎病菌的抑制作用[J]. 中国农学通报, 2020, 36(16):128-134.doi:10.11924/j.issn.1000-6850.casb20190400033.
	Wang Y F, Lu Y, Li E F. Crude extracts of ginger and garlic:inhibition on cabbage Fusarium wilt[J]. Chinese Agricultural Science Bulletin, 2020, 36(16):128-134.
[4]	李明远, 张涛涛, 李兴红, 严红. 十字花科蔬菜枯萎病及其病原鉴定[J]. 植物保护, 2003, 29(3):44-45.doi:10.3969/j.issn.0529-1542.2003.03.013.
	Li M Y, Zhang T T, Li X H, Yan H. Fusarium wilt disease on curcifer vegetable and its pathogenic identification[J]. Plant Protection, 2003, 29(3):44-45.
[5]	鲁韵, 王一凡, 田雪亮, 李二峰. 洋葱粗提取液对甘蓝枯萎病菌抑制效果初探[J]. 天津农业科学, 2020, 26(5):71-75.doi:10.3969/j.issn.1006-6500.2020.05.015.
	Lu Y, Wang Y F, Tian X L, Li E F. Preliminary study on the inhibitory effect of onion crude extrats on Fusarium oxysporum f.sp.conglutinans[J]. Tianjin Agricultural Sciences, 2020, 26(5):71-75.
[6]	Ling J, Dong X, Ping X X, Li Y, Yang Y H, Zhao J L, Lu X F, Xie B Y, Mao Z C. Genetic diversity and population structure of Fusarium oxysporum f.sp.conglutinans race 1 in Northern China samples[J]. Journal of Fungi, 2022, 8(10):1089.doi:10.3390/jof8101089.
[7]	李强, 苏彦宾, 王英, 顾丽嫱, 张国丽, 赵玉倩, 石艳丽. 春秋两用型结球甘蓝新品种YR绿金刚的选育[J]. 中国瓜菜, 2024, 37(3):172-176.doi:10.16861/j.cnki.zggc.202423.0034.
	Li Q, Su Y B, Wang Y, Gu L Q, Zhang G L, Zhao Y Q, Shi Y L. Breeding of a new cabbage cultivar YR Lüjingang for growing in spring and autumn[J]. China Cucurbits and Vegetables, 2024, 37(3):172-176.
[8]	陈云云, 李惠霞, 张海英, 徐生军, 刘永刚. 萎缩芽胞杆菌MQ19ST15鉴定及对甘蓝枯萎病的盆栽防效[J]. 植物保护, 2021, 47(5):64-71.doi:10.16688/j.zwbh.2020565.
	Chen Y Y, Li H X, Zhang H Y, Xu S J, Liu Y G. Identification of Bacillus atrophaeus MQ19ST15 and its control efficacy against Fusarium wilt on potted cabbage plants[J]. Plant Protection, 2021, 47(5):64-71.
[9]	马金波. 气相色谱法测定结球甘蓝中三氟甲吡醚农药的残留[J]. 天津农业科学, 2022, 28(11):49-54.doi:10.3969/j.issn.1006-6500.2022.11.009.
	Ma J B. Determination of trifluoromethane pesticide residues in cabbage by gas chromatography[J]. Tianjin Agricultural Sciences, 2022, 28(11):49-54.
[10]	鲁福成, 张静芳, 张仲国. 蔬菜病害综合防治现状及所面临的问题[J]. 天津农业科学, 2003, 9(2):51-53.doi:10.3969/j.issn.1006-6500.2003.02.017.
	Lu F C, Zhang J F, Zhang Z G. Current situation and difficulties of integrated control of vegetable diseases in vegetable production[J]. Tianjin Agricultural Sciences, 2003, 9(2):51-53.
[11]	郑旭蕊. 复合微生物菌剂的研制及其对尖孢镰刀菌防治效果研究[D]. 哈尔滨: 哈尔滨工业大学, 2021.
	Zheng X R. Study on the preparation of compound microbial agent and its control effect on Fusarium oxysporum[D]. Harbin: Harbin Institute of Technology, 2021.
[12]	Zuriegat Q, Zheng Y R, Liu H, Wang Z H, Yun Y Z. Current progress on pathogenicity-related transcription factors in Fusarium oxysporum[J]. Molecular Plant Pathology, 2021, 22(7):882-895.doi:10.1111/mpp.13068. pmid: 33969616
[13]	Mitsis T, Efthimiadou A, Bacopoulou F, Vlachakis D, Chrousos G, Eliopoulos E. Transcription factors and evolution:an integral part of gene expression (review)[J]. World Academy of Sciences Journal, 2020, 2(1):3-8.doi:10.3892/wasj.2020.32.
[14]	Guo Y, Chen Z H, Li H, Zhang S P. The CfSnt2-dependent deacetylation of histone H3 mediates autophagy and pathogenicity of Colletotrichum fructicola[J]. Journal of Fungi, 2022, 8(9):974.doi:10.3390/jof8090974.
[15]	Lawrence M, Daujat S, Schneider R. Lateral thinking:how histone modifications regulate gene expression[J]. Trends in Genetics, 2016, 32(1):42-56.doi:10.1016/j.tig.2015.10.007. pmid: 26704082
[16]	Singh R K, Gonzalez M, Kabbaj M M, Gunjan A. Novel E3 ubiquitin ligases that regulate histone protein levels in the budding yeast Saccharomyces cerevisiae[J]. PLoS One, 2012, 7(5):e36295.doi:10.1371/journal.pone.0036295.
[17]	Pfannenstiel B T, Greco C, Sukowaty A T, Keller N P. The epigenetic reader SntB regulates secondary metabolism,development and global histone modifications in Aspergillus flavus[J]. Fungal Genetics and Biology, 2018, 120:9-18.doi:10.1016/j.fgb.2018.08.004. pmid: 30130575
[18]	陈振宏, 李河, 陈嘉怡, 陈晓迪, 罗晶, 张盛培. 组蛋白去乙酰化酶CfSnt2调控果生刺盘孢生长发育和致病力[J]. 菌物学报, 2022, 41(6):926-938.doi:10.13346/j.mycosystema.210364.
	Chen Z H, Li H, Chen J Y, Chen X D, Luo J, Zhang S P. Histone deacetylase CfSnt2 regulates the growth,development and pathogenicity of Colletotrichum fructicola[J]. Mycosystema, 2022, 41(6):926-938.
[19]	Turgeon B G, Garber R C, Yoder O C. Development of a fungal transformation system based on selection of sequences with promoter activity[J]. Molecular and Cellular Biology, 1987, 7(9): 3297-3305. doi:10.1128/mcb.7.9.3297-3305.1987. pmid: 2823126
[20]	李春阳, 侯占铭. 尖孢镰刀菌亚麻专化型Folcdc15基因参与调控分生孢子发生和菌丝生长[J]. 华北农学报, 2023, 38(6):175-183.doi:10.7668/hbnxb.20193898.
	Li C Y, Hou Z M. Folcdc15 gene involved in the conidiogenesis and hyphal growth in Fusarium oxysporum f.sp.lini[J]. Acta Agriculturae Boreali-Sinica, 2023, 38(6):175-183.
[21]	马胜男, 张浩然, 王悦, 张煦杭, 黄亚娸, 王江旭, 胡振帮, 辛大伟, 陈庆山, 王锦辉. 根瘤菌Ⅲ型效应因子NopAA的突变及其对大豆共生结瘤的影响[J]. 中国油料作物学报, 2023, 45(4):720-727.doi:10.19802/j.issn.1007-9084.2022153.
	Ma S N, Zhang H R, Wang Y, Zhang X H, Huang Y Q, Wang J X, Hu Z B, Xin D W, Chen Q S, Wang J H. Mutation of NopAA in rhizobia and its effect on nodulation in soybean[J]. Chinese Journal of Oil Crop Sciences, 2023, 45(4):720-727.
[22]	Li E F, Xiao J L, Yang Y H, Xie B Y, Mao Z C. The subunit Nto1 of the NuA3 complex is associated with conidiation,oxidative stress response,and pathogenicity in Fusarium oxysporum[J]. Horticulturae, 2022, 8(6):540.doi:10.3390/horticulturae8060540.
[23]	王鑫磊, 王碧香, 李二峰. 尖孢镰刀菌粘团专化型线粒体外膜转运酶亚基Tom7基因敲除突变体的构建与表型分析[J]. 四川农业大学学报, 2023, 41(1):54-60.doi:10.16036/j.issn.1000-2650.202204092.
	Wang X L, Wang B X, Li E F. Construction and phenotypic analysis of deletion mutant of mitochondrial outer membrane transporter subunit Tom7 in Fusarium oxysporum f.sp.conglutinans[J]. Journal of Sichuan Agricultural University, 2023, 41(1):54-60.
[24]	王腾, 王碧香, 李诗瑶, 尉婧, 李二峰. 尖孢镰刀菌黏团专化型β-葡萄糖苷酶Foglu1的功能[J]. 浙江农业学报, 2023, 35(2):373-382.doi:10.3969/j.issn.1004-1524.2023.02.15.
	Wang T, Wang B X, Li S Y, Yu J, Li E F. Functional study of a β-glucosidase Foglu1 in Fusarium oxysporum f.sp.conglutinans[J]. Acta Agriculturae Zhejiangensis, 2023, 35(2):373-382.
[25]	Baker L A, Ueberheide B M, Dewell S, Chait B T, Zheng D Y, Allis C D. The yeast Snt2 protein coordinates the transcriptional response to hydrogen peroxide-mediated oxidative stress[J]. Molecular and Cellular Biology, 2013, 33(19):3735-3748.doi:10.1128/mcb.00025-13. pmid: 23878396
[26]	He M, Xu Y P, Chen J H, Luo Y, Lyu Y, Su J, Kershaw M J, Li W T, Wang J, Yin J J, Zhu X B, Liu X H, Chern M, Ma B T, Wang J C, Qin P, Chen W L, Wang Y P, Wang W M, Ren Z L, Wu X J, Li P, Li S G, Peng Y L, Lin F C, Talbot N J, Chen X W. MoSnt2-dependent deacetylation of histone H3 mediates MoTor-dependent autophagy and plant infection by the rice blast fungus Magnaporthe oryzae[J]. Autophagy, 2018, 14(9):1543-1561.doi:10.1080/15548627.2018.1458171.
[27]	祝婷婷. 水杨酸通过抑制FoTOR信号通路调控尖孢镰刀菌的致病力[D]. 重庆: 重庆大学, 2020. doi:10.27670/d.cnki.gcqdu.2020.004245.
	Zhu T T. Salicylic acid regulates the pathogenicity of Fusarium oxysporum by inhibiting the FoTOR signaling pathway[D]. Chongqing: Chongqing University, 2020.
