耐冬山茶酵母双杂交文库构建及CjCBF1互作蛋白筛选与分析

doi:10.7668/hbnxb.20195482

摘要/Abstract

摘要：

低温是影响山茶在我国北方分布的主要因素,为进一步扩大山茶的分布范围,提升北方园林植物的多样性,以山茶科山茶属植物耐冬山茶岛城春早的叶片为材料,通过Gateway重组技术构建酵母文库,获得的初级文库总克隆数为1.44×10⁷ cfu,次级文库总克隆数为1.12×10⁷ cfu,重组阳性率为100%,酵母文库滴度为1.00×10⁸ cfu/mL,酵母克隆平均插入片段>1 000 bp,符合建库标准。利用双酶切同源重组方式构建诱饵载体pGBKT7-CjCBF1,其在酵母细胞中无毒性及自激活活性。使用质粒共转法进行筛库,获得46个与CjCBF1相互作用的候选蛋白,功能涉及植物生长发育、开花结实及响应胁迫等多个方面,选取CjRAV1作为候选蛋白。参考耐冬山茶转录组数据库和茶树基因组数据库设计引物,克隆得到CjRAV1基因,该基因CDS全长为1 023 bp。生物信息学分析结果显示,该基因编码341个氨基酸,相对分子质量为37.99 ku,蛋白质等电点9.10,不稳定指数34.74,脂肪指数76.60。选取与CjRAV1同源性较近的物种进行氨基酸序列比对并构建系统发育树,发现其与狭叶油茶、君迁子以及中华猕猴桃亲缘关系较近。为了降低筛库的假阳性概率,构建pGADT7-CjRAV1载体,与pGBKT7-CjCBF1进行点对点验证,证实二者之间存在互作关系,为后续深入研究耐冬山茶低温应答分子机制奠定基础。

关键词: 耐冬山茶, 酵母双杂交, CjCBF1, 低温胁迫, 蛋白互作

Abstract:

Low temperature is the main factor affecting the distribution of Camellia in Northern China.In order to further expand the distribution range of Camellia and enhance the diversity of garden plants in Northern China.The yeast library was constructed by Gateway recombination technology using the leaves of C.japonica(Naidong)Daochengchunzao as materials.The total number of clones in the primary library was 1.44×10⁷ cfu,the total number of clones in the secondary library was 1.12×10⁷ cfu,the positive rate of recombination was 100%,the titer of yeast library was 1.00×10⁸ cfu/mL,and the average insert fragment of yeast clone was more than 1 000 bp,which met the standard of library construction.The bait vector pGBKT7-CjCBF1 was constructed by double enzyme digestion and homologous recombination,which was non-toxicity and self-activation activity in yeast cells.The library screening was conducted by plasmid cotransfer method,and 46 candidate proteins interacting with CjCBF1 were obtained,whose functions involved plant growth and development,flowering and fruiting,and response to stress,etc.CjRAV1 was selected as a candidate protein.Primers were designed according to the transcriptome database of C.japonica(Naidong)and Camellia sinensis genome database.The CjRAV1 gene was cloned and the full length of the gene CDS was 1 023 bp.Bioinformatics results showed that the gene encoded 341 amino acids with a relative molecularity of 37.99 ku,a protein isoelectric point of 9.10,an instability index of 34.74 and a lipid index of 76.60.The amino acid sequence alignment and phylogenetic tree construction of the species with close homology to CjRAV1 were carried out.It was found that it was closely related to Camellia lanceoleosa,Diospyros lotus and Actinidia chinensis.In order to reduce the false positive probability of the library screening,the pGADT7-CjRAV1 vector was constructed and verified with pGBKT7-CjCBF1 by point-to-point.It was confirmed that there was an interaction between the two proteins,which laid a foundation for further study on the molecular mechanism of low temperature response of C.japonica(Naidong).

Key words: Camellia japonica(Naidong), Yeast two-hybrid, CjCBF1, Low temperature stress, Protein interaction

中图分类号:

S685.14

侯茂洋, 杨金霖, 崔灿, 陈博, 李伟, 殷恒福, 孙迎坤. 耐冬山茶酵母双杂交文库构建及CjCBF1互作蛋白筛选与分析[J]. 华北农学报, 2025, 40(3): 60-67. doi: 10.7668/hbnxb.20195482.

HOU Maoyang, YANG Jinlin, CUI Can, CHEN Bo, LI Wei, YIN Hengfu, SUN Yingkun. Construction of a Yeast Two-Hybrid Library and Screening Analysis of CjCBF1 Interacting Proteins in Camellia japonica(Naidong)[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(3): 60-67. doi: 10.7668/hbnxb.20195482.

http://www.hbnxb.net/CN/Y2025/V40/I3/60

图/表 8

表1 本研究所用引物

Tab.1 Primers used in this study

引物名称 Primer name	引物序列(5'—3') Primer sequence(5'—3')
pGBKT7-CjCBF1-F	GACCTG catatgCATATGGATTCGAGCAAGAAAAAT
pGBKT7-CjCBF1-R	CTGCAG gtcgacGTCGACTTAAATTGAGAAGCTCCA
pGADT7-F	TAATACGACTCACTATAGGGC
pGADT7-R	GTGAACTTGCGGGGTTTTTC
CjRAV1-F	ATGGATGGTAGTTGCATAGATGAGAG
CjRAV1-R	TTACAAAGCTCCAATTACCCTTACTT
pGADT7-CjRAV1-F	GCCAGT gaattcATGGATGGTAGTTGCATAGATGAGAG
pGADT7-CjRAV1-R	CTCGAT ggatccTCCTCTTCCCCCCACAATTAC

图1 耐冬山茶酵母文库的构建及鉴定 A.耐冬山茶初级文库库容量鉴定;B.耐冬山茶初级文库插入片段及重组率鉴定;C.耐冬山茶次级文库容量鉴定;D.耐冬山茶次级文库插入片段及重组率鉴定;E.耐冬山茶酵母文库滴度鉴定;F.耐冬山茶酵母克隆鉴定;M.DL2000 DNA Marker;1—24.PCR产物。

Fig.1 Construction and identification of C.japonica(Naidong)yeast library A.Identification of C.japonica(Naidong)primary library capacity;B.Identification of insertion fragment size and recombination rate in C.japonica(Naidong)primary library;C.Identification of C.japonica(Naidong)secondary library capacity;D.Identification of insertion fragment size and recombination rate of C.japonica(Naidong)secondary library;E.C.japonica(Naidong)yeast library titer identification;F.C.japonica(Naidong)yeast clone identification; M. DL2000 DNA Marker; 1—24.PCR products.

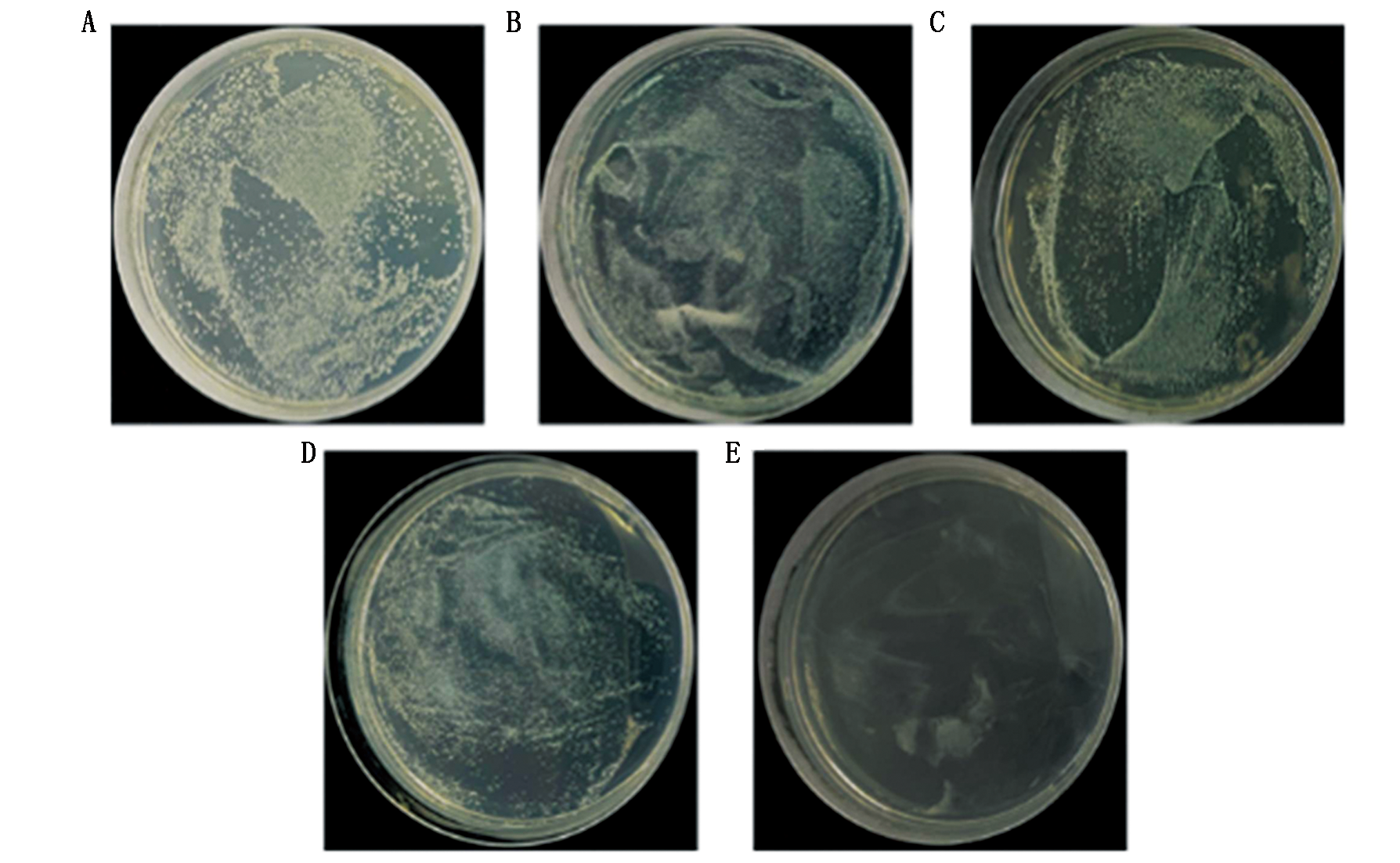

图2 pGBKT7-CjCBF1的毒性及自激活鉴定 A.阴性对照;B.阳性对照;C.DDO/X培养基生长情况;D.TDO/X培养基生长情况;E.QDO/X/A培养基生长情况。

Fig.2 Toxicity and self-activation identification of pGBKT7-CjCBF1 A.Negative control;B.Positive control;C.Growth in DDO/X medium;D.Growth in TDO/X medium;E.Growth in QDO/X/A medium.

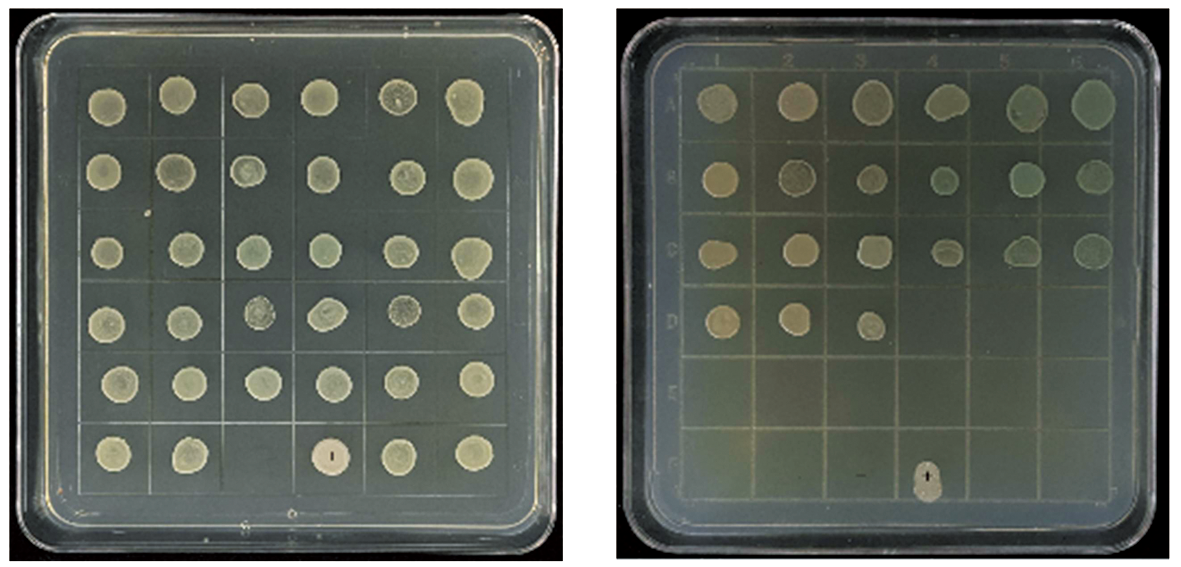

图3 CjCBF1互作蛋白高严谨度筛选

Fig.3 Highly rigorous screening of CjCBF1 interacting proteins

表2 酵母双杂交文库筛选出的可能与CjCBF1互作的蛋白(部分)

Tab.2 Yeast two-hybrid library screening for possible interacting proteins of CjCBF1(Part)

编号 Number	NCBI登录号 Accession	功能描述 Description
1	XM_028202723	进化氧促进蛋白
2	XM_028246211	转录因子VRN1
3	XM_028267934	光系统Ⅱ稳定性因子HCF136
4	XM_028234794	含U-box结构域蛋白13
5	XM_028236090	2-氧戊二酸依赖双加氧酶AOP1
6	XM_028267884	BTB/POZ结构域蛋白NPY2
7	XM_028198090	SRC2蛋白
8	XM_028232116	转录因子RAV1
9	XM_028262014	转录因子WRKY35
10	XM_028262837	茎特异性蛋白TSJT1
11	XM_028201251	果胶甲酯酶CGR3
12	XM_028205965	异丁香酚合酶1
13	XM_028237531	转录因子ILR3
14	XM_028252767	泛素蛋白连接酶UPL1
15	XM_028271234	转录因子WRKY20
16	XM_028196337	锌指蛋白COL4
17	XM_057610170	丝氨酸/苏氨酸蛋白激酶TOR
18	XM_028266474	糖脂转运蛋白1
19	XM_028266516	BURP结构域蛋白RD22
20	XM_028244846	低温诱导半胱氨酸蛋白酶

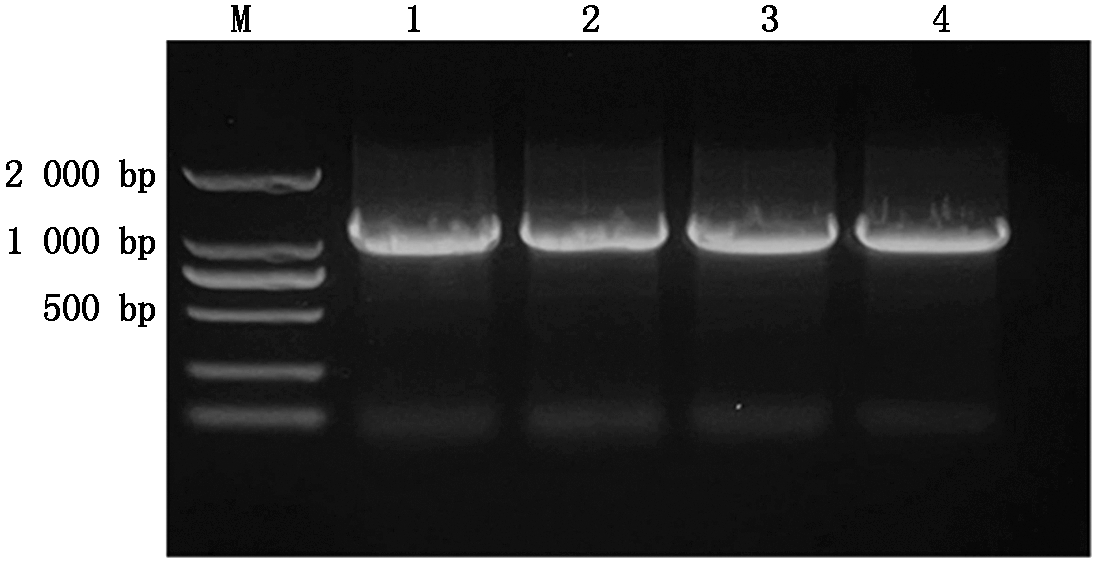

图4 CjRAV1序列扩增 1—4.4个重复。

Fig.4 Sequence amplification of CjRAV1 fragment 1—4.Four replicates.

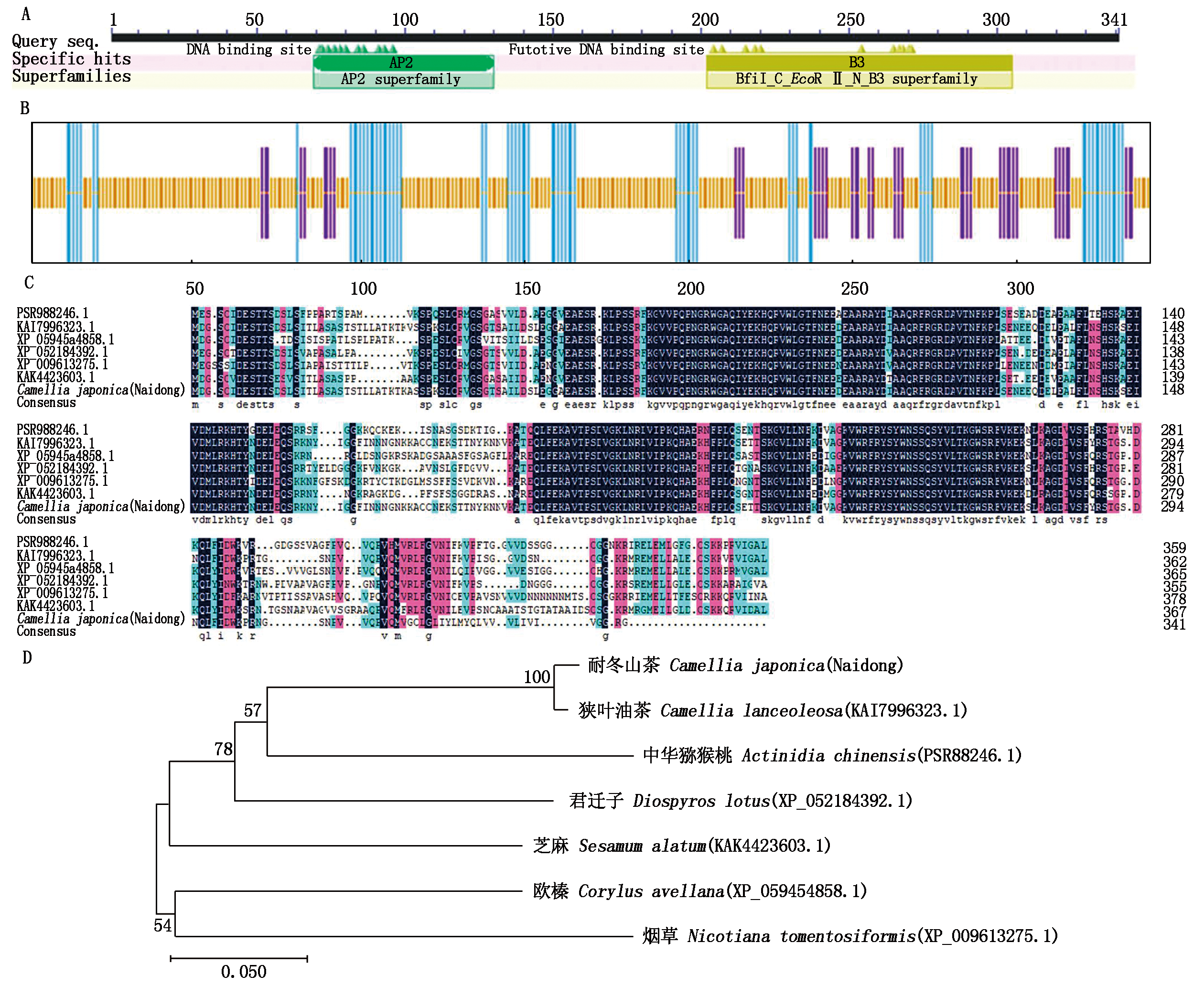

图5 CjRAV1生物信息学分析 A.CjRAV1保守结构域分析;B.CjRAV1二级结构预测;C.CjRAV1与其他物种RAV氨基酸序列对比;D.CjRAV1与其他物种RAV系统进化树。

Fig.5 Bioinformatics analysis of CjRAV1 A.Conserved domain analysis of CjRAV1;B.Secondary structure prediction of CjRAV1;C.Comparison of amino acid sequence of CjRAV1 with other species;D.Phylogenetic tree of CjRAV1 and other species.

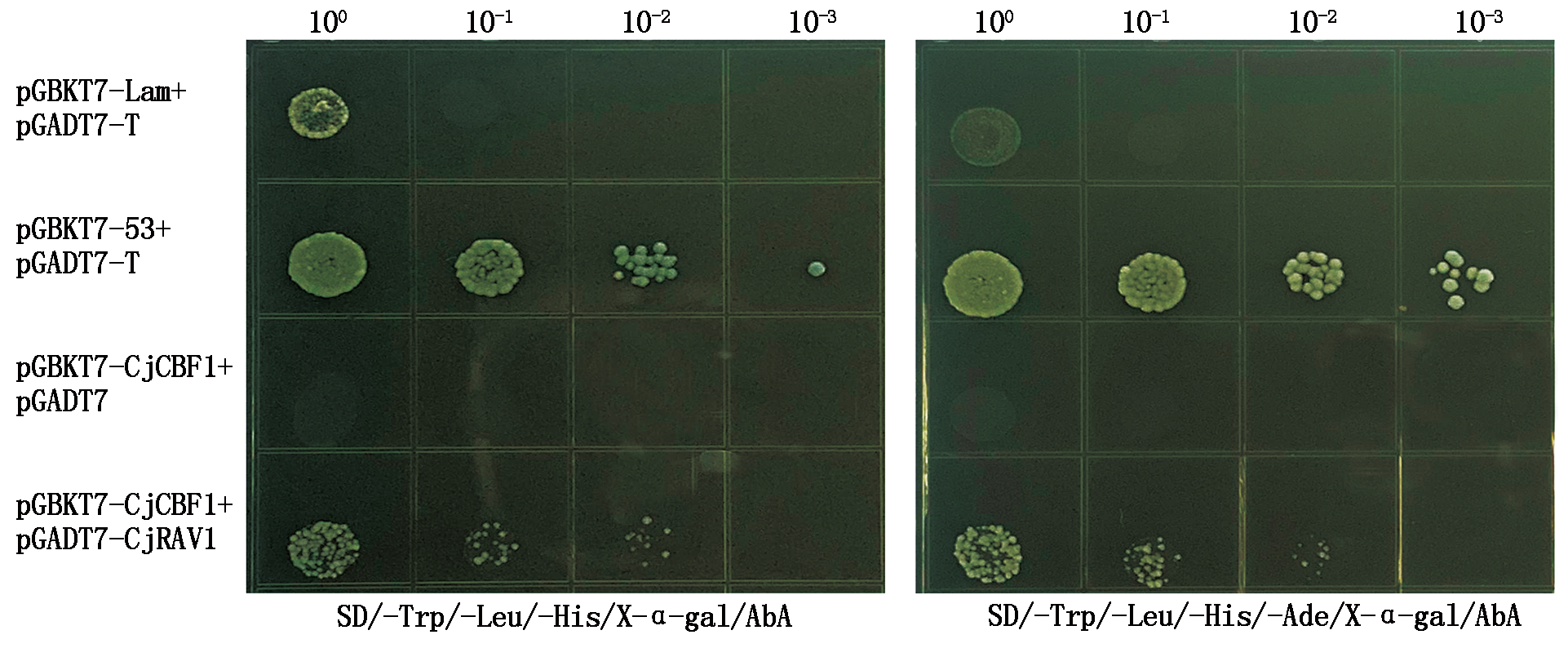

图6 CjCBF1与CjRAV1互作点对点验证

Fig.6 Point-to-point verification of the interaction between CjCBF1 and CjRAV1

参考文献 34

[1]	王奎玲. 耐冬山茶种质资源研究[D]. 北京: 北京林业大学, 2006.
	Wang K L. Studies on the germplasm resources of Naidong Shancha(Camellia japonica L.)[D]. Beijing: Beijing Forestry University, 2006.
[2]	张文琛. 对耐冬山茶在北京地区引种的适应性和具体方案的探究[J]. 现代园艺, 2019(16):122-123.doi:10.3969/j.issn.1006-4958.2019.16.078.
	Zhang W C. Study on adaptability and specific scheme of winter-resistant camellia in Beijing[J]. Contemporary Horticulture, 2019(16):122-123.
[3]	刘翠菊, 郭霄, 王奎玲, 刘庆超, 孙迎坤, 姜新强, 刘庆华. 耐冬山茶对不同光照和水分的生理生态学响应[J]. 应用生态学报, 2018, 29(4):1125-1132.doi:10.13287/j.1001-9332.201804.005.
	Liu C J, Guo X, Wang K L, Liu Q C, Sun Y K, Jiang X Q, Liu Q H. Ecophysiological responses of Camellia japonica(Naidong)to different light and water conditions[J]. Chinese Journal of Applied Ecology, 2018, 29(4):1125-1132.
[4]	Wang H T, Xu F F. Identification and expression analysis of the GLK gene family in tea plant(Camellia sinensis)and a functional study of CsGLK54 under low-temperature stress[J]. Scientific Reports, 2024, 14(1):12465.doi:10.1038/s41598-024-63323-1.
[5]	Chen B C, Wu X J, Dong Q J, Xiao J P. Screening and functional analysis of StMYB transcription factors in pigmented potato under low-temperature treatment[J]. BMC Genomics, 2024, 25(1):283.doi:10.1186/s12864-024-10059-x.
[6]	Deryabin A, Zhukova K, Naraikina N, Venzhik Y. Effect of low temperature on content of primary metabolites in two wheat genotypes differing in cold tolerance[J]. Metabolites, 2024, 14(4):199.doi:10.3390/metabo14040199.
[7]	Nokhsorov V V, Protopopov F F, Sleptsov I V, Petrova L V, Petrov K A. Metabolomic profile and functional state of oat plants(Avena sativa L.) sown under low-temperature conditions in the cryolithozone[J]. Plants, 2024, 13(8):1076.doi:10.3390/plants13081076.
[8]	Uno Y, Furihata T, Abe H, Yoshida R, Shinozaki K, Yamaguchi-Shinozaki K. Arabidopsis basic leucine zipper transcription factors involved in an abscisic acid-dependent signal transduction pathway under drought and high-salinity conditions[J]. Proceedings of the National Academy of Sciences of the United States of America, 2000, 97(21):11632-11637.doi:10.1073/pnas.190309197. pmid: 11005831
[9]	Singh K, Singh S P, Yadav M K. Physio-biochemical assessment and CBF genes expression analysis in wheat under dehydration condition[J]. Biologia, 2022, 77(7):1851-1860.doi:10.1007/s11756-022-01028-4.
[10]	Lee B H, Henderson D A, Zhu J K. The Arabidopsis cold-responsive transcriptome and its regulation by ICE1[J]. The Plant Cell, 2005, 17(11):3155-3175.doi:10.1105/tpc.105.035568.
[11]	Chinnusamy V, Ohta M, Kanrar S, Lee B H, Hong X H, Agarwal M, Zhu J K. ICE1:a regulator of cold-induced transcriptome and freezing tolerance in Arabidopsis[J]. Genes & Development, 2003, 17(8):1043-1054.doi:10.1101/gad.1077503.
[12]	Thomashow M F. Plant cold acclimation:freezing tolerance genes and regulatory mechanisms[J]. Annual Review of Plant Physiology and Plant Molecular Biology, 1999, 50:571-599.doi:10.1146/annurev.arplant.50.1.571. pmid: 15012220
[13]	Shi Y H, Huang J Y, Sun T S, Wang X F, Zhu C Q, Ai Y X, Gu H Y. The precise regulation of different COR genes by individual CBF transcription factors in Arabidopsis thaliana[J]. Journal of Integrative Plant Biology, 2017, 59(2):118-133.doi:10.1111/jipb.12515.
[14]	Shi Y T, Ding Y L, Yang S H. Molecular regulation of CBF signaling in cold acclimation[J]. Trends in Plant Science, 2018, 23(7):623-637.doi:10.1016/j.tplants.2018.04.002. pmid: 29735429
[15]	Ding Y L, Shi Y T, Yang S H. Molecular regulation of plant responses to environmental temperatures[J]. Molecular Plant, 2020, 13(4):544-564.doi:10.1016/j.molp.2020.02.004. pmid: 32068158
[16]	Fan M L, Yang K, Zhou R, Liu Q H, Guo X, Sun Y K. Temporal transcriptome profiling reveals candidate genes involved in cold acclimation of Camellia japonica(Naidong)[J]. Plant Physiology and Biochemistry, 2021, 167:795-805.doi:10.1016/j.plaphy.2021.09.006.
[17]	沈竹, 曹勤红. 酵母双杂交及其衍生技术应用研究进展[J]. 农业生物技术学报, 2022, 30(12):2425-2433.doi:10.3969/j.issn.1674-7968.2022.12.015.
	Shen Z, Cao Q H. Research progress on application of yeast two hybrid system and Y2H-derivated techniques[J]. Journal of Agricultural Biotechnology, 2022, 30(12):2425-2433.
[18]	蔡肖, 李兴河, 王海涛, 刘存敬, 唐丽媛, 张素君, 张建宏. 非生物胁迫诱导的棉花酵母双杂交文库构建及GhJAZ1互作蛋白筛选[J]. 核农学报, 2023, 37(11):2158-2165.doi:10.11869/j.issn.1000-8551.2023.11.2158.
	Cai X, Li X H, Wang H T, Liu C J, Tang L Y, Zhang S J, Zhang J H. Construction of yeast two-hybrid library of cotton under abiotic stress and screening of GhJAZ1 interacting proteins in cotton[J]. Journal of Nuclear Agricultural Sciences, 2023, 37(11):2158-2165. doi: 10.11869/j.issn.1000-8551.2023.11.2158
[19]	任延靖, 张鲁刚, 赵孟良, 李江, 邵登魁. 白菜种子cDNA酵母文库的构建及BrTTG1互作蛋白的筛选及分析[J]. 生物技术通报, 2024, 40(2):223-232.doi:10.13560/j.cnki.biotech.bull.1985.2023-0989.
	Ren Y J, Zhang L G, Zhao M L, Li J, Shao D K. cDNA yeast library construction of Chinese cabbage seeds and screening and analysis of BrTTG1 interacting proteins[J]. Biotechnology Bulletin, 2024, 40(2):223-232.
[20]	王秋月, 段鹏亮, 李海笑, 刘宁, 曹志艳, 董金皋. 玉米大斑病菌cDNA文库的构建及转录因子StMR1互作蛋白的筛选[J]. 生物技术通报, 2024, 40(6): 281-289. doi:10.13560/j.cnki.biotech.bull.1985.2024-0121.
	Wang Q Y, Duan P L, Li H X, Liu N, Cao Z Y, Dong J G. Construction of cDNA library of Setosphaeria turcica and screening of transcription factor StMR1 interacting proteins[J]. Biotechnology Bulletin, 2024, 40(6): 281-289.
[21]	徐建, 姚协丰, 娄丽娜, 朱凌丽, 张曼, 羊杏平, 徐锦华. 黄瓜单性结实果实酵母双杂交文库的构建及CsCML25互作蛋白的筛选[J]. 种子科技, 2024, 42(7):1-4.doi:10.19904/j.cnki.cn14-1160/s.2024.07.001.
	Xu J, Yao X F, Lou L N, Zhu L L, Zhang M, Yang X P, Xu J H. Construction of yeast two-hybrid library for parthenocarpy fruit of cucumber and screening of CsCML25 interacting protein[J]. Seed Science & Technology, 2024, 42(7):1-4.
[22]	邹修为, 岳佳妮, 李志宇, 戴良英, 李魏. 水稻热激转录因子HsfA2b调控非生物胁迫抗性的功能分析[J]. 生物技术通报, 2024, 40(2):90-98.doi:10.13560/j.cnki.biotech.bull.1985.2023-0908.
	Zou X W, Yue J N, Li Z Y, Dai L Y, Li W. Functional analysis of rice heat shock transcription factor HsfA2b regulating the resistance to abiotic stresses[J]. Biotechnology Bulletin, 2024, 40(2):90-98.
[23]	Rani R, Khan M A, Kayani W K, Ullah S, Naeem I, Mirza B. Metabolic signatures altered by in vitro temperature stress in Ajuga bracteosa Wall.ex.Benth[J]. Acta Physiologiae Plantarum, 2017, 39(4):97.doi:10.1007/s11738-017-2394-9.
[24]	Upadhyaya H. Changes in antioxidative responses to low temperature in tea [Camellia sinensis(L.) O.Kuntze]cultivars[J]. International Journal of Modern Botany, 2012, 2(4):83-87.doi:10.13140/2.1.3501.1205.
[25]	Wallaart T E, Pras N, Beekman A C, Quax W J. Seasonal variation of Artemisinin and its biosynthetic precursors in plants of Artemisia annua of different geographical origin:proof for the existence of chemotypes[J]. Planta Medica, 2000, 66(1):57-62.doi:10.1055/s-2000-11115. pmid: 10705736
[26]	袁秀云, 许申平, 王默霏, 雷志华, 崔波. 蝴蝶兰PhTSJT1基因的克隆及在低温胁迫下的表达分析[J]. 基因组学与应用生物学, 2019, 38(2):707-713.doi:10.13417/j.gab.038.000707.
	Yuan X Y, Xu S P, Wang M F, Lei Z H, Cui B. Cloning of PhTSJT1 gene from Phalaenopsis and its expression under low temperature stress[J]. Genomics and Applied Biology, 2019, 38(2):707-713.
[27]	姚苗苗. 转录因子CaWRKY32/CaWRKY20协同调控抗氧化关键基因CaAPX1介导采后青椒冷害发生的分子机制[D]. 沈阳: 沈阳农业大学, 2023.doi:10.27327/d.cnki.gshnu.2023.000033.
	Yao M M. Transcription factor CaWRKY32/CaWRKY20 synergistically regulates the molecular mechanism of chilling injury of postharvest green pepper mediated by key antioxidant gene CaAPX1[D]. Shenyang: Shenyang Agricultural University, 2023.
[28]	Li D N, Gu B X, Huang C X, Shen J Y, Wang X, Guo J N, Yu R Q, Mou S R, Guan Q J. Functional study of Amorpha fruticosa WRKY20 gene in response to drought stress[J]. International Journal of Molecular Sciences, 2023, 24(15):12231.doi:10.3390/ijms241512231.
[29]	苏比努尔·玉苏甫. RAV2基因调控植物高光效的作用机理研究[D]. 北京: 中国农业科学院, 2023.doi:10.27630/d.cnki.gznky.2023.000117.
	Yusufu S. Study on the mechanism of RAV2 gene that regulates high photosynthetic efficiency in plants[D]. Beijing: Chinese Academy of Agricultural Sciences, 2023.
[30]	Li J L, Song C Y, Li H M, Wang S Q, Hu L Y, Yin Y L, Wang Z H, He W X. Comprehensive analysis of cucumber RAV family genes and functional characterization of CsRAV1 in salt and ABA tolerance in cucumber[J]. Frontiers in Plant Science, 2023, 14:1115874.doi:10.3389/fpls.2023.1115874.
[31]	陈林波, 李叶云, 王琴, 高永亮, 江昌俊. 茶树冷诱导基因RAV的克隆与表达特性分析[J]. 植物生理学通讯, 2010, 46(4):354-358.doi:10.13592/j.cnki.ppj.2010.04.016.
	Chen L B, Li Y Y, Wang Q, Gao Y L, Jiang C J. Cloning and expression analysis of RAV gene related to cold stress from tea plant[Camellia sinensis(L.) O.Kuntz[J]. Plant Physiology Communications, 2010, 46(4):354-358.
[32]	李濯雪, 陈信波. 植物诱导型启动子及相关顺式作用元件研究进展[J]. 生物技术通报, 2015, 31(10):8-15.doi:10.13560/j.cnki.biotech.bull.1985.2015.10.006.
	Li Z X, Chen X B. Research advances on plant inducible promoters and related cis-acting elements[J]. Biotechnology Bulletin, 2015, 31(10):8-15.
[33]	王婷, 孙虹, 任仲海, 李强. 番茄RAV基因家族鉴定及生物信息学分析[J]. 分子植物育种, 2023, 21(6):1793-1800.doi:10.13271/j.mpb.021.001793.
	Wang T, Sun H, Ren Z H, Li Q. Identification and bioinformatic analysis of RAV gene family in tomato[J]. Molecular Plant Breeding, 2023, 21(6):1793-1800.
[34]	吴志清, 亓希武, 房海灵, 于盱, 李莉, 柏杨, 刘群, 梁呈元. 蒲公英TmRAV1基因克隆及其响应脱落酸信号表达分析[J]. 植物资源与环境学报, 2024, 33(1):47-58.doi:10.3969/j.issn.1674-7895.2024.01.05.
	Wu Z Q, Qi X W, Fang H L, Yu X, Li L, Bai Y, Liu Q, Liang C Y. Gene cloning of TmRAV1 in Taraxacum mongolicum and analysis on its expression in response to abscisic acid signaling[J]. Journal of Plant Resources and Environment, 2024, 33(1):47-58.
