内生枯草芽孢杆菌ZA1解旋酶<i>ypvA</i>和<i>yjcD</i>基因的克隆及生信分析

doi:10.7668/hbnxb.20195795

摘要/Abstract

摘要：

枯草芽孢杆菌ZA1具有良好的抑菌和促生作用。解旋酶已被证实为核酸代谢关键蛋白复合体,且解旋酶超家族成员通过特异性切割DNA/RNA分子中的磷酸二酯键,在遗传信息传递过程中执行关键催化功能。为明确解旋酶基因ypvA和yjcD在枯草芽孢杆菌ZA1抑菌过程中的潜在作用,以枯草芽孢杆菌ZA1为材料,克隆ypvA和yjcD基因,利用生物信息学分析它们的序列特征,通过亚细胞定位检测2个基因的位置,对2个基因及其编码蛋白的结构与功能特性进行初步解析。结果表明,克隆获得的ypvA和yjcD基因编码区全长分别为1 791,1 767 bp,分别编码596,588个氨基酸,其编码蛋白的预测相对分子质量分别为68.804 01,68.275 08 ku,理论等电点分别为4.81,8.25,且亲水性较弱。ypvA和yjcD的蛋白空间结构主要由α-螺旋、β-折叠和大量无规则延伸链组成的紧密结构。亚细胞定位于细胞质和细胞核中,不存在跨膜区及信号肽,为非分泌蛋白。分析保守结构域得到ypvA属于Rad3相关DNA解旋酶DinG家族,基因yjcD属于UvrD超家族I DNA或RNA解旋酶,通过进一步的蛋白质系统进化树分析明确将这2个蛋白鉴定为ATP依赖性解旋酶。因此,通过克隆枯草芽孢杆菌ZA1中的ypvA和yjcD基因并分析序列为非分泌性ATP依赖性解旋酶。

关键词: 枯草芽孢杆菌, 解旋酶基因, 克隆, 生物信息分析, 亚细胞定位

Abstract:

Bacillus subtilis ZA1 exhibits notable antibacterial and growth-promoting activities. Helicases have been established as crucial protein complexes in nucleic acid metabolism, with members of the helicase superfamily performing key catalytic functions during genetic information transfer by specifically cleaving phosphodiester bonds in DNA/RNA molecules. To elucidate the potential roles of the helicase genes ypvA and yjcD in the antibacterial process of B.subtilis ZA1, we used B.subtilis ZA1 as the experimental material, cloned the ypvA and yjcD genes, analyzed their sequence characteristics through bioinformatics, and determined their subcellular localization. A preliminary investigation was conducted on the structural and functional properties of these two genes and their encoded proteins. The results showed that the cloned coding sequences (CDS) of ypvA and yjcD were 1 791, 1 767 bp in length, encoding 596, 588 amino acids, respectively. The predicted relative molecular masses of the encoded proteins were 68.804 01, 68.275 08 ku, with theoretical isoelectric points (pI) of 4.81, 8.25, respectively, and both exhibited weak hydrophilicity. The spatial structures of the ypvA and yjcD proteins consisted of a compact architecture primarily composed of α-helices, β-sheets, and extensive random coils. Subcellular localization analysis indicated that both proteins were localized in the cytoplasm and nucleus, lacking transmembrane domains and signal peptides, thus classifying them as non-secretory proteins. Analysis of conserved domains revealed that ypvA belonged to the DinG family of Rad3-related DNA helicases, while yjcD belongs to the UvrD superfamily I DNA/RNA helicases. Further phylogenetic analysis confirmed that both proteins are ATP-dependent helicases. In summary, cloning and sequence analysis of the ypvA and yjcD genes from B.subtilis ZA1 identified them as non-secretory ATP-dependent helicases.

Key words: Bacillus subtilis, Helicase gene, Cloning, Bioinformation analysis, Subcellular localization

中图分类号:

任姝锦, 蔡锋锋, 马婷, 王婷, 施玉安, 王一丹, 杨成德. 内生枯草芽孢杆菌ZA1解旋酶ypvA和yjcD基因的克隆及生信分析[J]. 华北农学报, 2025, 40(S1): 285-291. doi: 10.7668/hbnxb.20195795.

REN Shujin, CAI Fengfeng, MA Ting, WANG Ting, SHI Yu'an, WANG Yidan, YANG Chengde. Cloning and Bioinformatics Analysis of Endophytic Bacillus subtilis ZA1 Helicase ypvA and yjcD Genes[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(S1): 285-291. doi: 10.7668/hbnxb.20195795.

http://www.hbnxb.net/CN/Y2025/V40/IS1/285

图/表 11

表1 引物序列

Tab.1 Primer sequence

引物名称 Primer name	序列(5'-3') Sequence (5'-3')	作用 Function
ypvA	CGAGCTCATGGCTTTTCAGCTGGA	克隆
	CGGATCCCATCATGTGCGGTTCAA
yjcD	CGAGCTCATGATCGAACACTTAGGC	克隆
	CGGATCCATGATGCAAGGGCTGTCTT
ypvA-Y	ATTTGGTCATTGCCGTTCCC	定量引物
	ATCATGTGCGGTTCAACAGG
yjcD-Y	TTCTTGCCCACGTAGACCAT	定量引物
	CTCGTCTCCTTTTCTTGCCG
16S	CGGTCTCAGTTCGGATTGTAGG	内参引物
	GCTGGCTCCTTGCGGTTAC

图1 ypvA和yjcD基因PCR扩增 M.Maker;1-2.ypvA克隆;3-4.yjcD克隆。

Fig.1 PCR of ypvA and yjcD gene M.Maker;1-2.ypvA clone; 3-4.yjcD clone.

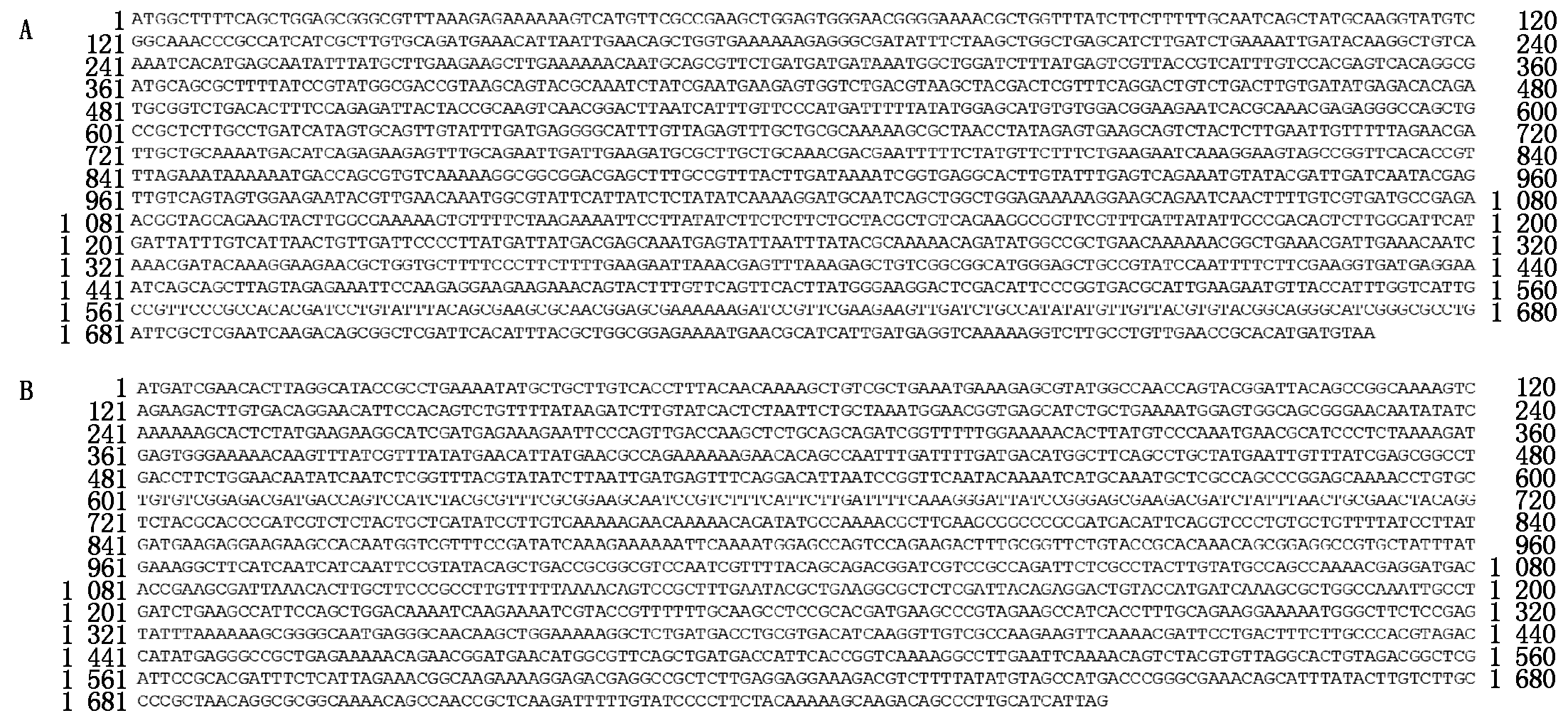

图2 ypvA和yjcD基因开放阅读框 A.ypvA开放阅读框;B.yjcD开放阅读框。

Fig.2 Open reading frame of ypvA and yjcD gene A. ypvA open reading frame; B.yjcD open reading frame.

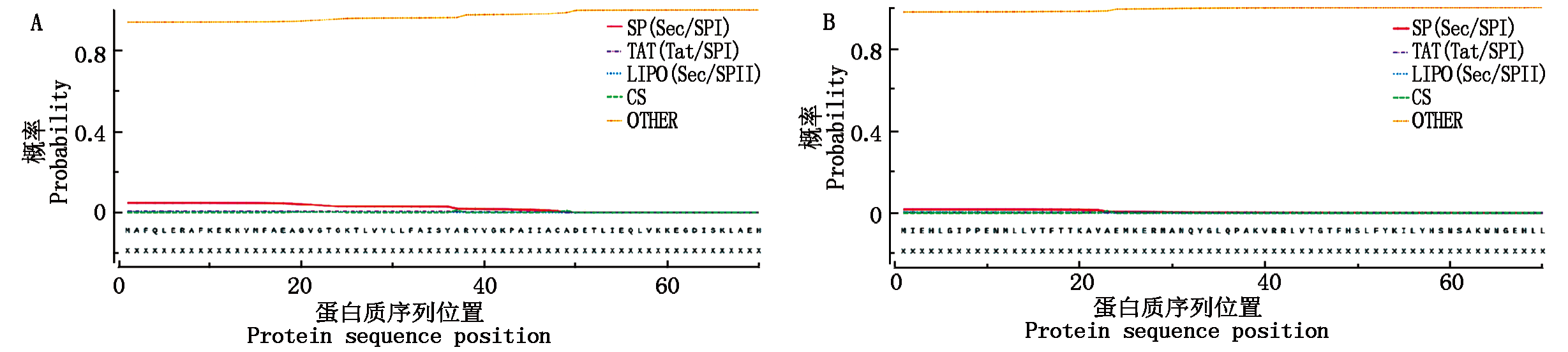

图3 ypvA(A)和yjcD(B)信号肽预测

Fig.3 Signal peptide prediction of ypvA(A)and yjcD(B)

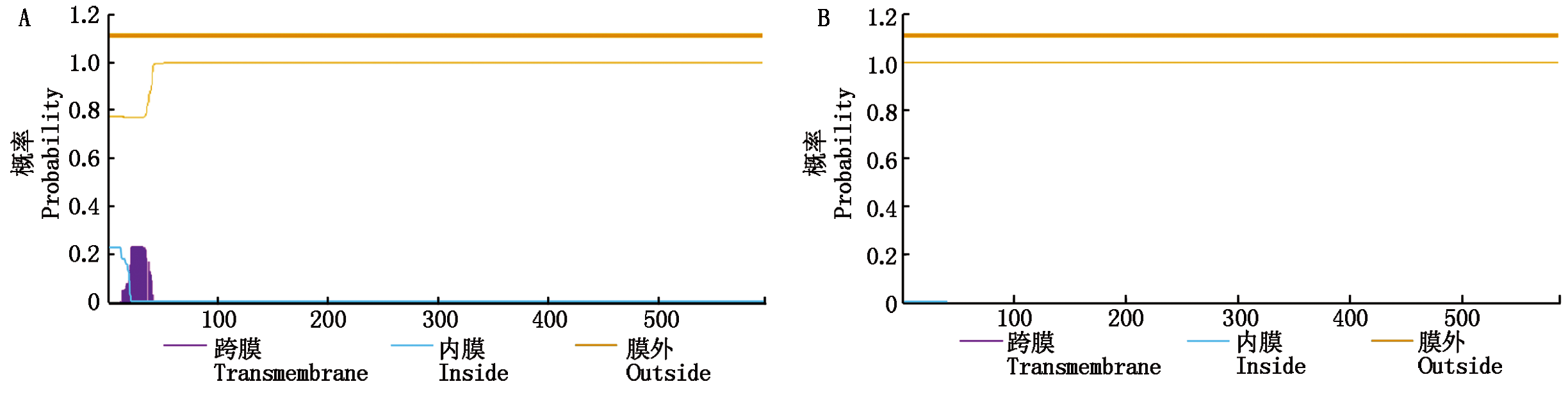

图4 ypvA(A)和yjcD(B)跨膜结构预测

Fig.4 Transmembrane structure prediction of ypvA(A)and yjcD(B)

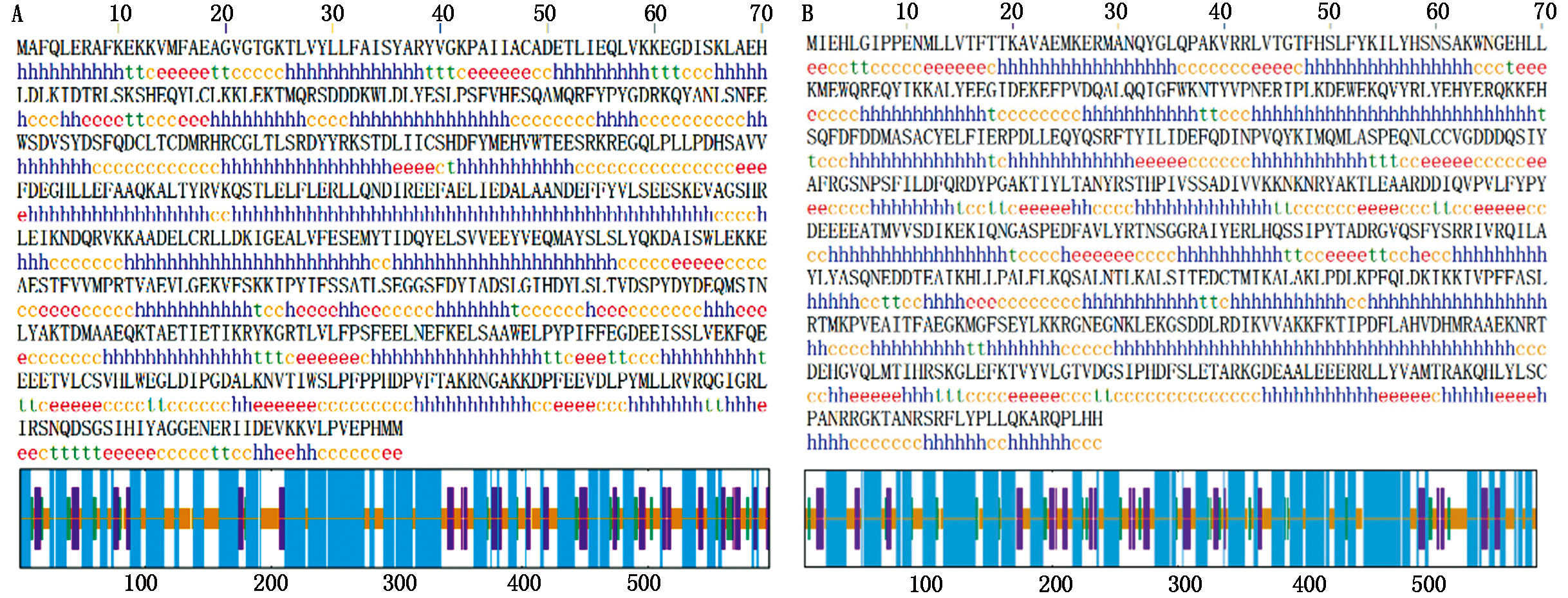

图5 ypvA(A)和yjcD(B)蛋白二级结构预测蓝色.α-螺旋;橘色.无规则卷曲;紫色.延伸链;绿色.β-折叠。

Fig.5 Prediction of secondary structure of ypvA(A)and yjcD(B)proteins Blue.α-helix;Orange.Random coil;Purple.Extended stand;Green.Beta turn.

图6 ypvA(A)和yjcD(B)蛋白三级结构预测

Fig.6 Tertiary structure prediction of ypvA(A)and yjcD(B)protein

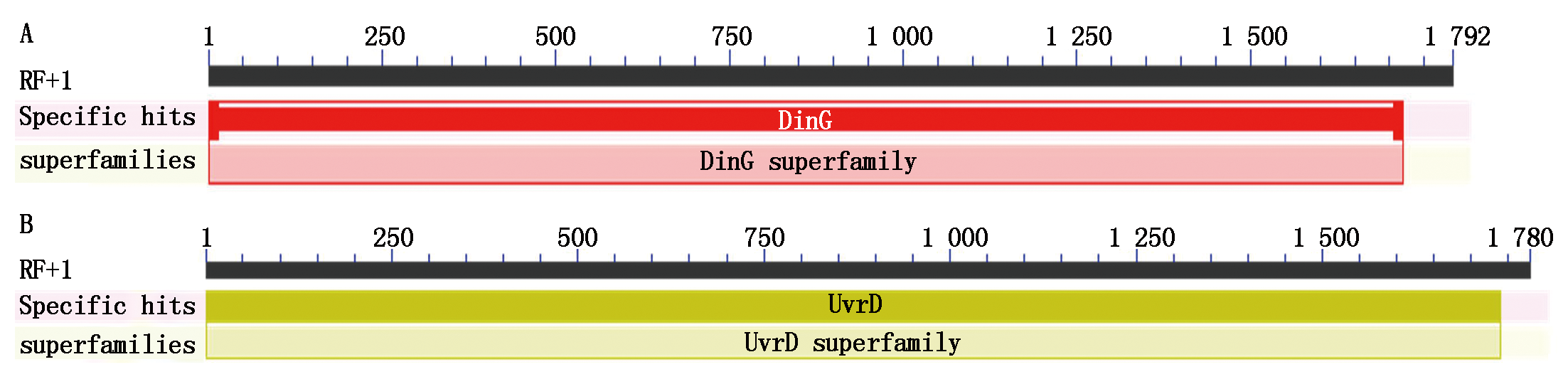

图7 ypvA(A)和yjcD(B)保守结构域分析

Fig.7 A putative conserved domain of ypvA(A)and yjcD(B)amino acid sequence

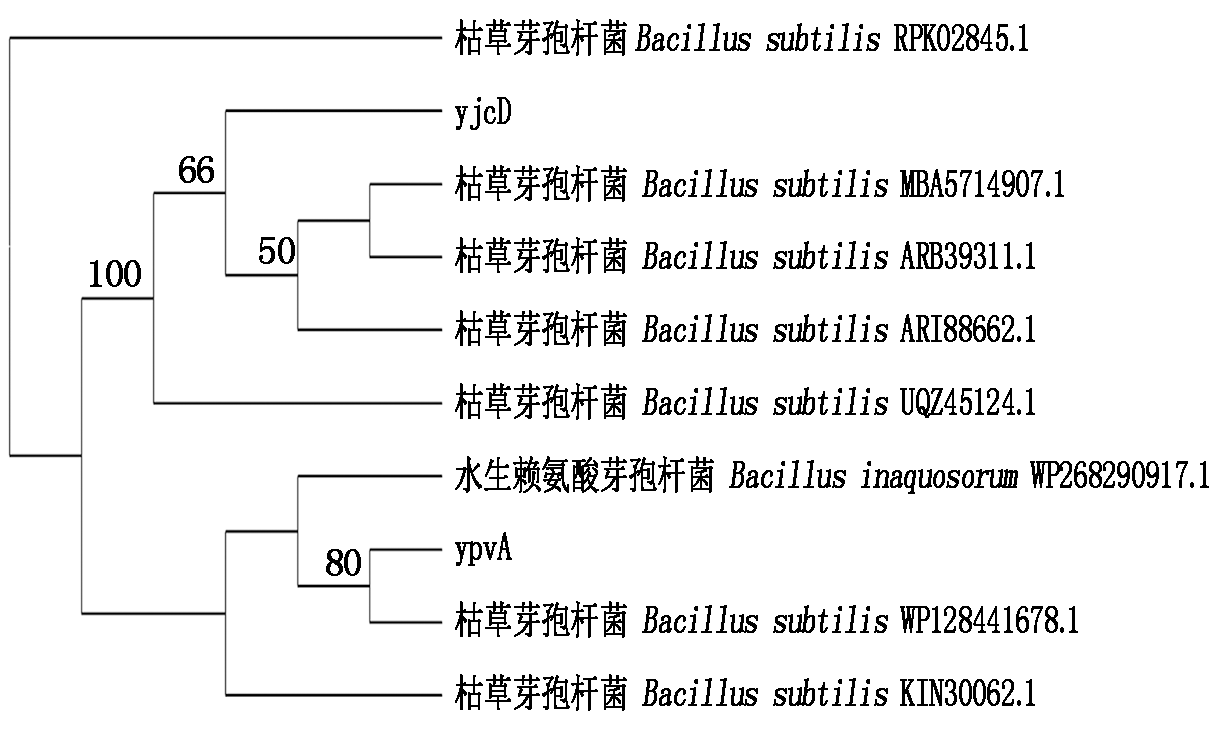

图8 蛋白序列系统进化树

Fig.8 Protein sequence phylogenetic tree

图9 ypvA和yjcD亚细胞定位

Fig.9 ypvA and yjcD subcellular localization

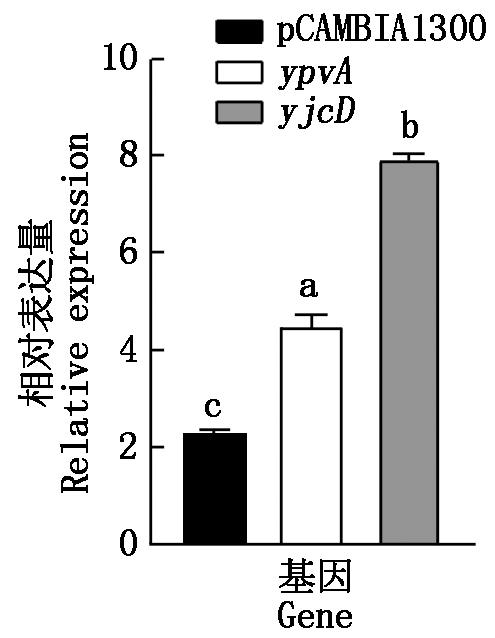

图10 ypvA和yjcD在烟草中7 d的表达量不同字母表示0.05水平差异显著性(P<0.05)。

Fig.10 Expression of ypvA and yjcD in tobacco on 7 days Different letters represent a significant difference at the 0.05 level(P<0.05).

参考文献 31

[1]	Prins T W, Tudzynski P, von Tiedemann A, Tudzynski B, Ten Have A, Hansen M E, Tenberge K, van Kan J A L. Infection strategies of Botrytis cinerea and related necrotrophic pathogens[M]// Fungal Pathology.Dordrecht: Springer Netherlands, 2000:33-64.doi:10.1007/978-94-015-9546-9_2.
[2]	郑英, 谢林俊, 张露萍, 王海燕, 孙红亚, 梁虹, 贾筱琴, 胡艳秋. 人RUVBL2真核表达载体的构建及其在HeLa细胞中的表达[J]. 细胞与分子免疫学杂志, 2012, 28(6):586-587,591.doi:10.13423/j.cnki.cjcmi.006441.
	Zheng Y, Xie L J, Zhang L P, Wang H Y, Sun H Y, Liang H, Jia X Q, Hu Y Q. Construction of eukaryotic expression vector of human RUVBL2 and its expression in HeLa cells[J]. Chinese Journal of Cellular and Molecular Immunology, 2012, 28(6):586-587,591.
[3]	贺字典, 高玉峰. 生防菌在植物病害防治中的研究进展[J]. 河北职业技术师范学院学报, 2003, 17(2):56-59.doi:10.3969/j.issn.1672-7983.2003.02.015.
	He Z D, Gao Y F. Research development of biological control germ in preventing and controling plants disease and insects(summary)[J]. Journal of Hebei Vocation-Technical Teachers College, 2003, 17(2):56-59.
[4]	Köhl J, Kolnaar R, Ravensberg W J. Mode of action of microbial biological control agents against plant diseases:relevance beyond efficacy[J]. Frontiers in Plant Science, 2019, 10:845.doi:10.3389/fpls.2019.00845. URL
[5]	Elnahal A S M, El-Saadony M T, Saad A M, Desoky E M, El-Tahan A M, Rady M M, AbuQamar S F, El-Tarabily K A. The use of microbial inoculants for biological control,plant growth promotion,and sustainable agriculture:a review[J]. European Journal of Plant Pathology, 2022, 162(4):759-792.doi:10.1007/s10658-021-02393-7.
[6]	Hondele M, Sachdev R, Heinrich S, Wang J, Vallotton P, Fontoura B M A, Weis K. DEAD-box ATPases are global regulators of phase-separated organelles[J]. Nature, 2019, 573(7772):144-148.doi:10.1038/s41586-019-1502-y.
[7]	Cui N, Zhang J T, Liu Y R, Liu Y H, Liu X Y, Wang C Y, Huang H D, Jia N. Type Ⅳ-a CRISPR-Csf complex:assembly,dsDNA targeting,and CasDinG recruitment[J]. Molecular Cell, 2023, 83(14):2493-2508e5.doi:10.1016/j.molcel.2023.05.036.
[8]	Hawkins M, Dimude J U, Howard J A L, Smith A J, Dillingham M S, Savery N J, Rudolph C J, McGlynn P. Direct removal of RNA polymerase barriers to replication by accessory replicative helicases[J]. Nucleic Acids Research, 2019, 47(10):5100-5113.doi:10.1093/nar/gkz170. pmid: 30869136
[9]	Frye S A, Beyene G T, Namouchi A, Gómez-Muñoz M, Homberset H, Kalayou S, Riaz T, Tønjum T, Balasingham S V. The helicase DinG responds to stress due to DNA double strand breaks[J]. PLoS One, 2017, 12(11):e0187900.doi:10.1371/journal.pone.0187900.
[10]	Chadda A, Nguyen B, Lohman T M, Galburt E A. Structural basis for dimerization and activation of UvrD-family helicases[J]. Proceedings of the National Academy of Sciences of the United States of America, 2025, 122(10):e2422330122.doi:10.1073/pnas.2422330122.
[11]	Storozhuk O, Bruekner S R, Paul A, Lebbink J H G, Sixma T K, Friedhoff P. MutL activates UvrD by interaction between the MutL C-terminal domain and the UvrD 2B domain[J]. Journal of Molecular Biology, 2024, 436(11):168589.doi:10.1016/j.jmb.2024.168589.
[12]	张彩凤. 生防菌枯草芽孢杆菌的研究进展[J]. 现代农村科技, 2015(21): 47.doi:10.3969/j.issn.1674-5329.2015.21.039.
	Zhang C F. Research progress on biocontrol bacteria Bacillus subtilis[J]. Modern Rural Technology, 2015,(21):47.
[13]	管晓轩, 胡红莲, 高民, 李兰柱, 王典, 兰儒冰, 孙满吉. 复合微生态制剂在犊牛抗腹泻中应用的研究进展[J]. 现代畜牧兽医, 2022(8):74-78.
	Guan X X, Hu H L, Gao M, Li L Z, Wang D, Lan R B, Sun M J. Research progress on application of compound probiotics in anti-diarrhea of calves[J]. Modern Journal of Animal Husbandry and Veterinary Medicine, 2022(8):74-78.
[14]	冯中红, 畅涛, 杨成德, 薛莉, 李旭, 杨小利. 一株抗马铃薯坏疽病莫海威芽孢杆菌(Bacillus mojavensis ZA1)培养条件的优化[J]. 草业学报, 2016, 25(2):77-86.doi:10.11686/cyxb2015142.
	Feng Z H, Chang T, Yang C D, Xue L, Li X, Yang X L. Optimization of culture conditions of a biocontrol agent Bacillus mojavensis ZA1 to antagonize Phoma foveata[J]. Acta Prataculturae Sinica, 2016, 25(2):77-86.
[15]	畅涛, 王涵琦, 杨成德, 薛莉, 陈秀蓉, 任月芹, 王玉琴. 马铃薯坏疽病Phoma foveata生防菌的筛选及鉴定[J]. 中国生物防治学报, 2014, 30(2):247-252.doi:10.16409/j.cnki.2095-039x.2014.02.015.
	Chang T, Wang H Q, Yang C D, Xue L, Chen X R, Ren Y Q, Wang Y Q. Screening and identification of antagonist bacteria against Phoma foveata on potato[J]. Chinese Journal of Biological Control, 2014, 30(2):247-252.
[16]	Zhao F F, Zhao T, Deng L B, Lyu D W, Zhang X L, Pan X Y, Xu J, Long G. Visualizing the essential role of complete virion assembly machinery in efficient hepatitis C virus cell-to-cell transmission by a viral infection-activated split-intein-mediated reporter system[J]. Journal of Virology, 2017, 91(2):e01720-16.doi:10.1128/JVI.01720-16.
[17]	Chen L, Wu Y D, Chong X Y, Xin Q H, Wang D X, Bian K. Seed-borne endophytic Bacillus velezensis LHSB1 mediate the biocontrol of peanut stem rot caused by Sclerotium rolfsii[J]. Journal of Applied Microbiology, 2020, 128(3):803-813.doi:10.1111/jam.14508. pmid: 31705716
[18]	陈中义, 张杰, 黄大昉. 植物病害生防芽孢杆菌抗菌机制与遗传改良研究[J]. 植物病理学报, 2003, 33(2):97-103.doi:10.13926/j.cnki.apps.2003.02.001.
	Chen Z Y, Zhang J, Huang D F. Research progress on antimicrobial mechanism and genetic engineering of Bacillus for plant diseases biocontrol[J]. Acta Phytopathologica Sinica, 2003, 33(2):97-103.
[19]	Chen Q Q, Qiu Y, Yuan Y Z, Wang K Y, Wang H Y. Biocontrol activity and action mechanism of Bacillus velezensis strain SDTB038 against Fusarium crown and root rot of tomato[J]. Frontiers in Microbiology, 2022, 13:994716.doi:10.3389/fmicb.2022.994716.
[20]	Yuan H B, Yuan M J, Shi B K, Wang Z N, Huang T X, Qin G H, Hou H, Wang L, Tu H T. Biocontrol activity and action mechanism of Paenibacillus polymyxa strain Nl4 against pear Valsa canker caused by Valsa pyri[J]. Frontiers in Microbiology, 2022, 13:950742.doi:10.3389/fmicb.2022.950742.
[21]	Miftakhov A K, Diabankana R G C, Frolov M, Yusupov M M, Validov S Z, Afordoanyi D M. Persistence as a constituent of a biocontrol mechanism(competition for nutrients and niches)in Pseudomonas putida PCL1760[J]. Microorganisms, 2023, 11(1):19.doi:10.3390/microorganisms11010019. URL
[22]	Zhang Q, Kobras C M, Gebhard S, Mascher T, Wolf D. Regulation of heterologous subtilin production in Bacillus subtilis W168[J]. Microbial Cell Factories, 2022, 21(1):57.doi:10.1186/s12934-022-01782-9. pmid: 35392905
[23]	Jiang C X, Tang Y G, Ding L L, Tan R K, Li X J, Lu J Y, Jiang J, Cui Z M, Tang Z W, Li W, Cao Z J, Schneider-Poetsch T, Jiang W, Luo C, Ding Y, Liu J W, Dang Y J. Targeting the N terminus of eIF4AI for inhibition of its catalytic recycling[J]. Cell Chemical Biology, 2019, 26(10):1417-1426.e5.doi:10.1016/j.chembiol.2019.07.010.
[24]	An L X, Tang W, Ranalli T A, Kim H J, Wytiaz J, Kong H M. Characterization of a thermostable UvrD helicase and its participation in helicase-dependent amplification[J]. Journal of Biological Chemistry, 2005, 280(32):28952-28958.doi:10.1074/jbc.M503096200. pmid: 15955821
[25]	Boubakri H, de Septenville A L, Viguera E, Michel B. The helicases DinG,Rep and UvrD cooperate to promote replication across transcription units in vivo[J]. The EMBO Journal, 2010, 29(1):145-157.doi:10.1038/emboj.2009.308. URL
[26]	侯景, 申超超, 张大俊, 杨博, 史喜绢, 张婷, 崔卉梅, 袁兴国, 赵登率, 陈学辉, 张克山, 郑海学, 刘湘涛. 非洲猪瘟病毒解旋酶D1133L基因序列分析、蛋白结构预测及亚细胞定位[J]. 畜牧兽医学报, 2021, 52(7):1953-1962.doi:10.11843/j.issn.0366-6964.2021.07.017.
	Hou J, Shen C C, Zhang D J, Yang B, Shi X J, Zhang T, Cui H M, Yuan X G, Zhao D L, Chen X H, Zhang K S, Zheng H X, Liu X T. Gene sequence analysis,protein structure prediction and subcellular localization of African swine fever virus helicase D1133L[J]. Acta Veterinaria et Zootechnica Sinica, 2021, 52(7):1953-1962.
[27]	Dudeja S S, Suneja-Madan P, Paul M, Maheswari R, Kothe E. Bacterial endophytes:molecular interactions with their hosts[J]. Journal of Basic Microbiology, 2021, 61(6):475-505.doi:10.1002/jobm.202000657. URL
[28]	Kooistra J, Haijema B J, Hesseling-Meinders A, Venema G. A conserved helicase motif of the AddA subunit of the Bacillus subtilis ATP-dependent nuclease(AddAB)is essential for DNA repair and recombination[J]. Molecular Microbiology, 1997, 23(1):137-149.doi:10.1046/j.1365-2958.1997.1991570.x.
[29]	Xu J, Wu C X, Yang Z H, Liu W C, Chen H, Batool K, Yao J M, Fan X, Wu J, Rao W H, Huang T P, Xu L, Guan X, Zhang L L. For:pesticide biochemistry and physiology recG is involved with the resistance of Bt to UV[J]. Pesticide Biochemistry and Physiology, 2020, 167:104599.doi:10.1016/j.pestbp.2020.104599. URL
[30]	Moreno-DelÁlamo M, Carrasco B, Torres R, Alonso J C. Bacillus subtilis PcrA helicase removes trafficking barriers[J]. Cells, 2021, 10(4):935.doi:10.3390/cells10040935. URL
[31]	Wang S J, Fu G, Li J L, Wei X F, Fang H, Huang D W, Lin J P, Zhang D W. High-efficiency secretion and directed evolution of chitinase BcChiA1 in Bacillus subtilis for the conversion of chitinaceous wastes into chitooligosaccharides[J]. Frontiers in Bioengineering and Biotechnology, 2020, 8:432.doi:10.3389/fbioe.2020.00432. URL
