贝莱斯芽孢杆菌<i>PksN</i>生物信息学及表达分析

doi:10.7668/hbnxb.20195156

摘要/Abstract

摘要：

为探究贝莱斯芽孢杆菌DJ1菌株聚酮合酶PksN的理化性质和结构及聚酮化合物的生物合成过程中PksN的表达情况。利用生物信息学、分子对接技术分析了贝莱斯芽孢杆菌DJ1聚酮合酶PksN的同源序列、理化性质、蛋白结构、配体与受体结合位点、小分子化合物和蛋白质互作网络,并利用实时荧光定量PCR测定了贝莱斯芽孢杆菌DJ1发酵不同时间点PksN的表达。结果表明,贝莱斯芽孢杆菌PksN属于PksD家族,与Bacillus的PksN相似性为100%,含有55个开放阅读框,5个保守结构域,其中包括KR结构域。PksN共有2 051个氨基酸,分子量为226.05 ku,等电点为5.59,分子式为C₁₀₀₂₈H₁₅₇₁₉N₂₇₅₃O₃₀₅₀S₇₅,是一种不稳定蛋白,位于细胞质膜,PksN以α-螺旋为主要结构,并预测了聚酮合酶PksN的三级结构。分子对接结果表明,PksN能利用乙酰辅酶A、丙酰辅酶A、异戊酰辅酶A、丙二酰辅酶A、甲基丙二酰辅酶A和乙基丙二酰辅酶A作为底物合成聚酮化合物,互作蛋白中排名前十的蛋白均与聚酮类化合物合成有关,实时荧光定量PCR结果表明,贝莱斯芽孢杆菌DJ1发酵48 h PksN表达量最高,可确定后续提取聚酮化合物的最佳时间点。

关键词: 贝莱斯芽孢杆菌, 聚酮合酶, 生物信息, 结构预测, 分子对接, 基因表达

Abstract:

To explore the physicochemical properties,structure,and expression of the polyketide synthase PksN during polyketones biosynthesis in Bacillus velezensis DJ1 strain.It employed bioinformatics and molecular docking techniques to analyze the homologous sequences,physicochemical properties,protein structure,ligand-receptor binding sites,small molecule compounds,and protein-protein interaction networks of PksN.Additionally,Real-time Quantitative PCR was used to measure the expression of PksN at different time points during fermentation of Bacillus velezensis DJ1.The results showed that PksN belongs to the PksD family and shares 100% similarity with PksN gene of Bacillus.It contained 55 open reading frames(ORFs)and five conserved domains,including the KR domain.The protein consisted of 2 051 amino acids,with a molecular weight of 226.05 ku and an isoelectric point of 5.59.The molecular formula was C₁₀₀₂₈H₁₅₇₁₉N₂₇₅₃O₃₀₅₀S₇₅.PksN was an unstable protein located in the cytoplasmic membrane,and its secondary structure was predominantly α-helix.The tertiary structure of PksN was also predicted.Molecular docking results revealed that PksN can utilize acetyl-CoA,propionyl-CoA,isovaleryl-CoA,malonyl-CoA,methylmalonyl-CoA,and ethylmalonyl-CoA as substrates for polyketide biosynthesis.The top ten interacting proteins are all associated with polyketide biosynthesis.Real-time Quantitative PCR results indicated that the expression of PksN in Bacillus velezensis DJ1 peaked at 48 hours of fermentation,identifying the optimal time point for the subsequent extraction of polyketides.

Key words: Bacillus velezensis, Polyketide synthase, Bioinformatics, Structural prediction, Molecular docking, Gene expression

中图分类号:

Q936微生物生物化学

刘伟, 闫更轩, 胡基华, 田缘, 于冲, 毛雪, 张淑梅. 贝莱斯芽孢杆菌PksN生物信息学及表达分析[J]. 华北农学报, 2025, 40(S1): 292-299. doi: 10.7668/hbnxb.20195156.

LIU Wei, YAN Gengxuan, HU Jihua, TIAN Yuan, YU Chong, MAO Xue, ZHANG Shumei. Bioinformatics and Expression Analysis of PksN in Bacillus velezensis Polyketide Synthase[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(S1): 292-299. doi: 10.7668/hbnxb.20195156.

http://www.hbnxb.net/CN/Y2025/V40/IS1/292

图/表 9

表1 实时荧光定量PCR引物序列

Tab.1 Real-time PCR primer sequence

基因Gene	引物序列(5'-3') Primer sequence(5'-3')
16S	GCTTCGGCTACCACTTACAGAT
	TCAGGTCGGCTACGCATCG
PksN	ATCGCCGATTTTGATCCTGAGTTC
	ATGTCCTCGTATATCCCGCATCC

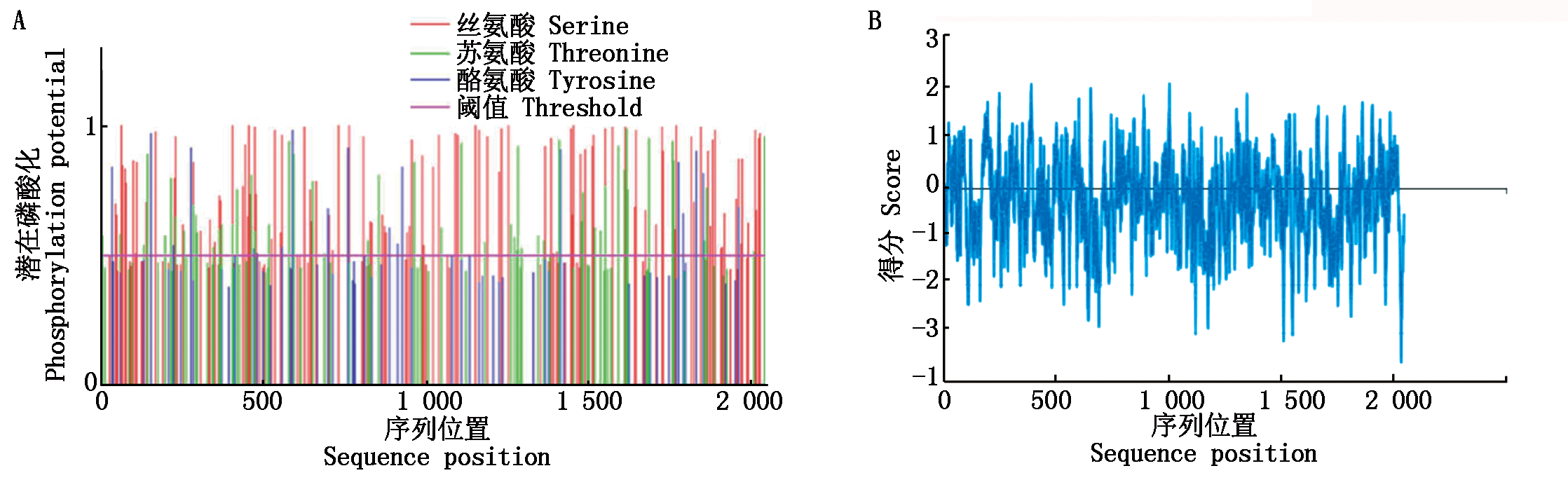

图1 PksN磷酸化位点预测分析及疏水性分析结果

Fig.1 PksN phosphorylation site prediction and hydrophobicity analysis results

图2 PksN二级结构

Fig.2 PksN secondary structure

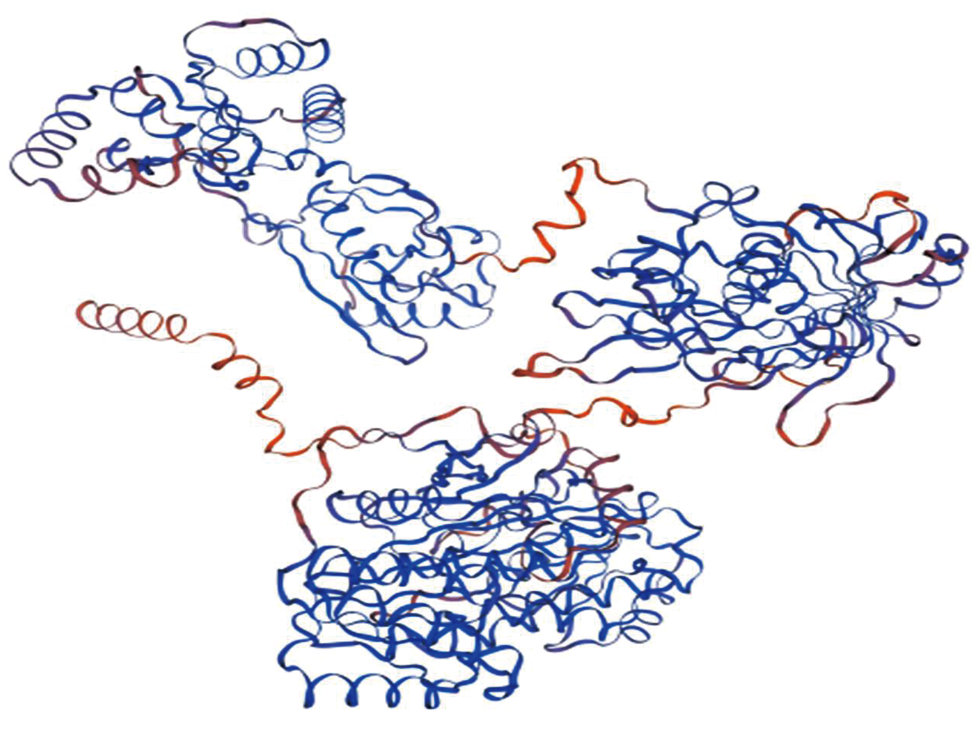

图3 PksN 三维结构

Fig.3 PksN three-dimensional structure

表2 PksN与小分子之间的结合得分

Tab.2 Binding scores between PksN and small molecules

小分子Micromolecule	得分Score
乙酰辅酶A Acetyl-CoA	-12.118 781 1
丙酰辅酶A Propionyl-CoA	-11.694 555 3
异戊酰辅酶A Isovaleryl-CoA	-11.775 791 2
丙二酰辅酶A Malonyl-CoA	-12.488 548 3
甲基丙二酰辅酶A Methylmalonyl-CoA	-12.189 192 8
乙基丙二酰辅酶A Ethylmalonyl-CoA	-13.497 603 4
甲酸Formic acid	-3.180 979 0
乙酸Acetic acid	-3.472 922 3
丙酸Propionic acid	-3.856 440 3
丁酸Butyric acid	-4.132 806 3

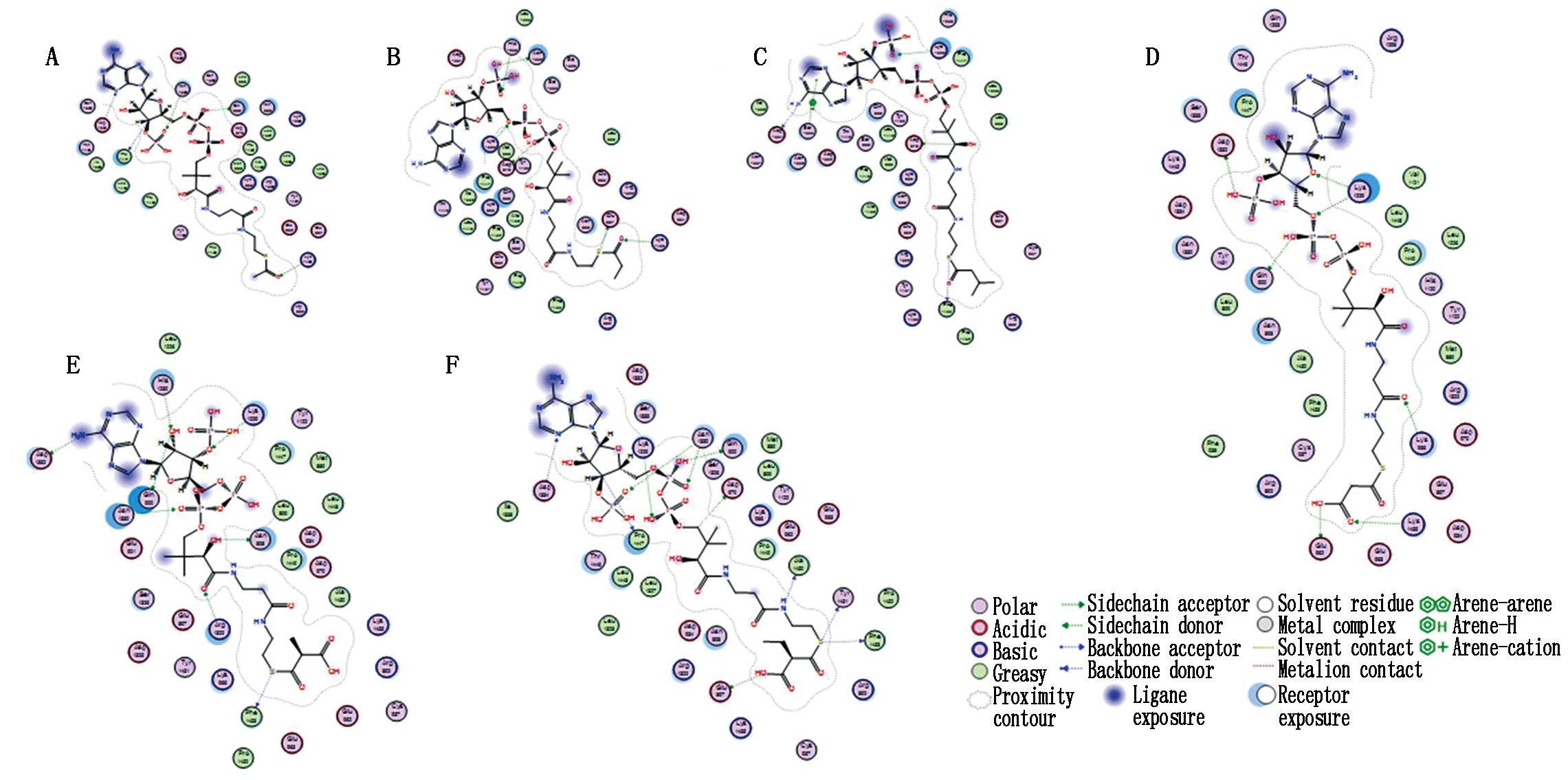

图4 PksN与小分子之间的结合模式1 A.乙酰辅酶A;B.丙酰辅酶A;C.异戊酰辅酶A;D.丙二酰辅酶A; E.甲基丙二酰辅酶A;F.乙基丙二酰辅酶A。Polar.极性;Acidic.酸性;Basic.碱性;Greasy.疏水性;Proximity contour.临近轮廓;Sidechain acceptor.侧链受体;Sidechain donor.侧链供体;Backbone acceptor.主链受体;Backbone donor.主链供体;Ligand exposure.配体暴露;Receptor exposure.受体暴露;Solvent residue.溶剂残基;Metal complex.金属复合物;Solvent contact.溶剂接触;Metal/ion contact.金属/离子接触;Arene-arene.芳环-芳环相互作用;Arene-H.芳环-氢相互作用;Arene-cation.芳环-阳离子相互作用。图5同。

Fig.4 Binding patterns 1 between PksN and small molecules A.Acetyl CoA;B.Propionyl-CoA;C.Isovaleryl CoA;D.Malonyl-CoA; E.Methylmalonyl-CoA;F.Ethyl malonyl-CoA.Polar.Polar;Acidic.Acidic;Basic.Basic;Greasy.Hydrophobic;Proximity contour.Proximity contour;Sidechain acceptor.Sidechain acceptor;Sidechain.Denotes sidechain donor;Backbone acceptor.Backbone acceptor;Backbone.Backbone donor;Ligand exposure.Ligand exposure;Receptor exposure.Receptor exposure;Solvent residue.Solvent residue;Metal complex.Metal complex;Solvent contact.Solvent contact;Metal/ion contact.Metal/ion contact;Arene-arene.Arene-arene interaction;Arene-H.Arene-hydrogen interaction;Arene-cation.Arene-cation interaction.The same as Fig.5.

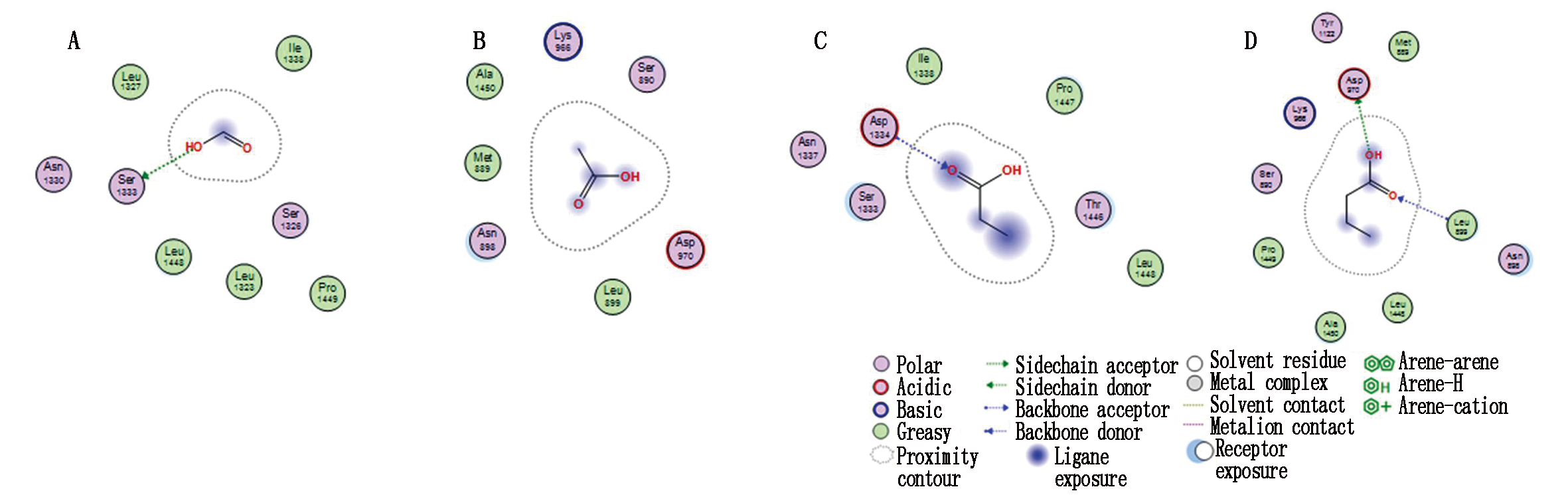

图5 PksN与小分子之间的结合模式2 A.甲酸;B.乙酸;C.丙酸;D.丁酸。

Fig.5 Binding patterns 2 between PksN and small molecules A.Formic acid;B.Acetic acid;C.Propionic acid;D.Butyric acid.

图6 PksN蛋白互作网络

Fig.6 PksN protein interaction network

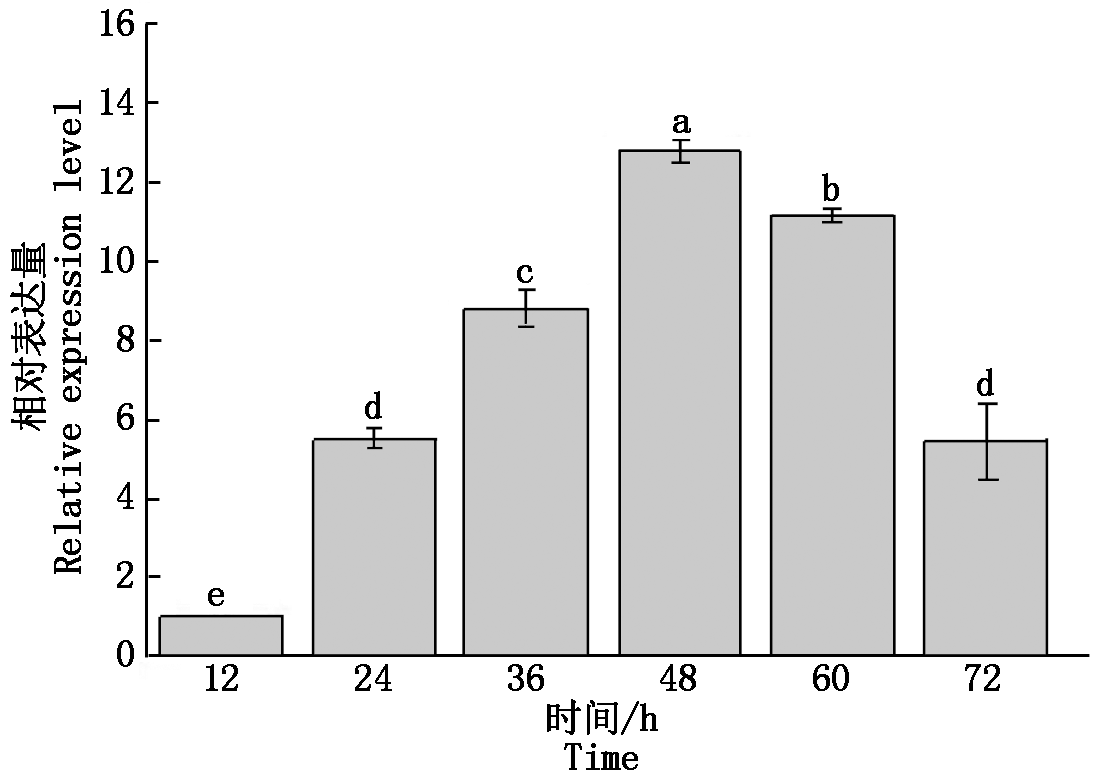

图7 不同发酵时间PksN相对表达量

Fig.7 Relative expression of PksN at different fermentation times

参考文献 33

[1]	Annaswamy S. Building a hybrid modular polyketide synthase to investigate ketosynthase selectivity[D]. Austin: The University of Texas at Austin, 2023.doi:10.26153/tsw/45817.
[2]	Lin P X, Fu Z H, Liu X X, Liu C L, Bai Z H, Yang Y K, Li Y. Direct utilization of peroxisomal acetyl-CoA for the synthesis of polyketide compounds in Saccharomyces cerevisiae[J]. ACS Synthetic Biology, 2023, 12(6):1599-1607.doi:10.1021/acssynbio.2c00678. URL
[3]	Chakraborty K, Kizhakkekalam V K, Joy M, Dhara S. Difficidin class of polyketide antibiotics from marine macroalga-associated Bacillus as promising antibacterial agents[J]. Applied Microbiology and Biotechnology, 2021, 105(16/17):6395-6408.doi:10.1007/s00253-021-11390-z.
[4]	Torres J P, Lin Z J, Winter J M, Krug P J, Schmidt E W. Animal biosynthesis of complex polyketides in a photosynthetic partnership[J]. Nature Communications, 2020,11:2882.doi:10.1038/s41467-020-16376-5.
[5]	Li S S, Yang B W, Tan G Y, Ouyang L M, Qiu S W, Wang W S, Xiang W S, Zhang L X. Polyketide pesticides from actinomycetes[J]. Current Opinion in Biotechnology, 2021, 69:299-307.doi:10.1016/j.copbio.2021.05.006. pmid: 34102376
[6]	Fazle Rabbee M, Baek K H. Antimicrobial activities of lipopeptides and polyketides of Bacillus velezensis for agricultural applications[J]. Molecules, 2020, 25(21):4973.doi:10.3390/molecules25214973. URL
[7]	Khabthani S, Rolain J M, Merhej V. In silico/In vitro strategies leading to the discovery of new nonribosomal peptide and polyketide antibiotics active against human pathogens[J]. Microorganisms, 2021, 9(11):2297.doi:10.3390/microorganisms9112297. URL
[8]	Wang J, Zhang R H, Chen X, Sun X X, Yan Y J, Shen X L, Yuan Q P. Biosynthesis of aromatic polyketides in microorganisms using type Ⅱ polyketide synthases[J]. Microbial Cell Factories, 2020, 19(1):110.doi:10.1186/s12934-020-01367-4. pmid: 32448179
[9]	Keatinge-Clay A T. Stereocontrol within polyketide assembly lines[J]. Natural Product Reports, 2016, 33(2):141-149.doi:10.1039/C5NP00092K. pmid: 26584443
[10]	Weissman K J. Polyketide stereocontrol:a study in chemical biology[J]. Beilstein Journal of Organic Chemistry, 2017, 13:348-371.doi:10.3762/bjoc.13.39. pmid: 28326145
[11]	Yuzawa S, Deng K, Wang G, Baidoo E E K, Northen T R, Adams P D, Katz L, Keasling J D. Comprehensive in vitro analysis of acyltransferase domain exchanges in modular polyketide synthases and its application for short-chain ketone production[J]. ACS Synthetic Biology, 2017, 6(1):139-147.doi:10.1021/acssynbio.6b00176. URL
[12]	Walker P D, Weir A N M, Willis C L, Crump M P. Polyketide β-branching:diversity,mechanism and selectivity[J]. Natural Product Reports, 2021, 38(4):723-756.doi:10.1039/D0NP00045K. pmid: 33057534
[13]	刘嘉琪. 伯克氏菌天然产物底盘的构建及应用[D]. 济南: 山东大学, 2023.doi:10.27272/d.cnki.gshdu.2023.000765.
	Liu J Q. Construction and application of burkholderia natural product chassis[D]. Jinan: Shandong University, 2023.
[14]	童年. 链霉菌CB03234-S中Ⅲ型聚酮合酶表征及其对烯二炔tiancimycin产量的影响[D]. 长沙: 中南大学, 2022.doi:10.27661/d.cnki.gzhnu.2022.004680.
	Tong N. Characterization of type Ⅲ polyketide synthase from Streptomyces sp.CB03234-S and its effect on the yield of enediyne tiancimycin[D]. Changsha: Central South University, 2022.
[15]	马俊秀, 吴皓琼, 姜威, 闫更轩, 胡基华, 张淑梅. 蔬菜软腐病菌广谱拮抗细菌菌株筛选鉴定及防效研究[J]. 生物技术通报, 2023, 39(7):228-240.doi:10.13560/j.cnki.biotech.bull.1985.2022-1349.
	Ma J X, Wu H Q, Jiang W, Yan G X, Hu J H, Zhang S M. Screening and identification of broad-spectrum antagonistic bacterial strains against vegetable soft rot pathogen and its control effects[J]. Biotechnology Bulletin, 2023, 39(7):228-240.
[16]	Niemi N M, Pagliarini D J. The extensive and functionally uncharacterized mitochondrial phosphoproteome[J]. Journal of Biological Chemistry, 2021, 297(1):100880.doi:10.1016/j.jbc.2021.100880.
[17]	杨燕, 任娟, 汪泽, 曹永军, 王朝群, 何希瑞. 基于网络药理学探讨半夏-厚朴药对治疗癫痫的作用机制研究[J]. 中国中西医结合儿科学, 2021, 13(5):436-443.doi:10.3969/j.issn.1674-3865.2021.05.018.
	Yang Y, Ren J, Wang Z, Cao Y J, Wang C Q, He X R. Investigating the mechanism of Pinellia ternata-Mangnolia officinalis pair for epilepsy via network pharmacology[J]. Chinese Pediatrics of Integrated Traditional and Western Medicine, 2021, 13(5):436-443.
[18]	杨名, 李晚露, 张文禹, 林厚文, 周永军. 三烷基取代芳香聚酮gombapyrones生物合成基因簇的确认及其生物合成推导[J]. 微生物学报, 2023, 63(12):4671-4685.doi:10.13343/j.cnki.wsxb.20230291.
	Yang M, Li W L, Zhang W Y, Lin H W, Zhou Y J. Investigation of the biosynthetic gene cluster of trialkyl-substituted aromatic polyketide gombapyrones from Streptomyces rubellomurinus[J]. Acta Microbiologica Sinica, 2023, 63(12):4671-4685.
[19]	张华茜, 刘伟, 杜春梅. 聚酮合酶的催化机制及聚酮类化合物的组合生物合成[J]. 中国生物化学与分子生物学报, 2023, 39(3):400-412.doi:10.13865/j.cnki.cjbmb.2022.09.1187.
	Zhang H Q, Liu W, Du C M. Catalytic mechanisms of polyketide synthases and combinatorial biosynthesis of polyketides[J]. Chinese Journal of Biochemistry and Molecular Biology, 2023, 39(3):400-412.
[20]	Waldman A J, Balskus E P. Lomaiviticin biosynthesis employs a new strategy for starter unit generation[J]. Organic Letters, 2014, 16(2):640-643.doi:10.1021/ol403714g. pmid: 24383813
[21]	杨伟杰, 杨周林, 朱浩东, 魏煜, 刘君, 刘训. 地衣素合成酶关键模块LchAD蛋白的性质和功能研究[J]. 生物技术通报, 2024, 40(3):322-332.doi:10.13560/j.cnki.biotech.bull.1985.2023-0996.
	Yang W J, Yang Z L, Zhu H D, Wei Y, Liu J, Liu X. Study on the properties and functions of LchAD protein,a key module of lichenysin synthase[J]. Biotechnology Bulletin, 2024, 40(3):322-332. doi: 10.13560/j.cnki.biotech.bull.1985.2023-0996
[22]	肖雅茹, 贾婷婷, 罗丹, 武喆, 李丽霞. 黄瓜CsERF025L转录因子的克隆及表达分析[J]. 生物技术通报, 2024, 40(4):159-166.doi:10.13560/j.cnki.biotech.bull.1985.2023-0962.
	Xiao Y R, Jia T T, Luo D, Wu Z, Li L X. Cloning and expression analysis of CsERF025L transcription factor in cucumber[J]. Biotechnology Bulletin, 2024, 40(4):159-166.
[23]	Biasini M, Bienert S, Waterhouse A, Arnold K, Studer G, Schmidt T, Kiefer F, Cassarino T G, Bertoni M, Bordoli L, Schwede T. SWISS-MODEL:modelling protein tertiary and quaternary structure using evolutionary information[J]. Nucleic Acids Research, 2014, 42(W1):W252-W258.doi:10.1093/nar/gku340.
[24]	Waterhouse A, Bertoni M, Bienert S, Studer G, Tauriello G, Gumienny R, Heer F T, de Beer T A P, Rempfer C, Bordoli L, Lepore R, Schwede T. SWISS-MODEL:homology modelling of protein structures and complexes[J]. Nucleic Acids Research, 2018, 46(W1):W296-W303.doi:10.1093/nar/gky427.
[25]	Kishk S M, Kishk R M, Yassen A S A, Nafie M S, Nemr N A, ElMasry G, Al-Rejaie S, Simons C. Molecular insights into human transmembrane protease serine-2(TMPS2)inhibitors against SARS-CoV2:homology modelling,molecular dynamics,and docking studies[J]. Molecules, 2020, 25(21):5007.doi:10.3390/molecules25215007.
[26]	Rehman A, Wang X K, Ahmad S, Shahid F, Aslam S, Ali Ashfaq U, Alrumaihi F, Qasim M, Hashem A, Al-Hazzani A A, Abd_Allah E F. In silico core proteomics and molecular docking approaches for the identification of novel inhibitors against Streptococcus pyogenes[J]. International Journal of Environmental Research and Public Health, 2021, 18(21):11355.doi:10.3390/ijerph182111355. URL
[27]	廖世玉, 刘庆培, 陈福生. 基于AlphaFold 2和分子对接探讨非还原型聚酮合酶的碳甲基化程序[J]. 微生物学报, 2024, 64(1):143-160.doi:10.13343/j.cnki.wsxb.20230338.
	Liao S Y, Liu Q P, Chen F S. C-methylation programming of non-reducing polyketide synthases:based on AlphaFold 2 and molecular docking[J]. Acta Microbiologica Sinica, 2024, 64(1):143-160.
[28]	薛永常, 刘永亮, 许佳, 刘长斌. 海洋链霉菌KR结构域基因的克隆与分析[J]. 现代食品科技, 2023, 39(10):97-103.doi:10.13982/j.mfst.1673-9078.2023.10.1348.
	Xue Y C, Liu Y L, Xu J, Liu C B. Cloning and bioinformatics analysis of a KR domain gene of marine streptomyces[J]. Modern Food Science and Technology, 2023, 39(10):97-103.
[29]	朱峰, 乔建军. 聚酮合成酶底物专一性的研究进展[J]. 中国抗生素杂志, 2006, 31(11):641-645,664.doi:10.3969/j.issn.1001-8689.2006.11.001.
	Zhu F, Qiao J J. Progress in substrate specificity of polyketide synthase[J]. Chinese Journal of Antibiotics, 2006, 31(11):641-645,664.
[30]	Billington R A, Bruzzone S, De Flora A, Genazzani A A, Koch-Nolte F, Ziegler M, Zocchi E. Emerging functions of extracellular pyridine nucleotides[J]. Molecular Medicine, 2006, 12(11):324-327.doi:10.2119/2006-00075.Billington. URL
[31]	dos Santos Ferreira M C, Pendleton A, Yeo W S, M laga Gadea F C, Camelo D, McGuire M, Brinsmade S R. In Staphylococcus aureus,the acyl-CoA synthetase MbcS supports branched-chain fatty acid synthesis from carboxylic acid and aldehyde precursors[J]. Molecular Microbiology, 2024, 121(5):865-881.doi:10.1111/mmi.15237. URL
[32]	Qi X H, Liu W, He X, Du C M. A review on surfactin:molecular regulation of biosynthesis[J]. Archives of Microbiology, 2023, 205(9):313.doi:10.1007/s00203-023-03652-3.
[33]	Fäseke V C, Raps F C, Sparr C. Polyketide cyclizations for the synthesis of polyaromatics[J]. Angewandte Chemie International Edition, 2020, 59(18):6975-6983.doi:10.1002/anie.201911255. URL
