马铃薯野生种<i>SpSBP1</i>基因的克隆及CRISPR/Cas9载体构建

doi:10.7668/hbnxb.20193230

摘要/Abstract

摘要：

为了探究SBP1基因在植物自交不亲和方面的重要作用,以二倍体马铃薯野生种为材料,利用RT-PCR技术克隆获得马铃薯野生种 SpSBP1(登录号:MZ803088)的cDNA全长序列,并对其进行生物信息学分析及 CRISPR/Cas9载体构建。结果显示,SpSBP1基因的cDNA全长为1 176 bp,包含92 bp的5'非编码区和163 bp的3'非编码区,其最大开放阅读框为921 bp,编码306个氨基酸。蛋白结构域分析显示,SpSBP1蛋白包括Smc超家族结构域以及RING finger和Zinc finger结构域。蛋白同源序列比对及系统进化树分析显示,马铃薯野生种SpSBP1与马铃薯野生种ScSBP1的同源性最高,其次为花烟草。生物信息学分析显示,SpSBP1分子质量为34.731 44 ku,理论等电点pI为5.10,推测得出该蛋白为酸性不稳定亲水性蛋白。二级结构预测该蛋白主要由α螺旋和无规则卷曲所构成。同时该蛋白属于非分泌蛋白且不存在跨膜结构。从二倍体马铃薯野生种中克隆出了SpBP1基因,同时成功构建了CRISPR/Cas9载体,并进行了遗传转化试验。

关键词: 马铃薯野生种, 自交不亲和, SpSBP1, 克隆, 生物信息学分析, CRISPR/Cas9载体构建

Abstract:

In order to explore the important role of SBP1(S-RNase-binding protein 1)gene in plant self-incompatibility,a diploid wild potato was used as the material to obtain the full-length cDNA sequence of potato SpSBP1 (GenBank: MZ803088)by using RT-PCR cloning technique,and performed bioinformatics analysis and CRISPR/Cas9 vector construction for SpSBP1 gene.The results showed that the full length cDNA of SpSBP1 gene was 1 176 bp,containing 92 bp 5' non-coding region and 163 bp 3' non-coding region.The maximum open reading frame(ORF)of SpSBP1 gene was 921 bp,which encoding 306 amino acids.Protein domain analysis showed that SpSPB1 protein included Smc superfamily domain,RING finger domain and Zinc finger domain.The homologous sequence alignment and phylogenetic tree analysis showed that SpSBP1 had the highest homology with S.chacoense,followed by Nicotiana alata.Bioinformatics analysis showed that the molecular weight of SpSBP1 was 34.731 44 ku,with a theoretical isoelectric point of 5.10,and it was speculated that SpSBP1 was an acid unstable hydrophilic protein. The secondary structure predicted that the protein was mainly composed of α helix and random curling. And the protein was a non-secretory protein and had no transmembrane structure. SpSBP1 gene was cloned from wild diploid potato,and CRISPR/Cas9 vector was successfully constructed,and also the genetic transformation was carried out.

Key words: Solanum pinnatisectum, Self-incompatibility, SpSBP1, Cloning, Bioinformatics analysis, CRISPR/Cas9 vector construction

陈娜, 邵勤, 李晓鹏, 高阳, 卢其能. 马铃薯野生种SpSBP1基因的克隆及CRISPR/Cas9载体构建[J]. 华北农学报, 2022, 37(6): 23-33. doi: 10.7668/hbnxb.20193230.

CHEN Na, SHAO Qin, LI Xiaopeng, GAO Yang, LU Qineng. Cloning and CRISPR/Cas9 Vector Construction of SpSBP1 Gene in Potato[J]. Acta Agriculturae Boreali-Sinica, 2022, 37(6): 23-33. doi: 10.7668/hbnxb.20193230.

http://www.hbnxb.net/CN/Y2022/V37/I6/23

图/表 15

表1 引物序列

Tab.1 Primer sequences

引物 Primer	引物序列(5'—3') Sequence (5'—3')	用途 Application
SpSBP1-F	CGCTTCCTCATCACCATC	基因克隆
SpSBP1-R	CCATCCAAGGAAGAACCC
pMD19-F	CGCCAGGGTTTTCCCAGTCACGAC	通用引物
pMD19-R	CGCCAGGGTTTTCCCAGTCACGAC
SpSBP1-CRISPR/Cas9-F	ATATATGGTCTCGTTTGGTTGGAGCCAAAGAAGAA	CRISPR/Cas9载体构建
	GGTTTTAGAGCTAGAAATAG
SpSBP1-CRISPR/Cas9-R	ATTATTGGTCTCGAAACATCGCCGCTGCAACAGATC
	CCAAACTACACTGTTAGATTC

表2 生物信息学分析网站

Tab.2 Bioinformatics analysis web site

工具Tools	网站Web site
NCBI-ORF	https://www.ncbi.nlm.nih.gov/orffinder/
NCBI-PROGRAM	https://blast.ncbi.nlm.nih.gov/Blast.cgi?PROGRAM=blastp&PAGE_TYPE=BlastSearch&LINK_LOC=blasthome
ClustalW2	https://www.ebi.ac.uk/Tools/msa/clustalw2/
ProtParam	https://web.expasy.org/protparam/
SOPMA	https://npsa-prabi.ibcp.fr/cgi-bin/npsa_automat.pl?page=npsa_sopma.html
SignalP 5.0	http://www.cbs.dtu.dk/services/SignalP/
TMHMM Server v.2.0	http://www.cbs.dtu.dk/services/TMHMM/

图1 马铃薯野生种 SpSBP1基因 A: M.Marker DL2000,1.SpSBP1基因;B: M.Marker DL2000,1—3,6—8.阳性克隆,4—5.阴性克隆。

Fig.1 S.pinnatisectum SpSBP1 gene A: M.Marker DL2000,1.SpSBP1 gene;B: M.DL2000,1—3,6—8.Positive clone,4—5.Negative clone.

图2 SpSBP1 cDNA及预测的开放阅读框

Fig.2 Sequences of SpSBP1 cDNA and predicted ORF

图3 SpSBP1的保守区

Fig.3 Conservative domain of SpSBP1

表3 试验中各物种的SBP1基因

Tab.3 SBP1 genes of species in the experiment

编号 No.	物种 Species	SBP1基因 SBP1 gene
1	马铃薯野生种	ScSBP1
2	紫矮牵牛	PiSBP1
3	矮牵牛	PhSBP1
4	花烟草	NaSBP1
5	毛果杨	PtSBP1
6	苹果	MdSBP1
7	甜樱桃	PaSBP1
8	长蒴黄麻	CoSBP1
9	苜蓿	MtSBP1
10	拟南芥	AtSBP1
11	二倍体马铃薯野生种	SpSBP1

图4 马铃薯野生种SpSBP1编码的蛋白与其他物种同源蛋白多重序列比对

Fig.4 Multiple alignment of homologous protein for the SpSBP1 in S.pinnatisectum and other species

图5 SpSBP1同源蛋白的系统进化树

Fig.5 Phylogenetic tree of SpSBP1 homologous protein

图6 SpSBP1蛋白亲疏水性分析

Fig.6 Hydrophilic analysis of SpSBP1 protein

图7 SpSBP1编码的蛋白的二级结构预测

Fig.7 Secondary structure prediction of protein encoded by SpSBP1 gene

图8 SpSBP1基因编码的蛋白的信号肽和跨膜结构分析 A.SpSBP1基因编码的蛋白的信号肽预测;B.SpSBP1基因编码的蛋白的跨膜结构预测。

Fig.8 Signal peptide and transmembrane structure analysis of protein encoded by SpSBP1 gene A.Signal peptide prediction of protein encoded by SpSBP1 gene;B.Transmembrane structure prediction of protein encoded by SpSBP1 gene.

图9 马铃薯野生种SpSBP1基因的CRISPR/Cas9载体构建 A: M.Marker DL2000,1—2.SpSBP1基因;B: M.Marker DL2000,1—4,6—7.阳性克隆,5.阴性克隆。

Fig.9 CRISPR/Cas9 vector construction of S.pinnatisectum SpSBP1 gene A: M.Marker DL2000,1—2.SpSBP1 gene;B: M.Marker DL2000,1—4,6—7.Positive clones,5.Negative clones.

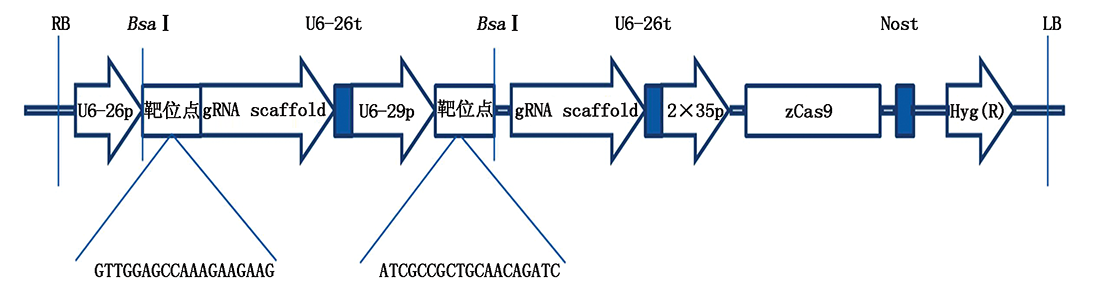

图10 马铃薯SpSBP1-CRISPR/Cas9载体示意图

Fig.10 Structural diagram of S.pinnatisectum SpSBP1-CRISPR/Cas9 vector

图11 马铃薯遗传转化过程 A.马铃薯幼苗;B.预培养;C.共培养;D.抑菌培养;E、F.筛选培养;G、H.生根培养;I.移栽。

Fig.11 Process of potato genetic transformation A.Potato plantlet in vitro;B.Pre-culture;C.Co-culture;D.Antibacterial culture;E,F.Screening culture;G,H.Rooting culture;I.Transplanting.

图12 部分马铃薯再生植株的PCR检测 M.Marker DL2000;CK+.阳性质粒对照;CK-.未转化植株对照;3,9,12,14—16,22—23,27—31.阳性植株;1—2,4—8,10—11,13,17—21,24—26,32.阴性植株。

Fig.12 PCR analysis of some potato regenerated plants M.Marker DL2000;CK+.Positive plasmid control;CK-.Untransformed plant control;3,9,12,14—16,22—23,27—31.Positive plants;1—2,4—8,10—11,13,17—21,24—26,32.Negative plants.

参考文献 44

[1]	Ye M W, Peng Z, Tang D, Yang Z M, Li D W, Xu Y M, Zhang C Z, Huang S W. Generation of self-compatible diploid potato by knockout of S-RNase[J]. Nature Plants, 2018, 4(9): 651-654.doi:10.1038/s41477-018-0218-6. doi: 10.1038/s41477-018-0218-6 pmid: 30104651
[2]	李彦军, 耿伟, 史超, 许士霖. 马铃薯种质资源现状及发展对策[J]. 中国果菜, 2019, 39(8): 61-63,67.doi:10.19590/j.cnki.1008-1038.2019.08.015. doi: 10.19590/j.cnki.1008-1038.2019.08.015
	Li Y J, Geng W, Shi C, Xu S L. Current situation and development countermeasures of potato germplasm resources[J]. China Fruit & Vegetable, 2019, 39(8): 61-63,67.
[3]	Nettancourt D D. Incompatibility and incongruity in wild and cultivated plants[M]. Germany: Springer Berlin Heidelberg, 2001:1-24.doi: 10.1007/978-3-662-04502-2. doi: 10.1007/978-3-662-04502-2
[4]	吴华清, 张绍铃, 李晓, 吴俊. 植物自交不亲和性的分子生物学进展[J]. 南京农业大学学报, 2006, 29(4): 119-126.doi: 10.3321/j.issn:1000-2030.2006.04.025. doi: 10.3321/j.issn:1000-2030.2006.04.025
	Wu H Q, Zhang S L, Li X, Wu J. Advance in molecular biology of self-incompatibility in flowering plants[J]. Journal of Nanjing Agricultural University, 2006, 29(4): 119-126.
[5]	Takayama S, Isogai A. Self-incompatibility in plants[J]. Annual Review of Plant Biology, 2005, 56: 467-489.doi:10.1146/annurev.arplant.56.032604.144249. doi: 10.1146/annurev.arplant.56.032604.144249 pmid: 15862104
[6]	Clarke A E, Newbigin E. Molecular aspects of self-incompatibility in flowering plants[J]. Annual Review of Genetics, 1993, 27: 257-279.doi:10.1146/annurev.ge.27.120193.001353. doi: 10.1146/annurev.ge.27.120193.001353 pmid: 8122904
[7]	Lee H S, Huang S, Kao T H. S proteins control rejection of incompatible pollen in Petunia inflata[J]. Nature, 1994, 367(6463): 560-563.doi:10.1038/367560a0. doi: 10.1038/367560a0 URL
[8]	Luu D T, Qin X K, Morse D, Cappadocia M. S-RNase uptake by compatible pollen tubes in gametophytic self-incompatibility[J]. Nature, 2000, 407(6804): 649-651.doi:10.1038/35036623. doi: 10.1038/35036623 URL
[9]	Goldraij A, Kondo K, Lee C B, Hancock C N, Sivaguru M, Vazquez-Santana S, Kim S, Phillips T E, Cruz-Garcia F, McClure B. Compartmentalization of S-RNase and HT-B degradation in self-incompatible Nicotiana[J]. Nature, 2006, 439(7078): 805-810.doi:10.1038/nature04491. doi: 10.1038/nature04491 URL
[10]	Franklin-Tong V E, Franklin F C H. The different mechanisms of gametophytic self-incompatibility[J]. Philosophical Transactions of the Royal Society of London Series B(Biological Sciences), 2003, 358(1434): 1025-1032.doi:10.1098/rstb.2003.1287. doi: 10.1098/rstb.2003.1287 URL
[11]	Murfett J, Strabala T J, Zurek D M, Mou B, Beecher B, McClure B A. S RNase and interspecific pollen rejection in the genus Nicotiana: Multiple pollen-rejection pathways contribute to unilateral incompatibility between self-incompatible and self-compatible species[J]. The Plant Cell, 1996, 8(6): 943-958.doi:10.1105/tpc.8.6.943. doi: 10.1105/tpc.8.6.943 pmid: 12239407
[12]	Xu X, Pan S K, Cheng S F, Zhang B, Mu D S, Ni P X, et al. Genome sequence and analysis of the tuber crop potato[J]. Nature, 2011, 475(7355): 189-195.doi:10.1038/nature10158. doi: 10.1038/nature10158 URL
[13]	Kondo K, Yamamoto M, Matton D P, Sato T, Hirai M, Norioka S, Hattori T, Kowyama Y. Cultivated tomato has defects in both S-RNase and HT genes required for stylar function of self-incompatibility[J]. The Plant Journal: for Cell and Molecular Biology, 2002, 29(5): 627-636.doi:10.1046/j.0960-7412.2001.01245.x. doi: 10.1046/j.0960-7412.2001.01245.x URL
[14]	姜新, 曹晓艳, 王大江, 冯建荣, 刘月霞, 樊新民. 南疆杏品种自交不亲和S-RNase基因型的鉴定[J]. 果树学报, 2012, 29(4): 569-576.doi:10.13925/j.cnki.gsxb.2012.04.016. doi: 10.13925/j.cnki.gsxb.2012.04.016
	Jiang X, Cao X Y, Wang D J, Feng J R, Liu Y X, Fan X M. Identification of self-incompatibility S-RNase genotypes for apricot cultivars in South of Xinjiang area[J]. Journal of Fruit Science, 2012, 29(4): 569-576.
[15]	戴国礼, 张兆萍, 程慧, 张波, 焦恩宁, 李彦龙, 秦垦. 16个枸杞品种(系)S-RNase基因型鉴定及序列分析[J]. 西南农业学报, 2018, 31(11): 2261-2267.doi:10.16213/j.cnki.scjas.2018.11.008. doi: 10.16213/j.cnki.scjas.2018.11.008
	Dai G L, Zhang Z P, Cheng H, Zhang B, Jiao E N, Li Y L, Qin K. Identification of S-genotype of sixteen cultivars and sequence analyses of S-RNase in Lycium L.[J]. Southwest China Journal of Agricultural Sciences, 2018, 31(11): 2261-2267.
[16]	Dzidzienyo D K, Bryan G J, Wilde G, Robbins T P. Allelic diversity of S-RNase alleles in diploid potato species[J]. Theoretical and Applied Genetics, 2016, 129(10): 1985-2001.doi:10.1007/s00122-016-2754-7. doi: 10.1007/s00122-016-2754-7 pmid: 27497984
[17]	李雪丽, 耿甜甜, 汪颖, 钱婷, 张玉洁, 赵凡, 孙坤, 张辉. 基于RNA-seq技术对乌头属铁棒锤中自交不亲和S基因的挖掘与分析[J]. 植物科学学报, 2021, 39(2): 172-182.doi:10.11913/PSJ.2095-0837.2021.20172. doi: 10.11913/PSJ.2095-0837.2021.20172
	Li X L, Geng T T, Wang Y, Qian T, Zhang Y J, Zhao F, Sun K, Zhang H. Mining and analysis of the self-incompatibility S gene in Aconitum pendulum N.Busch based on RNA-seq[J]. Plant Science Journal, 2021, 39(2): 172-182.
[18]	Eggers E J, van der Burgt A, van Heusden S A W, de Vries M E, Visser R G F, Bachem C W B, Lindhout P. Neofunctionalisation of the Sli gene leads to self-compatibility and facilitates precision breeding in potato[J]. Nature Communications, 2021, 12: 4141.doi:10.1038/s41467-021-24267-6. doi: 10.1038/s41467-021-24267-6 URL
[19]	Ma L, Zhang C Z, Zhang B, Tang F, Li F T, Liao Q G, Tang D, Peng Z, Jia Y X, Gao M, Guo H, Zhang J Z, Luo X M, Yang H Q, Gao D L, Lucas W J, Li C H, Huang S W, Shang Y. A non S-locus F-box gene breaks self-incompatibility in diploid potatoes[J]. Nature Communications, 2021, 12: 4142.doi:10.1038/s41467-021-24266-7. doi: 10.1038/s41467-021-24266-7 URL
[20]	Sims T L, Ordanic M. Identification of a S-ribonuclease-binding protein in Petunia hybrida[J]. Plant Molecular Biology, 2001, 47(6): 771-783.doi:10.1023/a:1013639528858. doi: 10.1023/a:1013639528858 pmid: 11785938
[21]	Huang J, Zhao L, Yang Q Y, Xue Y B. AhSSK1,a novel SKP1-like protein that interacts with the S-locus F-box protein SLF[J]. The Plant Journal, 2006, 46(5): 780-793.doi:10.1111/j.1365-313X.2006.02735.x. doi: 10.1111/j.1365-313X.2006.02735.x URL
[22]	Hua Z H, Kao T H. Identification and characterization of components of a putative Petunia S-locus F-box-containing E3 ligase complex involved in S-RNase-based self-incompatibility[J]. The Plant Cell, 2006, 18(10): 2531-2553.doi:10.1105/tpc.106.041061. doi: 10.1105/tpc.106.041061 URL
[23]	Hua Z H, Fields A, Kao T H. Biochemical models for S-RNase-based self-incompatibility[J]. Molecular Plant, 2008, 1(4): 575-585.doi:10.1093/mp/ssn032. doi: 10.1093/mp/ssn032 URL
[24]	O'Brien M, Major G, Chantha S C, Matton D P. Isolation of S-RNase binding proteins from Solanum chacoense: Identification of an SBP1(RING finger protein)orthologue[J]. Sexual Plant Reproduction, 2004, 17(2): 81-87.doi:10.1007/s00497-004-0218-8. doi: 10.1007/s00497-004-0218-8 URL
[25]	Lee C B, Swatek K N, McClure B. Pollen proteins bind to the C-terminal domain of Nicotiana alata pistil arabinogalactan proteins[J]. Journal of Biological Chemistry, 2008, 283(40): 26965-26973.doi:10.1074/jbc.M804410200. doi: 10.1074/jbc.M804410200 URL
[26]	Minamikawa M F, Koyano R, Kikuchi S, Koba T, Sassa H. Identification of SFBB-containing canonical and noncanonical SCF complexes in pollen of apple(Malus×domestica)[J]. PLoS One, 2014, 9(5): e97642.doi:10.1371/journal.pone.0097642. doi: 10.1371/journal.pone.0097642 URL
[27]	Zeng B, Wang J Y, Hao Q, Yu Z F, Abudukayoumu A, Tang Y L, Zhang X F, Ma X X. Identification of a novel SBP1-containing SCFSFB complex in wild dwarf almond(Prunus tenella)[J]. Frontiers in Genetics, 2019, 10: 1019.doi:10.3389/fgene.2019.01019. doi: 10.3389/fgene.2019.01019 pmid: 31708966
[28]	Yuan H, Meng D, Gu Z Y, Li W, Wang A D, Yang Q, Zhu Y D, Li T Z. A novel gene, MdSSK1, as a component of the SCF complex rather than MdSBP1 can mediate the ubiquitination of S-RNase in apple[J]. Journal of Experimental Botany, 2014, 65(12):3121-3131. doi: 10.1093/jxb/eru164. doi: 10.1093/jxb/eru164 pmid: 24759884
[29]	Xing H L, Dong L, Wang Z P, Zhang H Y, Han C Y, Liu B, Wang X C, Chen Q J. A CRISPR/Cas9 toolkit for multiplex genome editing in plants[J]. BMC Plant Biology, 2014, 14: 327.doi:10.1186/s12870-014-0327-y. doi: 10.1186/s12870-014-0327-y URL
[30]	禹明森, 李翔, 高马也, 杨蕾, 倪迪安, 王应祥. 生菜CRISPR/Cas9基因编辑体系的建立[J]. 植物生理学报, 2017, 53(4): 736-746.doi:10.13592/j.cnki.ppj.2017.0088. doi: 10.13592/j.cnki.ppj.2017.0088
	Yu M S, Li X, Gao M Y, Yang L, Ni D A, Wang Y X. Establishment of CRISPR/Cas9-meidiated genome editing system in lettuce(Lactuca sativa L.)[J]. Plant Physiology Journal, 2017, 53(4): 736-746.
[31]	Enciso-Rodriguez F, Manrique-Carpintero N C, Nadakuduti S S, Buell C R, Zarka D, Douches D. Overcoming self-incompatibility in diploid potato using CRISPR-Cas9[J]. Frontiers in Plant Science, 2019, 10: 376.doi:10.3389/fpls.2019.00376. doi: 10.3389/fpls.2019.00376 pmid: 31001300
[32]	李颖, 李广存, 李灿辉, 屈冬玉, 黄三文. 二倍体杂种优势马铃薯育种的展望[J]. 中国马铃薯, 2013, 27(2): 96-99.
	Li Y, Li G C, Li C H, Qu D Y, Huang S W. Prospects of diploid hybrid breeding in potato[J]. Chinese Potato Journal, 2013, 27(2): 96-99.
[33]	张春芝. 二倍体马铃薯自交不亲和与自交衰退研究[D]. 北京: 中国农业科学院, 2018.
	Zhang C Z. Studies of self-incompatibility and inbreeding depression in diploid potato[D]. Beijing: Chinese Academy of Agricultural Sciences, 2018.
[34]	李富婷, 唐飞, 高冬丽, 段思凡, 李云海, 李灿辉, 马玲. 配子体型自交不亲和调控机制的研究进展[J]. 云南师范大学学报(自然科学版), 2019, 39(6): 65-70.doi:10.7699/j.ynnu.ns-2019-081. doi: 10.7699/j.ynnu.ns-2019-081
	Li F T, Tang F, Gao D L, Duan S F, Li Y H, Li C H, Ma L. Research progress on gametophytic self-incompatibility[J]. Journal of Yunan Normal University (Natural Sciences Edition), 2019, 39(6): 65-70.
[35]	余镇藩, 马鑫鑫, 曾斌, 王建友, 阿布都卡尤木·阿依麦提,. 植物配子体自交不亲和SBP1基因研究进展[J]. 分子植物育种, 2019, 17(16): 5285-5290.doi:10.13271/j.mpb.017.005285. doi: 10.13271/j.mpb.017.005285
	Yu Z P, Ma X X, Zeng B, Wang J Y, Aabudoukayoumu A. Research progress on SBP1 gene of plant gametophytic self-incompatibility[J]. Molecular Plant Breeding, 2019, 17(16): 5285-5290.
[36]	Marcellán O N, Acevedo A, Camadro E L. S16,a novel S-RNase allele in the diploid species Solanum chacoense[J]. Genome, 2006, 49(8): 1052-1054.doi:10.1139/g06-058. doi: 10.1139/g06-058 pmid: 17036081
[37]	Yang X M, Li H, Yu H W, Chai L J, Xu Q, Deng X X. Molecular phylogeography and population evolution analysis of Citrus ichangensis(Rutaceae)[J]. Tree Genetics & Genomes, 2017, 13(1): 1-16.doi:10.1007/s11295-017-1113-4. doi: 10.1007/s11295-017-1113-4
[38]	刘耀光, 李构思, 张雅玲, 陈乐天. CRISPR/Cas植物基因组编辑技术研究进展[J]. 华南农业大学学报, 2019, 40(5): 38-49.doi:10.7671/j.issn.1001-411X.201905058. doi: 10.7671/j.issn.1001-411X.201905058
	Liu Y G, Li G S, Zhang Y L, Chen L T. Current advances on CRISPR/Cas genome editing technologies in plants[J]. Journal of South China Agricultural University, 2019, 40(5): 38-49.
[39]	Deb S, Choudhury A, Kharbyngar B, Satyawada R R. Applications of CRISPR/Cas9 technology for modification of the plant genome[J]. Genetica, 2022, 150(1): 1-12.doi:10.1007/s10709-021-00146-2. doi: 10.1007/s10709-021-00146-2 pmid: 35018532
[40]	Impens L, Jacobs T B, Nelissen H, Inz D, Pauwels L. Mini-review: Transgenerational CRISPR/Cas9 gene editing in plants[J]. Frontiers in Genome Editing, 2022, 4: 825042.doi:10.3389/fgeed.2022.825042. doi: 10.3389/fgeed.2022.825042 URL
[41]	韩政宏, 段宇轩, 徐善斌, 王敬国, 刘化龙, 杨洛淼, 贾琰, 辛威, 郑洪亮, 邹德堂. 利用CRISPR/Cas9技术敲除GS3和GS9基因改良水稻粒型性状[J]. 华北农学报, 2022, 37(2): 9-17. doi: 10.7668/hbnxb.20192762. doi: 10.7668/hbnxb.20192762
	Han Z H, Duan Y X, Xu S B, Wang J G, Liu H L, Yang L M, Jia Y, Xin W, Zheng H L, Zou D T. Improvement of grain dhape in rice by knocking GS3 and GS9 via CRISPR/Cas9 system[J]. Acta Agriculturae Boreali-Sinica, 2022, 37(2): 9-17.
[42]	Sun L H, Kao T H. CRISPR/Cas9-mediated knockout of PiSSK1 reveals essential role of S-locus F-box protein-containing SCF complexes in recognition of non-self S-RNases during cross-compatible pollination in self-incompatible Petunia inflata[J]. Plant Reproduction, 2018, 31(2): 129-143.doi:10.1007/s00497-017-0314-1. doi: 10.1007/s00497-017-0314-1 URL
[43]	Ma C F, Zhu C Z, Zheng M, Liu M C, Zhang D J, Liu B L, Li Q F, Si J, Ren X S, Song H Y. CRISPR/Cas9-mediated multiple gene editing in Brassica oleracea var.capitata using the endogenous tRNA-processing system[J]. Horticulture Research, 2019, 6: 20.doi:10.1038/s41438-018-0107-1. doi: 10.1038/s41438-018-0107-1 URL
[44]	Dou S W, Zhang T, Tu J X, Shen J X, Yi B, Wen J, Fu T D, Dai C, Ma C Z. Generation of novel self-incompatible Brassica napus by CRISPR/Cas9[J]. Plant Biotechnology Journal, 2021, 19(5): 875-877.doi:10.1111/pbi.13577. doi: 10.1111/pbi.13577 URL
