小麦叶锈菌效应因子Pt6647 ORF克隆及其表达分析

doi:10.7668/hbnxb.20195780

摘要/Abstract

摘要：

为明确小麦叶锈菌效应因子Pt6647的表达特性及在寄主致病中的作用,以前期筛选获得的高表达候选效应子Pt6647为研究对象,采用PCR技术进行基因克隆,利用NCBI数据库进行序列比对分析,通过信号肽预测与功能验证分析其分泌特性,借助亚细胞定位技术确定其细胞内分布,并应用实时荧光定量PCR技术检测其在侵染过程中的表达模式。结果显示,成功克隆获得长度为765 bp的Pt6647开放阅读框(ORF);该基因在8个小麦叶锈病菌生理小种中高度保守,仅存在2个氨基酸变异;该效应子由254个氨基酸组成,其N端1—18 位氨基酸被证实为具有分泌功能的信号肽;亚细胞定位显示,全长的Pt6647定位于细胞膜,而去除信号肽的截短体(Pt6647^Δsp)则定位于细胞核、细胞质和细胞膜;表达模式分析表明,Pt6647在叶锈菌侵染小麦后36 h表达量达到高峰。成功克隆并鉴定了小麦叶锈菌效应子Pt6647,其特异性的亚细胞定位和侵染早期的表达高峰表明效应子Pt6647在病原菌侵入寄主植物早期发挥关键作用。

关键词: 小麦叶锈菌, 效应因子, 基因克隆, 荧光定量PCR, 亚细胞定位

Abstract:

To elucidate the expression characteristics of the effector protein Pt6647 from Puccinia triticina and further reveal its role in host pathogenicity,the candidate effector protein Pt6647,which was previously identified as highly expressed during host-pathogen interaction,was selected for analysis.We performed gene cloning via PCR,sequence alignment using the NCBI database,signal peptide prediction and functional validation to assess its secretory activity,subcellular localization to determine its cellular distribution,and Quantitative Real-time PCR(qRT-PCR)to examine its expression profile during infection.The open reading frame(ORF)of Pt6647,765 bp in length,was successfully cloned.The gene was highly conserved across eight different physiological races of P.triticina,with only two amino acid variations observed.The Pt6647 protein consisted of 254 amino acids,with its N-terminal 1—18 amino acids confirmed as a functional signal peptide for secretion.Subcellular localization analysis revealed that the full-length Pt6647 protein localized to the cell membrane,while the signal peptide-truncated variant(Pt6647^Δsp)was distributed in the nucleus,cytoplasm,and cell membrane.Expression profiling demonstrated that the transcription of Pt6647 peaked at 36 hours post-inoculation(hpi).The effector Pt6647 was successfully cloned and characterized.Its specific subcellular localization and early infection expression peak suggest that Pt6647 plays a critical role in the initial stages of pathogen invasion.

Key words: Puccinia triticina, Effector, Gene cloning, Quantitative Real-time PCR, Subcellular localization

中图分类号:

李若琳, 刘文泽, 常佳迎, 张娜, 杨文香. 小麦叶锈菌效应因子Pt6647 ORF克隆及其表达分析[J]. 华北农学报, 2026, 41(2): 187-193. doi: 10.7668/hbnxb.20195780.

LI Ruolin, LIU Wenze, CHANG Jiaying, ZHANG Na, YANG Wenxiang. Cloning and Expression Analysis of Puccinia triticina Effector Pt6647 ORF[J]. Acta Agriculturae Boreali-Sinica, 2026, 41(2): 187-193. doi: 10.7668/hbnxb.20195780.

http://www.hbnxb.net/CN/Y2026/V41/I2/187

图/表 10

表1 本试验所用引物

Tab.1 Primers used in the research

引物名称 Primer name	引物序列(5'—3') Primer sequence(5'—3')	备注 Note
Pt6647-F	ATGAAGTTTCTCATCTTCGC	Pt6647克隆引物
Pt6647-R	CTAGTAGGTGACAGGGACAG
qPt6647-F	CCAACATCTCGGCTACGCACAG	荧光定量引物
qPt6647-R	CACATGATGACATACGGGACTGGAC
pSU-Pt6647-F	CCGGAATTCATGAAGTTTCTCATCTTCGC	信号肽分泌检测
pSU-Pt6647-R	CCGCTCGAGCGCGTCAATGACTGGGAGAA
pGR-Pt6647-F	CCCATCGATATGAAGTTTCTCATCTTCGCATT	亚细胞定位引物
pGR-Pt6647-R	CCCCCGGGGTAGGTGACAGGGACAGGACG
pGR-Pt6647^Δsp-F	CCCATCGATATGCAGCCAATTTCAAGAGCAC
pGR-Pt6647^Δsp-R	CCCCCGGGGTAGGTGACAGGGACAGGAC

图1 Pt6647 ORF克隆产物 M.DNA Marker;1—4.Pt6647 ORF 全长。

Fig.1 Pt6647 ORF cloning M.DNA Marker;1—4.The total length of Pt6647 ORF.

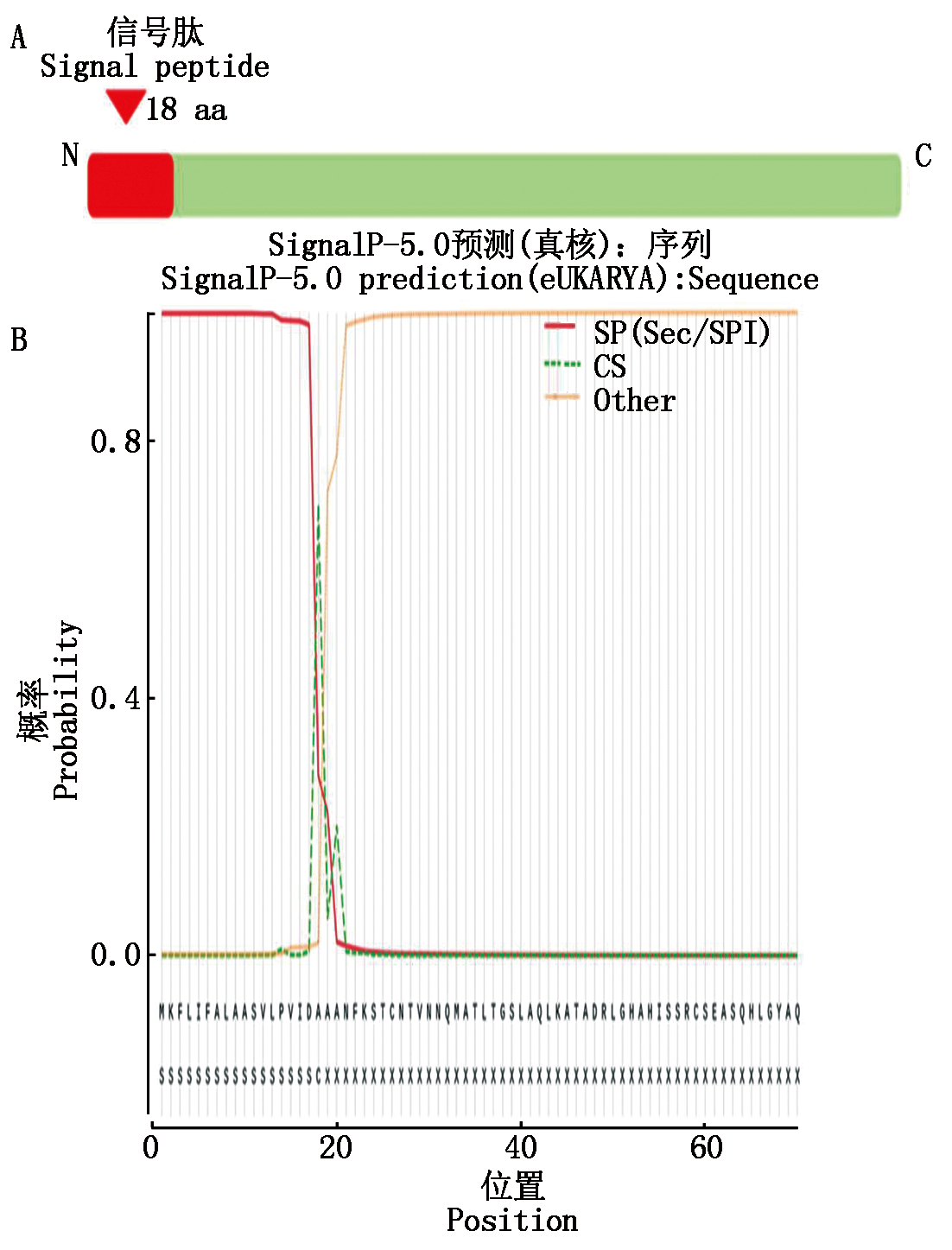

图2 Pt6647信号肽预测及结构 A.Pt6647信号肽结构;B.Pt6647信号肽预测。

Fig.2 Prediction and structure of Pt6647 signal peptide A.Pt6647 signal peptide structure; B.Pt6647 signal peptide prediction.

表2 Pt6647氨基酸含量

Tab.2 Amino acid content of Pt6647

氨基酸 Amino acid	数量 Quantity	百分比/% Percentage	氨基酸 Amino acid	数量 Quantity	百分比/% Percentage
Ala (A)	22	8.7	Lys (K)	7	2.8
Arg (R)	13	5.1	Met (M)	4	1.6
Asn (N)	13	5.1	Phe (F)	7	2.8
Asp (D)	8	3.1	Pro (P)	14	5.5
Cys (C)	14	5.5	Ser (S)	32	12.6
Gln (Q)	13	5.1	Thr (T)	13	5.1
Glu (E)	16	6.3	Trp (W)	5	2.0
Gly (G)	22	8.7	Tyr (Y)	9	3.5
His (H)	6	2.4	Val (V)	13	5.1
Ile (I)	11	4.3	Leu (L)	12	4.7

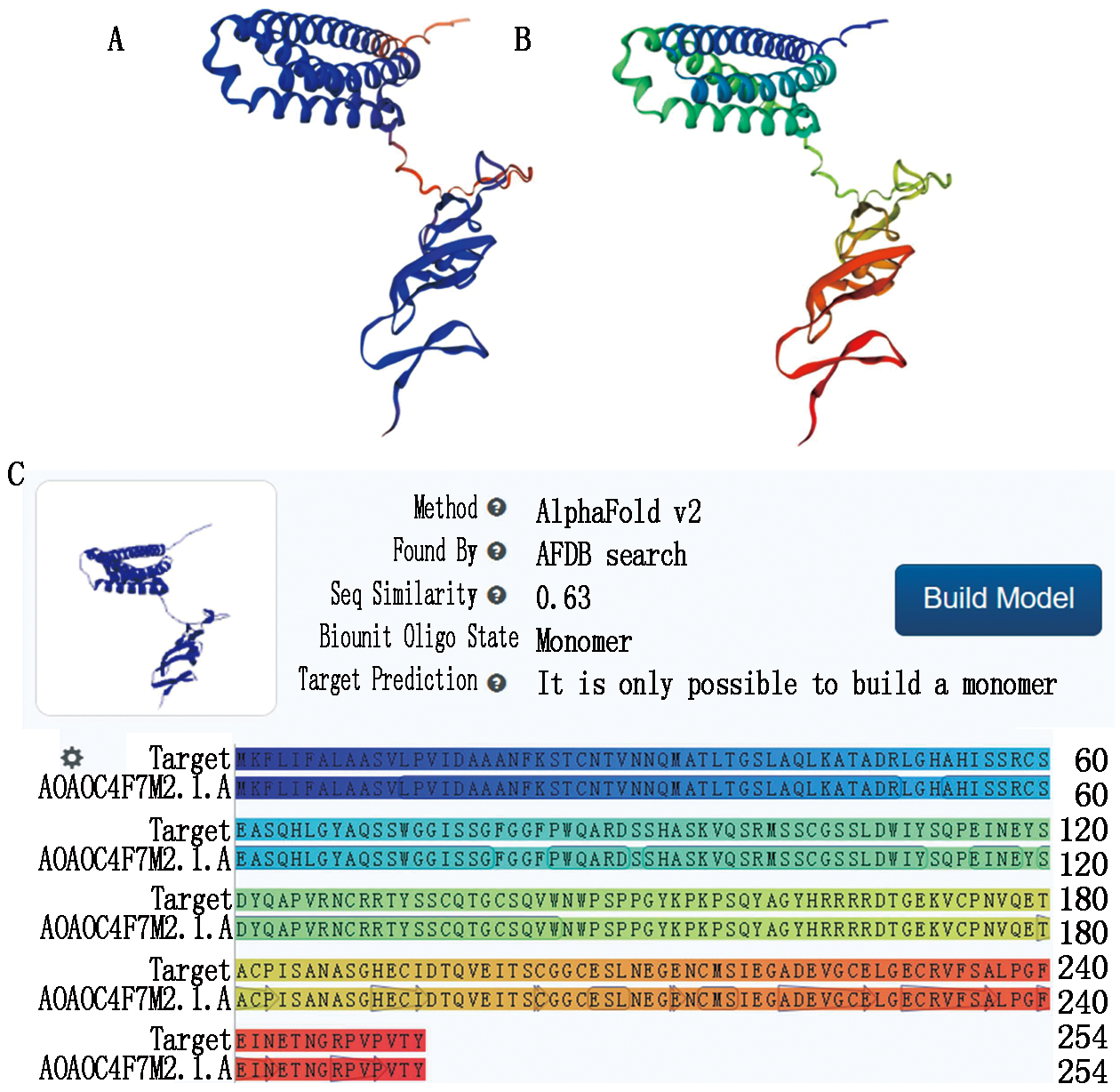

图3 Pt6647蛋白三级结构预测 A.小麦叶锈菌蛋白模型;B.Pt6647蛋白预测模型;C.模型构建信息。

Fig.3 Tertiary structure prediction of Pt6647 A.P.triticina protein model;B.Pt6647 protein prediction model; C.Model construction information.

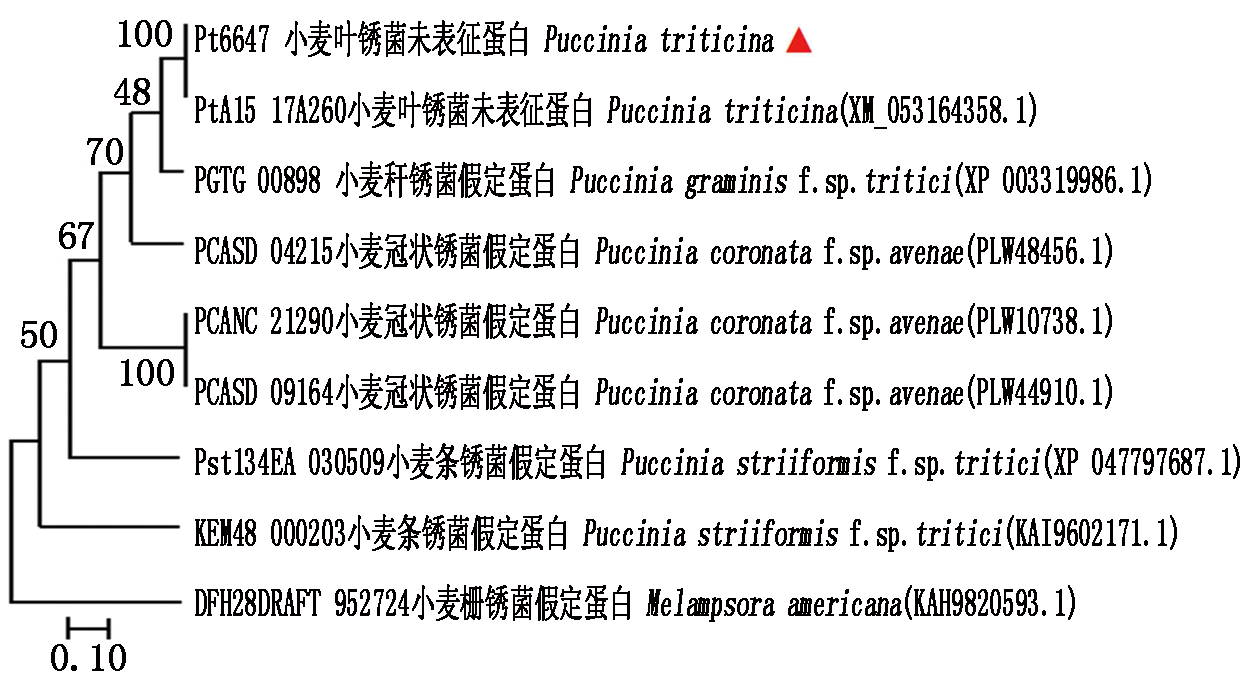

图4 Pt6647系统发育树分析

Fig.4 Phylogenetic tree analysis of Pt6647

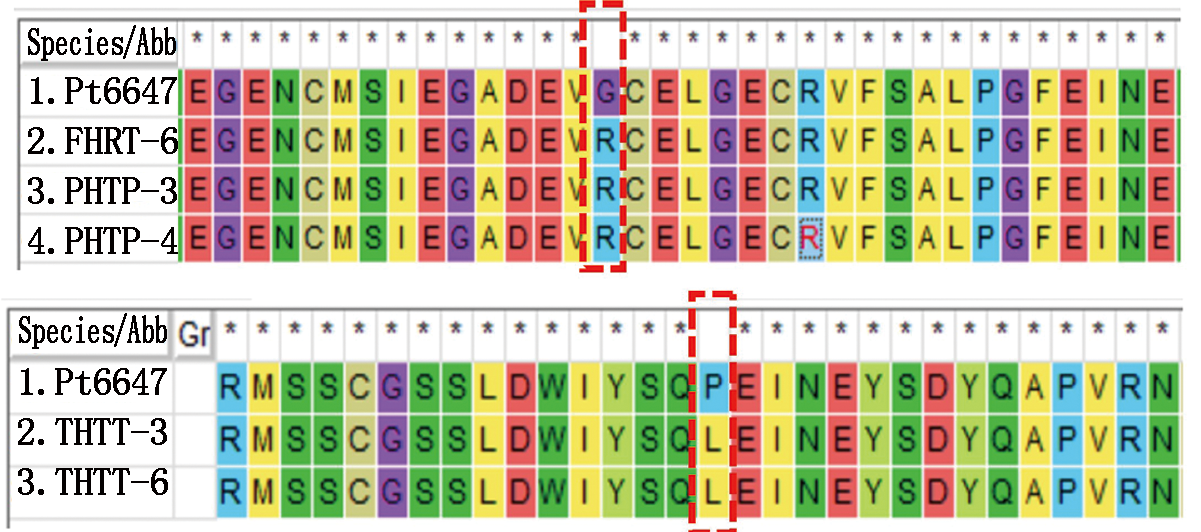

图5 Pt6647 在叶锈菌中氨基酸序列多态性比对(仅显示存在差异的部分菌株)

Fig.5 Sequence polymorphism comparison of Pt6647 in races of P.triticina (Only some strains with differences are shown)

图6 Pt6647信号肽分泌功能验证

Fig.6 Secretion function verification of Pt6647 signal peptide

图7 Pt6647 在烟草叶片中的亚细胞定位

Fig.7 Subcellular localization of Pt6647 in N.benthamiana leaves

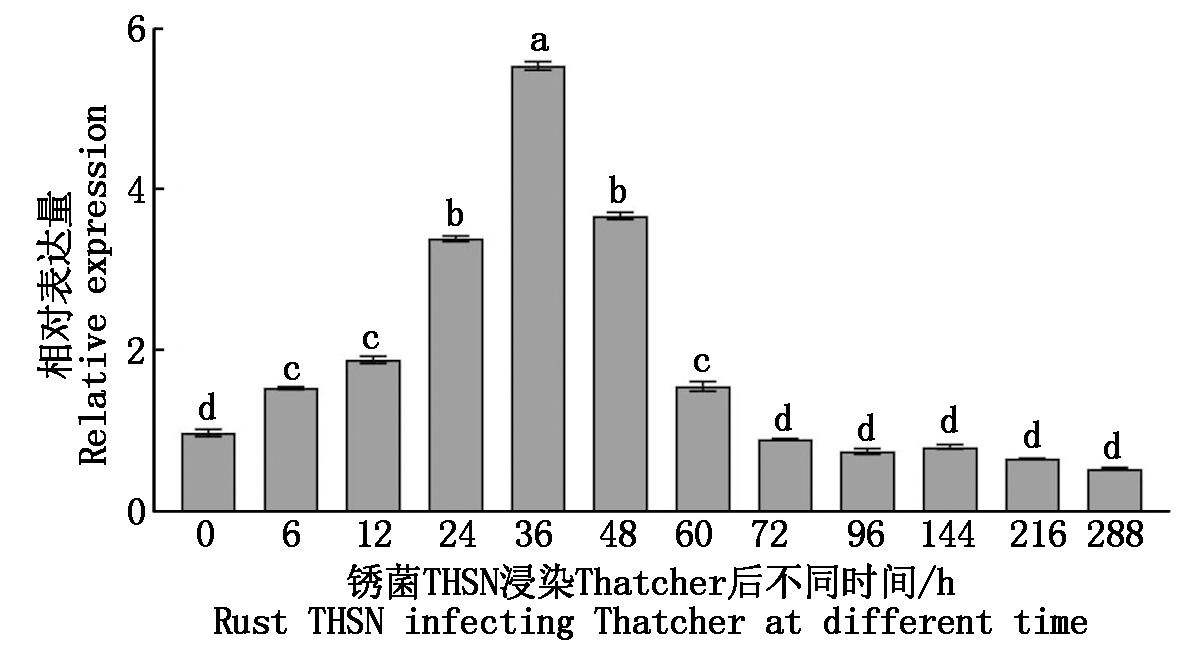

图8 Pt6647 在叶锈菌 THSN 侵染小麦Thatcher不同时间的表达模式不同小写字母表示在P<0.05水平差异显著。

Fig.8 Expression patterns of Pt6647 in wheat Thatcher infected by THSN at different time points Different lowercase letters indicate significant differences at the 0.05 level.

参考文献 30

[1]	Tariqjaveed M, Mateen A, Wang S Z, Qiu S S, Zheng X H, Zhang J, Bhadauria V, Sun W X. Versatile effectors of phytopathogenic fungi target host immunity[J]. Journal of Integrative Plant Biology, 2021, 63(11):1856-1873.doi:10.1111/jipb.13162.
[2]	Mapuranga J, Zhang N, Zhang L R, Chang J Y, Yang W X. Infection strategies and pathogenicity of biotrophic plant fungal pathogens[J]. Frontiers in Microbiology, 2022, 13:799396.doi:10.3389/fmicb.2022.799396. URL
[3]	邵文先, 王冬梅. TaMAPK5蛋白的抗体制备及其在小麦与叶锈菌互作过程中的表达特征[J]. 华北农学报, 2024, 39(5):186-192.doi:10.7668/hbnxb.20194872.
	Shao W X, Wang D M. Antibody preparation of TaMAPK5 protein and its expression characteristics in the interaction between wheat and Puccinia triticina[J]. Acta Agriculturae Boreali-Sinica, 2024, 39(5):186-192.
[4]	Pradhan A, Ghosh S, Sahoo D, Jha G. Fungal effectors,the double edge sword of phytopathogens[J]. Current Genetics, 2021, 67(1):27-40.doi:10.1007/s00294-020-01118-3. pmid: 33146780
[5]	Cuomo C A, Bakkeren G, Khalil H B, Panwar V, Joly D, Linning R, Sakthikumar S, Song X, Adiconis X, Fan L, Goldberg J M, Levin J Z, Young S, Zeng Q D, Anikster Y, Bruce M, Wang M N, Yin C T, McCallum B, Szabo L J, Hulbert S, Chen X M, Fellers J P. Comparative analysis highlights variable genome content of wheat rusts and divergence of the mating loci[J]. G3 Genes\|Genomes\|Genetics, 2017, 7(2):361-376.doi:10.1534/g3.116.032797.
[6]	Bruce M, Neugebauer K A, Joly D L, Migeon P, Cuomo C A, Wang S C, Akhunov E, Bakkeren G, Kolmer J A, Fellers J P. Using transcription of six Puccinia triticina races to identify the effective secretome during infection of wheat[J]. Frontiers in Plant Science, 2014, 4:520.doi:10.3389/fpls.2013.00520.
[7]	Bi W S, Zhao S Q, Zhao J J, Su J, Yu X M, Liu D Q, Kang Z S, Wang X J, Wang X D. Rust effector PNPi interacting with wheat TaPR1a attenuates plant defense response[J]. Phytopathology Research, 2020, 2(1):34.doi:10.1186/s42483-020-00075-6.
[8]	Wu J Q, Sakthikumar S, Dong C M, Zhang P, Cuomo C A, Park R F. Comparative genomics integrated with association analysis identifies candidate effector genes corresponding to Lr20 in phenotype-paired Puccinia triticina isolates from Australia[J]. Frontiers in Plant Science, 2017, 8:148.doi:10.3389/fpls.2017.00148.
[9]	Wu J Q, Dong C M, Song L, Park R F. Long-read based de novo genome assembly and comparative genomics of the wheat leaf rust pathogen Puccinia triticina identifies candidates for three avirulence genes[J]. Frontiers in Genetics, 2020, 11:521.doi:10.3389/fgene.2020.00521. URL
[10]	齐悦, 吕峻元, 张悦, 韦杰, 张娜, 杨文香, 刘大群. 小麦叶锈菌效应蛋白Pt18906激发TcLr27+31的双层防御反应[J]. 中国农业科学, 2020, 53(12):2371-2384.doi:10.3864/j.issn.0578-1752.2020.12.006.
	Qi Y, Lyu J Y, Zhang Y, Wei J, Zhang N, Yang W X, Liu D Q. Puccinia triticina effector protein Pt18906 triggered two-layer defense reaction in TcLr27+31[J]. Scientia Agricultura Sinica, 2020, 53(12):2371-2384.
[11]	武文月, 孙新康, 秦臻, 马秋颖, 韩茜, 王亚敏, 刘大群, 王海燕. 小麦叶锈菌生理小种PHNT候选效应蛋白的筛选及分析[J]. 农业生物技术学报, 2021, 29(8):1463-1472.doi:10.3969/j.issn.1674-7968.2021.08.003.
	Wu W Y, Sun X K, Qin Z, Ma Q Y, Han X, Wang Y M, Liu D Q, Wang H Y. Screening and analysis of effector candidates in physiological race PHNT of Puccinia triticina on wheat(Triticum aestivum)[J]. Journal of Agricultural Biotechnology, 2021, 29(8):1463-1472.
[12]	李建嫄, 李林, 刘华梁, 杜军霞, 郭丽. 小麦叶锈菌2个候选效应因子的克隆及其qRT-PCR分析[J]. 现代农业研究, 2024, 30(2):99-102.doi:10.19704/j.cnki.xdnyyj.2024.02.035.
	Li J Y, Li L, Liu H L, Du J X, Guo L. Cloning and qRT-PCR analysis of two candidate effector proteins induced by Puccinia triticina[J]. Modern Agriculture Research, 2024, 30(2):99-102.
[13]	齐悦. 小麦叶锈病菌四个效应蛋白的特性和功能分析[D]. 保定:河北农业大学, 2020.doi:10.27109/d.cnki.ghbnu.2020.00051.
	Qi Y. Characters and functional analysis of four effectors of Puccinia triticina[D]. Baoding: Hebei Agricultural University,2020.
[14]	崔钟池, 武文月, 王丽珊, 王亚敏, 王海燕. 3个小麦叶锈菌候选效应因子的特征分析[C]// 中国植物病理学会.植物病理科技创新与绿色防控——中国植物病理学会2021年学术年会论文集. 北京: 中国农业科学技术出版社, 2021, 1:96.doi:10.26914/c.cnkihy.2021.063729.
	Cui Z C, Wu W Y, Wang L S, Wang Y M, Wang H Y. Characteristic analysis of three candidate effector factors of wheat leaf rust[C]// Chinese Society of Plant Pathology.Technological innovation of plant pathology and green prevention and control——Proceedings of the 2021 Annual Conference of the Chinese Society of Plant Pathology. Beijing: China Agricultural Science and Technology Press, 2021, 1:96.
[15]	张河山. 两个不同毒力小麦叶锈菌菌株的转录组分析[D]. 保定: 河北农业大学, 2014.
	Zhang H S. Transcriptome analysis of two different pathotypes of Puccinia triticinia with different virulence[D]. Baoding: Hebei Agricultural University, 2014.
[16]	杜冬冬. 两个不同致病类型小麦叶锈菌株差异表达分析及其分泌蛋白的筛选[D]. 保定: 河北农业大学, 2015.
	Du D D. Differential expression profiling of two different pathotypes of Puccinia triticinia with different virulence and screening of secreted proteins[D]. Baoding: Hebei Agricultural University, 2015.
[17]	Zhang Y, Wei J, Qi Y, Li J Y, Amin R, Yang W X, Liu D Q. Predicating the effector proteins secreted by Puccinia triticina through transcriptomic analysis and multiple prediction approaches[J]. Frontiers in Microbiology, 2020, 11:538032.doi:10.3389/fmicb.2020.538032. URL
[18]	齐悦, 张悦, 李建嫄, 杨文香, 刘大群. 利用本氏烟筛选小麦叶锈菌效应蛋白[J]. 农业生物技术学报, 2020, 28(1):150-159.doi:10.3969/j.issn.1674-7968.2020.01.015.
	Qi Y, Zhang Y, Li J Y, Yang W X, Liu D Q. Effector screening of Puccinia triticina by Nicotiana benthamiana[J]. Journal of Agricultural Biotechnology, 2020, 28(1):150-159.
[19]	Chang J Y, Mapuranga J, Li R L, Zhang Y D, Shi J, Yan H F, Yang W X. Wheat leaf rust fungus effector protein Pt1641 is avirulent to TcLr1[J]. Plants, 2024, 13(16):2255.doi:10.3390/plants13162255. URL
[20]	Chang J Y, Mapuranga J, Wang X D, Dong H J, Li R L, Zhang Y D, Li H, Shi J, Yang W X. A thaumatin-like effector protein suppresses the rust resistance of wheat and promotes the pathogenicity of Puccinia triticina by targeting TaRCA[J]. The New Phytologist, 2024, 244(5):1947-1960.doi:10.1111/nph.20142. URL
[21]	温晓蕾, 李建嫄, 李娜, 张娜, 杨文香. 小麦叶锈菌与小麦互作的酵母双杂交cDNA文库构建与应用[J]. 生物技术通报, 2023, 39(9):136-146.doi:10.13560/j.cnki.biotech.bull.1985.2023-0251.
	Wen X L, Li J Y, Li N, Zhang N, Yang W X. Construction and utilization of yeast two-hybrid cDNA library of wheat interacted by Puccinia triticina[J]. Biotechnology Bulletin, 2023, 39(9):136-146.
[22]	Geng H M, Zhang Y J, Qin Z, Wang S, Liu C S, Cui Z C, Liu D Q, Wang H Y. Puccinia triticina effector Pt-1234 modulates wheat immunity by targeting transcription factor TaNAC069 via its C subdomain[J]. The Crop Journal, 2025, 13(1):69-78.doi:10.1016/j.cj.2024.07.013. URL
[23]	Shen S S, Wang F, Cui Z C, Yuan S T, Meng L S, Liu D Q, Ma L S, Wang H Y. Puccinia triticina avirulence protein AvrLr21 directly interacts with wheat resistance protein Lr21 to activate wheat immune response[J]. Communications Biology, 2024, 7:1170.doi:10.1038/s42003-024-06881-4.
[24]	常佳迎. 小麦叶锈菌效应蛋白Pt9029和Pt27313调控小麦免疫的机理研究[D]. 保定: 河北农业大学, 2024.
	Chang J Y. Study on the mechanism of Puccinia triticina effector protein Pt9029 and Pt27313 in regulating wheat immunity[D]. Baoding: Hebei Agricultural University, 2024.
[25]	杜冬冬, 张毓妹, 张河山, 杨文香, 刘大群. IGS在小麦叶锈菌中的多态性分析初探[J]. 华北农学报, 2015, 30(5):51-56.doi:10.7668/hbnxb.2015.05.009.
	Du D D, Zhang Y M, Zhang H S, Yang W X, Liu D Q. Primary study on polymorphism of wheat leaf rust based IGS[J]. Acta Agriculturae Boreali-Sinica, 2015, 30(5):51-56.
[26]	李俊仁, 陈秀珍, 吴带娣. 广藿香Trihelix家族PatASIL2基因克隆、亚细胞定位及表达分析[J]. 华北农学报, 2025, 40(1):104-112.doi:10.7668/hbnxb.20195335.
	Li J R, Chen X Z, Wu D D. Cloning,subcellular localization,and expression analysis of PatASIL2 gene of trihelix family from Pogostemon cablin[J]. Acta Agriculturae Boreali-Sinica, 2025, 40(1):104-112.
[27]	He L Q, Ding Y Q, Zhou X H, Li T J, Yin Y L. Serine signaling governs metabolic homeostasis and health[J]. Trends in Endocrinology & Metabolism, 2023, 34(6):361-372.doi:10.1016/j.tem.2023.03.001.
[28]	Bräuning B, Bertosin E, Praetorius F, Ihling C, Schatt A, Adler A, Richter K, Sinz A, Dietz H, Groll M. Structure and mechanism of the two-component α-helical pore-forming toxin YaxAB[J]. Nature Communications, 2018, 9(1):1806.doi:10.1038/s41467-018-04139-2.
[29]	孙丽丽, 晋秀娟, 赵锴, Md Ashraful Islam, 卢娟, 王曙光, 孙黛珍. 小麦衰老相关基因TaSAG39的生物信息学及表达模式分析[J]. 华北农学报, 2022, 37(2):18-27.doi:10.7668/hbnxb.20192703.
	Sun L L, Jin X J, Zhao K, Md A I, Lu J, Wang S G, Sun D Z. Bioinformatics and expression pattern analysis of senescence-associated gene TaSAG39 in wheat[J]. Acta Agriculturae Boreali-Sinica, 2022, 37(2):18-27.
[30]	Garnica D P, Nemri A, Upadhyaya N M, Rathjen J P, Dodds P N. The ins and outs of rust haustoria[J]. PLoS Pathogens, 2014, 10(9):e1004329.doi:10.1371/journal.ppat.1004329. URL
