利用SRAP分子标记分析谷瘟病菌遗传多样性

doi:10.7668/hbnxb.20194152

摘要/Abstract

摘要：

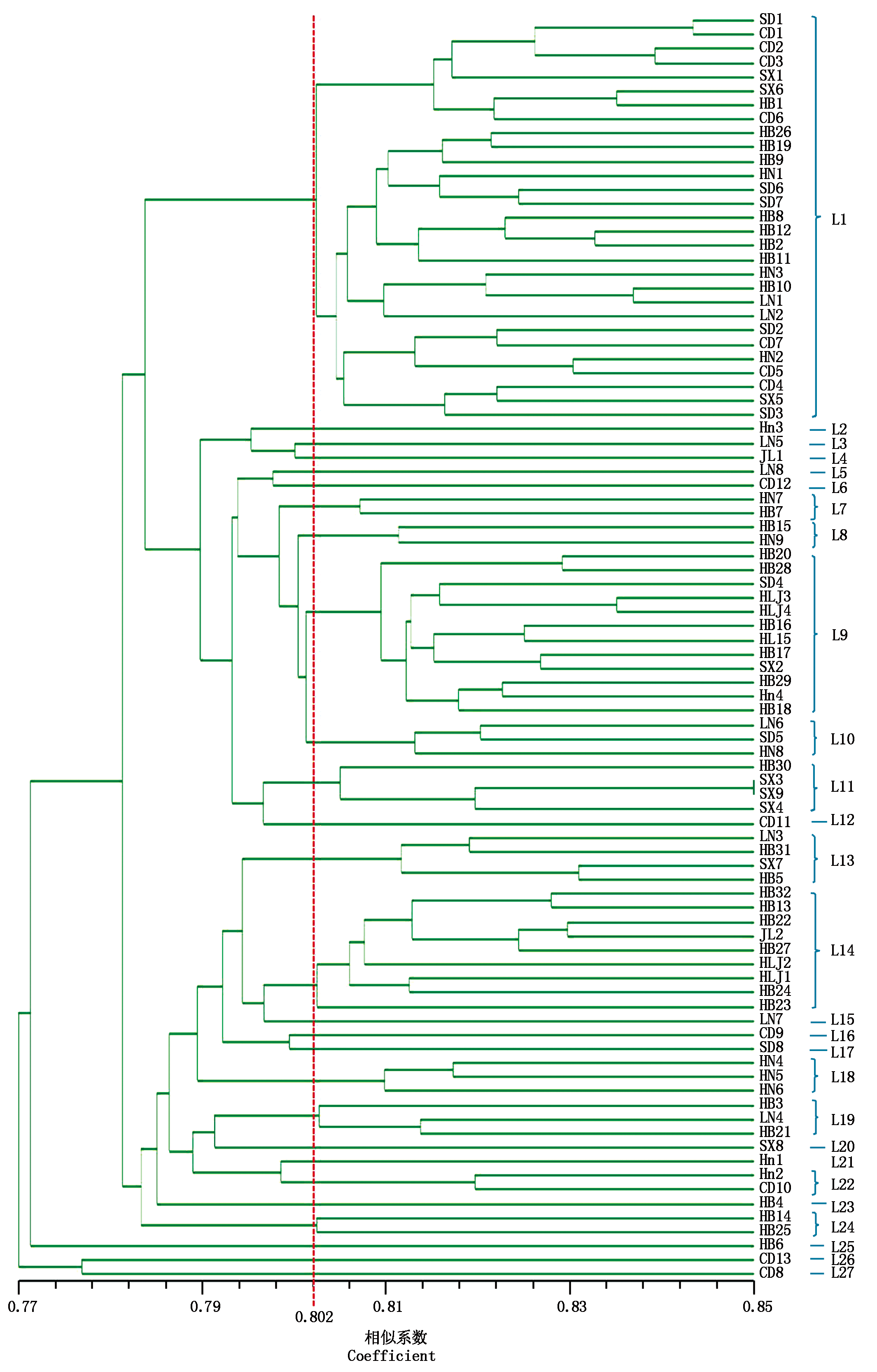

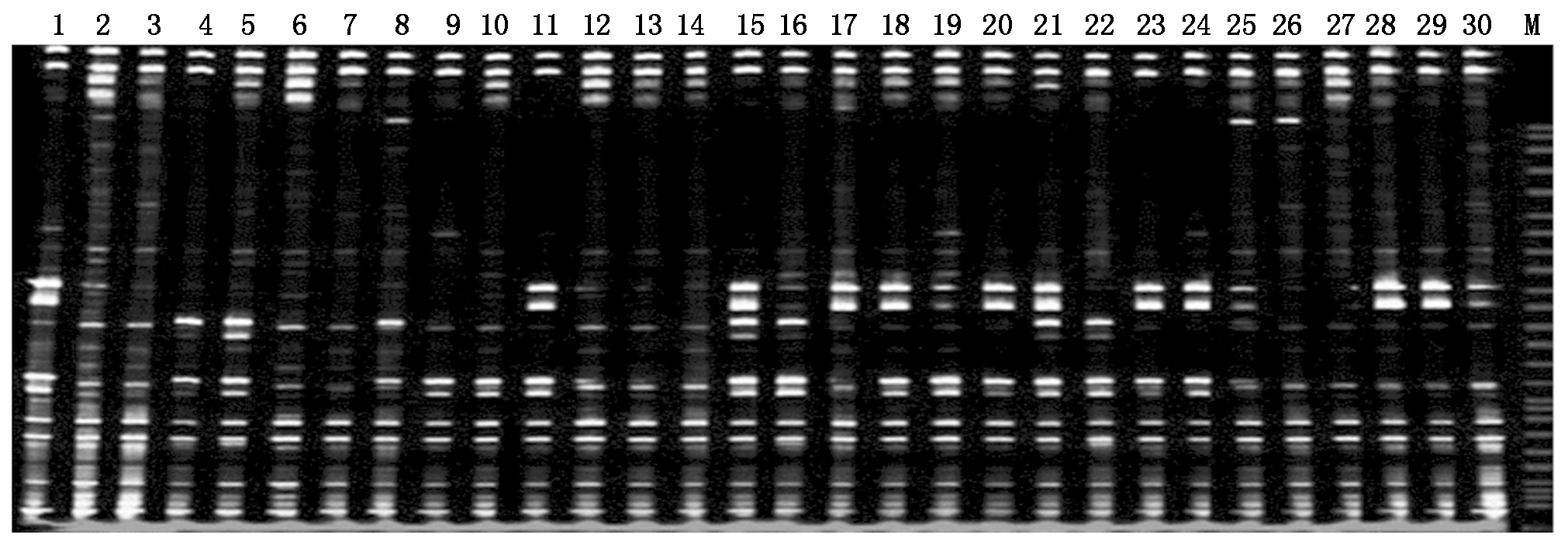

了解谷瘟病菌的变异和群体结构,为今后谷瘟病的防控及抗病品种培育提供理论基础。利用20对SRAP引物对采自9个地区的90株谷瘟病菌菌株进行了PCR扩增,利用NTSYSpc-2.11F软件进行数据分析,通过UPGMA方法进行聚类分析,使用Popgene 32软件计算各群体间的遗传多样性指数。结果表明,筛选出了8对引物用于谷瘟病菌的遗传多态性分析,这8对引物共扩增出条带1 728条,其中多态性条带1 492条,多态性比率为86.34%。对90株病原菌进行聚类分析,其相似性系数为0.77~0.85,遗传相似系数为0.802时,所有菌株被分为27个遗传宗谱(L1~L27),其中L1为绝对优势组群,共包含来自山东、河北、山西、河南和辽宁5个省份的29株谷瘟病菌,占总菌株的32.22%。经Popgene 32软件计算分析,9个地区谷瘟病菌的Nei's遗传多样性指数(H)为0.141 4~0.288 1,Shannon's信息指数(I)为0.196 0~0.441 6,河北夏谷区Nei's遗传多样性指数和Shannon's信息指数最高,遗传多样性最丰富,而海南群体遗传多样性最低。对不同地区谷瘟病菌群体比较,吉林群体与海南群体的遗传亲缘关系最远,而河北夏谷区群体与河北春谷区群体的亲缘关系最近。可见,不同地区谷瘟病菌的遗传多样性丰富,各菌株间存在遗传分化,但菌株间的遗传分化与地理来源无明显相关性。

关键词: 谷子, 谷瘟病菌, SRAP, 相似性系数, 遗传多样性

Abstract:

Understanding the variation and population structure of the foxtail millet blast provides a theoretical basis for future cultivation of resistant varieties and control of the disease.Twenty pairs of SRAP primers were used for PCR amplification of strains of P.oryzae collected from 9 regions.NTSYSpc-2.11F software was used for data analysis,UPGMA method was used for cluster analysis,and Popgene 32 software was used to calculate the genetic diversity index among populations.The results showed that 8 pairs of primers were selected with good polymorphism.A total of 1 728 discernible bands were amplified by 8 pairs of primers,1 492 of which showed polymorphism,and polymorphism rate was 86.34%.The cluster analysis of 90 strains of P.oryzae showed that the similarity coefficient was between 0.77-0.85.All strains were divided into 27 genetic lineages (L1-L27) when the genetic similarity coefficient was 0.802.Among them,L1 was the absolute dominant group,containing 29 strains of P.oryzae,which from Shandong,Hebei,Shanxi,Henan and Liaoning Province,accounting for 32.22% of the total strains.According to the calculation and analysis of Popgene 32 software,Nei's genetic diversity index (H) and Shannon's information index (I) of foxtail millet blast in 9 regions ranged from 0.141 4 to 0.288 1,and 0.196 0 to 0.441 6,respectively.Nei's genetic diversity index and Shannon's information index in the summer sowing region of Hebei Province were the highest,with the richest genetic diversity,while Hainan population had the lowest genetic diversity.Compared with different regions of the populations,the genetic relationship between the Jilin population and the Hainan population was the farthest,while the genetic relationship between the Hebei summer sowing millet region population and the Hebei spring sowing millet region population was the closest.It can be seen that the genetic diversity of P.oryzae in different regions was rich,and there was genetic differentiation among strains,but there was no significant correlation between genetic differentiation and geographical origin.

Key words: Foxtail millet, Pyricularia oryzae, SRAP, Similarity coefficient, Genetic diversity

刘佳, 张梦雅, 任世龙, 王永芳, 马继芳, 全建章, 刘磊, 董志平, 白辉, 李志勇. 利用SRAP分子标记分析谷瘟病菌遗传多样性[J]. 华北农学报, 2023, 38(5): 179-187. doi: 10.7668/hbnxb.20194152.

LIU Jia, ZHANG Mengya, REN Shilong, WANG Yongfang, MA Jifang, QUAN Jianzhang, LIU Lei, DONG Zhiping, BAI Hui, LI Zhiyong. Genetic Diversity of Pyricularia oryzae Based on SRAP Molecular Markers[J]. Acta Agriculturae Boreali-Sinica, 2023, 38(5): 179-187. doi: 10.7668/hbnxb.20194152.

http://www.hbnxb.net/CN/Y2023/V38/I5/179

图/表 8

参考文献 29

[1]	吕建珍, 王宏勇, 任莹, 马建萍, 赵凯. 不同生态区谷子品种表型鉴定及SSR遗传多样性分析[J]. 核农学报, 2023, 37(3):471-482.doi:10.11869/j.issn.1000-8551.2023.03.0471.
	Lü J Z, Wang H Y, Ren Y, Ma J P, Zhao K. Phenotypic evaluation and SSR genetic diversity analysis of foxtail millet cultivars in different ecological regions[J]. Journal of Nuclear Agricultural Sciences, 2023, 37(3):471-482. doi: 10.11869/j.issn.1000-8551.2023.03.0471
[2]	王彦辉, 樊永强, 韩燕丽, 苗兆丰, 别海, 刘劲哲, 赵万乐, 张晓申. 种植密度和施氮水平对谷子产量和农艺性状的影响[J]. 山西农业科学, 2023, 51(3):264-270.doi:10.3969/j.issn.1002-2481.2023.03.05.
	Wang Y H, Fan Y Q, Han Y L, Miao Z F, Bie H, Liu J Z, Zhao W L, Zhang X S. Effects of planting density and nitrogen application level on the yield and agronomic traits of millet[J]. Journal of Shanxi Agricultural Sciences, 2023, 51(3):264-270.
[3]	任世龙, 白辉, 董立, 董志平, 全建章, 李志勇, 邢继红. 中国不同地理来源谷瘟病菌rDNA-IGS序列分析[J]. 植物病理学报, 2017, 47(3):305-312.doi:10.13926/j.cnki.apps.000020.
	Ren S L, Bai H, Dong L, Dong Z P, Quan J Z, Li Z Y, Xing J H. Sequence analysis of rDNA-IGS of Magnaporthe oryzae isolates from different geographical origins in China[J]. Acta Phytopathologica Sinica, 2017, 47(3):305-312.
[4]	李志江, 贾冠清, 李祥羽, 李易初, 马金丰, 智慧, 汤沙, 张硕, 柴杨, 李艳东, 刁现民. 谷瘟病菌生理小种鉴别及谷子标准品种体系的构建[J]. 中国农业科学, 2016, 49(17):3307-3317.doi:10.3864/j.issn.0578-1752.2016.17.006.
	Li Z J, Jia G Q, Li X Y, Li Y C, Ma J F, Zhi H, Tang S, Zhang S, Chai Y, Li Y D, Diao X M. Determination of standard varieties for identifying physiological races of foxtail millet blast fungus[J]. Scientia Agricultura Sinica, 2016, 49(17):3307-3317.
[5]	Li Z J, Jia G Q, Li X Y, Li Y C, Zhi H, Tang S, Ma J F, Zhang S, Li Y D, Shang Z L, Diao X M. Identification of blast-resistance loci through genome-wide association analysis in foxtail millet (Setaria italica (L.) Beauv.)[J]. Journal of Integrative Agriculture, 2021, 20(8):2056-2064.doi:10.1016/s2095-3119(20)63196-3.
[6]	Tian B H, Zhang L X, Liu Y L, Wu P P, Wang W, Zhang Y, Li H J. Identification of QTL for resistance to leaf blast in foxtail millet by genome re-sequencing analysis[J]. Theoretical and Applied Genetics, 2021, 134(2):743-754.doi:10.1007/s00122-020-03730-w. pmid: 33270143
[7]	任世龙, 白辉, 王永芳, 全建章, 董志平, 李志勇, 邢继红. 谷瘟病菌无毒基因AVR1-CO39序列变异及遗传多样性分析[J]. 植物病理学报, 2018, 48(6):748-757.doi:10.13926/j.cnki.apps.000364.
	Ren S L, Bai H, Wang Y F, Quan J Z, Dong Z P, Li Z Y, Xing J H. Analysis of sequence variation and genetic polymorphsim in AVR1-CO39 of Magnaporthe oryzae in foxtail millet[J]. Acta Phytopathologica Sinica, 2018, 48(6):748-757.
[8]	黄锦春, 万思琦, 陈扬, 李丽红, 张自力, 朱建军, 吴梅, 邢丙聪, 邵清松, 陆晨飞. 利用ISSR与SRAP分子标记分析金线莲种质资源遗传多样性[J]. 浙江农林大学学报, 2023, 40(1):22-29.doi:10.11833/j.issn.2095-0756.20220473.
	Huang J C, Wan S Q, Chen Y, Li L H, Zhang Z L, Zhu J J, Wu M, Xing B C, Shao Q S, Lu C F. Genetic diversity of Anoectochilus roxburghii based on ISSR and SRAP molecular markers[J]. Journal of Zhejiang A&F University, 2023, 40(1):22-29.
[9]	任雪燕. 基于重测序探究猕猴桃溃疡病菌的遗传多样性及其在全球范围内的传播路径[D]. 北京: 北京林业大学, 2019.doi:10.26949/d.cnki.gblyu.2019.001068. URL
	Ren X Y. Genetic diversity of kiwifruit canker pathogen and its global transmission path based on resequencing[D]. Beijing: Beijing Forestry University, 2019.
[10]	王继春, 任金平, 刘小梅, 郭晓莉, 许蓉翎, 王立侠, 董秋华, 黄海武. 吉林省稻瘟病病菌RAPD分析[J]. 吉林农业大学学报, 2004, 26(4):363-366.doi:10.3969/j.issn.1000-5684.2004.04.003.
	Wang J C, Ren J P, Liu X M, Guo X L, Xu R L, Wang L X, Dong Q H, Huang H W. RAPD analysis of Magaporthe grisea in Jilin Province[J]. Journal of Jilin Agricultural University, 2004, 26(4):363-366.
[11]	朱名海, 皮磊, 舒灿伟, 周而勋. 南繁区稻瘟病菌遗传多样性和群体遗传结构的AFLP分析[J]. 中国水稻科学, 2017, 31(3):320-326.doi:10.16819/j.1001-7216.2017.6136.
	Zhu M H, Pi L, Shu C W, Zhou E X. AFLP analyses of genetic diversity and population genetic structure of Magnaporthe oryzae from South China crop breeding area[J]. Chinese Journal of Rice Science, 2017, 31(3):320-326.
[12]	兰波, 孙强, 杨迎青, 李湘民, 霍光华. 基于SSR序列的江西省不同生态地区稻瘟病菌遗传多样性分析[J]. 植物保护学报, 2020, 47(2):292-301.doi:10.13802/j.cnki.zwbhxb.2020.2019117.
	Lan B, Sun Q, Yang Y Q, Li X M, Huo G H. Genetic diversity analysis of rice blast fungus in different ecological regions of Jiangxi Province in China based on SSR[J]. Journal of Plant Protection, 2020, 47(2):292-301.
[13]	白玲玲, 刘行风, 陈政瑜, 周莹莹, 刘丽, 张艳菊, 张奥, 杨森. 基于SRAP标记的黄瓜霜霉菌遗传多样性分析[J]. 植物保护, 2017, 43(4):145-150,207.doi:10.3969/j.issn.0529-1542.2017.04.027.
	Bai L L, Liu X F, Chen Z Y, Zhou Y Y, Liu L, Zhang Y J, Zhang A, Yang S. Genetic diversity of Pseudoperonospora cubensis based on SRAP markers[J]. Plant Protection, 2017, 43(4):145-150,207.
[14]	李利霞, 赵奎华, 刘长远, 梁春浩, 关天舒, 王辉, 杨卫娟, 马晓飞. 葡萄炭疽病菌SRAP遗传多样性分析[J]. 中国农学通报, 2012, 28(12):230-235.doi:10.3969/j.issn.1000-6850.2012.12.042.
	Li L X, Zhao K H, Liu C Y, Liang C H, Guan T S, Wang H, Yang W J, Ma X F. Analysis on genetic diversity of Colletotrichum gloeosporioides based on SRAP[J]. Chinese Agricultural Science Bulletin, 2012, 28(12):230-235.
[15]	余垚颖, 刘勇, 张蕾, 黄小琴, 刘红雨, 周西全, 陈蓉. 利用SRAP分析油菜品种对核盘菌遗传分化的影响[J]. 植物病理学报, 2013, 43(4):383-392.doi:10.13926/j.cnki.apps.2013.04.018.
	Yu Y Y, Liu Y, Zhang L, Huang X Q, Liu H Y, Zhou X Q, Chen R. Effect of adaptation to rapeseed varieties on genetic differentiation of Sclerotinia sclerotiorum assessed with SRAP markers[J]. Acta Phytopathologica Sinica, 2013, 43(4):383-392.
[16]	杨潇湘, 梁洁, 黄小琴, 张蕾, 伍文宪, 周西全, 刘勇. 四川省不同地域的核盘菌遗传多样性分析[J]. 植物病理学报, 2019, 49(2):246-253.doi:10.13926/j.cnki.apps.000283.
	Yang X X, Liang J, Huang X Q, Zhang L, Wu W X, Zhou X Q, Liu Y. Genetic diversity of Sclerotinia sclerotiorum isolates from different regions in Sichuan Province by SRAP markers[J]. Acta Phytopathologica Sinica, 2019, 49(2):246-253.
[17]	张俊华, 沃三超, 杨明秀, 张瑶, 陈婉莹, 高云萍. 东北地区水稻纹枯病菌致病性及遗传多样性分析[J]. 东北农业大学学报, 2019, 50(11):1-10.doi:10.3969/j.issn.1005-9369.2019.11.001.
	Zhang J H, Wo S C, Yang M X, Zhang Y, Chen W Y, Gao Y P. Pathogenicity and genetic diversity analysis of Rhizoctonia solani population in Northeast China[J]. Journal of Northeast Agricultural University, 2019, 50(11):1-10.
[18]	常国蓉. 山西省谷子白发病菌遗传多样性与致病性分析[D]. 太原: 山西农业大学, 2021.
	Chang G R. Genetic diversity and pathogenicity analysis of white hair pathogen of foxtail millet in Shanxi Province[D]. Taiyuan: Shanxi Agricultural University, 2021.
[19]	宋振君, 李志勇, 王永芳, 任世龙, 白辉, 董志平. 谷子种子白发病菌带菌检测及种群多态性分析[J]. 植物保护学报, 2019, 46(3):651-657.doi:10.13802/j.cnki.zwbhxb.2019.2018197.
	Song Z J, Li Z Y, Wang Y F, Ren S L, Bai H, Dong Z P. Detection and population diversity analysis of the contamination of millet seeds with Sclerospora graminicola[J]. Journal of Plant Protection, 2019, 46(3):651-657.
[20]	任世龙, 杨振立, 白辉, 王永芳, 全建章, 董志平, 李志勇, 邢继红. 谷瘟病菌交配型基因克隆和不同地区交配型基因检测[J]. 华北农学报, 2018, 33(3):56-62.doi:10.7668/hbnxb.2018.03.010.
	Ren S L, Yang Z L, Bai H, Wang Y F, Quan J Z, Dong Z P, Li Z Y, Xing J H. Cloning of mating type genes from foxtail millet blast and molecular detection of Magnaporthe oryzae mating type genes in different region[J]. Acta Agriculturae Boreali-Sinica, 2018, 33(3):56-62.
[21]	Li G, Quiros C F. Sequence-related amplified polymorphism (SRAP),a new marker system based on a simple PCR reaction:Its application to mapping and gene tagging in Brassica[J]. Theoretical and Applied Genetics, 2001, 103(2/3):455-461.doi:10.1007/s001220100570. URL
[22]	贺雄, 丁朝辉, 周瑚, 朱华珺, 李俊俊, 丁宇倩, 胡立冬, 任佐华, 刘二明. 湖南桃江稻瘟病菌遗传多样性分析及无毒基因的鉴定[J]. 西南农业学报, 2019, 32(9):2040-2045.doi:10.16213/j.cnki.scjas.2019.9.012.
	He X, Ding C H, Zhou H, Zhu H J, Li J J, Ding Y Q, Hu L D, Ren Z H, Liu E M. Genetic diversity analysis and identification of avirulence genes for Magnaporthe oryzae in Taojiang,Hunan[J]. Southwest China Journal of Agricultural Sciences, 2019, 32(9):2040-2045.
[23]	Ngernmuen A, Suktrakul W, Damchuay K, Longya A, Kate-Ngam S, Jantasuriyarat C. Substantial enhancement of high polymorphic SSR marker development using in silico method from 18 available rice blast fungus genome sequences and its application in genetic diversity assessment[J]. Biologia, 2019, 74(9):1181-1189.doi:10.2478/s11756-019-00264-5.
[24]	Longya A, Talumphai S, Jantasuriyarat C. Morphological characterization and genetic diversity of rice blast fungus,Pyricularia oryzae,from Thailand using ISSR and SRAP markers[J]. Journal of Fungi, 2020, 6(1):38.doi:10.3390/jof6010038. URL
[25]	王喜刚, 杨波, 郭成瑾, 张丽荣, 沈瑞清. 宁夏马铃薯镰刀菌根腐病病原菌的ISSR-PCR标记体系建立及其遗传多样性分析[J]. 植物保护学报, 2020, 47(5):1019-1029.doi:10.13802/j.cnki.zwbhxb.2020.2019130.
	Wang X G, Yang B, Guo C J, Zhang L R, Shen R Q. Establishment system of ISSR-PCR and analysis of genetic diversity of root rot on potato caused by Fusarium spp.in Ningxia[J]. Journal of Plant Protection, 2020, 47(5):1019-1029.
[26]	陈琳, 蔺瑞明, 王凤涛, 庞云星, 李雪, 赵爱平, 张艳霞, 张金玲, 李文兴, 何苏琴, 冯晶, 李赟, 文才艺, 徐世昌. 禾生指葡孢霉的遗传多样性及对苗期青稞的致病性[J]. 中国农业科学, 2020, 53(1):213-224.doi:10.3864/j.issn.0578-1752.2020.01.020.
	Chen L, Lin R M, Wang F T, Pang Y X, Li X, Zhao A P, Zhang Y X, Zhang J L, Li W X, He S Q, Feng J, Li Y, Wen C Y, Xu S C. Genetic diversity of Dactylobotrys graminicola and its pathogenicity to Hordeum vulgare var.nudum seedlings[J]. Scientia Agricultura Sinica, 2020, 53(1):213-224.
[27]	江玉姬, 邓优锦, 刘新锐, 谢宝贵. 74株草菇遗传多样性分析[J]. 核农学报, 2015, 29(11):2084-2092.doi:10.11869/j.issn.100-8551.2015.11.2084.
	Jiang Y J, Deng Y J, Liu X R, Xie B G. Genetic diversity analysis of 74 strains of Volvariella volvace[J]. Journal of Nuclear Agricultural Sciences, 2015, 29(11):2084-2092.
[28]	罗琴, 赵欢, 彭正松, 李佩华, 杨玉霞, 夏燕莉, 邓迪. 射干内生真菌Fusarium proliferatum的ISSR和SRAP位点遗传多样性分析[J]. 中草药, 2019, 50(23):5847-5857.doi:10.7501/j.issn.0253-2670.2019.23.028.
	Luo Q, Zhao H, Peng Z S, Li P H, Yang Y X, Xia Y L, Deng D. Genetic diversity of endophytic fungi strains Fusarium proliferatum isolated from Belamcanda chinensis using ISSR and SRAP markers[J]. Chinese Traditional and Herbal Drugs, 2019, 50(23):5847-5857.
[29]	常佳迎, 刘树森, 马红霞, 石洁, 郭宁, 张海剑. 黄淮海地区夏玉米弯孢叶斑病菌遗传多样性分析[J]. 中国农业科学, 2019, 52(5):822-836.doi:10.3864/j.issn.0578-1752.2019.05.005.
	Chang J Y, Liu S S, Ma H X, Shi J, Guo N, Zhang H J. Genetic diversity analysis of Curvularia lunata in summer maize in Huang-Huai-Hai region[J]. Scientia Agricultura Sinica, 2019, 52(5):822-836.

编号 Number	菌株名称 Isolate code	来源 Origin	编号 Number	菌株名称 Isolate code	来源 Origin
1~13	CD1~CD13	河北春谷,承德	60	SD6	山东,济南
14~20	HB1~HB7	河北夏谷,石家庄	61~62	SD7~SD8	山东,临沂
21~28	HB8~HB15	河北夏谷,邯郸	63~66	SX1~SX4	山西,长治
29~32	HB16~HB19	河北夏谷,保定	67~68	SX5~SX6	山西,晋中
33~34	HB20~HB21	河北夏谷,沧州	69~71	SX7~SX9	山西,大同
35~43	HB22~HB30	河北夏谷,邢台	72~73	LN1~LN2	辽宁,朝阳
44~45	HB31~HB32	河北夏谷,衡水	74~79	LN3~LN8	辽宁,北票
46~48	HN1~HN3	河南,原阳	80~81	JL1~JL2	吉林
49	HN4	河南,郑州	82~84	HLJ1~HLJ3	黑龙江,哈尔滨
50	HN5	河南,新乡	85~86	HLJ4~HLJ5	黑龙江,齐齐哈尔
51~54	HN6~HN9	河南,安阳	87~90	Hn1~Hn4	海南,三亚
55~59	SD1~SD5	山东,潍坊

编号 Number	菌株名称 Isolate code	来源 Origin	编号 Number	菌株名称 Isolate code	来源 Origin
1~13	CD1~CD13	河北春谷,承德	60	SD6	山东,济南
14~20	HB1~HB7	河北夏谷,石家庄	61~62	SD7~SD8	山东,临沂
21~28	HB8~HB15	河北夏谷,邯郸	63~66	SX1~SX4	山西,长治
29~32	HB16~HB19	河北夏谷,保定	67~68	SX5~SX6	山西,晋中
33~34	HB20~HB21	河北夏谷,沧州	69~71	SX7~SX9	山西,大同
35~43	HB22~HB30	河北夏谷,邢台	72~73	LN1~LN2	辽宁,朝阳
44~45	HB31~HB32	河北夏谷,衡水	74~79	LN3~LN8	辽宁,北票
46~48	HN1~HN3	河南,原阳	80~81	JL1~JL2	吉林
49	HN4	河南,郑州	82~84	HLJ1~HLJ3	黑龙江,哈尔滨
50	HN5	河南,新乡	85~86	HLJ4~HLJ5	黑龙江,齐齐哈尔
51~54	HN6~HN9	河南,安阳	87~90	Hn1~Hn4	海南,三亚
55~59	SD1~SD5	山东,潍坊

上游引物名称 Forward primer	引物序列(5'-3') Primer sequence(5'-3')	下游引物名称 Reverse primer	引物序列(5'-3') Primer sequence(5'-3')
Me4	TGAGTCCAAACCGGACC	Em1	GACTGCGTACGAATTAAT
Me5	TGAGTCCAAACCGGAAG	Em2	GACTGCGTACGAATTTGC
Me6	TGAGTCCAAACCGGTAA	Em4	GACTGCGTACGAATTTGA
Me7	TGAGTCCAAACCGGACA	Em7	GACTGCGTACGAATTCAA
Me8	TGAGTCCAAACCGGTGT

上游引物名称 Forward primer	引物序列(5'-3') Primer sequence(5'-3')	下游引物名称 Reverse primer	引物序列(5'-3') Primer sequence(5'-3')
Me4	TGAGTCCAAACCGGACC	Em1	GACTGCGTACGAATTAAT
Me5	TGAGTCCAAACCGGAAG	Em2	GACTGCGTACGAATTTGC
Me6	TGAGTCCAAACCGGTAA	Em4	GACTGCGTACGAATTTGA
Me7	TGAGTCCAAACCGGACA	Em7	GACTGCGTACGAATTCAA
Me8	TGAGTCCAAACCGGTGT

引物组合 Primer combination	总条带数/条 Total of band	多态性条带数目/条 Polymorphic band	多态性比率/% Percentage of polymorphic band
Me4/Em7	216	172	79.63
Me5/Em2	216	180	83.33
Me6/Em2	216	170	78.70
Me6/Em4	216	180	83.33
Me6/Em7	216	207	95.83
Me7/Em1	216	204	94.44
Me8/Em2	216	188	87.04
Me8/Em7	216	191	88.43
总计Total	1 728	1 492	86.34
