长枝木霉菌非核糖体肽合成酶基因启动子NP249的克隆及功能验证

doi:10.7668/hbnxb.20193783

摘要/Abstract

摘要：

Peptaibols是由真菌非核糖体肽合成酶(NRPS)合成的多肽抗菌素,能够抑制多种病原菌,促进植物生长和诱导细胞凋亡。为了深入探究木霉菌非核糖体肽类抗菌素合成的调控机制,为通过基因工程来提高Peptaibols产量提供帮助。通过设计引物,克隆长枝木霉菌非核糖体肽合成酶基因NP249 的上游启动子区域,然后构建到一个具有绿色荧光蛋白基因(GFP)融合表达载体,验证基因NP249的启动子。以长枝木霉菌总DNA为模板,使用引物249-1B和249-4X,通过PCR技术扩增克隆到了NRPS的启动区域,全长1 204 bp。通过启动子NP249替代载体上GFP启动子,分别用BamH Ⅰ和XmaⅠ酶切pCX-62载体和启动子片段,T₄连接酶连接,构建GFP融合载体pCX-62-NP249-GFP。通过限制性内切酶介导的转化技术转化(REMI)木霉菌原生质体,得到的转化子转到含潮霉素的培养基上进行筛选,得到潮霉素抗性转化子Z249,进一步通过荧光显微镜检测转化子,转化子Z249能检测到GFP荧光。克隆到的启动子能启动GFP表达,具备启动子功能。

关键词: 长枝木霉菌, 非核糖体肽合成酶, 启动子

Abstract:

Peptaibols are polypeptide antibacterials synthesized by fungal non-ribosomal peptide synthetases(NRPS),which can inhibit a variety of pathogens,promote plant growth and induce cell apoptosis.In order to further explore the regulatory mechanism of non-ribosomal peptide antimicrobial synthesis in Trichoderma spp.,and to help improve the output of peptaibols through genetic engineering.By designing primers,the upstream promoter region of T.longibrachiatum non-ribosomal peptide synthetase gene NP249 was cloned,and then a green fluorescent protein gene(GFP)fusion expression vector was constructed to verify the promoter of gene NP249.A 1 204 bp activating region of NRPS was amplified by PCR using the primers 249-1B and 249-4X from total DNA of T.longibrachiatum as a template.Replaced the GFP promoter on the vector by promoter NP249.Digestion of pCX-62 vector and promoter fragment with BamH Ⅰ and Xma Ⅰ,respectively,and ligation with T₄ ligase,The GFP fusion vector pCX-62-NP249-GFP was constructed,and the protoplasts of Trichoderma spp..The hydromycin resistant transformer Z249 was screened.The transformer Z249 could detect GFP fluorescence by fluorescence microscopy.The cloned promoter could initiate GFP expression and function as a promoter.

Key words: Trichoderma longibrachiatum, Non-ribosomal peptide synthase, Promoter

官萌娇, 孙旭杰, 夏卓林, 任爱芝, 赵培宝. 长枝木霉菌非核糖体肽合成酶基因启动子NP249的克隆及功能验证[J]. 华北农学报, 2023, 38(3): 199-203. doi: 10.7668/hbnxb.20193783.

GUAN Mengjiao, SUN Xujie, XIA Zhuolin, REN Aizhi, ZHAO Peibao. Cloning and Functional Verification of Non-ribosomal Peptide Synthetase Gene Promoter NP249 from Trichoderma longibrachiatum[J]. Acta Agriculturae Boreali-Sinica, 2023, 38(3): 199-203. doi: 10.7668/hbnxb.20193783.

http://www.hbnxb.net/CN/Y2023/V38/I3/199

图/表 7

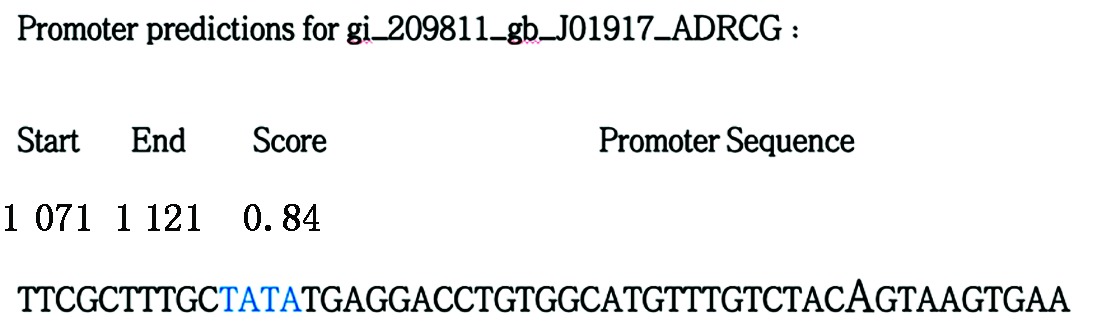

图1 启动子预测

Fig.1 Promoter predictions

图2 测序后 NP249 基因片段PCR扩增电泳结果 M.DL2000 DNA Marker;1,2.NP249基因片段。

Fig.2 PCR amplification and electrophoresis result of NP249 gene fragment after sequence M.DL2000 DNA Marker;1,2.NP249 gene fragment.

图3 重组质粒电泳结果 M.DL5000 DNA Marker;1.pMD-18T重组质粒。

Fig.3 Recombinant plasmid electrophoresis results M.DL5000 DNA Marker;1.pMD-18T recombinant plasmid.

图4 GFP融合载体菌液PCR电泳结果 M.DL2000 DNA Marker;1.目的片段;2.GFP融合载体菌液PCR。

Fig.4 PCR electrophoresis result of GFP fusion vector bacterial solution M.DL2000 DNA Marker;1.Target fragment;2.GFP fusion vector bacterial solution PCR.

图5 GFP融合载体双酶切电泳结果 M.DL5000 DNA Marker;1.GFP融合载体双酶切。

Fig.5 Result of double enzyme digestion electrophoresis with GFP fusion vector M.DL5000 DNA Marker;1.Double enzyme digestion of GFP fusion vector.

图6 PCR检测转化子中潮霉素抗性基因 M.DL2000 DNA Marker;1.野生型长枝木霉SMF2 DNA;2,3.转化子DNA。

Fig.6 Detection of hph gene in transformants by PCR amplification M.DL2000 DNA Marker;1.DNA of Trichoderma longibrachiatum SMF2;2,3.DNA of transformants.

图7 转化子菌丝荧光检测

Fig.7 Fluorescent detection of transformant hypha

参考文献 23

[1]	Ferreira F V, Musumeci M A. Trichoderma as biological control agent:Scope and prospects to improve efficacy[J]. World Journal of Microbiology & Biotechnology, 2021, 37(5):90.doi:10.1007/s11274-021-03058-7. doi: 10.1007/s11274-021-03058-7
[2]	Alfiky A, Weisskopf L. Deciphering Trichoderma-plant-pathogen interactions for better development of biocontrol applications[J]. Journal of Fungi, 2021, 7(1):61.doi:10.3390/jof7010061. doi: 10.3390/jof7010061 URL
[3]	Kai K J, Mine K, Akiyama K, Ohki S, Hayashi H. Anti-plant viral activity of peptaibols,trichorzins HA Ⅱ,HA Ⅴ,and HA Ⅵ,isolated from Trichoderma harzianum HK-61[J]. Journal of Pesticide Science, 2018, 43(4):283-286.doi:10.1584/jpestics.D18-039. doi: 10.1584/jpestics.D18-039 URL
[4]	Gavryushina I A, Georgieva M L, Kuvarina A E, Sadykova V S. Peptaibols as potential antifungal and anticancer antibiotics:Current and foreseeable development(review)[J]. Applied Biochemistry and Microbiology, 2021, 57(5):556-563.doi:10.1134/S0003683821050070. doi: 10.1134/S0003683821050070
[5]	Lam Y T H, Ricardo M G, Rennert R, Frolov A, Porzel A, Brandt W, Stark P, Westermann B, Arnold N. Rare glutamic acid methyl ester peptaibols from Sepedonium ampullosporum Damon KSH 534 exhibit promising antifungal and anticancer activity[J]. International Journal of Molecular Sciences, 2021, 22(23):12718.doi:10.3390/ijms222312718. doi: 10.3390/ijms222312718 URL
[6]	Shi M, Wang H N, Xie S T, Luo Y, Sun C Y, Chen X L, Zhang Y Z. Antimicrobial peptaibols,novel suppressors of tumor cells,targeted calcium-mediated apoptosis and autophagy in human hepatocellular carcinoma cells[J]. Molecular Cancer, 2010, 9:26.doi:10.1186/1476-4598-9-26. doi: 10.1186/1476-4598-9-26
[7]	Song X Y, Shen Q T, Xie S T, Chen X L, Sun C Y, Zhang Y Z. Broad-spectrum antimicrobial activity and high stability of Trichokonins from Trichoderma koningii SMF2 against plant pathogens[J]. FEMS Microbiology Letters, 2006, 260(1):119-125.doi:10.1111/j.1574-6968.2006.00316.x. doi: 10.1111/j.1574-6968.2006.00316.x URL
[8]	Su H N, Chen Z H, Song X Y, Chen X L, Shi M, Zhou B C, Zhao X, Zhang Y Z. Antimicrobial peptide trichokonin VI-induced alterations in the morphological and nanomechanical properties of Bacillus subtilis[J]. PLoS One, 2012, 7(9):e45818.doi:10.1371/journal.pone.0045818. doi: 10.1371/journal.pone.0045818
[9]	柳婷婷, 刘南南, 王桂清. 康宁霉素对臭椿苗期致病菌的离体抑菌活性[J]. 广东农业科学, 2018, 45(7):81-86.doi:10.16768/j.issn.1004-874X.2018.07.013. doi: 10.16768/j.issn.1004-874X.2018.07.013
	Liu T T, Liu N N, Wang G Q. Fungistasis of trichokonins on pathogens in ailanthus seedling in vitro[J]. Guangdong Agricultural Sciences, 2018, 45(7):81-86.
[10]	Zhao P B, Ren A Z, Dong P, Sheng Y S, Chang X, Zhang X S. The antimicrobial peptaibol trichokonin IV promotes plant growth and induces systemic resistance against Botrytis cinerea infection in moth orchid[J]. Journal of Phytopathology, 2018, 166(5):346-354.doi:10.1111/jph.12692. doi: 10.1111/jph.12692 URL
[11]	Li H Y, Luo Y, Zhang X S, Shi W L, Gong Z T, Shi M, Chen L L, Chen X L, Zhang Y Z, Song X Y. Trichokonins from Trichoderma pseudokoningii SMF2 induce resistance against Gram-negative Pectobacterium carotovorum subsp.carotovorum in Chinese cabbage[J]. FEMS Microbiology Letters, 2014, 354(1):75-82.doi:10.1111/1574-6968.12427. doi: 10.1111/1574-6968.12427 URL
[12]	Luo Y, Zhang D D, Dong X W, Zhao P B, Chen L L, Song X Y, Wang X J, Chen X L, Shi M, Zhang Y Z. Antimicrobial peptaibols induce defense responses and systemic resistance in tobacco against Tobacco mosaic virus[J]. FEMS Microbiology Letters, 2010, 313(2):120-126.doi:10.1111/j.1574-6968.2010.02135.x. doi: 10.1111/j.1574-6968.2010.02135.x URL
[13]	解树涛, 宋晓妍, 石梅, 陈秀兰, 孙彩云, 张玉忠. 康宁木霉(Trichoderma koningii)SMF2分泌的peptaibols类抗菌肽Trichokonins抑菌活性研究[J]. 山东大学学报(理学版), 2006, 41(6):140-144.doi:10.3969/j.issn.1671-9352.2006.06.031. doi: 10.3969/j.issn.1671-9352.2006.06.031
	Xie S T, Song X Y, Shi M, Chen X L, Sun C Y, Zhang Y Z. Antimicrobial activities of Trichokonins:Peptaibol-like antimicrobial peptides produced by Trichoderma koningii SMF2[J]. Journal of Shandong University(Natural Science), 2006, 41(6):140-144.
[14]	盛寅生. 长枝木霉SMF2对葫芦炭疽病防控及其机理研究[D]. 聊城: 聊城大学, 2019:5-8.doi:10.27214/d.cnki.glcsu.2019.000299. doi: 10.27214/d.cnki.glcsu.2019
	Sheng Y S. Study on prevention and control of gourd anthracnose by SMF2 in Trichoderma longibrachiatum and its mechanism[D]. Liaocheng: Liaocheng University, 2019:5-8.
[15]	魏小雅, 刘欣, 于宏伟, 郭润芳. 微生物非核糖体多肽的合成基因簇挖掘及其合成研究进展[J]. 中国抗生素杂志, 2021, 46(5):353-361.doi:10.3969/j.issn.1001-8689.2021.05.001. doi: 10.3969/j.issn.1001-8689.2021.05.001
	Wei X Y, Liu X, Yu H W, Guo R F. Advances in biosynthetic gene cluster mining and biosynthesis of microbial non-ribosomal peptides[J]. Chinese Journal of Antibiotics, 2021, 46(5):353-361.
[16]	王世媛. 非核糖体肽合成酶(NRPSs)作用机理与应用的研究进展[J]. 微生物学报, 2007, 47(4):734-737.doi:10.3321/j.issn.0001-6209.2007.04.034. doi: 10.3321/j.issn.0001-6209.2007.04.034
	Wang S Y. Advances in the study of the mechanism and application of nonribosomal peptide synthetases[J]. Acta Microbiologica Sinica, 2007, 47(4):734-737.
[17]	Grünewald J, Marahiel M A. Chemoenzymatic and template-directed synthesis of bioactive macrocyclic peptides[J]. Microbiology and Molecular Biology Review, 2006, 70(1):121-146. doi: 10.1128/MMBR.70.1.121-146.2006 URL
[18]	Mootz D H, Marahiel A M. Biosynthetic systems for nonribosomal peptide antibiotic assembly[J]. Current Opinion in Chemical Biology, 1997, 1(4):543-551.doi:10.1016/S1367-5931(97)80051-8. doi: 10.1016/S1367-5931(97)80051-8 pmid: 9667890
[19]	许蒙, 陈锡玮, 胡昌华. 真菌单模块非核糖体肽合成酶的基因组挖掘与天然产物研究[J]. 中国抗生素杂志, 2018, 43(6):645-653.doi:10.3969/j.issn.1001-8689.2018.06.002. doi: 10.3969/j.issn.1001-8689.2018.06.002
	Xu M, Chen X W, Hu C H. Genome mining and natural products research on fungal single modular nonribosomal peptide synthetases[J]. Chinese Journal of Antibiotics, 2018, 43(6):645-653.
[20]	李红玲. 非核糖体肽合成酶结构研究进展[J]. 临床合理用药杂志, 2013, 6(28):180-181.doi:10.15887/j.cnki.13-1389/r.2013.28.152. doi: 10.15887/j.cnki.13-1389/r.2013.28.152
	Li H L. Research progress on the structure of non-ribosomal peptide synthase[J]. Chinese Journal of Clinical Rational Drug Use, 2013, 6(28):180-181.
[21]	巩志廷. 长枝木霉SMF2 peptaibols合成酶和蛋白酶基因敲除体系的构建及其peptaibols在植物生长中的功能研究[D]. 济南: 山东大学, 2014.doi:10.7666/d.Y2598192. doi: 10.7666/d.Y2598192
	Gong Z T. Gene-knockout system construction of peptaibols synthetase gene and protease gene of Trichoderma longibrachiatum SMF2 and functional study of peptaibols in plant growth[D]. Jinan: Shandong University, 2014.
[22]	Zhou Y R, Song X Y, Li Y, Shi J C, Shi W L, Chen X L, Liu W F, Liu X M, Zhang W X, Zhang Y Z. Enhancing peptaibols production in the biocontrol fungus Trichoderma longibrachiatum SMF2 by elimination of a putative glucose sensor[J]. Biotechnology and Bioengineering, 2019, 116(11):3030-3040.doi:10.1002/bit.27138. doi: 10.1002/bit.27138 URL
[23]	Shi J C, Shi W L, Zhou Y R, Chen X L, Zhang Y Z, Zhang X, Zhang W X, Song X Y. The putative methyltransferase TlLAE1 is involved in the regulation of peptaibols production in the biocontrol fungus Trichoderma longibrachiatum SMF2[J]. Frontiers in Microbiology, 2020, 11:1267.doi:10.3389/fmicb.2020.01267. doi: 10.3389/fmicb.2020.01267 URL
